Special Offer | Monport 80W CO2 Laser Engraver & Cutter (28" x 20") with Autofocus and Bracket
Free & fast shipping from US
Dimension & Specifications
Machine Dimension: 49.2" x 36" x 36.2" ( 125cm x 91.5cm x 92cm ）
Working Dimension: 28" x 20" ( 70 cm x 50 cm )
Front / Back Pass-Through Dimension: 32.3” x 3.9” ( 83.5cm x 9.5 cm )
Side Pass-Through Dimension: 20.5” x 0.8” ( 52cm x 2cm )
Max. Processing Speed: 800mm/s
Focal Lens Diameter: 18mm
Mirror Diameter: 25mm
Max. Acceleration ( X-Axis ): 315 ips2 ( 8000 mm/s2 )
Max. Acceleration ( Y-Axis ): 78.8 ips2 ( 2000 mm/s2 )
Max. Z-depth: 8.6”
Product Weight: 462lbs
80W CO2 Engraver Features
For Larger Engraving Projects
With a spacious 20*28’’ work bed, and four-way pass-through for items extending the workbed, this engraving tool is designed for big projects. The high-quality metal honeycomb board and aluminum panel provide double protection, and it's moveable for thicker materials, ensuring a secure and stable environment for your work pieces.
Great Compatibility
Monport 80W CO2 laser engraver is compatible with Windows and Mac, supporting RDWorks and LightBurn. Whether for DIY or commercial use, users can attain precise control and engravings on various nonmetallic surfaces, such as wood, glass, acrylic, leather, with a depth of 0.59'' and speeds up to 800mm/s.
High-Performance Laser Beam
Monport & Yongli's joint research and development have produced a high-efficiency laser beam for this laser cutter, yielding up to 12,000 hours of operation. It delivers an outstanding 6.5% higher actual RP compared to competitors with identical laser tube specifications.
Intelligent Control Panel
Driven by Ruisin KT332N motherboard, our laser engraving machine offers direct control of auto-focusing, Z-axis movement, and air assistance. Dynamic display of processing trajectory & progress enables users to modify layer parameters on control panel with auto saving. More uniquely, the system supports power-off resume, and accurate work time preview to the millisecond.

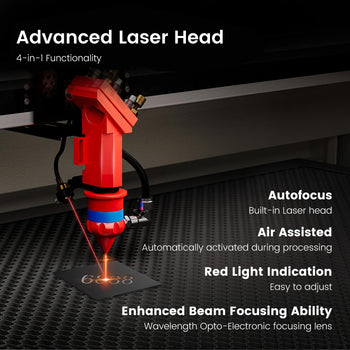

Advanced 4-in-1 Laser Head
Monport combines four functions on one laser head, including laser emission, autofocus, air assist, and red light indication. More importantly, we choose high specification focusing lenses (produced by wavelength optoelectronics).The above will give you an unprecedented carving and cutting experience and streamline your engraving process with convenience and efficiency.
Comprehensive Safety Features
Our engraving machine ensures user safety with features like an emergency stop button for fast power shutdown, independent laser control with a dedicated key, cover protection to halt operation when opened, and auto-stop for low water or high temperature.The fireproof window allows observation, while built-in ventilation ensures instant smoke removal.
Package Contents
Laser Engraver Machine *1
A Pair of Laser Protective Glasses *1
Accessory Bag *1
Ethernet to Ethernet Cable *1
USB Type-A to Type-A Cable *1
Venting Exhaust Duct *1
USB Drive with Software (RDworks) *1
Hex Wrenches *10
Double-sided Tape *1
Power Cord *2
Keys *2
Silicone Sealant *1
Stainless Steel Clamp *1
Instruction Manual *1
Warranty & Certifications
2 year warranty on all 80W laser machines and parts
1 year warranty on 80W laser tubes
FDA Approved & CE Certified
Manual List
Download the Software: RDworks
Download the Manual: 80W CO2 User Manual
Download the Settings: CO2 Parameter Settings
Compatible Accessories: Rotary Axis, Water Chiller
We sponsor DIY laser files: Free DIY laser files
Questions & Answers
Have a Question?
-
what do autofocus mean
The autofocus function of the engraving machine is an intelligent focusing method, which mainly achieves focusing by changing the distance between the probe and the work material. The laser head is equipped with a laser module, which emits a laser to measure the distance between the probe and the work material. The focusing system then adjusts the laser focal length according to this distance to ensure that the laser can form a clearer and more accurate engraving effect on the work material. With autofocus, the engraving machine can automatically adjust the focal length to adapt to materials of different thicknesses, thereby ensuring the accuracy and consistency of the engraving effect.
-
What is the bracket?
The bracket can increase the height of the machine, making it easier to operate. If you want to place the machine on a table, you might consider a machine without a bracket.
-
Does this unit have a pass through
Front / Back Pass-Through Dimension: 32.3” x 3.9” ( 83.5cm x 9.5 cm )
