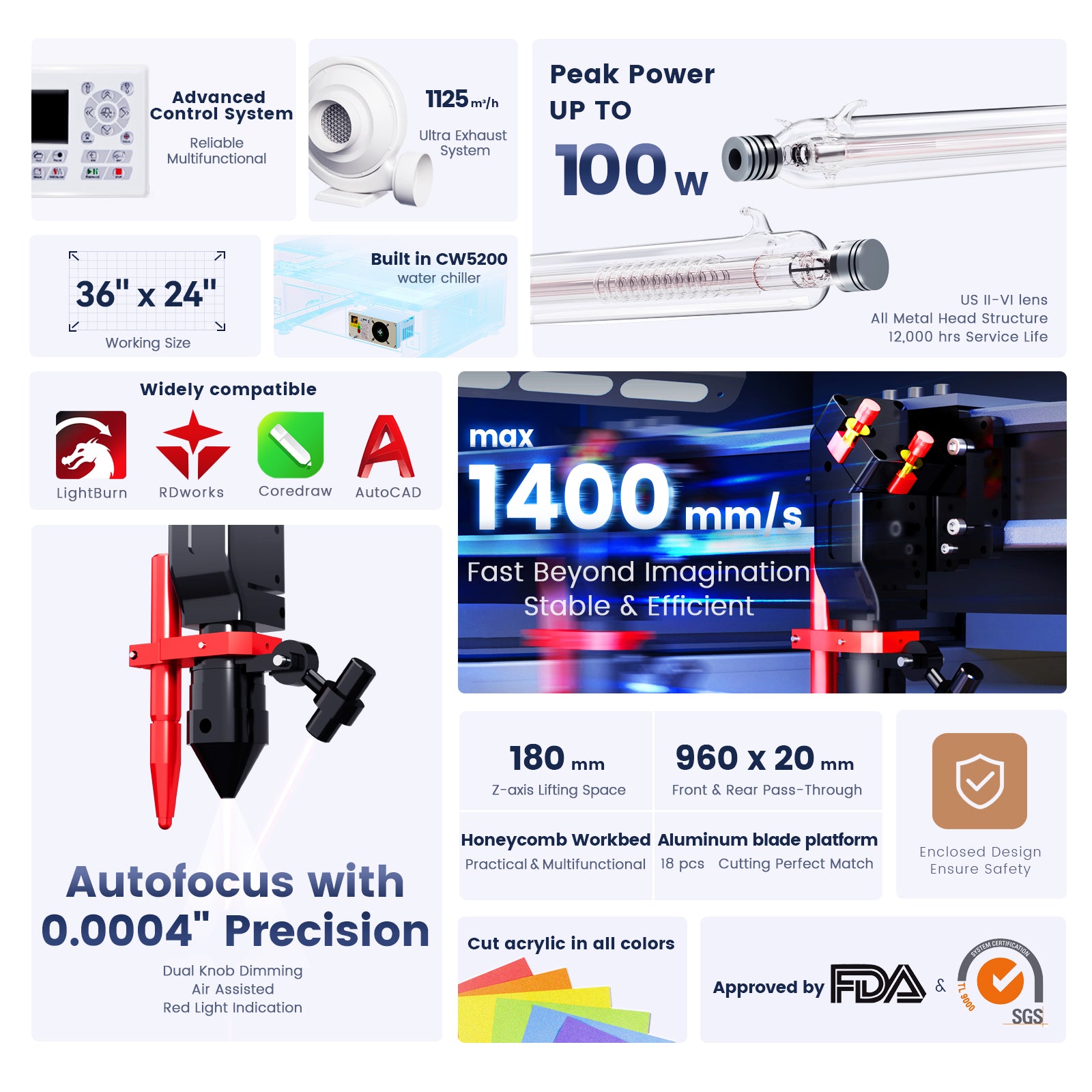

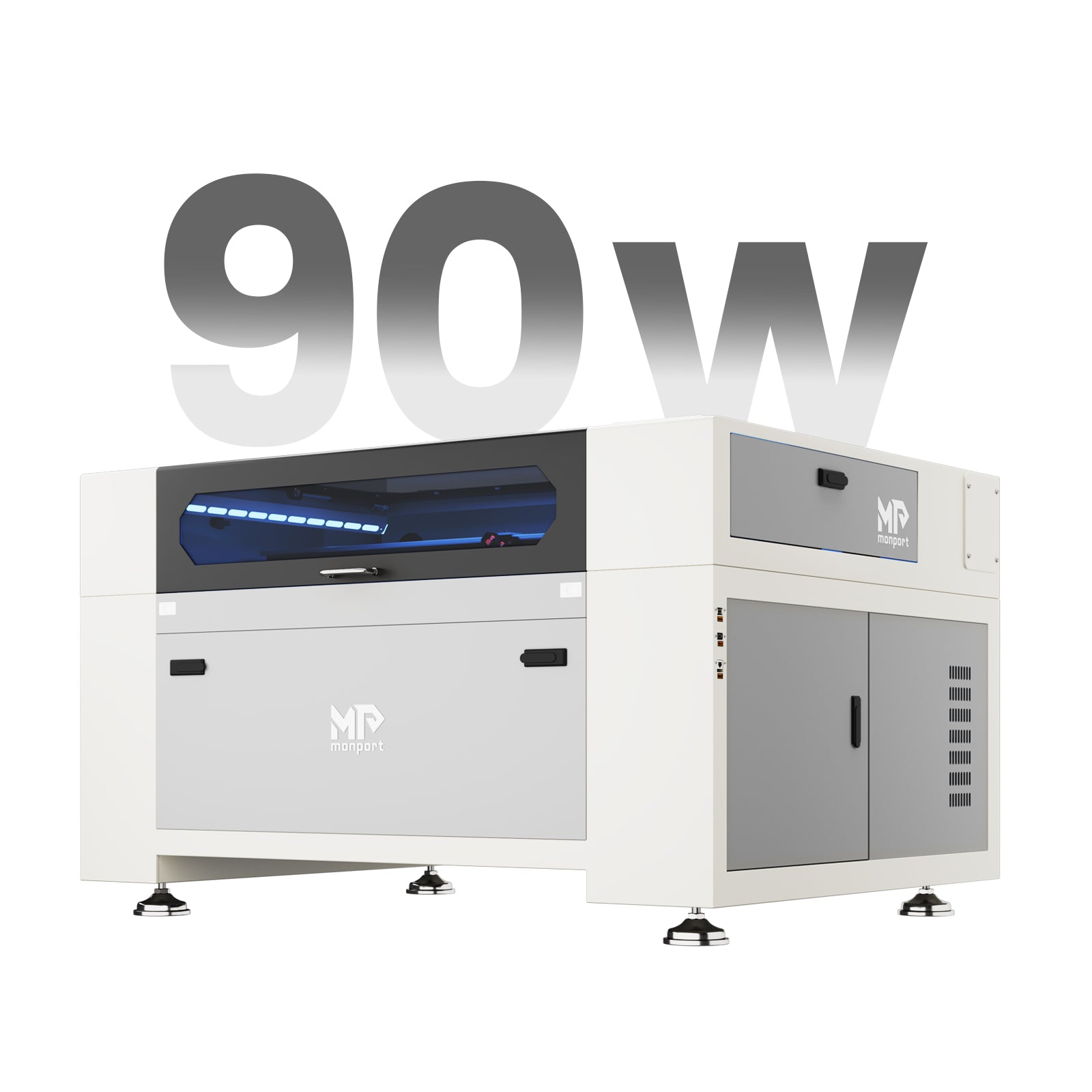

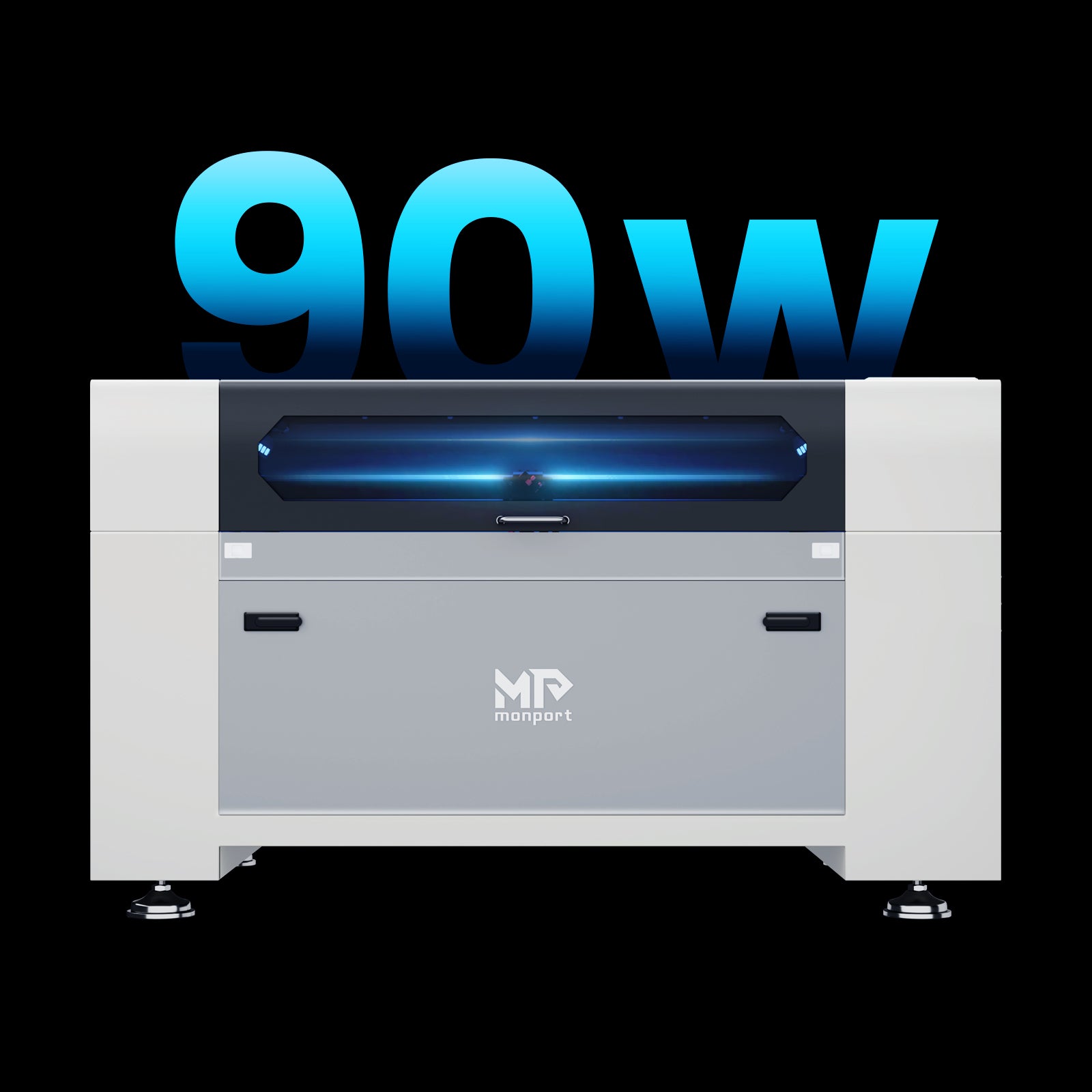

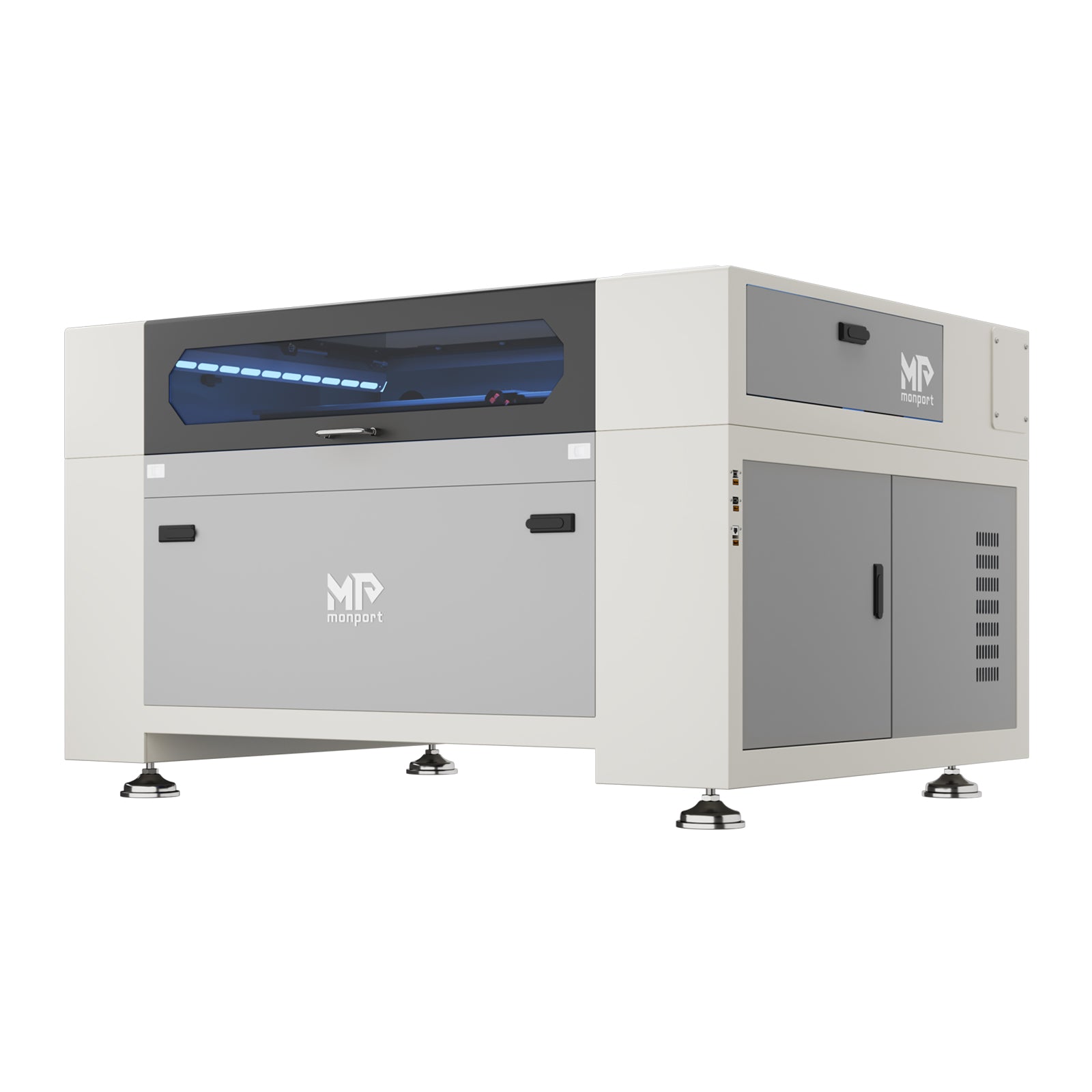

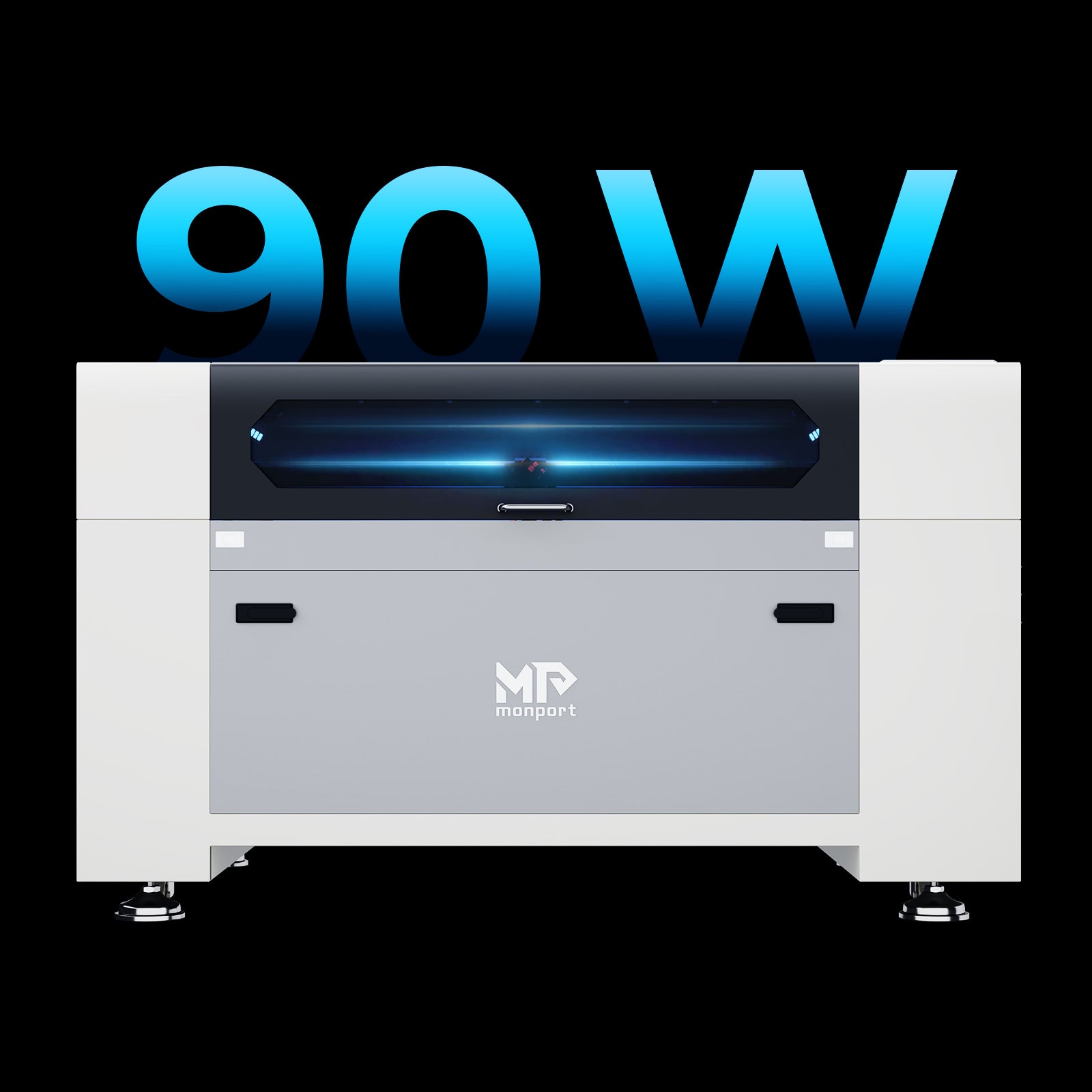

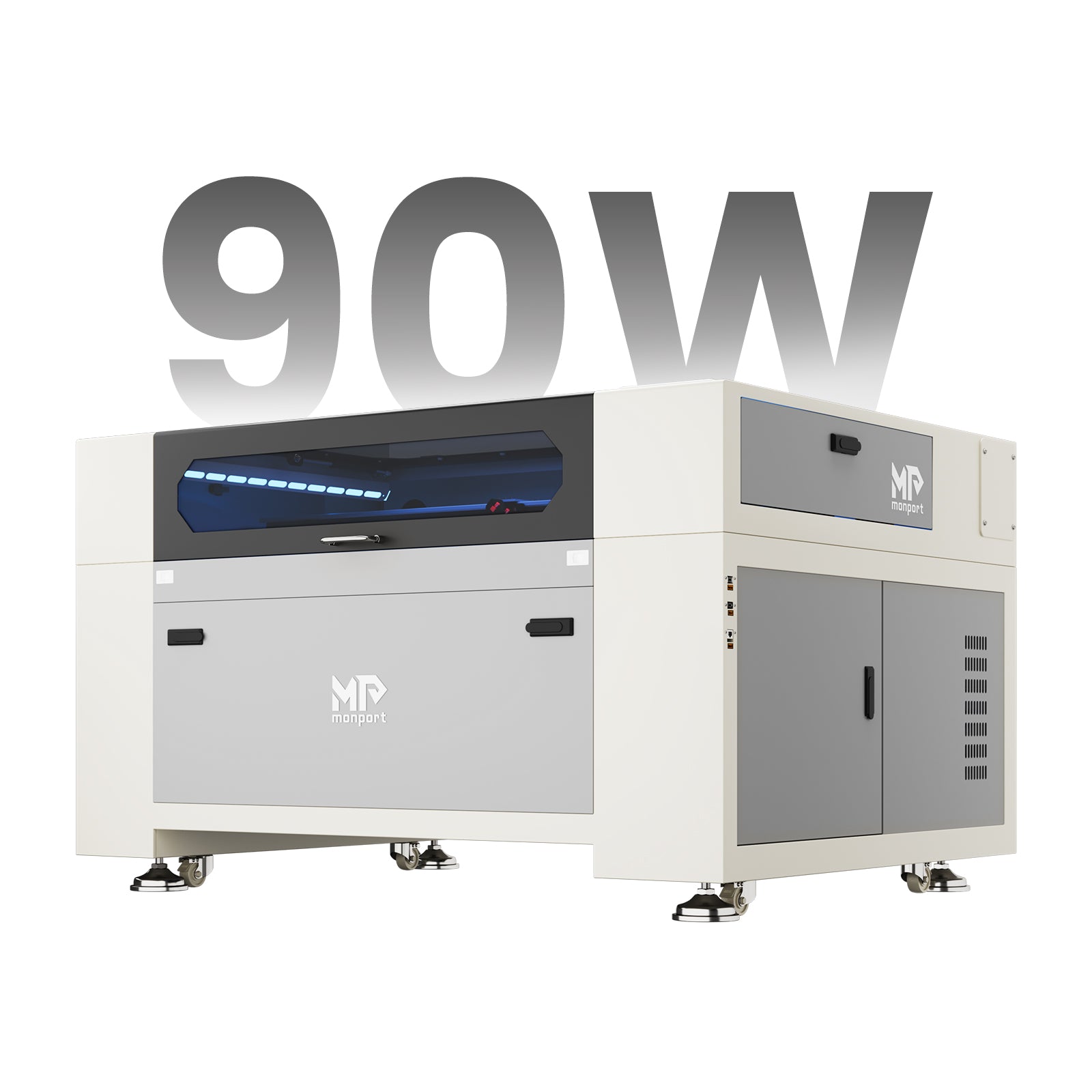

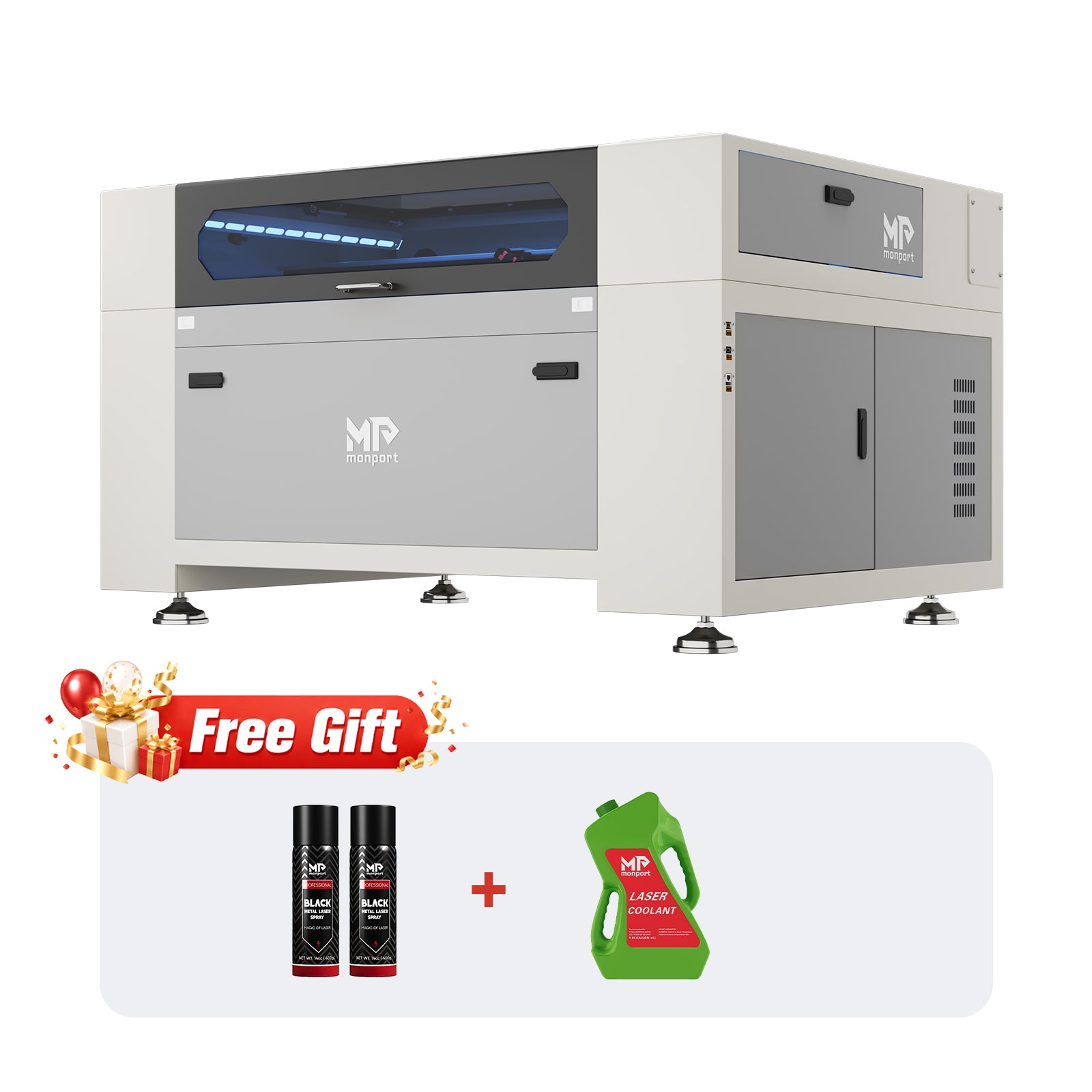

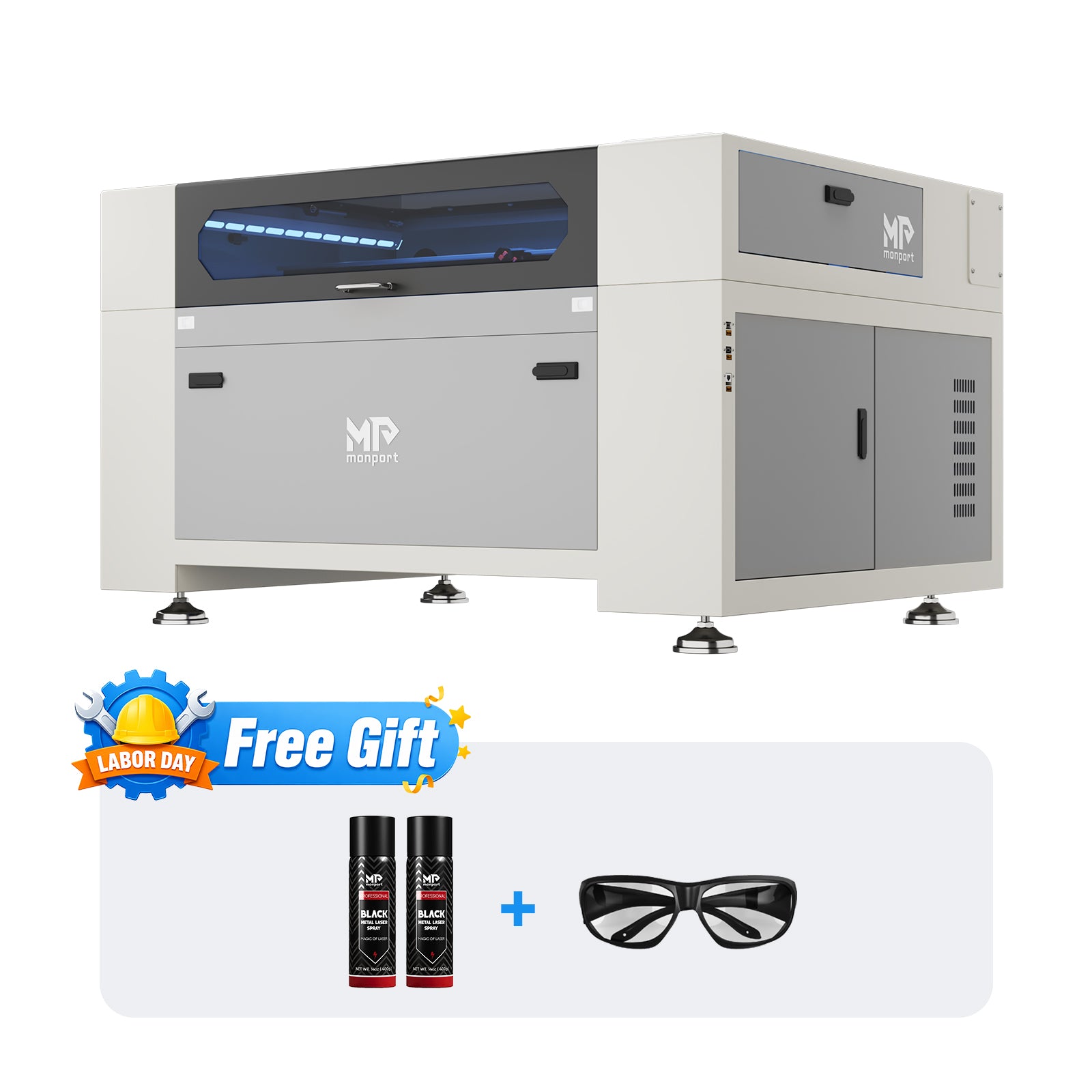

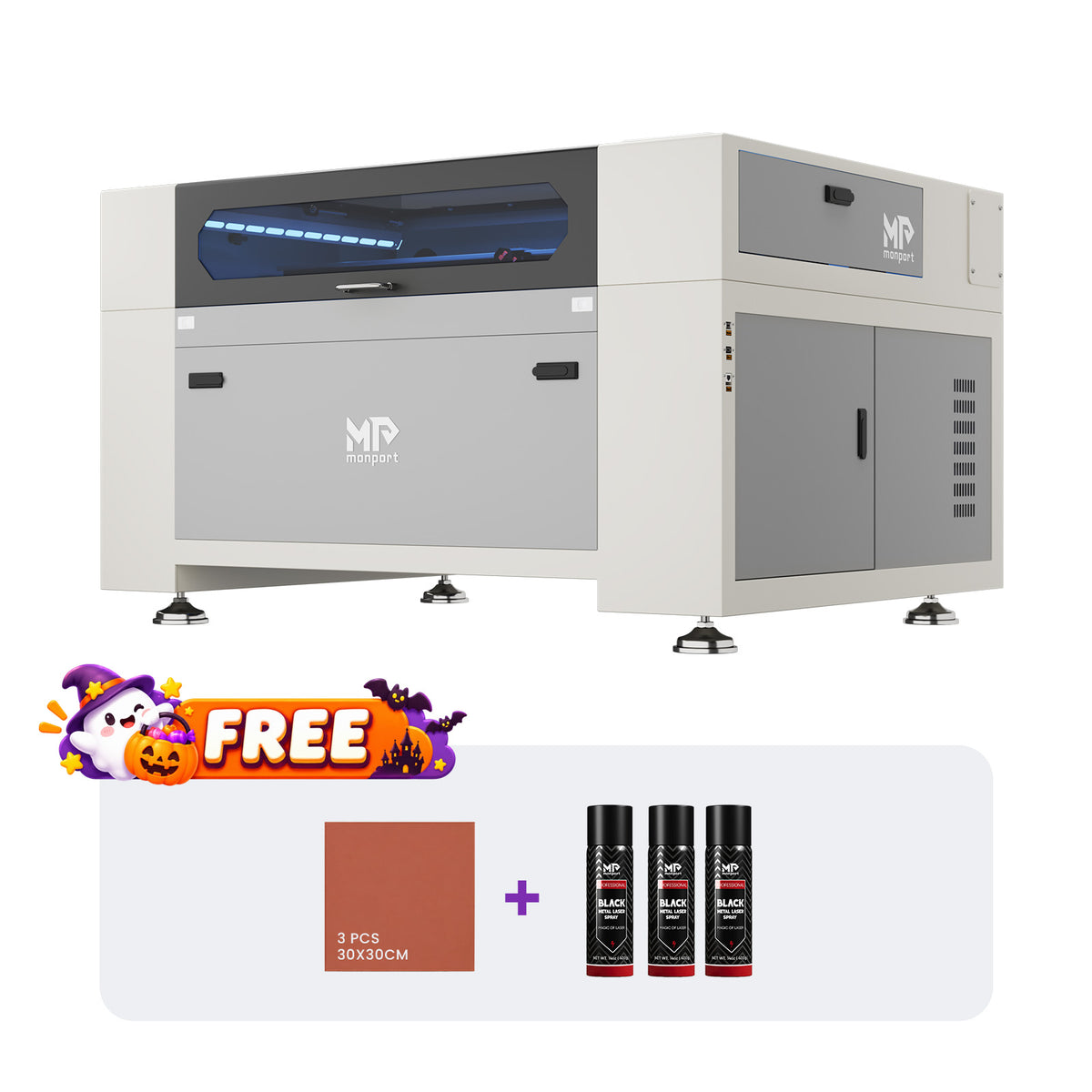

Monport Effi9S Upgraded 90W CO2 Laser Engraver & Cutter (36" × 24") with Autofocus and Built-in Water Chiller
Monport Effi9S Upgraded 90W CO2 Laser Engraver & Cutter (36" × 24") with Autofocus and Built-in Water Chiller
In stock
Couldn't load pickup availability
Watch Creators Unbox & Put It to Work
In this video, I break down the real pros and cons of owning a Monport laser after setting it up and using it in a real workshop environment. This video dives into understanding the optimal power and speed settings for your CO2 laser engraver. We'll explore how to get the most out of your laser machine, ensuring precise laser engraving results. Discover key techniques for maximizing efficiency with your laser co2 unit.
In this video, we’ll be making a custom holiday diorama of a mini fireplace with stockings and wrapped gifts. We’re going to be using boxes.py to create the shape of our design, lightburn to set up settings/cutomize design, we’ll use the Mopnport Effi9s CO2 laser to cut out our design/engrave foam, use paint to add dimension to the fireplace, and a variety household items to add extra details to our miniature brick fireplace diorama. I hope you enjoy this episode of our Craftmas series.
In this video, we unbox, set up, and test the upgraded Monport Effi9S 90W CO2 Laser Engraver & Cutter with Autofocus and a Built-in Water Chiller. You’ll see real cutting and engraving tests to help you set up your own machine or decide whether this model is the right fit for you. We’ll run pass and power tests on 1/4" plywood and 5mm acrylic, and evaluate its air-assist performance and integrated red-light positioning. With a max engraving speed of 1400 mm/s, we’ll also test how quickly it can cut a 30-inch-wide piece of material. Enjoy the machine—and the results!

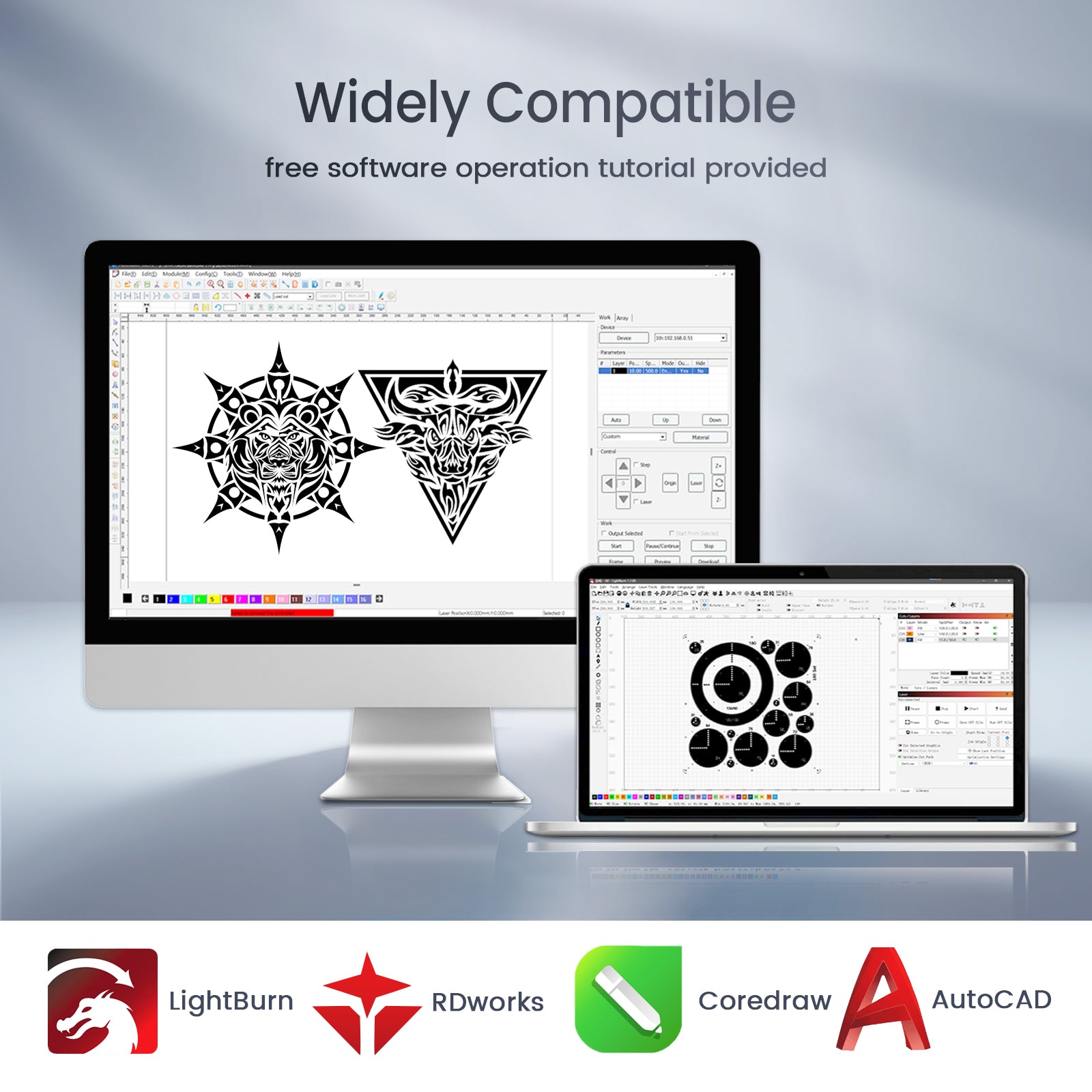

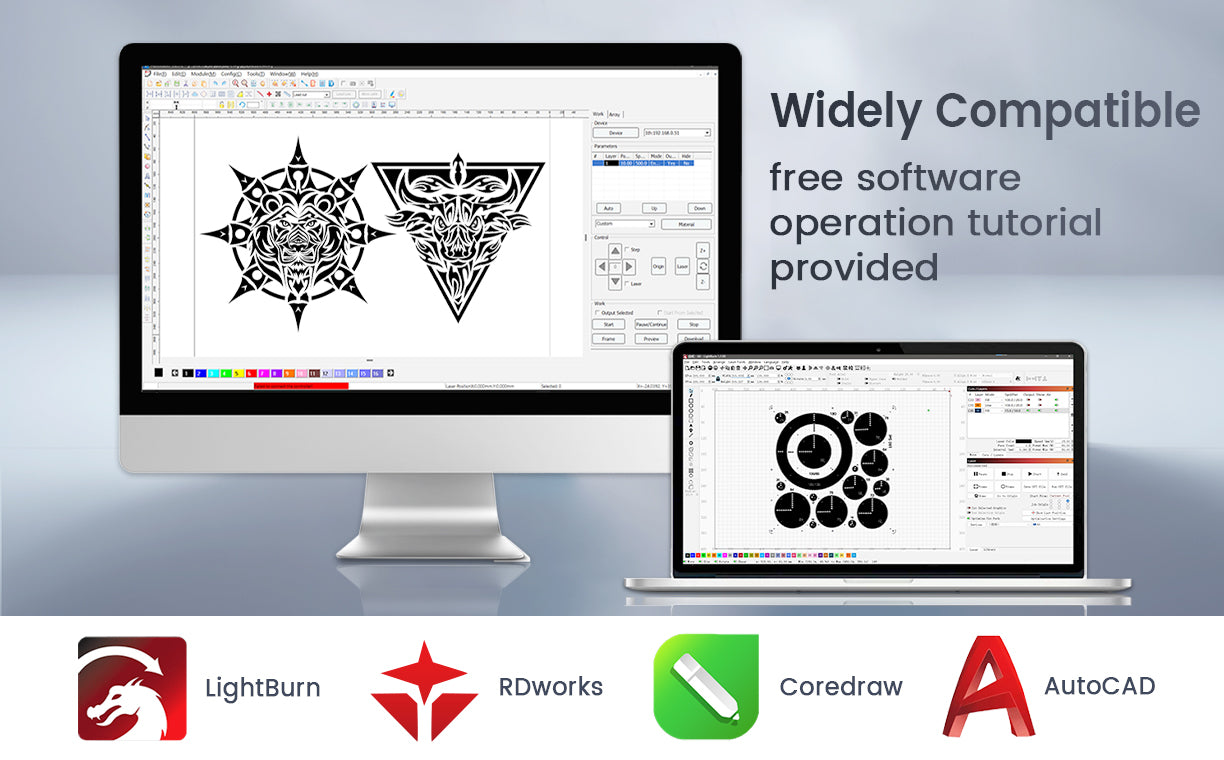

Software compatibility

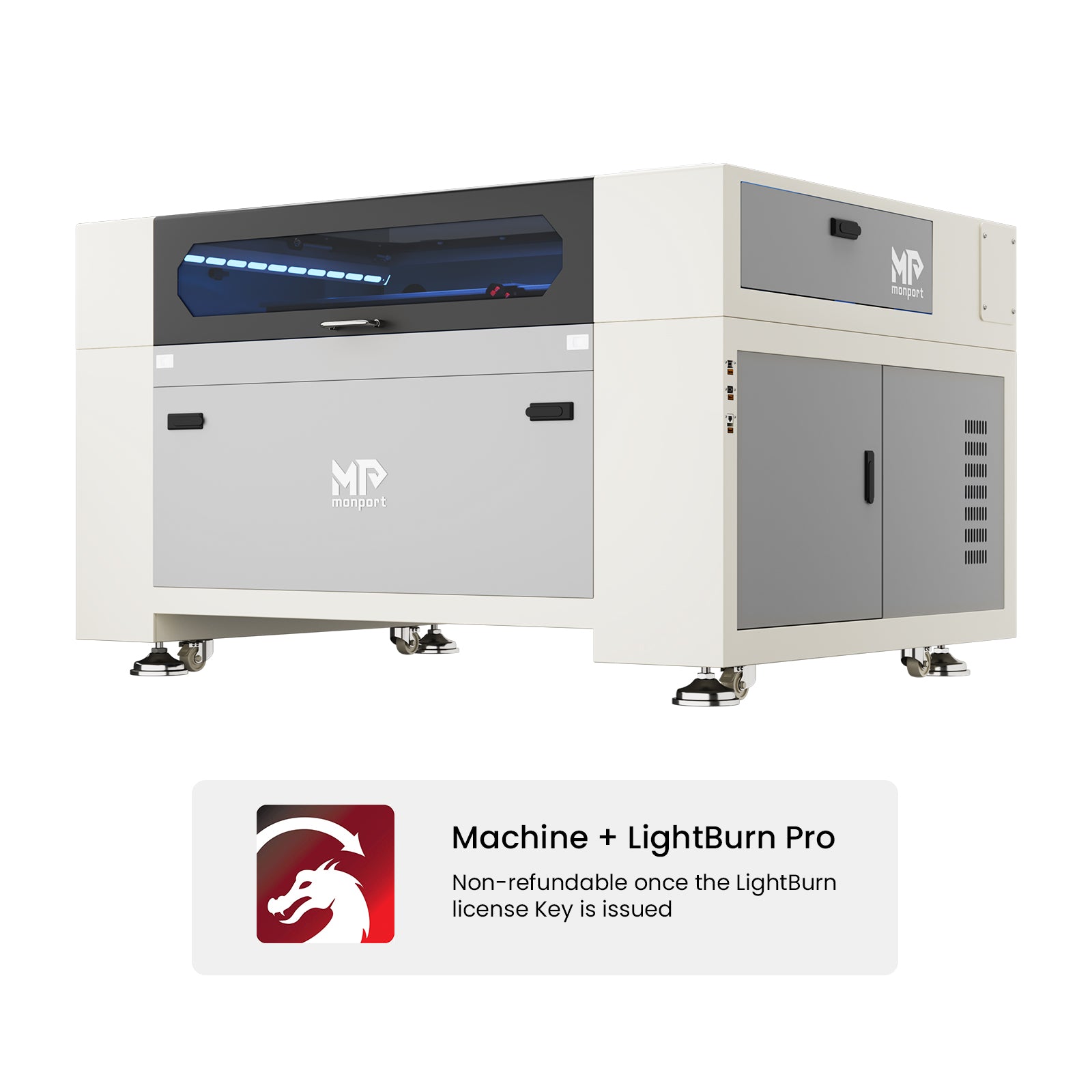

Both Lightburn and RDWorks can perfectly match this series of products; With the support of RDWorks, you can use it together with drawing software such as CorelDRAW(CDR)and AutoCAD(CAD).
Why do so many people love Monport? Just let them tell you.
Craft on Various Materials with Our Precision Engraver
Effi Series Model Quick Compare
| Product Name | 90 W Effi9S Built-in Chiller CO₂ Laser (36" × 24") | 100 W Effi10S Built-in Chiller CO₂ Laser (40" × 24") | 130 W Effi13S Built-in Chiller CO₂ Laser (51" × 35") | 150 W Effi16S Built-in Chiller CO₂ Laser (63" × 40") |
| Laser Power | 90 W | 100 W | 130 W | 150 W |

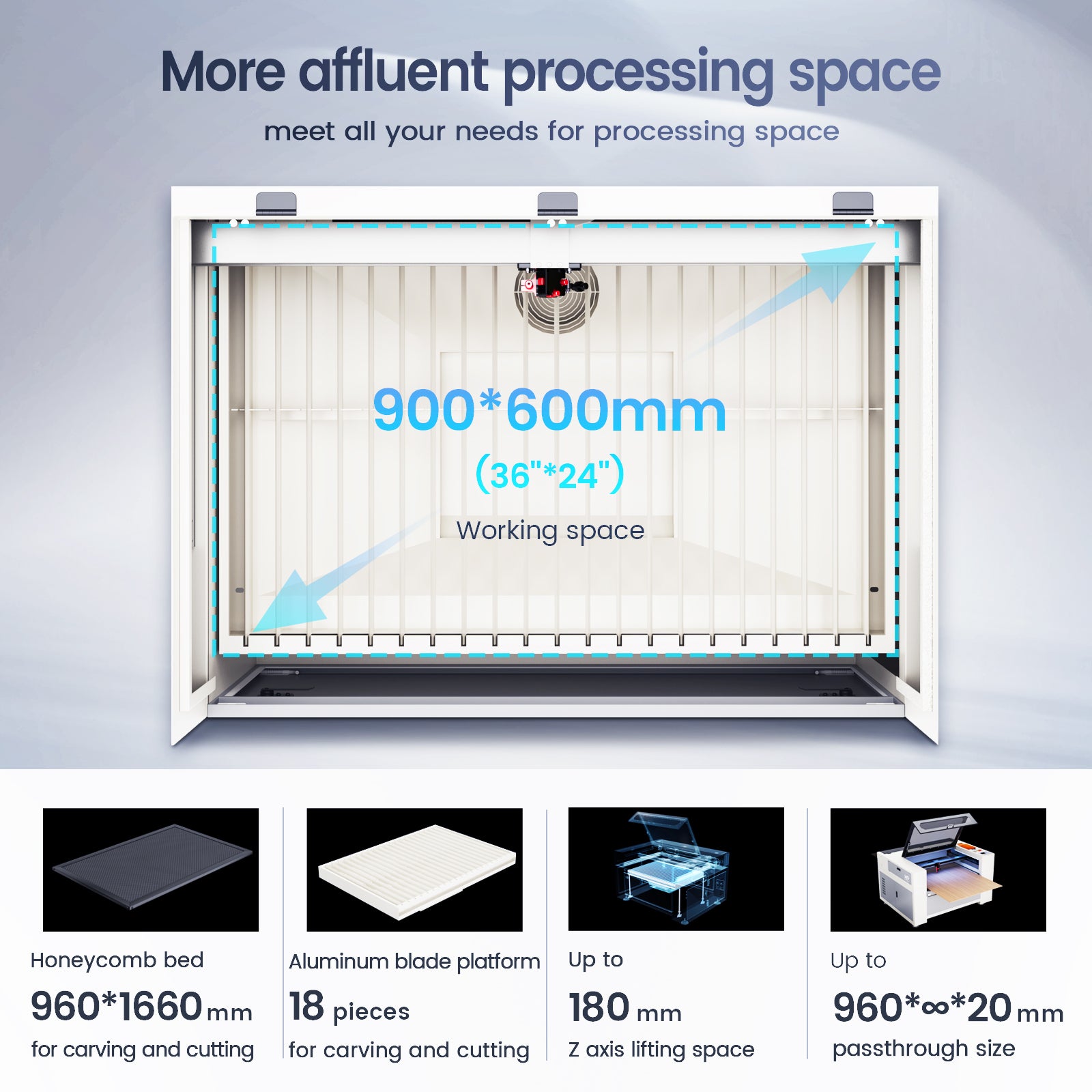

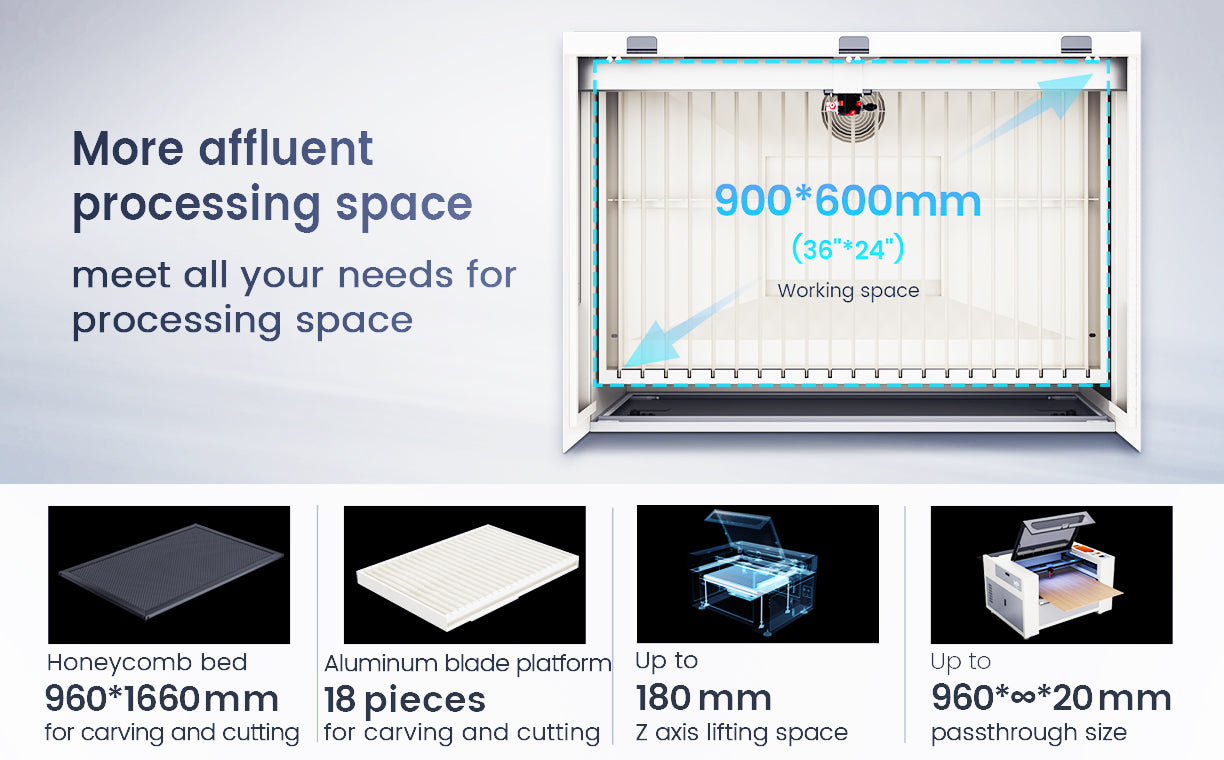

| Engraving Area | 36" × 24" (914 × 610 mm) |
40" × 24" (1016 × 610 mm) |
51" × 35" (1295 × 889 mm) |
63" × 40" (1600 × 1016 mm) |

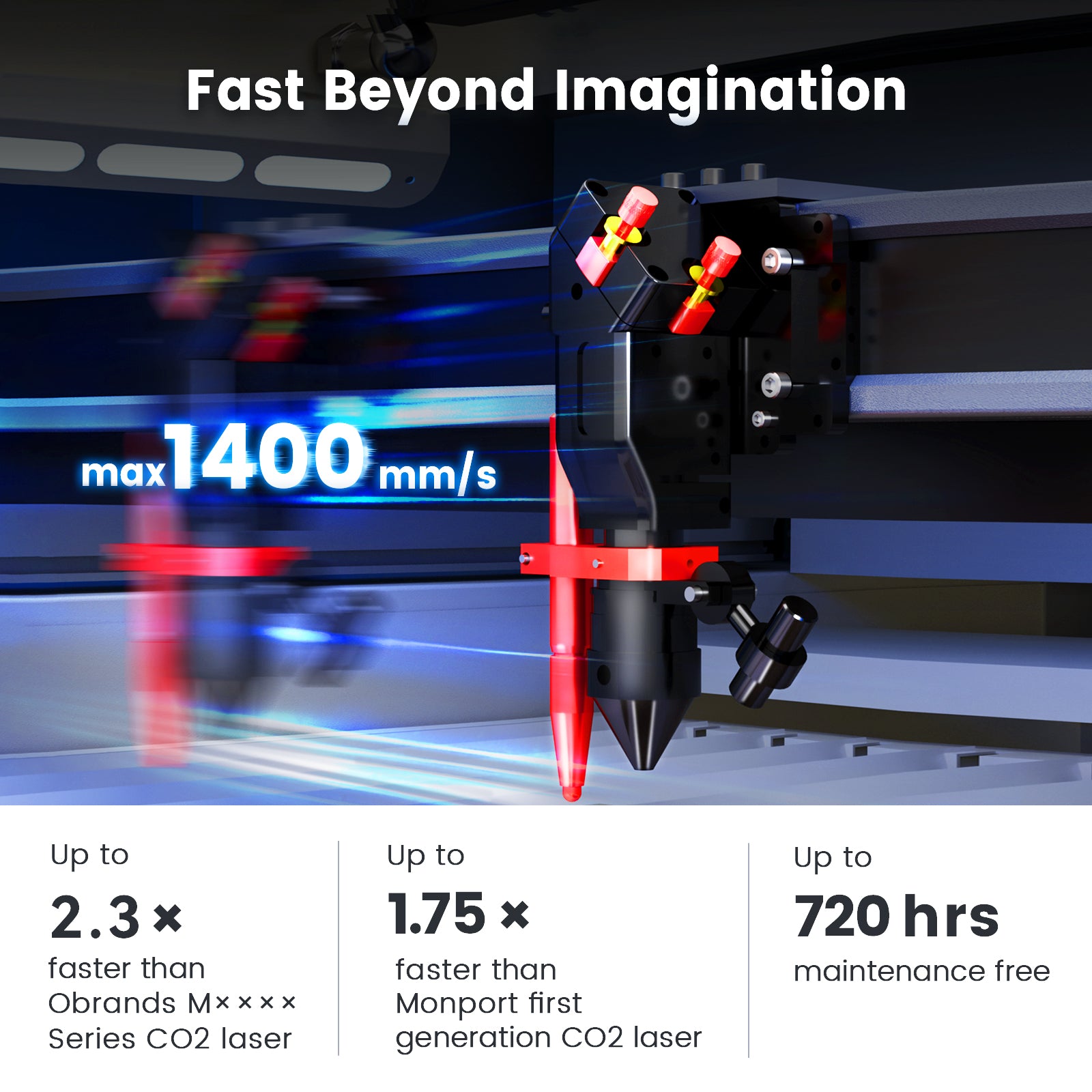

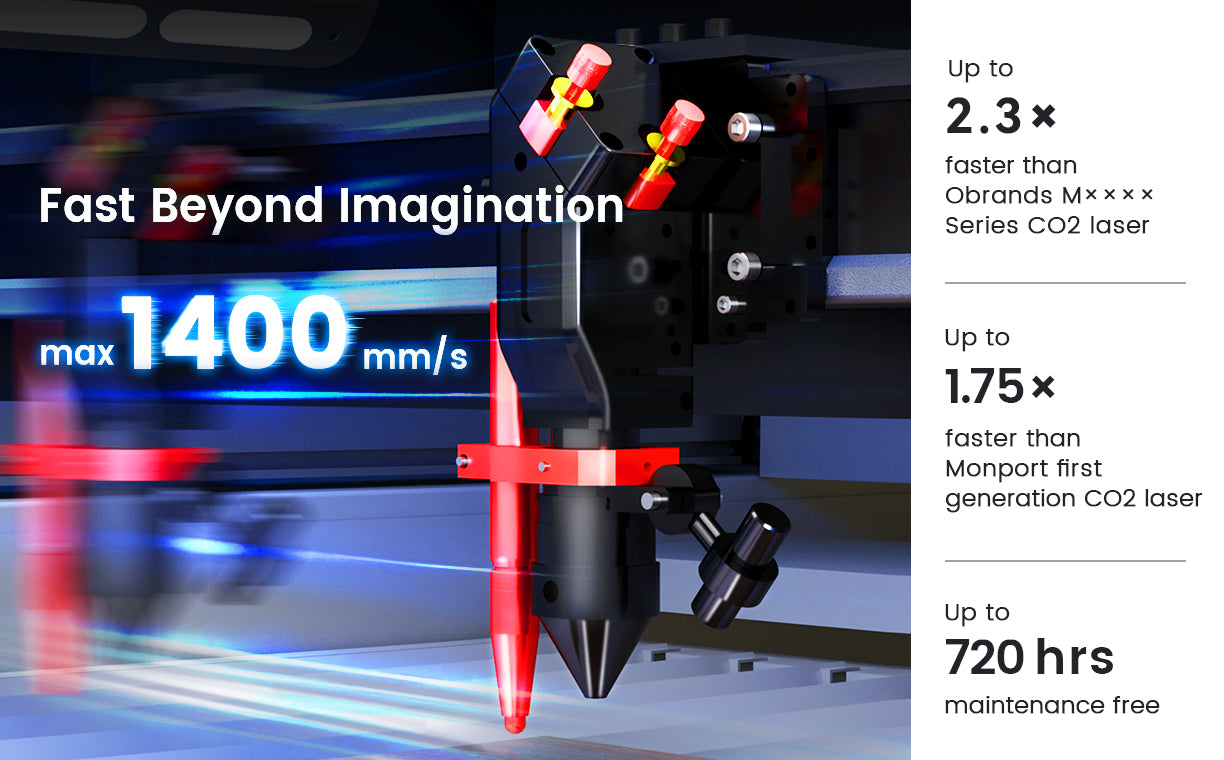

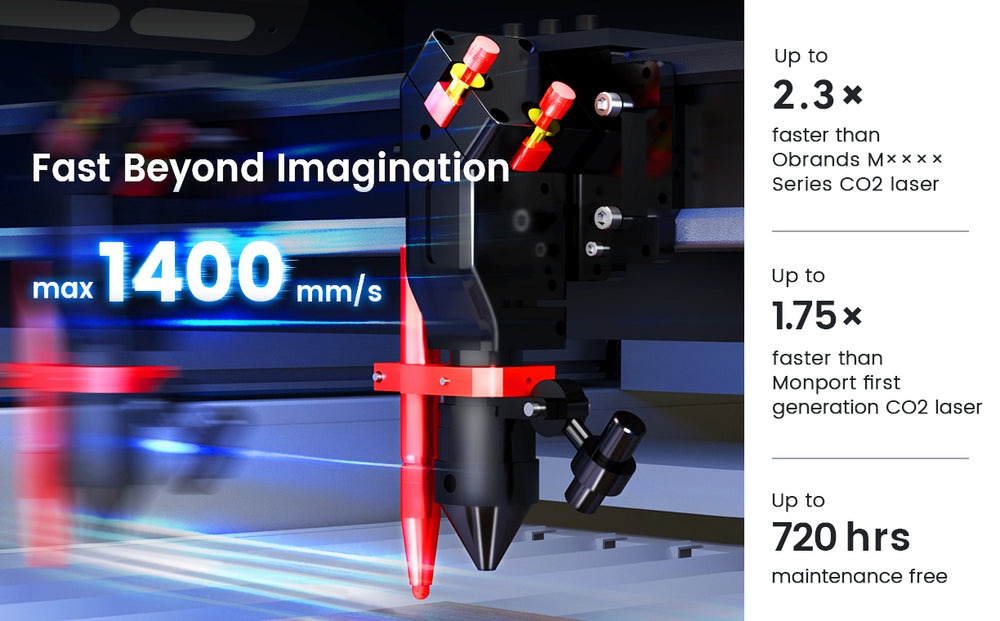

| Max. Marking Speed | 1 400 mm/s (55.1 ips) |
1 400 mm/s (55.1 ips) |
1 400 mm/s (55.1 ips) |
1 400 mm/s (55.1 ips) |
| Focus Method | Autofocus | Autofocus | Autofocus | Autofocus |
| Pass-through Dimension | 0.8" × 29.9" (20 × 760 mm) |
0.8" × 41.7" (20 × 1059 mm) |
0.8" × 53.5" (20 × 1359 mm) |
0.8" × 65.3" (20 × 1659 mm) |
| Central Wavelength | 10 640 nm | 10 640 nm | 10 640 nm | 10 640 nm |
| Expected Service Life (MTTF) | 12 000 h | 12 000 h | 12 000 h | 12 000 h |

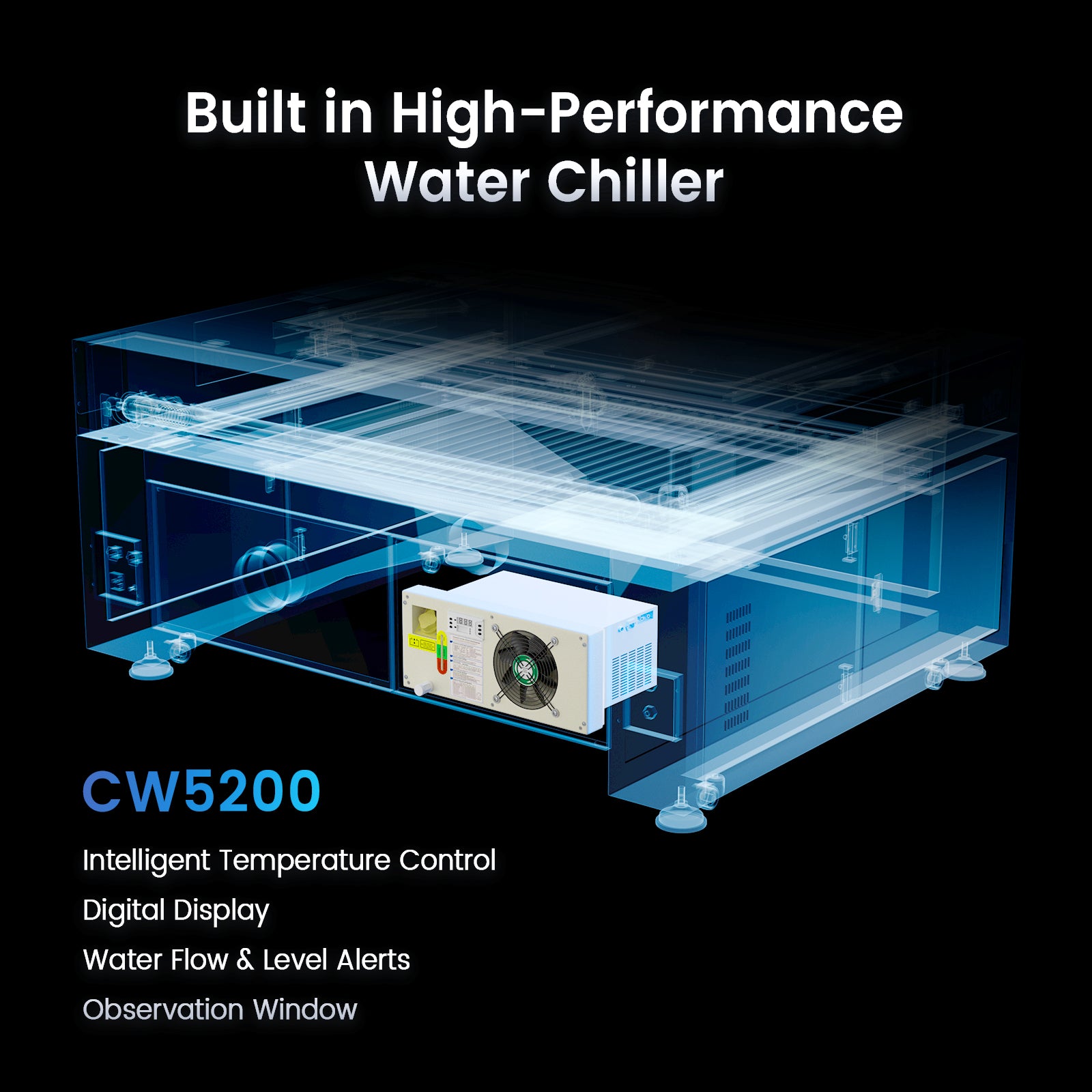

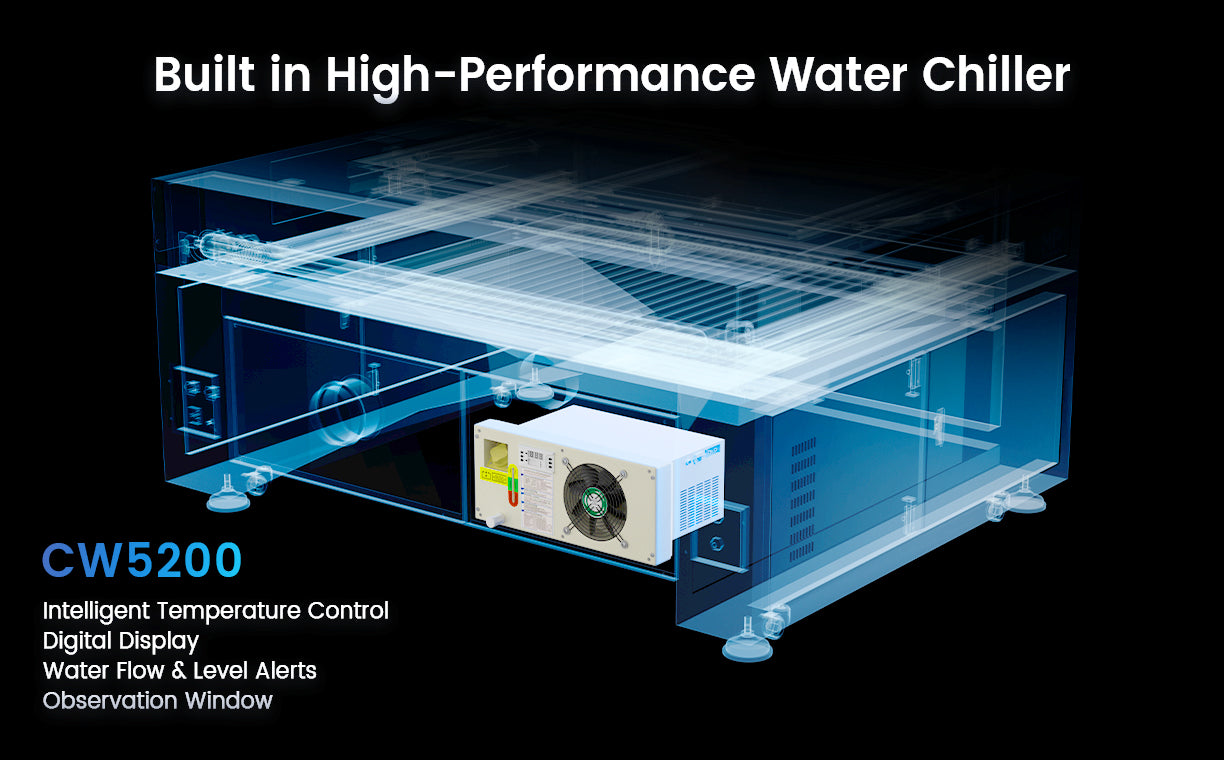

| Cooling System | Built-in CW-5200 Water Chiller | Built-in CW-5200 Water Chiller | Built-in CW-5200 Water Chiller | Built-in CW-5200 Water Chiller |

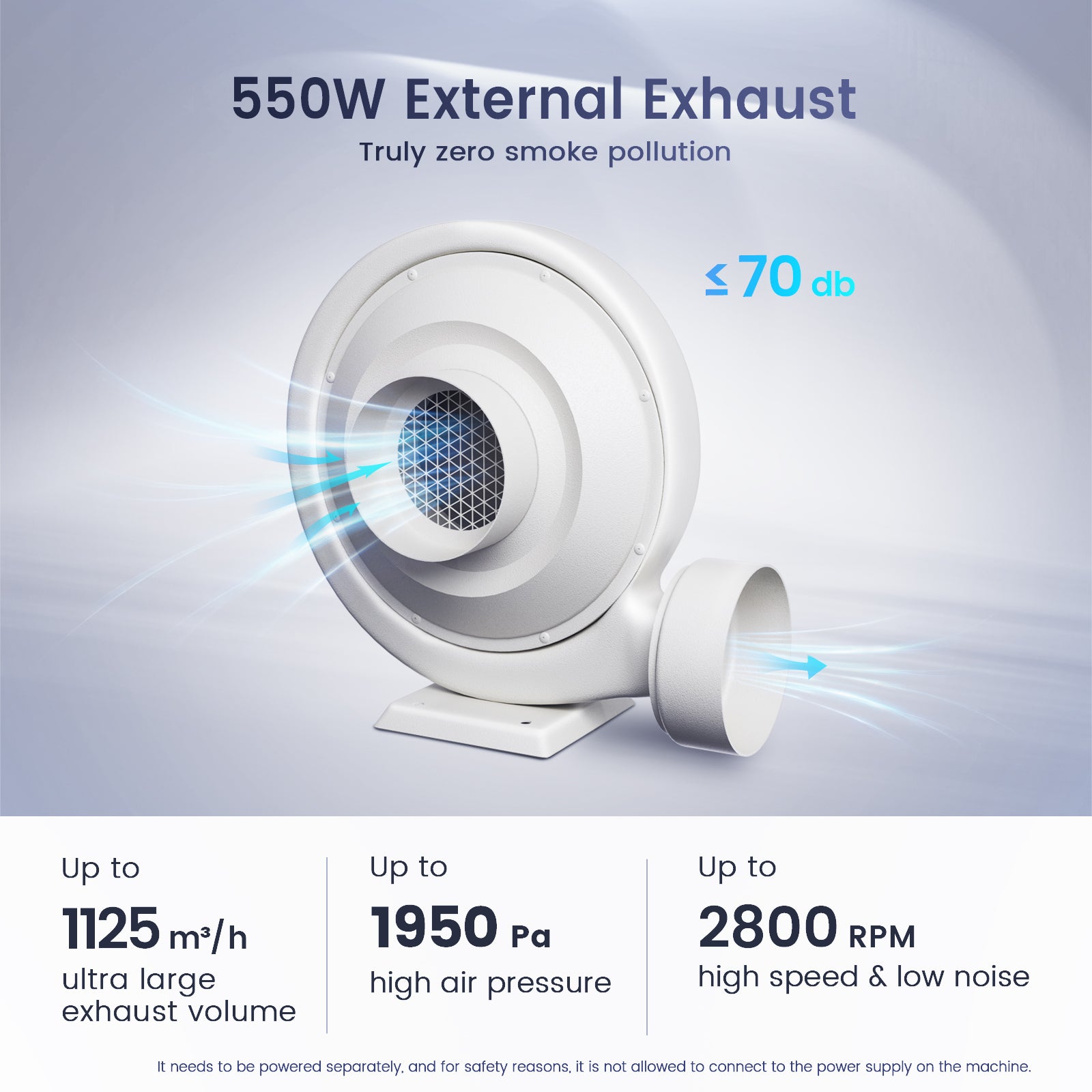

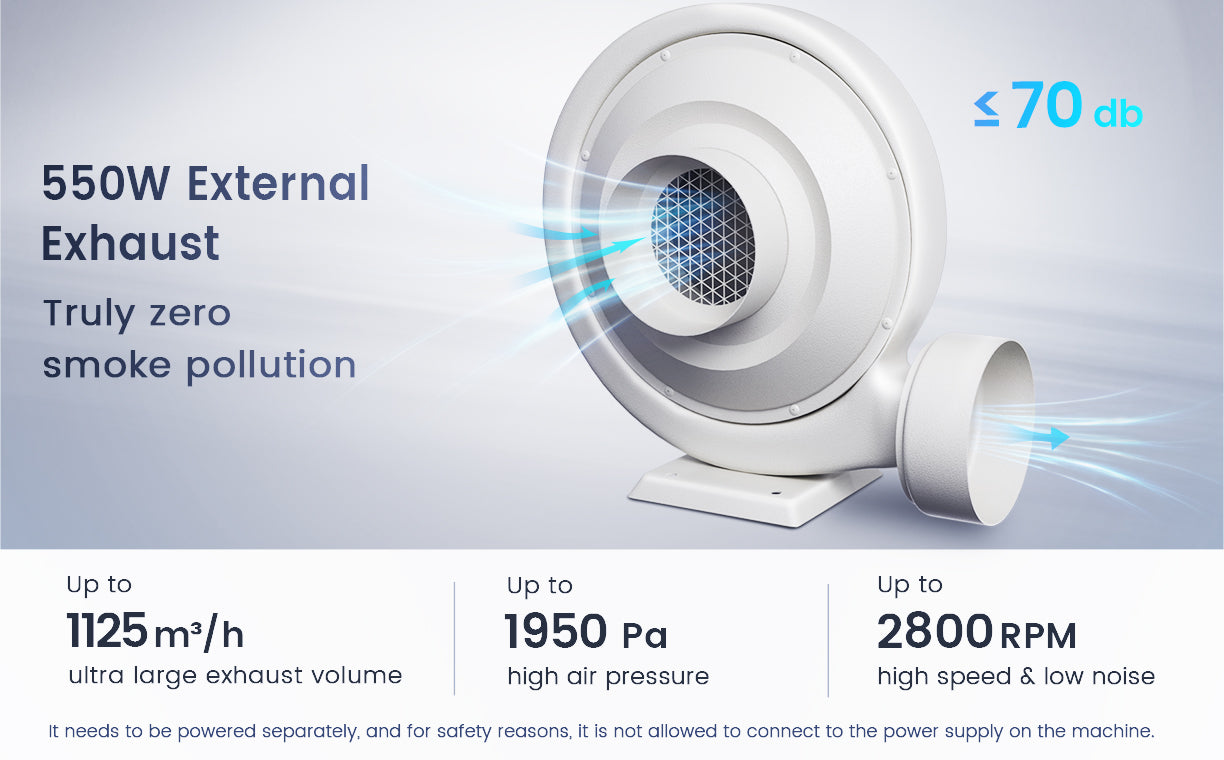

| Fume Exhaust | 550 W Duct Fan, 1 125 m³/h | 550 W Duct Fan, 1 125 m³/h | 550 W Duct Fan, 1 125 m³/h | 550 W Duct Fan, 1 125 m³/h |
| Supported Image Formats | BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others | BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others | BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others | BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others |
| Compatible Software | Lightburn, RDWorks, CorelLaser | Lightburn, RDWorks, CorelLaser | Lightburn, RDWorks, CorelLaser | Lightburn, RDWorks, CorelLaser |

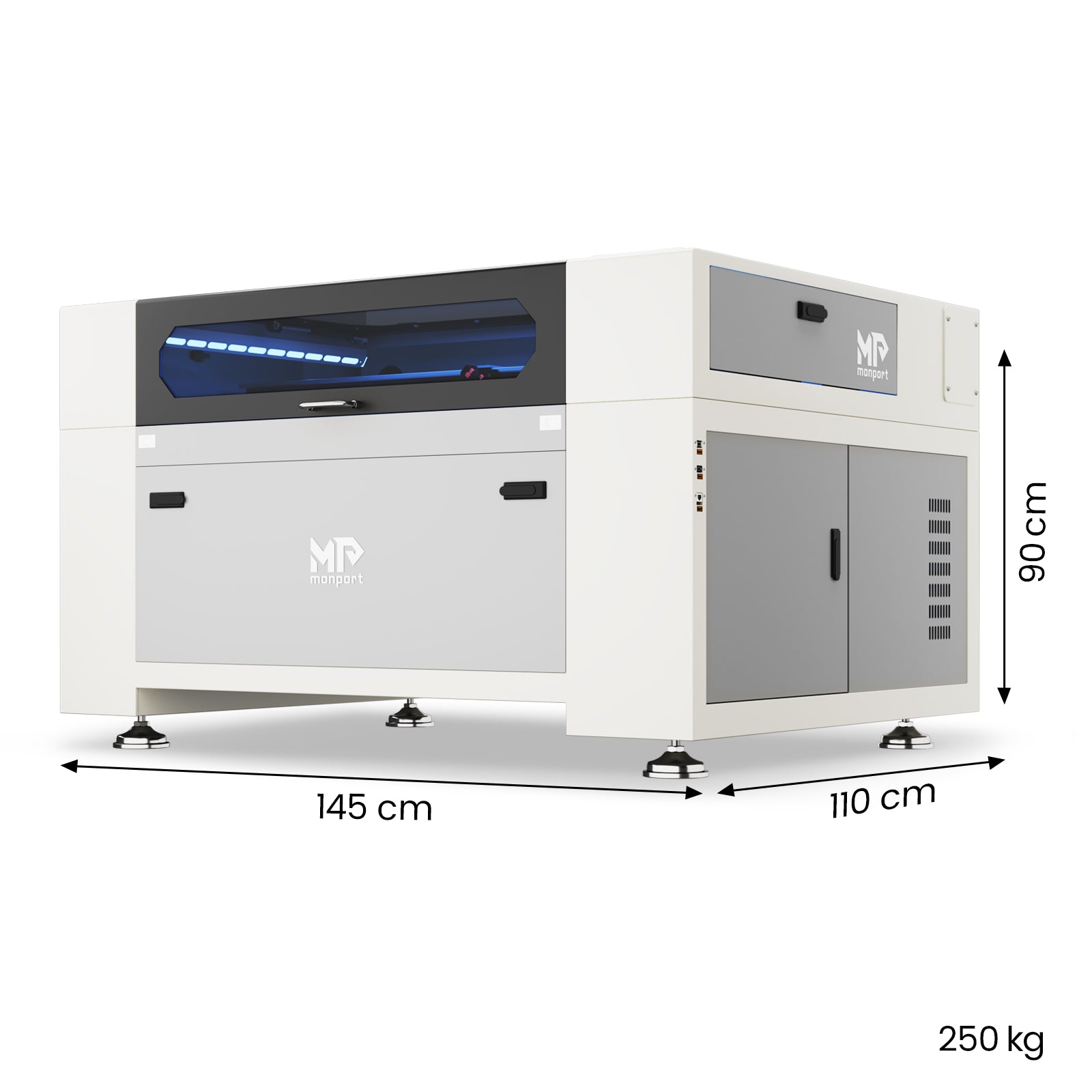

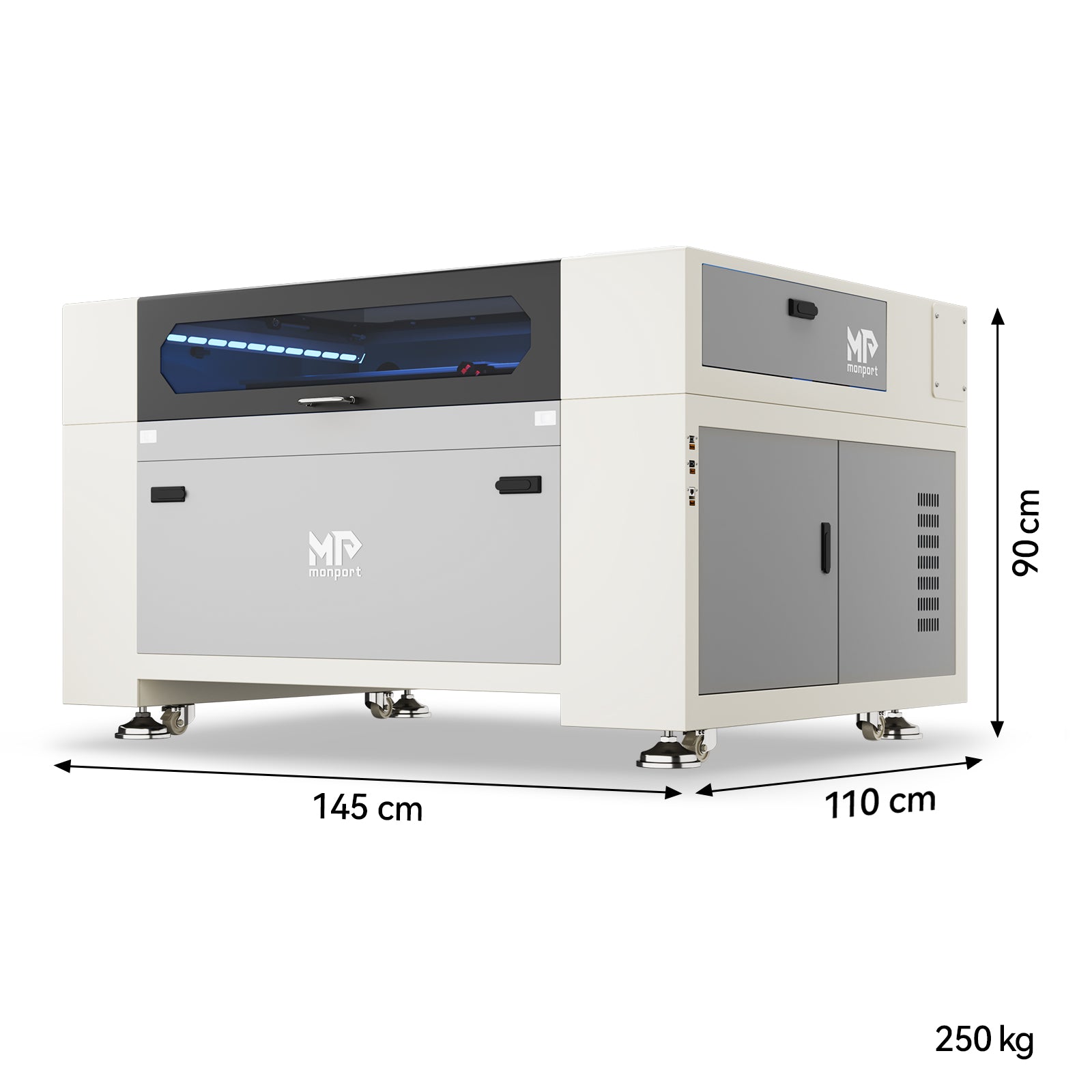

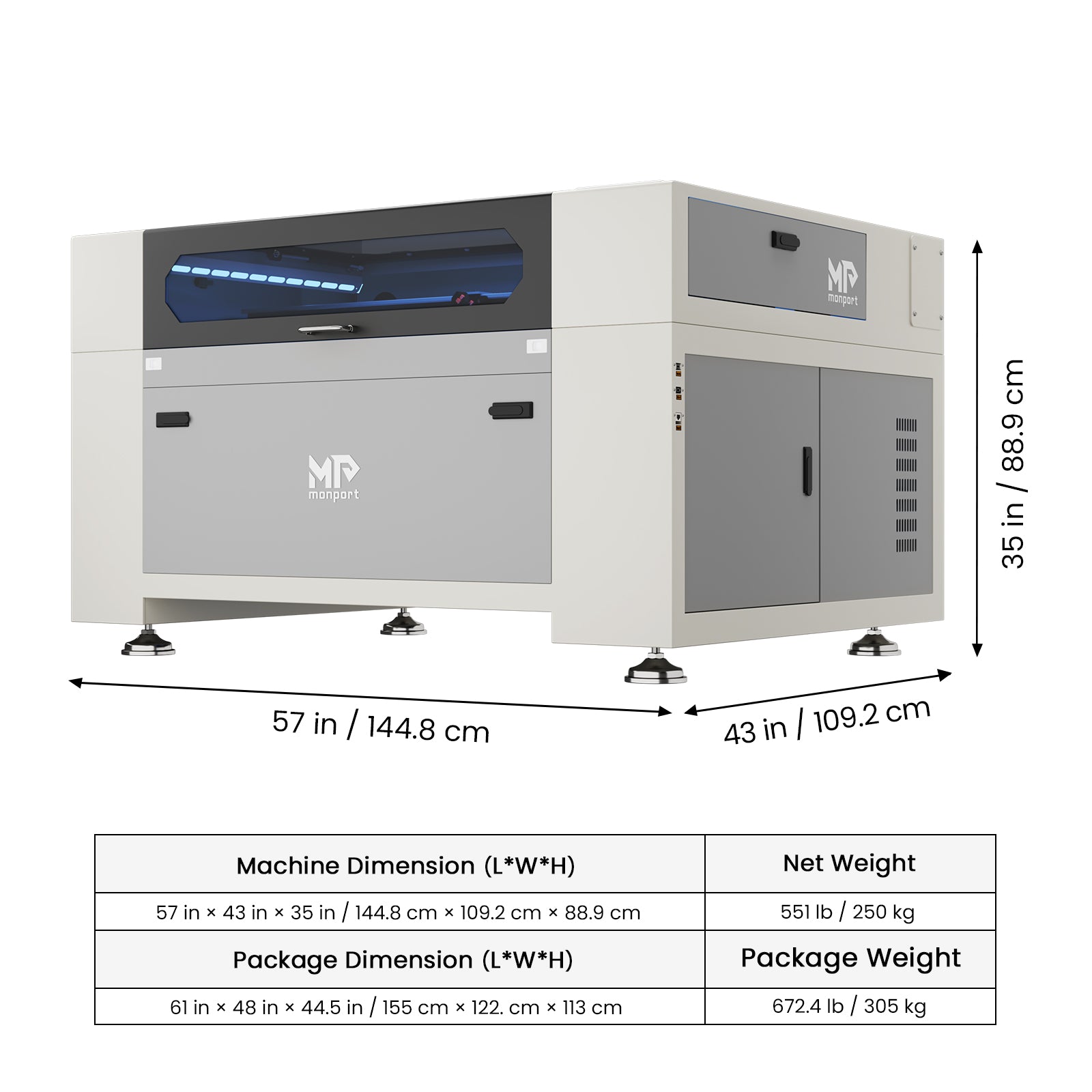

| Machine Dimension (L × W × H) | 57" × 43" × 35" (144.8 × 109.2 × 88.9 cm) |
61" × 43" × 35" (154.9 × 109.2 × 88.9 cm) |
72" × 55" × 35" (182.9 × 139.7 × 88.9 cm) |
84" × 59" × 35" (213.4 × 149.9 × 88.9 cm) |
| Product Weight | 551 lb (250 kg) | 573 lb (260 kg) | 771 lb (350 kg) | 970 lb (440 kg) |
| Warranty | 2 Years (1 Year for Laser Source) |
2 Years (1 Year for Laser Source) |
2 Years (1 Year for Laser Source) |
2 Years (1 Year for Laser Source) |
Package List
The following materials can be cut with a CO2 laser
| Cut | Engrave | |
|---|---|---|
| Acrylic | ✓ | ✓ |
| Glass | — | ✓ |
| Plastic sheets | ✓ | — |
| Leather | ✓ | ✓ |
| Paper | ✓ | ✓ |
| Plastics | — | — |

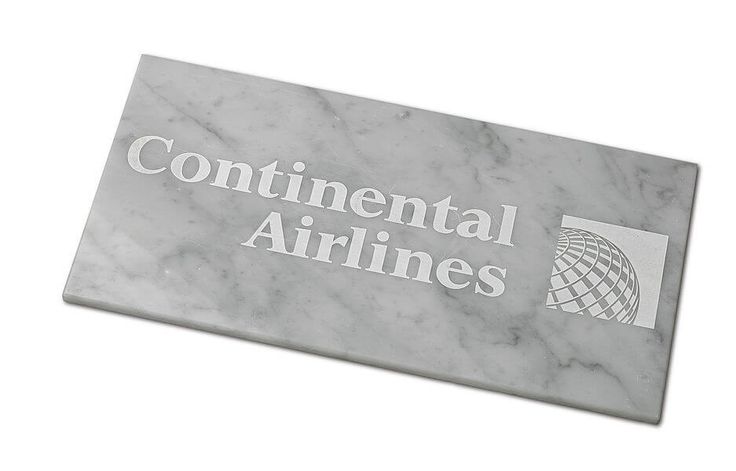

| Stone | — | ✓ |
| Textiles | ✓ | — |
| Wood | ✓ | ✓ |
| Metal* | — | — |
Questions & Answers
Have a Question?
-
Will the 90W Effi CO2 cut through 3/8-1/2 inch soft maple?
Yes, this machine is fully capable of cutting 3/8" to 1/2" (approximately 9.5–12.7 mm) soft maple wood.

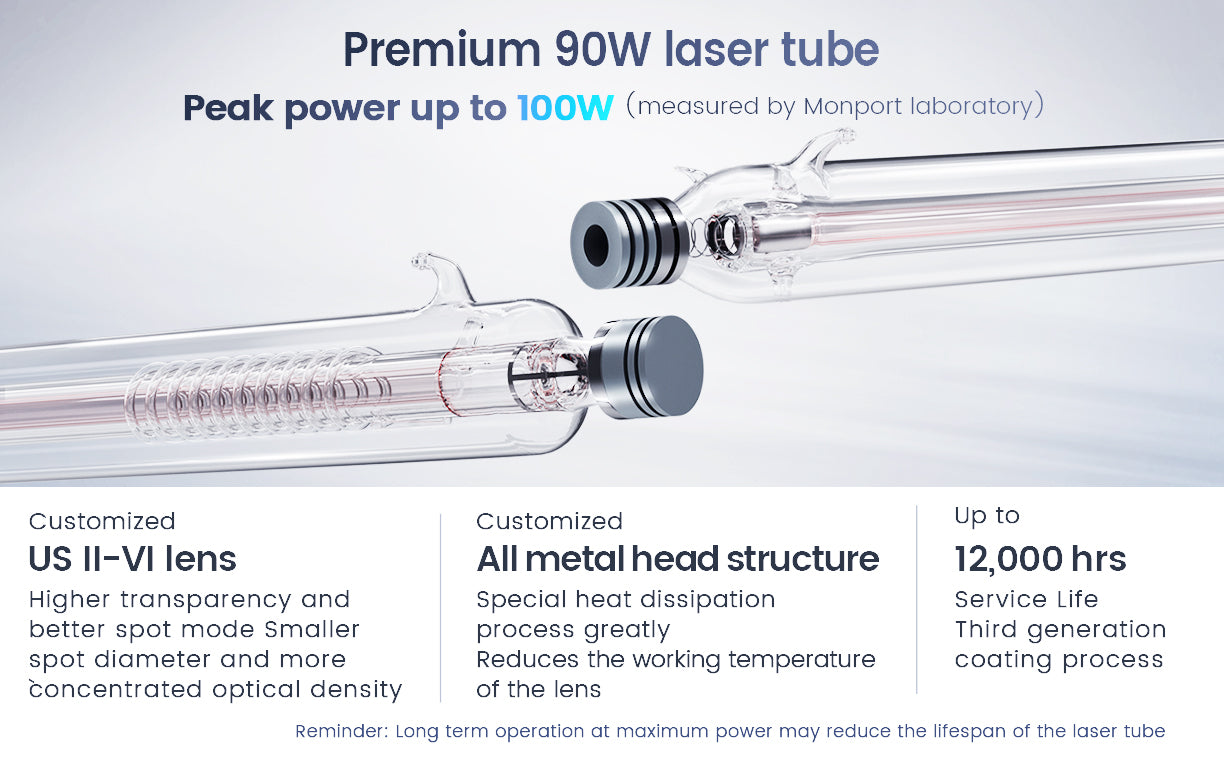

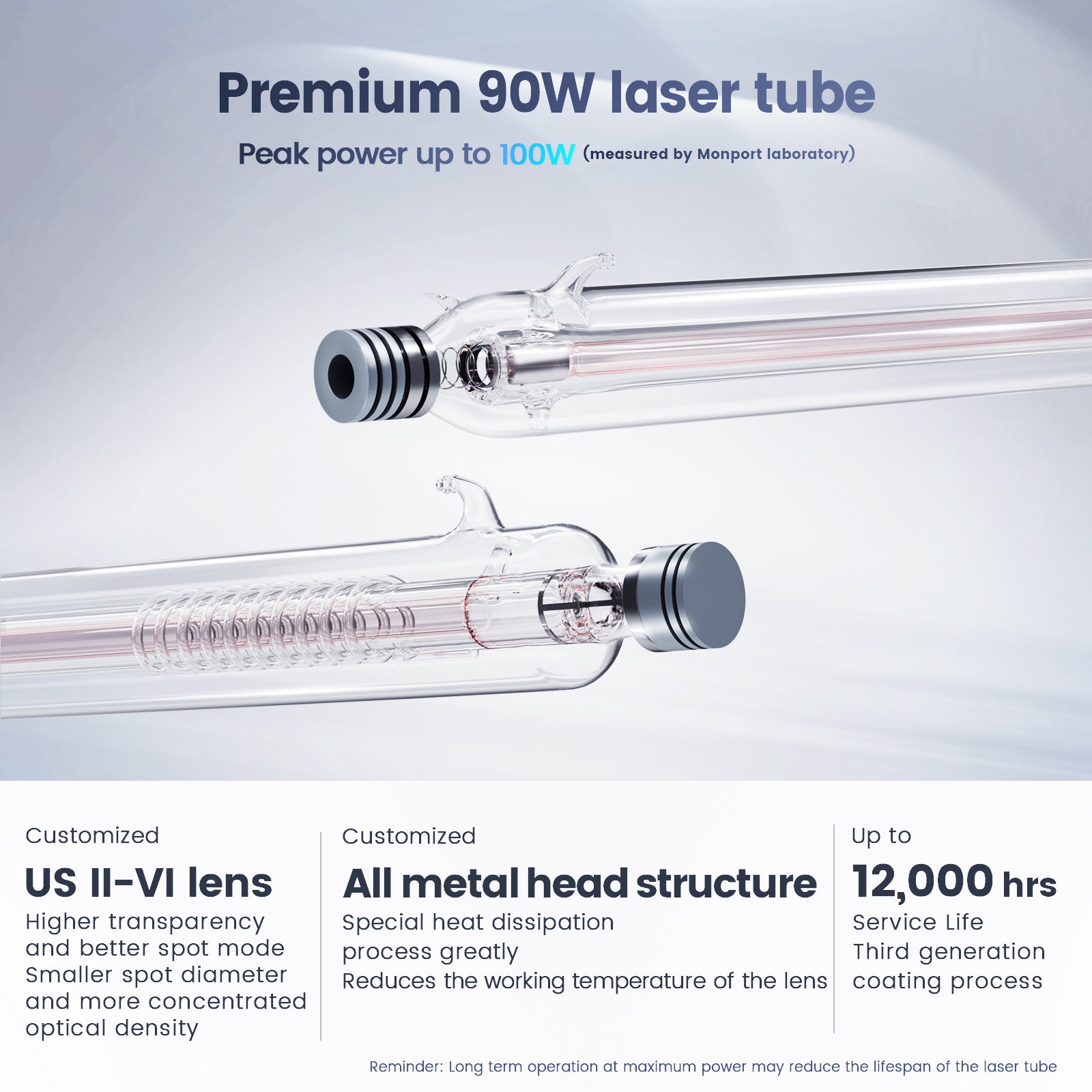

The Effi 90W CO₂ laser features a peak power output of up to 100W, which allows it to easily handle this material thickness with stable and efficient cutting performance.
In addition, the Effi 9S is equipped with a built-in water chiller and air assist system, which play important roles in performance and cutting quality:
- Built-in water chiller: ensures stable temperature control of the laser tube during long working sessions, improving laser stability and extending the lifespan of the tube.

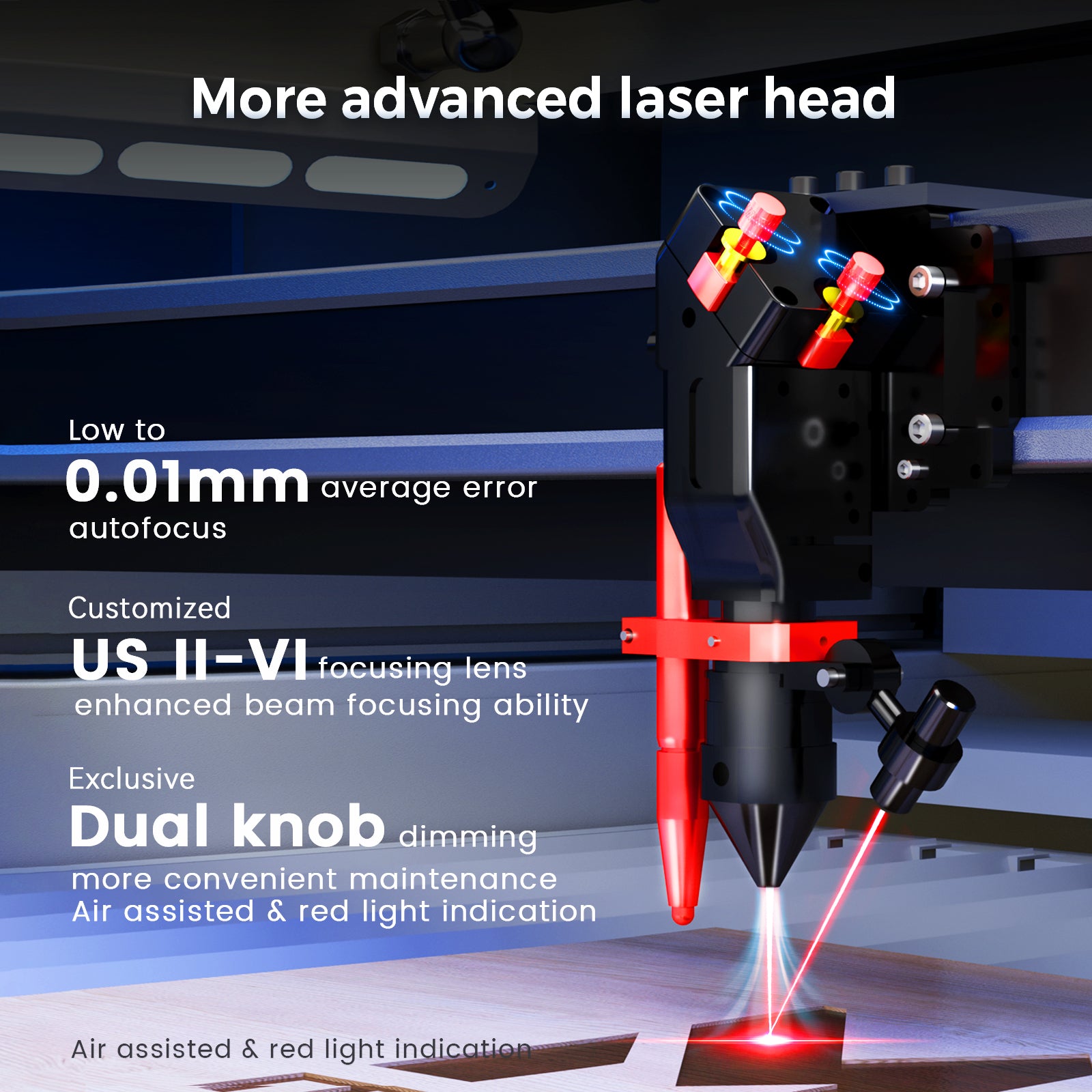

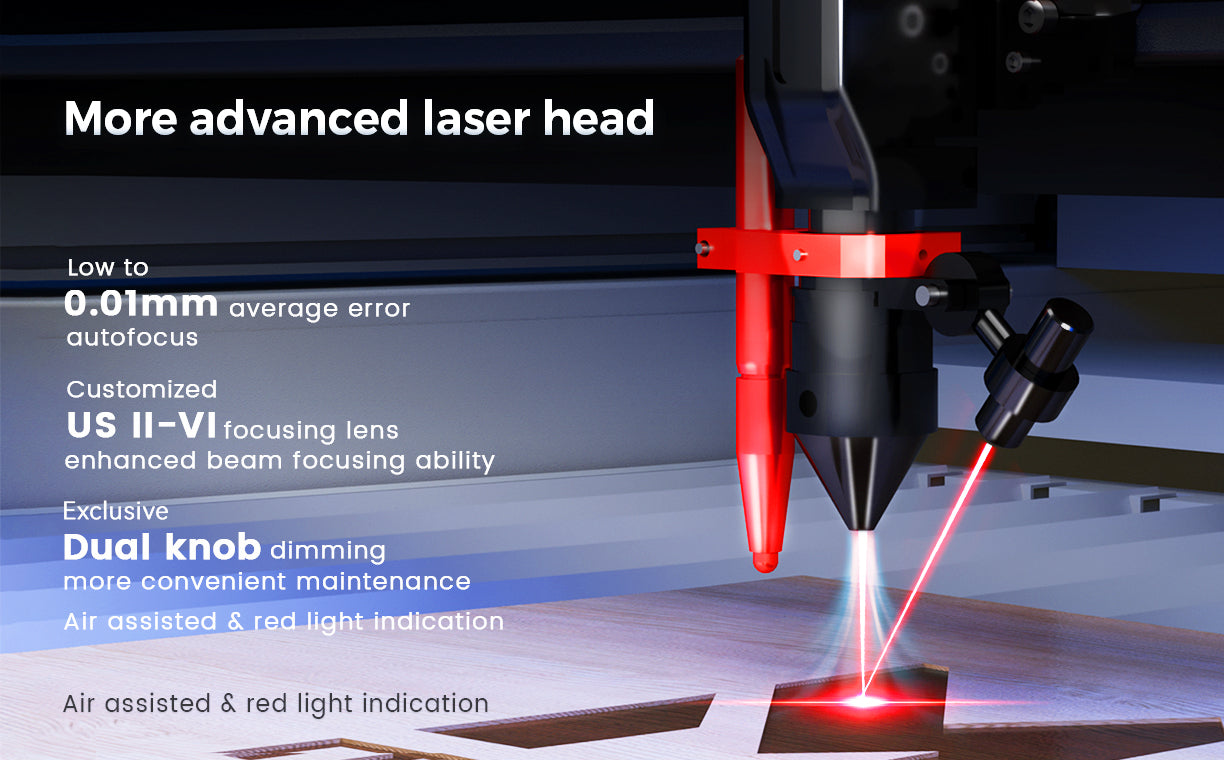

- Air assist system: blows high-pressure air onto the cutting surface to remove smoke and debris, prevent burning or charring, and significantly improve cutting edges.
If needed, we can also send you the detailed cutting parameter sheet for this machine later, which will help you achieve optimal results for different materials.
Please feel free to let us know if you have any further questions.
Best regards,
Bella
