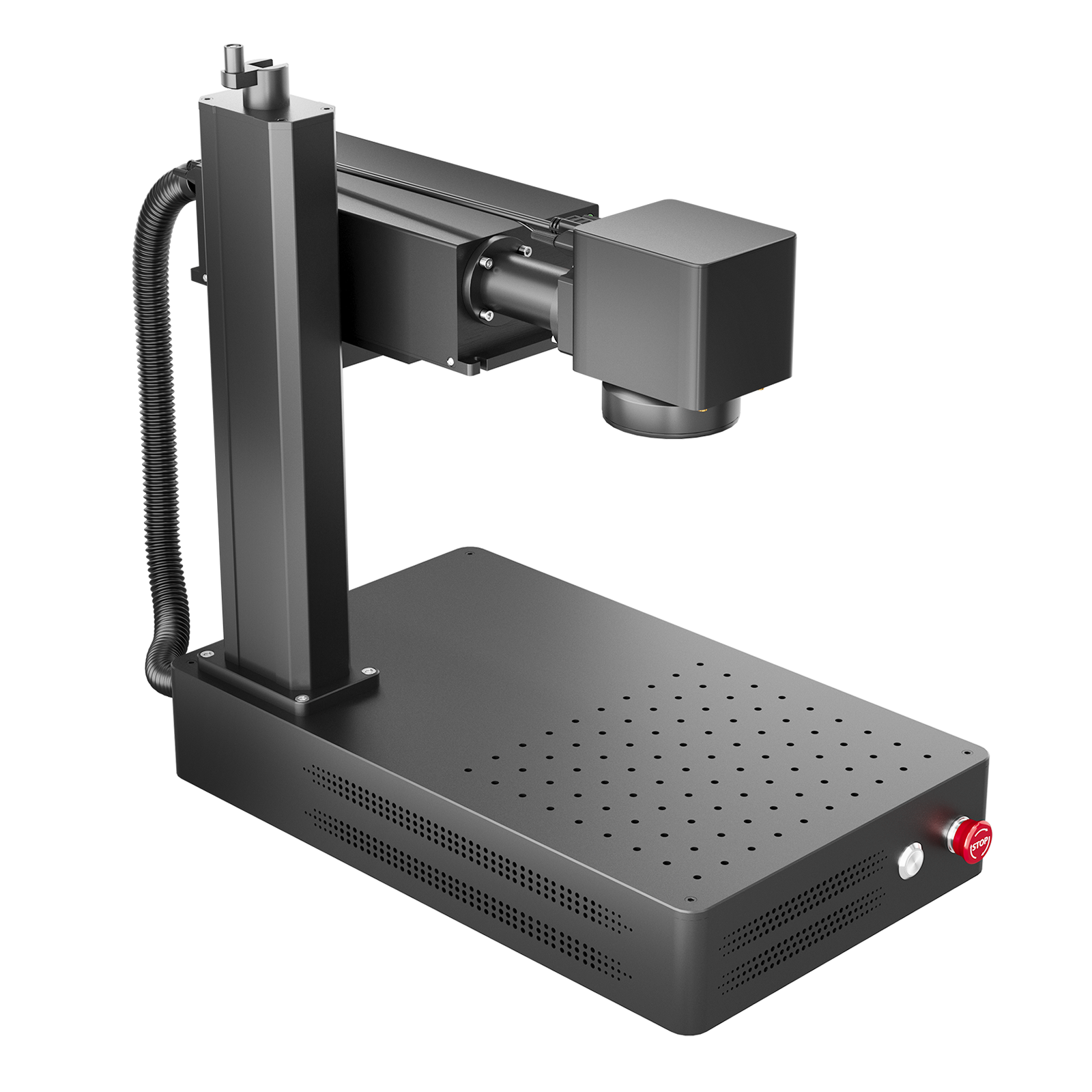

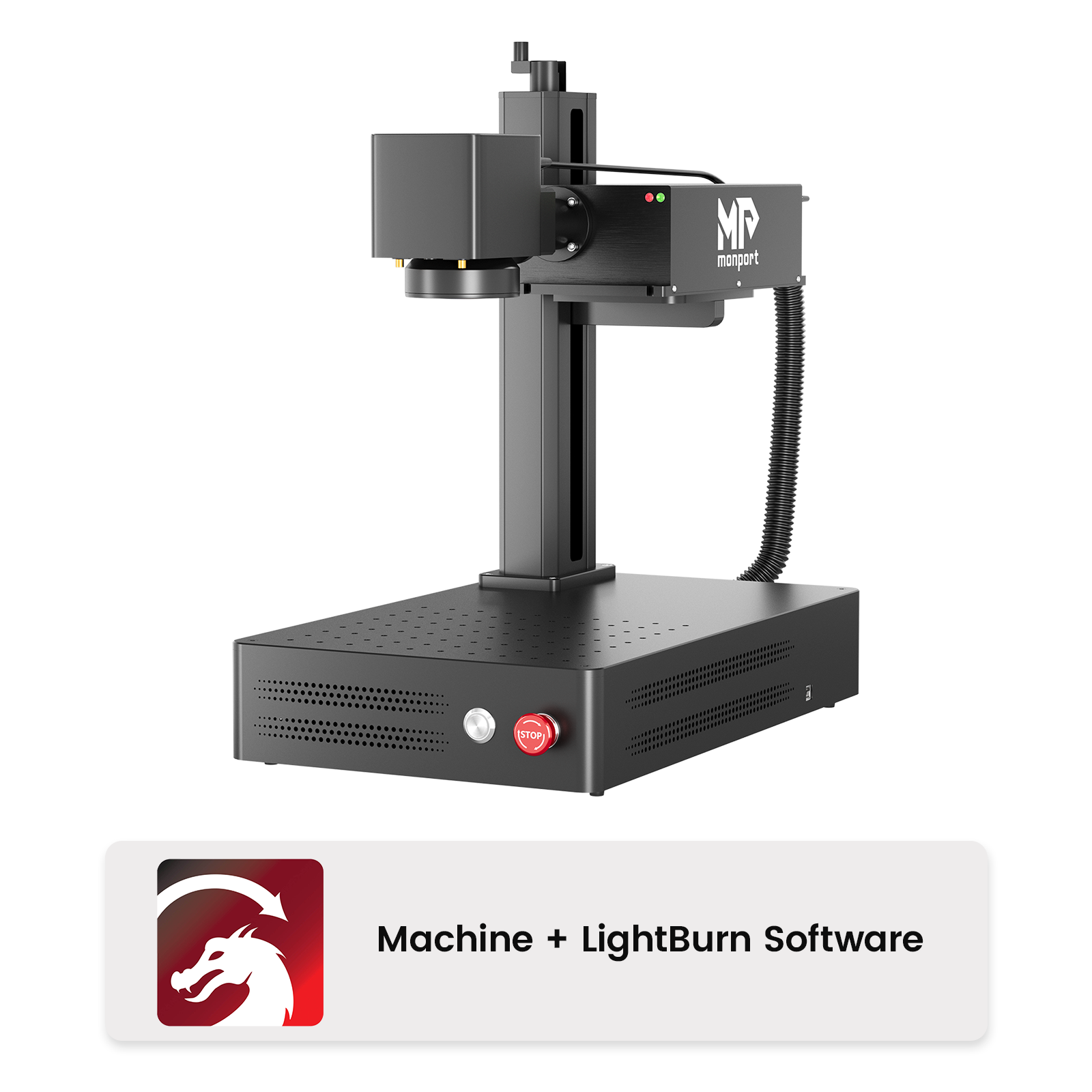

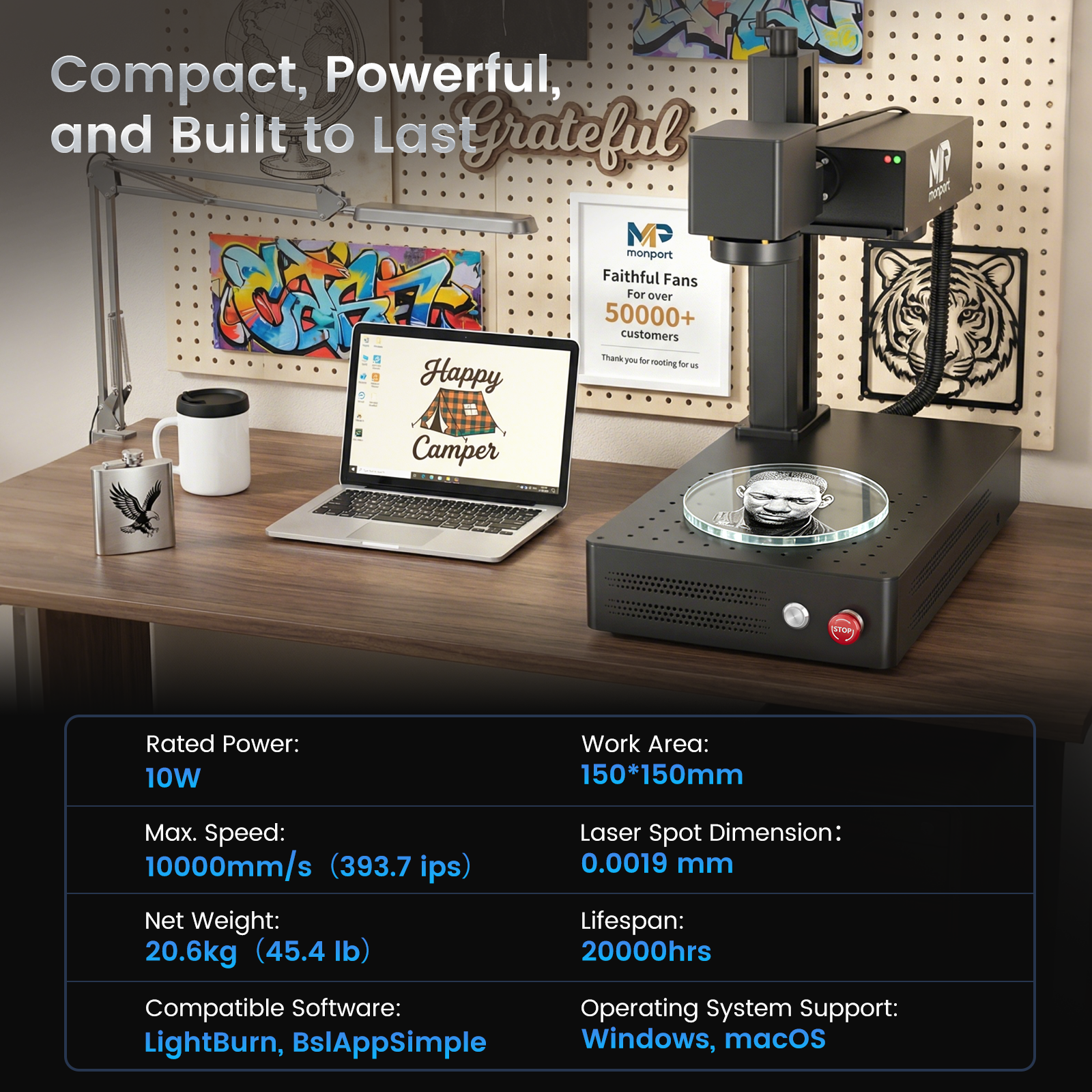

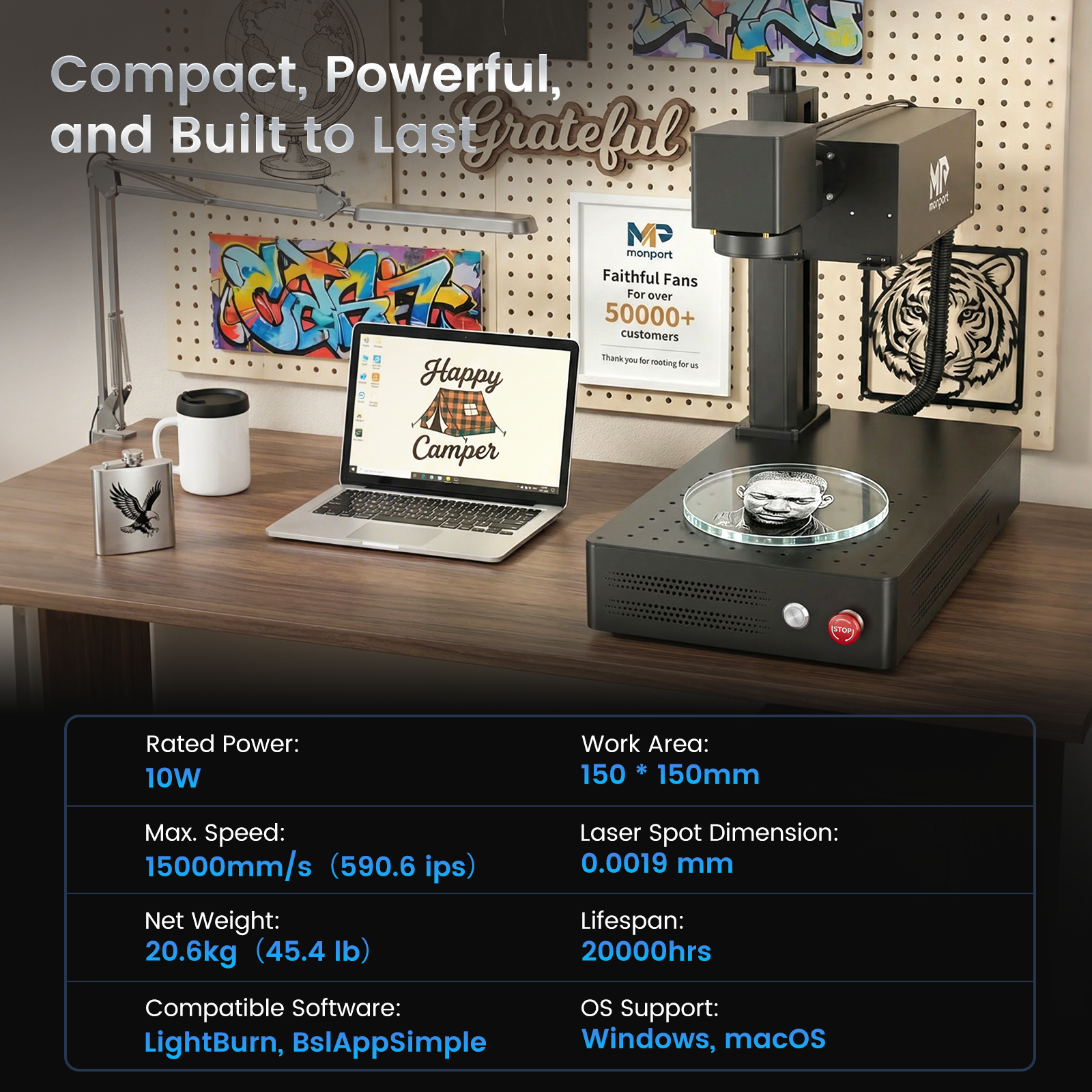

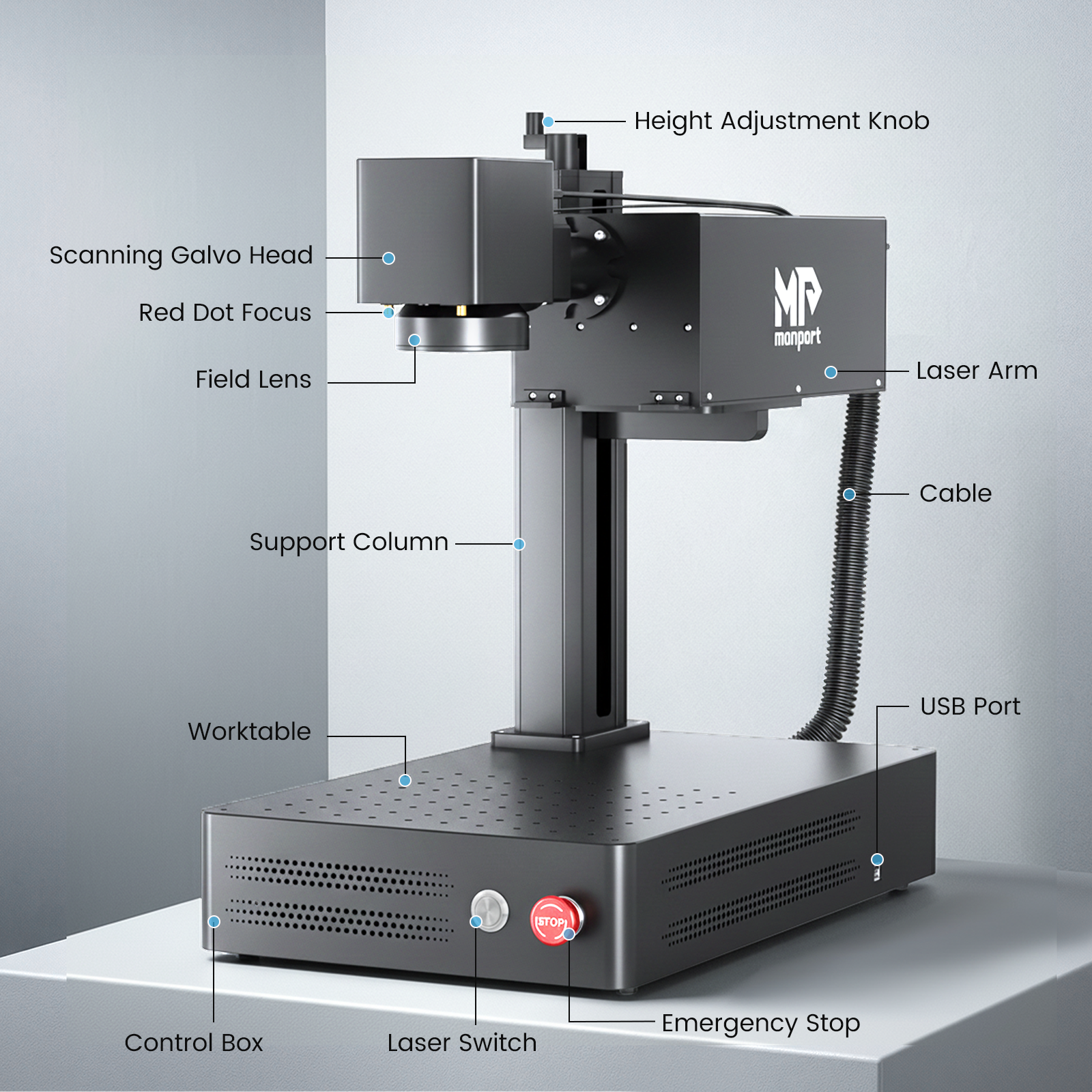

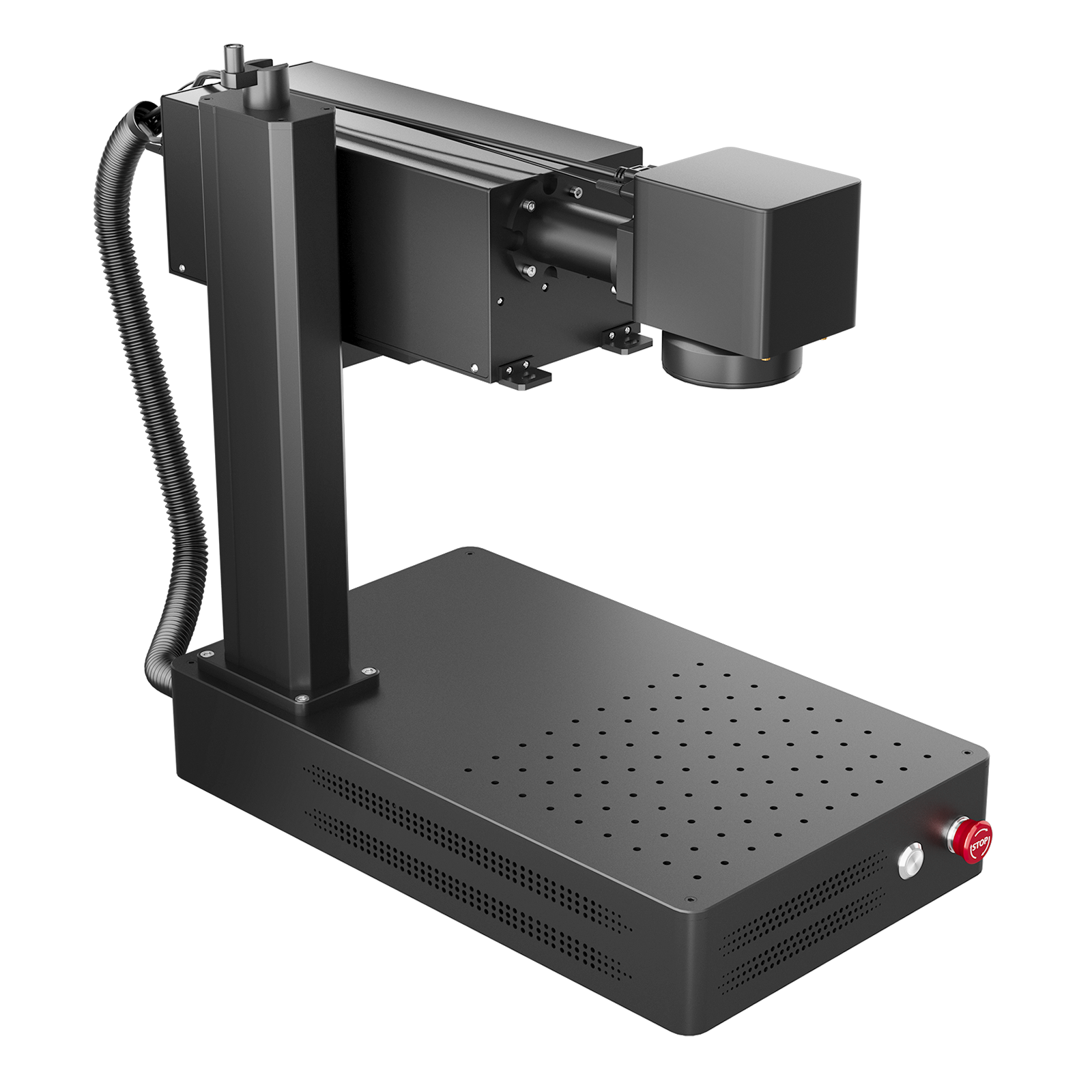

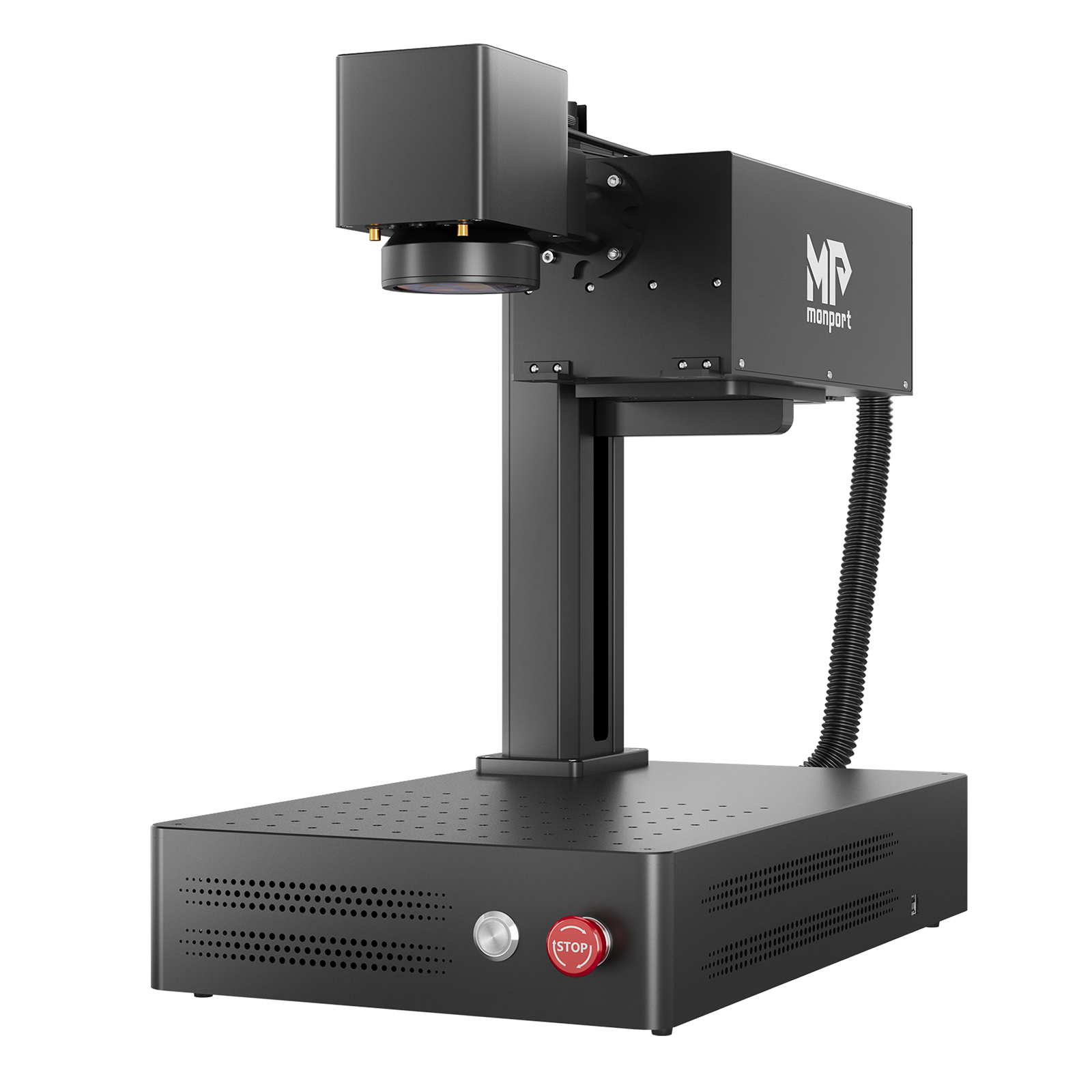

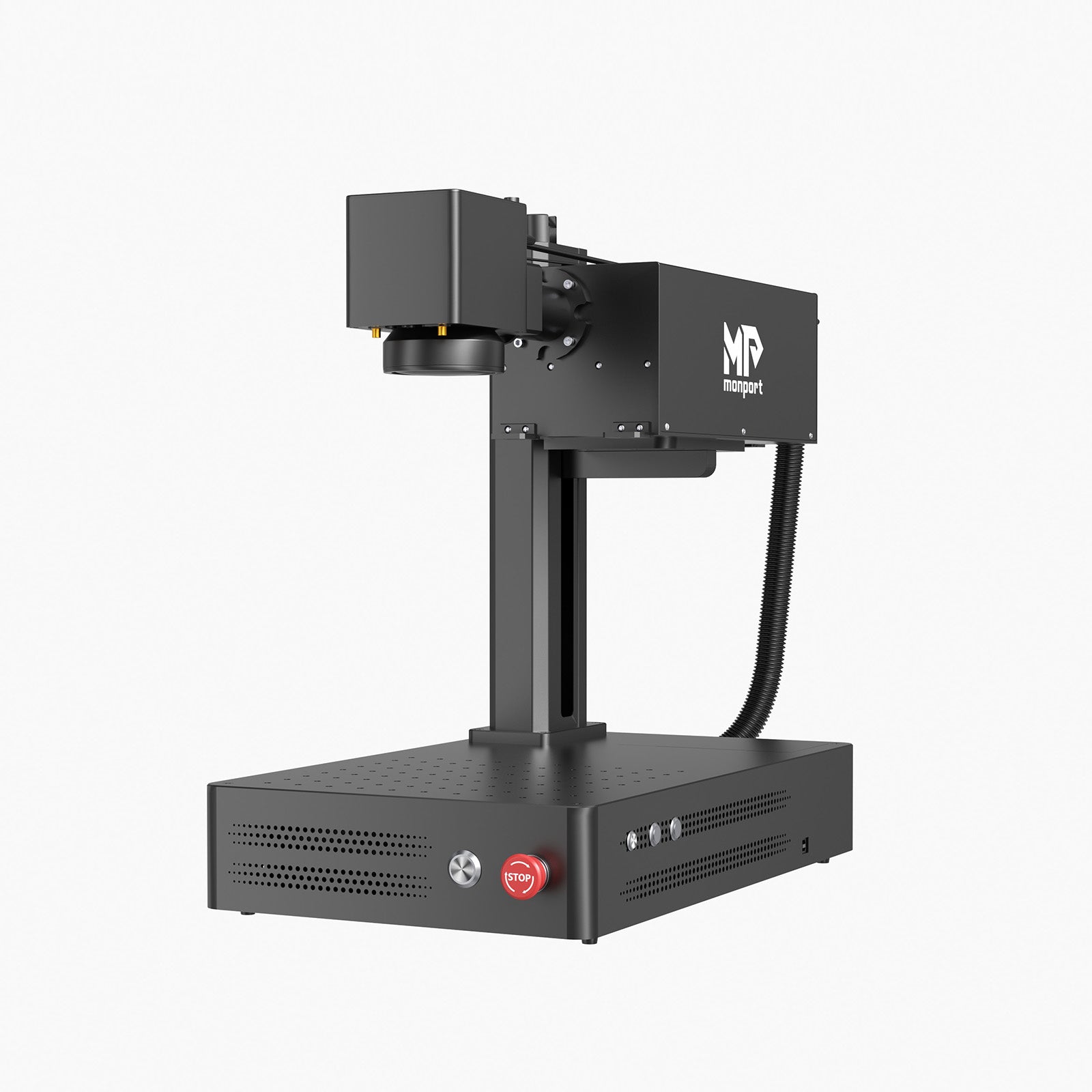

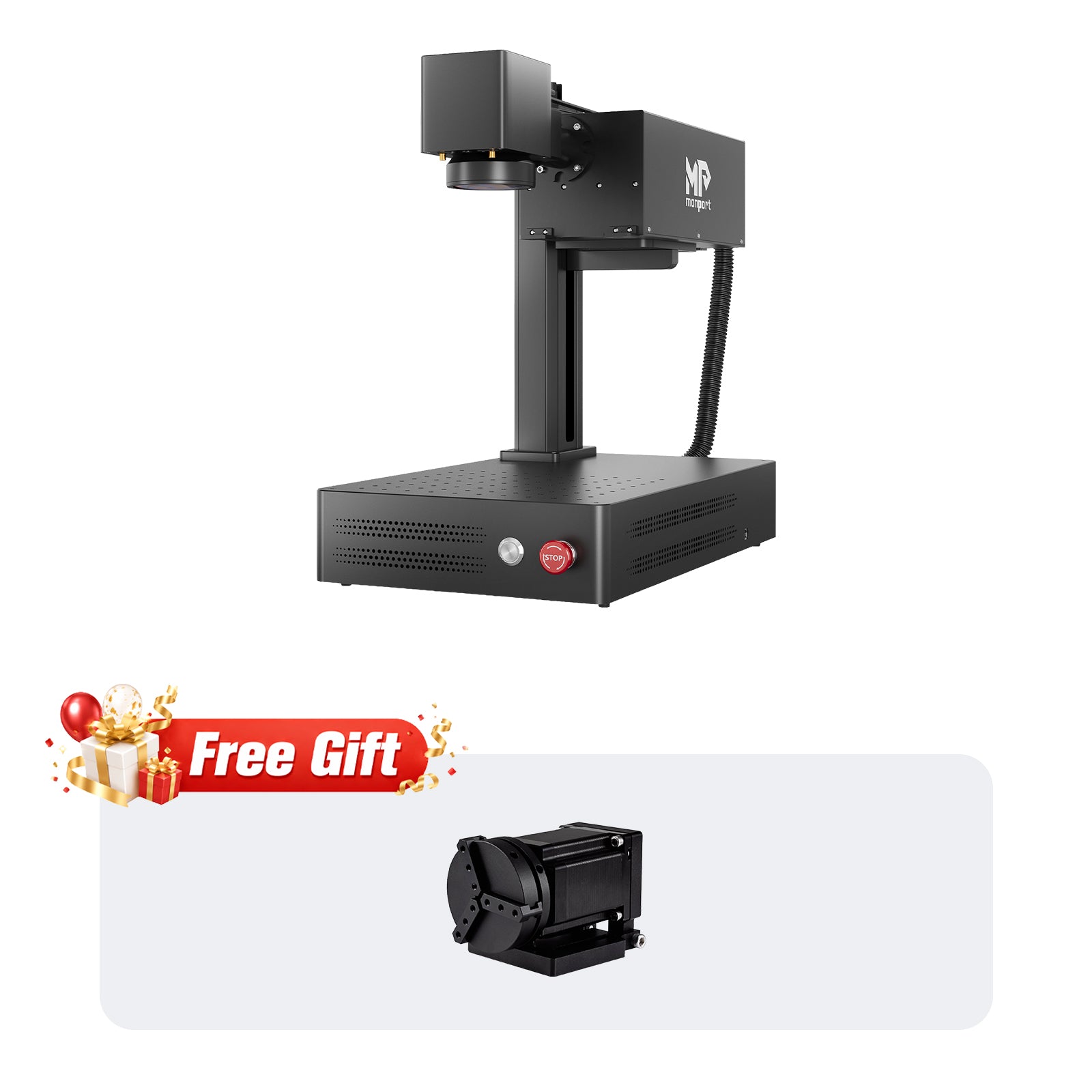

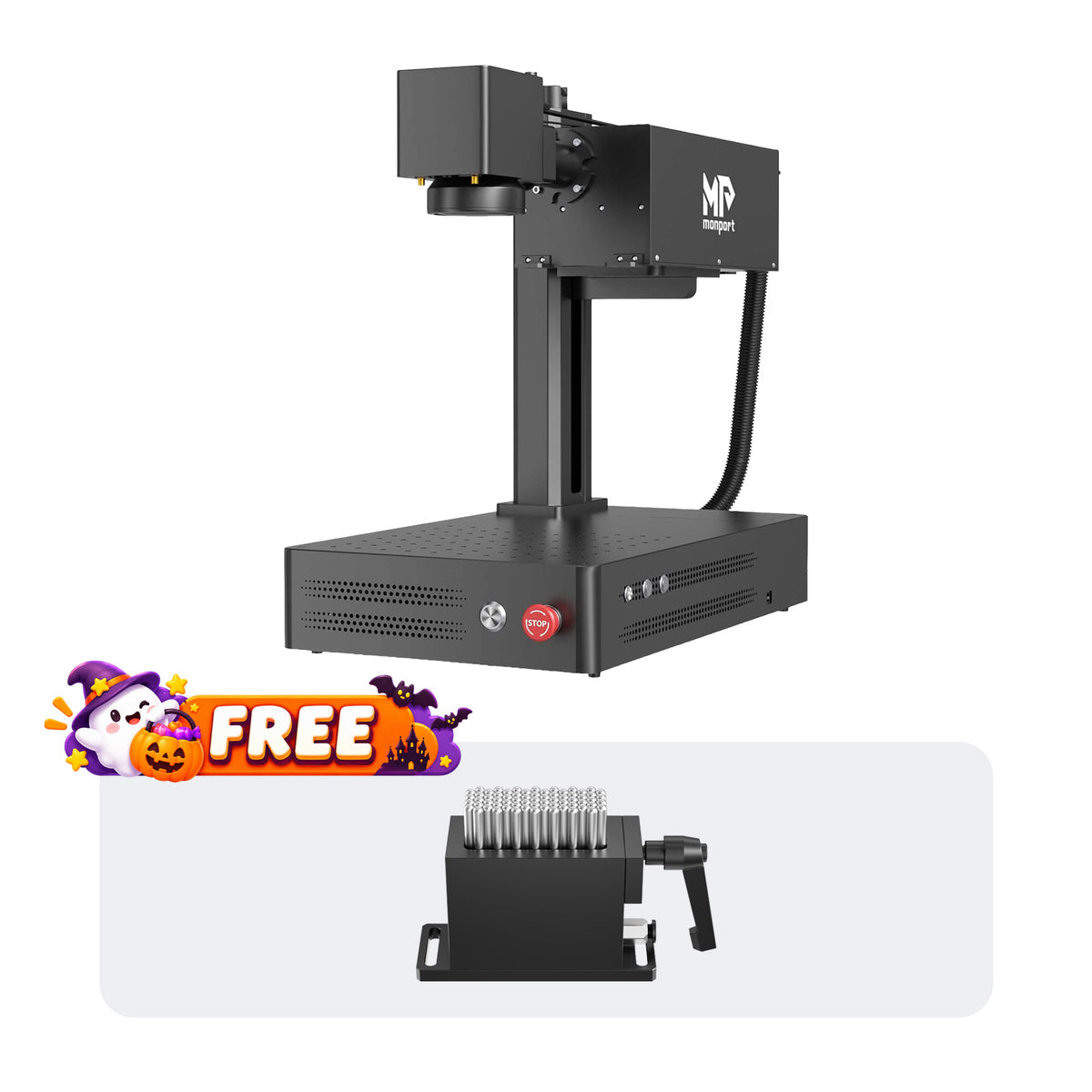

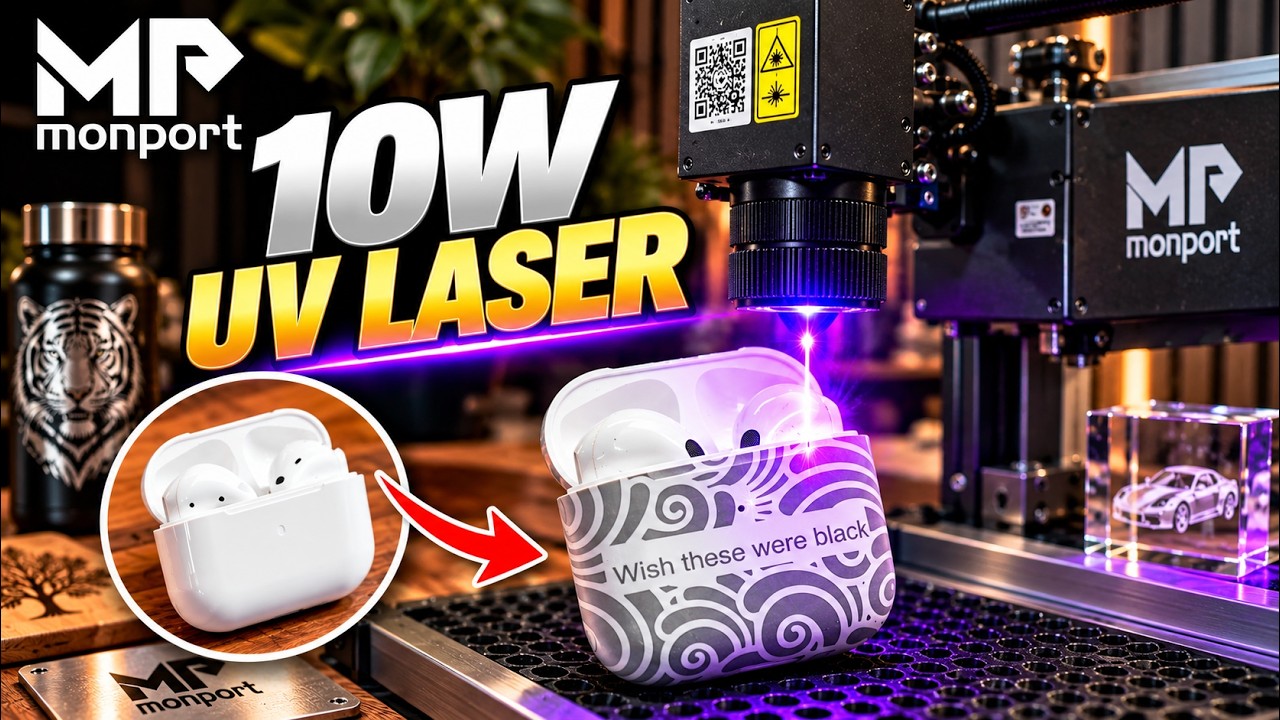

Monport GM 10W UV Laser Engraver & Marking Machine
Monport GM 10W UV Laser Engraver & Marking Machine
Regular price
$4,799.99
Sale price
$4,799.99
Regular price
- Damage-Free Zero-Firing Engraving
- Ultra-High Resolution Engraving
- High-speed, Stable, Speed 10000 mm/s
- Unlock All Material with UV Laser
- Free Water Chiller Worth $600
- New Engraving Software Free Giveaway
Show More
In stock
Payment methods
Couldn't load pickup availability

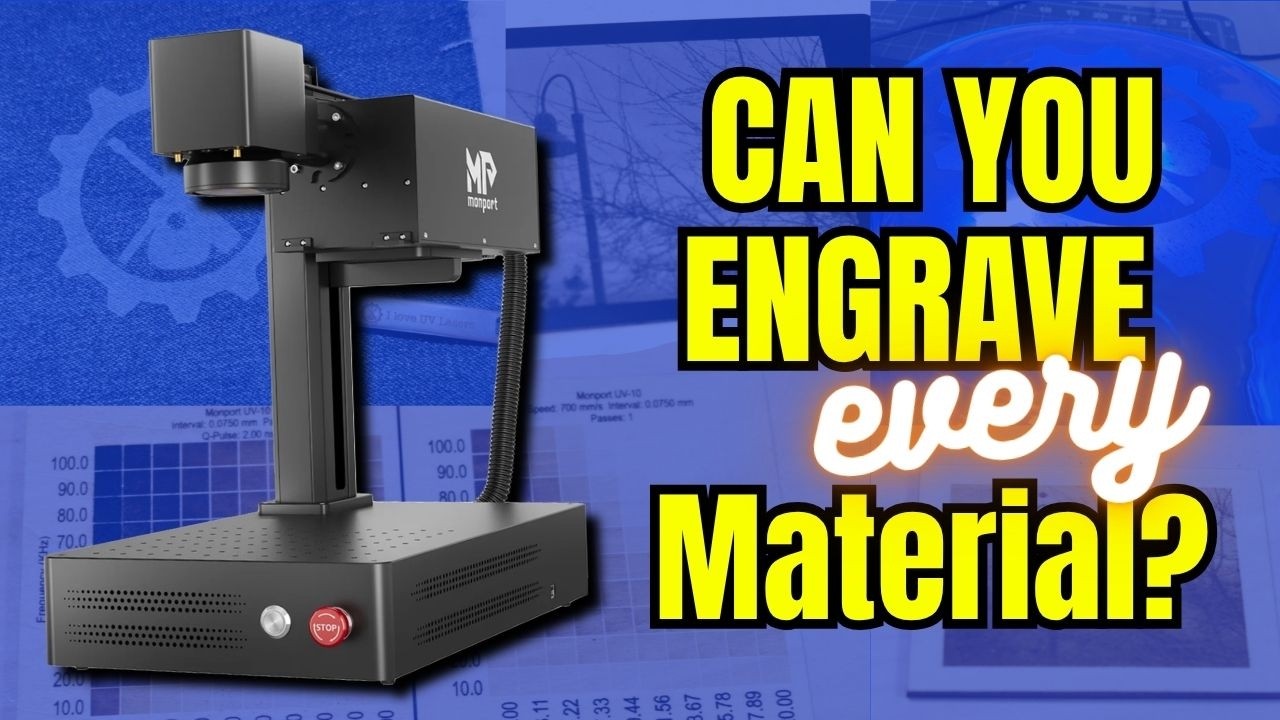

Unlock All Material with UV Laser
Whether metal or non-metal, transparent or opaque, UV laser can engrave a wide range of materials—over 1500 types.They stand out significantly compared to CO2, diode laser, and fiber laser engravers on the market.
Damage-Free Zero-Firing Engraving
Using an UV laser marking machine for engraving enables clear, permanent markings with minimal damage to material surfaces and virtually no smoke emission.Engraved materials remain free of blackening, and the process produces no odor.

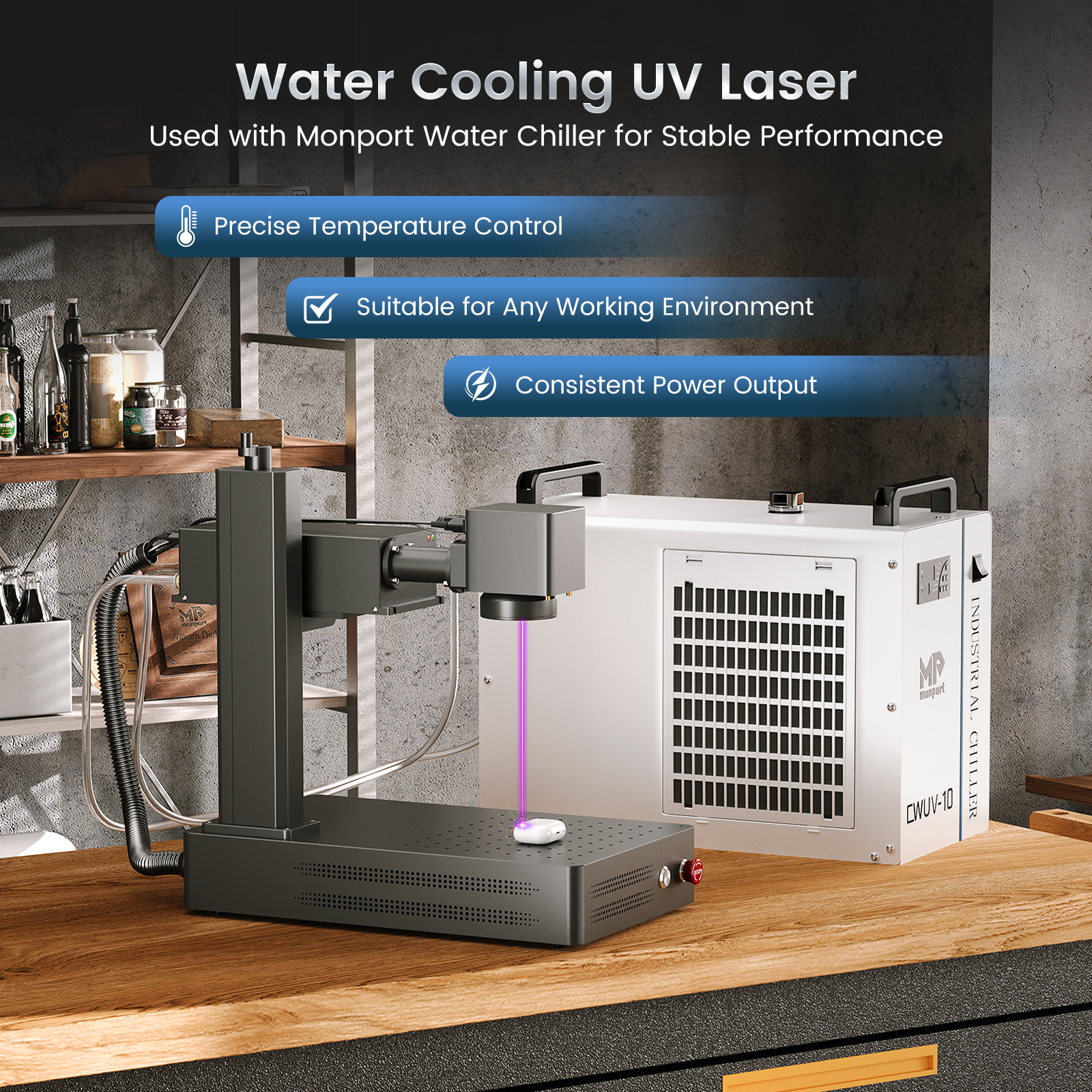

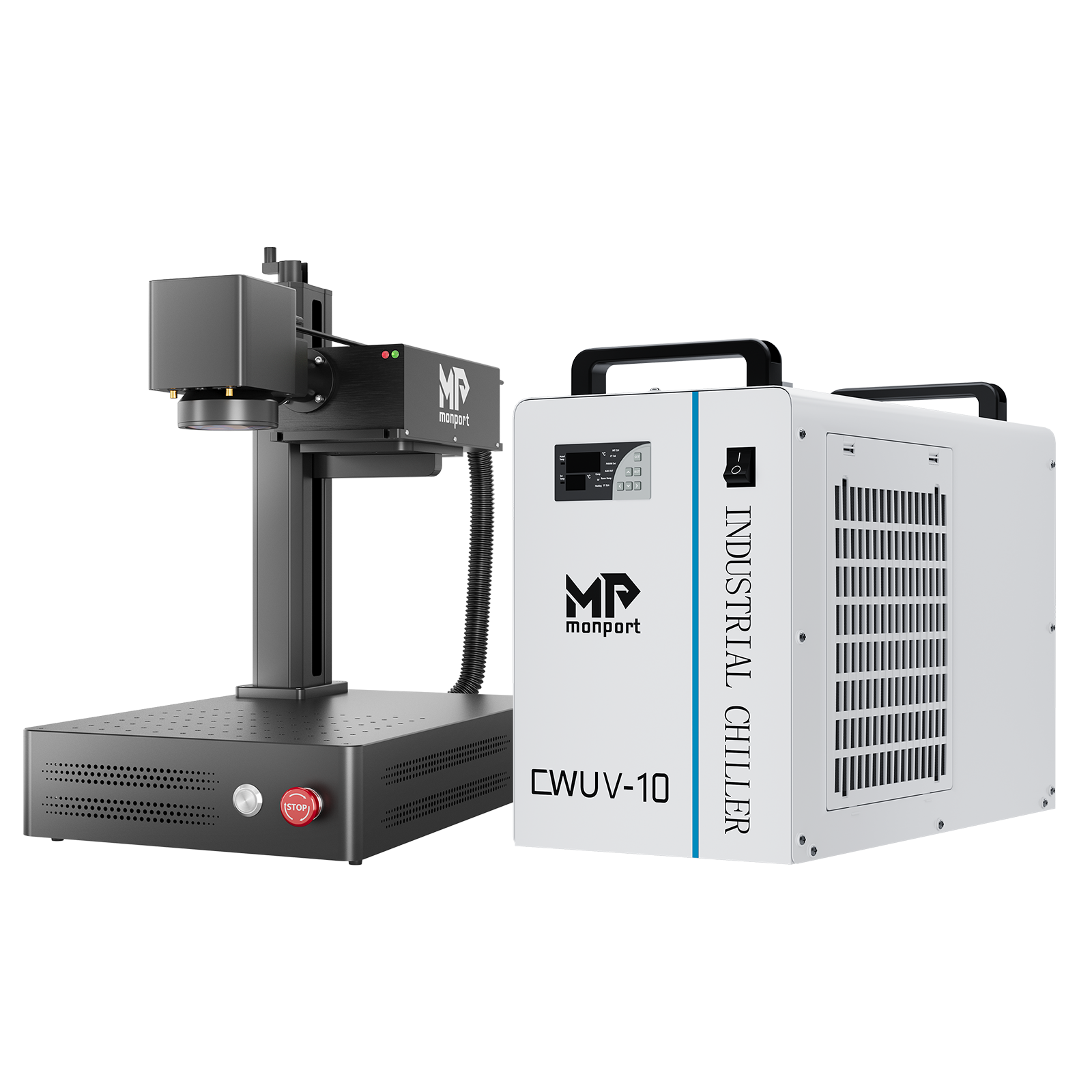

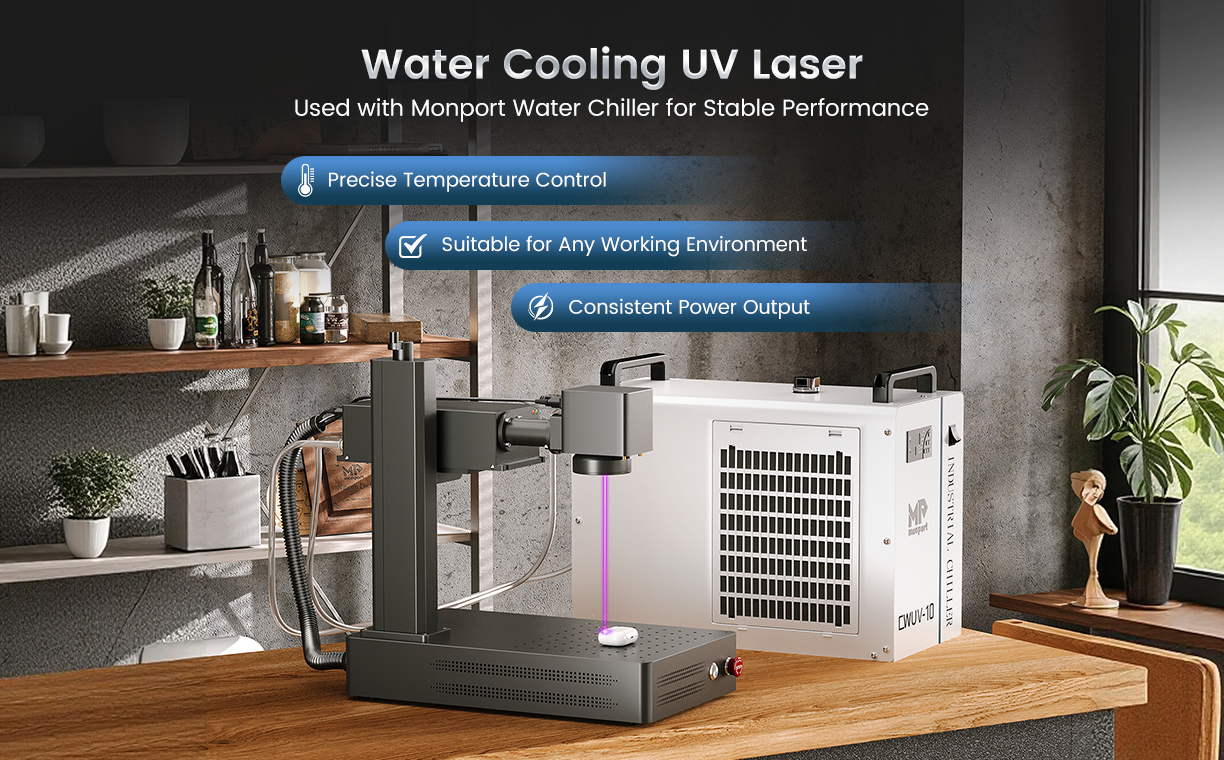

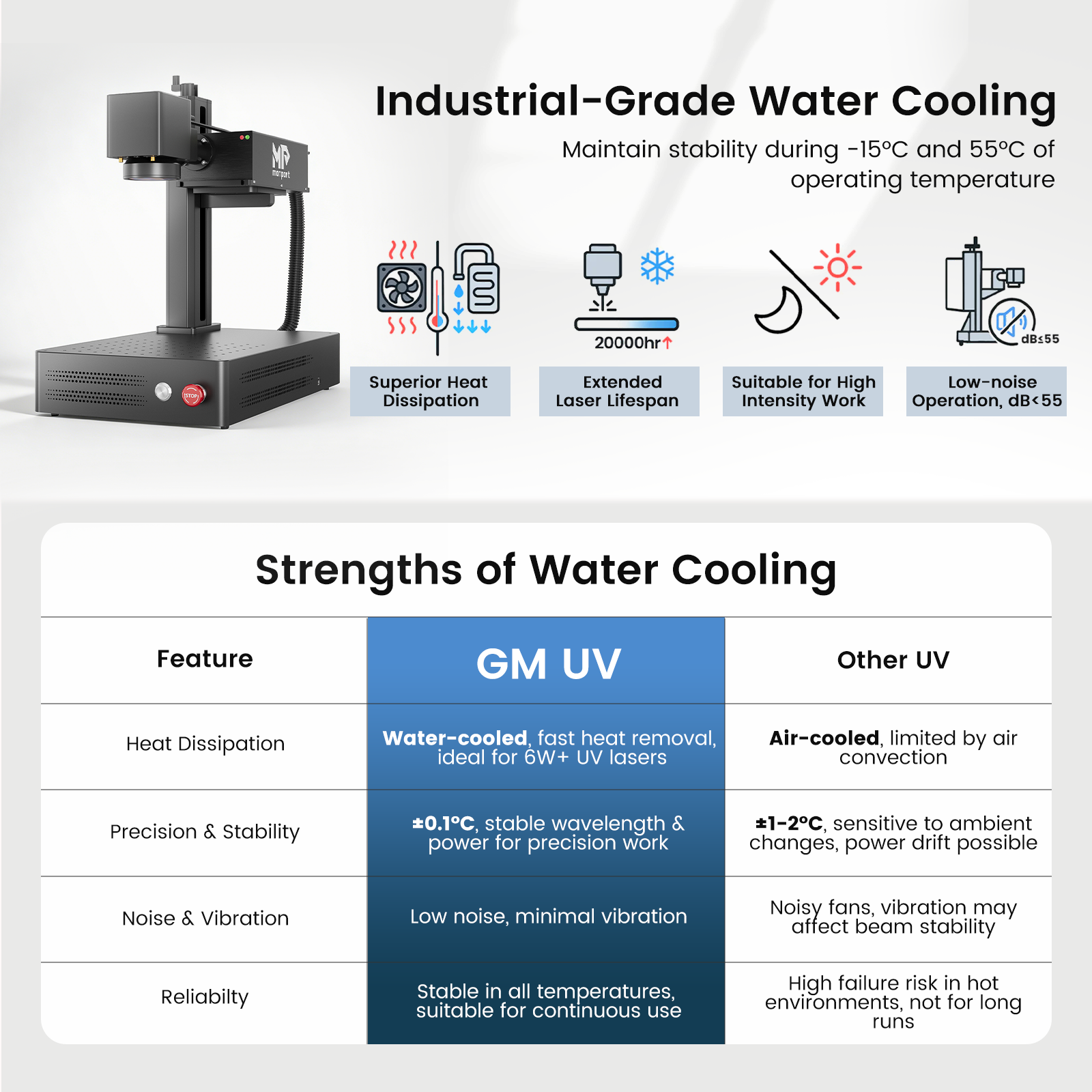

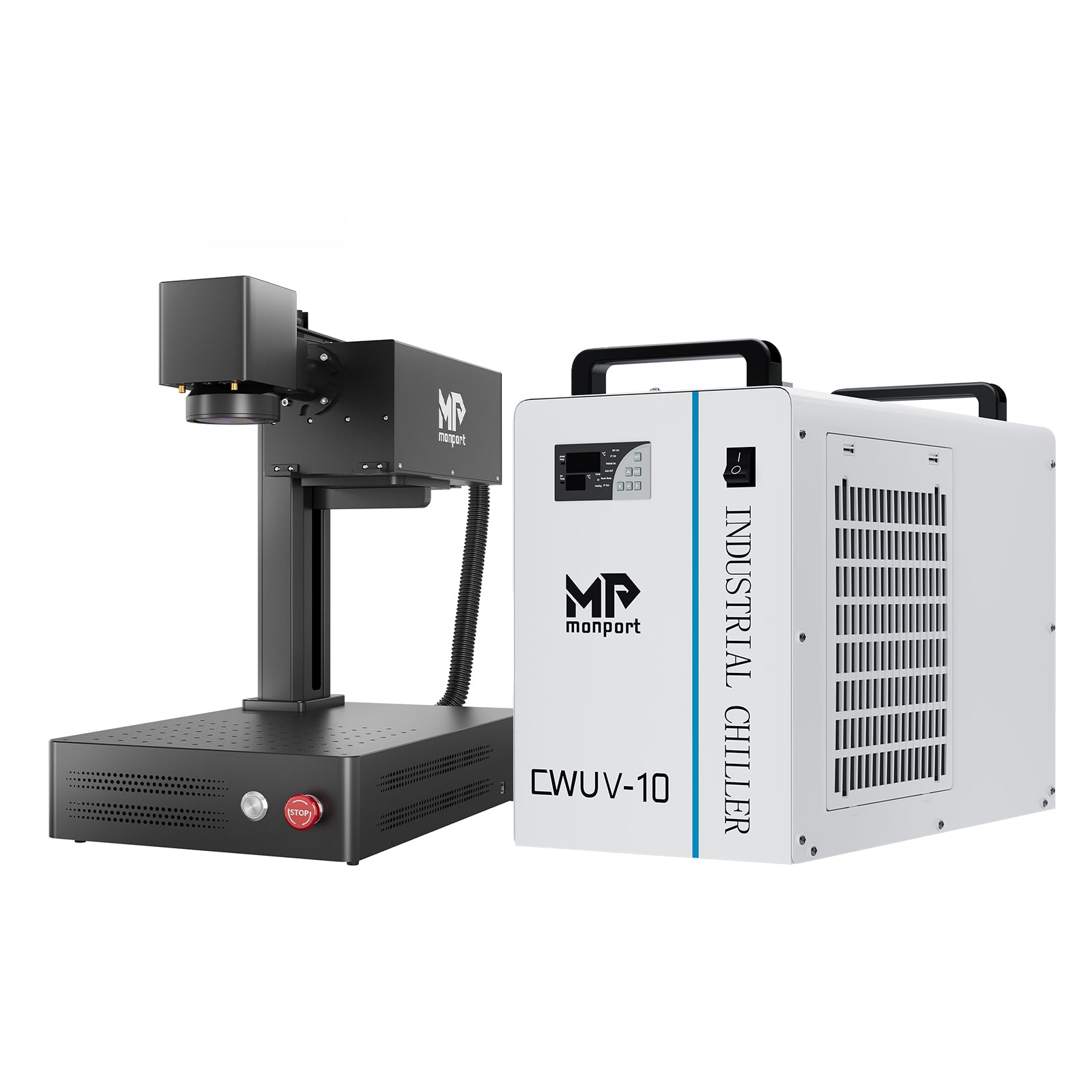

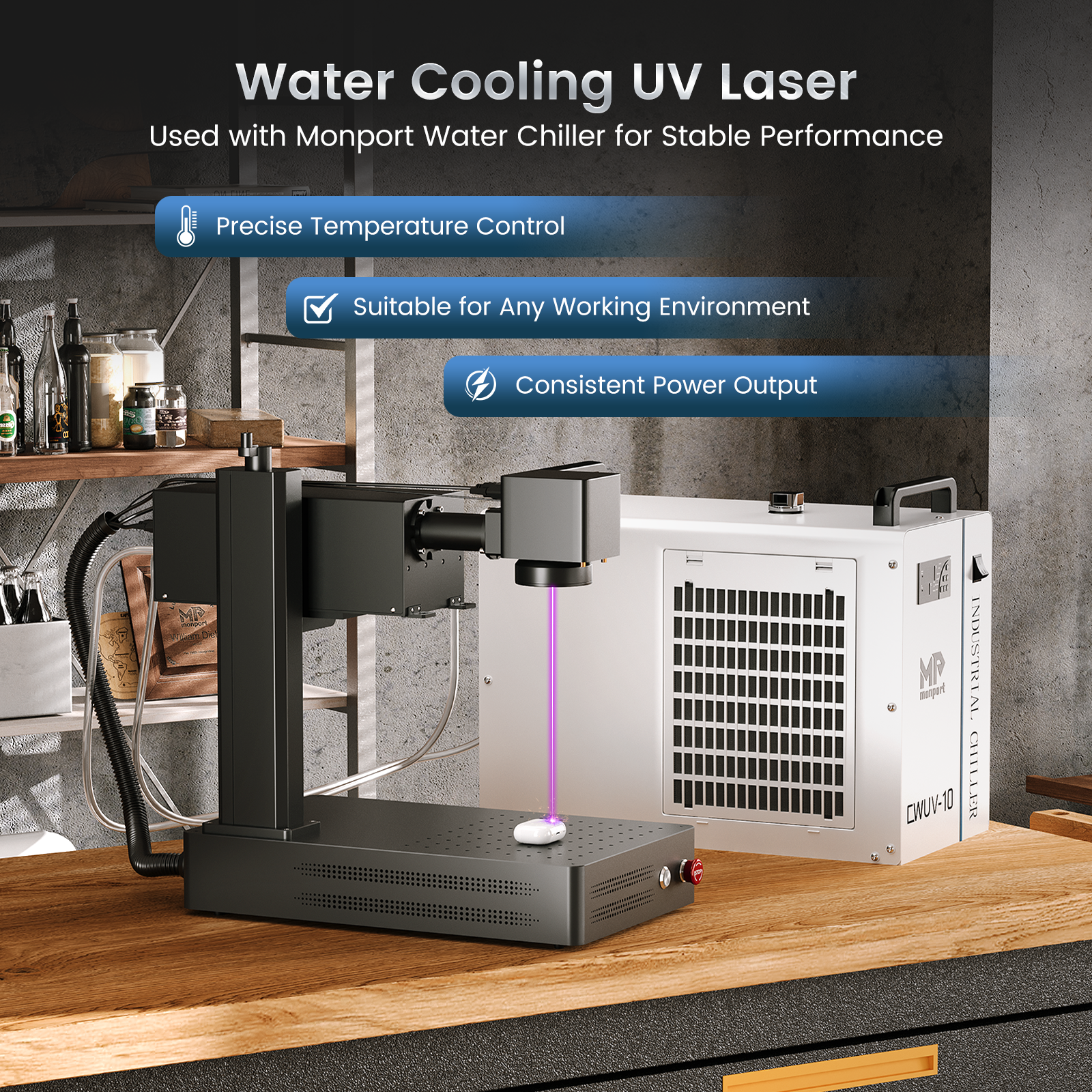

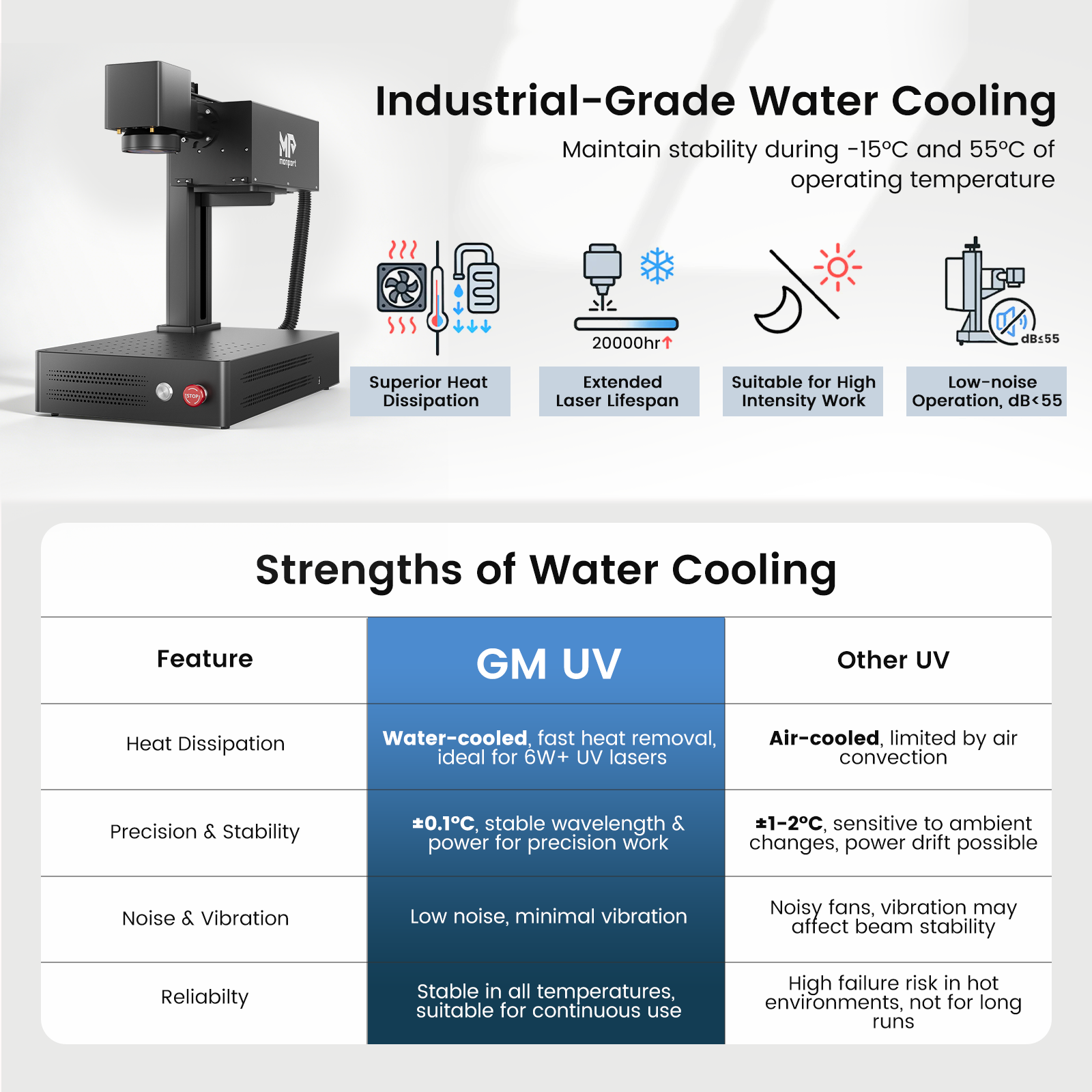

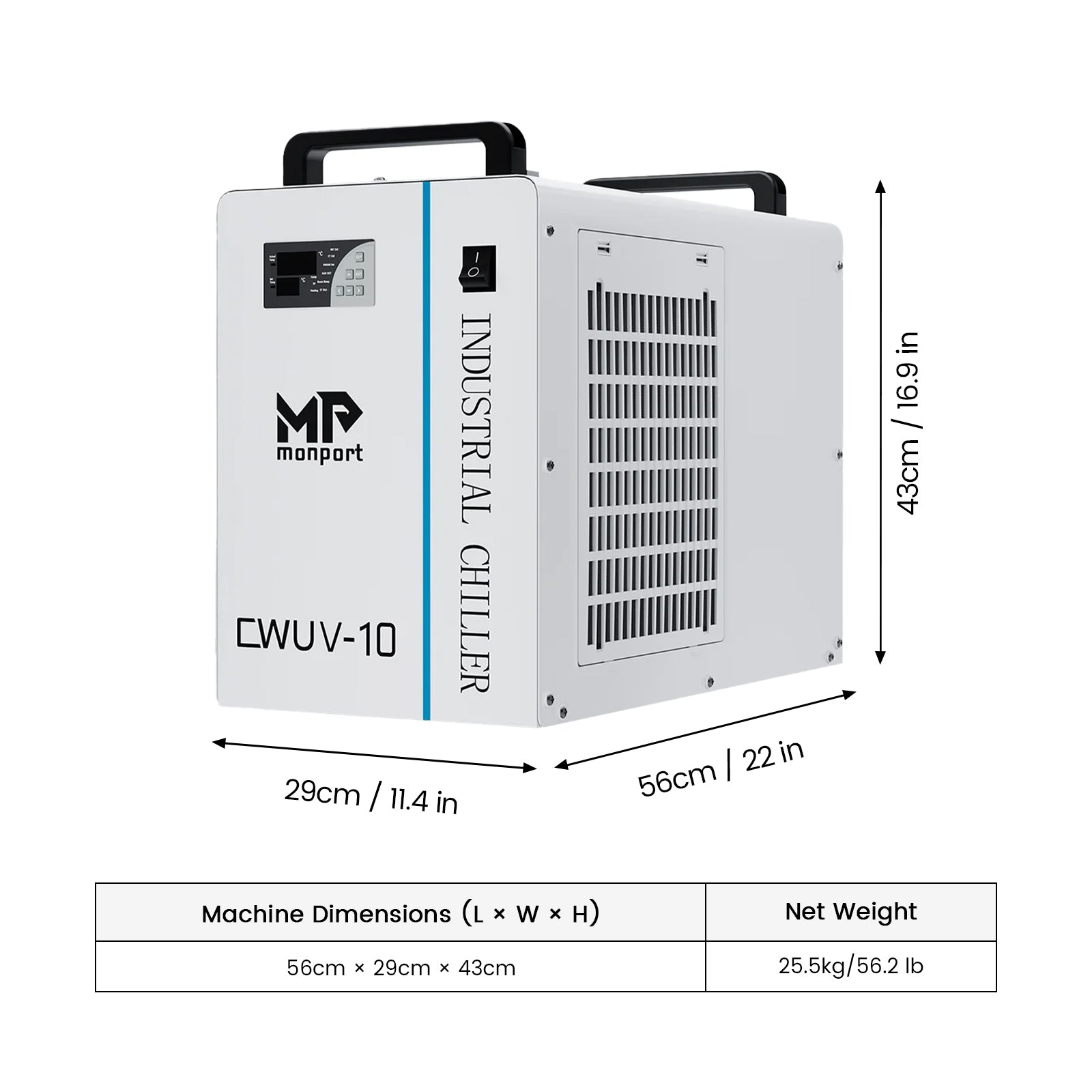

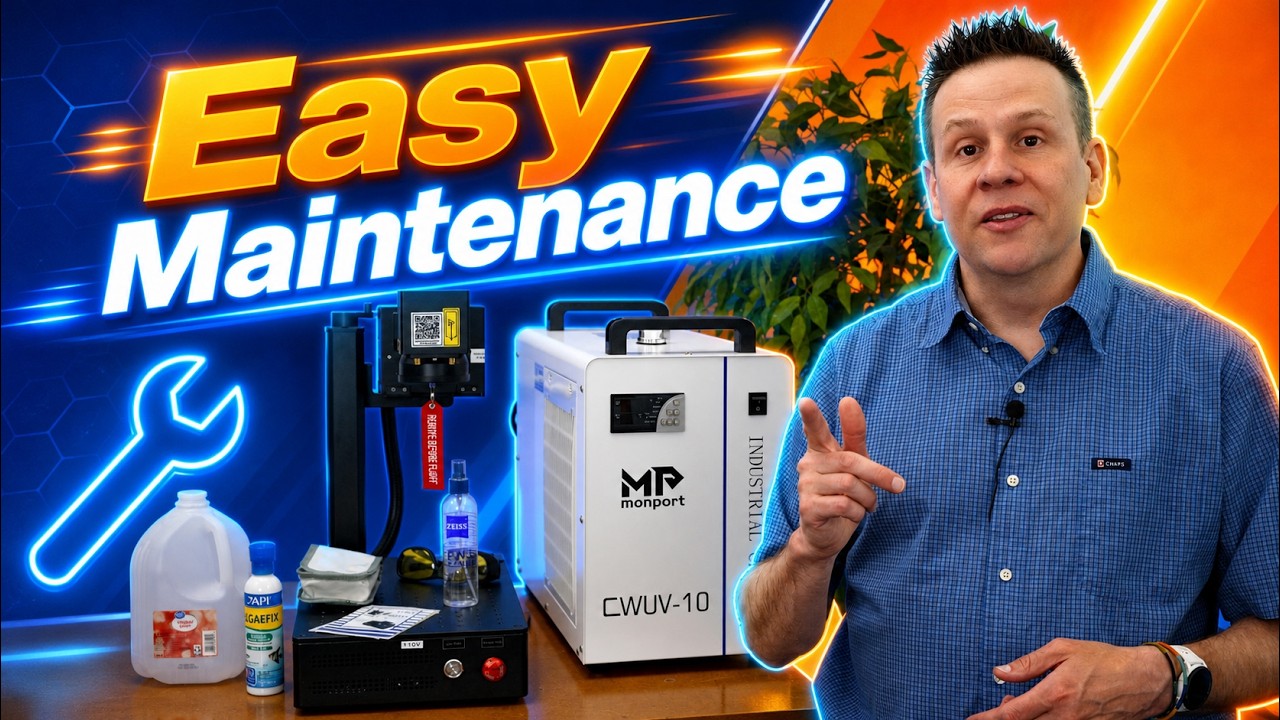

Water Chiller integration ensures efficient laser operation.
Monport's intelligent temperature regulation solution ensures precise maintenance of the laser's optimal operating temperature in both extreme heat and cold environments, enabling the laser engraver to consistently perform at peak efficiency.
Ultra-High Resolution Engraving
The spot size of a UV laser is 1/40th that of a fiber laser, measuring just 0.0019mm; fiber lasers typically have spot sizes ranging from 0.03 to 0.1mm.Engraving resolution can reach up to 16K.

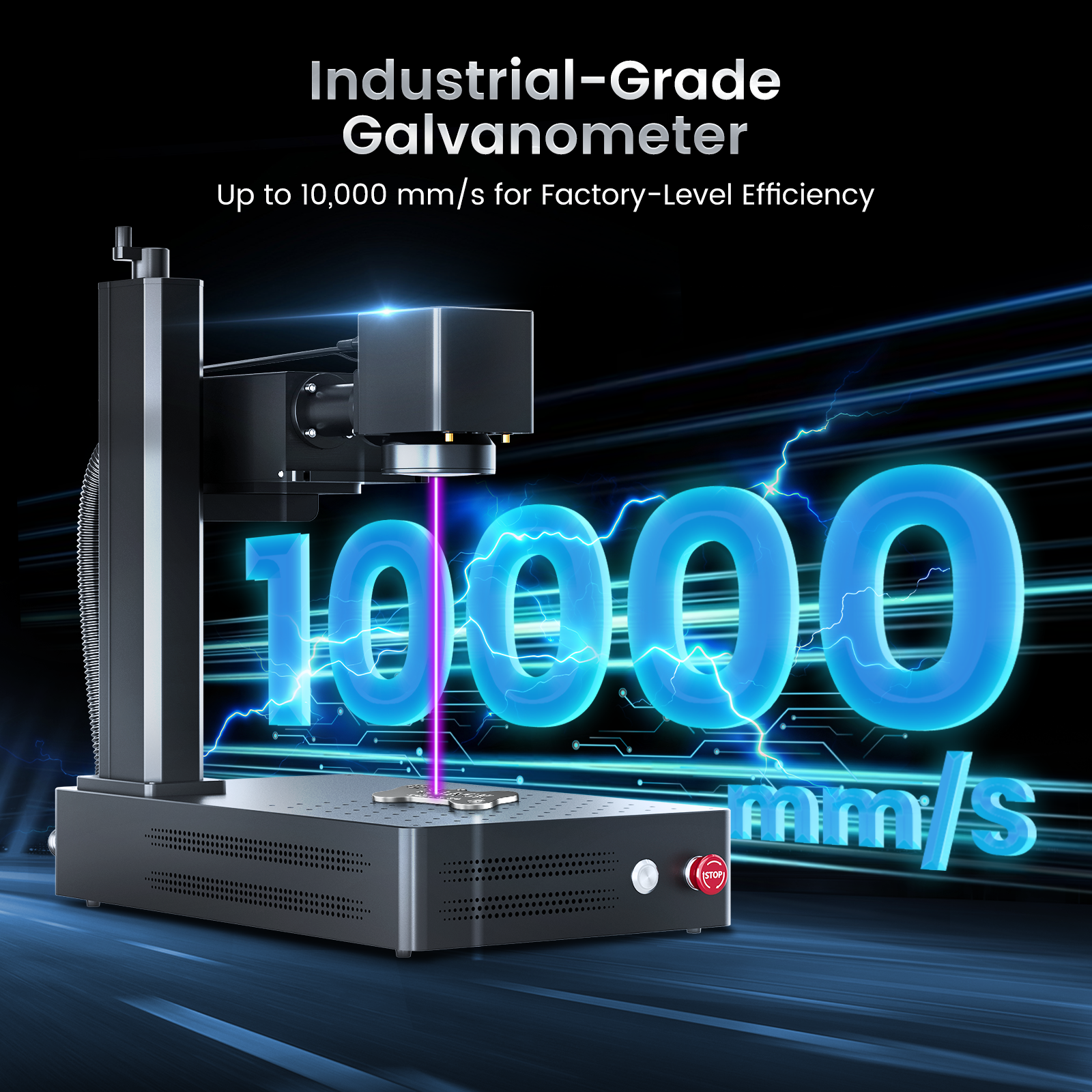

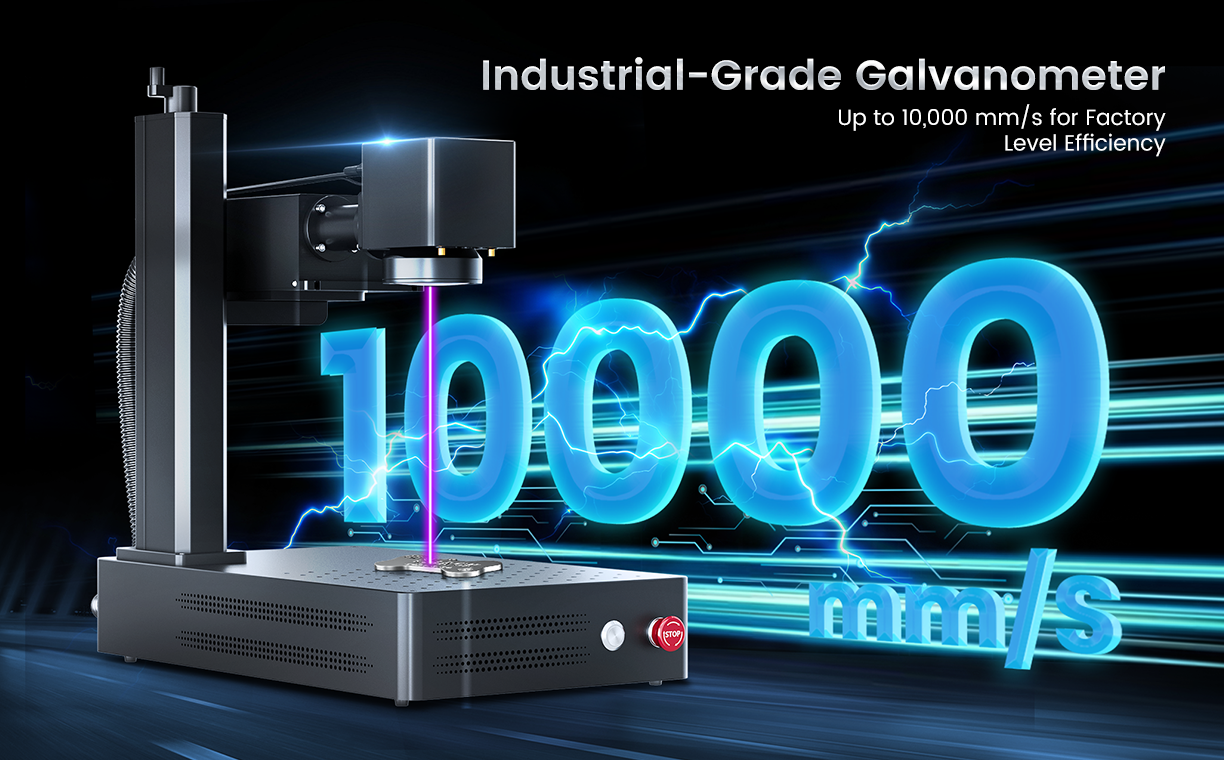

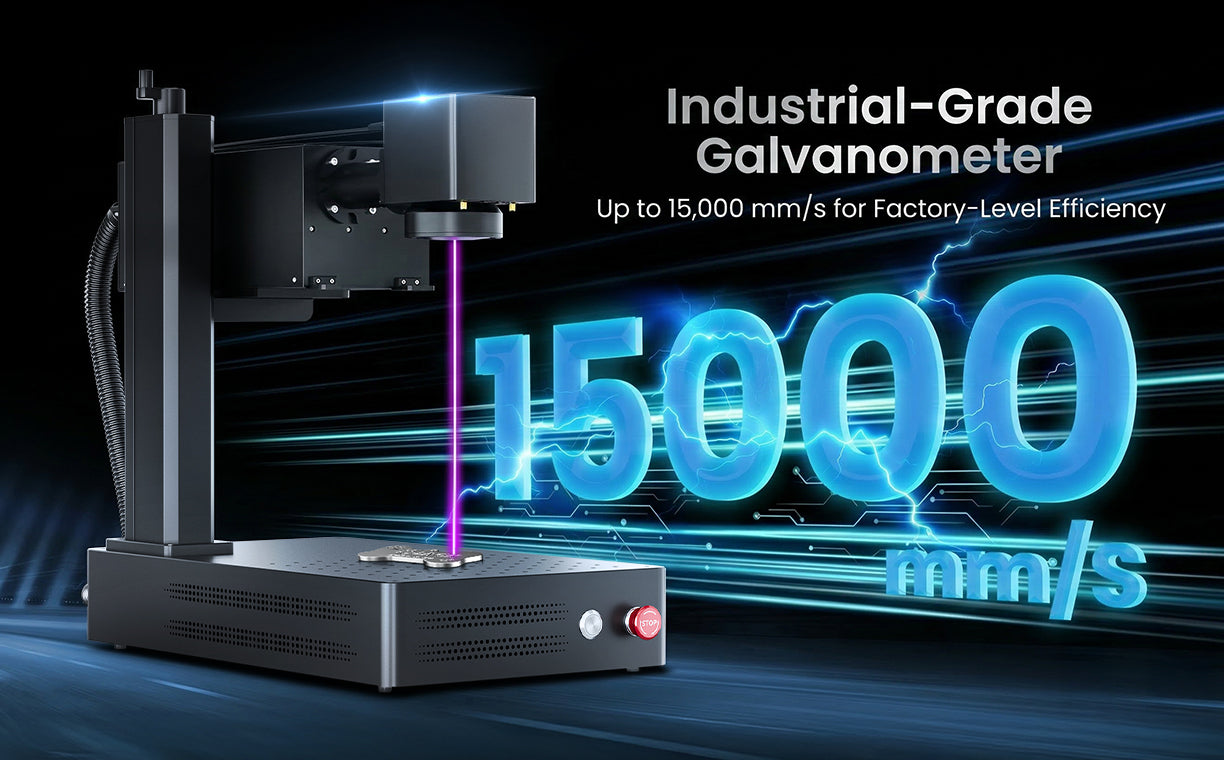

Industrial-Grade Laser Performance

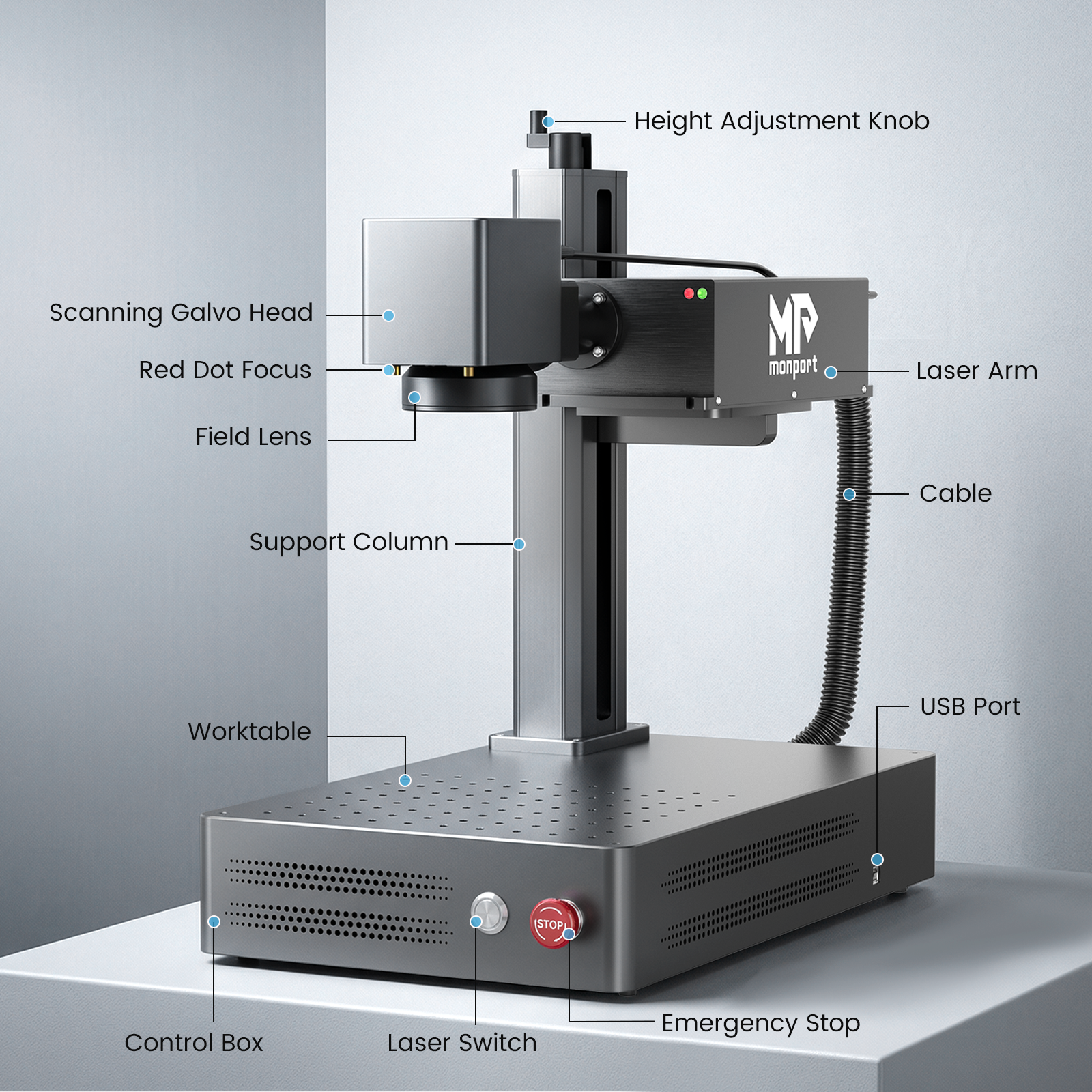

UV Laser Engraver equipped with Industrial-grade all-metal housing galvanometer scanner:High-speed, stable, speed 10000mm/s

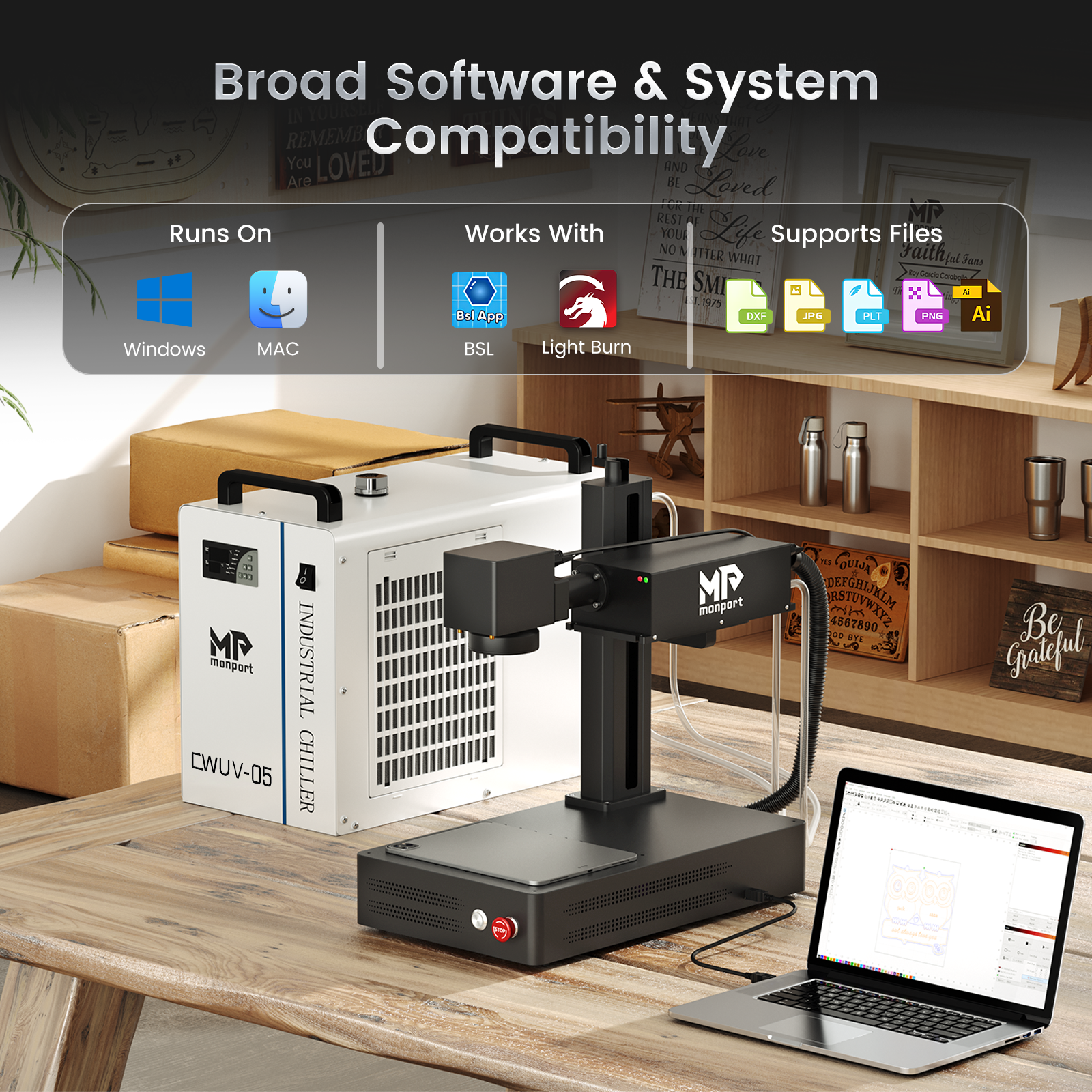

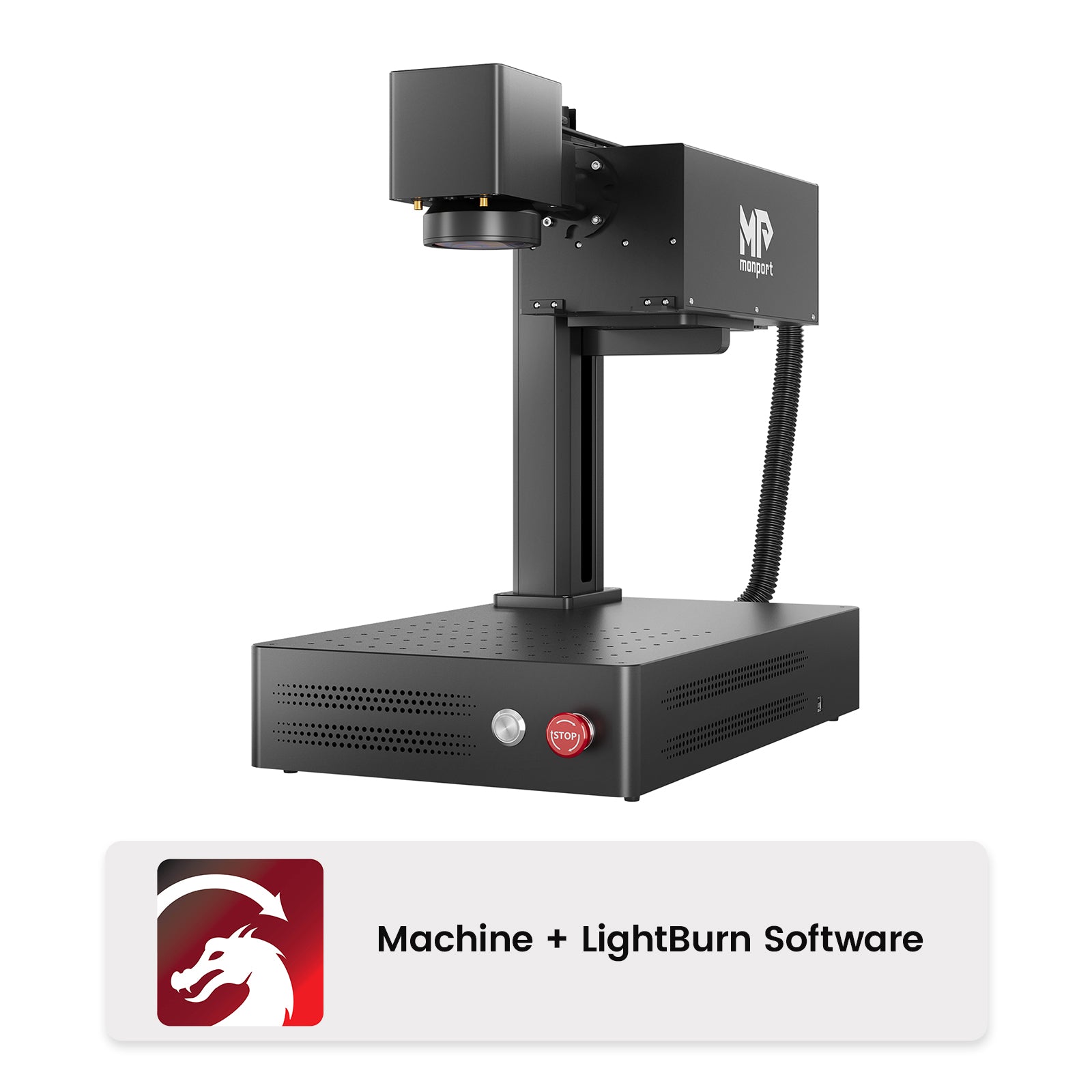

New Engraving Software Free Giveaway
Free laser engraving software included with every purchase, compatible with popular LightBurn software. Helps you enhance your engraving projects.

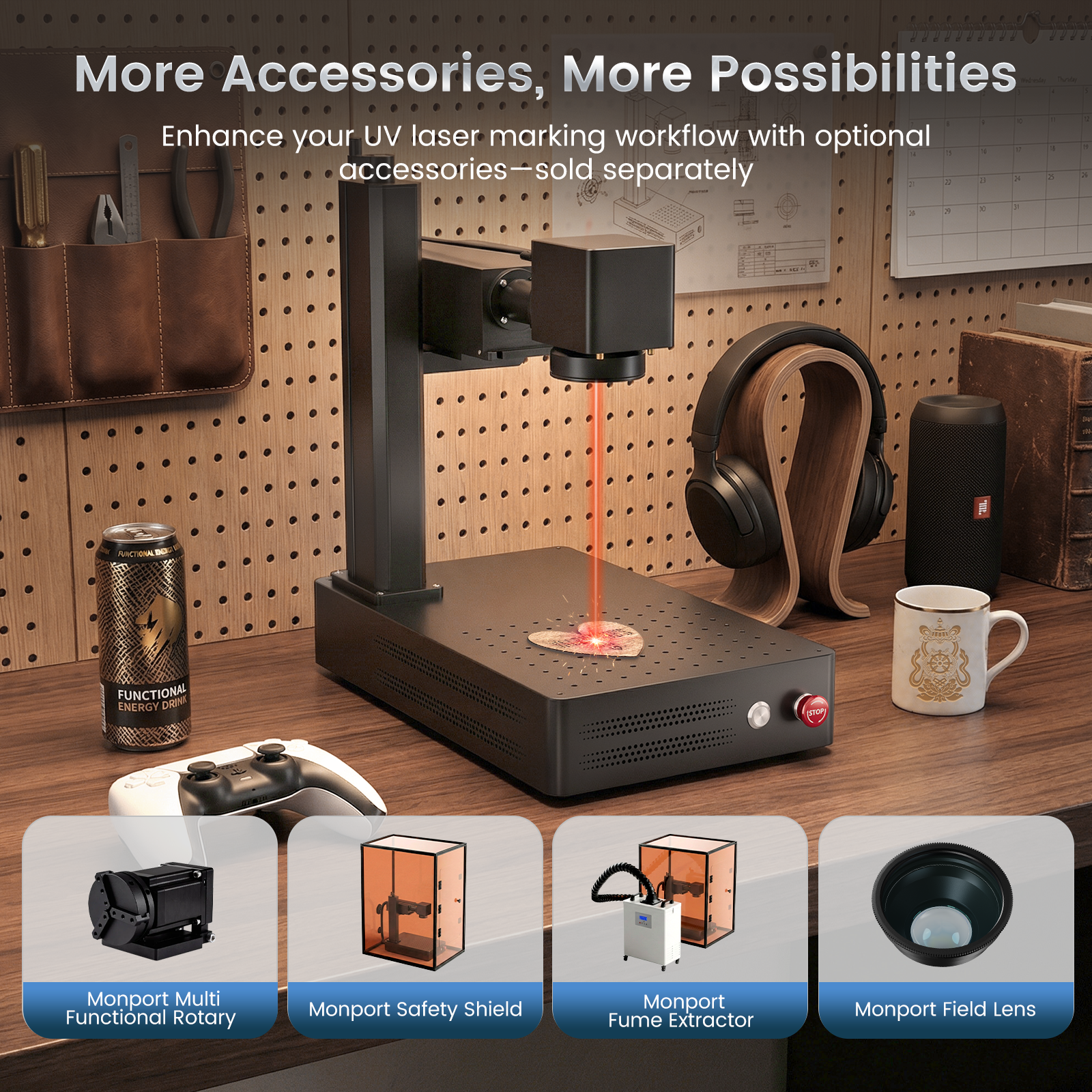

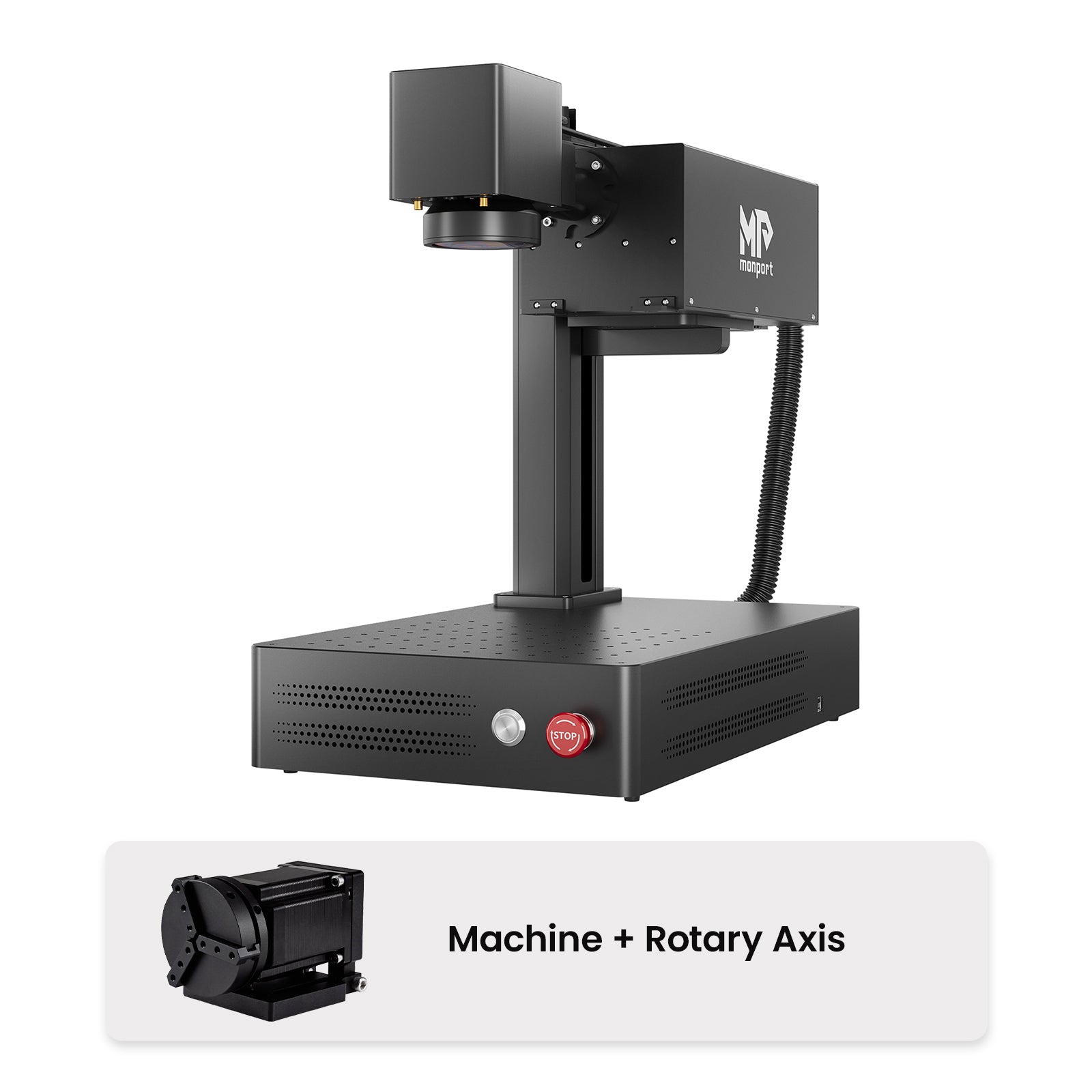

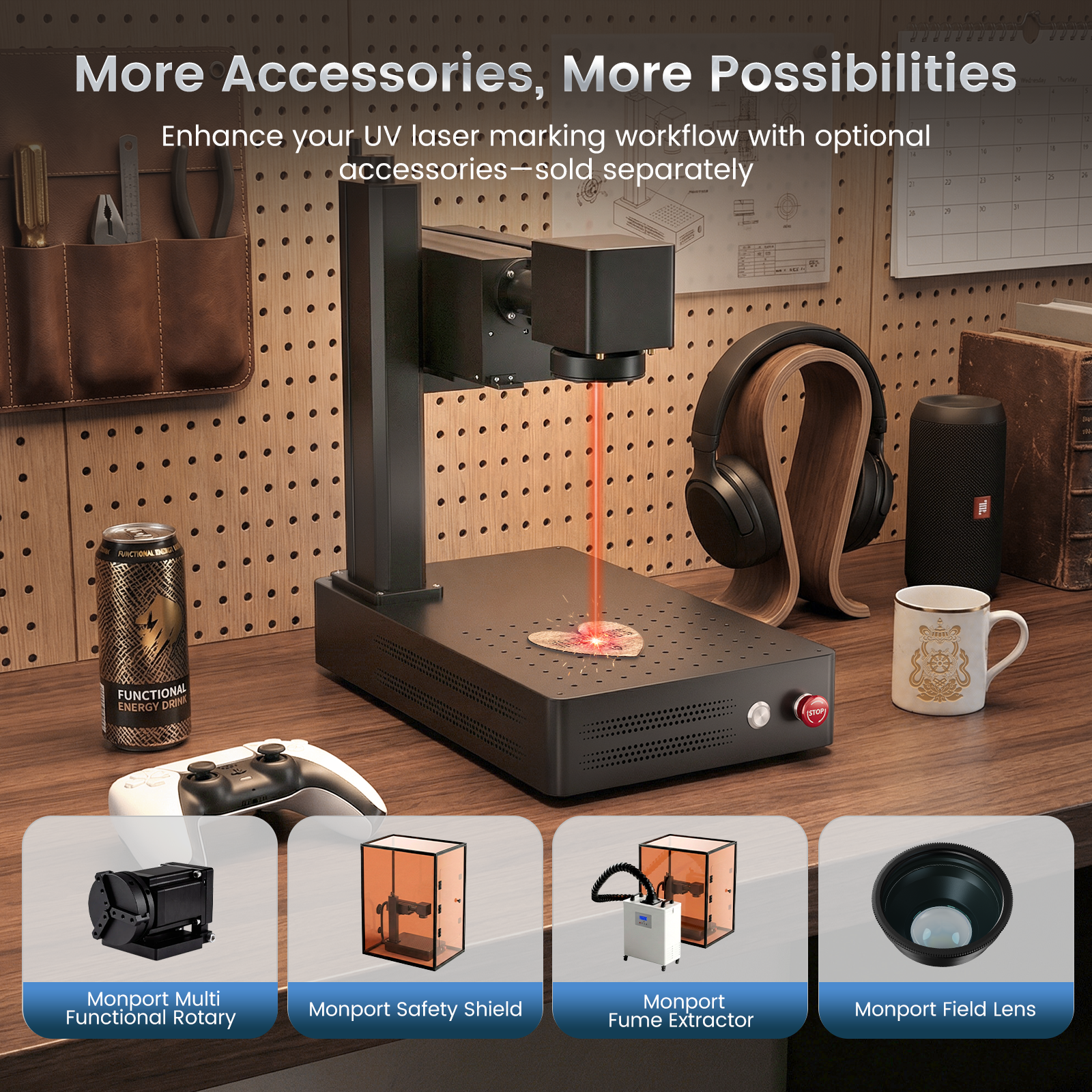

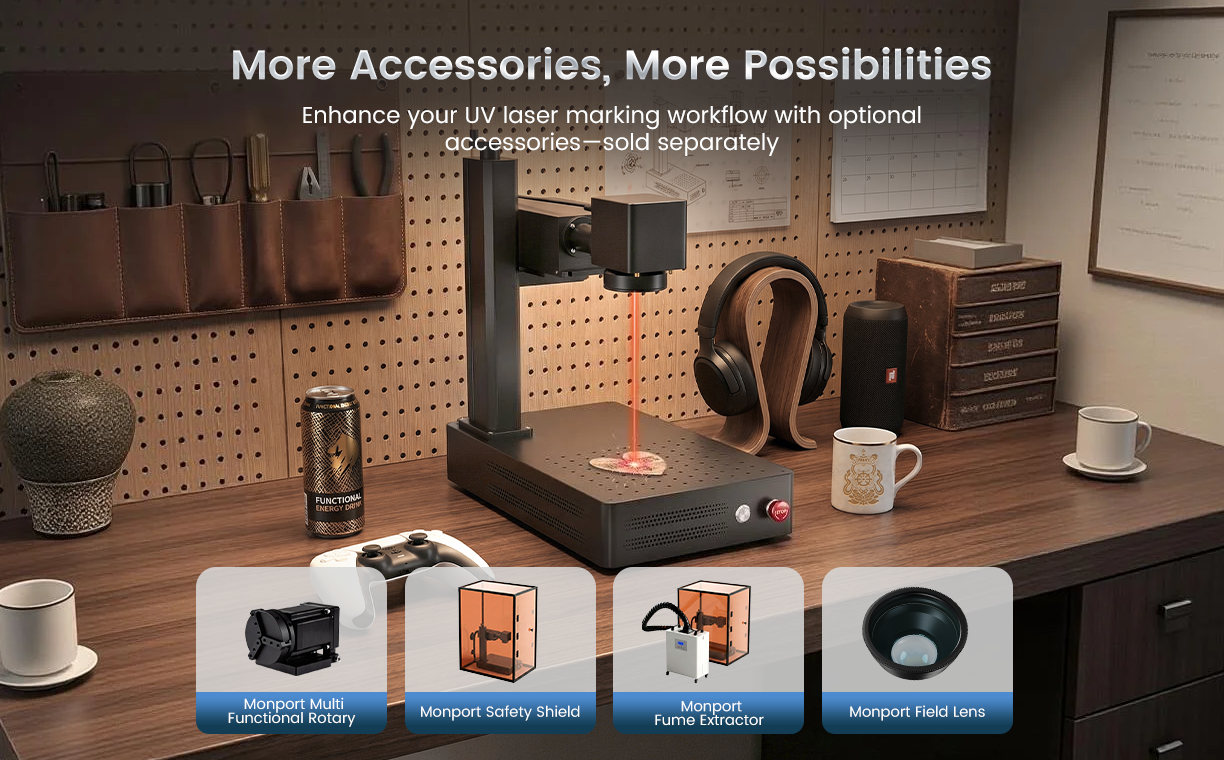

Multiple accessories can be used for more laser engraving scenarios.

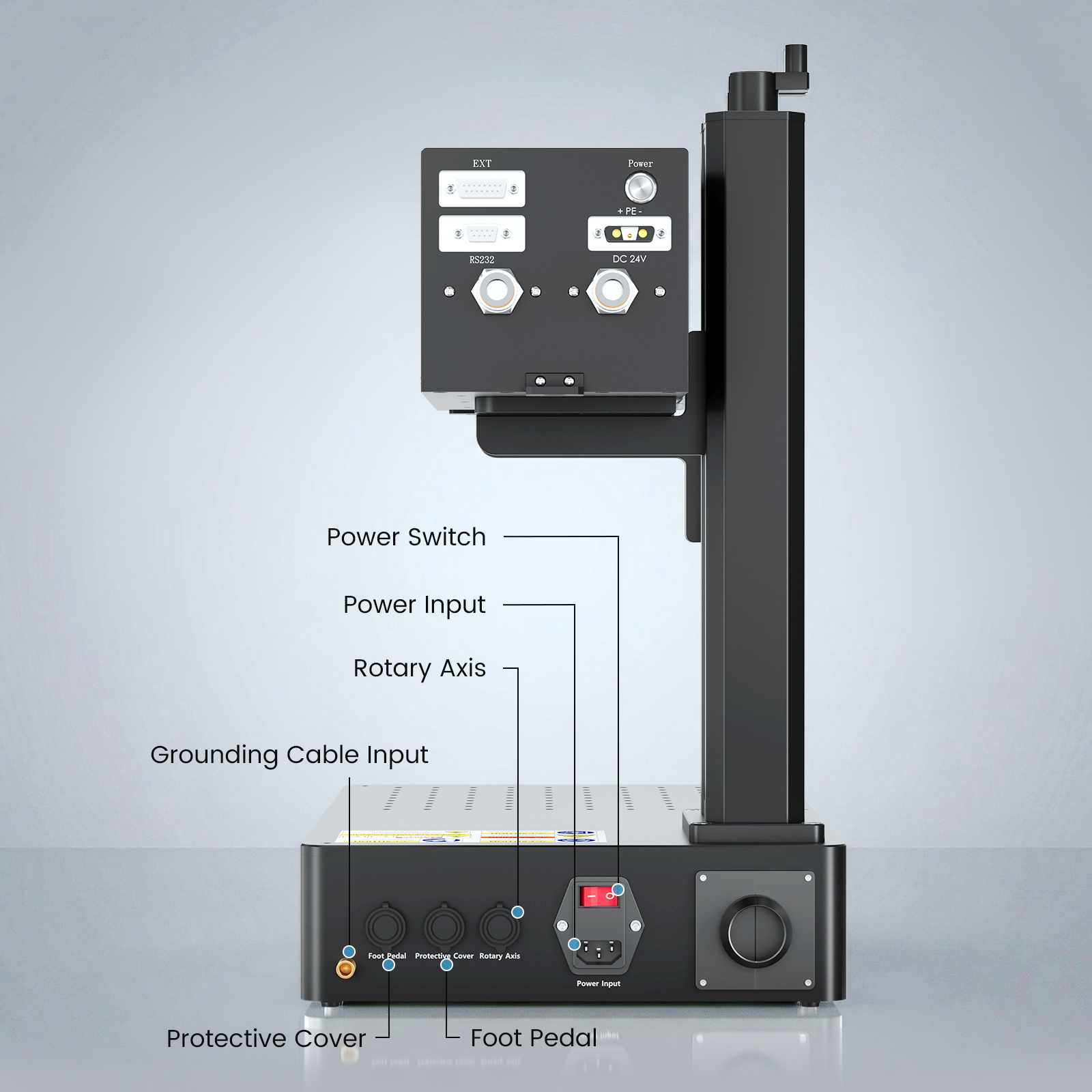

Compatible with rotary axes, smoke purifiers, protective covers, and other accessories
Applications Include a Wide Range of Engraving Possibilities
GM UV Compare
| Product | GM UV6 | GM UV10 |
| Voltage |
North America (United States & Canada): 110–120V / 60Hz Europe, United Kingdom & Australia: 220–240V / 50Hz |
|
| Overall Rated Power | 400 W | 400 W |
| Max. Working Speed | 10000 mm/s (393.7 ips) | |
| Max. Laser Cutting Capacity (Basswood) | 8 mm in Multiple Passes | 12 mm in Multiple Passes |
| Max. Laser Cutting Capacity (Acrylic) | 6 mm in Multiple Passes | 10 mm in Multiple Passes |
| Max. Laser Cutting Capacity (Stainless Steel) | 0.6 mm in Multiple Passes | 1.2 mm in Multiple Passes |
| Laser Spot Dimension | 0.0019 mm | |
| XY Positioning Accuracy | ±0.001 mm | |

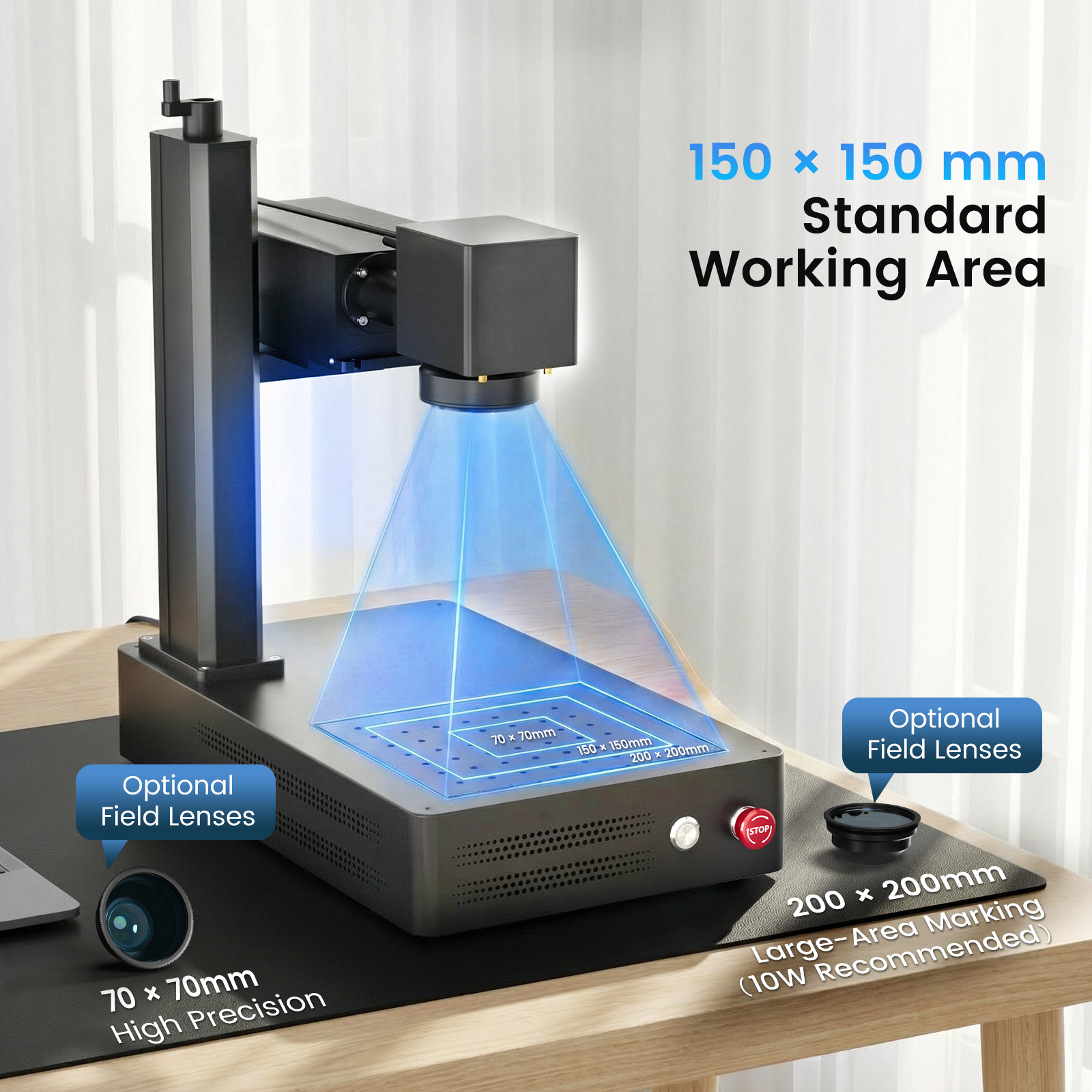

| Field Lens | 5.9 × 5.9 in. (150 × 150 mm) | |
| Processing Area | 5.9 × 5.9 in. (150 × 150 mm) | |
| Max Z.height (Field Lens to Workbench) | 350 mm | |
| Color Engraving | YES | |
| Focus mode | Manual Focus | |
| Electric Lifting | NO | |
| Rotation Axis Function | YES | |
| Foot Pedal Function | External Foot Pedal | |
| Laser Type | UV Laser | |
| Laser Output Power | 6 W | 10 W |
| Adjustable Power Range | 10%–100% | |
| Frequency Range | 10–150 kHz | 30–200 kHz |
| Expected Service Life | 20,000 hr. | |
| Laser Wavelength | 355 nm | |
| Operating Temperature Range | 41–95 ℉ | 5–35 ℃ | |
| Max. Humidity | 70% | |
| Cooling Type | Water Cooling | |
| Class | 4 | |
| Laser Engravable | Glass, Crystal, Acrylic, Wood, Metal, Leather, Plastic, Rubber, Silicone, Ceramic and more | |
| Laser Cuttable | Glass, Plastics (PE, PP, EVA, PET, etc.), Fabric, Leather, Acrylic (Not Fully Transparent), Paper, Wood, and More | |
| Operating Software |
BslAppSimple (Included) (Windows 7/8/10/11) LightBurn (Not included) (Windows 7/8/10/11, macOS) |
|
| Data Transmission | USB Cable | |
| Applicable Image Formats |
Image files (*.bmp *.jpg *.jpeg *.png *.gif *.tif *.tiff *.tga *.webp) Vector files (*.ai *.pdf *.sc *.dxf *.gc *.gcode *.nc *.hpgl *.plt *.svg *.lbrn *.lbrn2 *.mage), etc. |
|
| Product Color | Black | |

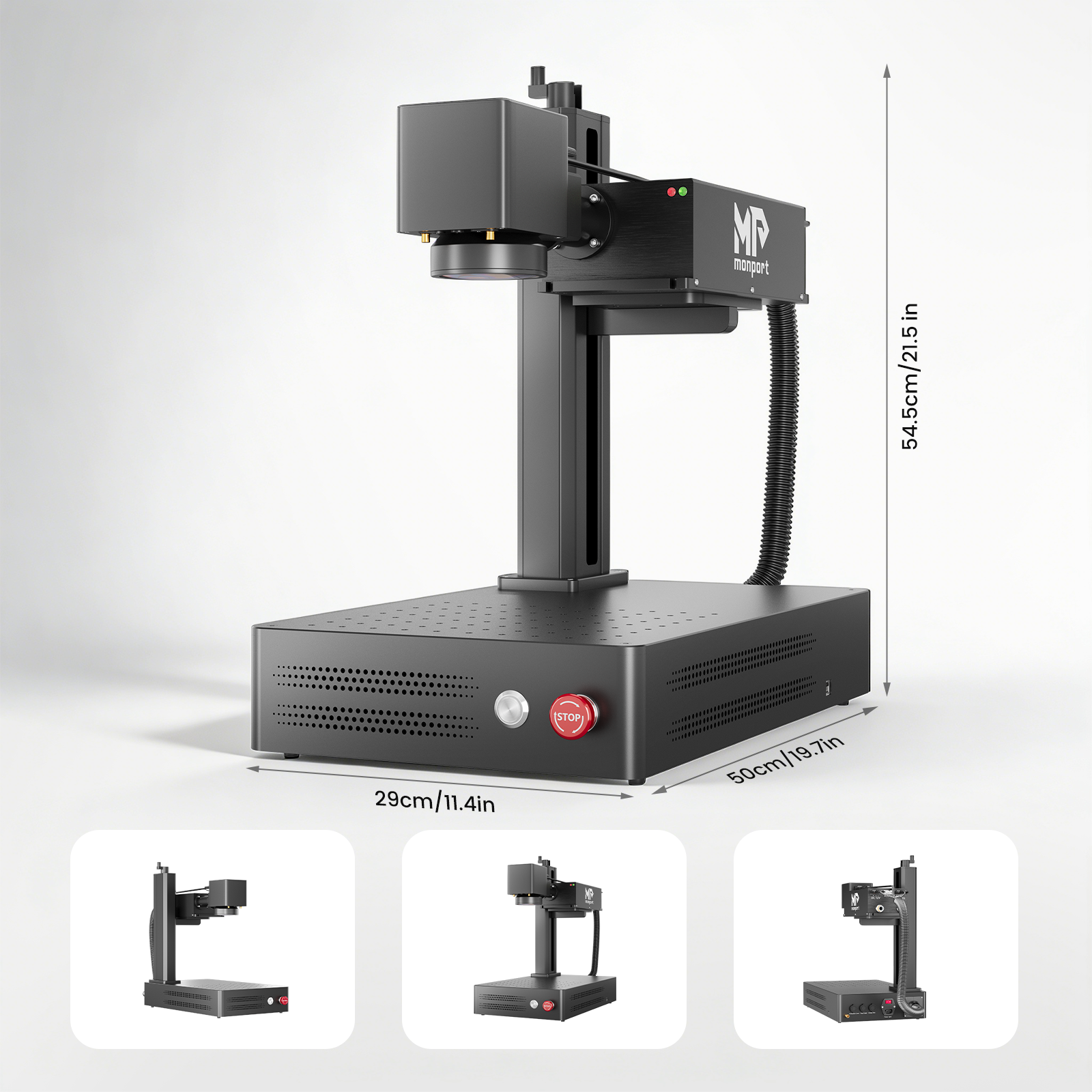

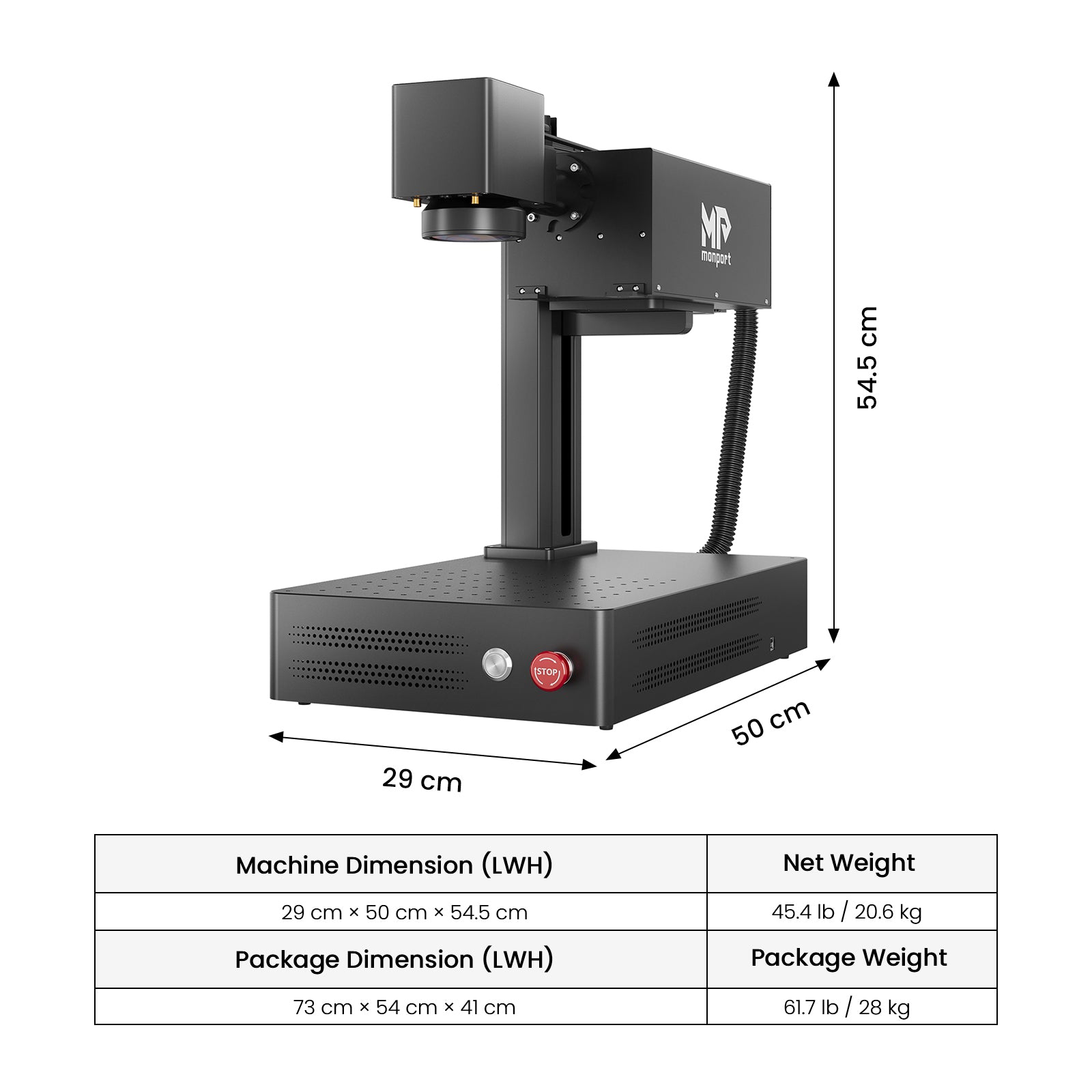

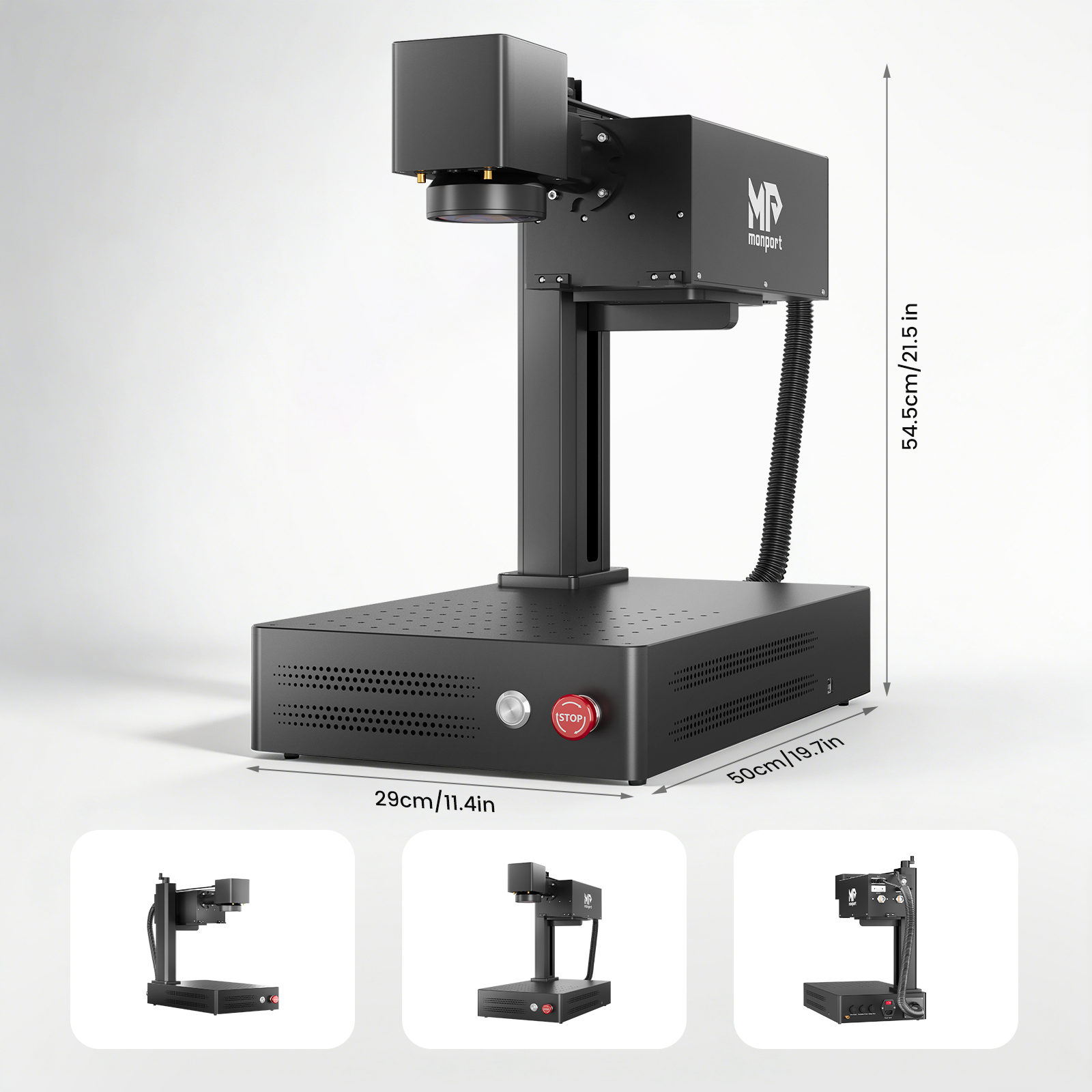

| Product Dimensions | 29 × 50 × 54.5 cm | |
| Product Weight | 15.6 KG | 20.6 KG |
| Package Dimension | 73 × 54 × 41cm | |
| Gross Weight | 23 KG | 28 KG |
| Warranty | 12-Month | |

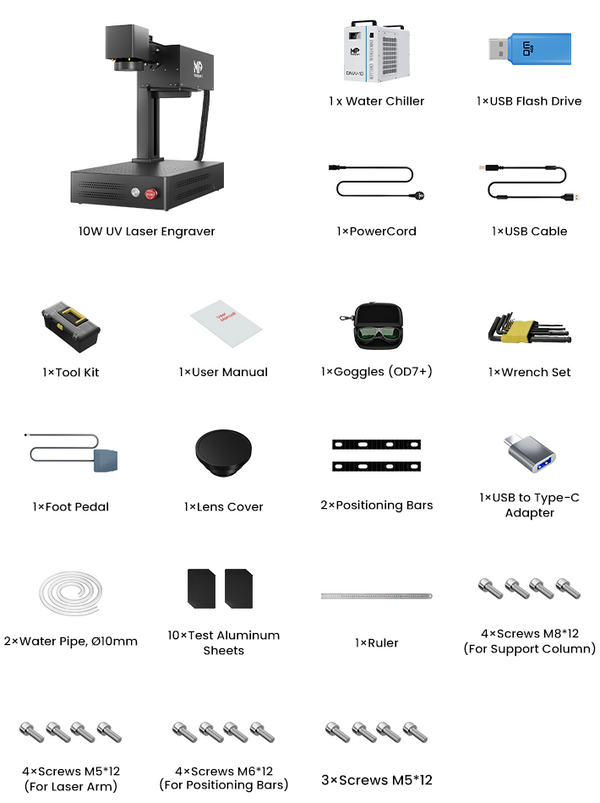

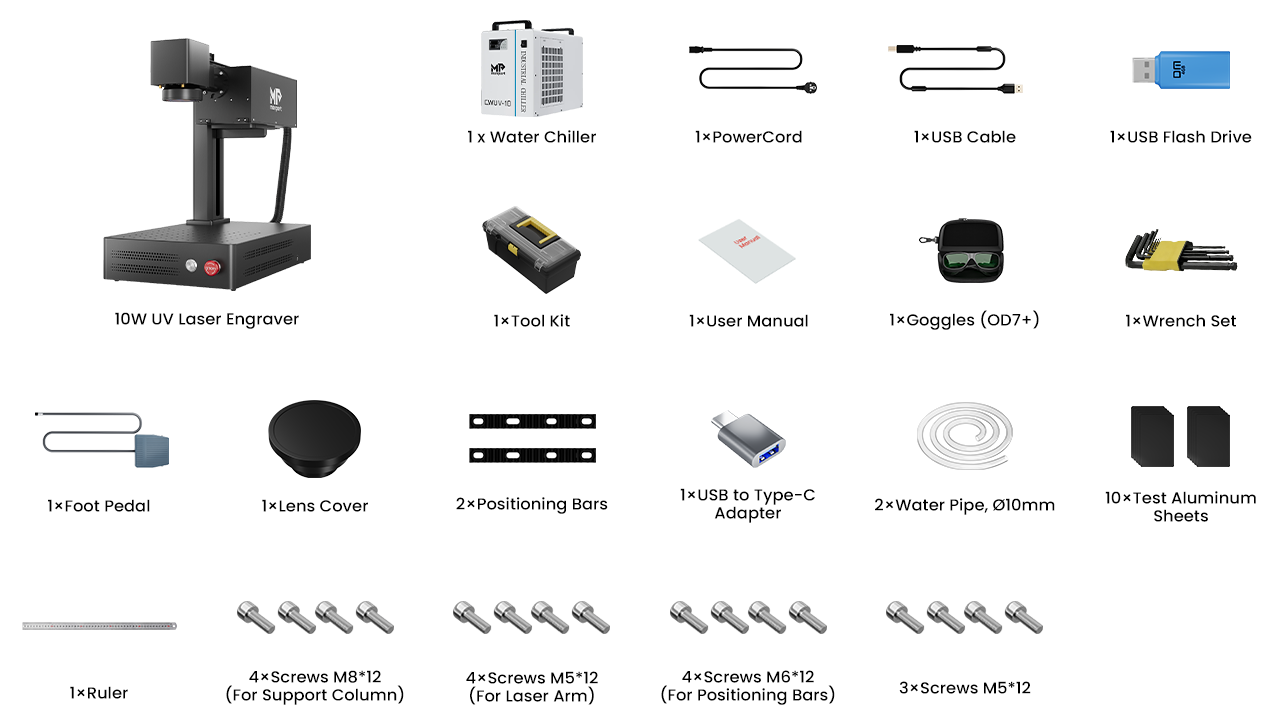

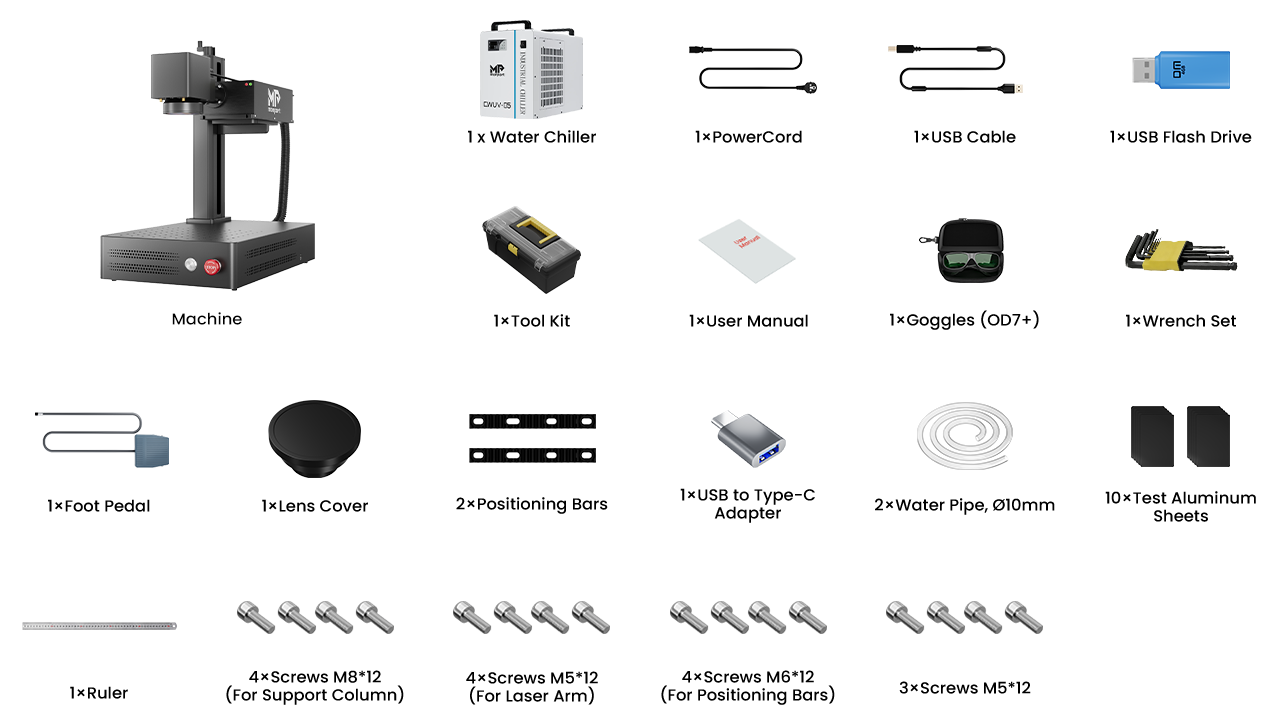

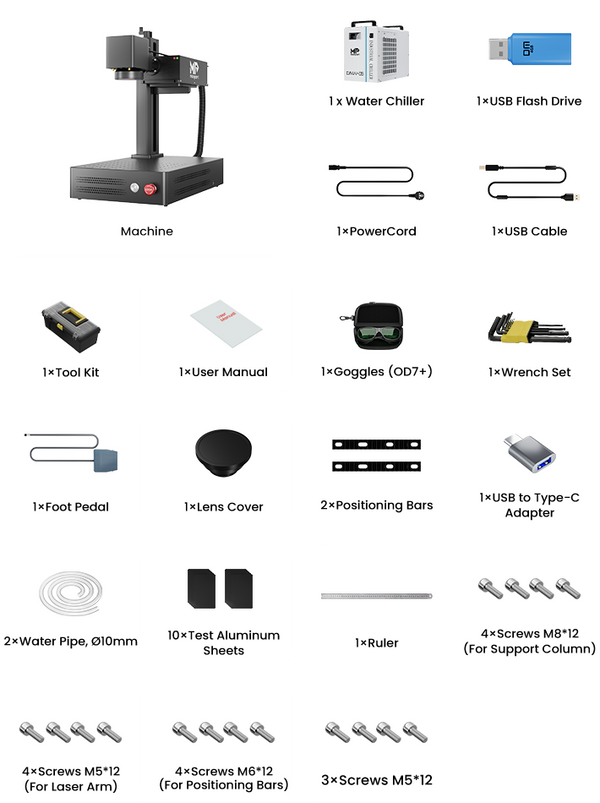

Package List
1x UV Laser Engraver
1x USB Cable(2 meters)
1x Power Cord(1.5 meters)
1x USB Flash Drive
1x User Manual
1x Goggles（OD7+)
1x Wrench Set
1x Ruler（40cm）
1x Foot Switch
2x Positioning Bars
4x Screws M6*12
4x Screws M6*10
4x Screws M5*16
1x Usb to TypeC Adapter
1x Tool Box
