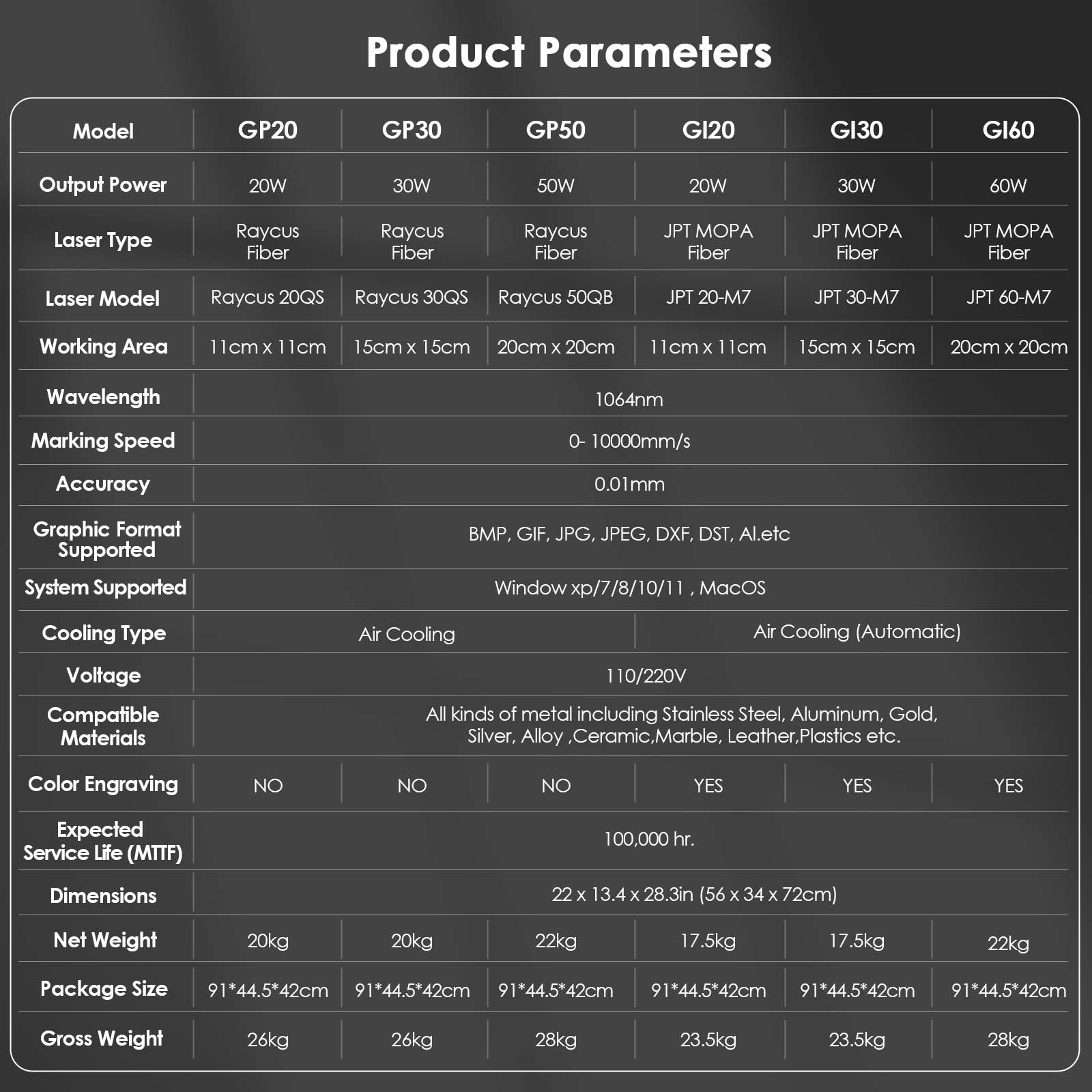

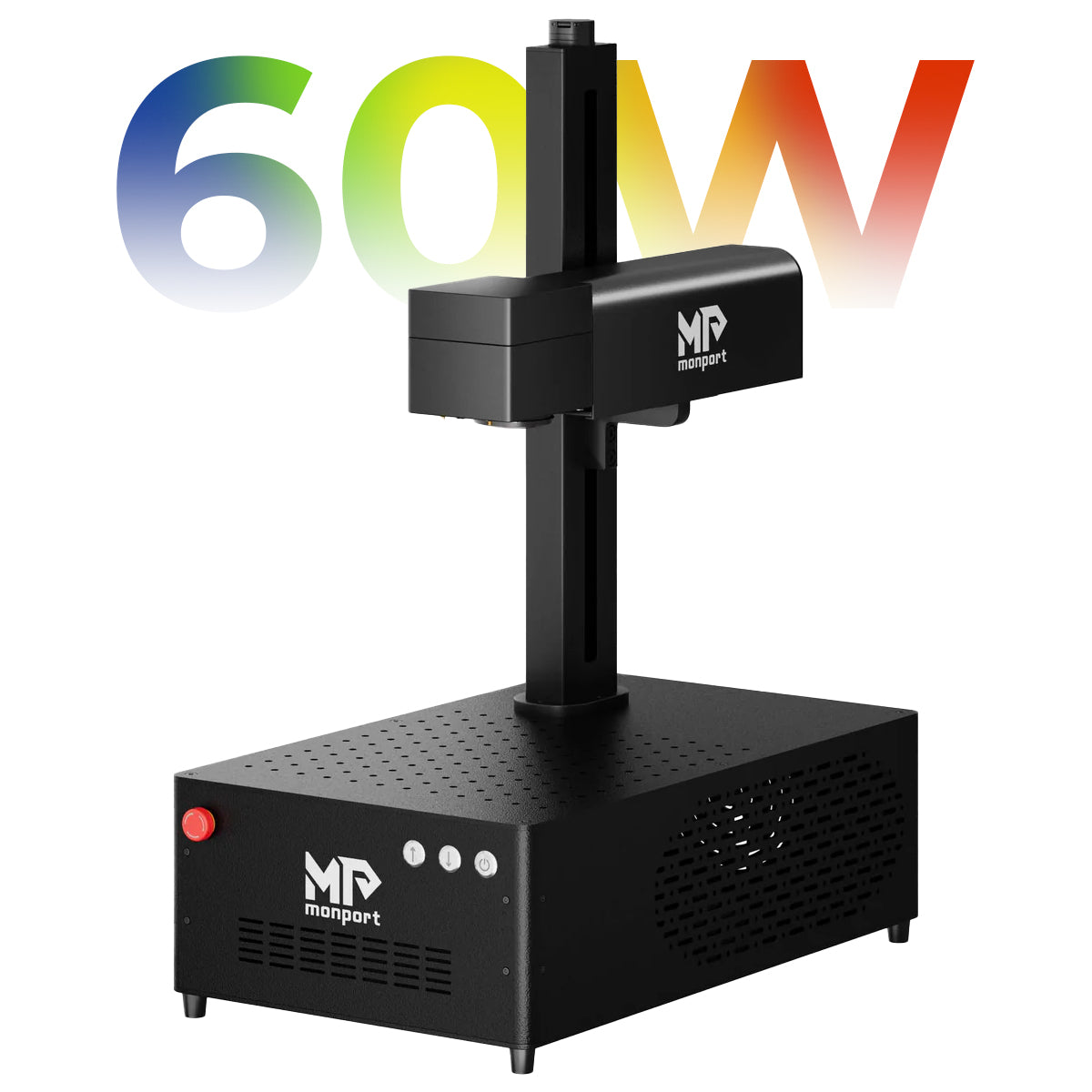

GI 60W MOPA：
Laser Model:JPT 60-M7

Output Power:60W

Laser Type:JPT MOPA Fiber

Color Engraving:YES

Working Area: 7.9" x 7.9"

Machine Dimensions:22" x 13.4" x 28.3"

Package Dimension: 35.8" x 17.5" x 16.5"

Wavelength:1064nm

Marking Speed:0- 10000mm/s

Accuracy:0.01mm

Graphic Format Supported:BMP, GIF, JPG, JPEG, DXF, DST, Al.etc

System Supported:Window7/8/10/11 , MAC

Cooling Type:Air Cooling(Automatic)

Voltage:110/220V

Compatible Materials：all kinds of metal including Stainless Steel, Aluminum, Gold, Silver, Alloy ,Ceramic,Marble, Leather,Plastics etc.

Expected Service Life (MTTF):100,000 hr.

Net Weight:22KG

Package Weight:28KG

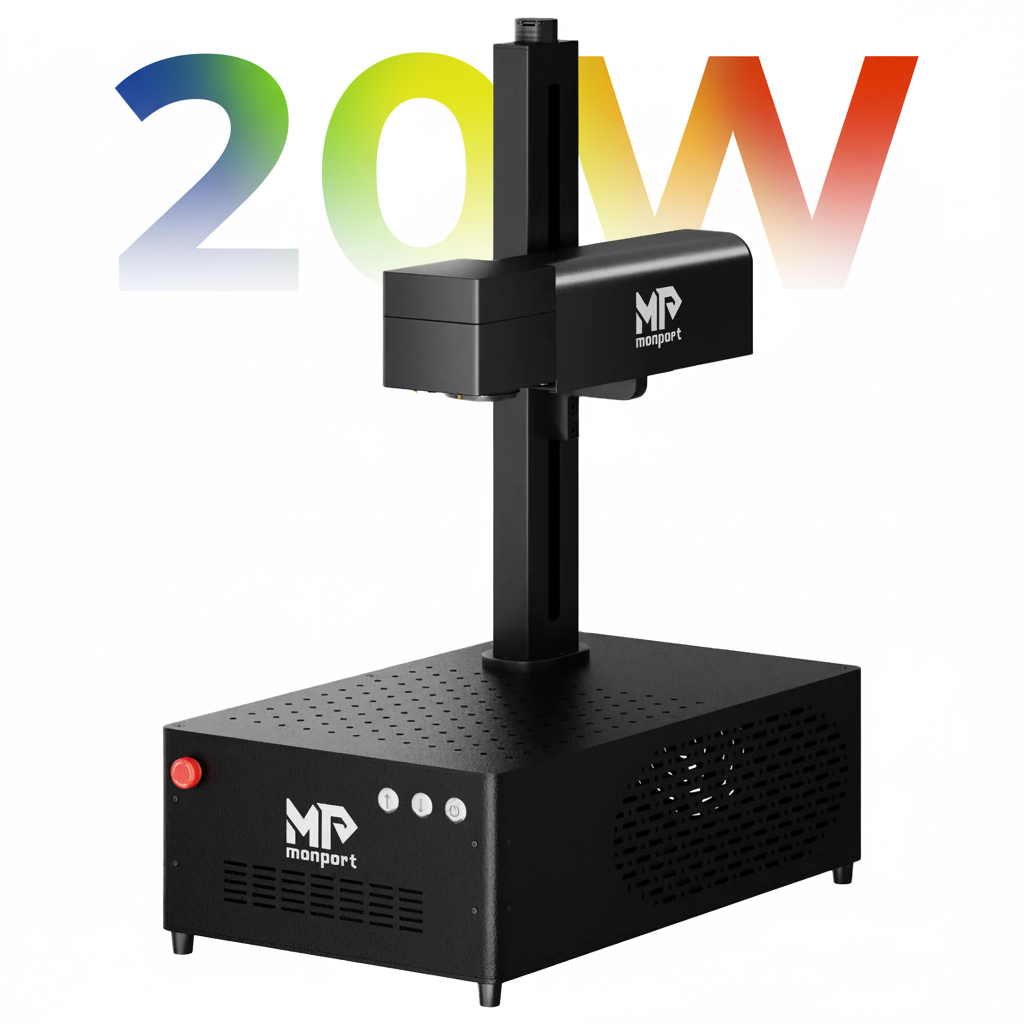

GI 20W MOPA：
Laser Model:JPT 20-M7

Output Power:20W

Laser Type:JPT MOPA Fiber

Color Engraving:YES

Working Area:4.3" x 4.3"

Machine Dimensions:22" x 13.4" x 28.3"

Package Dimension: 35.8" x 17.5" x 16.5"

Wavelength:1064nm

Marking Speed:0- 10000mm/s

Accuracy:0.01mm

Graphic Format Supported:BMP, GIF, JPG, JPEG, DXF, DST, Al.etc

System Supported:Window7/8/10/11 , MAC

Cooling Type:Air Cooling(Automatic)

Voltage:110/220V

Compatible Materials：all kinds of metal including Stainless Steel, Aluminum, Gold, Silver, Alloy ,Ceramic,Marble, Leather,Plastics etc.

Expected Service Life (MTTF):100,000 hr.

Net Weight:17.5KG

Package Weight:23.5KG

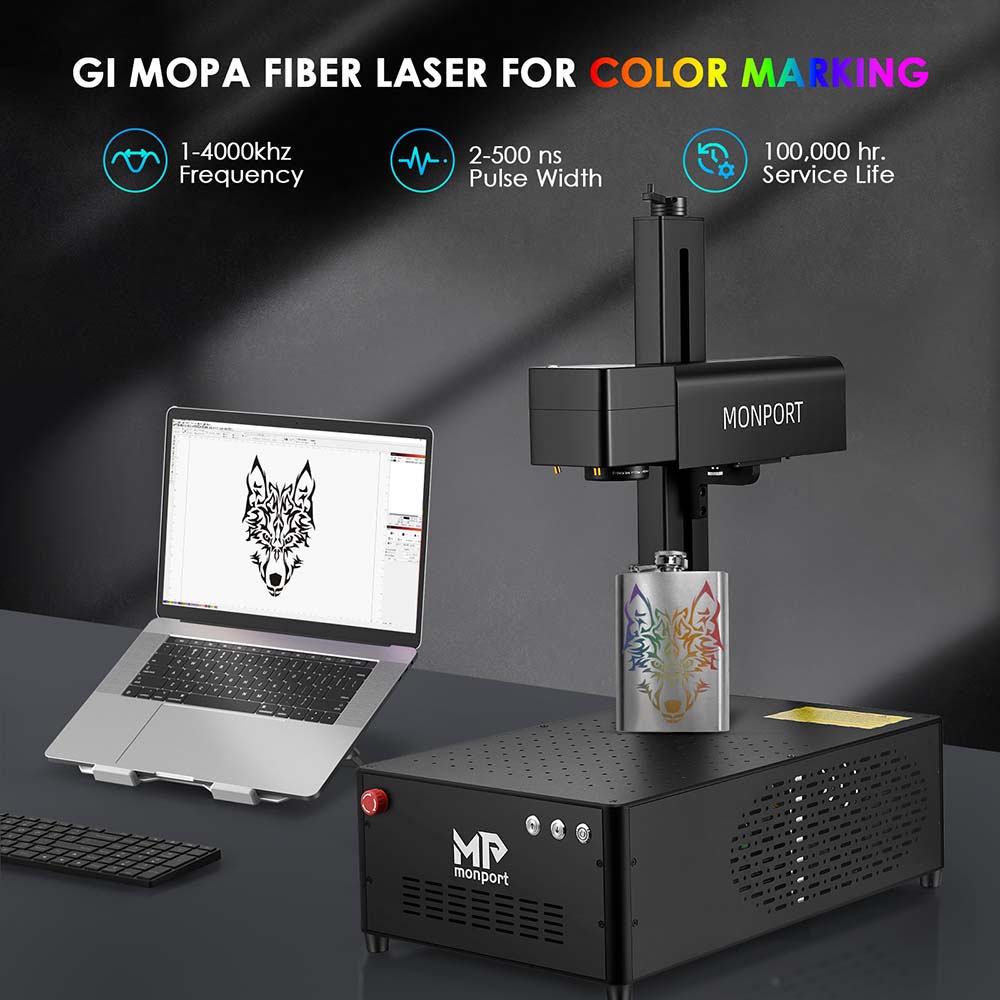

Full color marking

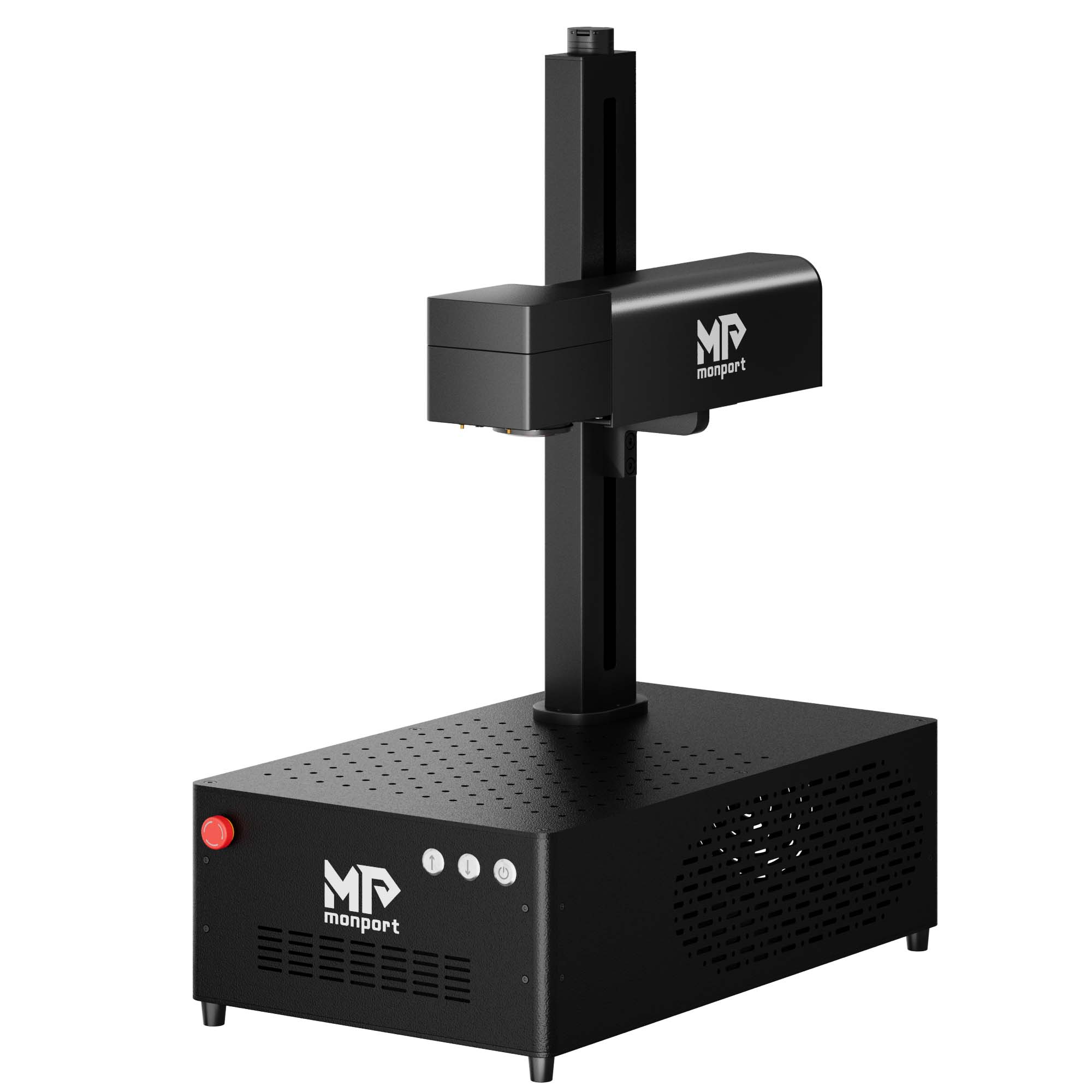

Monport's 20W / 60W JPT MOPA fiber laser marking machine propels your design journey with unmatched speed, precision, and flexibility. With adjustable pulse frequency and width, it enables vibrant color marking on stainless steel and high contrast engraving on anodized aluminum. Not only does it boast an MTTF exceeding 100,000 hours, but it also delivers precise cuts of up to 0.05mm per pass, accurate to ±0.1 micron.

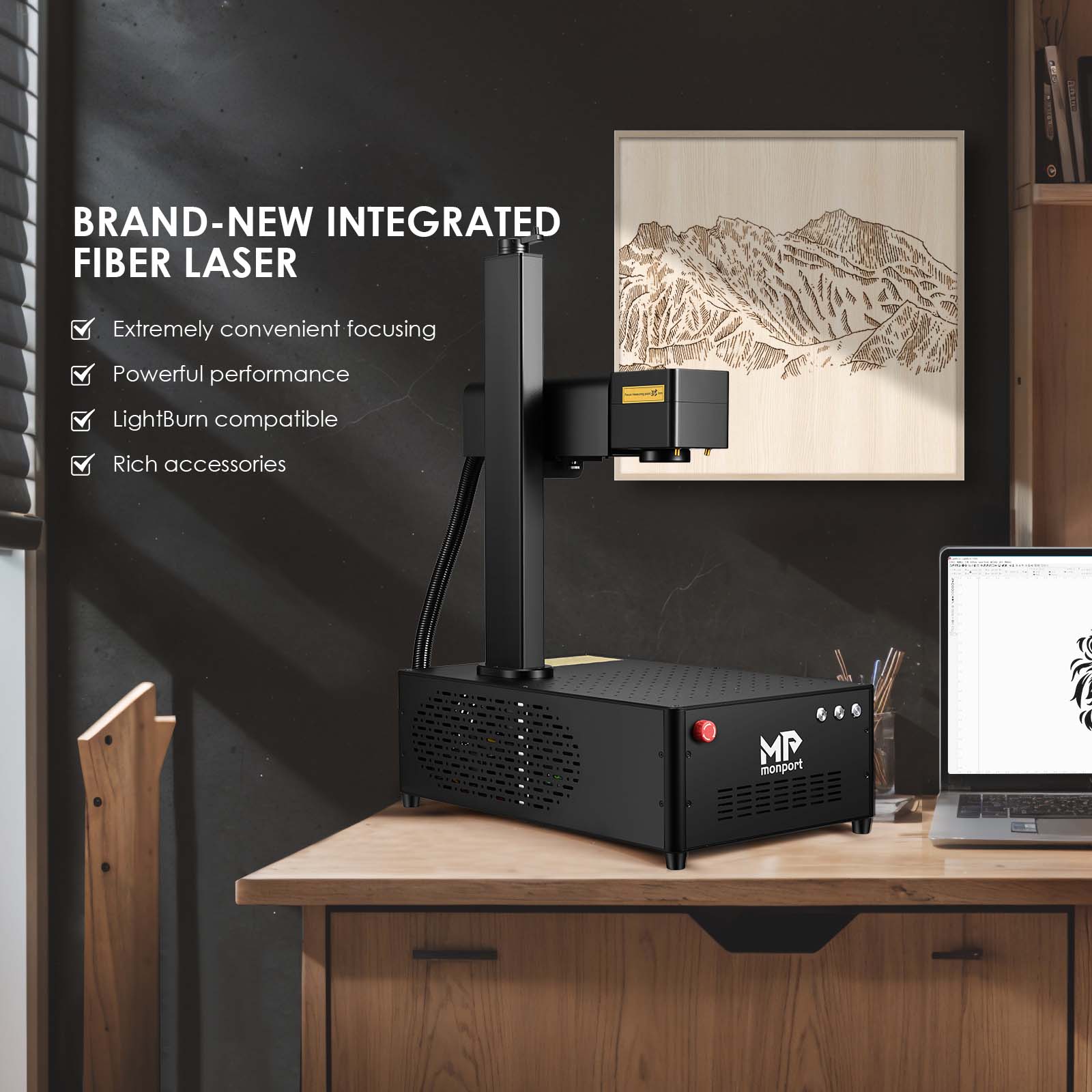

Integrated Innovative Design

Monport's brand-new integrated fiber laser defines a new generation of machines. It achieves a lighter weight, smaller size, cooler appearance, and more user-friendly user experience while maintaining the original performance unchanged.

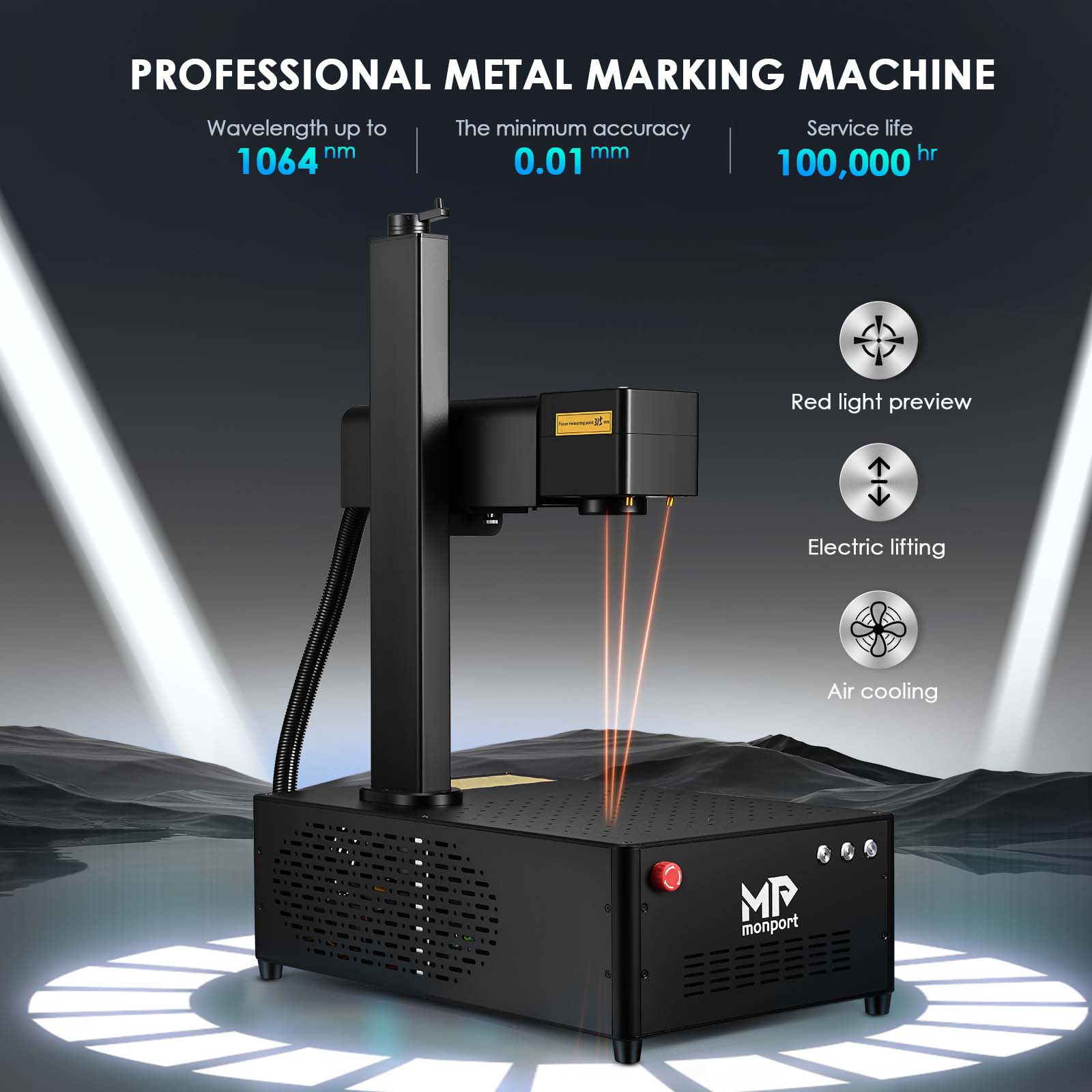

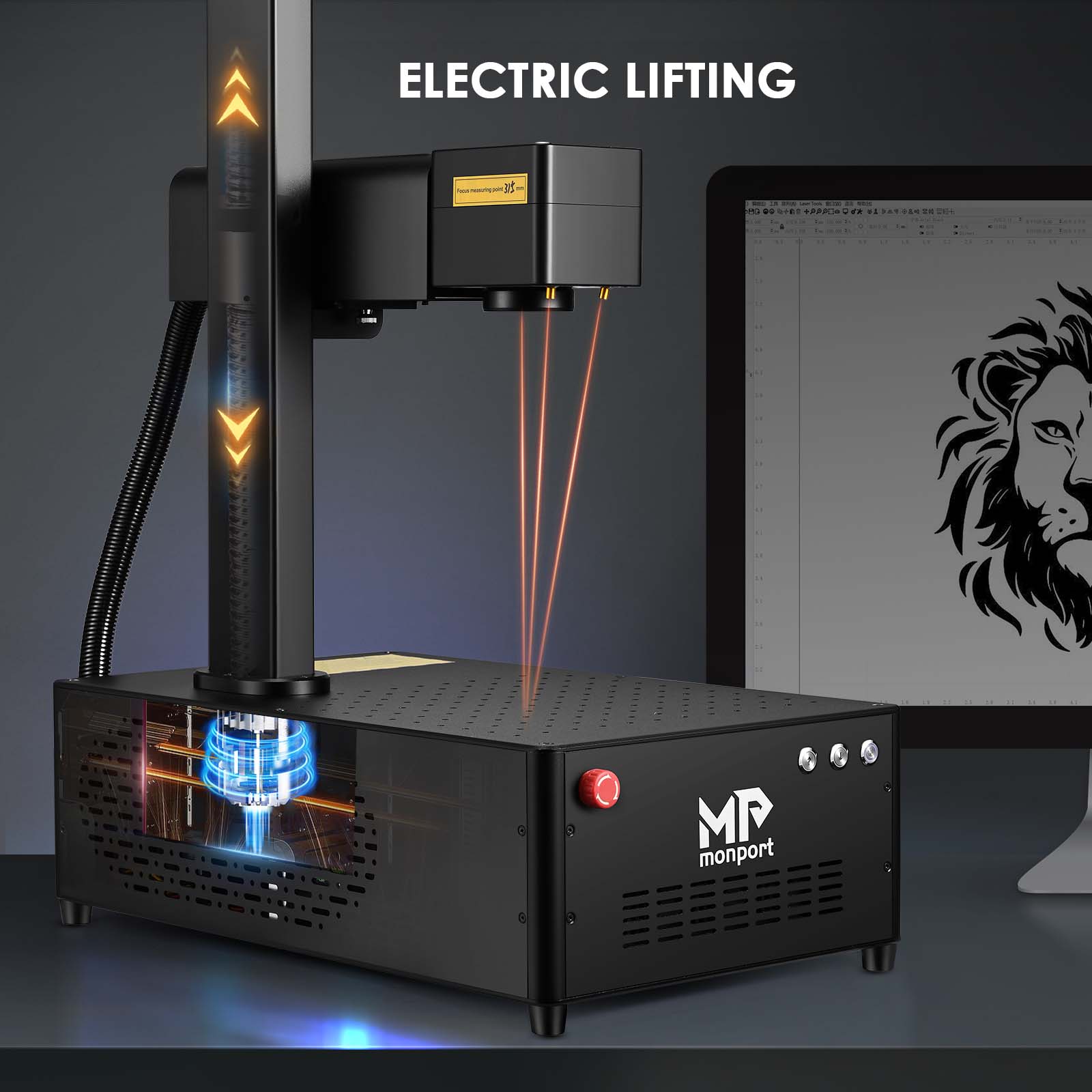

Electric Lifting Focus

Monport integrates a concealed lifting motor to ensure spot-on focusing, enabling users to operate smoothly and significantly enhancing the final marking result. Particularly designed with beginners in mind, this feature makes precision engraving a breeze.

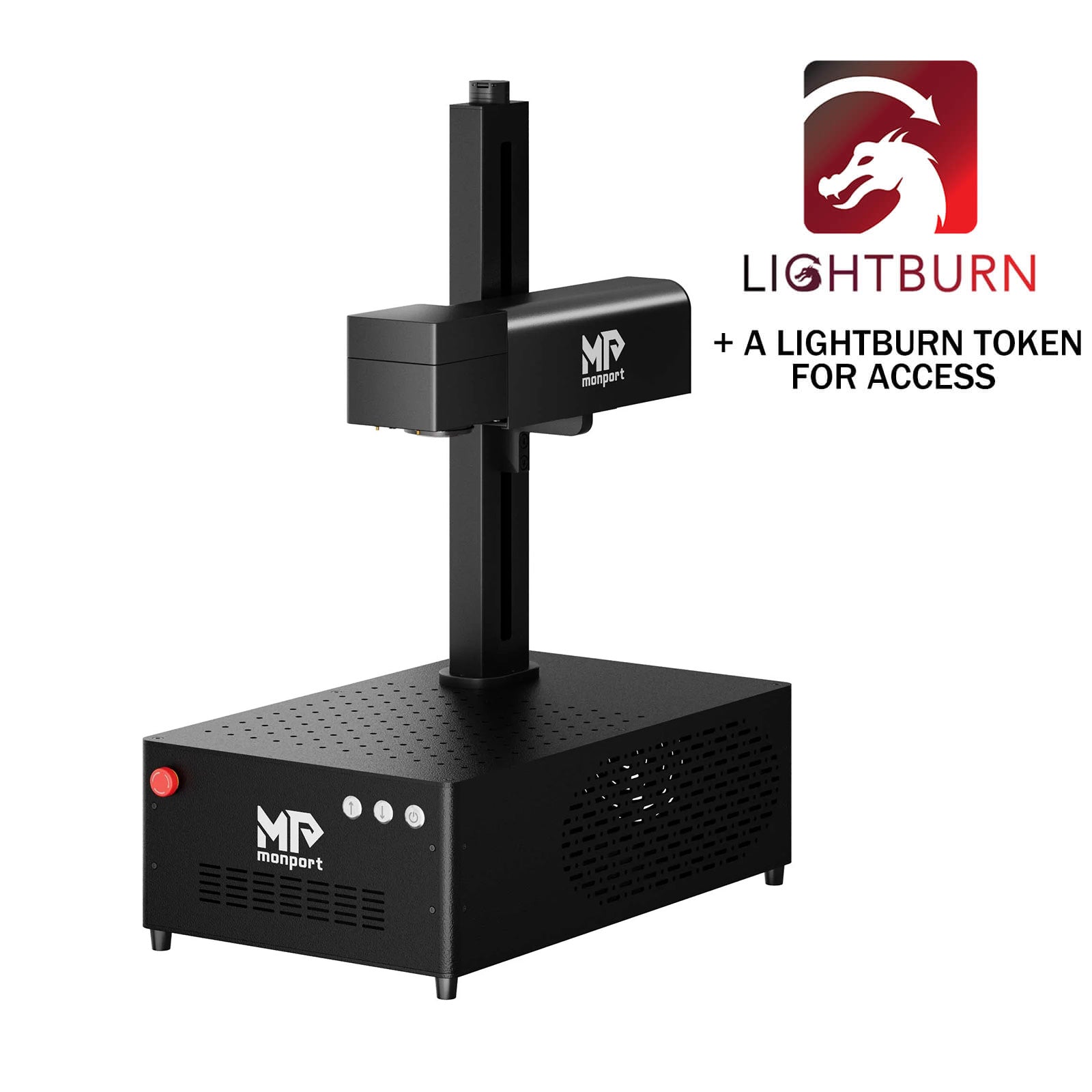

LightBurn Compatible

Monport's fiber laser includes the EZCad 2.0 software for free and is fully compatible with LightBurn software, providing a seamless marking experience, user-friendly controls, and a wide range of customizable features.

Industry-leading Heat dissipation technology

Built-in air cooling and unique side panel openings bring a better heat dissipation effect, and this will maintain the peak performance of the machine.

 Everywhere Details

①A casing crafted from anodized aluminum oxide material delivers a high-quality texture and robust durability.

② All sharp parts have been chamfered or filleted, ensuring user safety is never compromised.

③The addition of dust shields at the back of the work area enhances the machine's lifespan, maintaining its performance over time.

④ An included rich material pack lets you jumpstart your creative process right away.

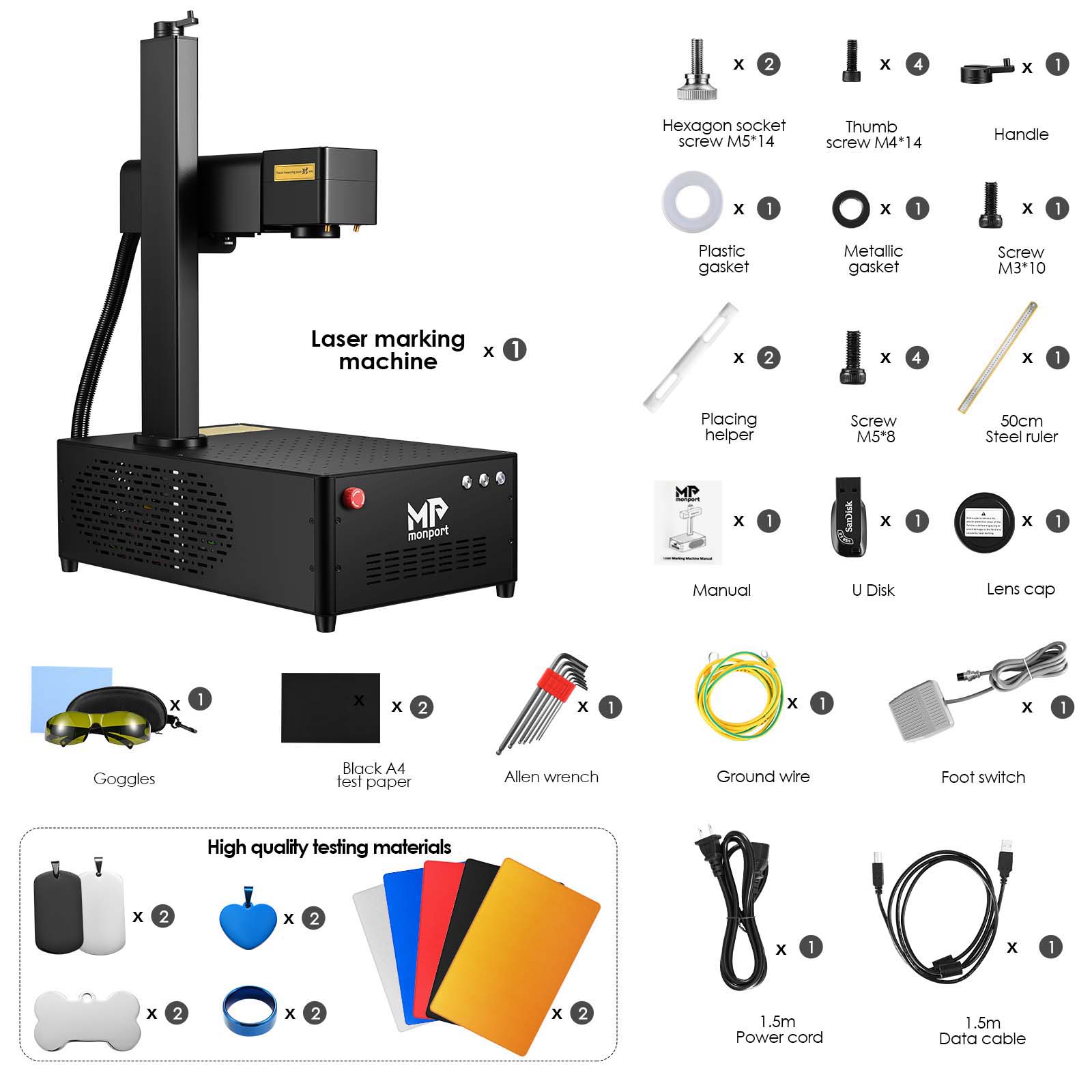

Fiber marking machine*1

Hexagon socket screw 4PCS M5*14

Thumb Screw M4*14

Handle*1

Plastic gasket*1

Metallic gasket*1

Screw M3*10

1.5m Power cord*1

1.5m Date cable*1

50cm Steel ruler*1

Manual*1

U Disk*1

Lens cap*1

Black A4 test paper*2

Allen wrench set*1

Goggles*1

Ground wire*1

Foot switch*1

Placing helper*2

Screw 4PCS M5*8

Testing materials*20

• 3-Month warranty on all GI Fiber machines and parts
• 30-Day warranty on fiber laser source
• FDA Approved & CE Certified

Download the Manual: GI Integrated Fiber User Manual
