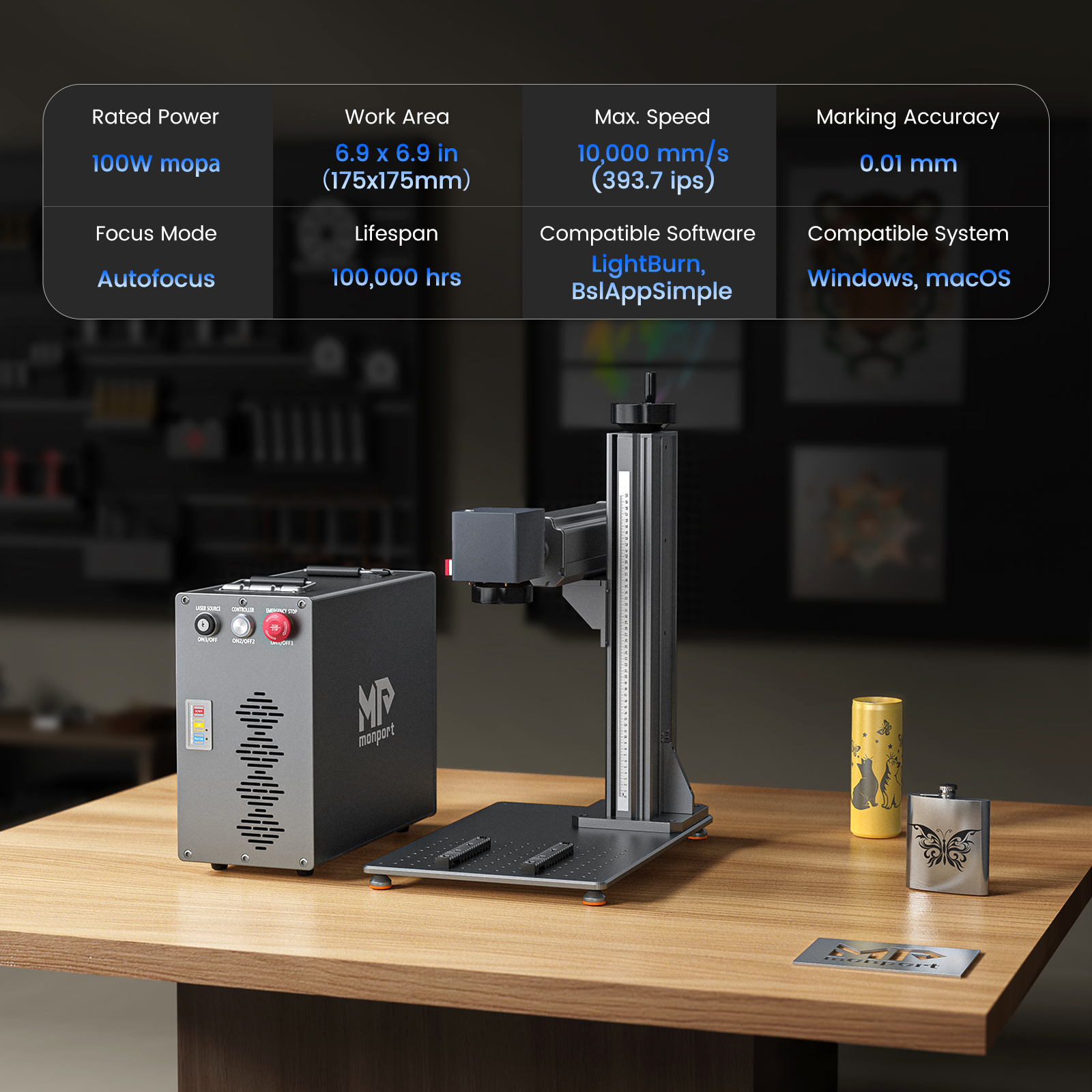

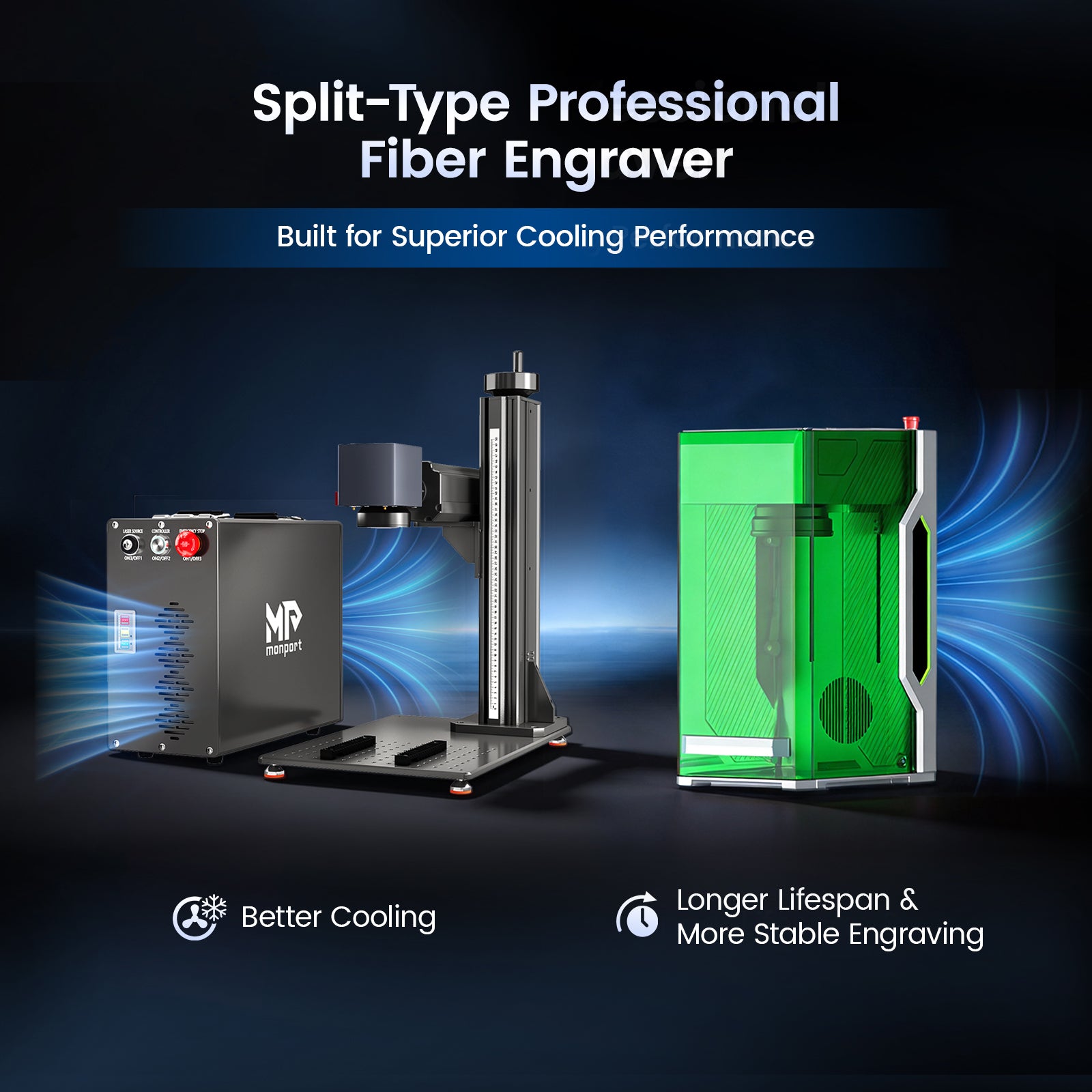

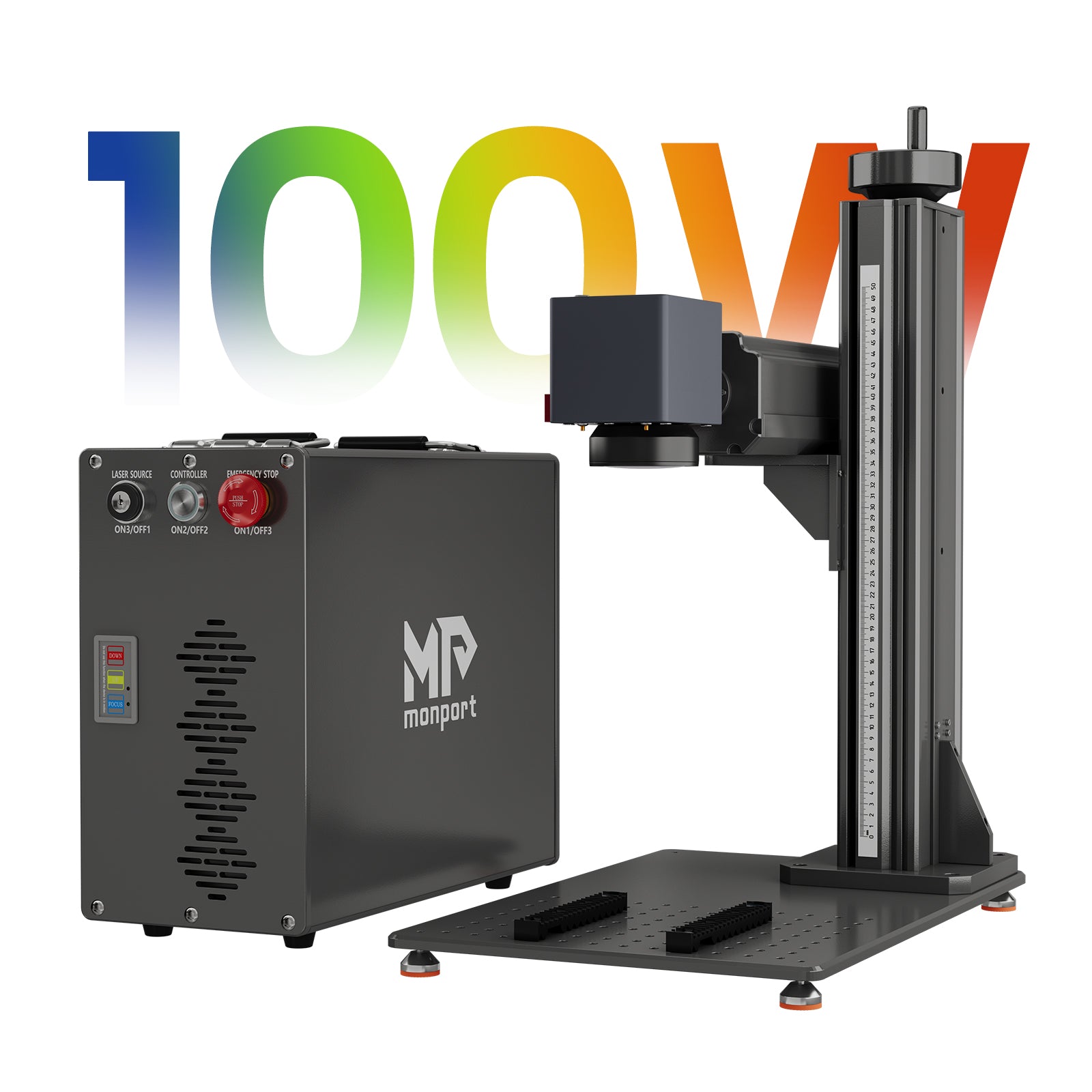

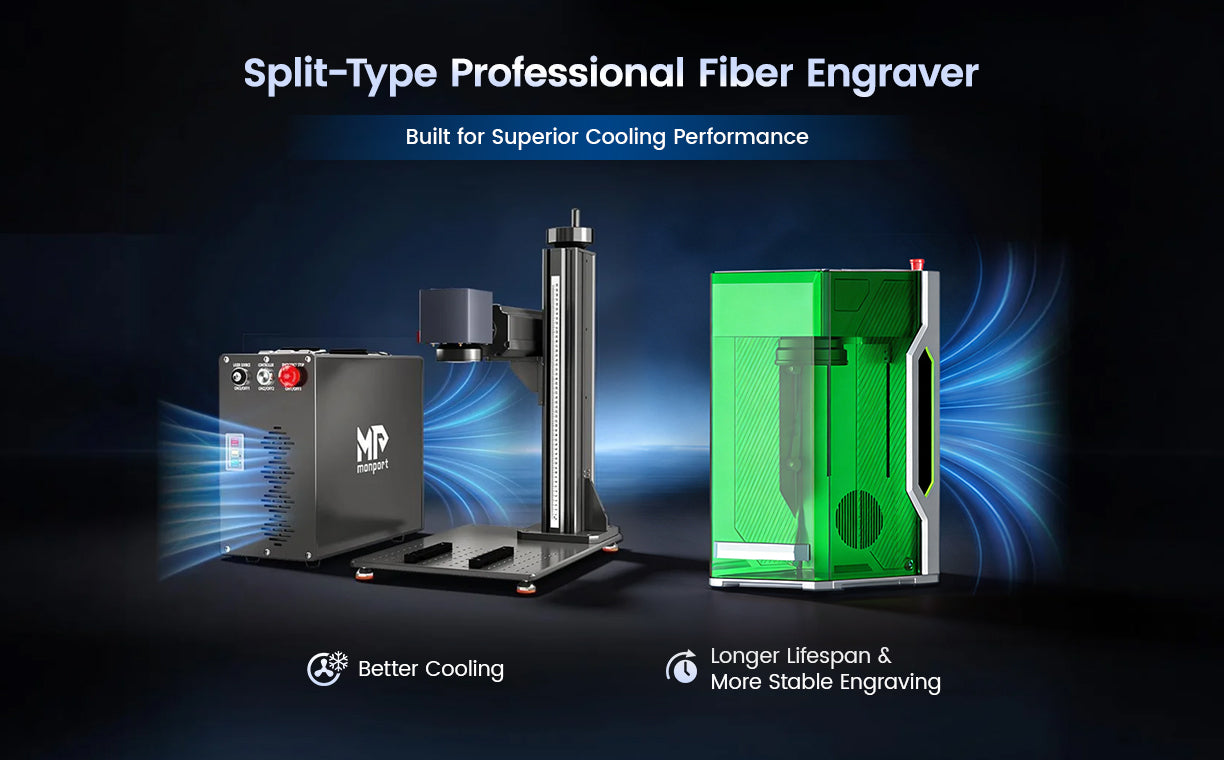

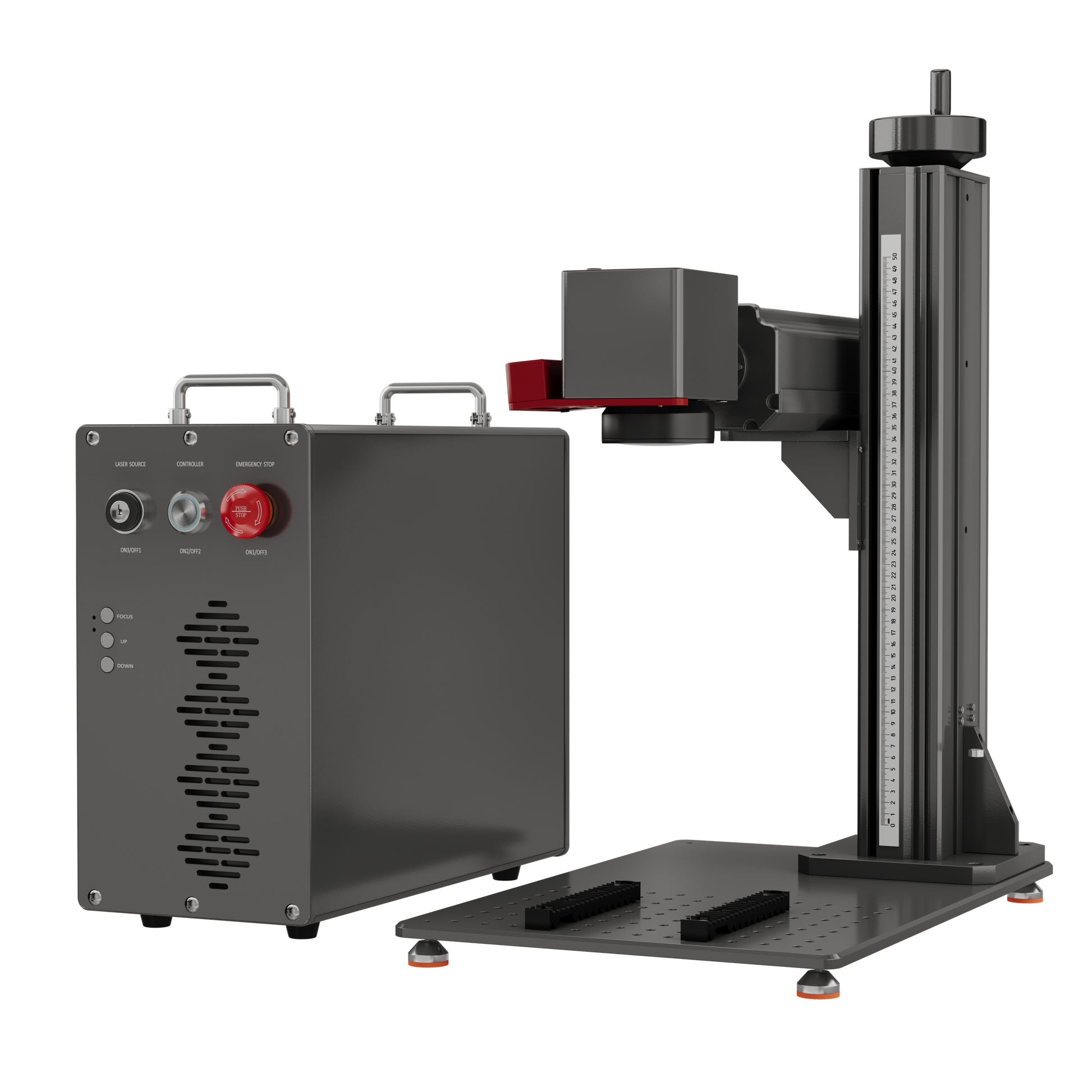

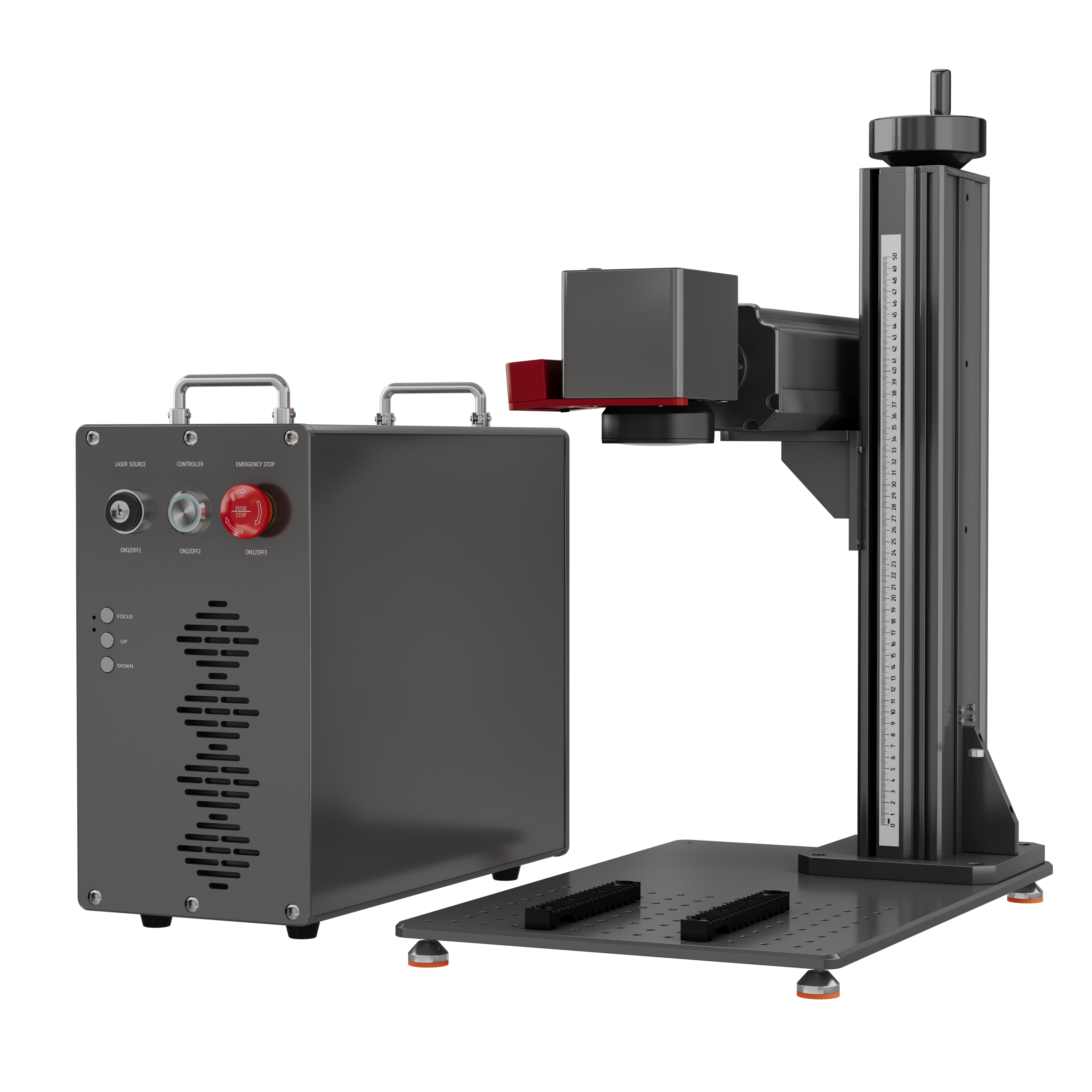

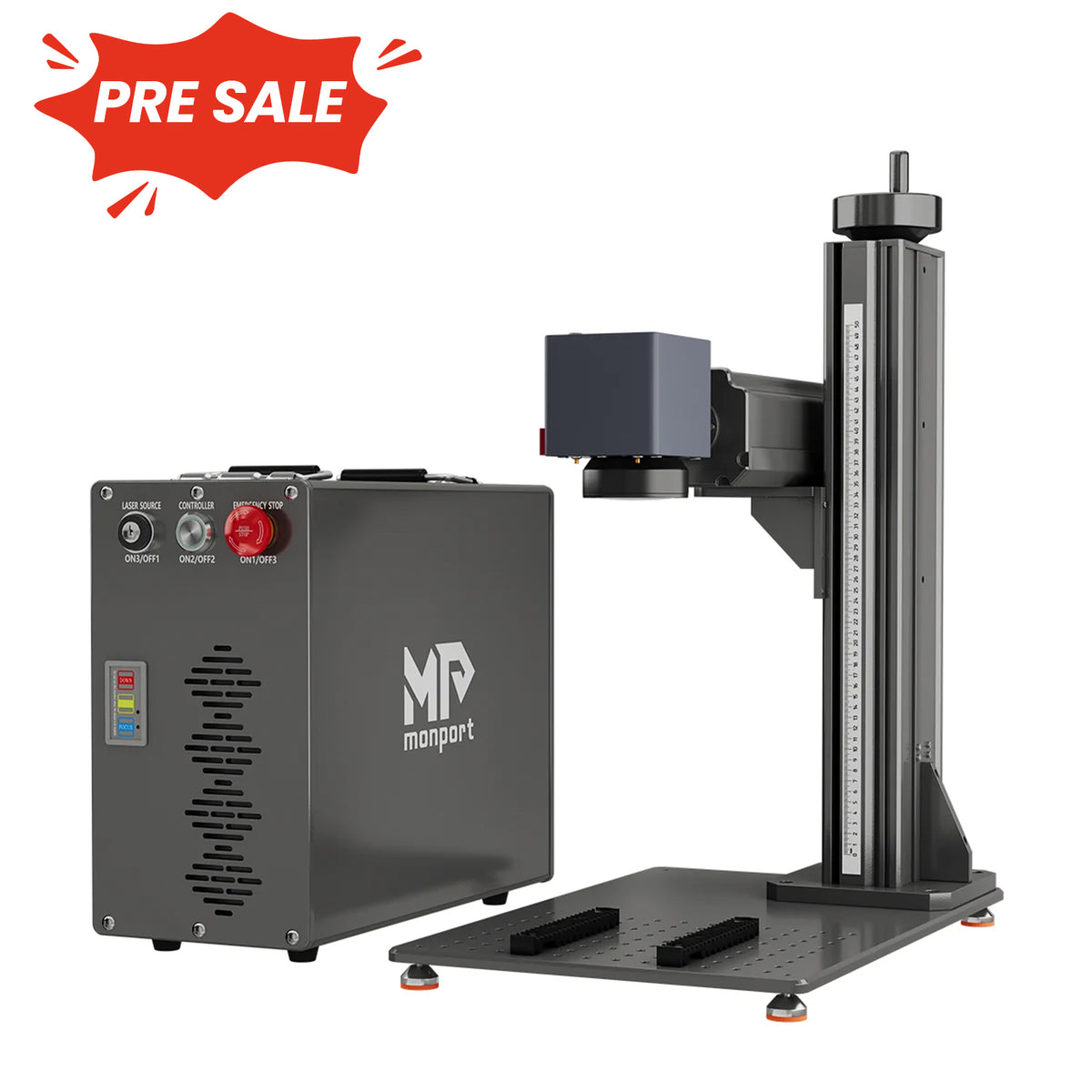

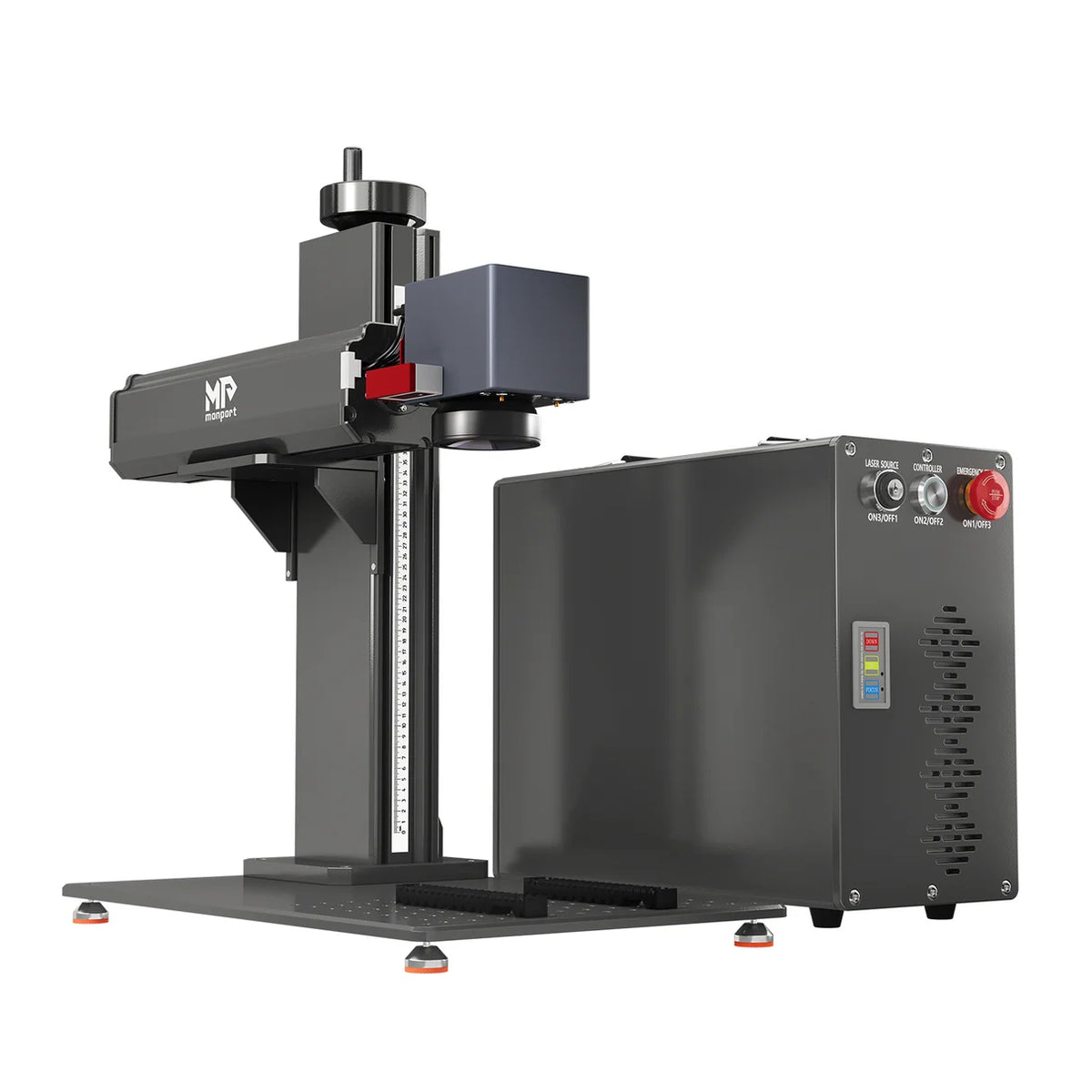

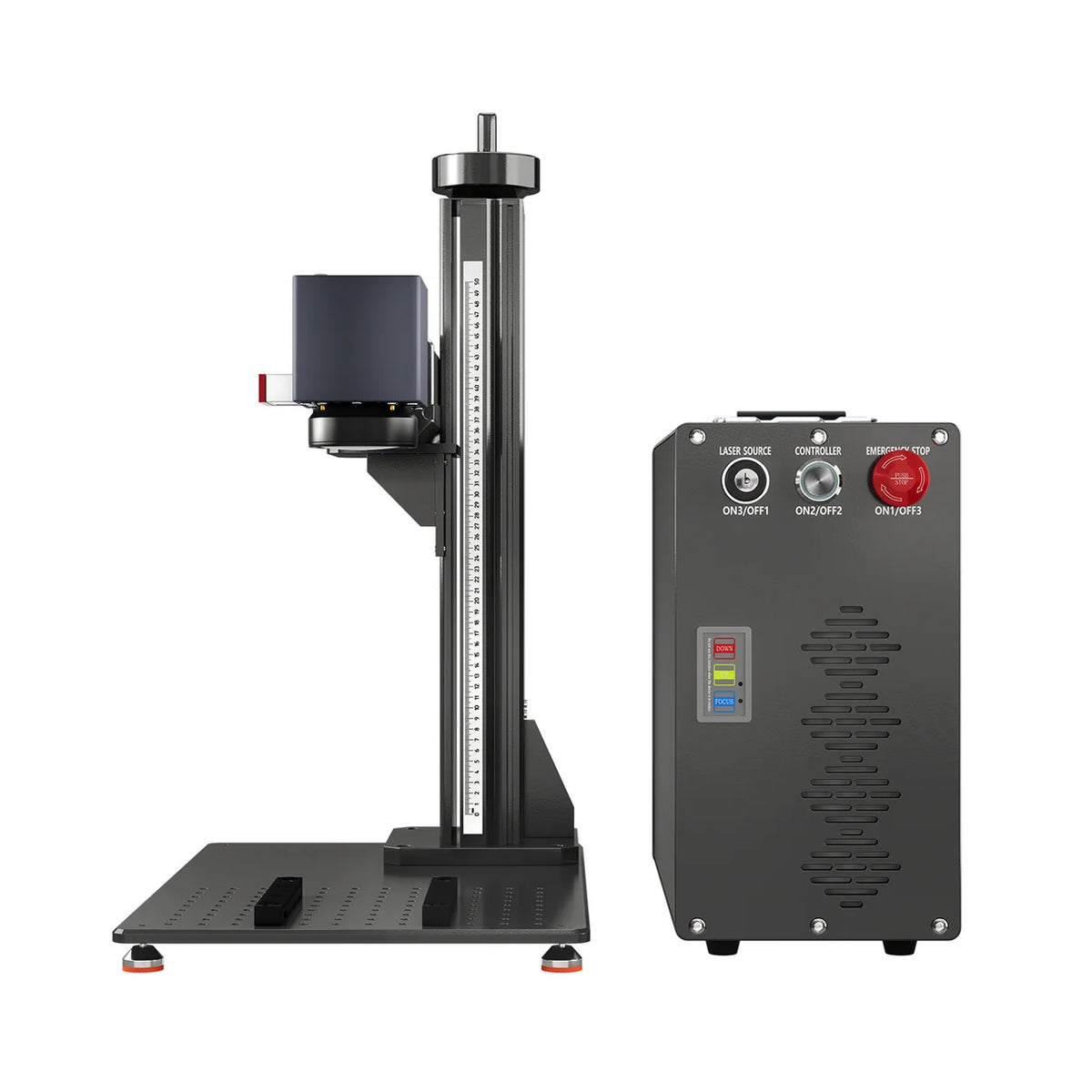

Monport GT 100W Split MOPA Fiber Laser Engraver & Color Marking Machine With AutoFocus – FDA Approval
Monport GT 100W Split MOPA Fiber Laser Engraver & Color Marking Machine With AutoFocus – FDA Approval
Regular price
$6,839.00
Sale price
$6,839.00
Regular price
$9,399.99
Payment methods
Couldn't load pickup availability

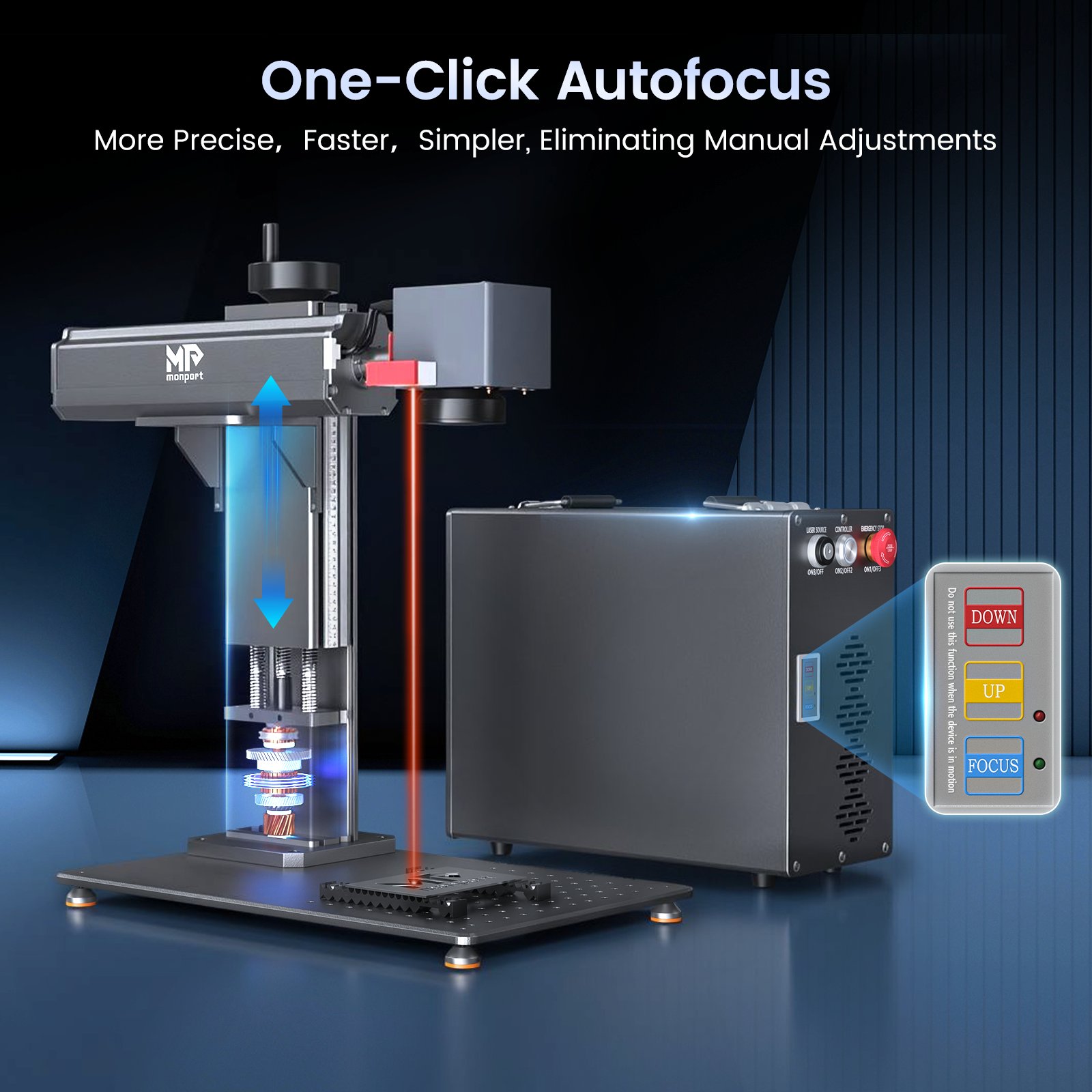

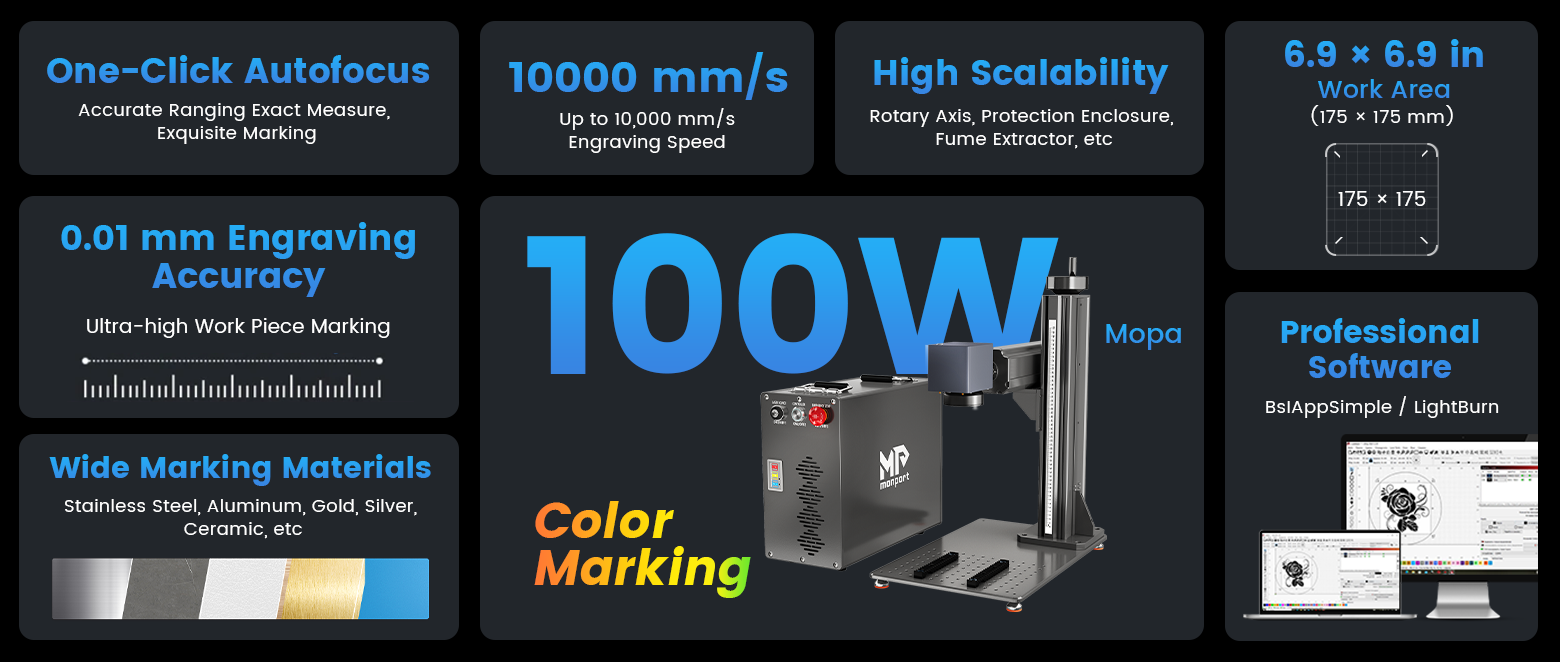

Auto-Focus, Perfect Engraving Every Time
The GT 100W Mopa is the upgraded version of our Gpro 100W, now featuring Auto-Focus Technology. Achieve flawless precision with just one click—no manual adjustments needed. Effortlessly engrave and cut with unmatched accuracy, ensuring every project is perfect, every time.
Precision and Speed, Redefined

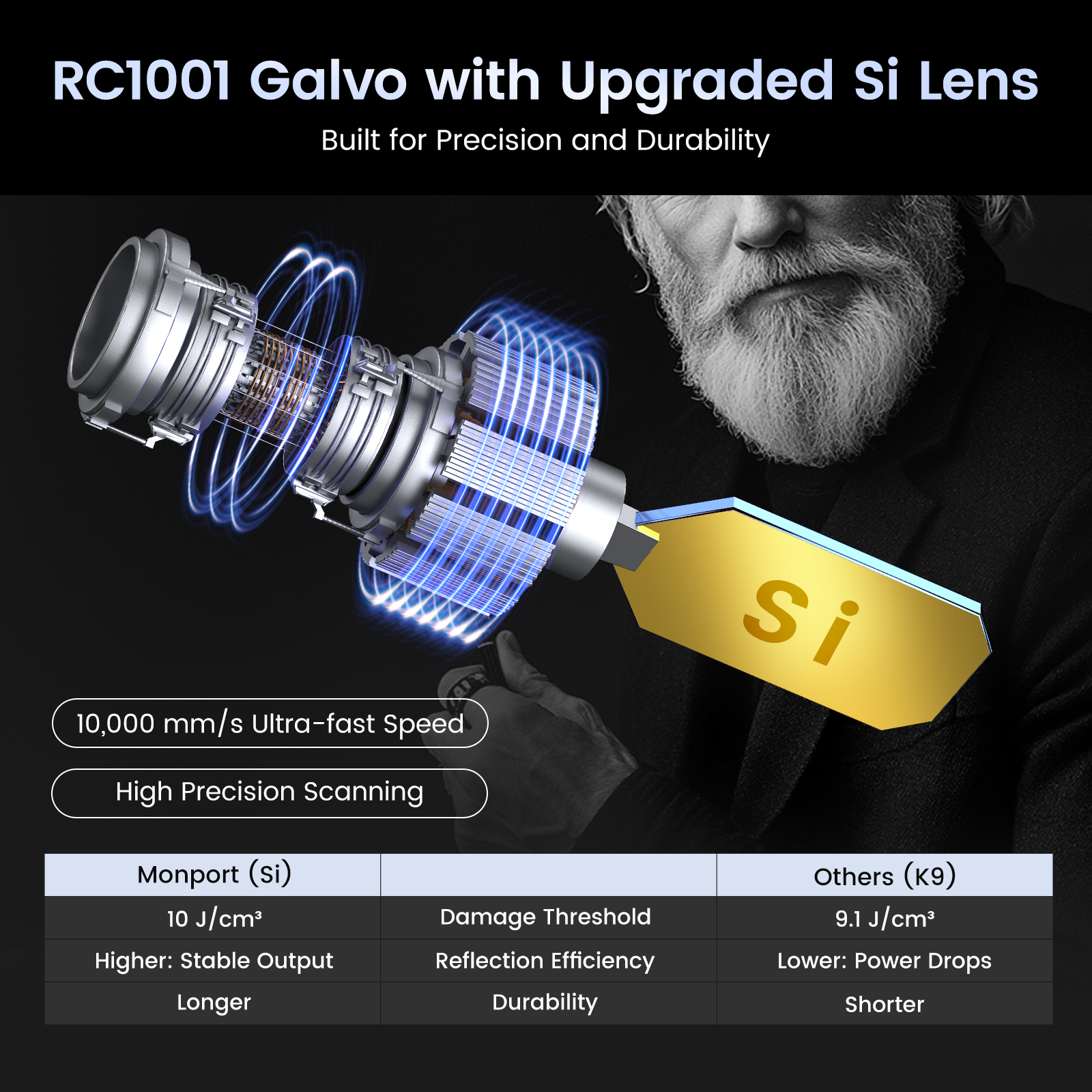

The GT Series is equipped with cutting-edge Industrial Galvo Scanners and Silicon Mirrors, delivering exceptional speed and precision. With a carving speed of up to 10,000mm/s (393.7 ips), experience rapid, high-quality engravings like never before. Achieve perfect results faster, boosting your productivity and bringing your creative visions to life with ease.
Power & MOPA Laser Technology
MOPA (Master Oscillator Power Amplifier) is a high-performance laser category that enables color marking on metals, giving you the ability to create stunning, vibrant designs on a variety of metal surfaces with precision and ease.

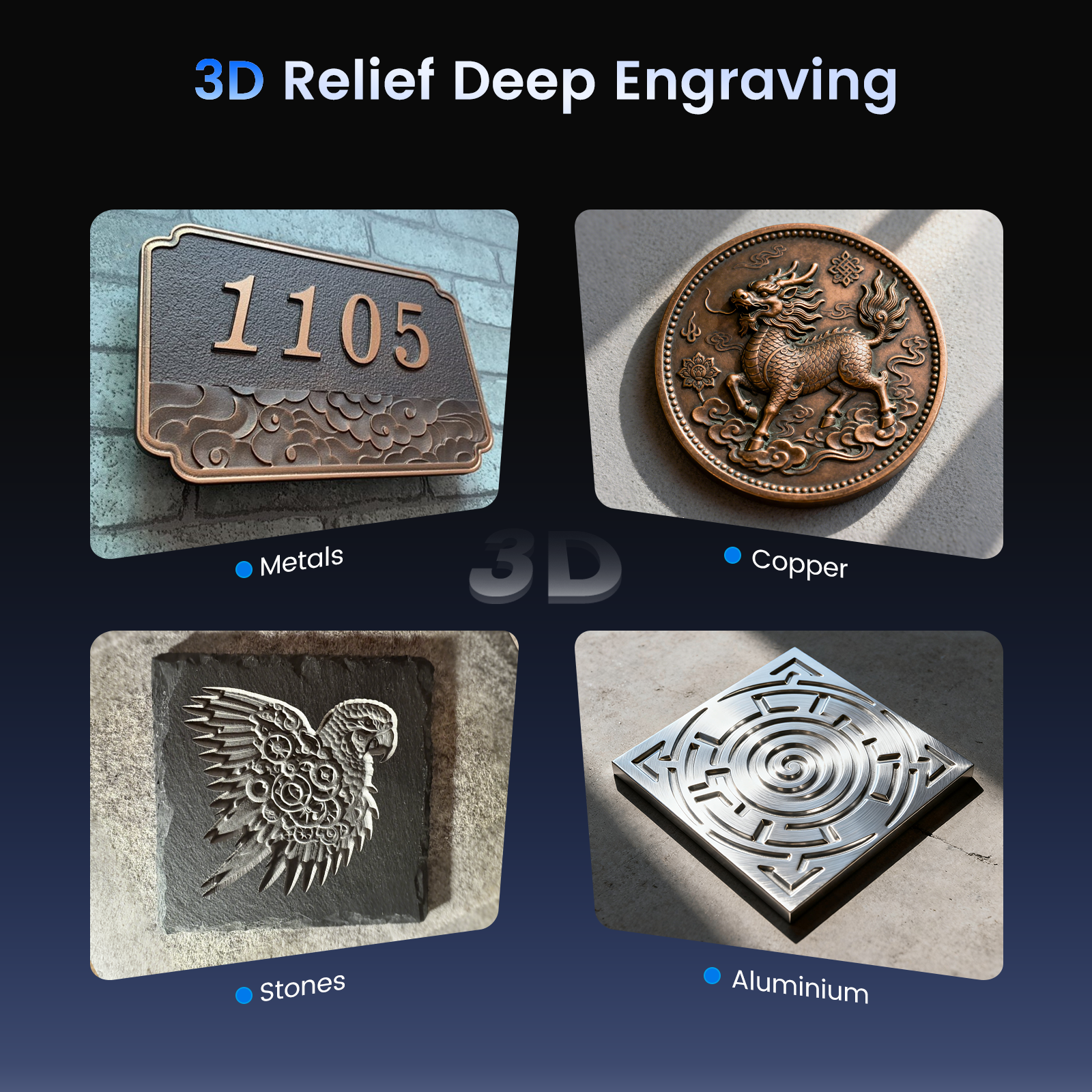

Deep Engraving & 3D Relief
The higher the power, the deeper the engraving. Achieve precise deep carvings and stunning 3D reliefs with unmatched clarity and detail. Ideal for intricate designs that require depth and texture, our GT Series elevates your creativity to new dimensions.
Advanced Techniques: Aluminum Black Marking & More
Unlock high-end engraving capabilities with processes like black marking on aluminum, creating durable, high-contrast designs that last. Ideal for premium finishes and professional-grade projects, offering precision and quality on a variety of materials.

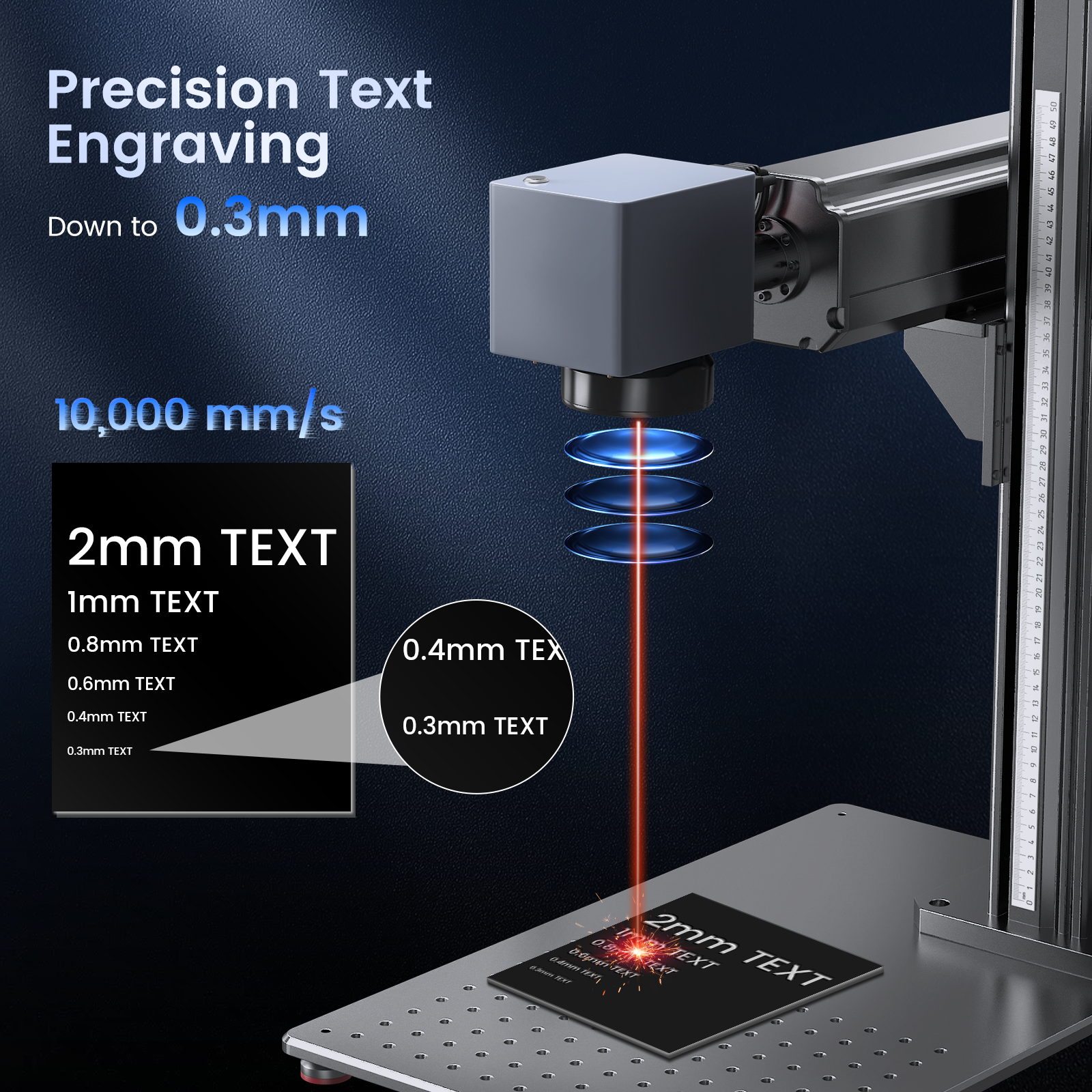

High Engraving Precision
Delivers ultra-fine engraving details with a minimum spot size of 0.01mm, ensuring every line, curve, and texture is captured with exceptional clarity and accuracy.
Thin-Metal Cutting
More power means greater cutting capability. Effortlessly slice through thin metal sheets (typically under 3 mm) with precision and speed—getting clean edges and professional results every time. Standard testing shows cutting efficiency scales dramatically with laser power: GT 30W MOPA → GT 60W MOPA → GT 80W MOPA → GT 100W MOPA → GT 200W MOPA = 1x → 2x → 3.5x → 5x → 8x faster Delivering faster, smoother, more efficient cuts for any project size.
Extra-Large Work Area
With an expansive 175×175mm work area, tackle larger designs in a single pass or efficiently arrange multiple identical pieces for batch engraving. High-speed processing ensures you can complete more work in less time, boosting productivity and precision.
Max Metal Cutting Capability
Engineered for high-power performance, this machine delivers exceptional cutting strength across a wide range of metals. From stainless steel to aluminum and brass, it ensures clean edges, deep penetration, and consistent results—even on demanding industrial tasks.
Surface Engraving

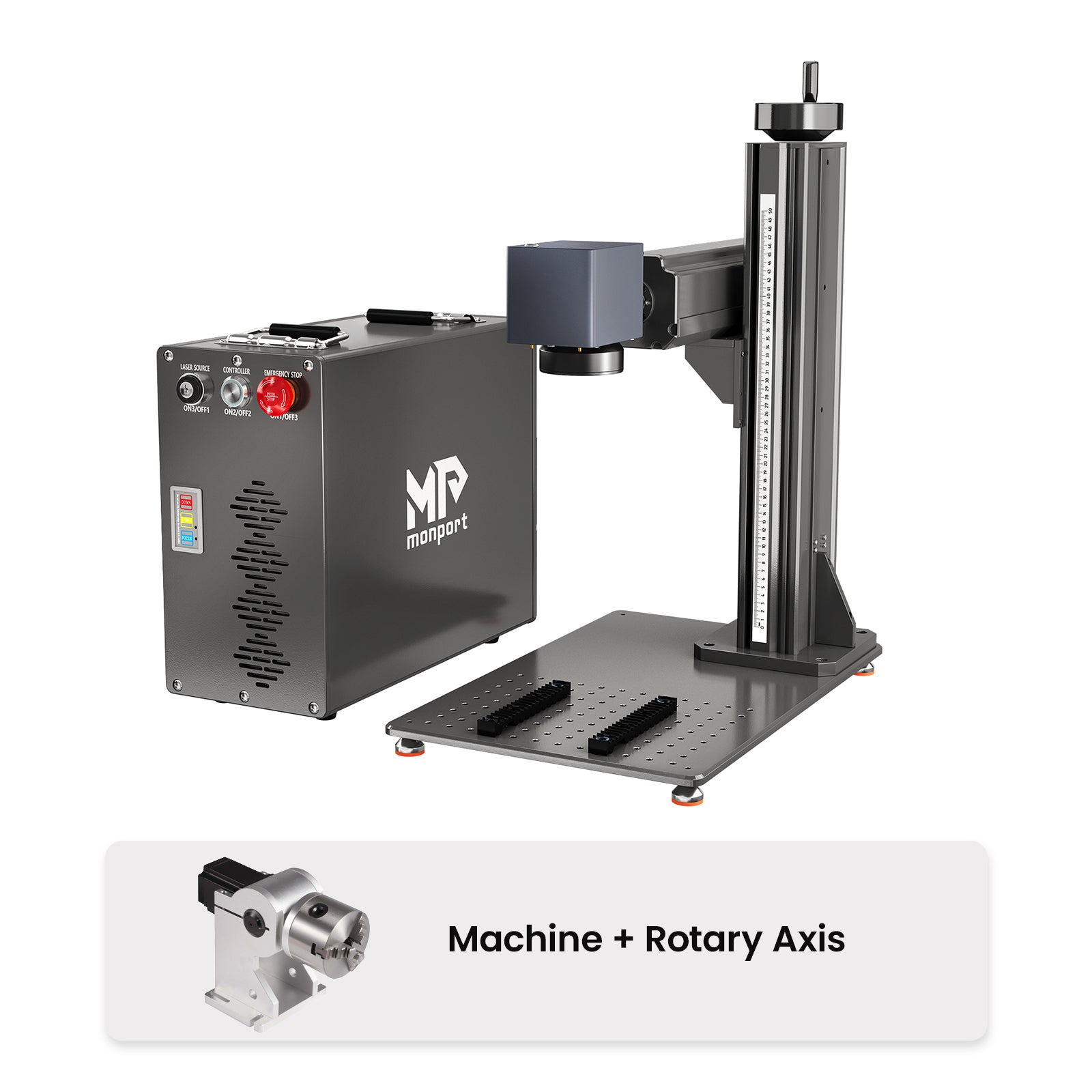

With rotary axis, the fiber laser can easily curving engrave.
Curved Surfaces
Accuracy: 0.01mm
Variety Materials Capability
Monport fiber can engrave most metals and non-metals such as Slate, Hard Plastics, Artificial Leather, Colored Acrylic
Speed: 10000mm/s
Various Materials
GT Model Quick Compare
| Product Name | GT30 | GT50 | GT60 Mopa | GT80 Mopa | GT100 Mopa | GT200 Mopa |
| Laser Power | 30 W | 50 W | 60 W | 80 W | 100 W | 200 W |
| Engraving Area | 5.9 × 5.9 in. (150 × 150 mm) |
7.9 × 7.9 in. (200 × 200 mm) |
6.9 × 6.9 in. (175 × 175 mm) |
6.9 × 6.9 in. (175 × 175 mm) |
6.9 × 6.9 in. (175 × 175 mm) Quartz material |
6.9 × 6.9 in. (175 × 175 mm) Quartz material |
| Max. Marking Depth (single pass, material dependent) |
0.003 in. (0.08 mm) |
0.004 in. (0.10 mm) |
0.004 in. (0.10 mm) |
0.005 in. (0.13 mm) |
0.006 in. (0.15 mm) |
0.008 in. (0.20 mm) |
| Max Engraving Speed | 10 000 mm/s (393.7 ips) |
10 000 mm/s (393.7 ips) |
10 000 mm/s (393.7 ips) |
10 000 mm/s (393.7 ips) |
10 000 mm/s (393.7 ips) |
22 000 mm/s (866.1 ips) |
| Engraving Accuracy | 0.01 mm | 0.01 mm | 0.01 mm | 0.01 mm | 0.01 mm | 0.01 mm |
| Positioning Accuracy | ± 0.1 µm | ± 0.1 µm | ± 0.1 µm | ± 0.1 µm | ± 0.1 µm | ± 0.1 µm |
| Input Power | 110 V (US) | 110 V (US) | 110 V (US) | 110 V (US) | 110 V (US) | 110 V (US) |
| Beam Quality M² | < 1.5 | < 1.8 | < 1.8 | < 1.8 | < 1.8 | < 1.8 |
| Beam Diameter | 6–8 mm | 6–8 mm | 7 ± 1 mm | 7 ± 1 mm | 7 ± 1 mm | 7 ± 1 mm |
| Maximum Pulse Energy | 0.75 mJ | 1.25 mJ | 1.5 mJ | 1.5 mJ | 1.5 mJ | 1.5 mJ |
| Max Z Height (field lens to workbench) |
550 mm | 550 mm | 550 mm | 550 mm | 550 mm | 550 mm |
| Central Wavelength | 1 064 nm | 1 064 nm | 1 064 nm | 1 064 nm | 1 064 nm | 1 064 nm |
| Frequency Range | 30–60 kHz | 20–80 kHz | 1–3 000 kHz | 1–3 000 kHz | 1–3 000 kHz | 1–3 000 kHz |
| Pulse Width | 80–120 ns (Unadjustable) |
100–140 ns (Unadjustable) |
2–500 ns | 2–500 ns | 2–500 ns | 2–500 ns |

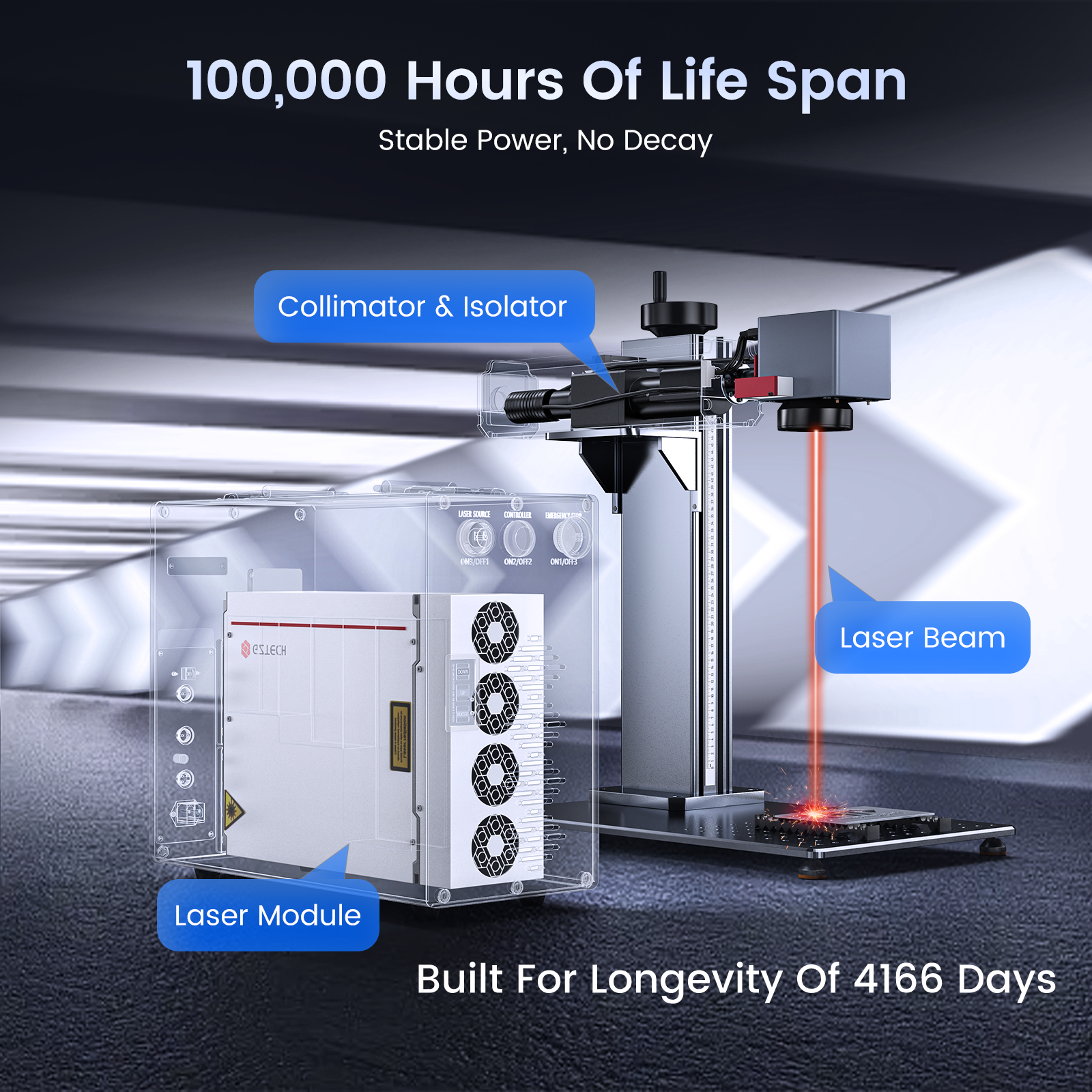

| Expected Service Life (MTTF) | 100 000 h | 100 000 h | 100 000 h | 100 000 h | 100 000 h | 100 000 h |
| Color Engraving | NO | NO | YES | YES | YES | YES |
| Focus Mode | Autofocus | Autofocus | Autofocus | Autofocus | Autofocus | Autofocus |
| Electric Lifting | YES | YES | YES | YES | YES | YES |

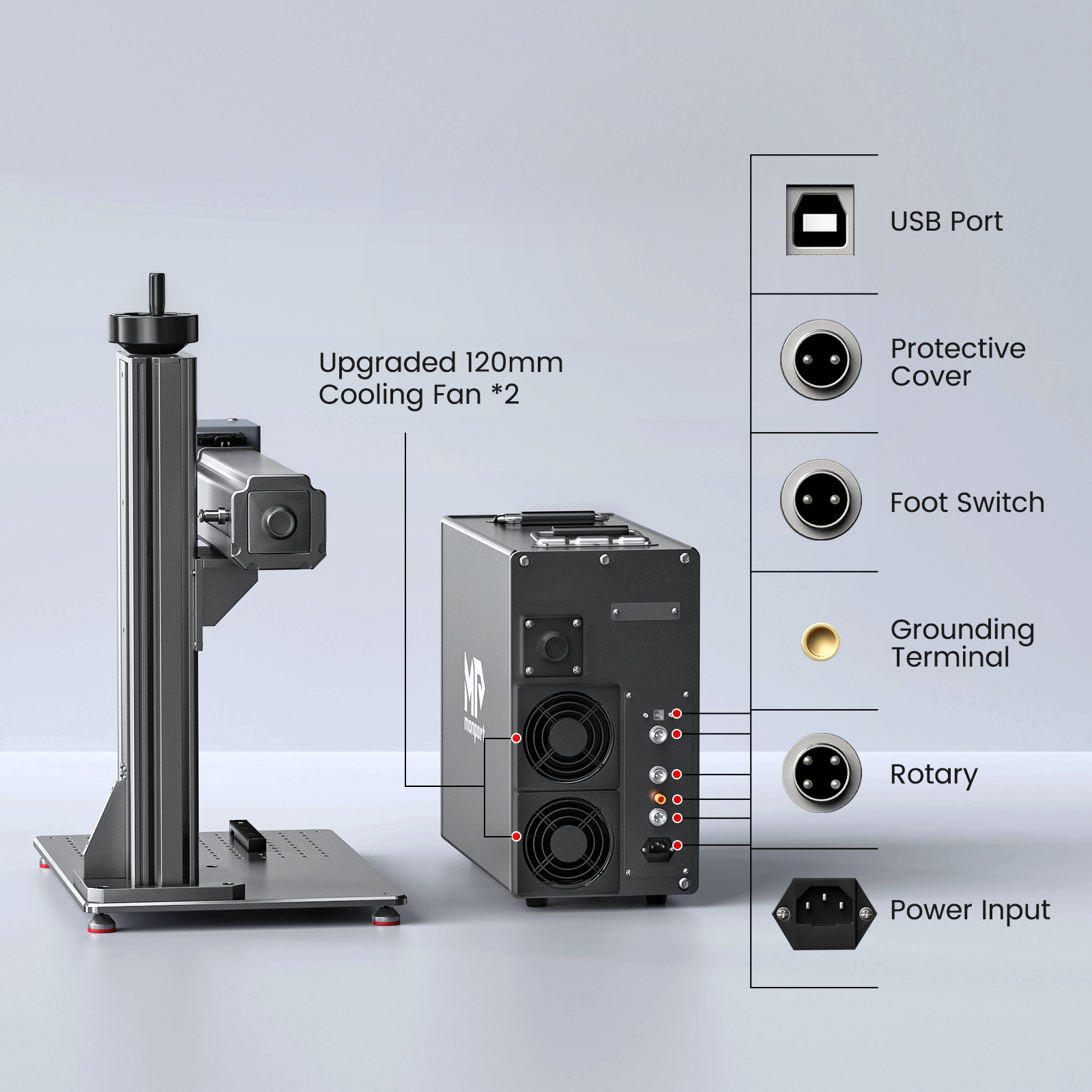

| Cooling Type | Air Cooling | Air Cooling | Air Cooling | Air Cooling | Air Cooling | Air Cooling |
| Rotation Axis Function | YES | YES | YES | YES | YES | YES |
| Galvanometer Thread Size | M68 | M68 | M68 | M68 | M68 | M79 |
| Field Lens Dimension | M85 | M85 | M85 | M85 | M85 | M85 |
| Materials Suitable for Engraving | Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. | Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. | Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. | Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. | Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. | Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. |
| Compatible Operating Systems | Windows / macOS | Windows / macOS | Windows / macOS | Windows / macOS | Windows / macOS | Windows / macOS |

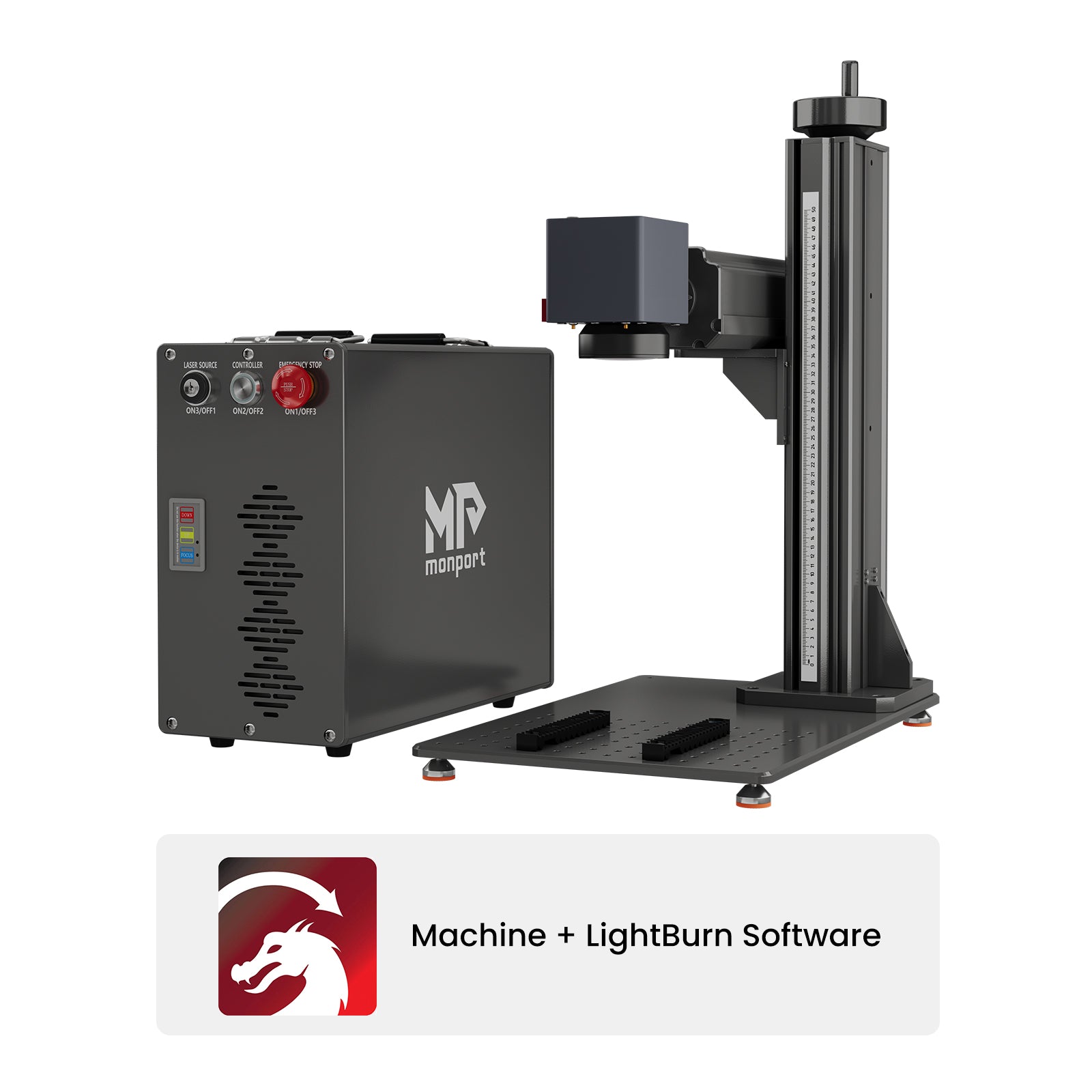

| Compatible Software | BslAppSimple, Lightburn | BslAppSimple, Lightburn | BslAppSimple, Lightburn | BslAppSimple, Lightburn | BslAppSimple, Lightburn | BslAppSimple, Lightburn |
| Data Transmission | USB Cable | USB Cable | USB Cable | USB Cable | USB Cable | USB Cable |

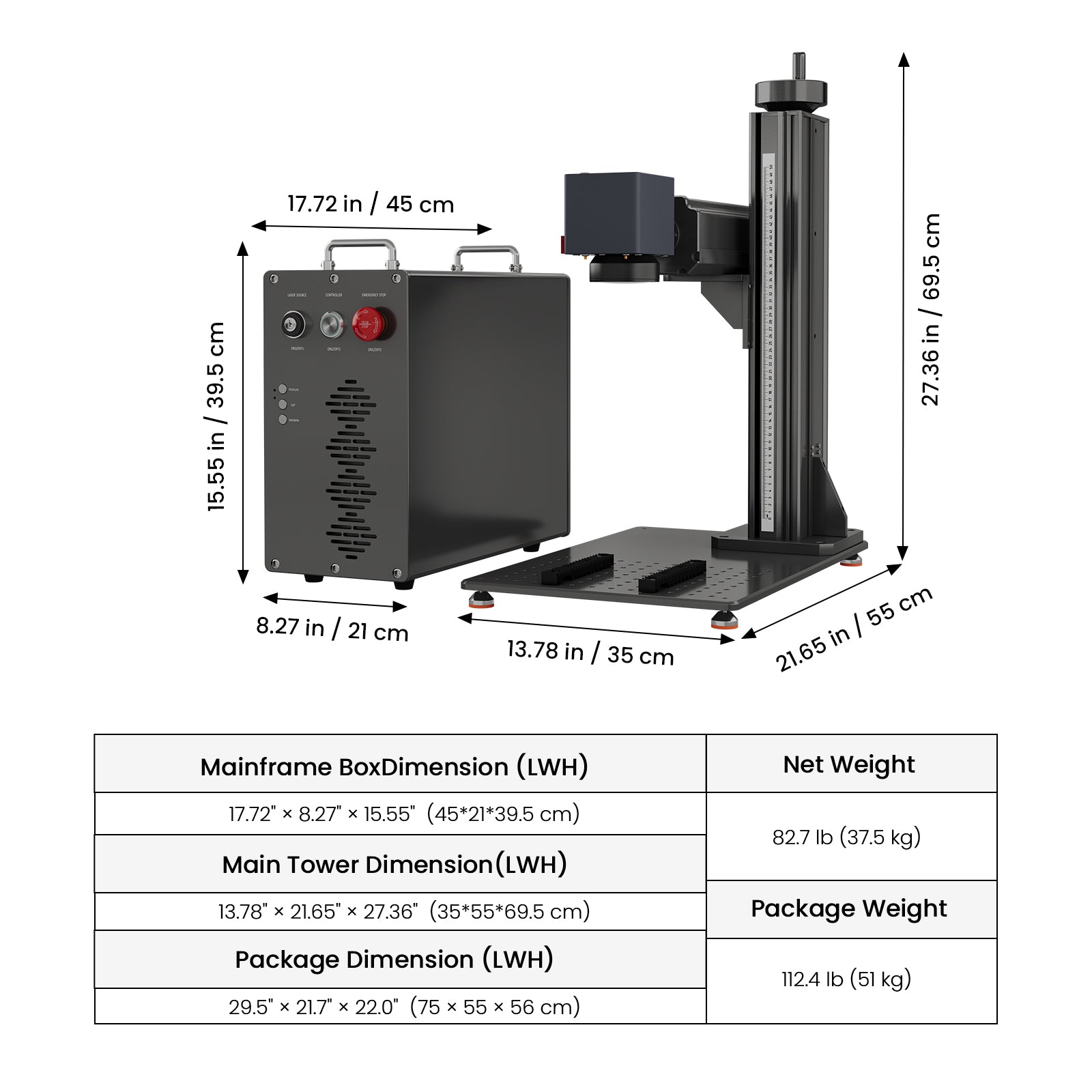

| Package Dimension (L × W × H) | 29.5" × 21.7" × 22.0" (75 × 55 × 56 cm) |
29.5" × 21.7" × 22.0" (75 × 55 × 56 cm) |
29.5" × 21.7" × 22.0" (75 × 55 × 56 cm) |
29.5" × 21.7" × 22.0" (75 × 55 × 56 cm) |
29.5" × 21.7" × 22.0" (75 × 55 × 56 cm) |
29.5" × 21.7" × 25.6" (75 × 55 × 65 cm) |
| Gross Weight | 102.5 lb (46.5 kg) | 98.1 lb (44.5 kg) | 110.2 lb (50 kg) | 111.3 lb (50.5 kg) | 112.4 lb (51 kg) | 151.0 lb (68.5 kg) |
| Warranty | 2-year (1 year for laser source) |
2-year (1 year for laser source) |
2-year (1 year for laser source) |
2-year (1 year for laser source) |
2-year (1 year for laser source) |
2-year (1 year for laser source) |

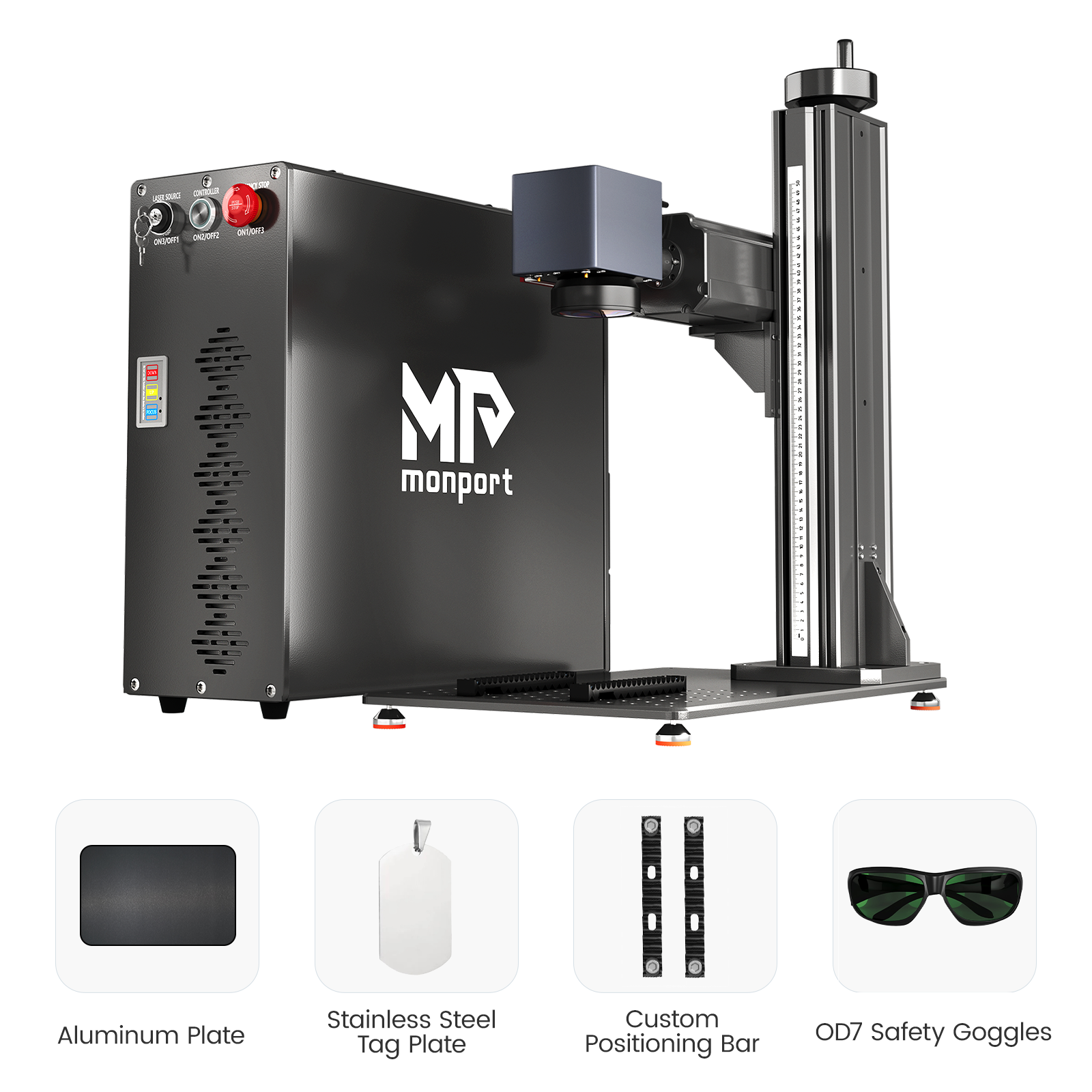

Package List
1x Fiber Laser Engraver
1x USB Cable(2 meters)
1x Power Cord(1.5 meters)
1x USB Flash Drive
1x User Manual
1x Goggles (OD7+)
1x Wrench Set
1x Ruler (50cm)
1x Foot Switch
2x Positioning Bars
4x Screws M6*12
4x Screws M6*10
4x Screws M5*16
1x Usb to TypeC Adapter
10x Test Aluminum Sheets
Questions & Answers
Have a Question?
-
Can this machine improve productivity for batch work or larger projects?
Yes — paired with its spacious work area and high‑speed galvo scanning, the GT 100W enables you to position multiple pieces at once and complete larger or repetitive engraving tasks with fewer repositioning steps.
-
What materials and item types is this 100W laser best suited for?
It’s well‑suited for metals and hard materials like steel, aluminum, brass, titanium, tungsten and coated metals for marking/engraving, as well as batch production of parts, serial numbers, branding logos, and artwork.
-
Is the AutoFocus reliable on objects with uneven or curved surfaces?
Yes — the AutoFocus system scans and sets the optimal focal distance automatically, reducing the need for manual height adjustment and helping maintain consistent engraving depth on uneven or slightly curved workpieces.
-
How does the MOPA laser help with color marking compared to a regular fiber laser?
MOPA technology allows adjustable pulse frequency and width, enabling vibrant, multi‑tone color marking on metals such as stainless steel and titanium — beyond simple black or grayscale marks.
-
With 100W power, can this machine handle deeper engraving on thick metal surfaces?
Yes — the 100W MOPA laser delivers more energy than lower‑wattage models, enabling deeper engraving per pass and greater material penetration, ideal for pronounced textures or industrial part marking.
