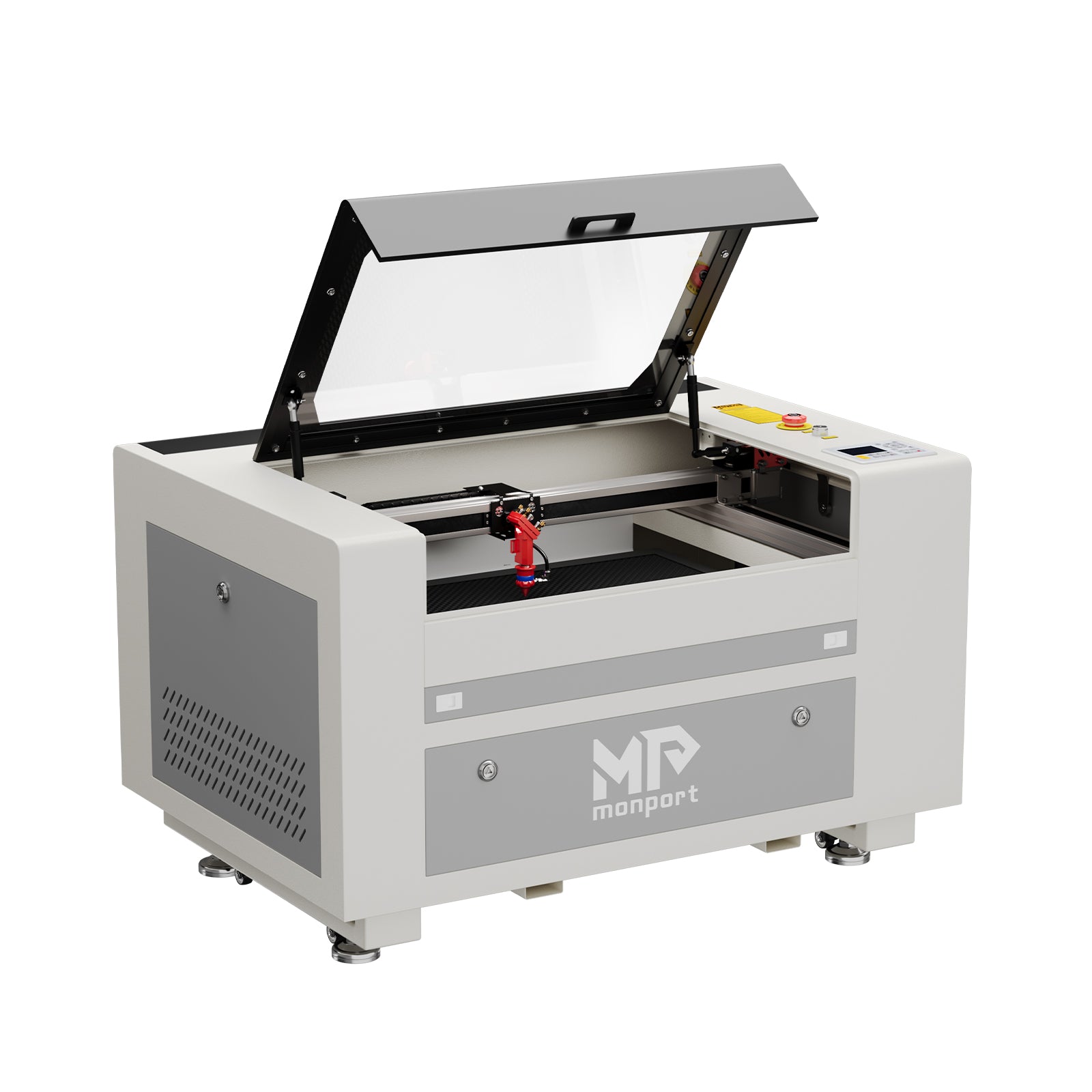

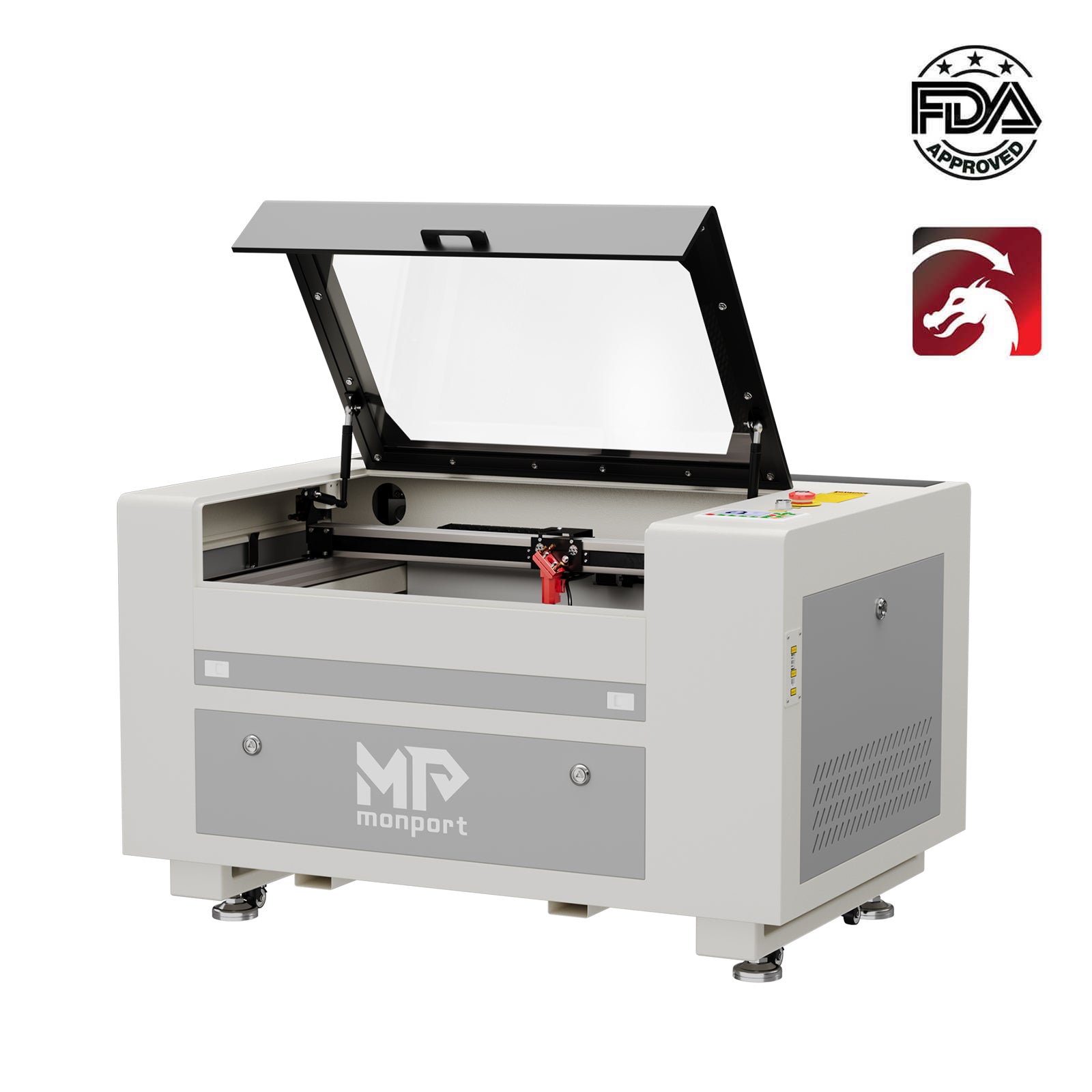

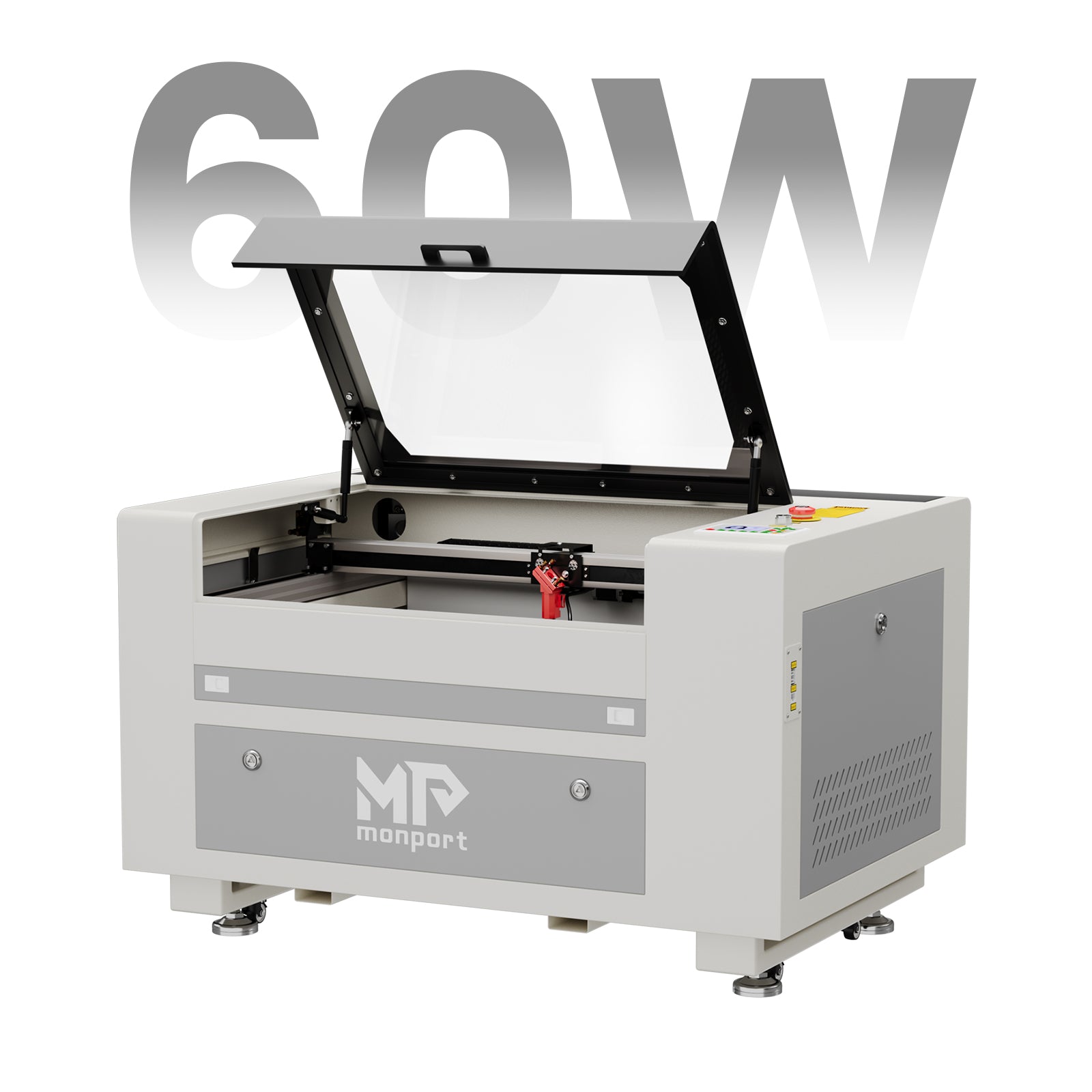

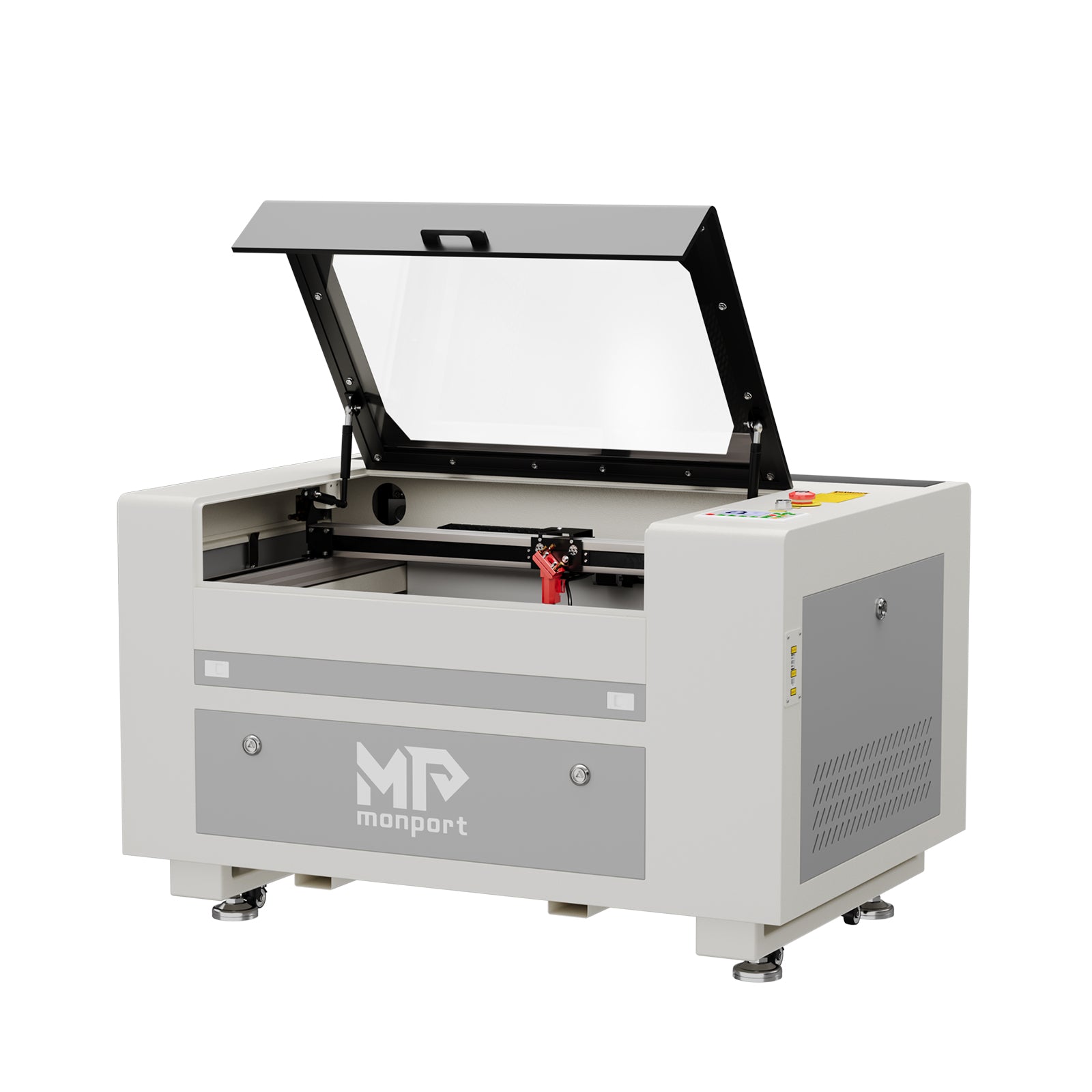

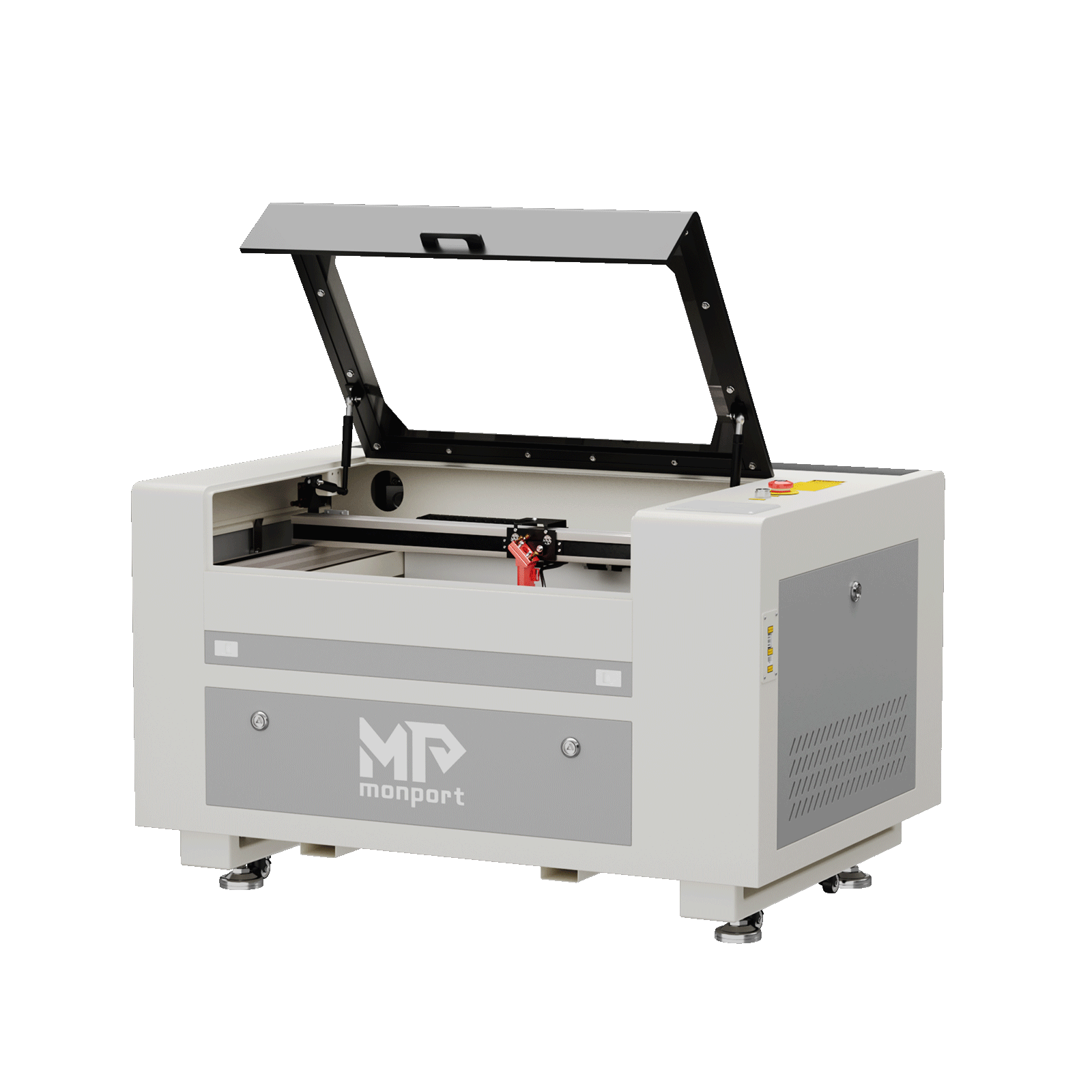

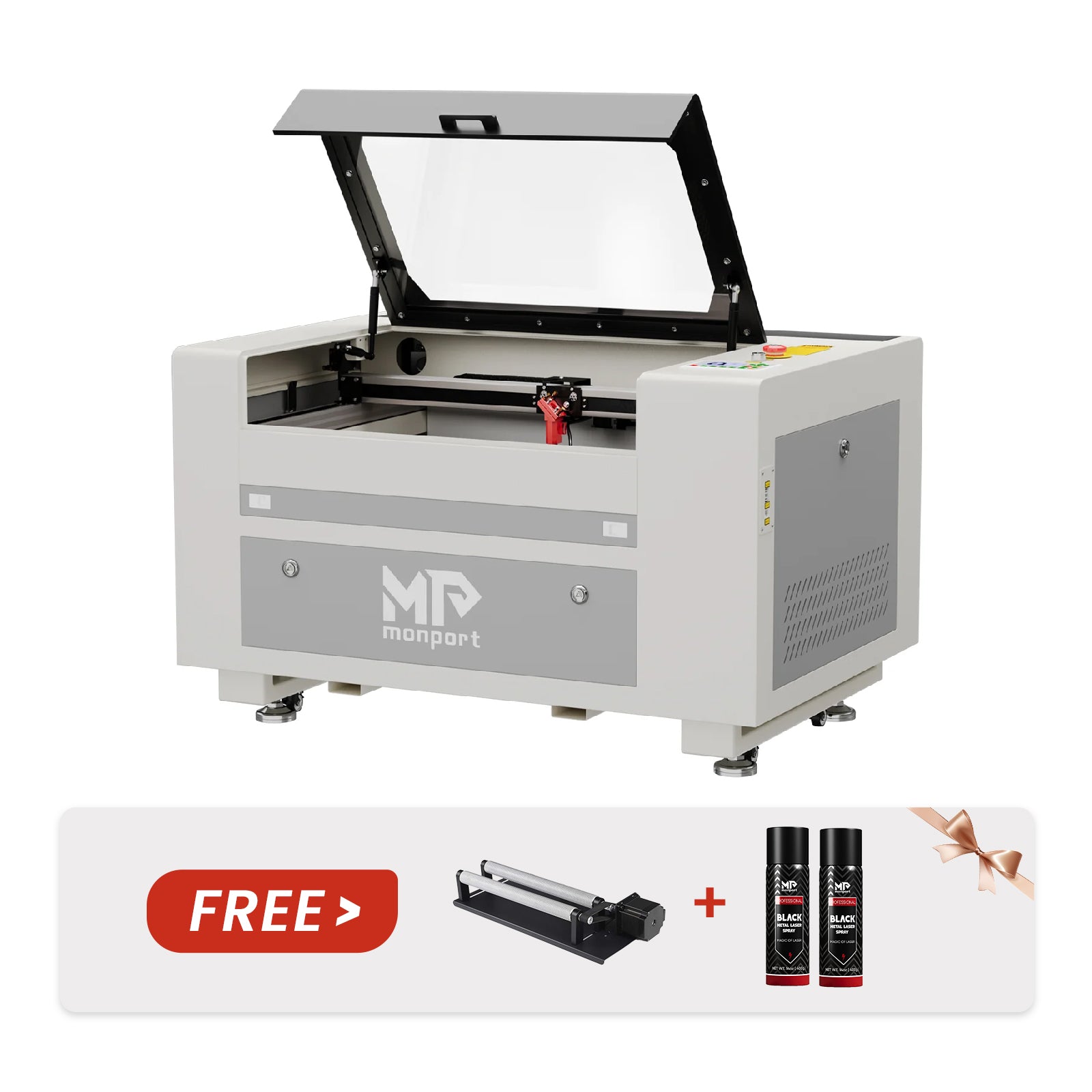

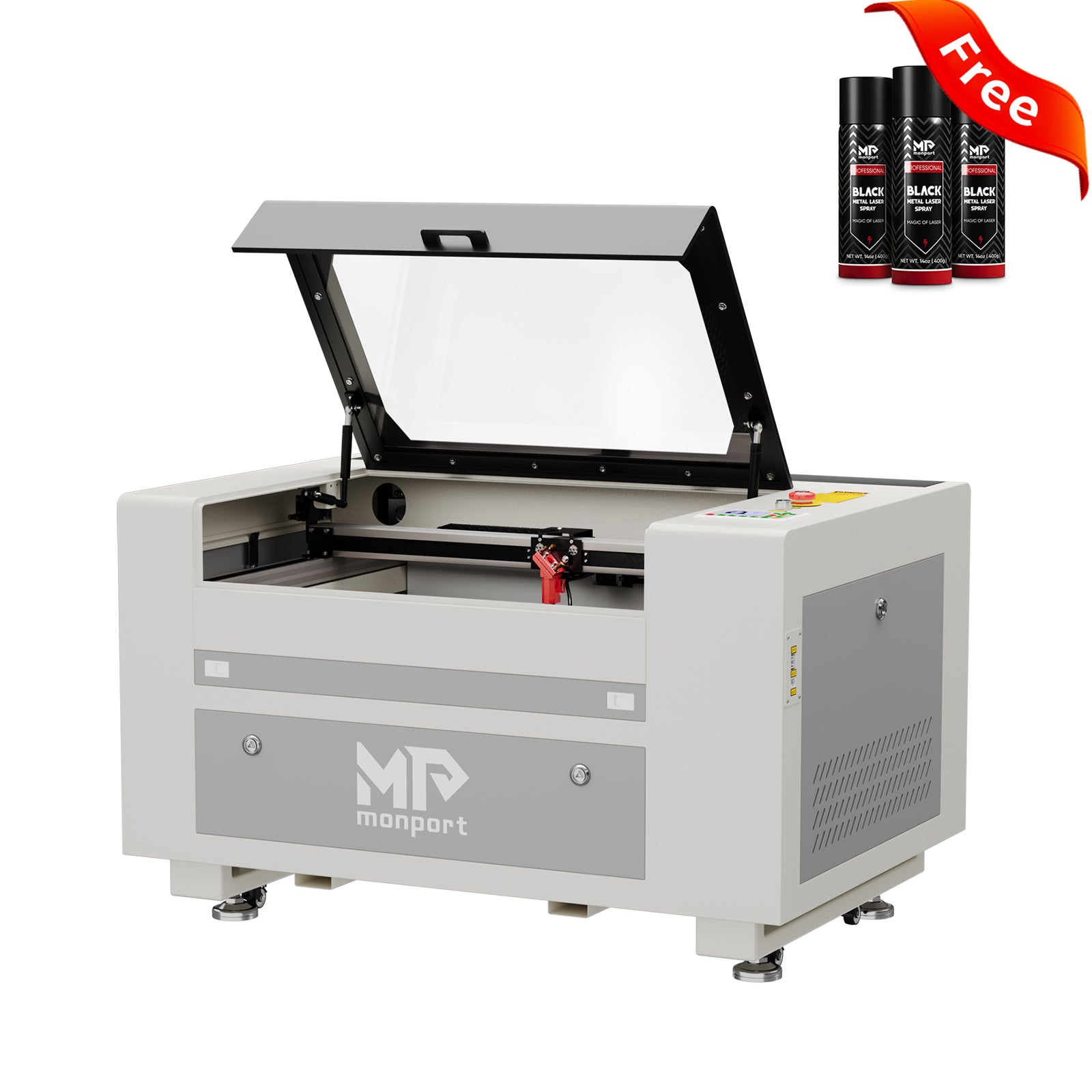

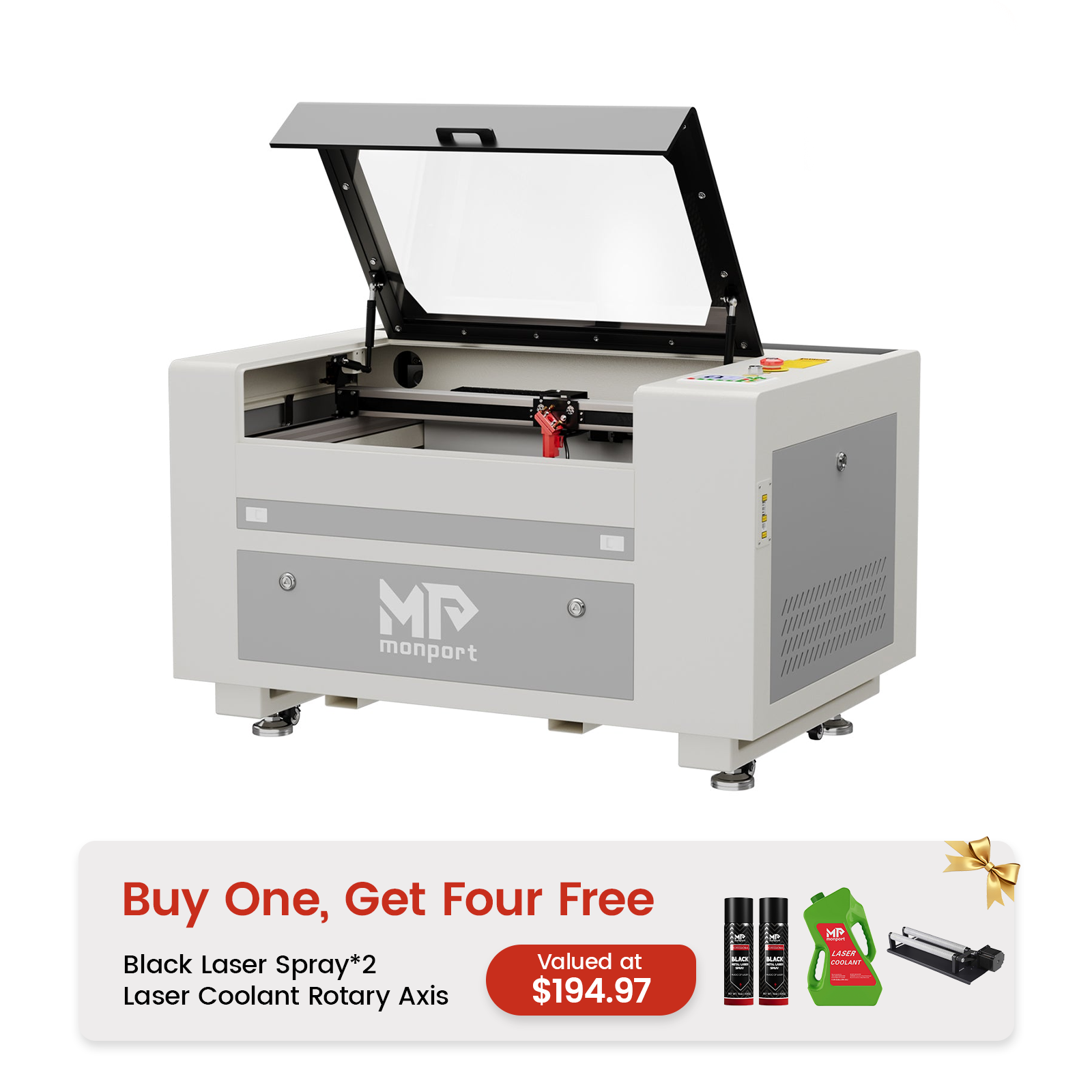

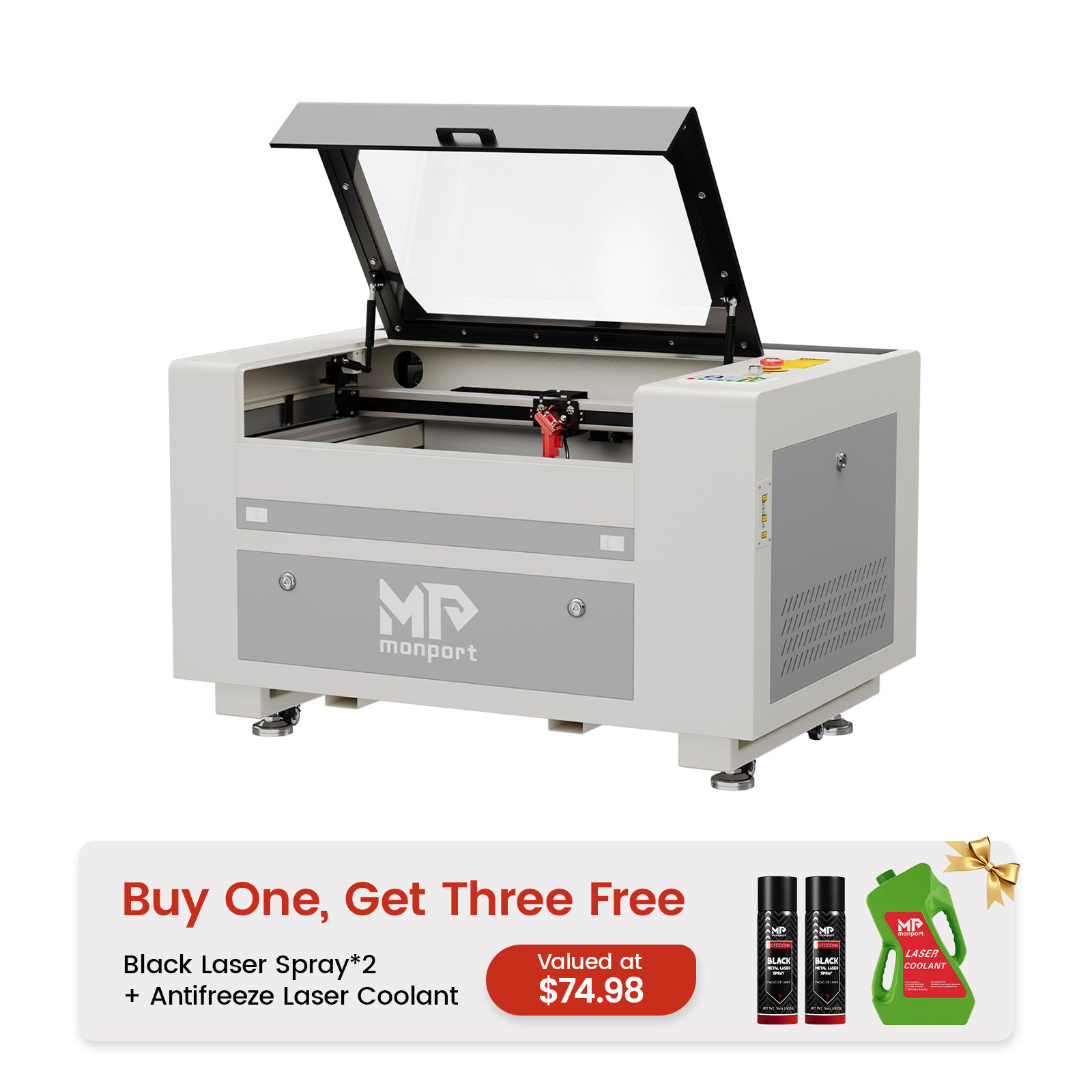

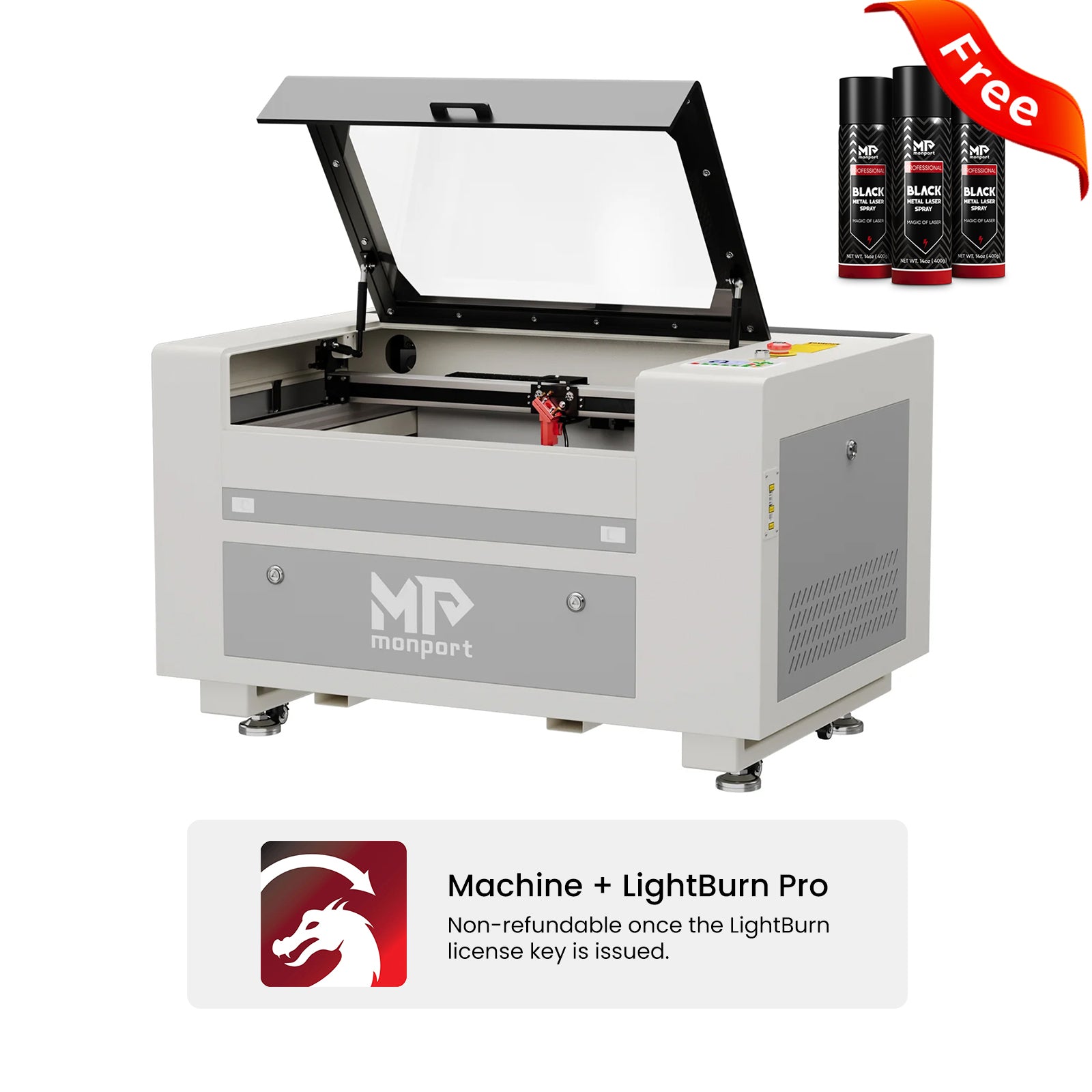

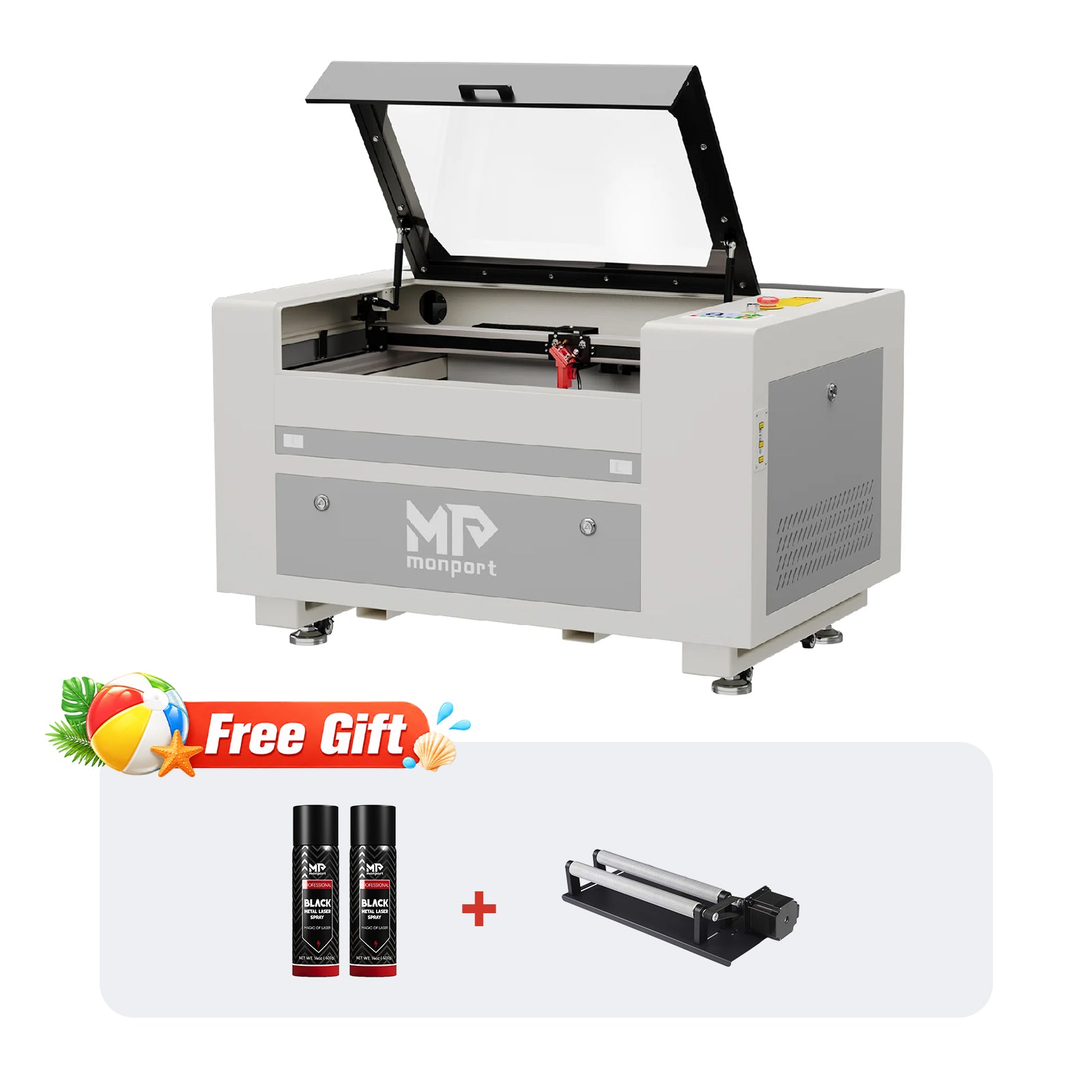

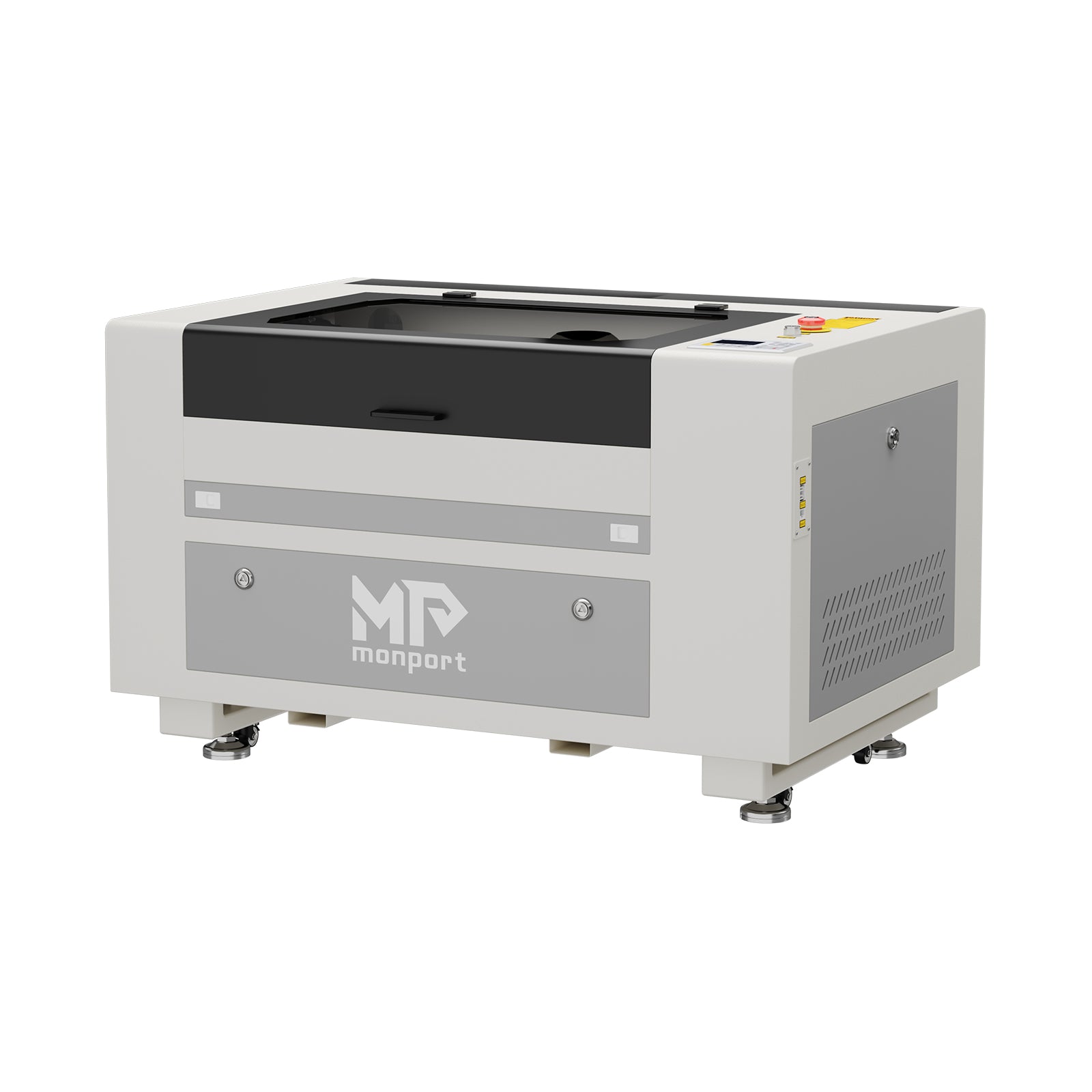

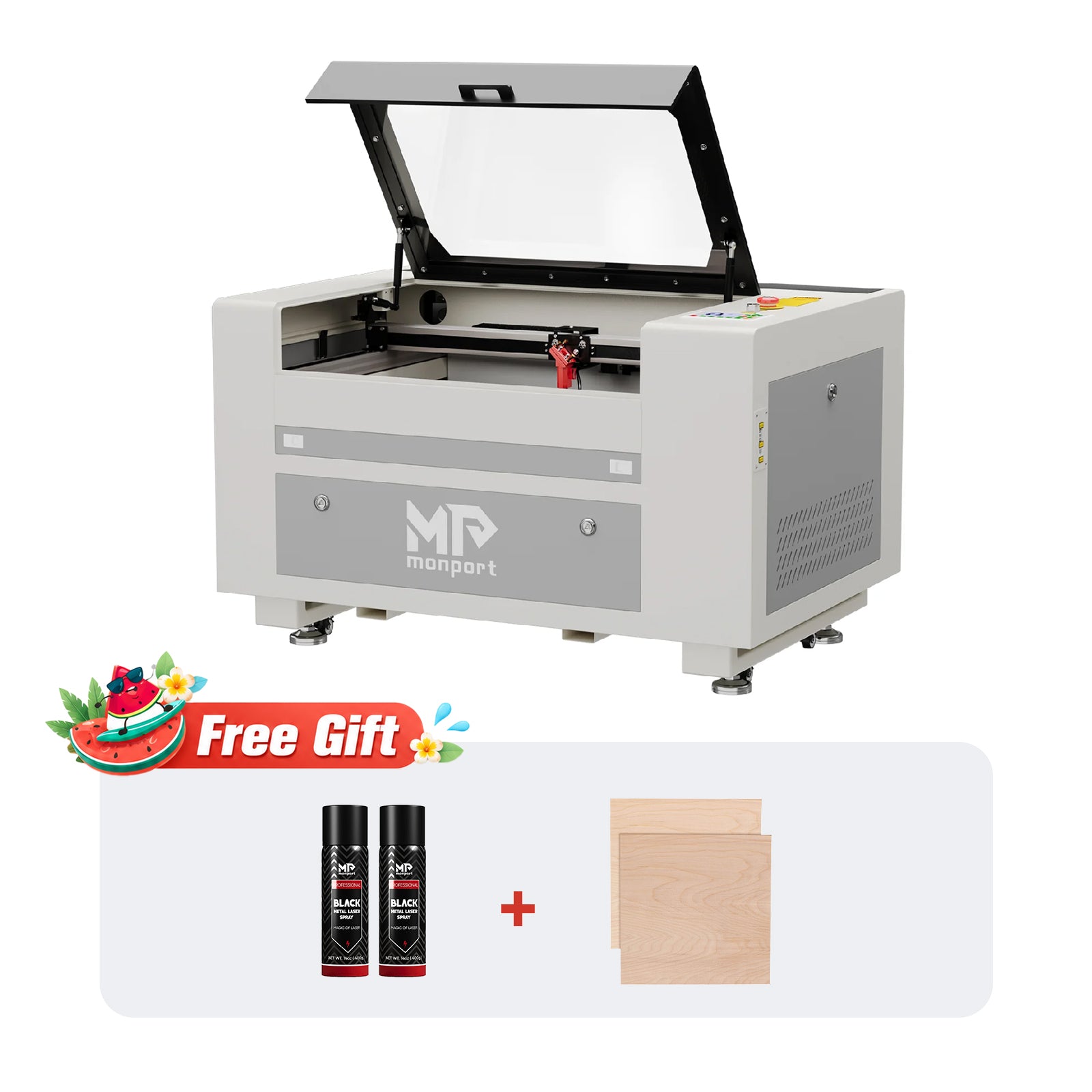

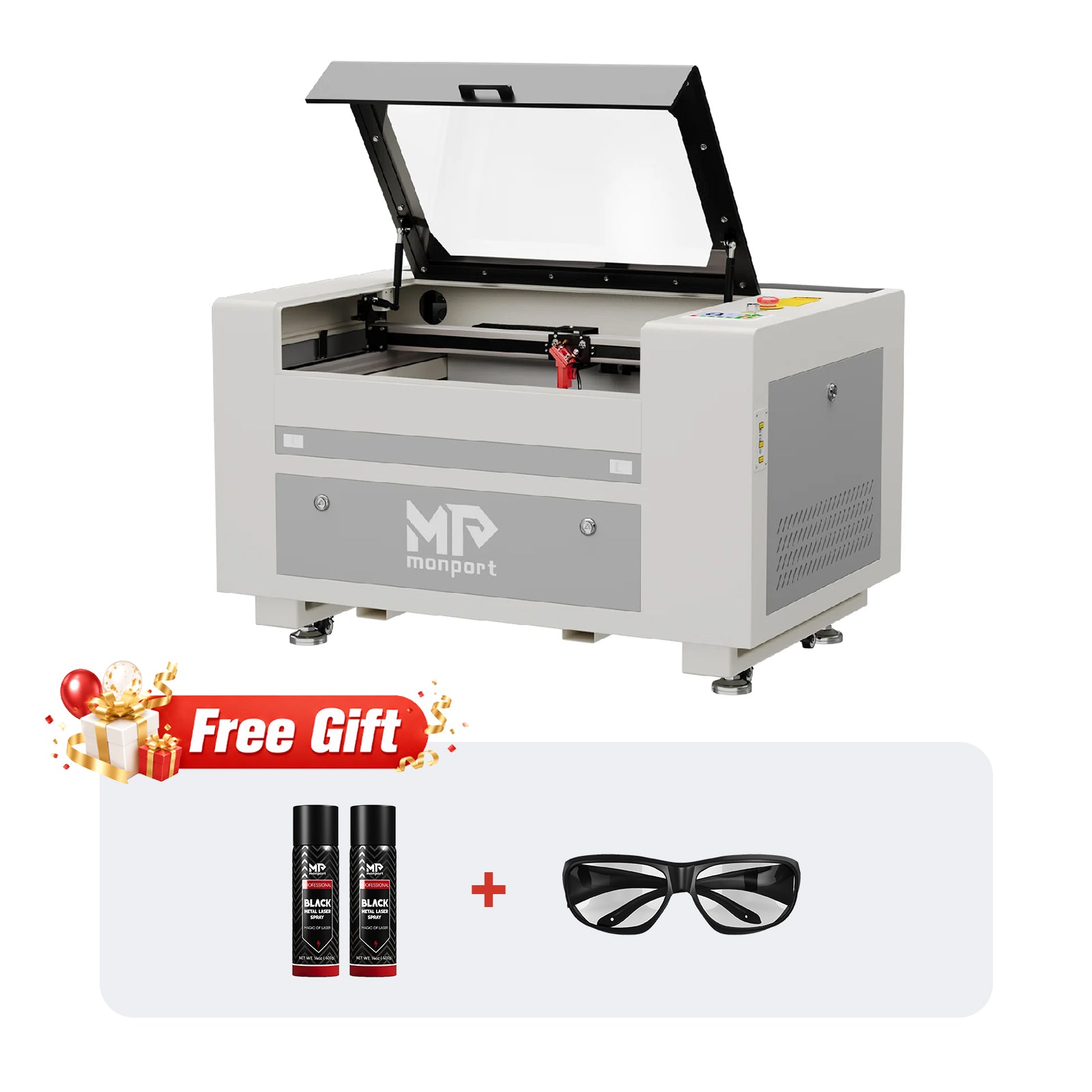

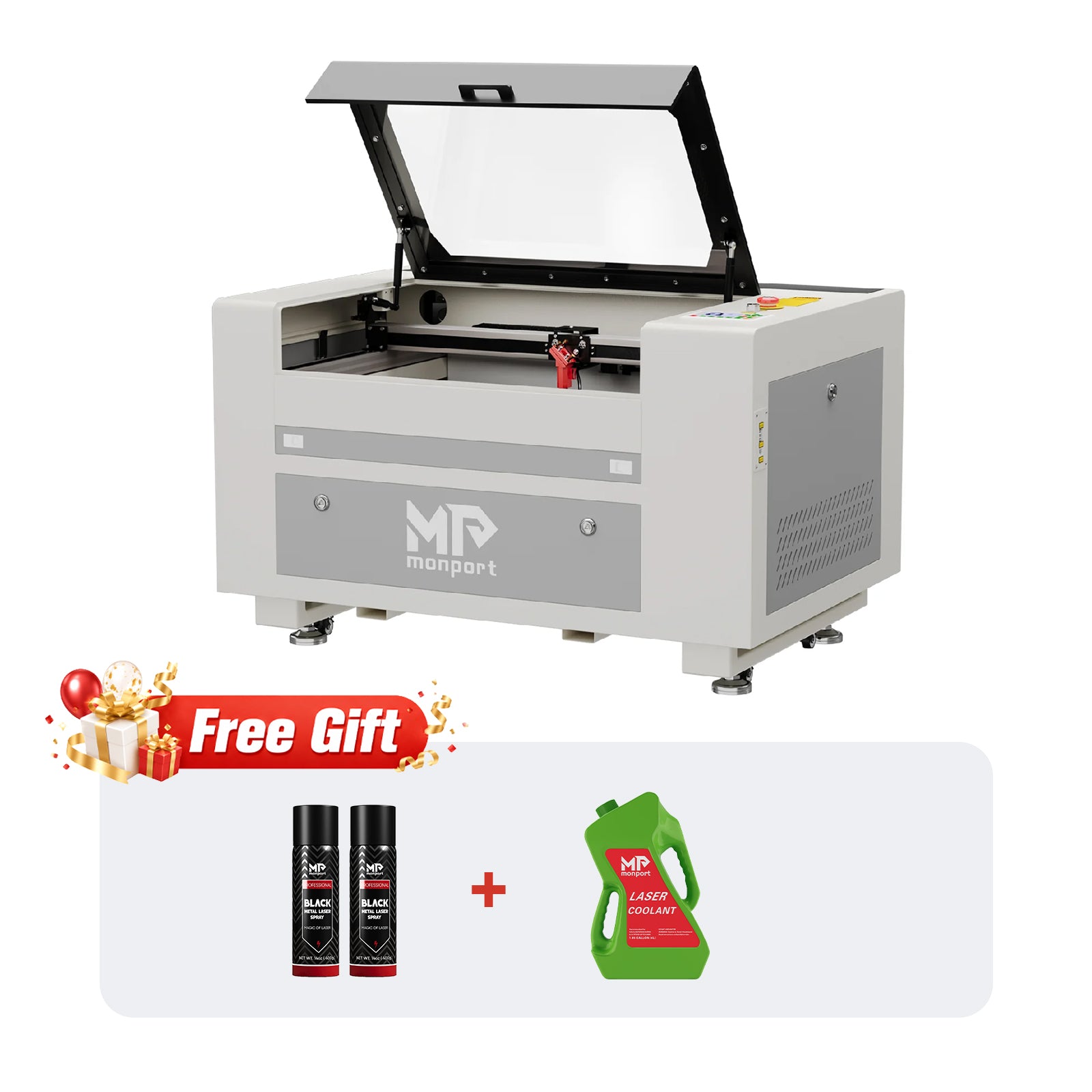

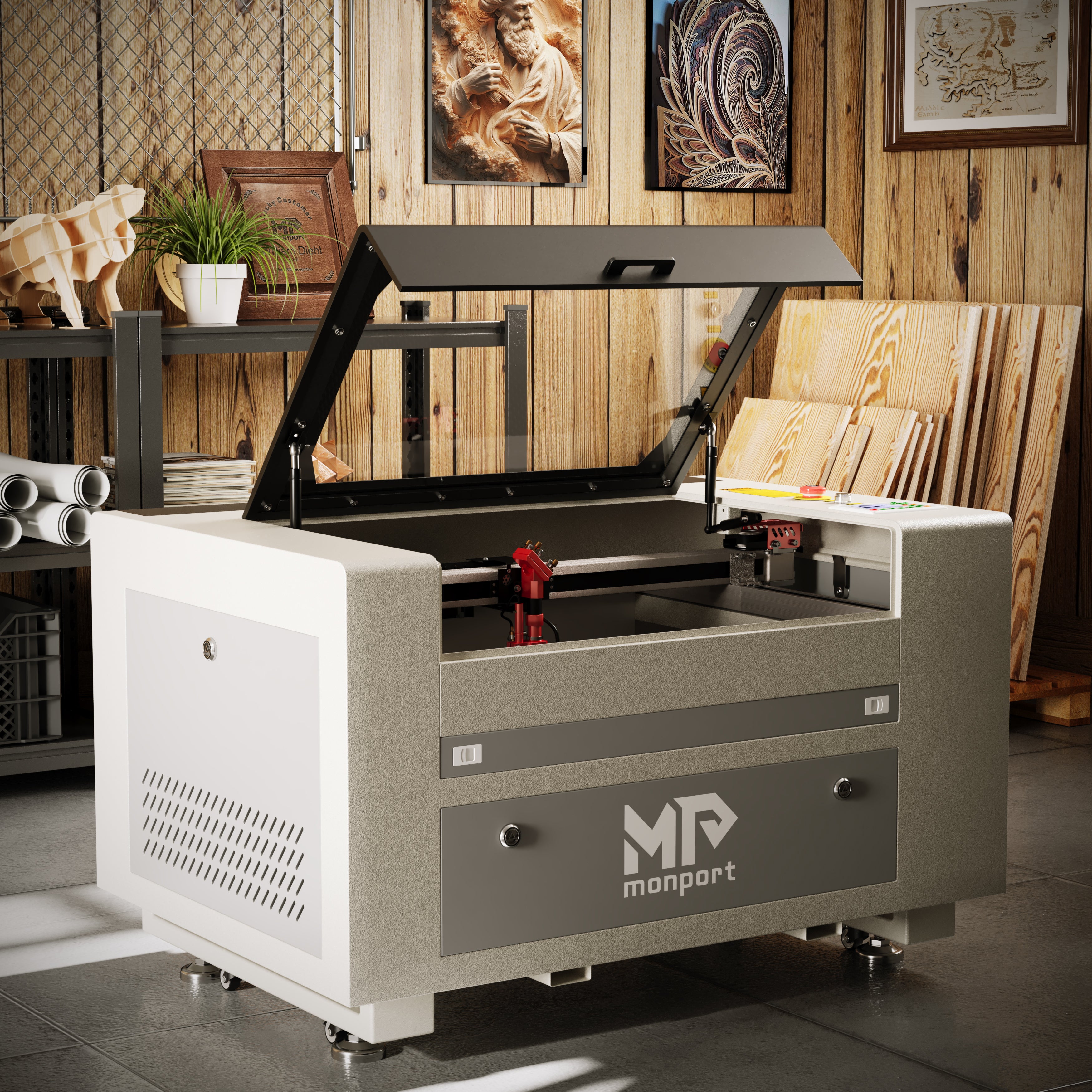

Monport Fireproof 60W (16" X 24") Autofocus CO2 Laser Engraver & Cutter

Original price $2,699.99 - Original price $2,699.99
Original price
$2,699.99 - $2,699.99
Current price $2,699.99
Dimension & Specifications

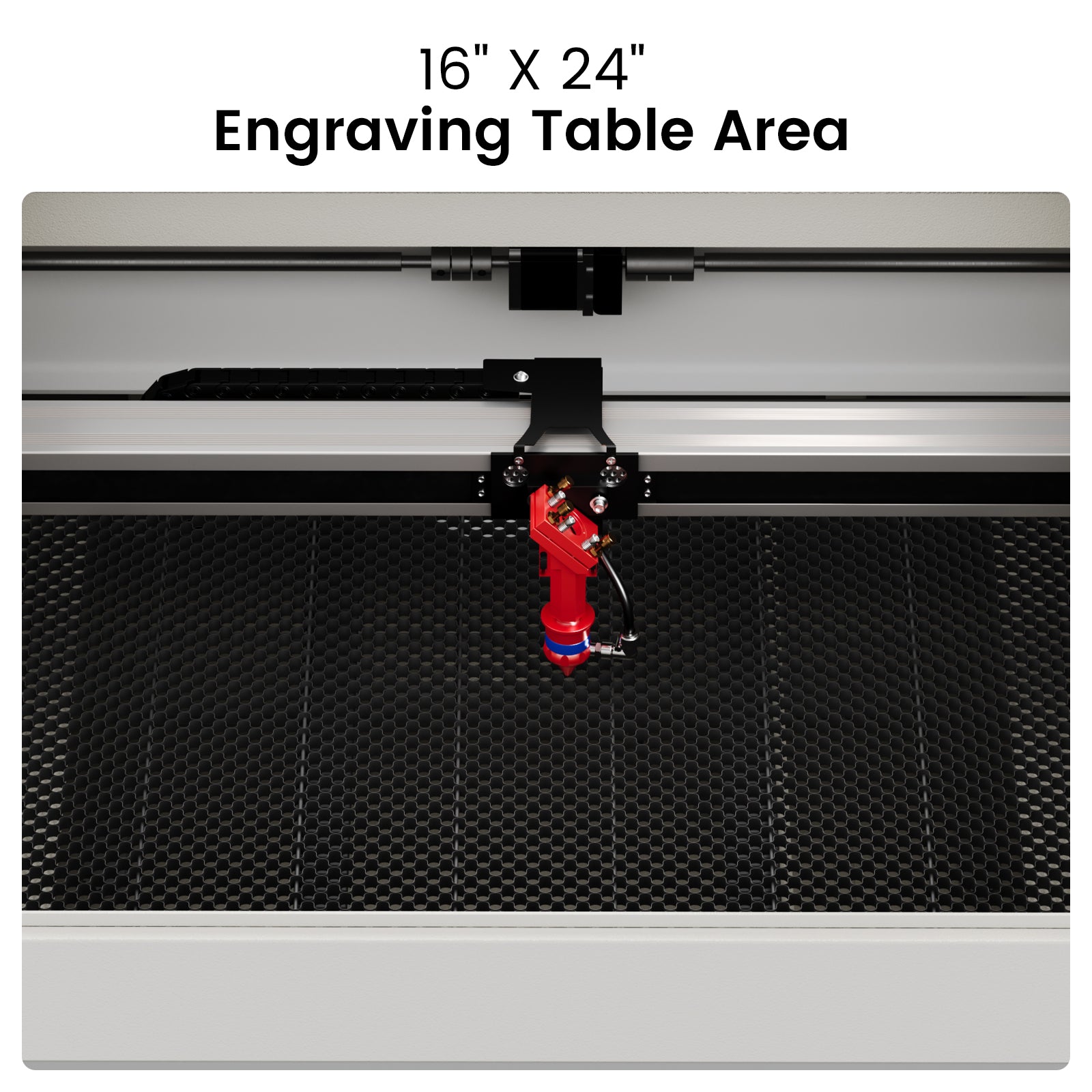

Working Dimension: 16" x 24" ( 40 cm x 60 cm )

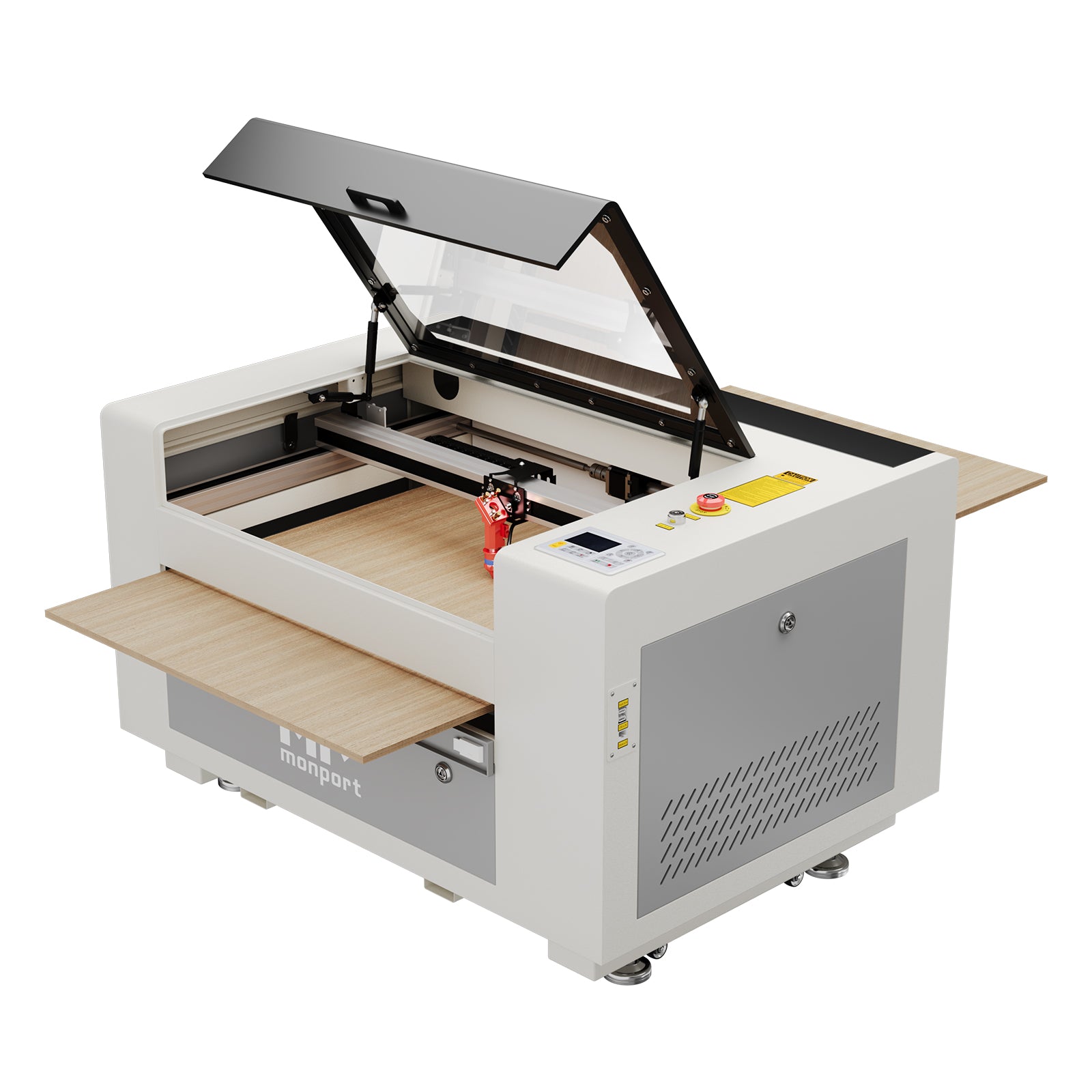

Pass-through Dimension: 1.5'' x 28''(4cm x 73 cm )

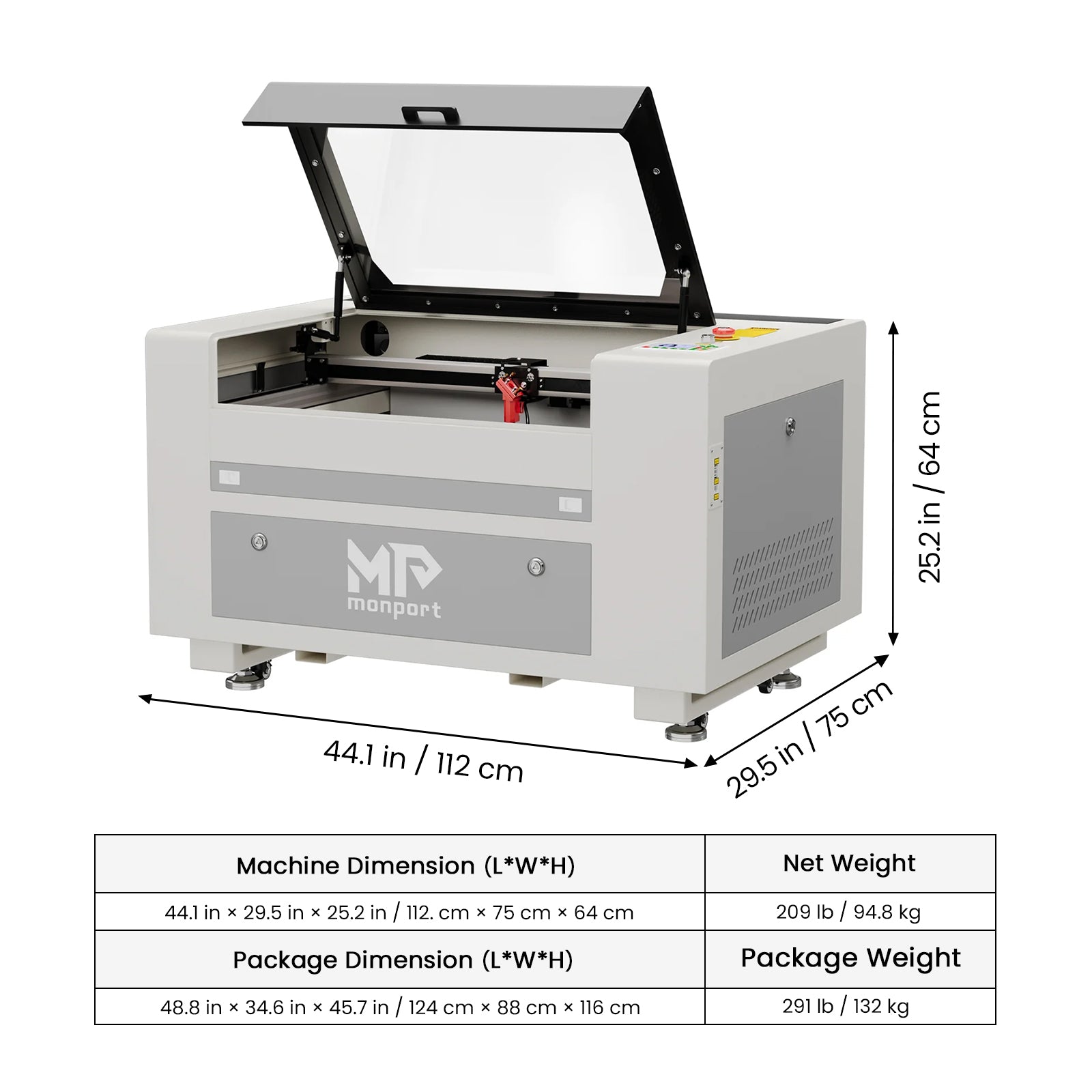

Machine Dimension: 44.1''x 29.5'' x 25'' (112cm x 75cm x 64cm)

Package Dimension: 48.8" x 34.6'' x 45.7'' ( 124 cm x 88 cm x 116 cm )

Focal Lens Diameter: 18mm

Mirror Diameter: 25mm

9” Standard Z-depth and 10” Max Z-depth

Product Weight: 286.6 lbs ( 130 kg )

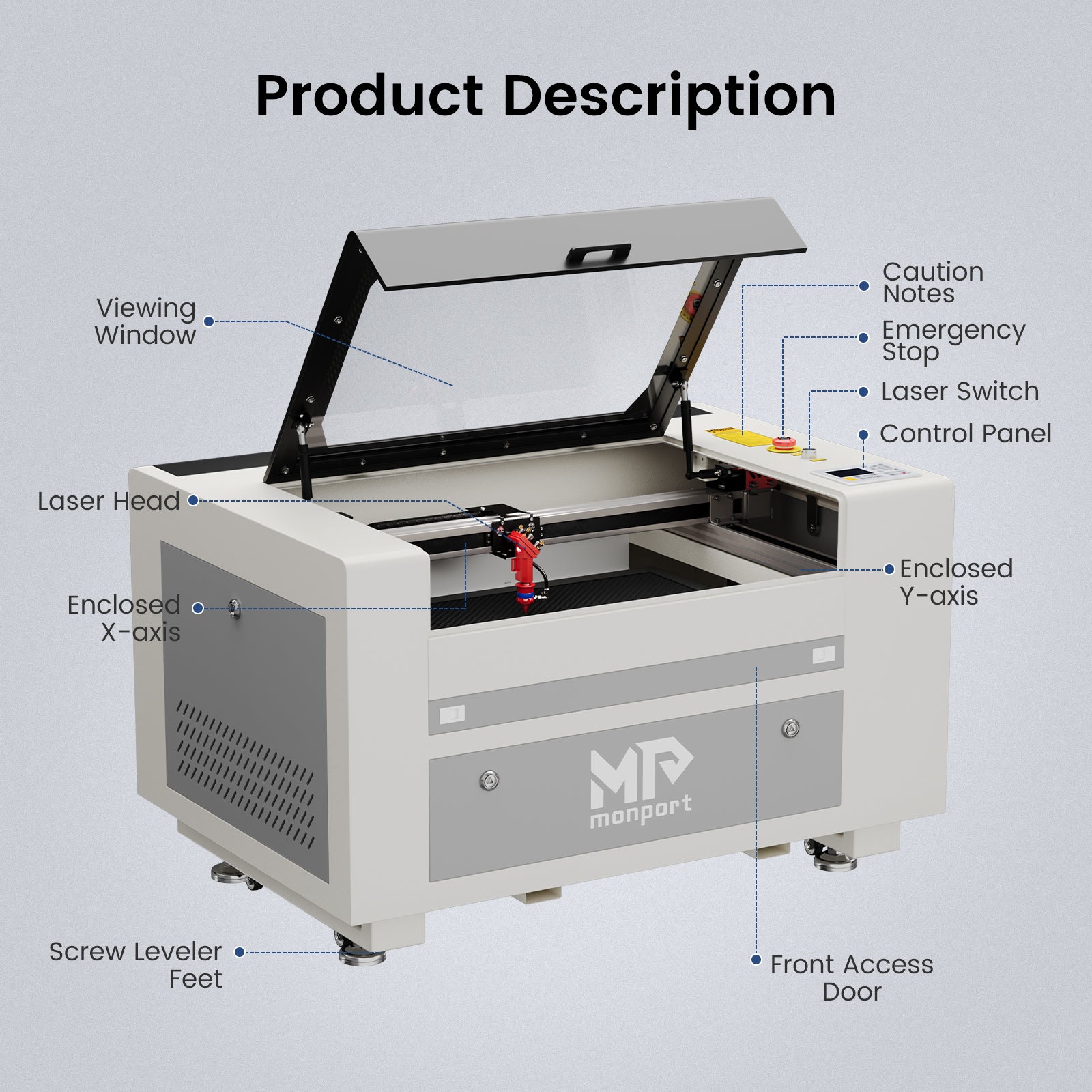

Monport 60W Benefits

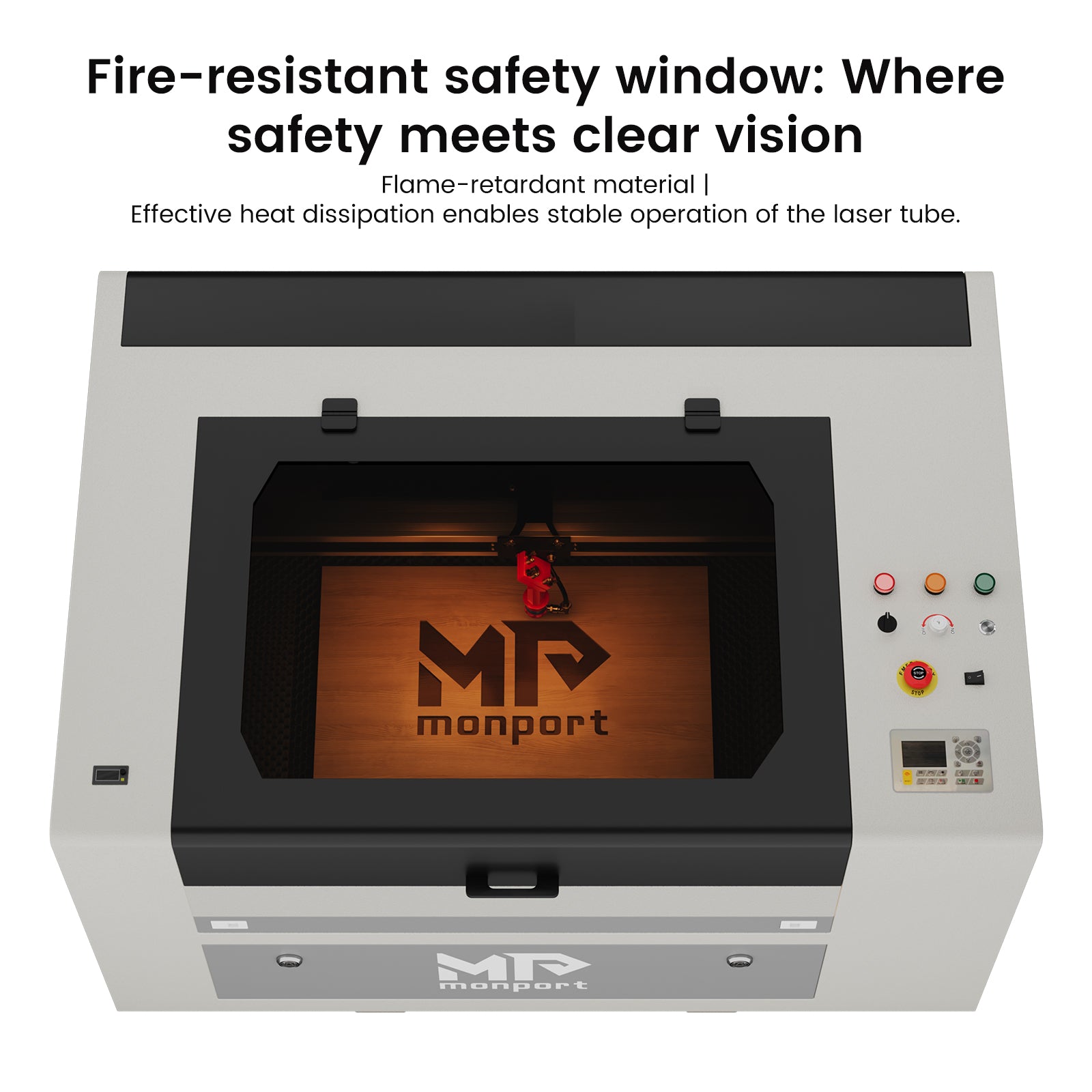

Fireproof Viewing Window

This viewing window is made from special fire-resistant polyester with iron frames. The melting point of this polyester ranges from 432° to 488° and the ignition temperature of it is over 1000°, which can dramatically decrease the possibility of fire accidents caused by the heat of laser burning the materials.

Enclosed Aeronautical Aluminum Rail

Equipped with X and Y stepper motors, this rail features efficient power transmission with high precision. The enclosed rail is designed to avoid smoke and debris and prolong the service time of rail units.

Laser Protective Glasses for Free

Lasers emit radiation in the invisible form of light. This pair of laser protective glasses is certified to protect your eyes against radiation damage by looking at the class 4 laser in any way (directly, indirectly, or even looking at the laser dot on a surface can damage your eyes).

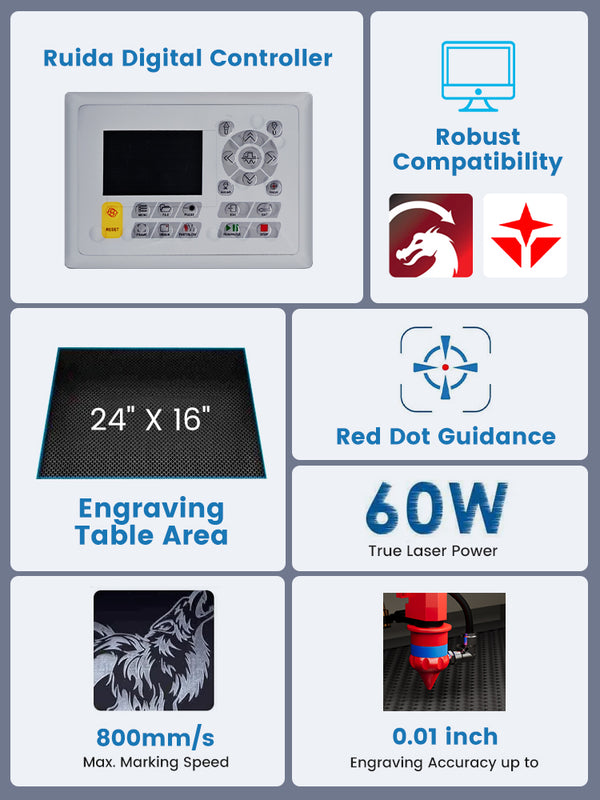

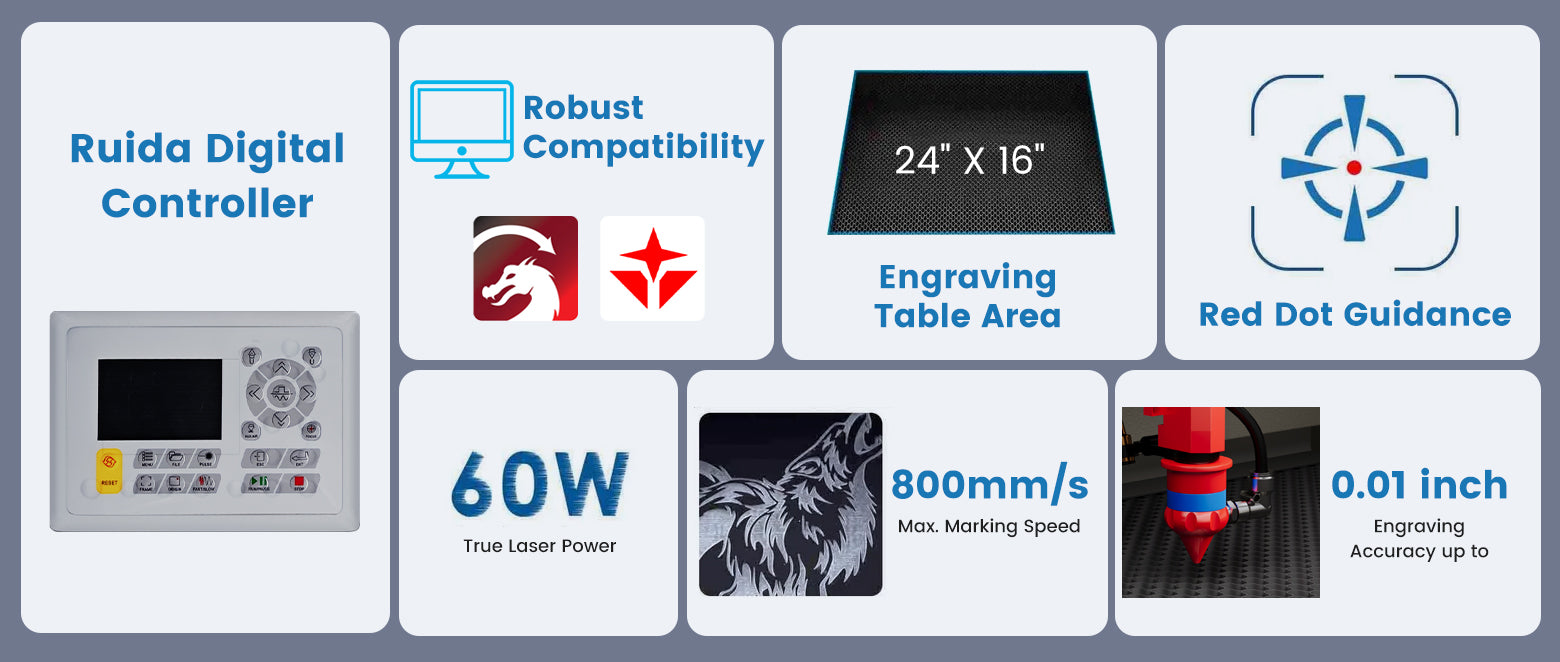

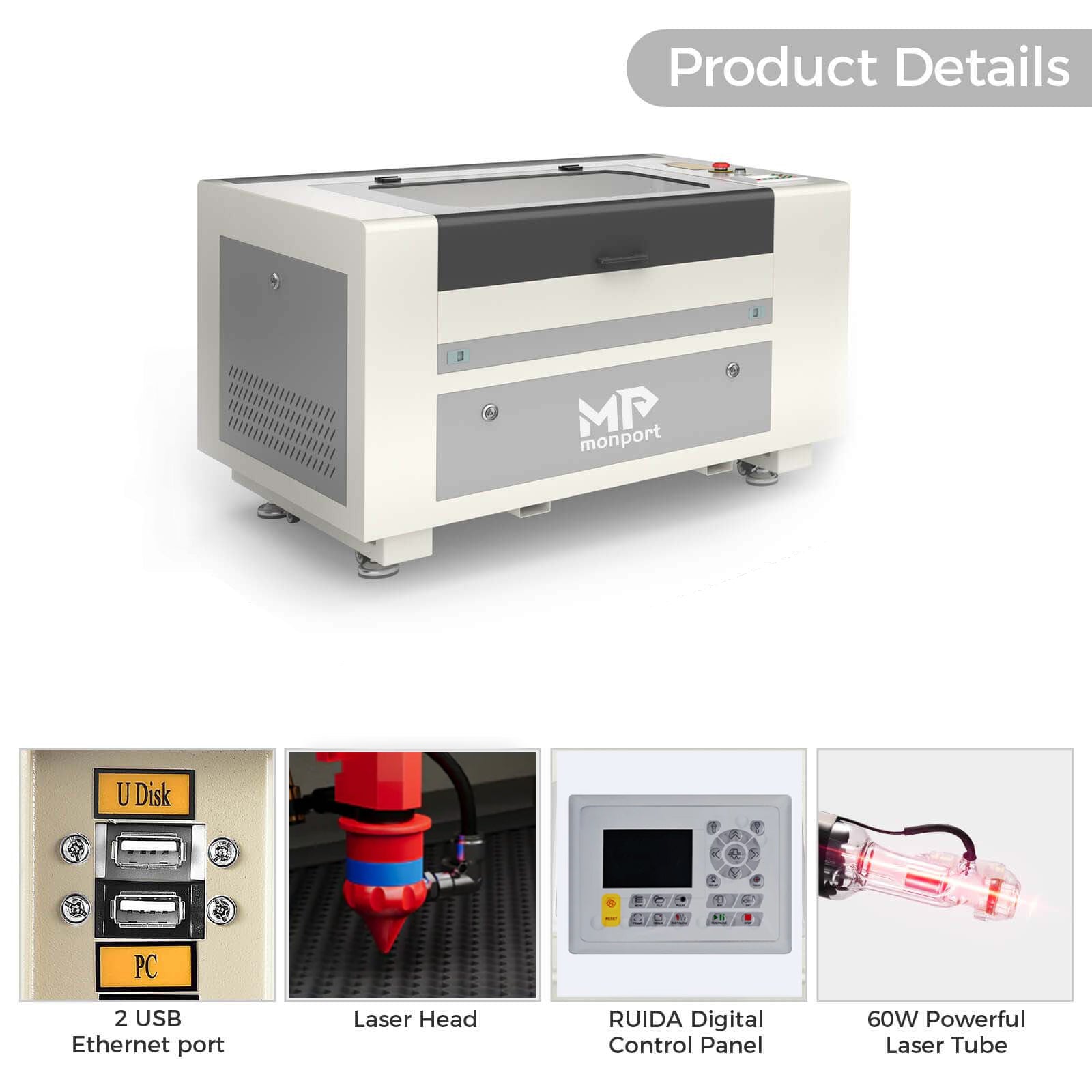

Ruida Digital Controller

Whether your chosen software is LightBurn, RDworks, AutoCAD, or CorelDRAW, this Ruida digital controller can support the given platform. The Ruida Controller with a digital display can  control the laser head, start or stop projects, adjust laser power and speed settings and so on.

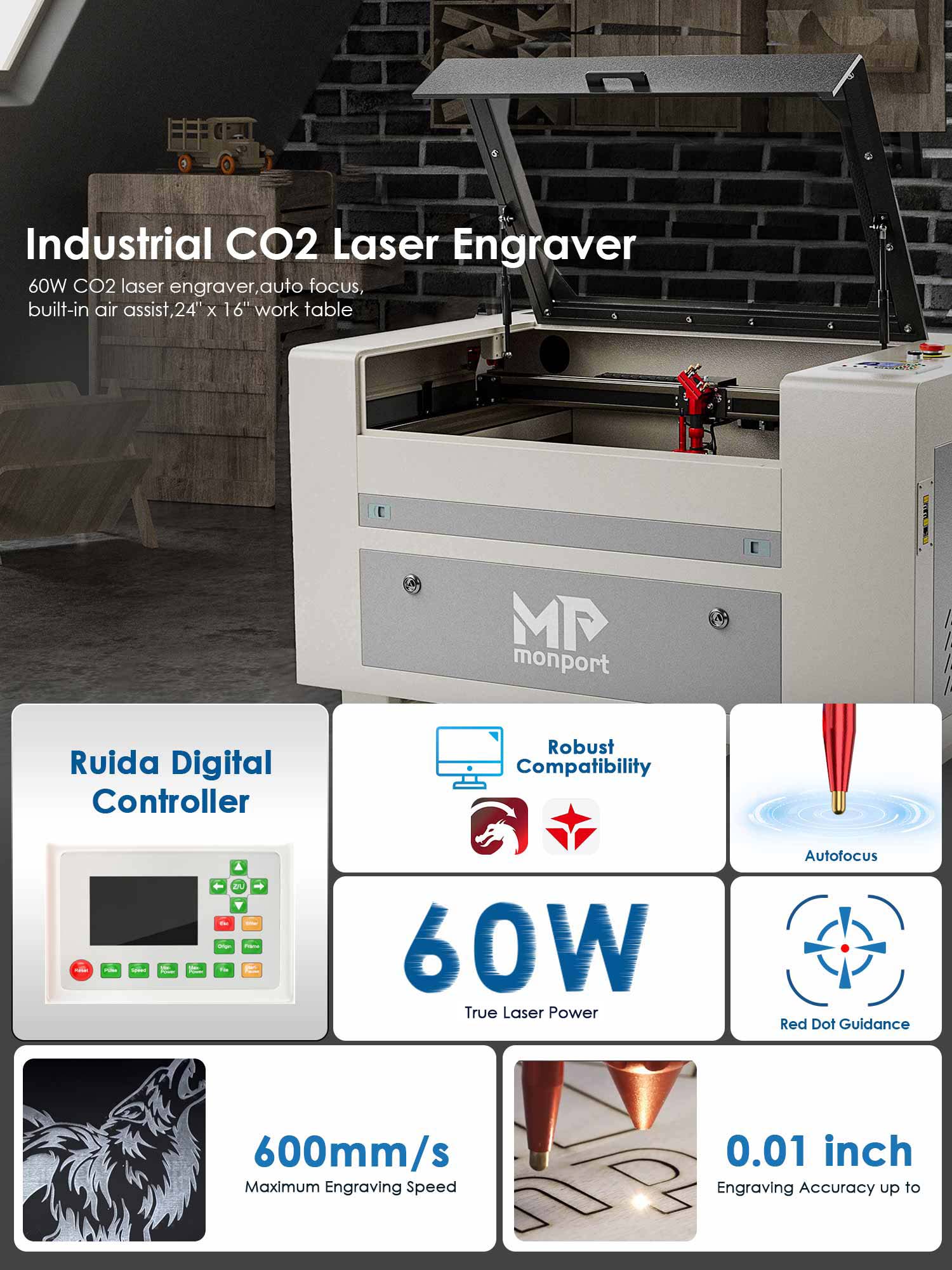

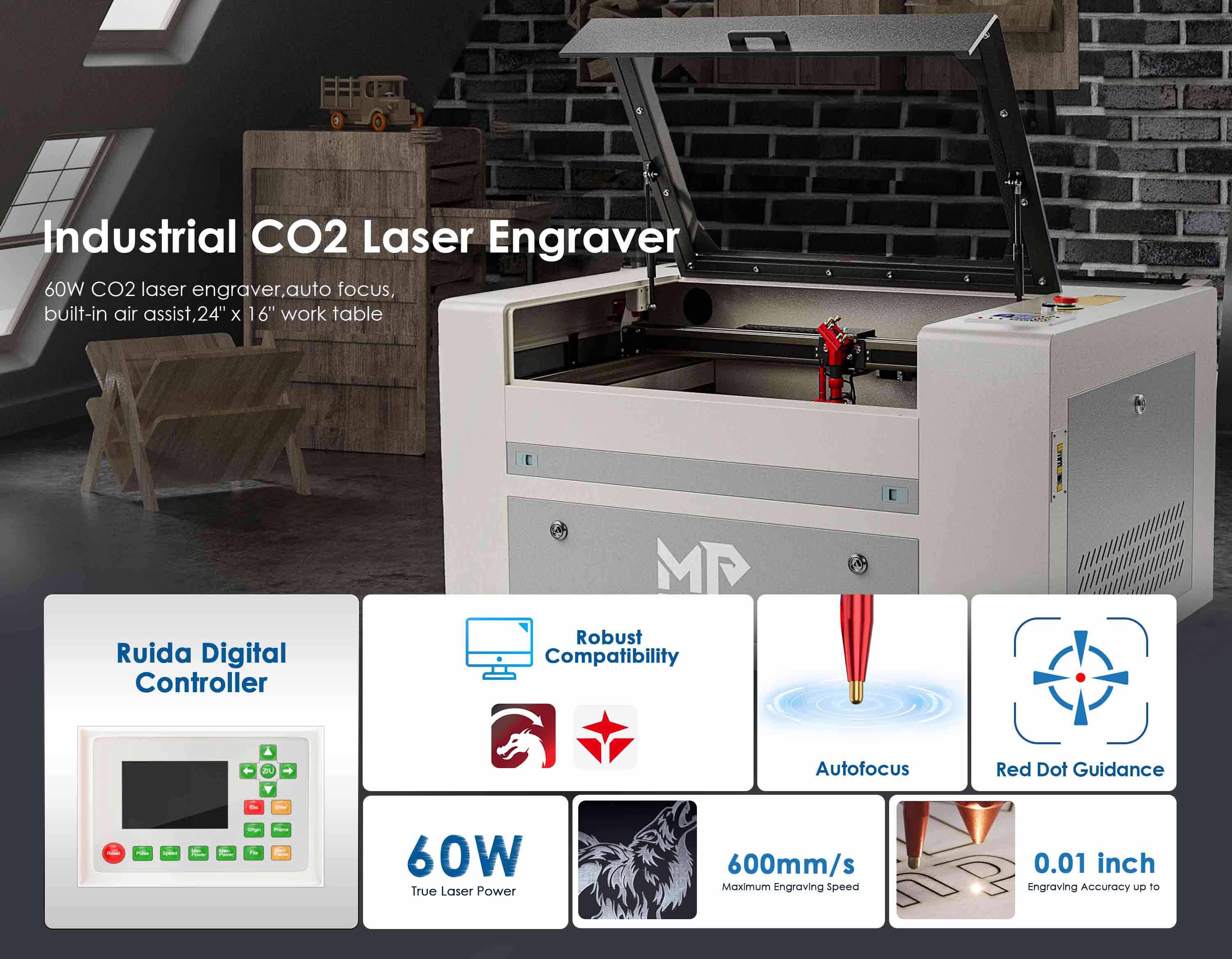

60W CO2 Engraver Features

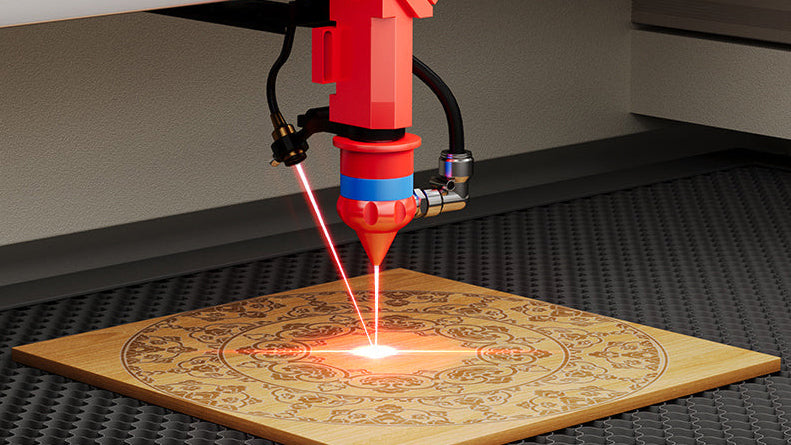

High Speed and Resolution

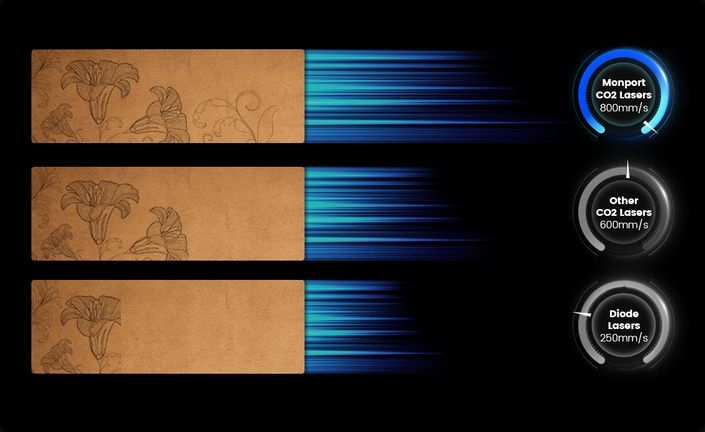

The Engraving Speed is up to 800 mm/s;
The Cutting Speed is up to 400 mm/s;
The Resolution is up to 4500 dpi;
2.0" Focal distance provides high resolution and etching of tiny fonts


Use the control panel to correct the focus automatically at the touch of a button — no more manual testing and adjustment.

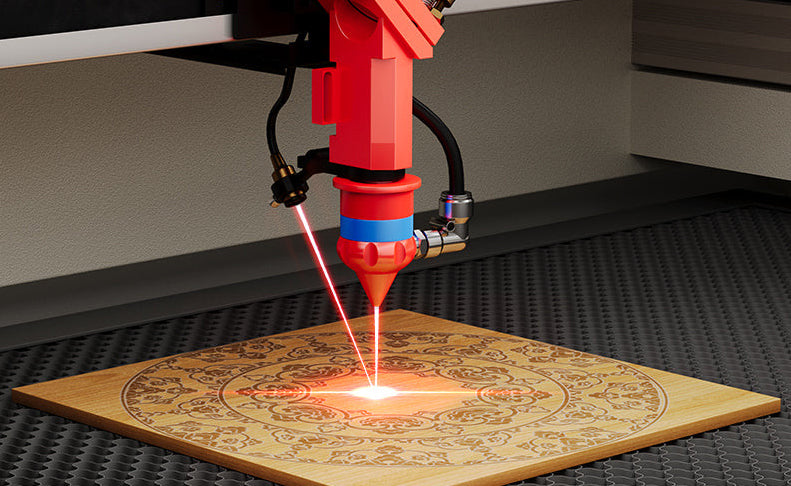

Built-in Air Assist

A built-in air assist system guides a pressurized air stream through the laser head nozzle to displace debris, heat, and combustible gases from the engraving surface and laser beam path, keeping engravings more precise.

3-ways to Connect with PC End

Two USB ports provide options including flash drive connectivity and a USB-to-USB PC connection. In addition, one ethernet port is also available for connection.

Red Dot Guidance

The red dot shows the laser head position, marks the working path and frames the project sizes, assisting you with more convenience and guidance.

Automatic Safety Sensor

The safety shutdown sensor helps stopping the machine even if the window cover is on. Once closed, press the “Enter” button to continue operation.

60W CO2 Engraver Specification


Works on Windows XP, 2000, Vista, WIN 7, 8, 10 & 11, both 64 & 32 bit

MacOS (Version 10.11 and higher) ONLY with LightBurn software

Compatible with Lightburn, RDWorks, Coreldraw, Auto-CAD

Supported image formats: BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others

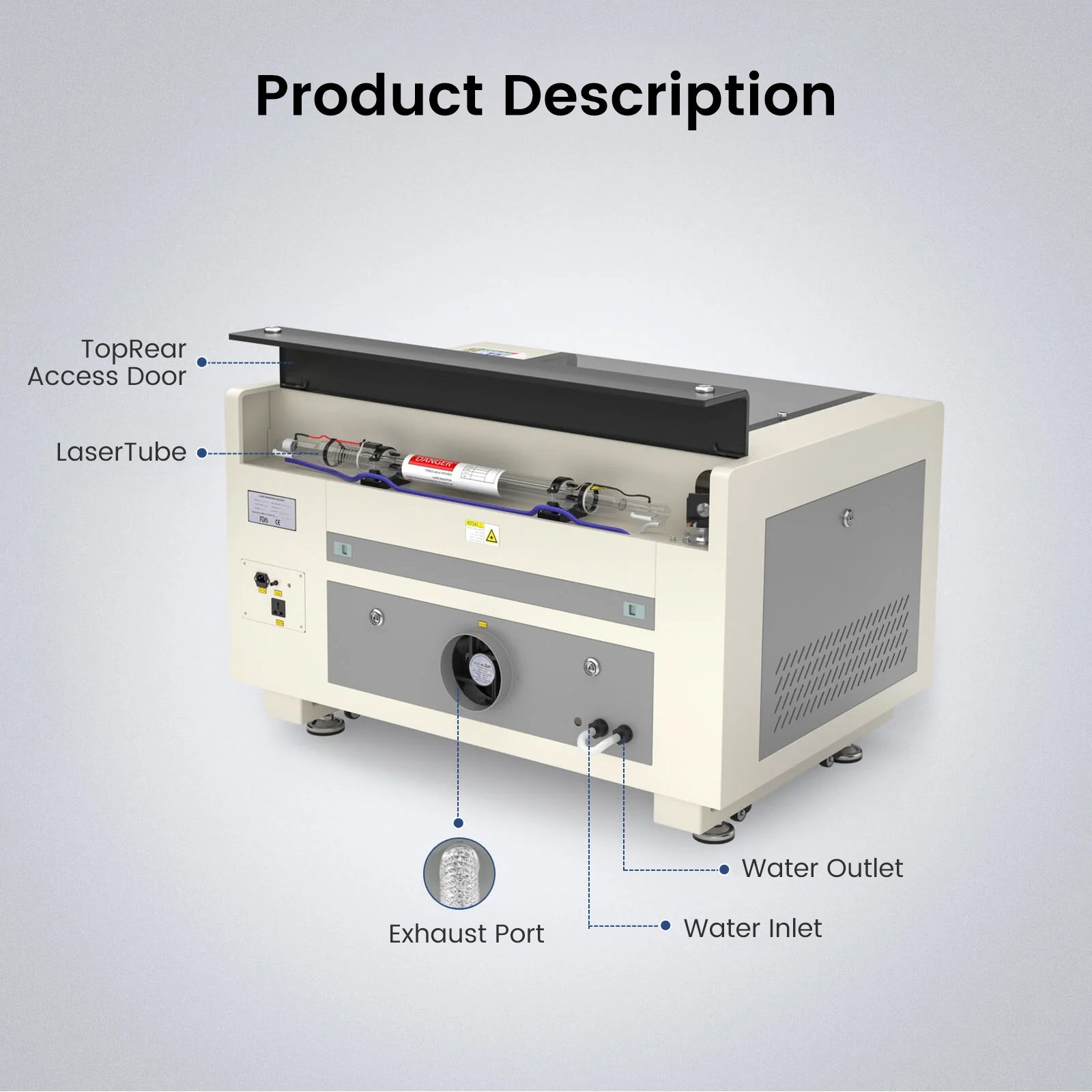

Laser System

Custom CO2 glass laser tube capable of continuous operation at 10,640 nm;

Rated at over 60 watt;

Easy-to-adjust Optical path; 18mm Focal lens diameter & 2" Focal distance;

25mm Mirror diameter;

Recommended engraving speed: 100 - 500mm/s

Recommended cutting speed: 1 - 30mm/s (actual speed depends on the thickness of the material)


The light belt under the lid gives point illumination for precise


Linear System— Custom extruded aluminum linear rails

Motion— Equipped with stepper X, Y, Z axis, plus mechanical limit switches

Cooling— easy-to-setup water pump and hoses

Air Assist— Internal air assist with no external compress or required

Ventilation— On-board exhaust fan, as well as an exhaust hose so you can vent the fumes to the outdoors

Standard 110V, AC power connection

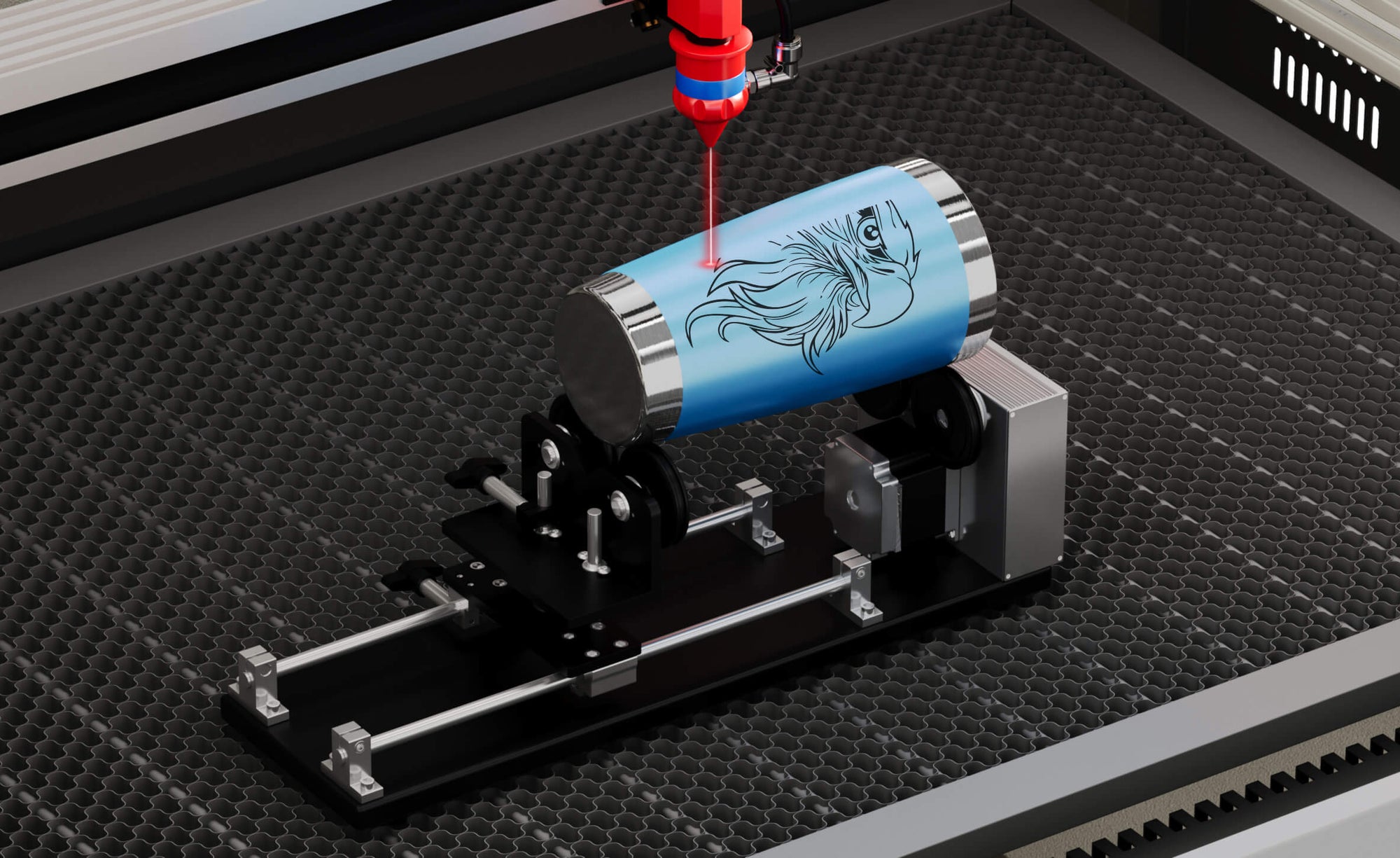

4-pinport connection for rotary axis devices


Recommended Operating Temperature: 60 -104 °F (16 °C-40 °C)

Attention: the CO2 water temperature must be maintained at 60-70 °F (16-21°C)

Laser Tube Lifetime

60W CO2 laser tube with an estimated lifetime of up to 2,000 operation hours depending on power setting usage and water cooling performance

Attention: Frequent use of high laser power settings will shorten the laser tube lifetime as follows:

Low Power 10–40% = 1,700–2,000 Hours
Moderate Power 40–70% = 1,300–1,500 Hours
High Power 70–100% = 800–1,000 Hours

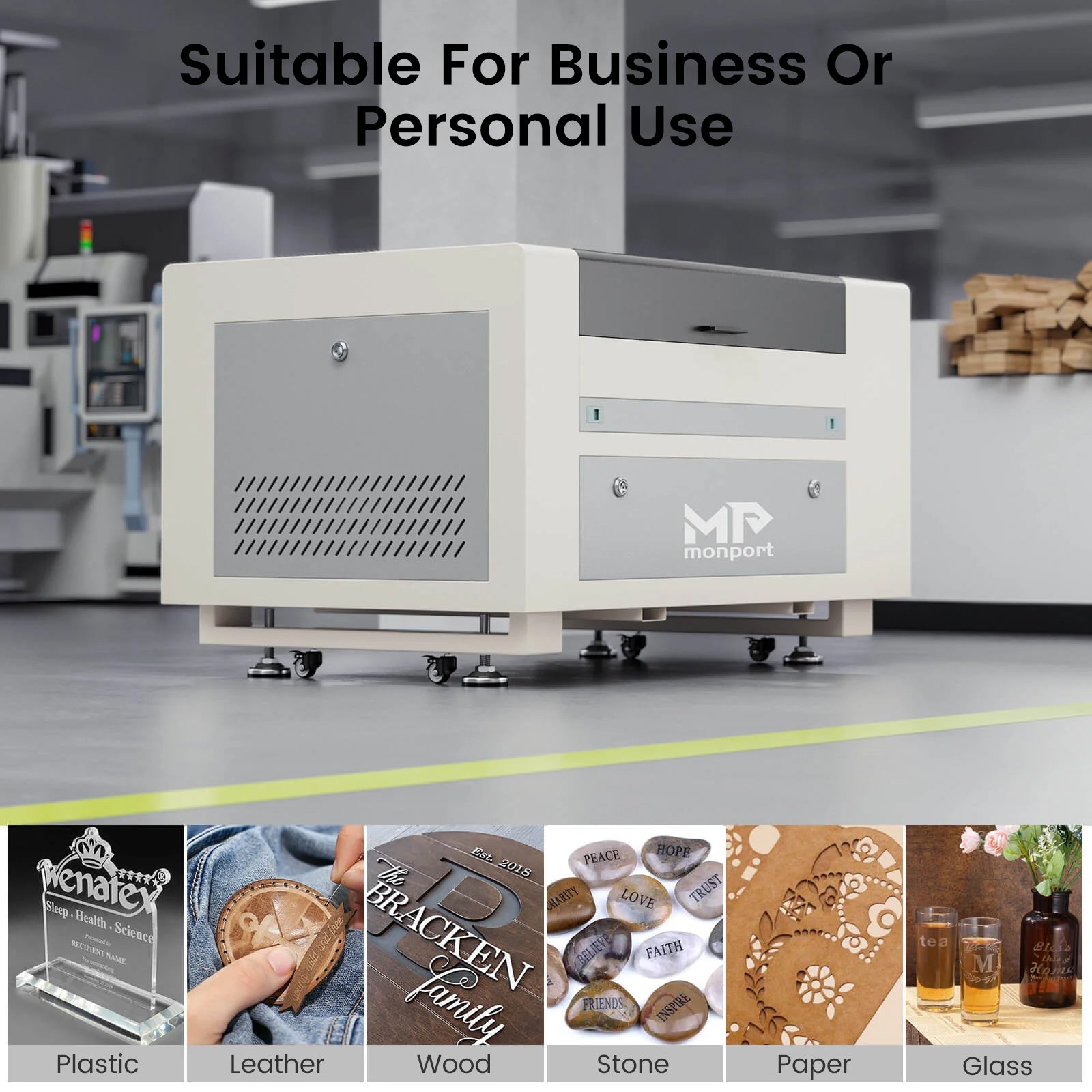

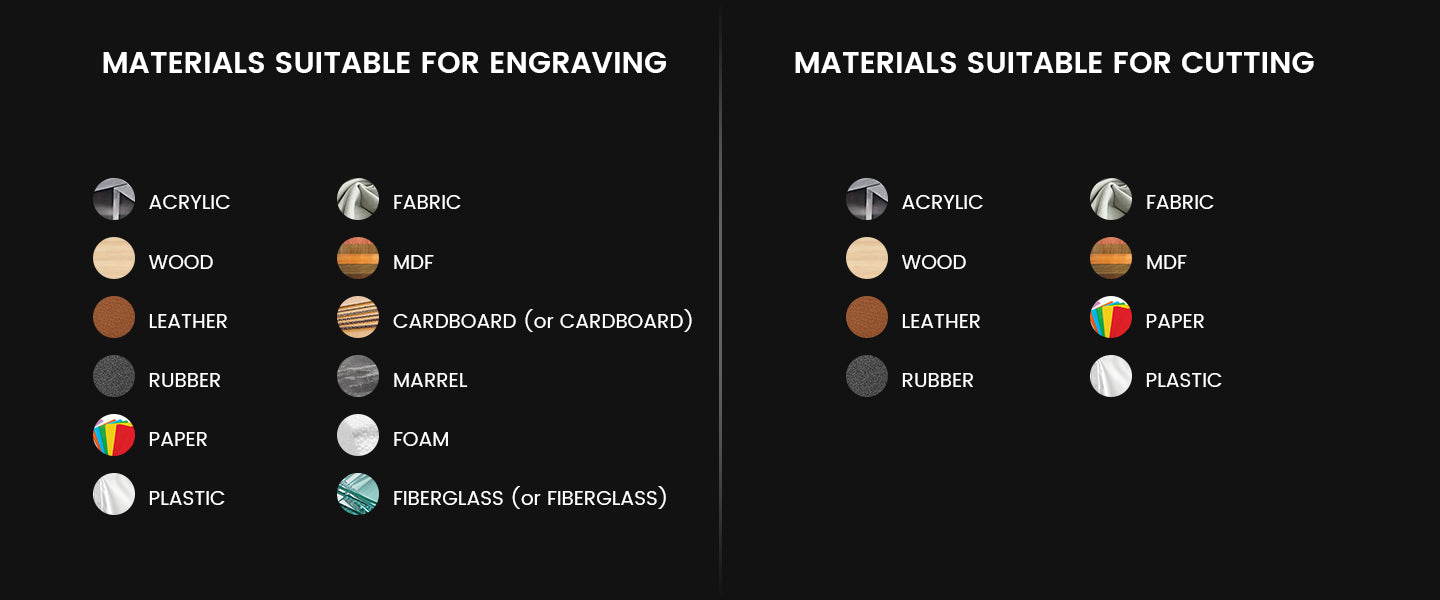

Material Capability

Can safely engrave or cut any laser-compatible material

Wood, glass, acrylic, fabric, leather, paper, cardboard, rubber

 Contact us with questions on specific materials not listed. If necessary, we can test it for you

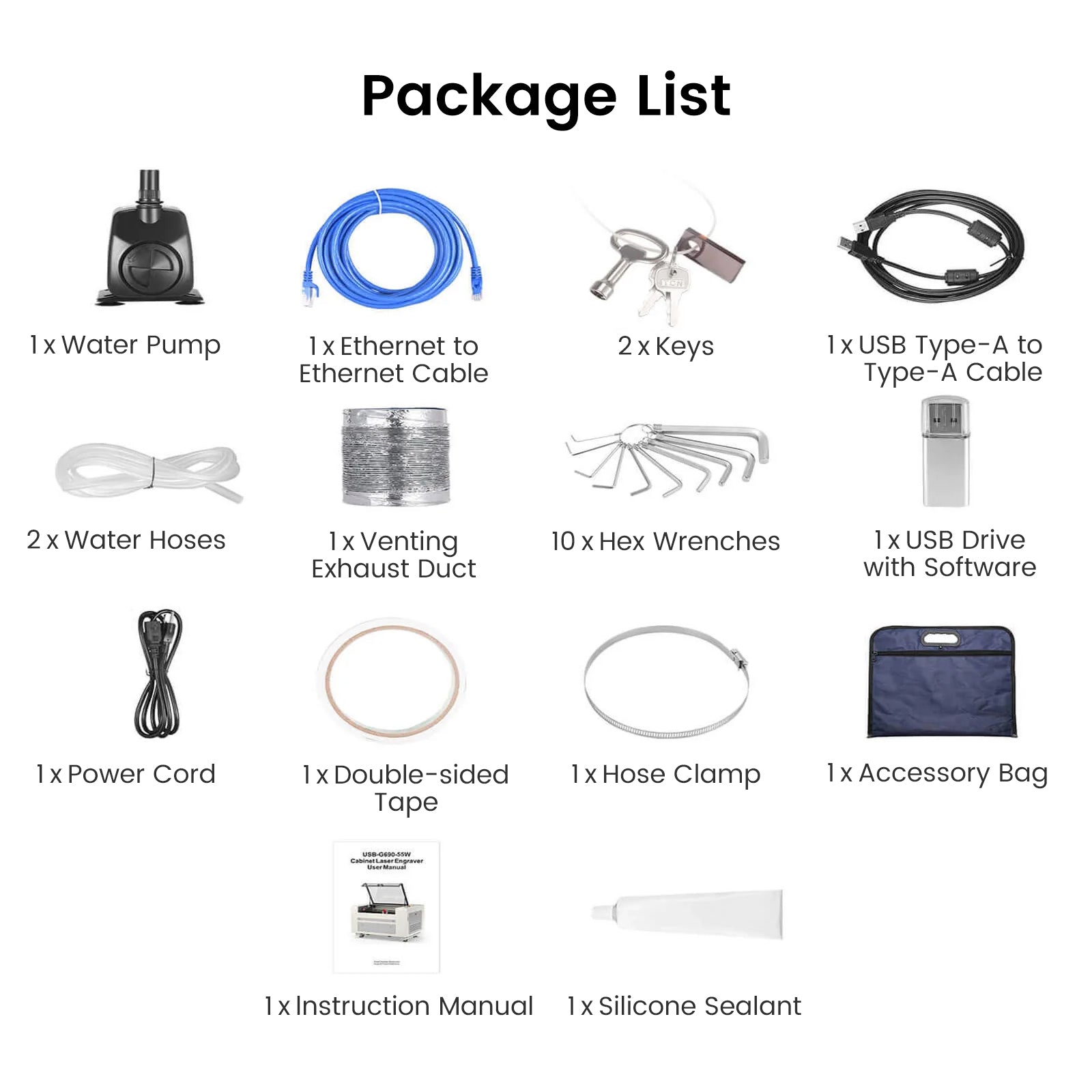

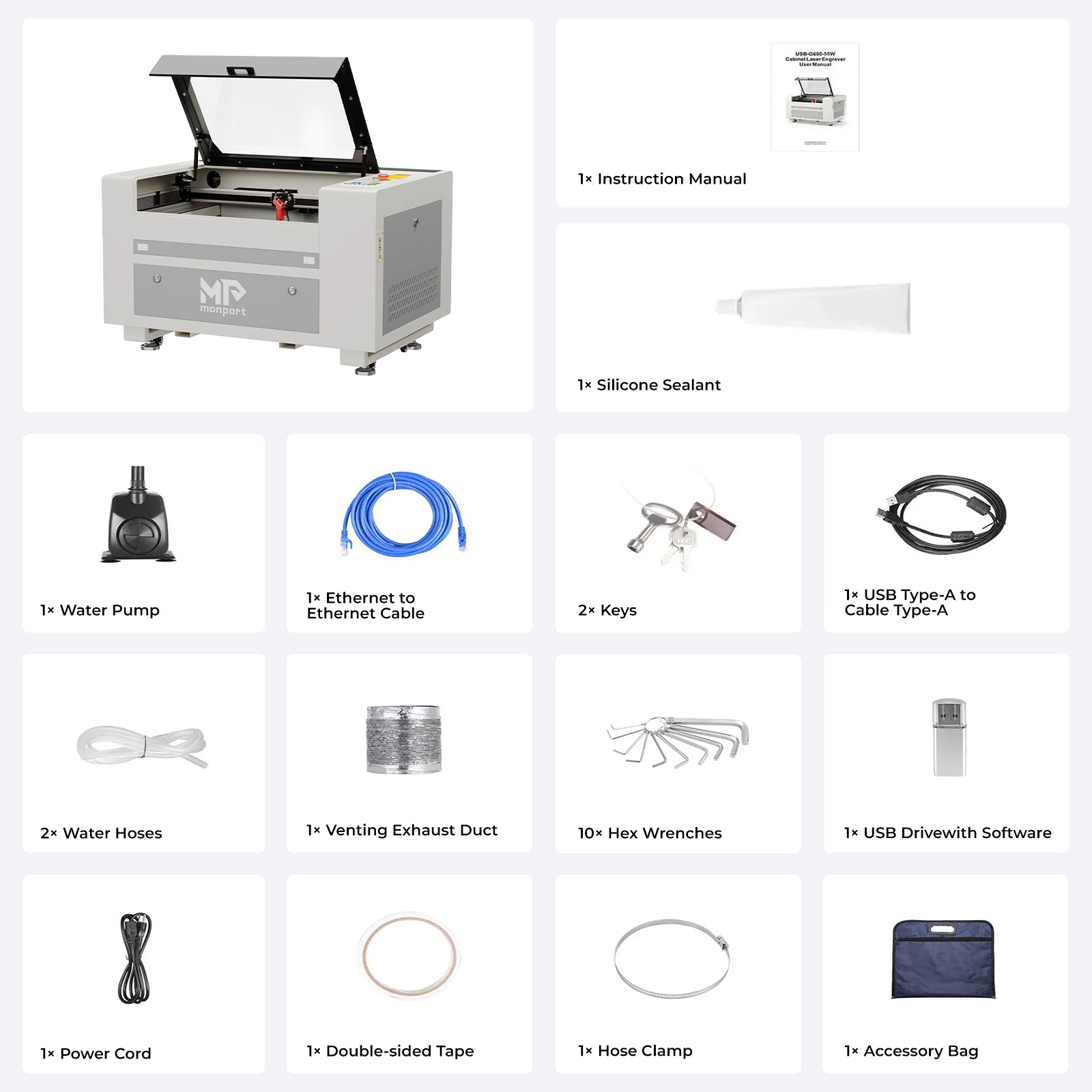

Package Contents

A Pair of Laser Protective Glasses *1

Laser Engraver Machine *1

Water Pump *1

Ethernet to Ethernet Cable *1

USB Type-A to Type-A Cable *1

Venting Exhaust Duct (4 ft. max. length) *1

Water Hoses *2

USB Drive with Software (RDworks) *1

Hex Wrenches *10

Double-sided Tape *1

Power Cord *2

Hose Clamp *1

Accessory Bag *1

Keys *2

Silicone Sealant *1

Instruction Manual *1

Warranty & Certifications

1 year warranty on all 60W laser machines and parts

6 month warranty on 60W laser tubes

FDA Approved & CE Certified

About More

Download the Software: RDworks

Download the Manual: 60W CO2 User Manual

Download the Settings: CO2 Parameter Settings

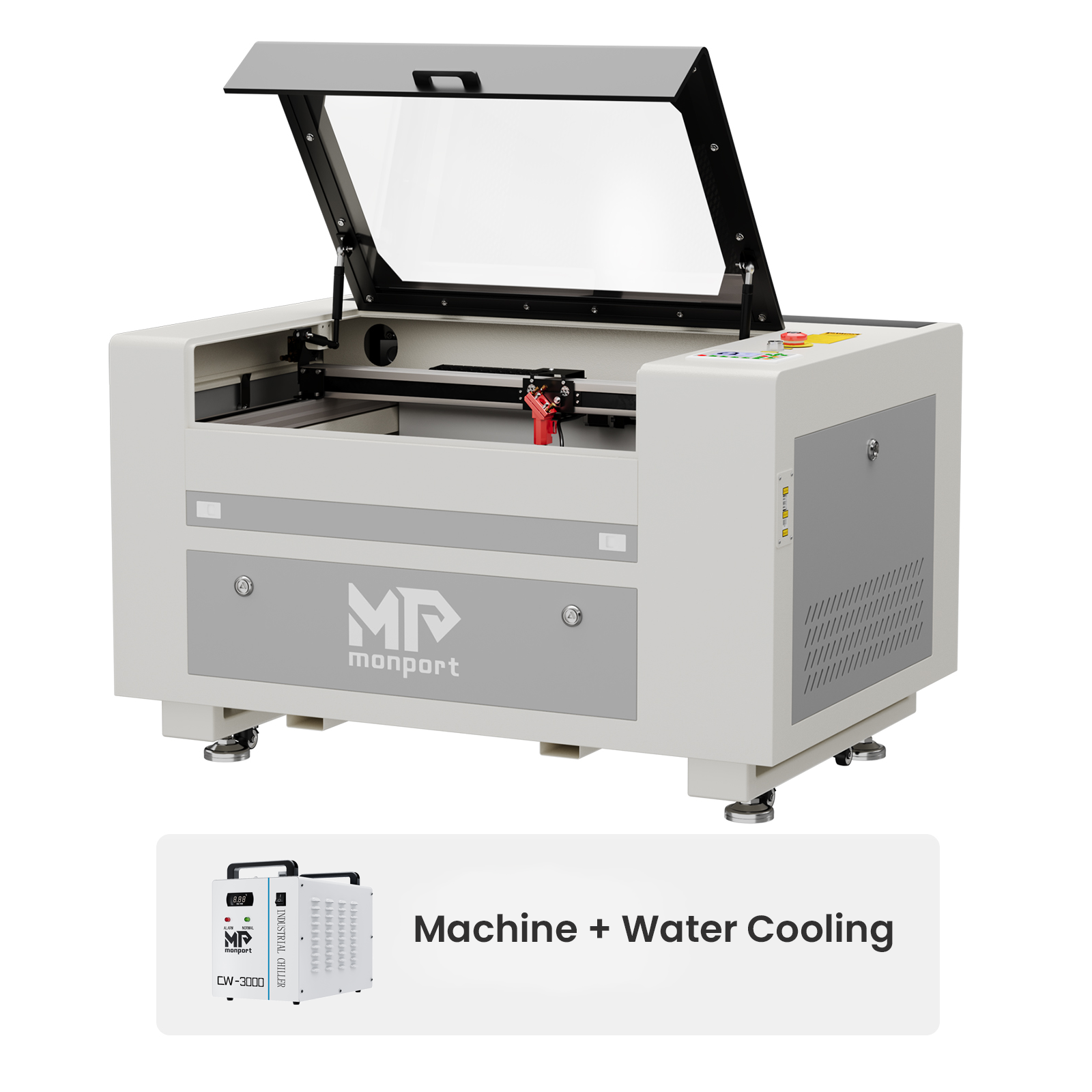

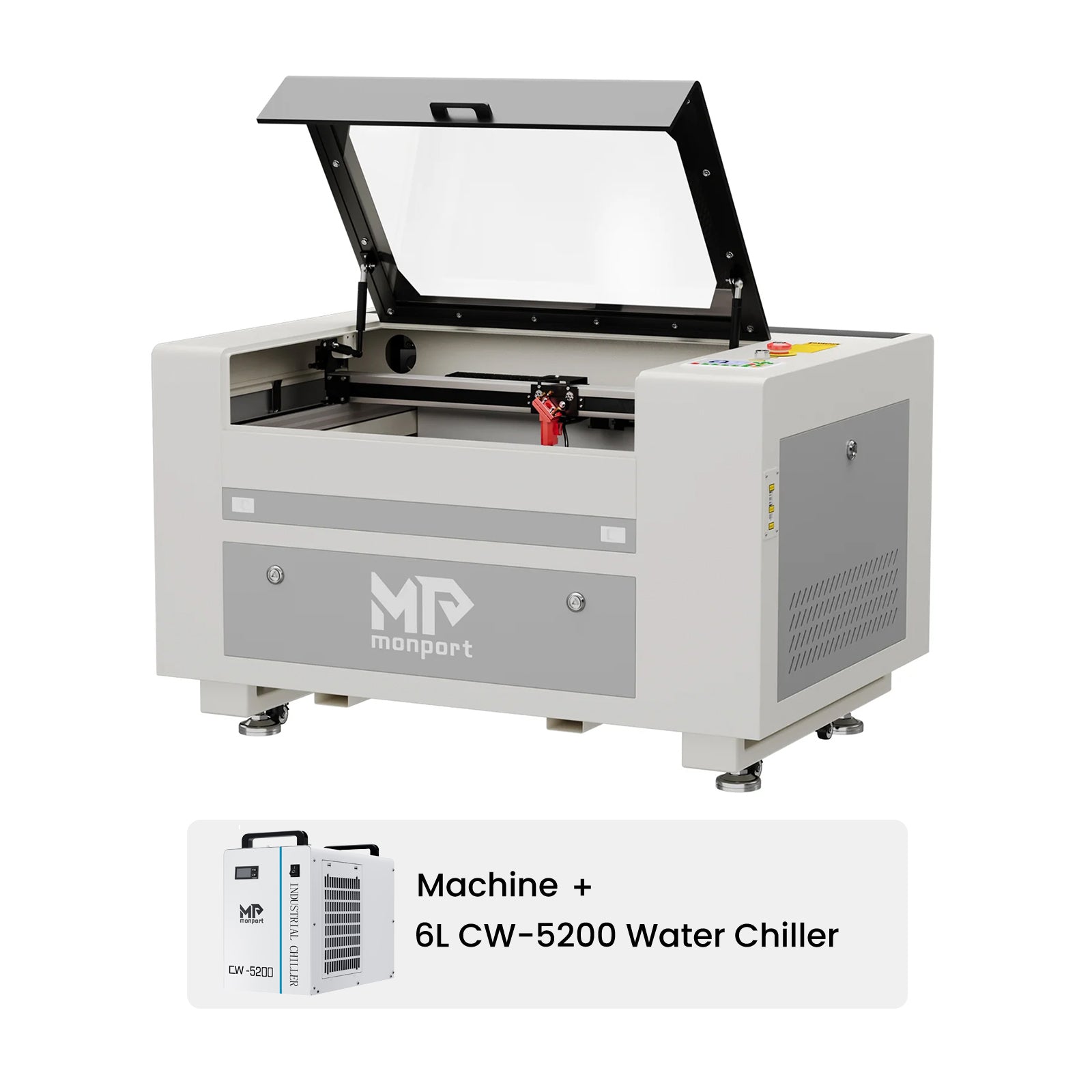

Compatible Accessories: Rotary AxisWater Chiller
