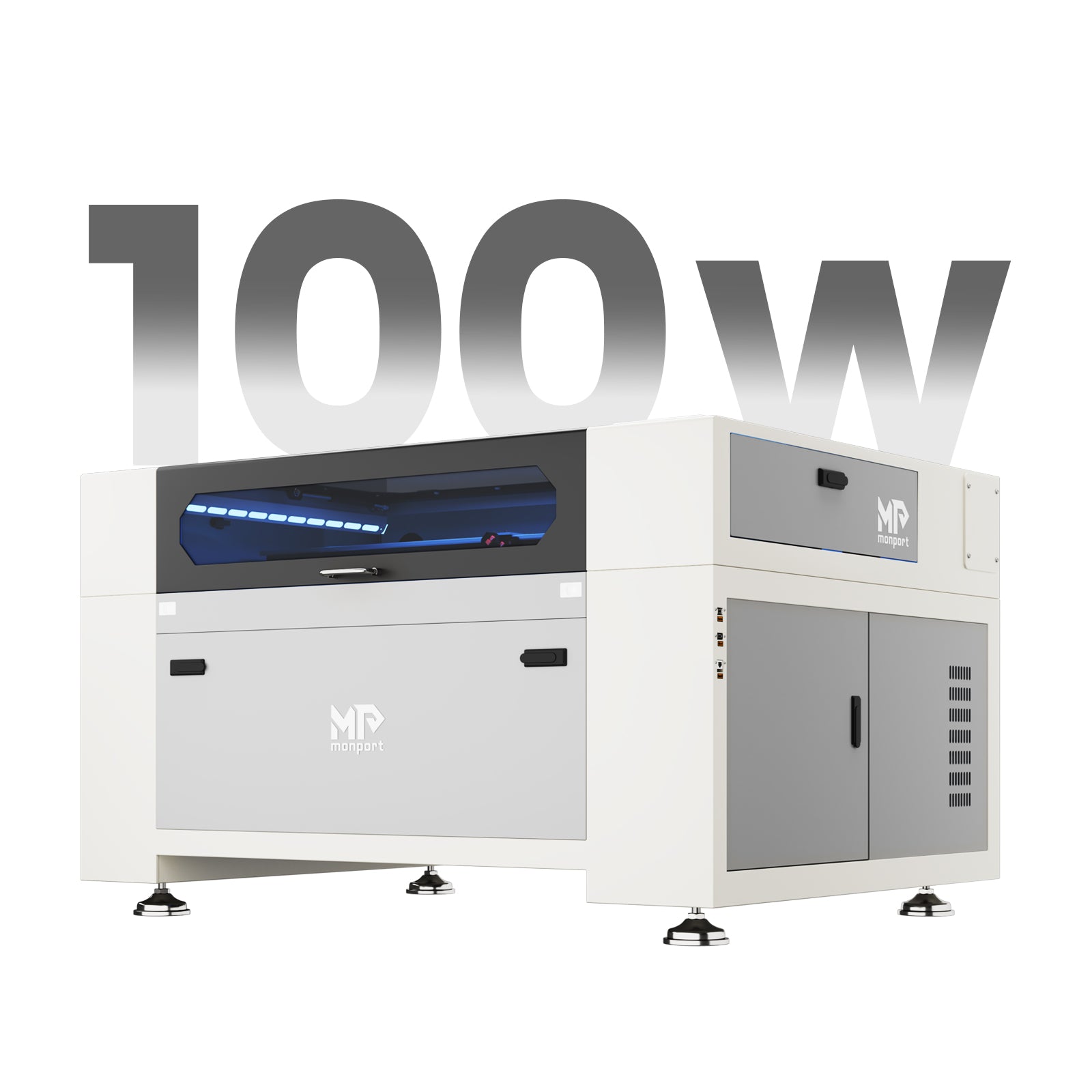

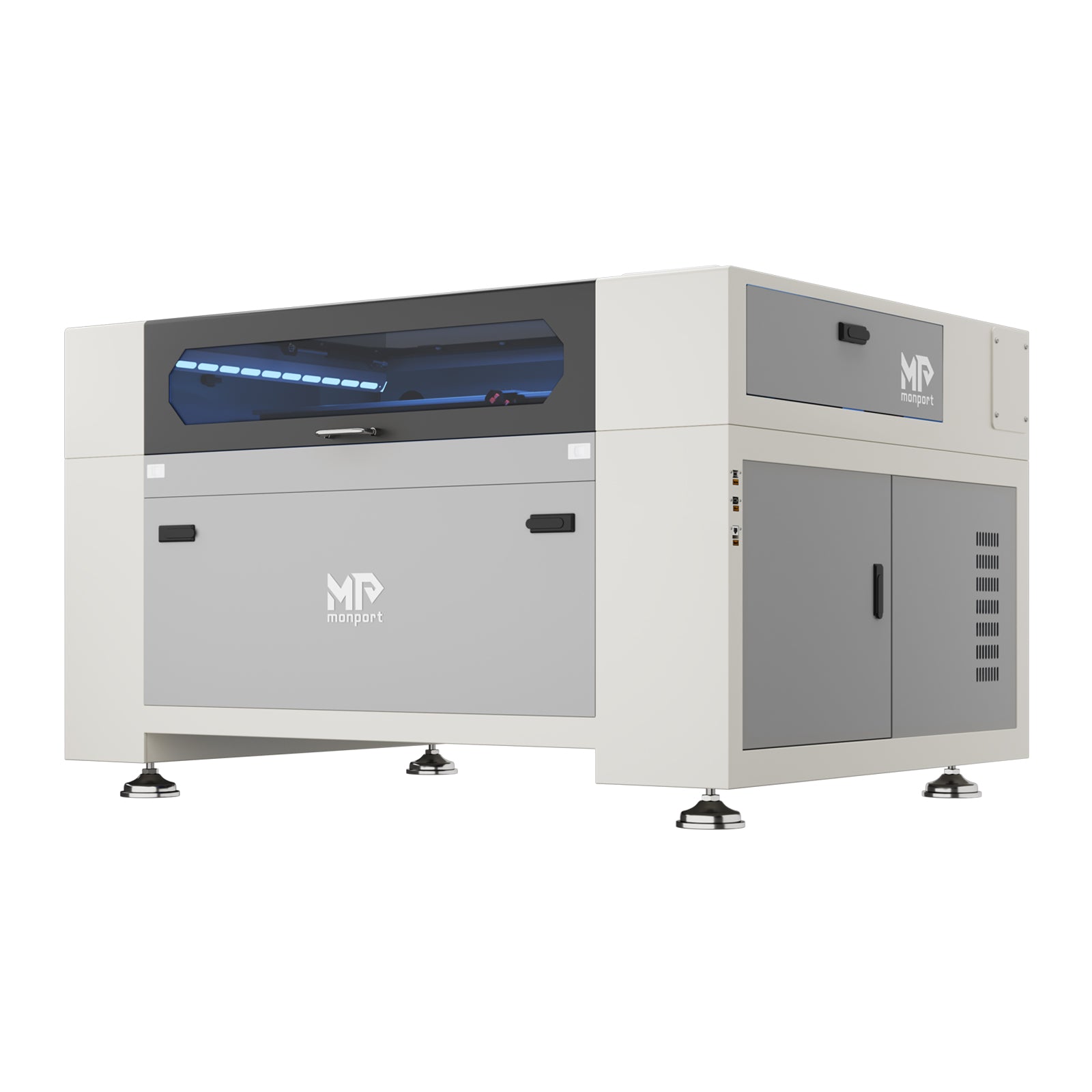

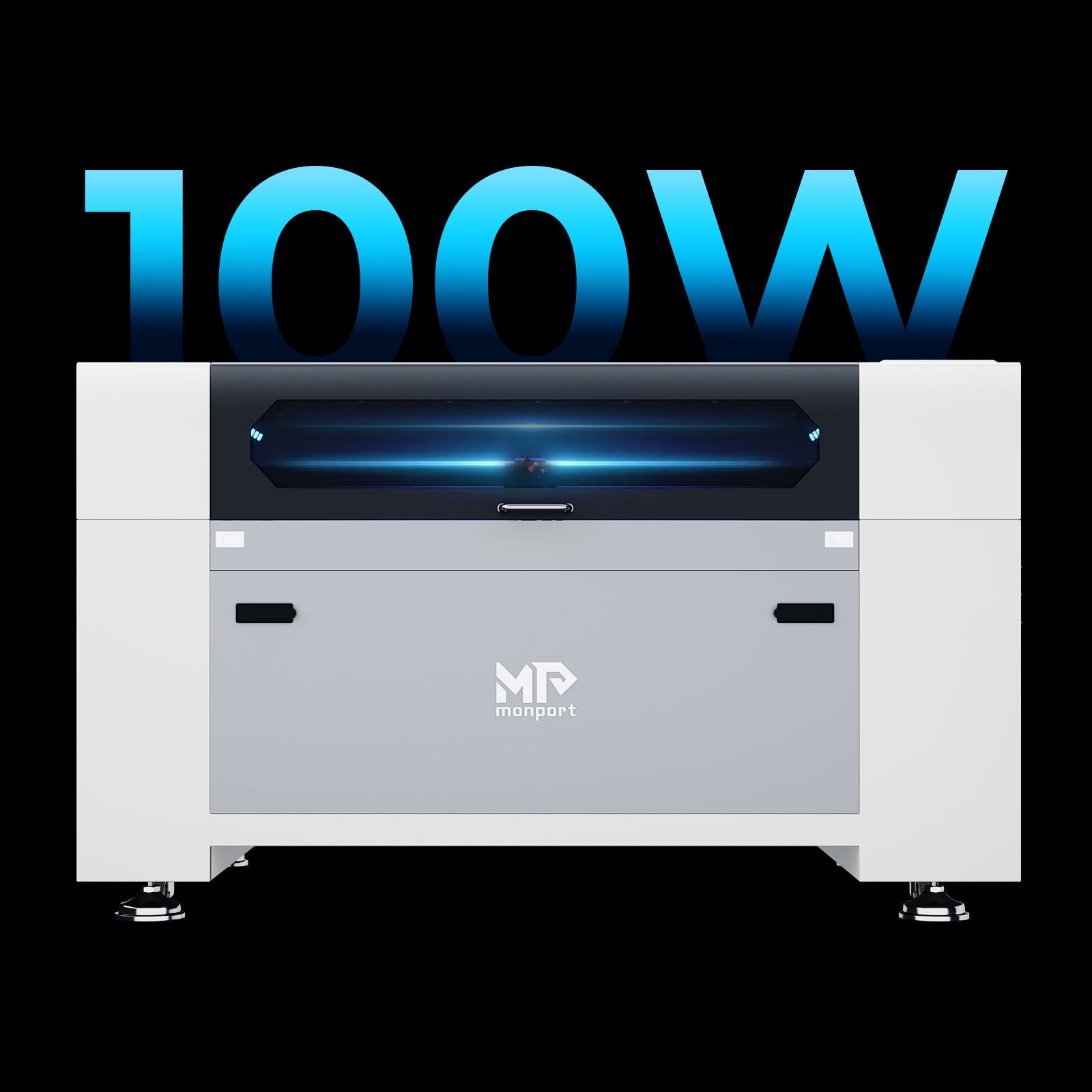

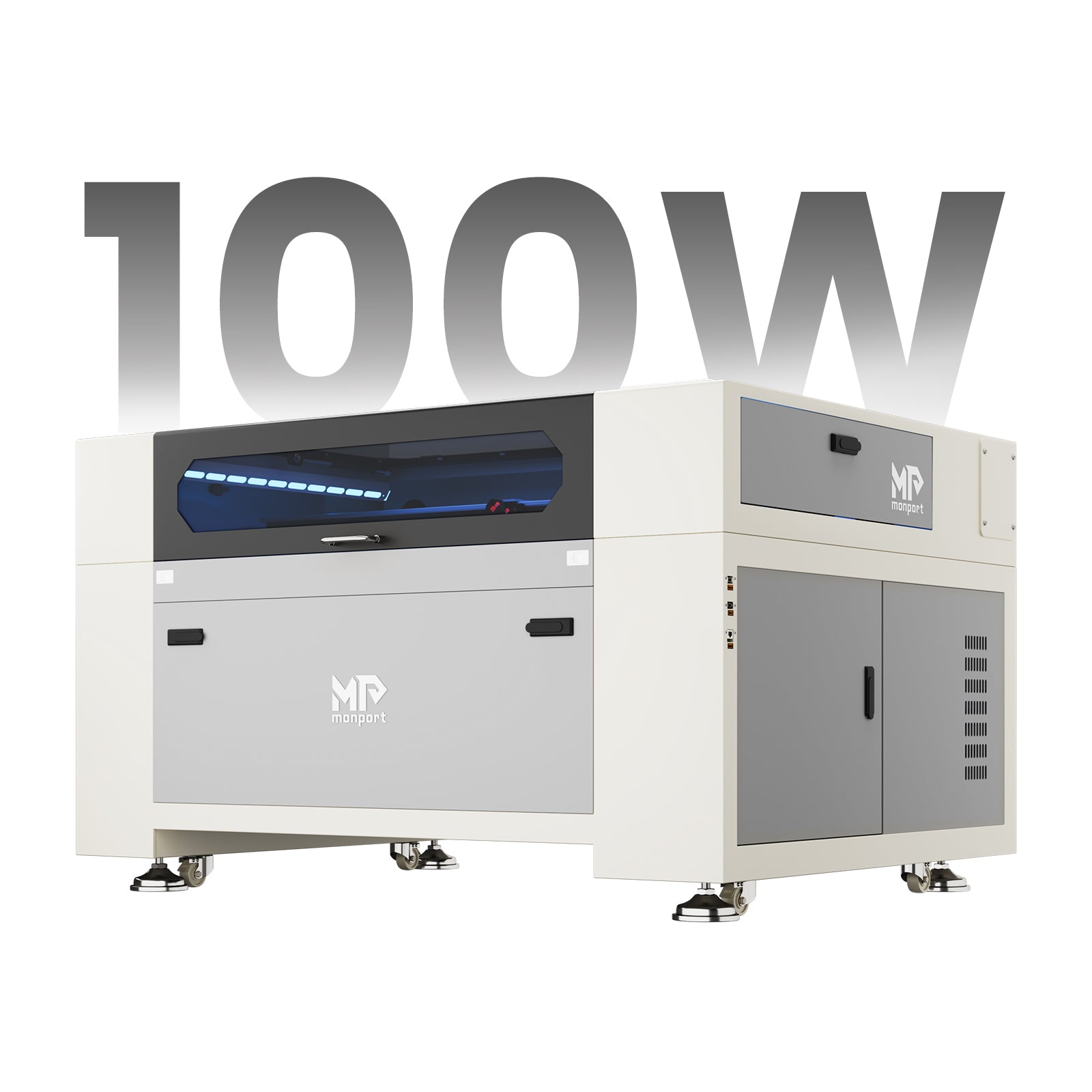

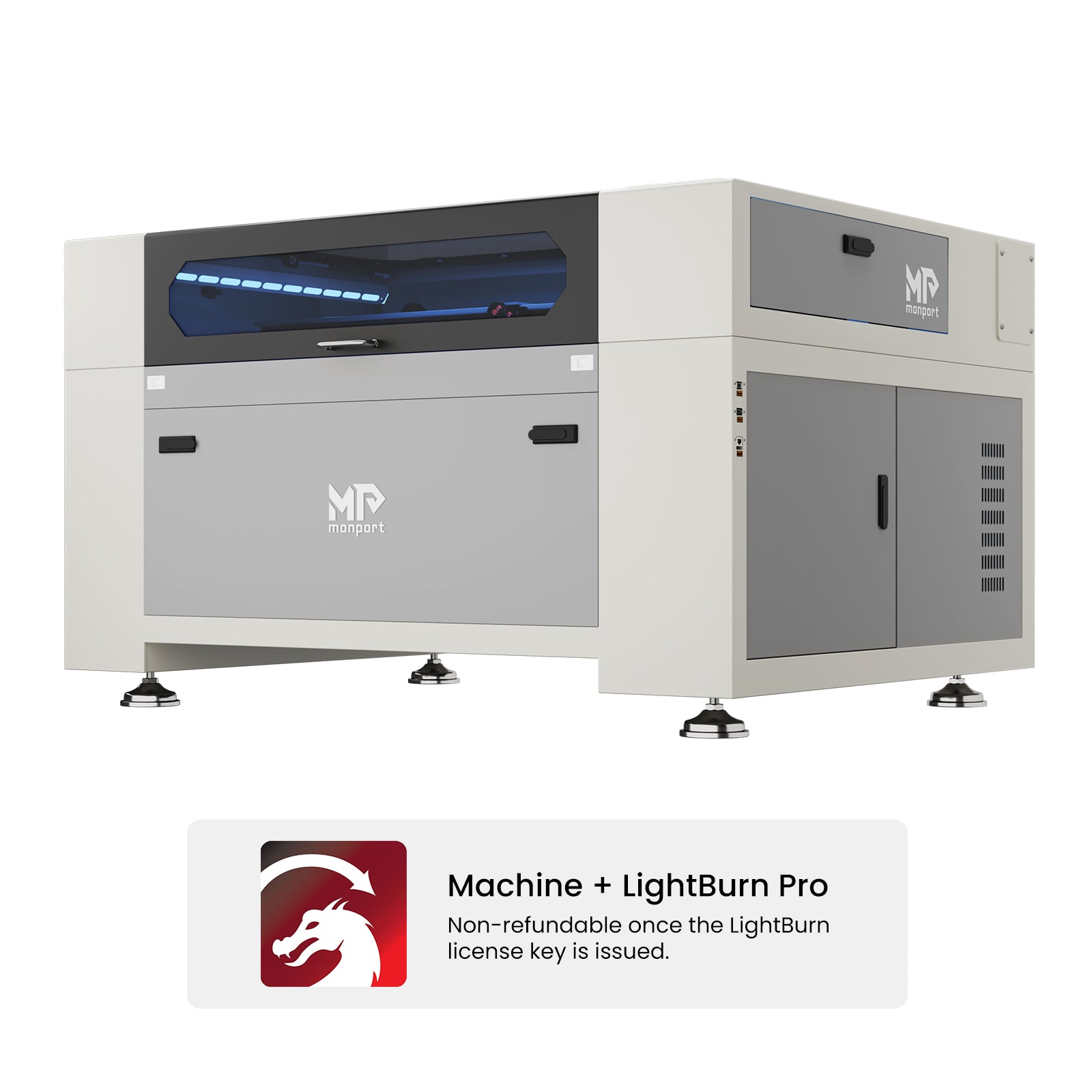

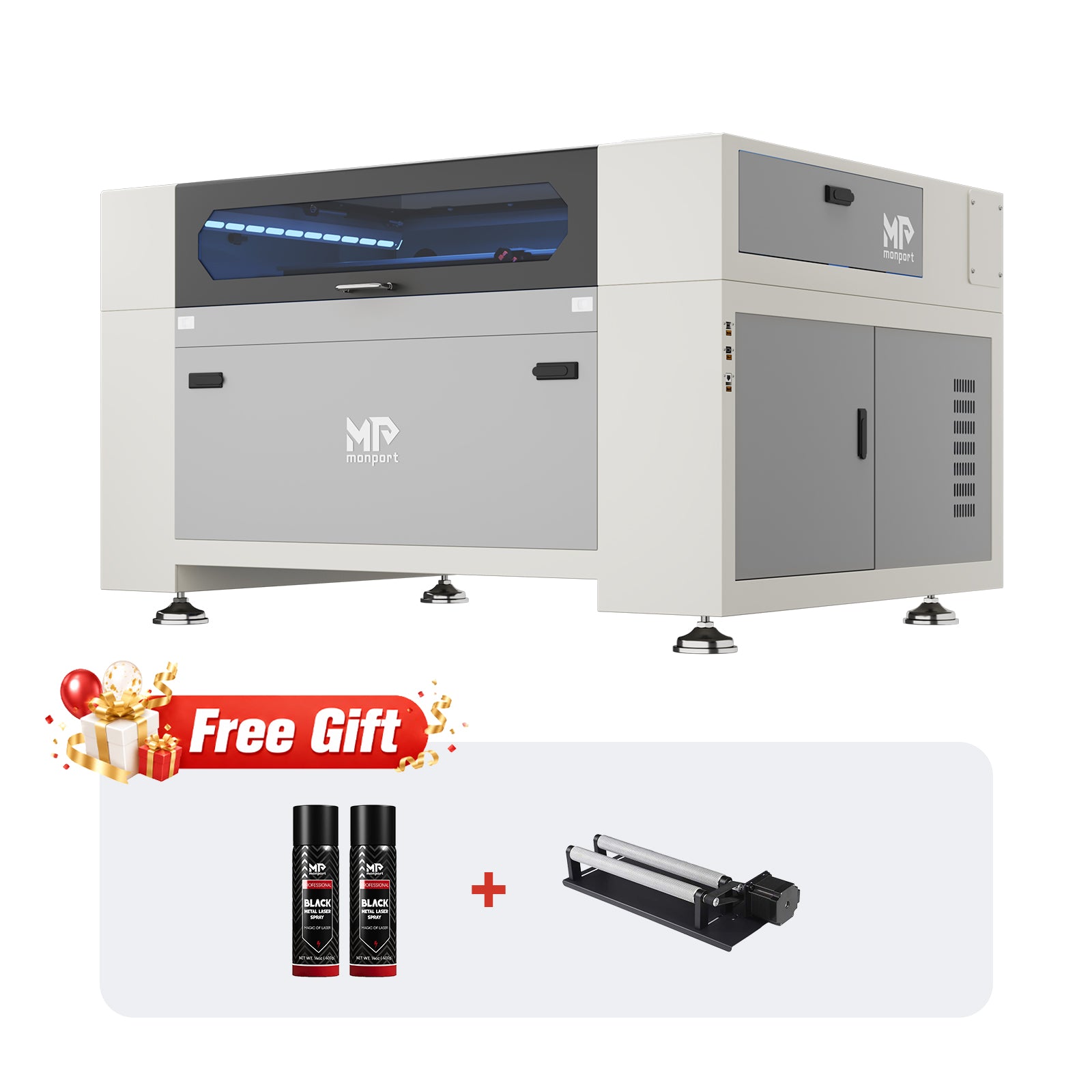

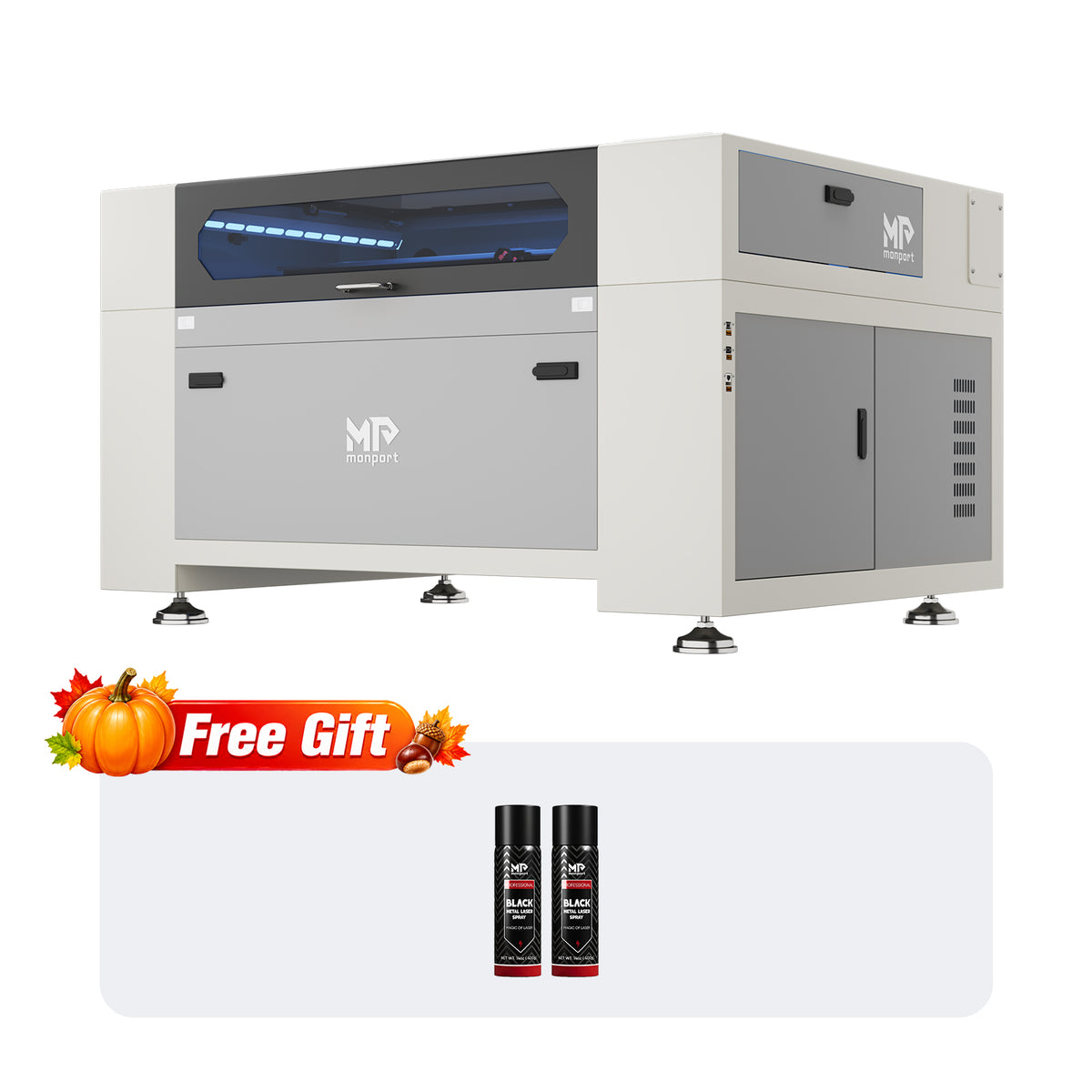

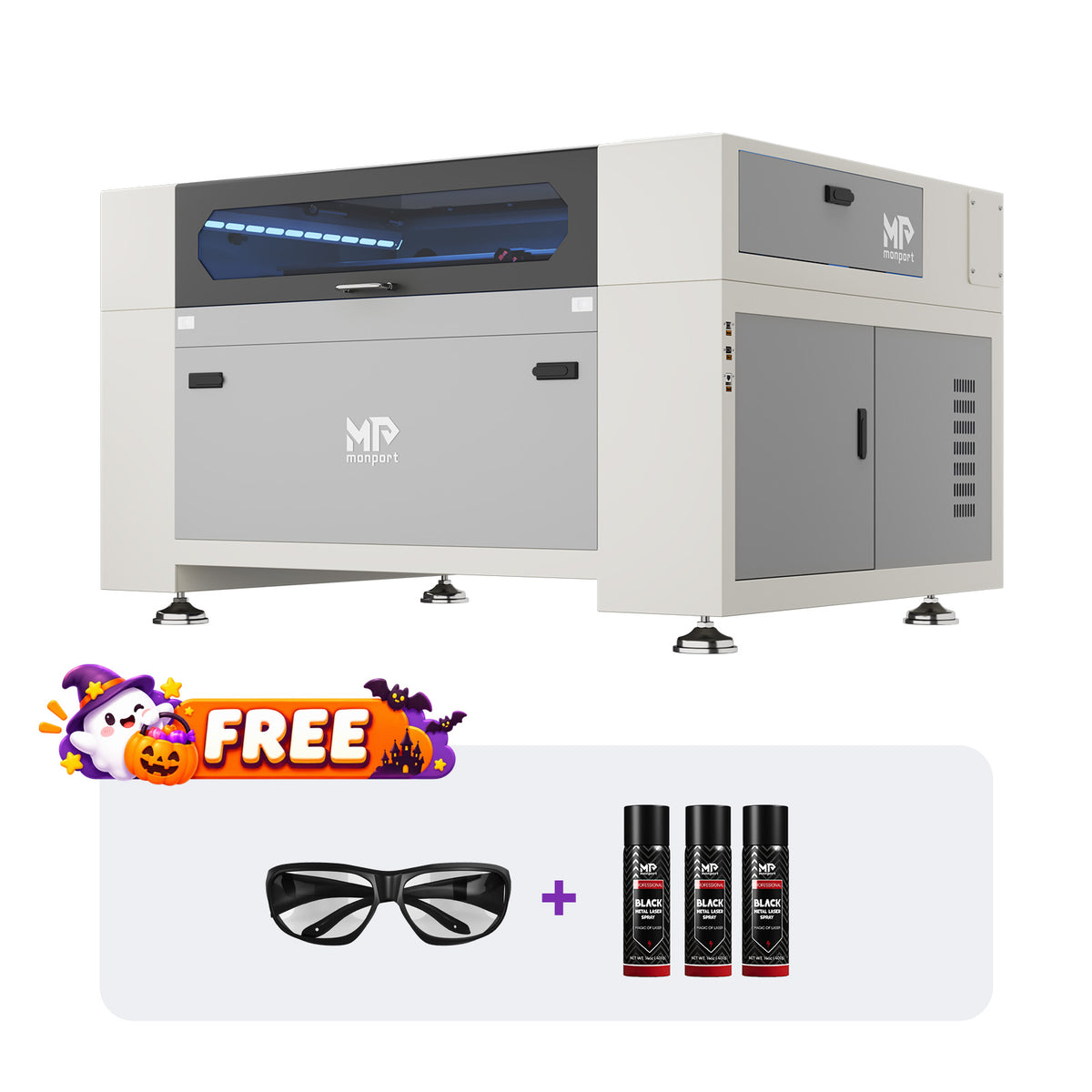

Monport Effi10S Upgraded 100W CO2 Laser Engraver & Cutter with Autofocus and Built-in Water Chiller
Monport Effi10S Upgraded 100W CO2 Laser Engraver & Cutter with Autofocus and Built-in Water Chiller
Couldn't load pickup availability

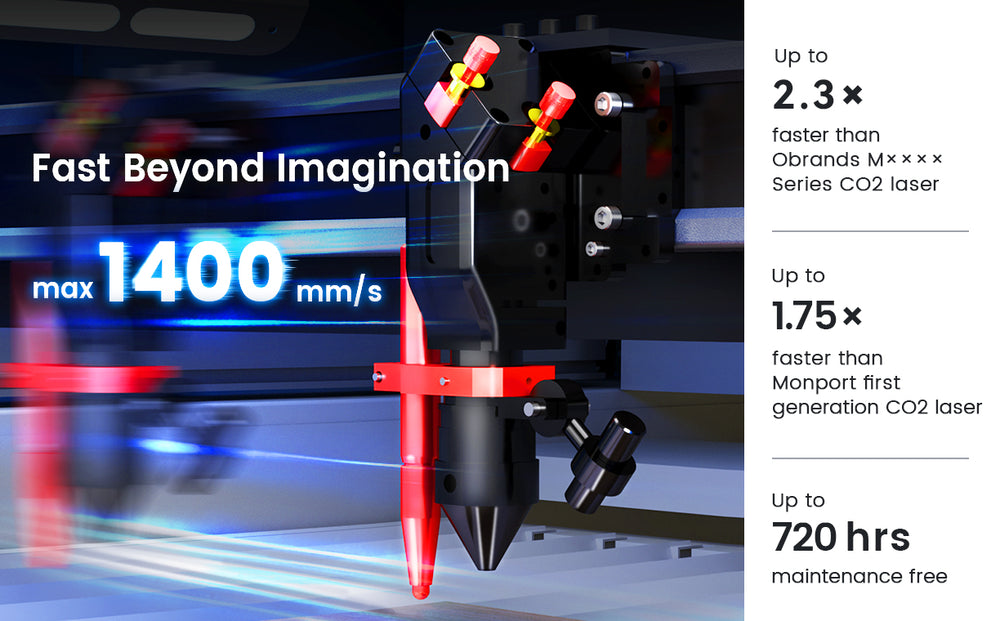

Unbelievable upgrade

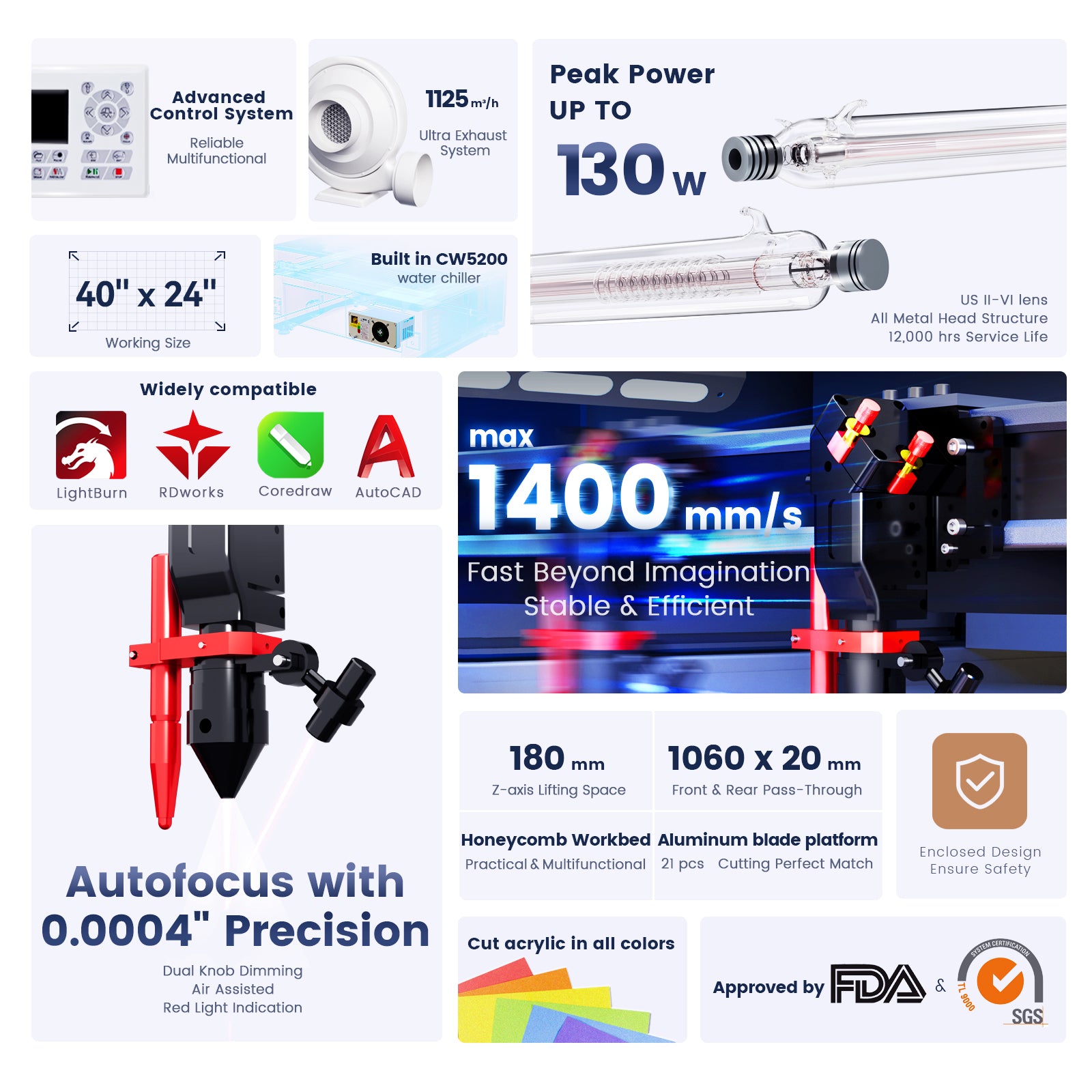

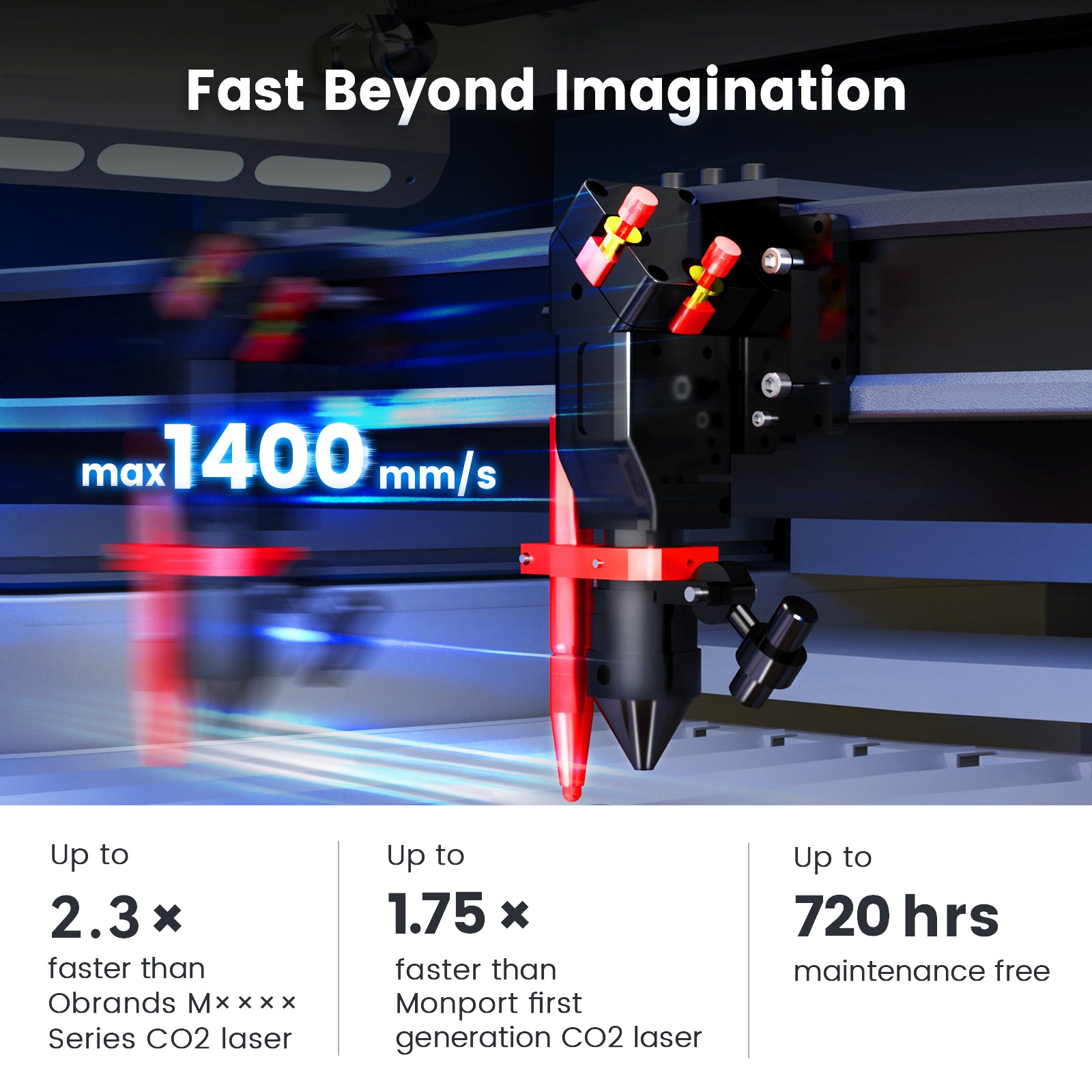

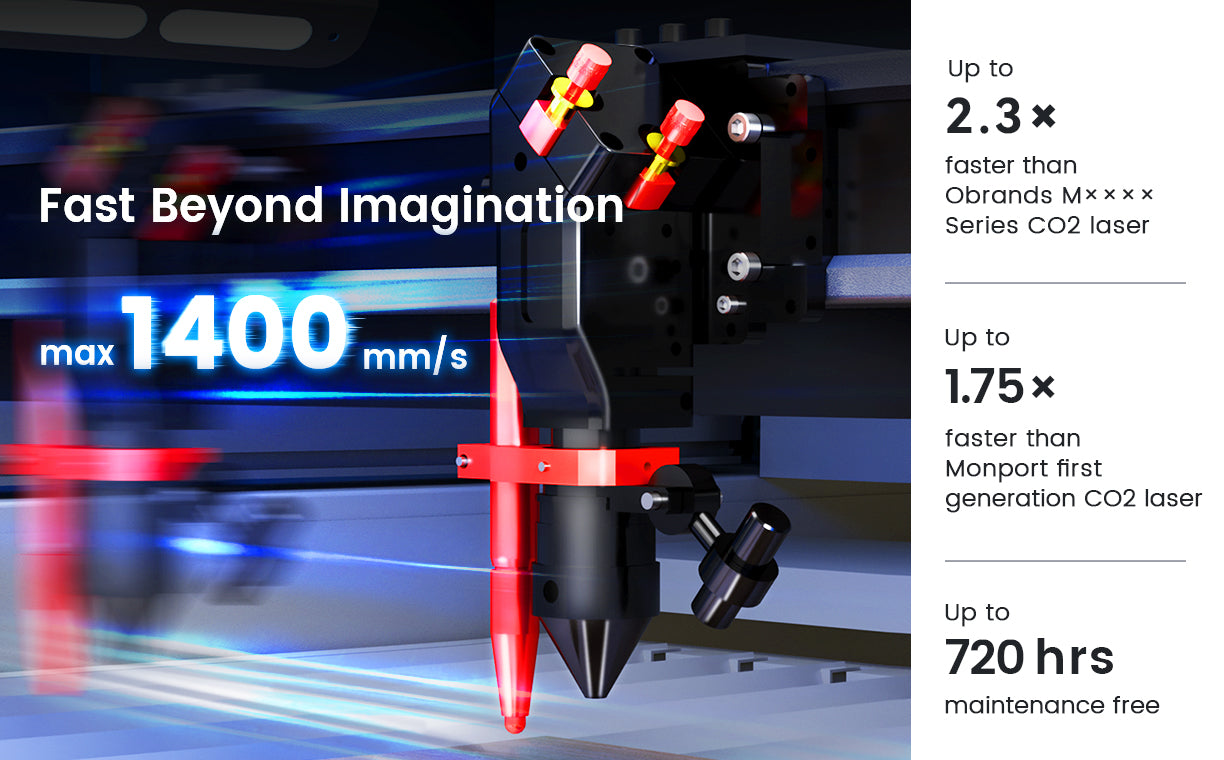

Monport Effi10s 100W CO2 laser engraving machine has once again undergone a comprehensive upgrade to its series of products, with a speed increase of 75% compared to the previous generation, reaching a stable 1400mm/s (55.1 ips) at the fastest.（The world's fastest CO2 engraver for glass tubes）The brand new enclosed mechanical mechanism design eliminates the need for frequent maintenance of the machine.Everything is for a better user experience.
Stronger power

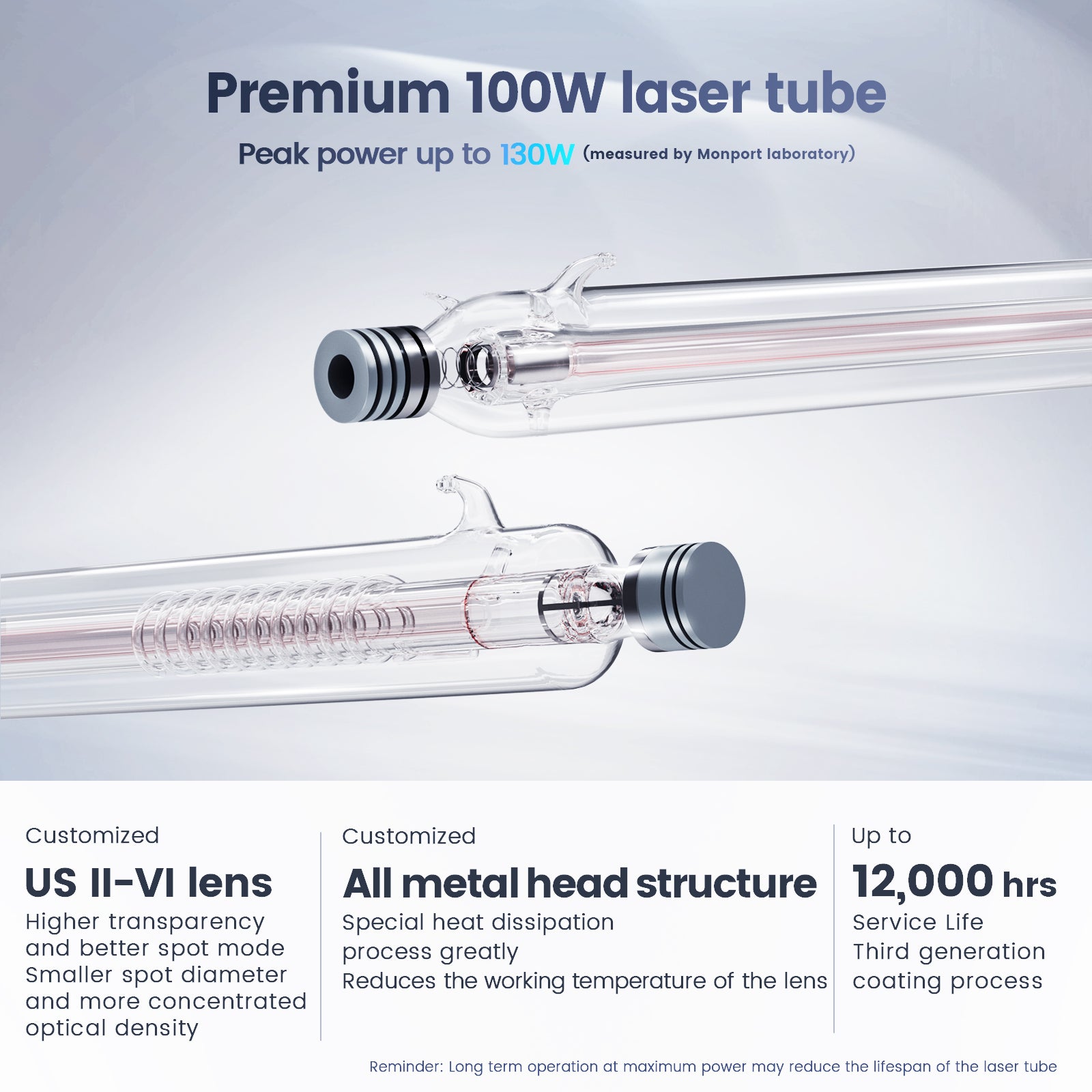

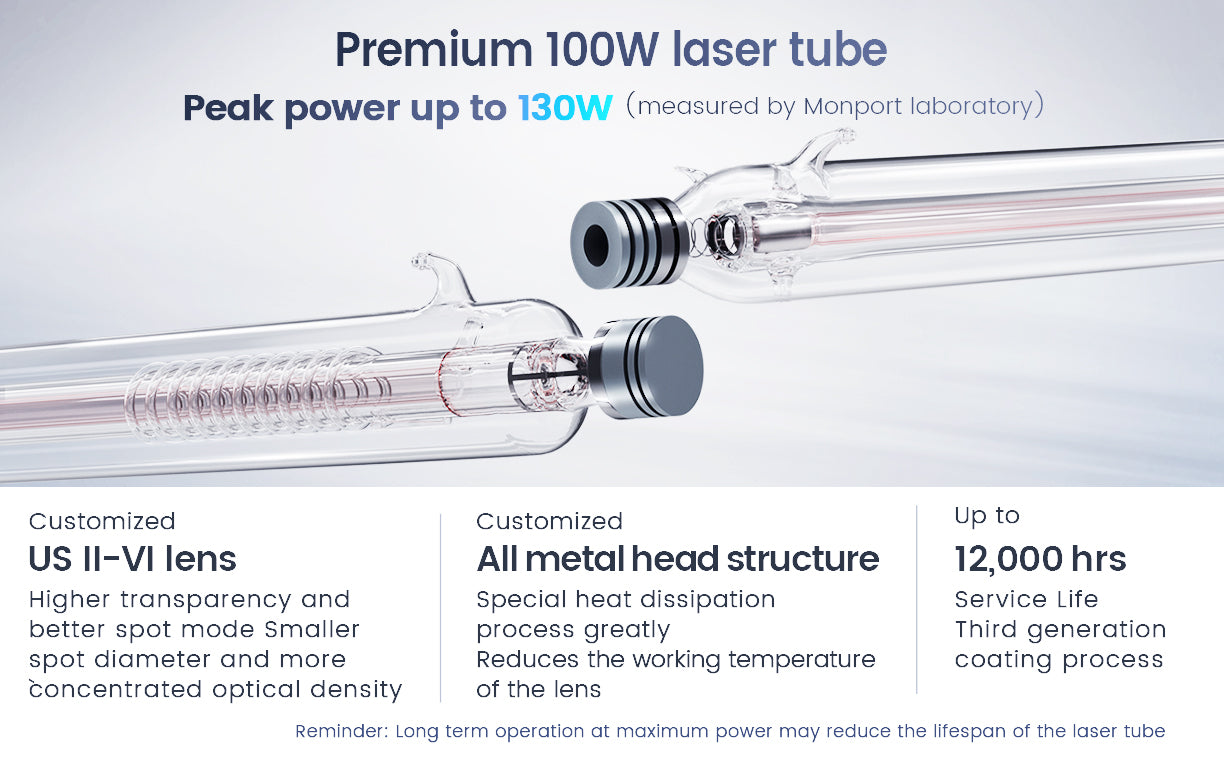

After upgrading the laser tube (US II-VI lens, all metal head structure), the peak power measured by Effi10S can reach up to 130W, which will greatly improve your processing efficiency and enable you to cut thicker materials. Similarly cutting 20mm thick acrylic, its efficiency will be more than 5 times higher than a 55w desktop machine from a certain Xbrand. Of course, when upgrading product performance, Monport also ensures economic applicability, with a laser tube lifespan of up to 12000 hours.

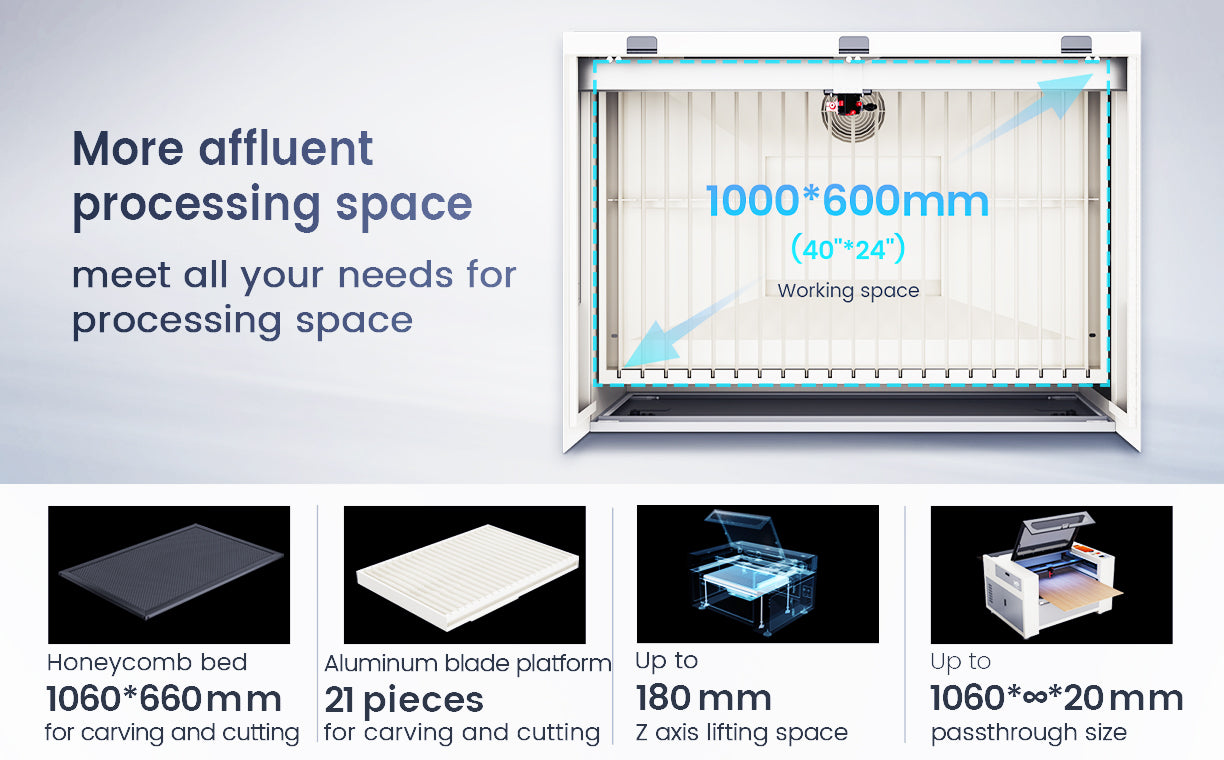

More abundant processing space

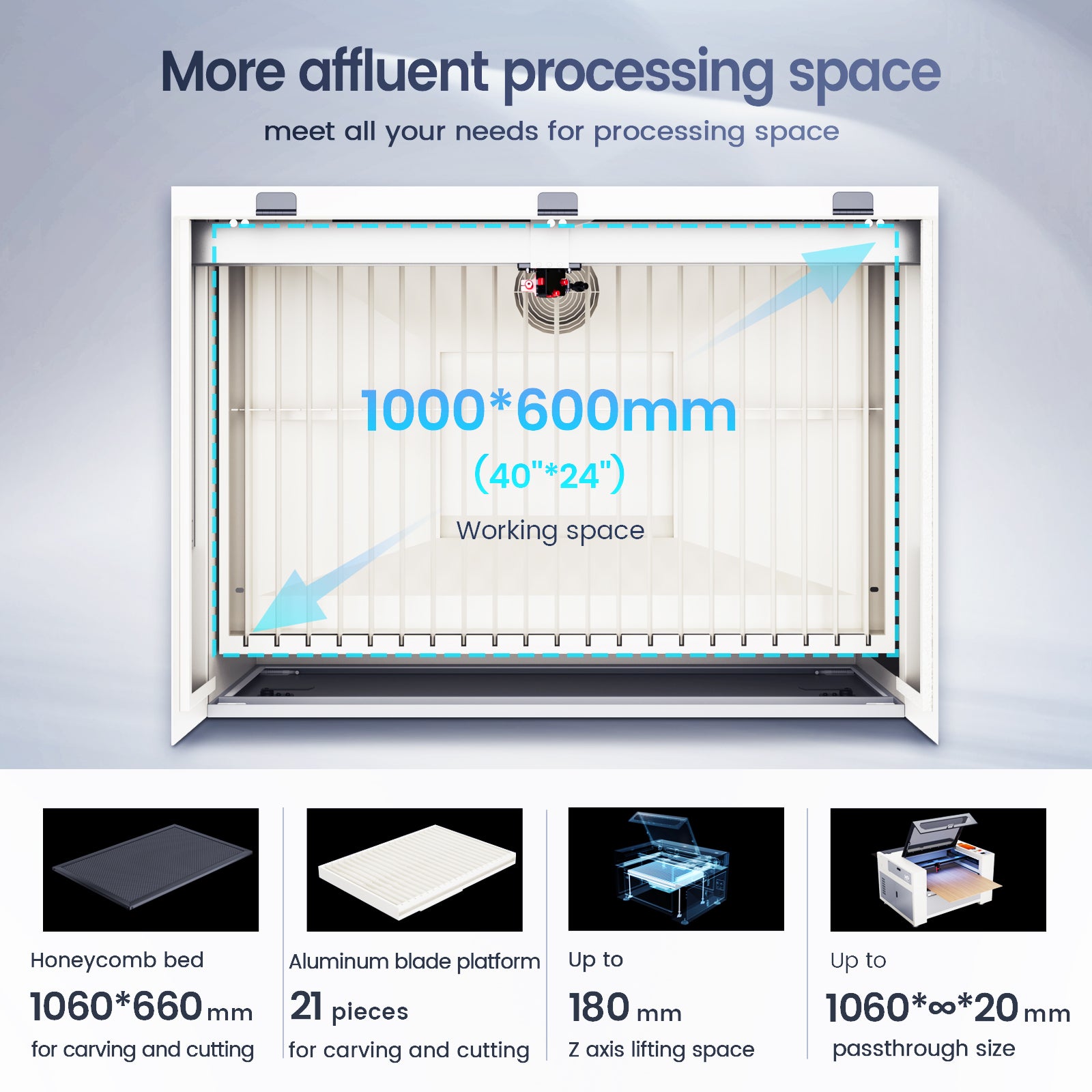

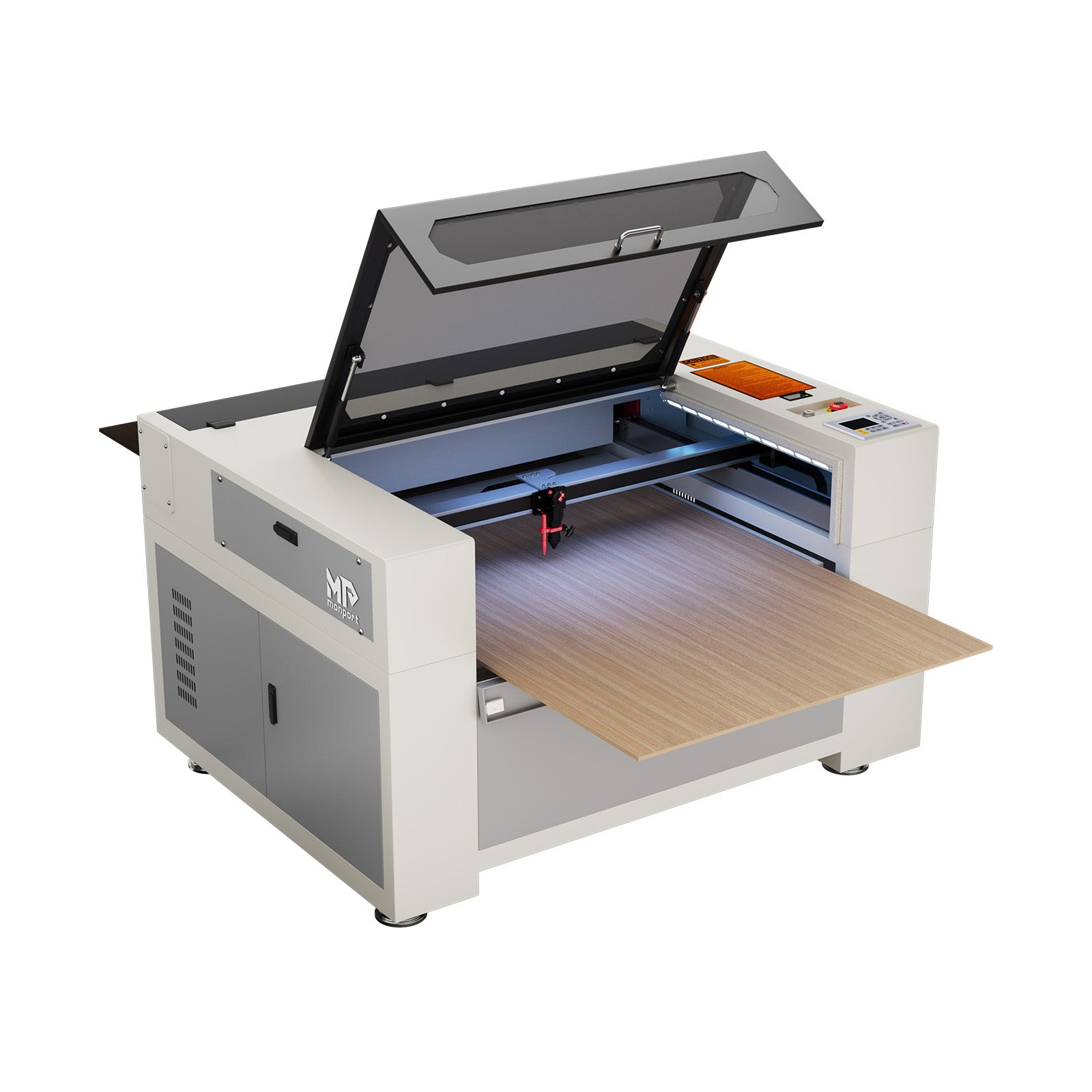

Monport provides a large processing space, with a working area of up to 1000 * 600mm, and is equipped with a honeycomb bed and blade platforms; At the same time, the platform has a maximum lifting range of 180mm, and of course, front and rear passthrough is essential, allowing for the placement of materials up to 20mm thick; Finally, for circular objects, they can also be carved with a rotating axis. The waste will be collected in drawers for easy cleaning.

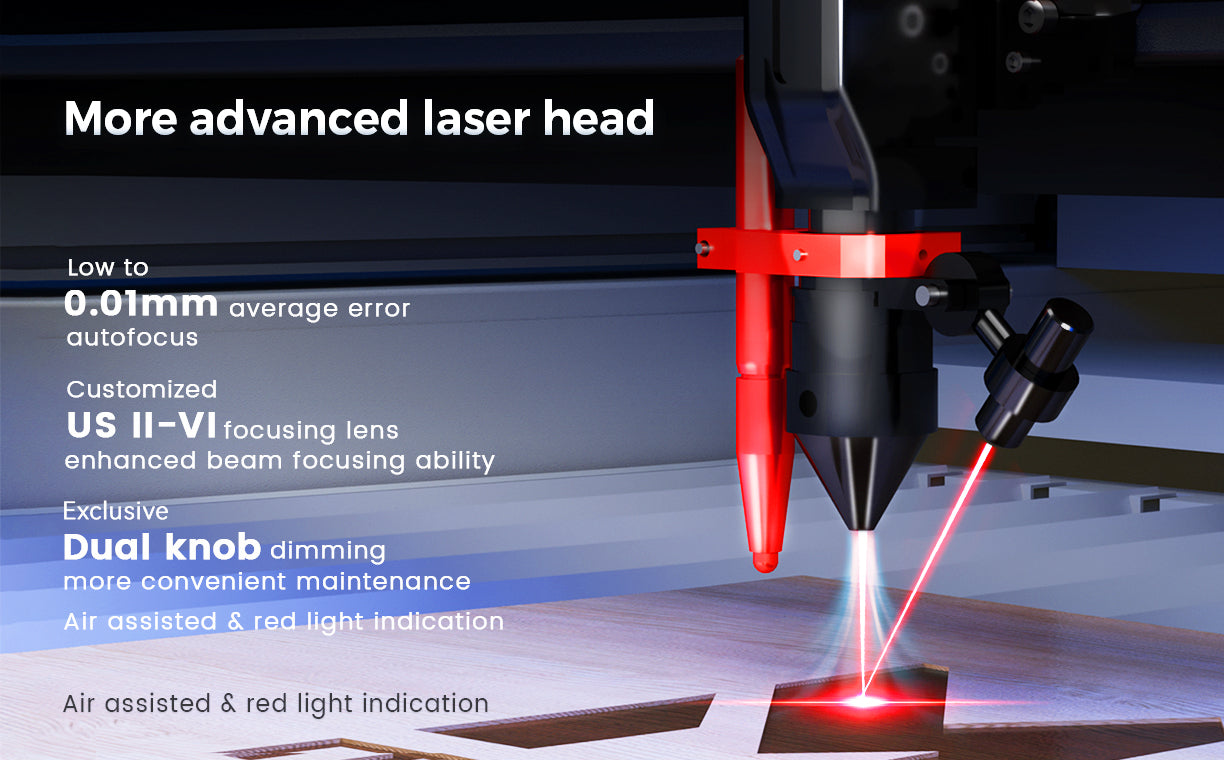

Newly designed laser head

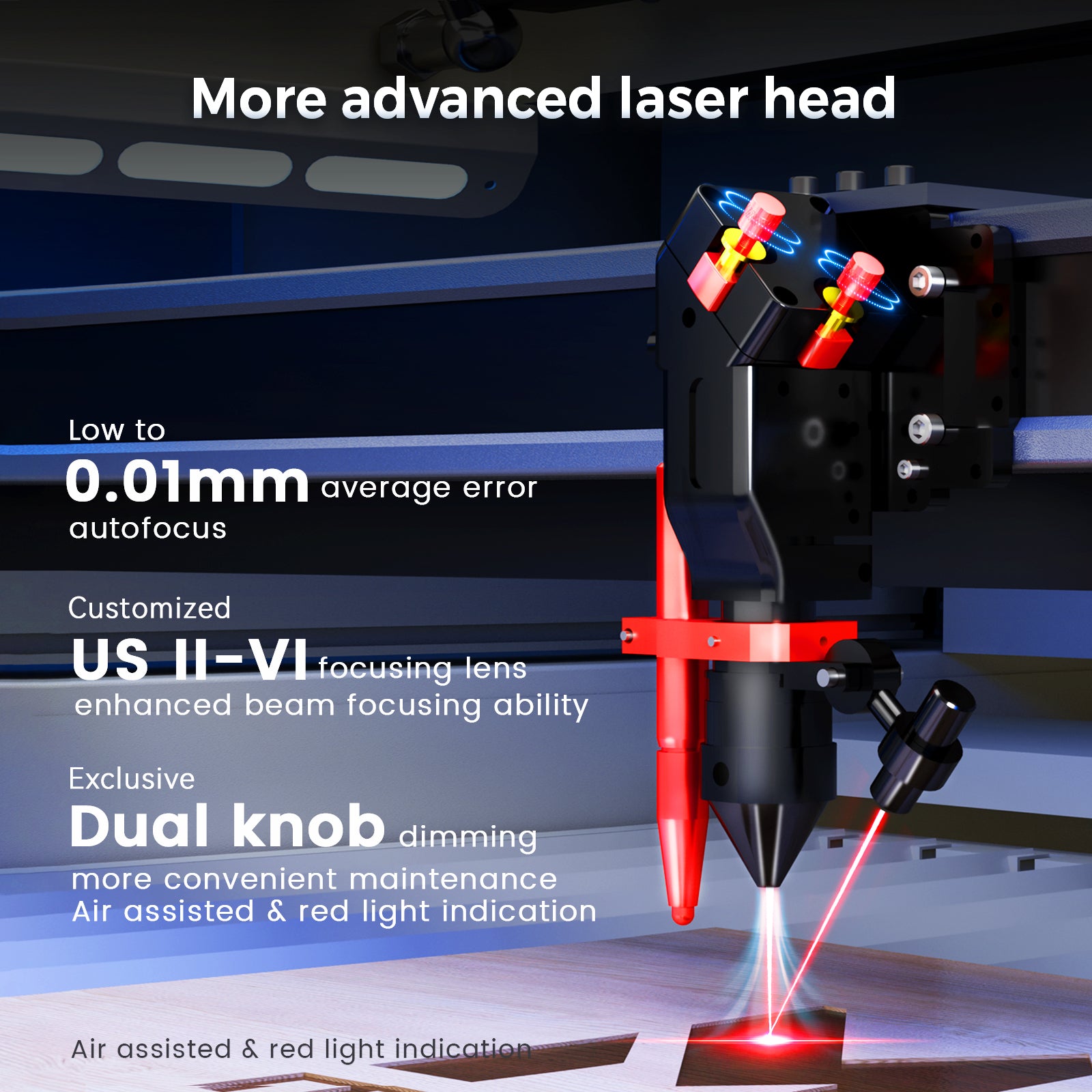

Monport has also redesigned and upgraded the laser head, using US II-VI focusing lens; Higher precision autofocus module (with an error of only 0.01mm); At the same time, the dimming system has been optimized to easily complete the dimming action with only two knobs; Of course, air assist and red light indication have also been appropriately optimized. All of these will greatly enhance the user experience and enable efficient and high-quality processing.

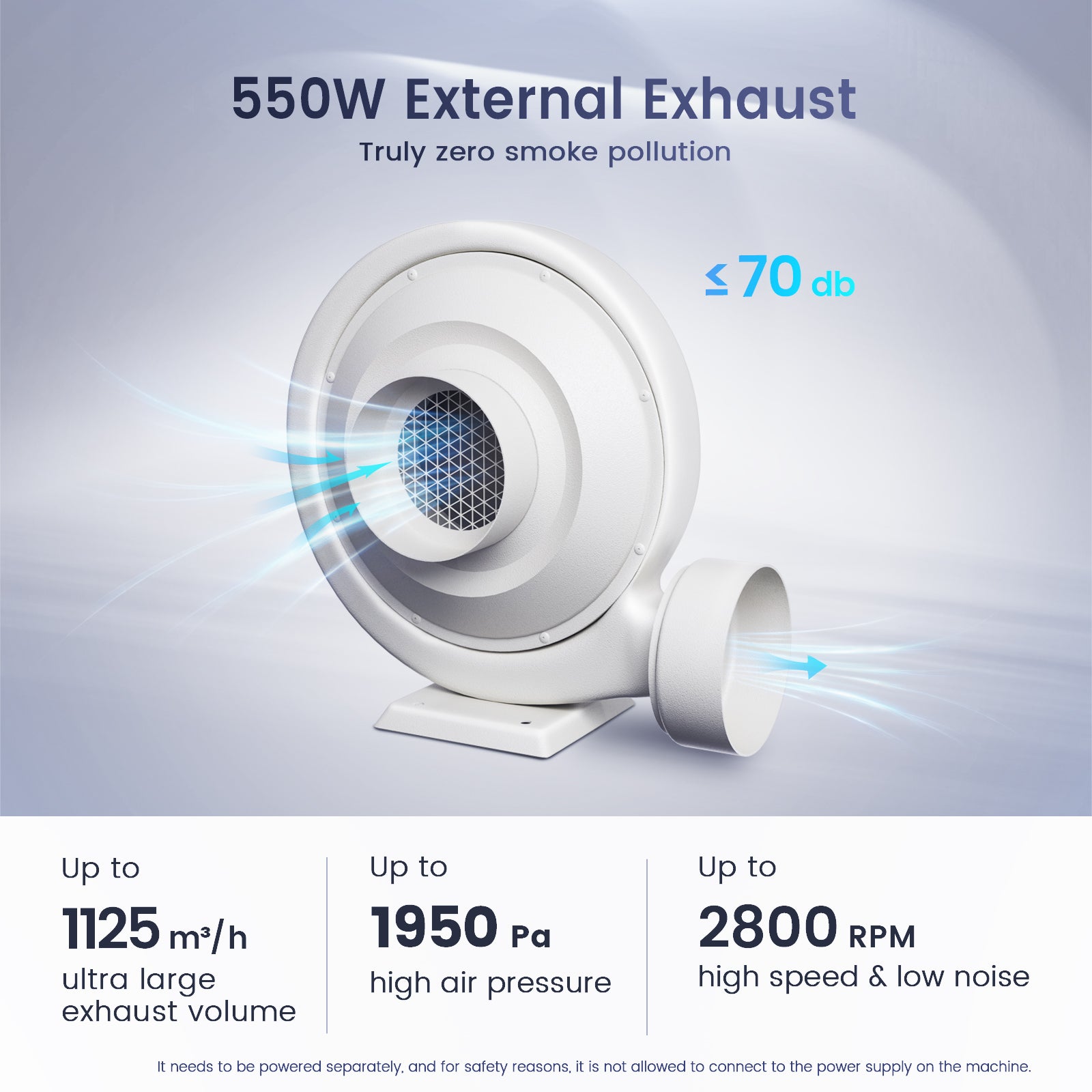

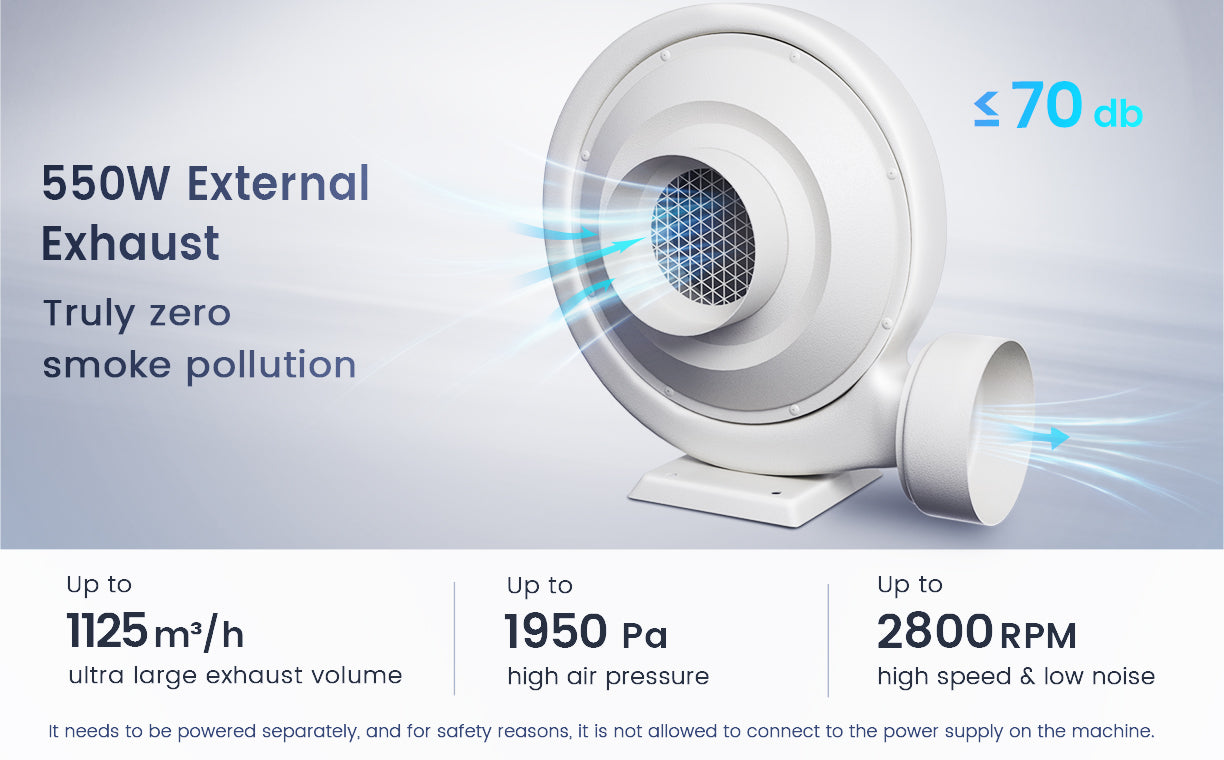

550W exhaust system
Specifically, in order to truly solve the smoke problem caused by processing, Monport has upgraded the exhaust system of the entire series of products. We used a 550W high-speed fan with a maximum airflow of 1125m ³/h≈660cfm(more than triple the exhaust volume of other brands), while maintaining excellent noise performance.

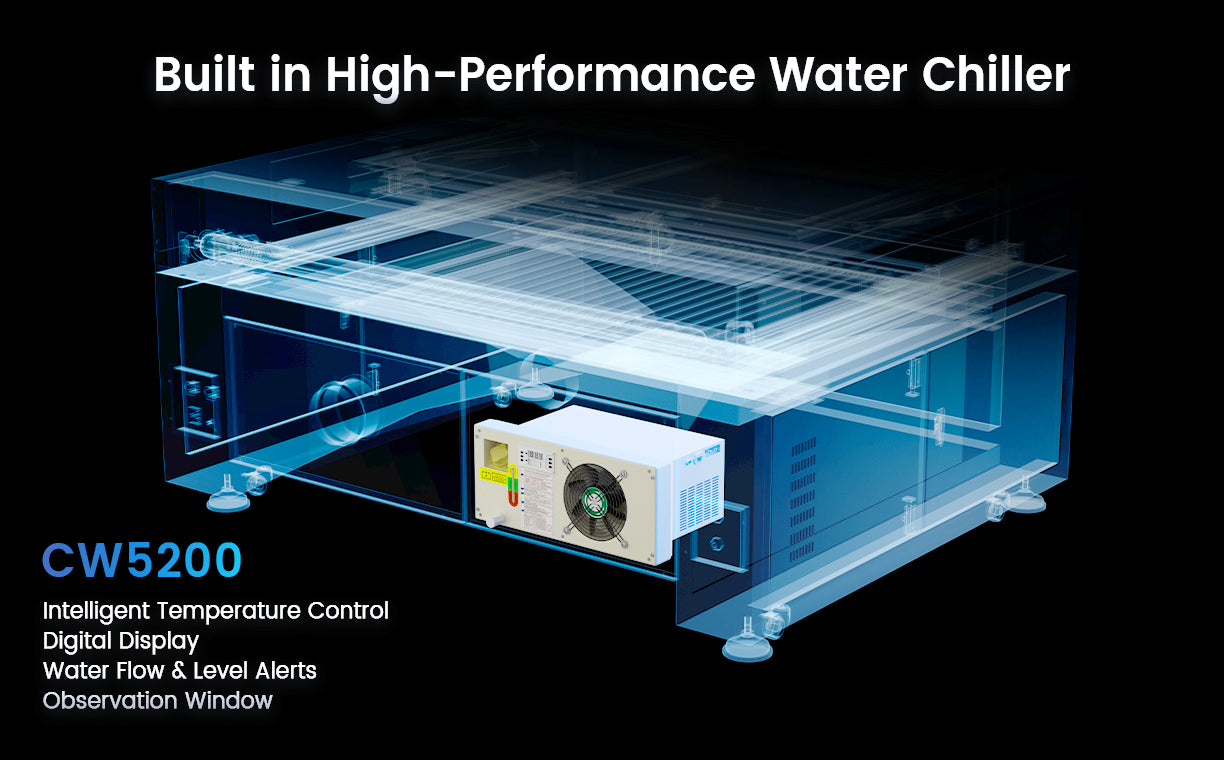

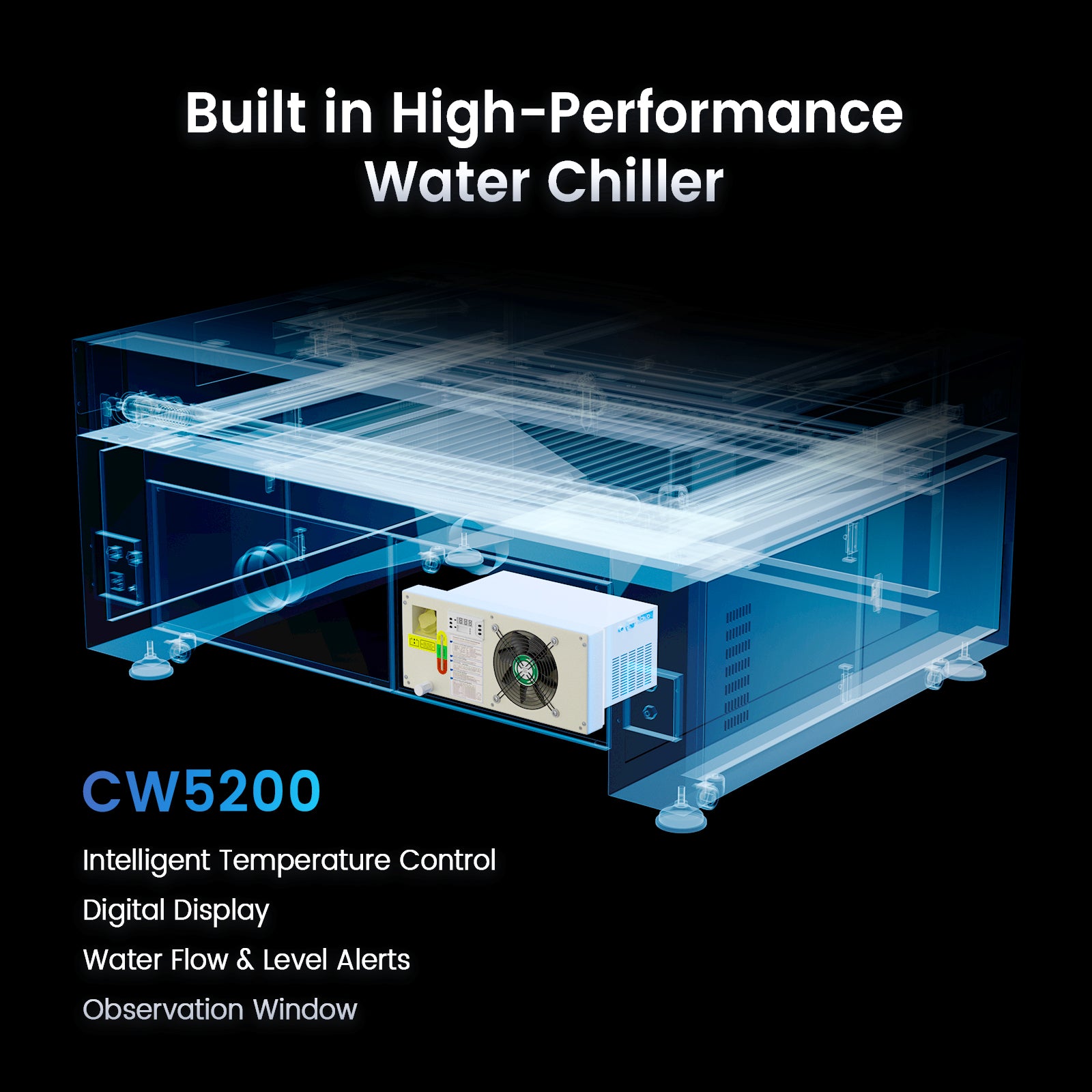

Built-in CW5200 Cooling system
In order to maximize the performance of the laser tube while ensuring its lifespan and safety, Monport has equipped the machine with a built-in CW5200 high-performance intelligent chiller. Its compressor cooling principle can effectively control the temperature within a safe range, without worrying about the laser tube being damaged by high temperatures.

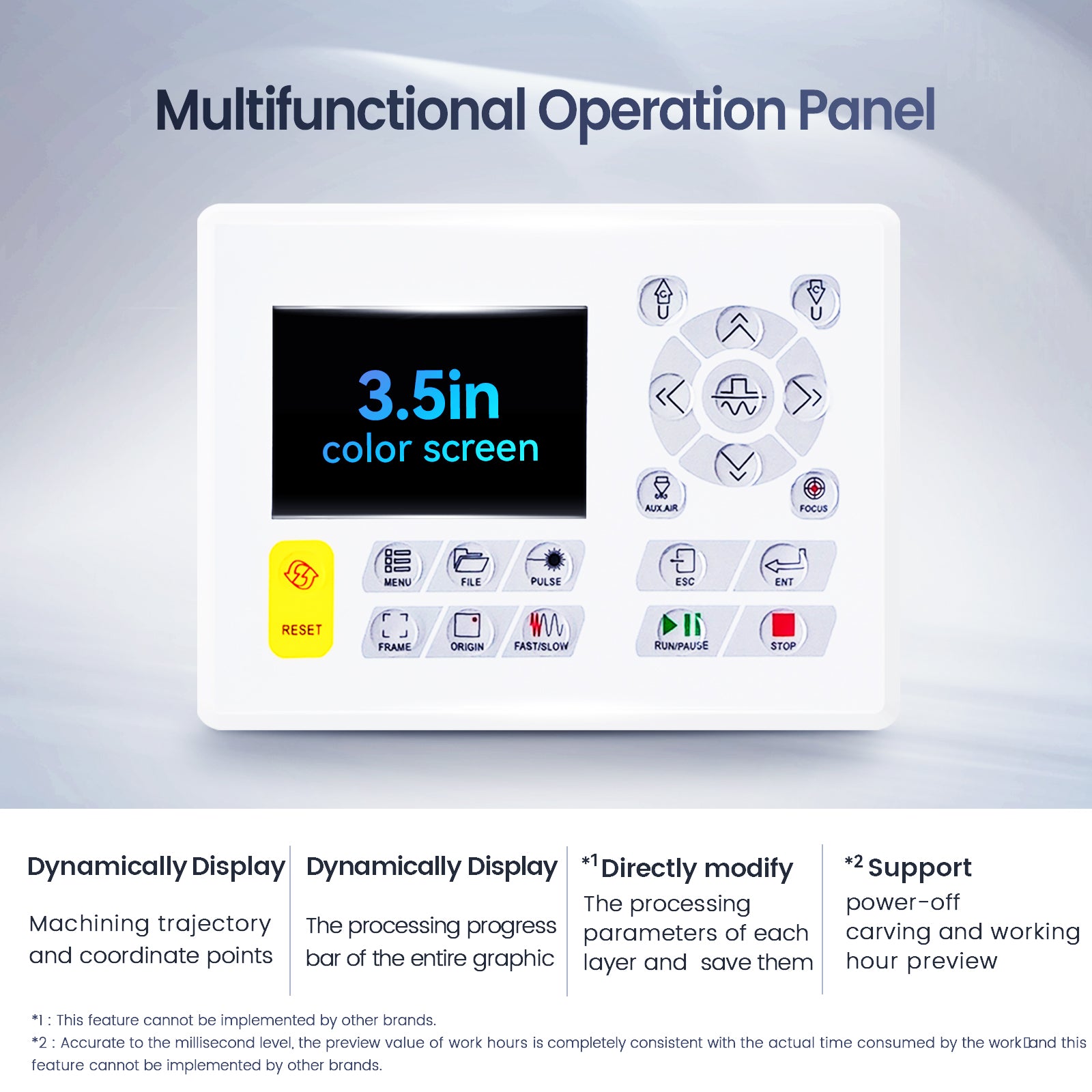

Simpler operation

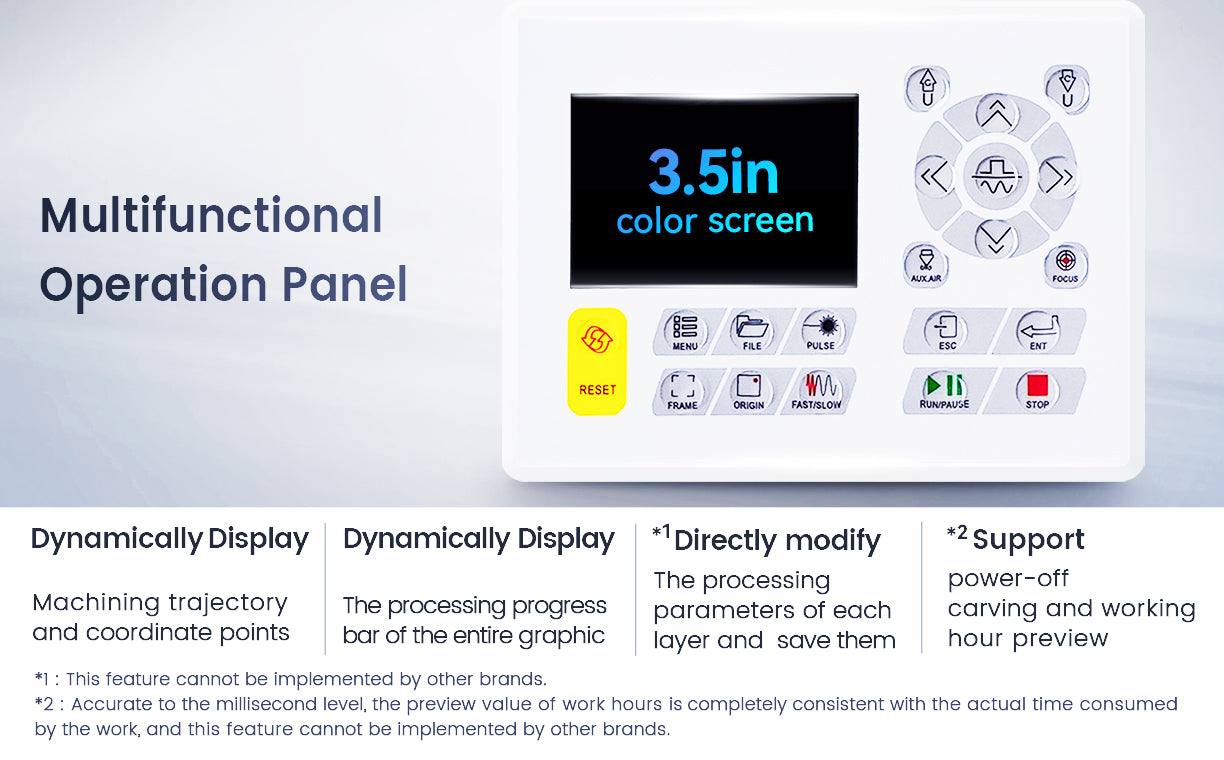

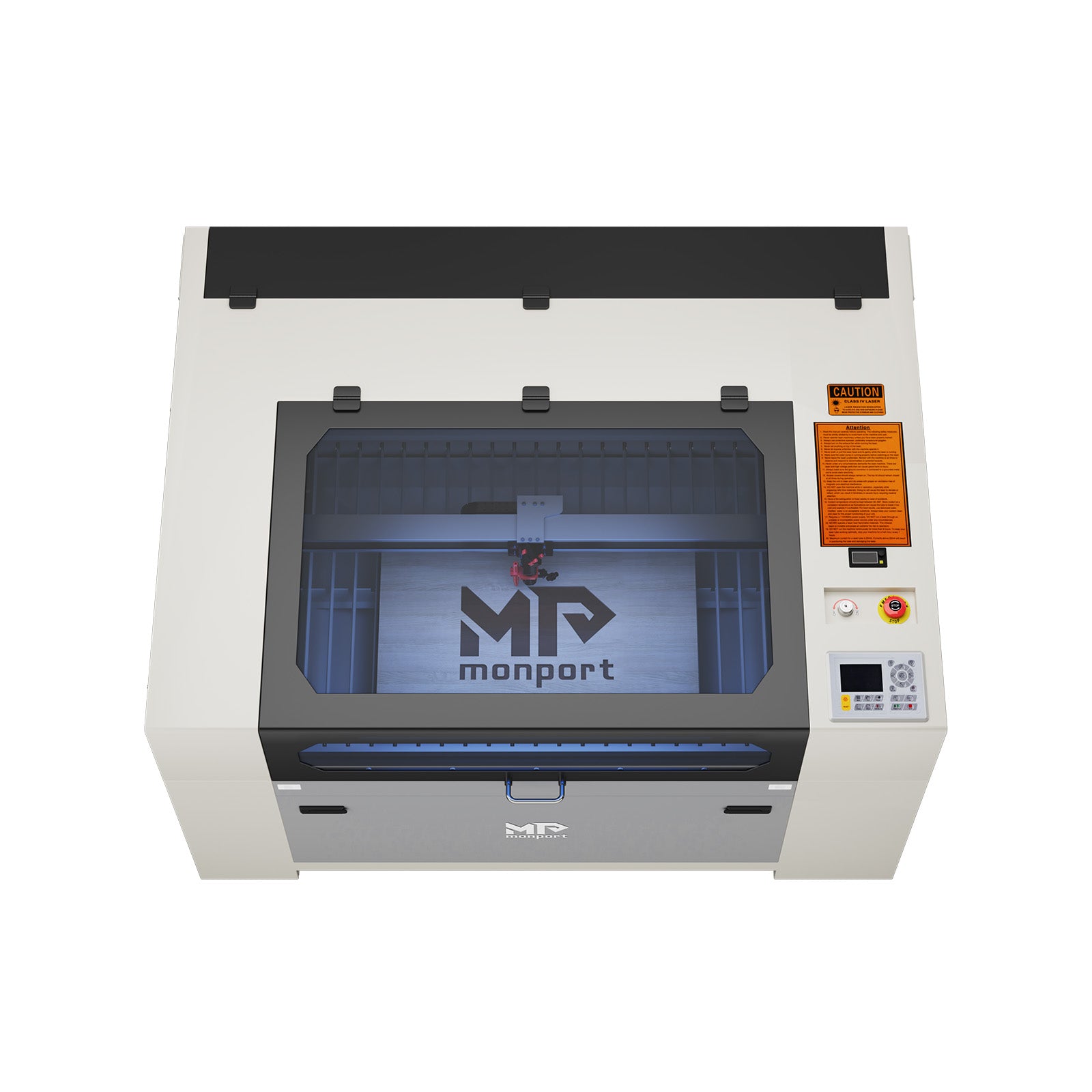

After extensive testing, Monport has chosen a most stable and user-friendly motherboard; It is equipped with a 3.5-inch display panel and a variety of functional buttons, allowing almost all computer operations to be performed on the control panel. Of course, it supports power-off carving continuation function, working hour preview function, processing path preview function, and so on.

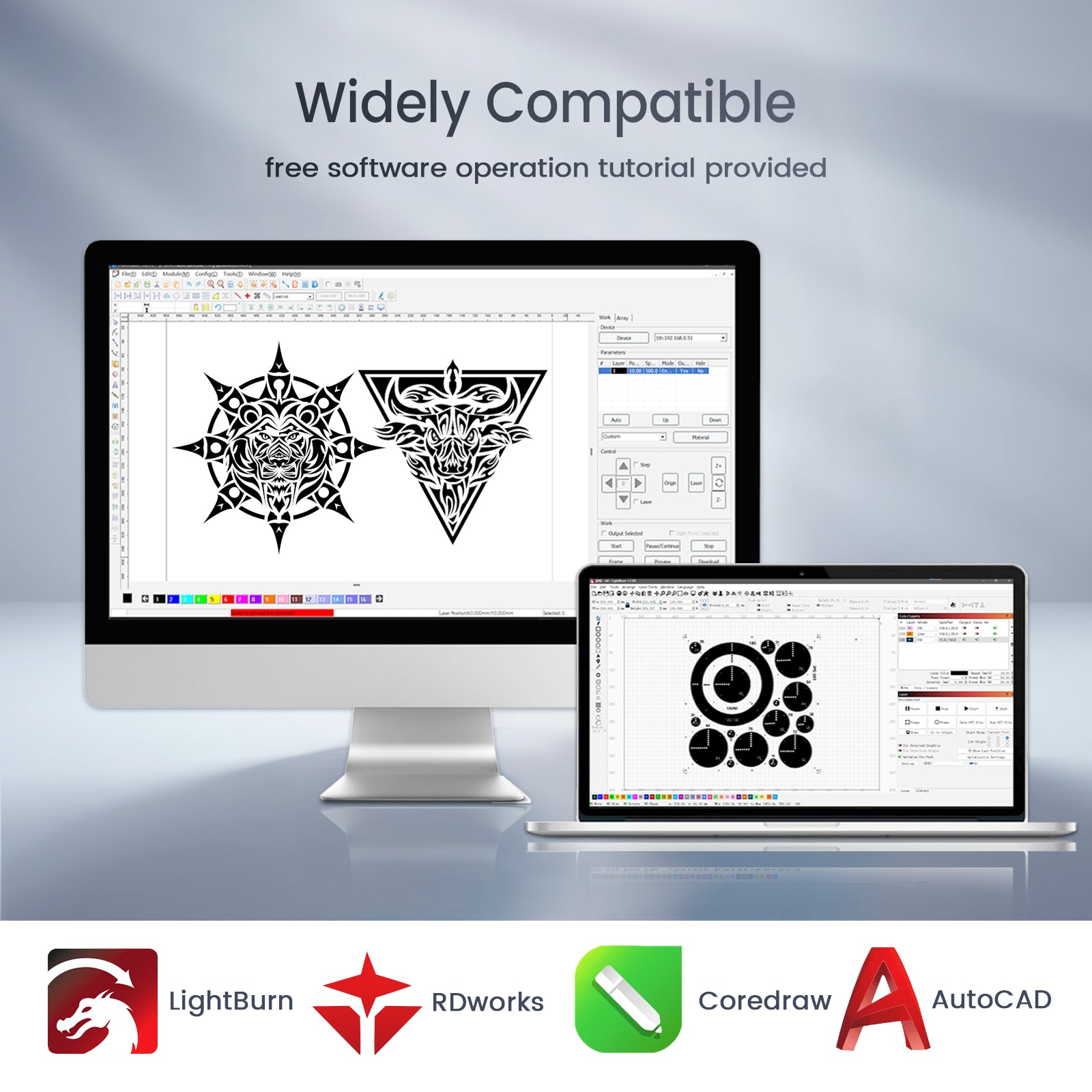

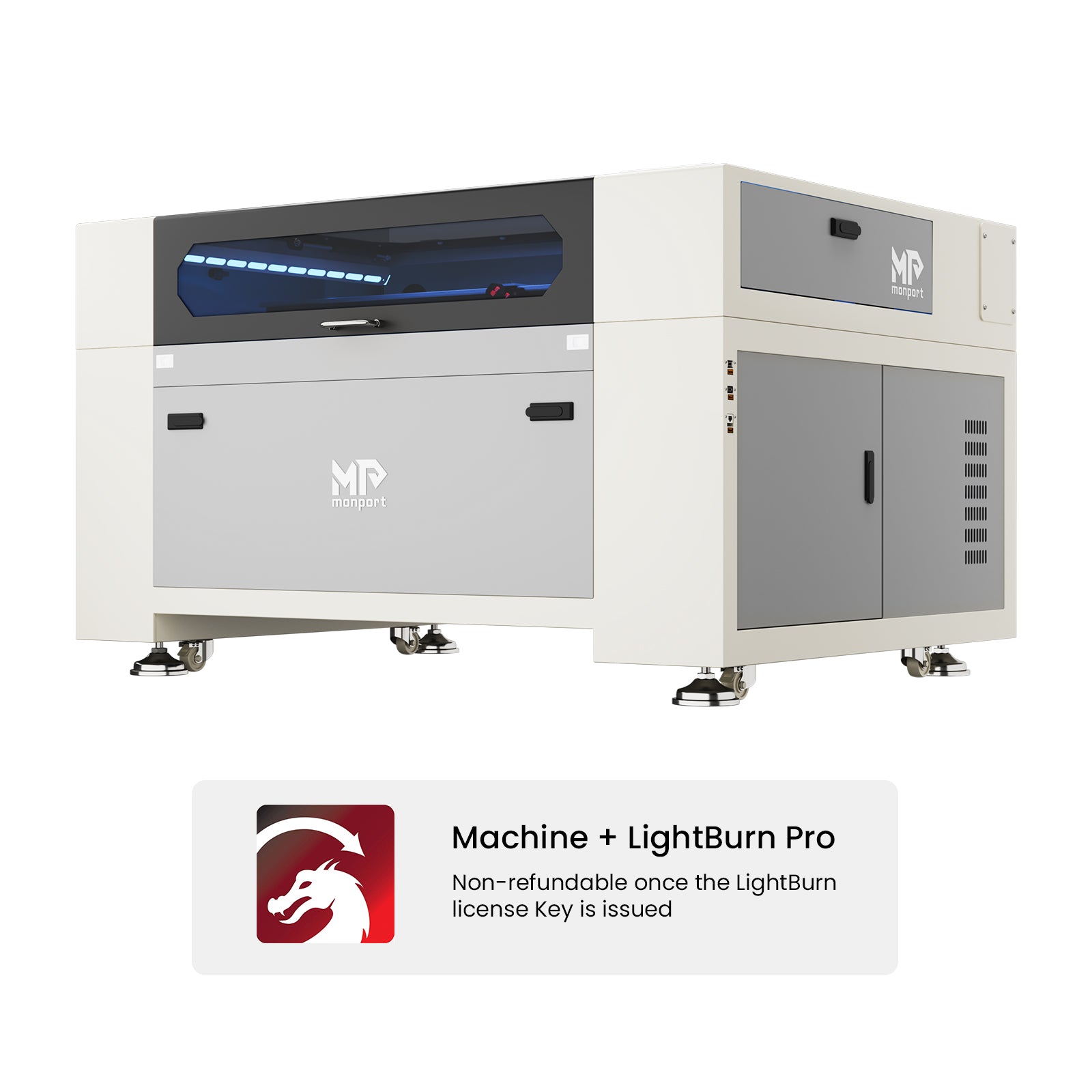

Software compatibility

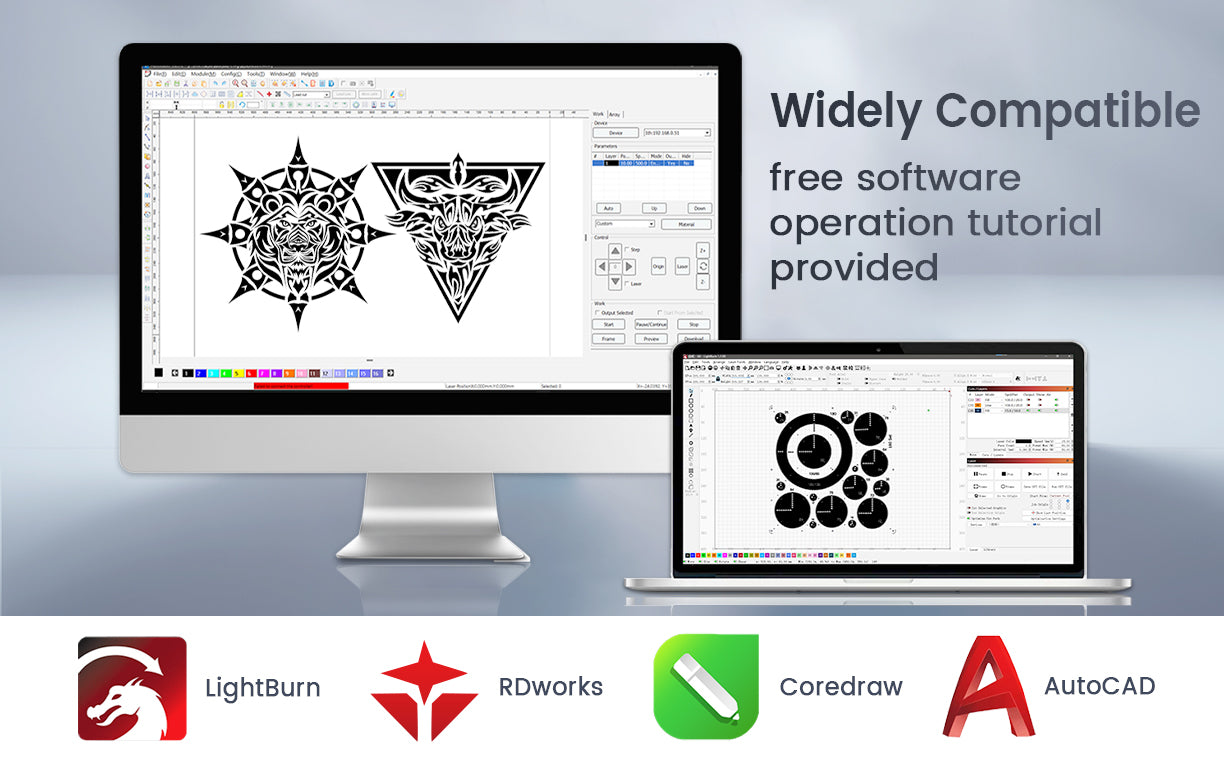

Both Lightburn and RDWorks can perfectly match this series of products; With the support of RDWorks, you can use it together with drawing software such as CorelDRAW(CDR)and AutoCAD(CAD).
| Product Name | 90 W Effi9S Built-in Chiller CO₂ Laser (36" × 24") | 100 W Effi10S Built-in Chiller CO₂ Laser (40" × 24") | 130 W Effi13S Built-in Chiller CO₂ Laser (51" × 35") | 150 W Effi16S Built-in Chiller CO₂ Laser (63" × 40") |
| Laser Power | 90 W | 100 W | 130 W | 150 W |
| Engraving Area | 36" × 24" (914 × 610 mm) |
40" × 24" (1016 × 610 mm) |
51" × 35" (1295 × 889 mm) |
63" × 40" (1600 × 1016 mm) |
| Max. Marking Speed | 1 400 mm/s (55.1 ips) |
1 400 mm/s (55.1 ips) |
1 400 mm/s (55.1 ips) |
1 400 mm/s (55.1 ips) |
| Focus Method | Autofocus | Autofocus | Autofocus | Autofocus |
| Pass-through Dimension | 0.8" × 29.9" (20 × 760 mm) |
0.8" × 41.7" (20 × 1059 mm) |
0.8" × 53.5" (20 × 1359 mm) |
0.8" × 65.3" (20 × 1659 mm) |
| Central Wavelength | 10 640 nm | 10 640 nm | 10 640 nm | 10 640 nm |
| Expected Service Life (MTTF) | 12 000 h | 12 000 h | 12 000 h | 12 000 h |
| Cooling System | Built-in CW-5200 Water Chiller | Built-in CW-5200 Water Chiller | Built-in CW-5200 Water Chiller | Built-in CW-5200 Water Chiller |
| Fume Exhaust | 550 W Duct Fan, 1 125 m³/h | 550 W Duct Fan, 1 125 m³/h | 550 W Duct Fan, 1 125 m³/h | 550 W Duct Fan, 1 125 m³/h |
| Supported Image Formats | BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others | BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others | BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others | BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others |
| Compatible Software | Lightburn, RDWorks, CorelLaser | Lightburn, RDWorks, CorelLaser | Lightburn, RDWorks, CorelLaser | Lightburn, RDWorks, CorelLaser |

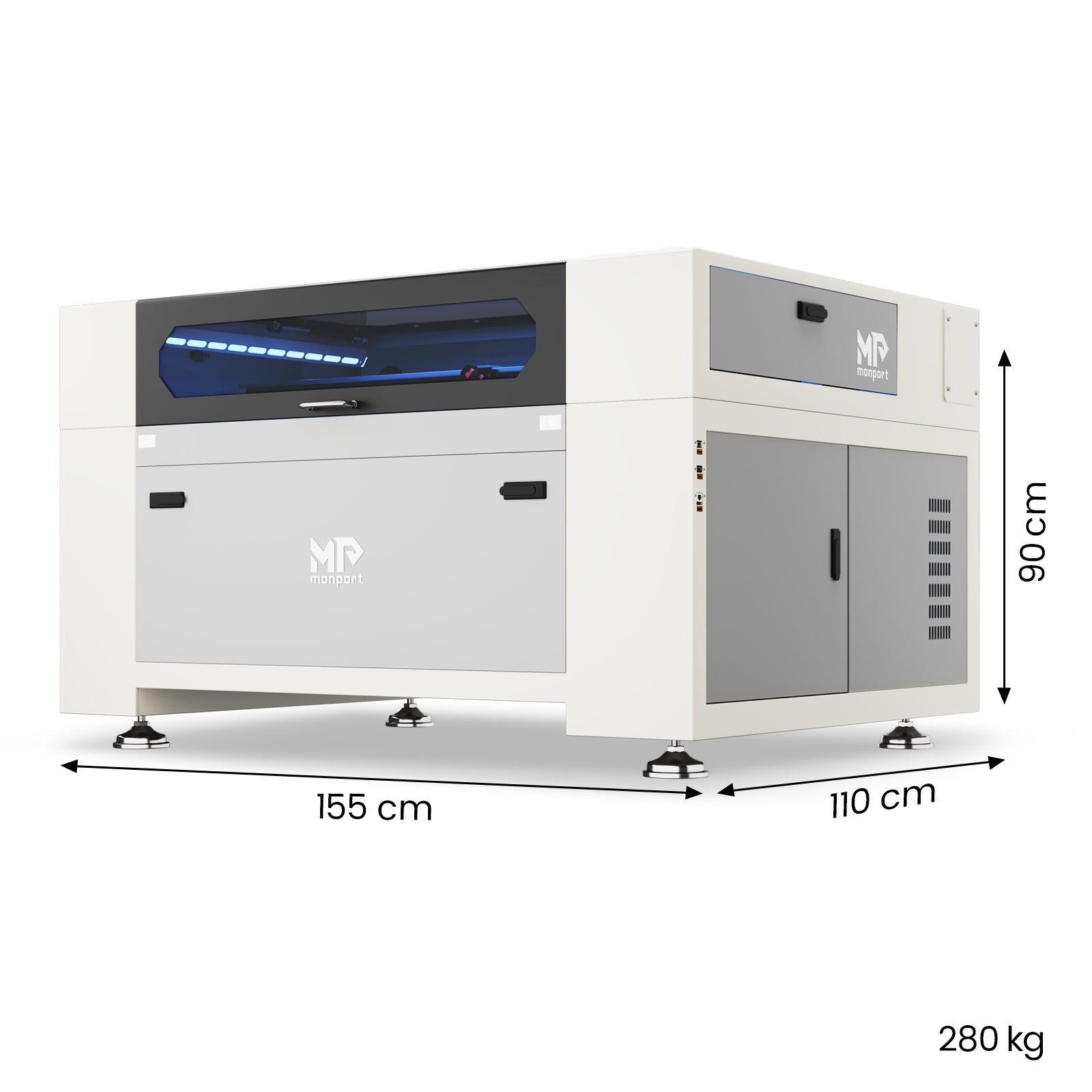

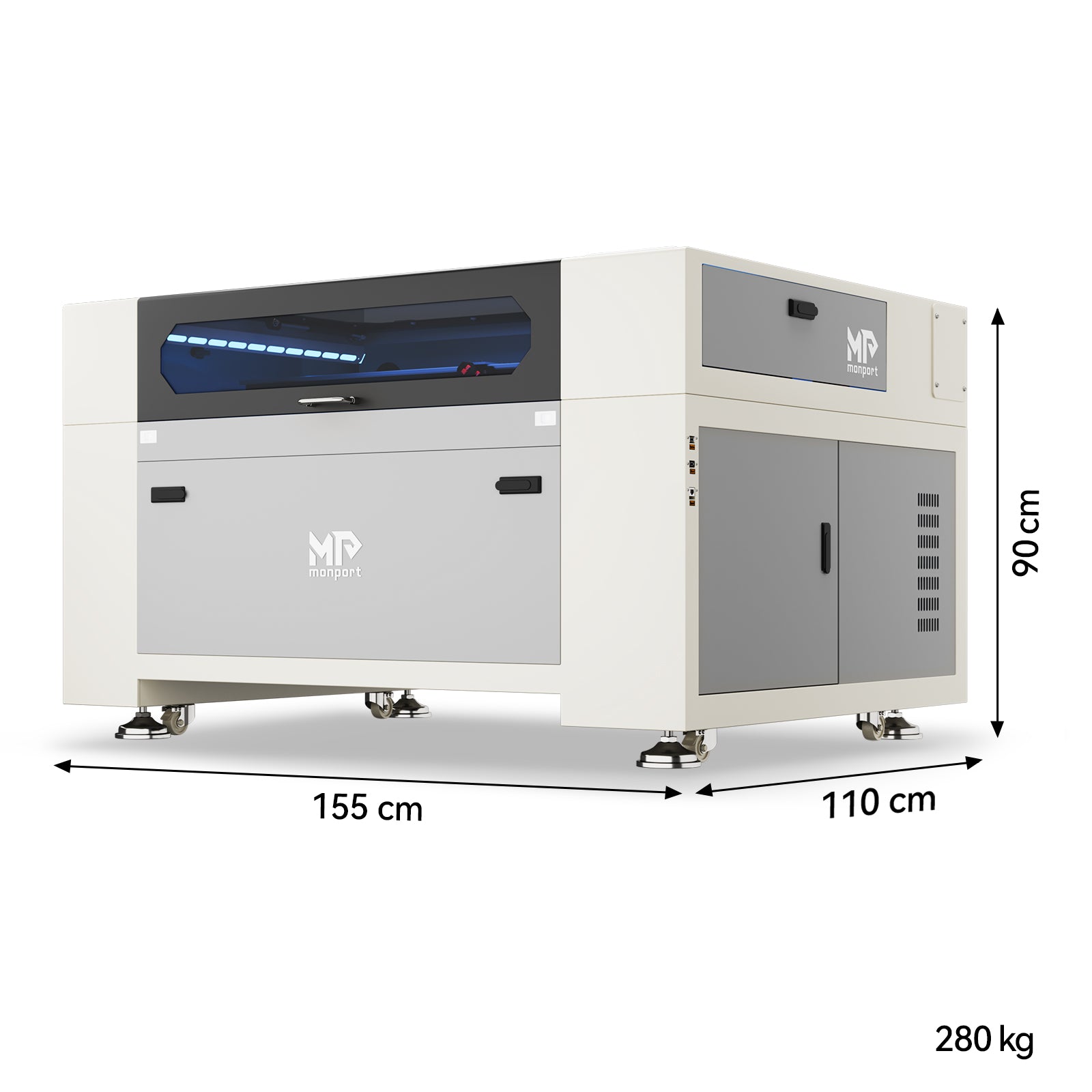

| Machine Dimension (L × W × H) | 57" × 43" × 35" (144.8 × 109.2 × 88.9 cm) |
61" × 43" × 35" (154.9 × 109.2 × 88.9 cm) |
72" × 55" × 35" (182.9 × 139.7 × 88.9 cm) |
84" × 59" × 35" (213.4 × 149.9 × 88.9 cm) |
| Product Weight | 551 lb (250 kg) | 573 lb (260 kg) | 771 lb (350 kg) | 970 lb (440 kg) |
| Warranty | 2 Years (1 Year for Laser Source) |
2 Years (1 Year for Laser Source) |
2 Years (1 Year for Laser Source) |
2 Years (1 Year for Laser Source) |
Questions & Answers
Have a Question?
-
power req.
All of our machines use the US standard voltage 110V and standard plugs.
