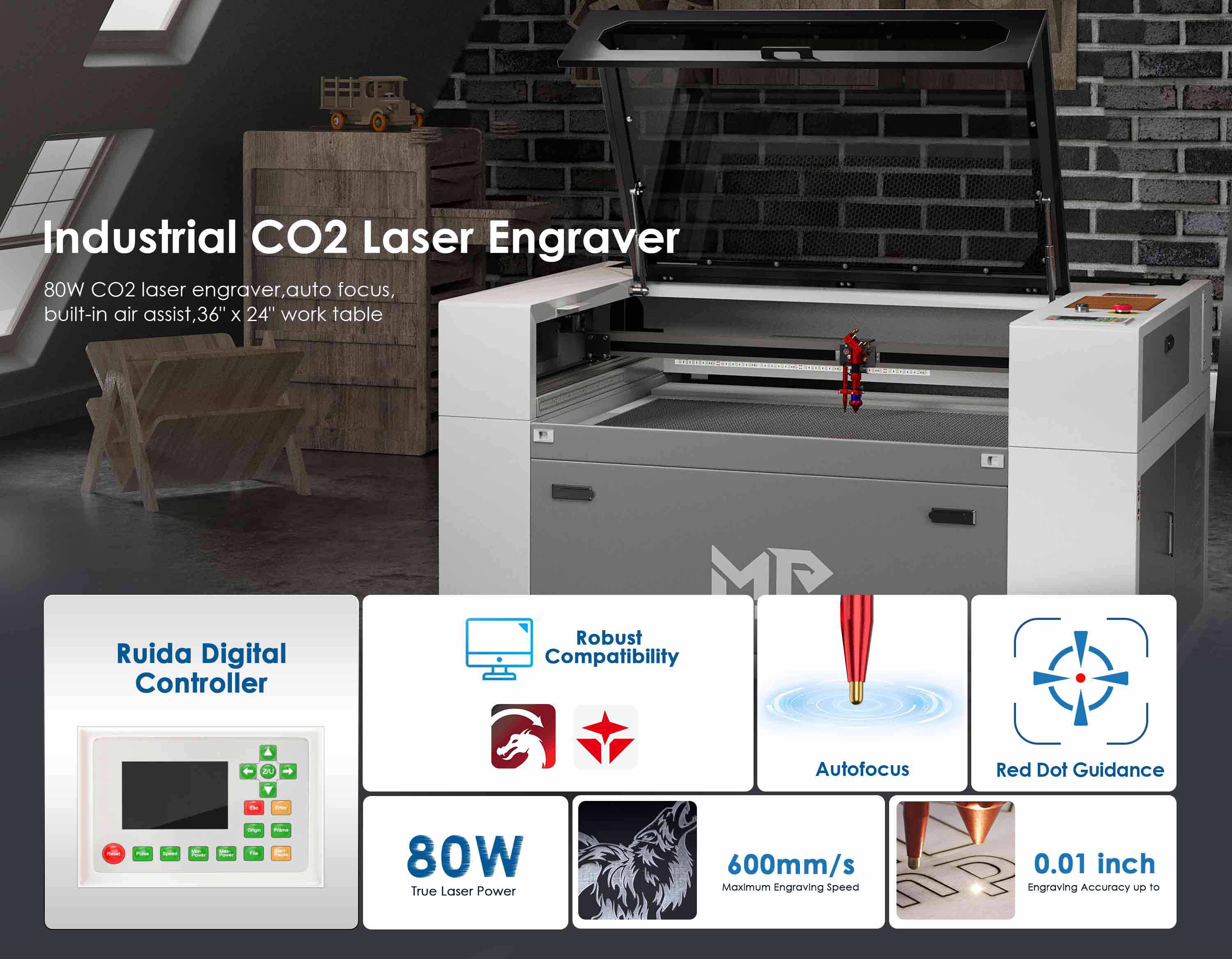

Monport 80W CO2 Laser Engraver & Cutter (24" x 36" Working Area) with FDA Approved
Monport 80W CO2 Laser Engraver & Cutter (24" x 36" Working Area) with FDA Approved
Monport 80W CO2 Laser Engraver & Cutter (24" x 36" Working Area) with FDA Approved
Monport 80W CO2 Laser Engraver & Cutter (24" x 36" Working Area) with FDA Approved
Monport 80W CO2 Laser Engraver & Cutter (24" x 36" Working Area) with FDA Approved
Monport 80W CO2 Laser Engraver & Cutter (24" x 36" Working Area) with FDA Approved
Monport 80W CO2 Laser Engraver & Cutter (24" x 36" Working Area) with FDA Approved
Monport 80W CO2 Laser Engraver & Cutter (24" x 36" Working Area) with FDA Approved

Monport 80W CO2 Laser Engraver & Cutter (24" x 36" Working Area) with FDA Approved

Regular price $4,549.99 Sale price $4,199.99

Starting at /mo with

/
Shipping calculated at checkout.
  • US Free shipping
  • In stock, ready to ship
  • Inventory on the way

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Brief Information

  • Suitable for business or personal use
  • Working Dimension: 24'' x 36'' ( 61 cm x 91.5 cm)
  • Machine Dimension: 57” x 43” x 35.8” ( 145 cm x 110 cm x 91 cm )
  • Package Dimension: 61” x 47” x 43” ( 155 cm x 120 cm x 110 cm )
  • 8” Standard Z-depth and 9” Max Z-depth
  • Net Weight: 238 kg
Material  Cutting Thickness(For Reference Only)
Leather 10mm
Paperboard 8mm
Acrylic 20mm
Rubber 5mm
Cloth 12mm
Plywood 6mm
MDF 6mm

Features & Benefits

Super High Speed Engraving

The speed (up to 800 mm/s) of 80w laser engraver provides you more efficiency than any other low power machines.

High Resolution and High Accuracy

Resolution up to 4500 dpi;

LED headlights under the lid give point illumination for precision;

2.0" Focal distance provides higher resolution and etching of extremely small fonts;

Built-in air assist system guides a pressurized air stream through the laser head nozzle to displace debris, heat, and combustible gases from the engraving surface and laser beam path, keeping engravings more precise.

Smart and Upgraded Ruida Digital Controller

Controller is like a brain, conducting the laser head, adjusts laser power and speed settings, file viewing, project framing. The Ruida controller works well with laser software like Lightburn, RDWorks, Coreldraw, Auto-CAD and other software.

2 USB & Ethernet Ports

Two USB ports provide options including flash drive connectivity and a USB-to-USB PC connection. In addition, one ethernet port is also available for connection.

Autofocus

Use the control panel to correct the focus automatically at the touch of a button-No more manual testing and adjustment.

Viewing Window

Equipped with a transparent acrylic viewing window, it allows you to observe the laser engraving and cutting state. Plus, the dark sepia color protects you from indirect laser beam exposure.

Red Dot Guidance

The red dot shows the laser head position, marks the working path and frames the project sizes, assisting you with more convenience and guidance.

Smart Safety Sensor

The safety shutdown sensor helps stop the machine when opening the transparent window cover. Once closed, press the “Enter” button to continue operation.

Easy Cleanup Set

Below the work platform, a debris collection system gathers the debris into a removable collection tray, keeping your machine as clean and clear.

 Monport 80W Specs

Software

  • Works on Windows XP, 2000, Vista, WIN 7, 8, 10 & 11, both 64 & 32 bit
  • MacOS (Version 10.11 and higher) ONLY with LightBurn software
  • Compatible with Lightburn, RDWorks, Coreldraw, Auto-CAD
  • Supported image formats: BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others

Laser System

  • Custom CO2 glass laser tube capable of continuous operation at 10,640 nm;
  • Rated at over 80 watt;
  • Easy-to-adjust Optical path;
  • 20 mm focal lens diameter & 2.0" focal distance;
  • 25mm Mirror diameter;
  • Recommended engraving speed: 100 - 500mm/s
  • Recommended cutting speed: 1 - 30mm/s (actual speed depends on the thickness of material)

Lighting

  • The light belt under the lid gives point illumination for precise

Material Capability

  • Can safely engrave or cut any laser-compatible material
  • wood, glass, acrylic, fabric, leather, paper, cardboard, rubber
  • Contact us with questions on specific materials not listed. If necessary, we can test it for you

Additional Information

Mechanics

  • Linear System — Custom extruded aluminum linear rails
  • Motion — Equipped with stepper X, Y, Z axis, plus mechanical limit switches
  • Cooling — easy-to-setup water pump and hoses
  • Air Assist — Internal air assist with no external compressor required
  • Ventilation— On-board exhaust fan, as well as an exhaust hose so you can vent the fumes to the outdoors
  • Standard 110V, AC power connection
  • 4-pin port connection for rotary axis devices
Temperature
  • Recommended Operating Temperature: 60-104 °F (16C-40C)
  • Attention: the CO2 water temperature must be maintained at 60-70°F (16-21°C)

Warranty

  • 2-year warranty on all 80W laser machines and parts
  • 1-year warranty on laser tube

Certifications

  • FDA Approved
  • CE Certified

Laser Tube Lifetime

  • 80W CO2 laser tube with an estimated lifetime of up to 8,000 operation hours depending on power setting usage and water cooling performance
  • PLEASE NOTE: Frequent use of high laser power settings will shorten the laser tube lifetime as follows:
  • Low Power 10–40% = 7,000–8,000 Hours
  • Moderate Power 40–70% = 5,000–6,500 Hours
  • High Power 70–100% = 3,000–4,000 Hours
  • It is highly recommended to install an mA meter! The control panel power should never exceed 15mA or approximately 37-40 power on the control panel depending on your climate

Package Lists

  • Laser Engraver Machine *1
  • Water Pump *1
  • Storage Tank *1
  • Ethernet to Ethernet Cable *1
  • USB Type-A to Type-A Cable *1
  • Venting Exhaust Duct (4 ft. max. length) *1
  • Water Hoses *2
  • USB Drive with Software *1
  • Hex Wrenches *10
  • Double-sided Tape *1
  • Power Cord *2
  • Accessory Bag *1
  • Keys *2
  • Silicone Sealant *1
  • Instruction Manual *1
  • Stainless Steel Clamp *1

Downloads & Compatible Accessories

Download the Manual: Monport 80W CO2 Manual
Download the Recommended Parameters: Monport Parameters
Download the software RDworks
We offer compatible Rotary Axis and Water Chiller!
