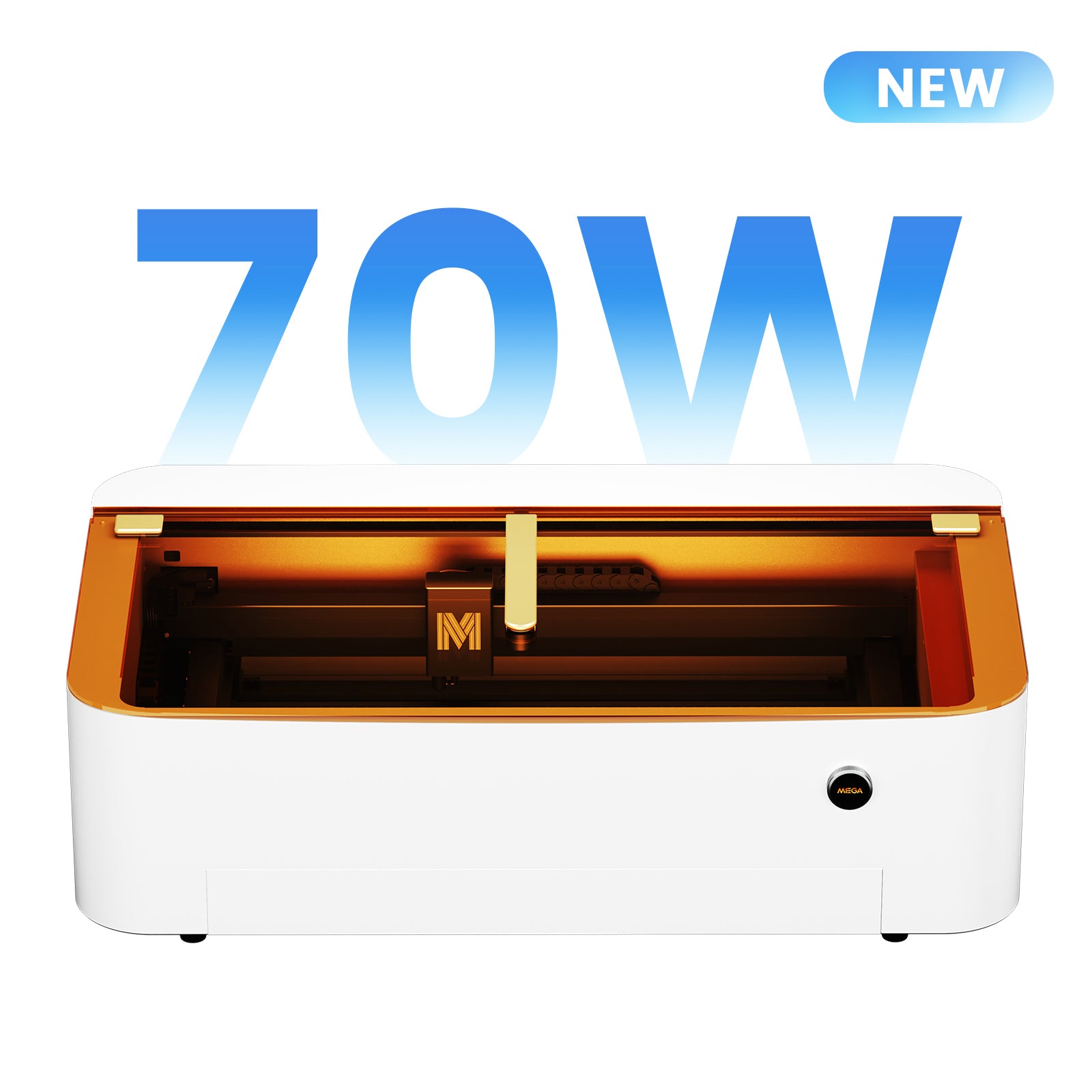

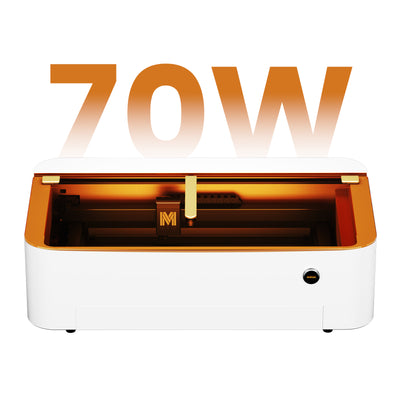

Monport Mega Lite: The World's Premier 70W Intelligent Desktop Engraving Machine With Lightburn Core
Monport Mega Lite: The World's Premier 70W Intelligent Desktop Engraving Machine With Lightburn Core
In stock
Order now and automatically enjoy an extra $200 OFF
Couldn't load pickup availability
Tip: All Rotary Accessories in the website are not compatible with this product！
Dimension & Specifications
Dimension & Specifications

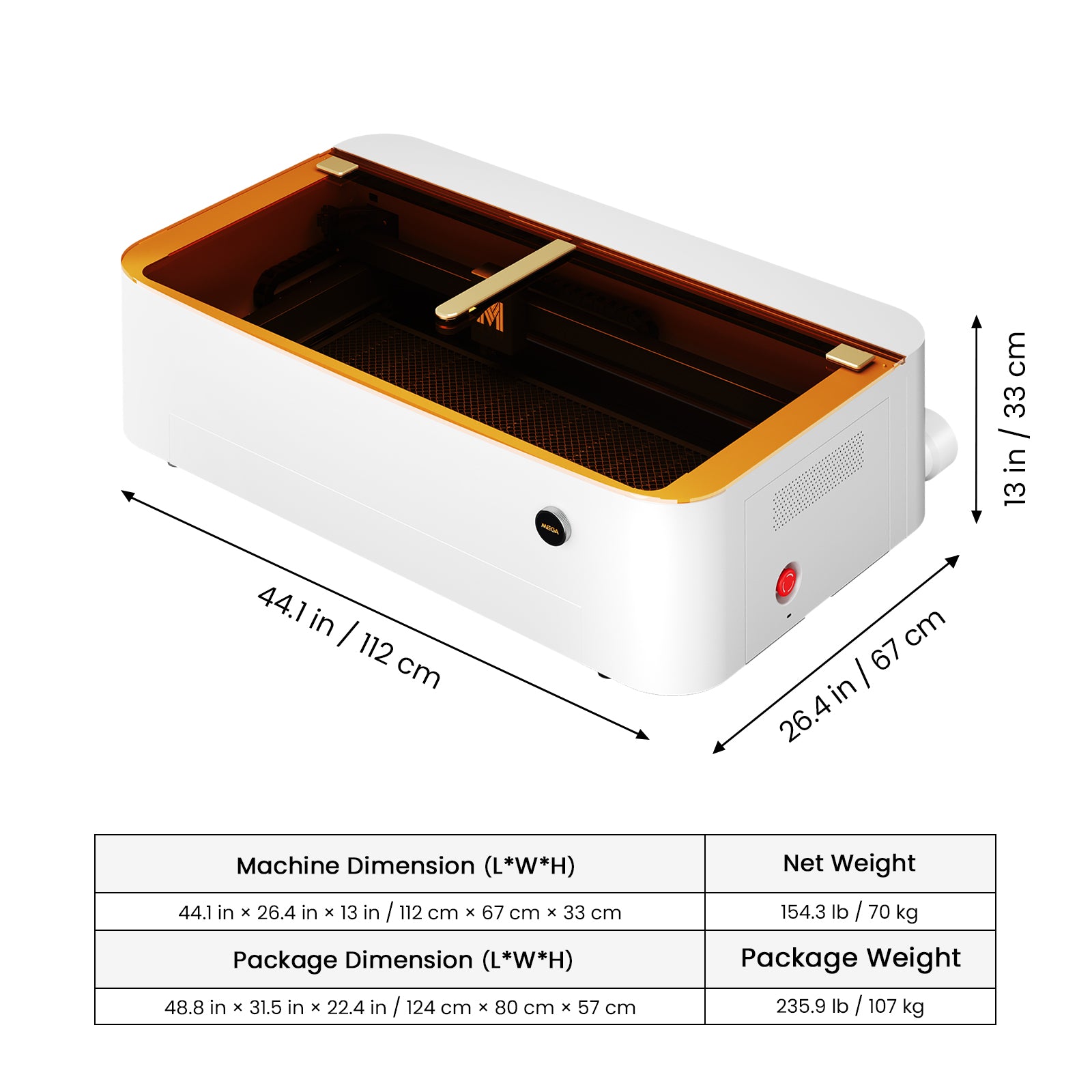

Product Size: 44.09"×26.38"×12.99"(1120x670x330mm)

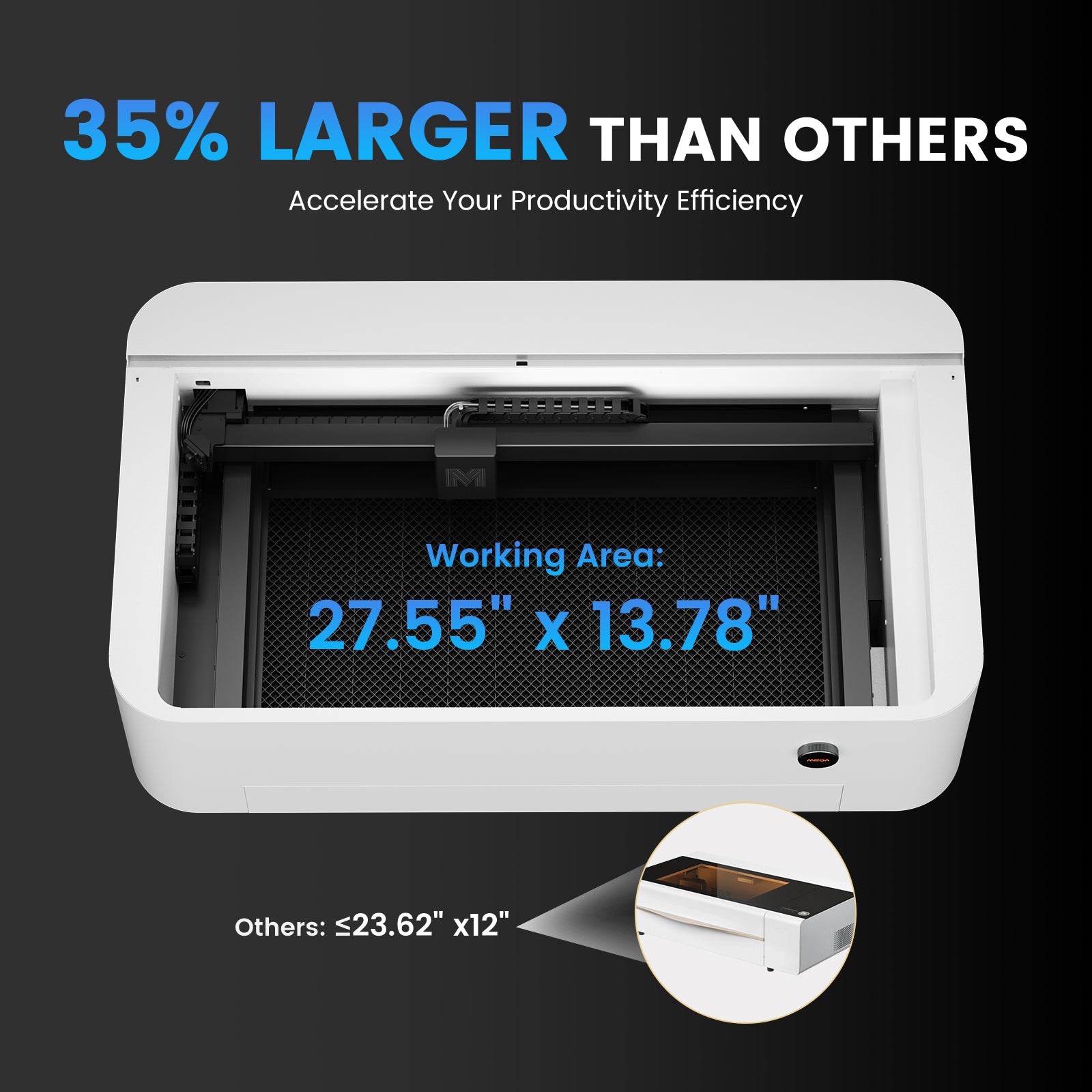

Working Space: 27.56"×13.78"(700x350mm)
Max. Working Speed: 600mm/s
Max. Workpiece Height: 0-3.54''(0-90mm)
Z-Axis Movement: 0-1.18“(30mm)
Product Weight: 70kg
Focus Mode: Manual Focus
Air Assist: Included
Package Contents
Package Contents
Mega Desktop Machine *1
LightBurn Core *13mm
Transparent Acrylic *23mm
Linden Wood Panels *5
Kraft Paper *10
Air Duct Hose and Clamp *11
L Antifreeze *1
Air Duct Adapter *1
Power Cord *1
USB Type C Cable *1
Optical Target Assembly *1
Screwdriver Kit *1
Funnel *1
Fixing Clips Set *1
Hex Wrenches Set *1
Woven Straps *2
Business Cards *5
Mega User Manual *1
8MP HD Camera*1(This item will be shipped separately)
Warranty & Certifications
Warranty & Certifications
2-year warranty on the machine (excluding laser tubes).
6-month warranty on laser tubes.
Manuals, materials, tools, and grease are not warranted.
User Manual
User Manual

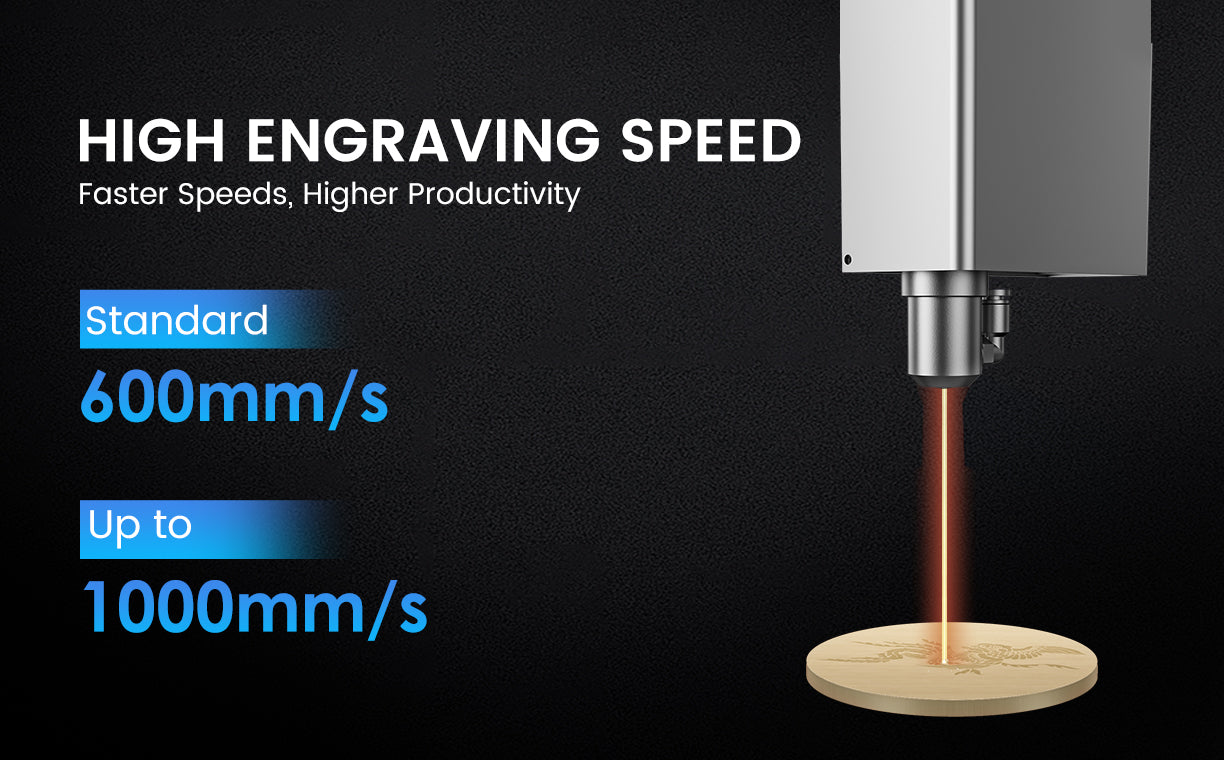

Boost Your Productivity with High-Speed Engraving! Achieve faster engraving speeds and higher productivity like never before.
Standard Speed: 600mm/s. Up to: 1000mm/s.
Unlock more efficient workflows with blazing-fast engraving speeds. Maximize output, minimize wait times.
Quickly calibrate the optical path with a low-power visible laser beam and alignment target, saving time and enhancing safety.

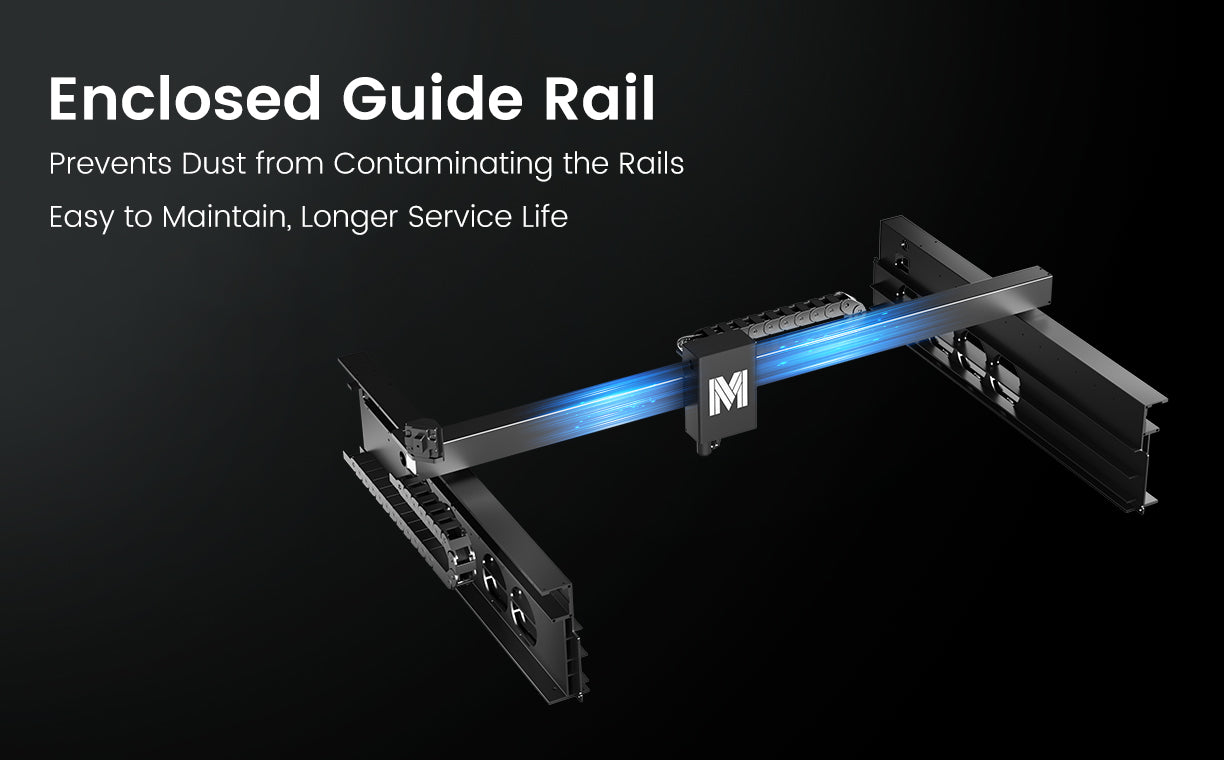

The Enclosed Guide Rail Design effectively prevents dust contamination of the guide rail, significantly extending its lifespan and ensuring smooth operation overtime.

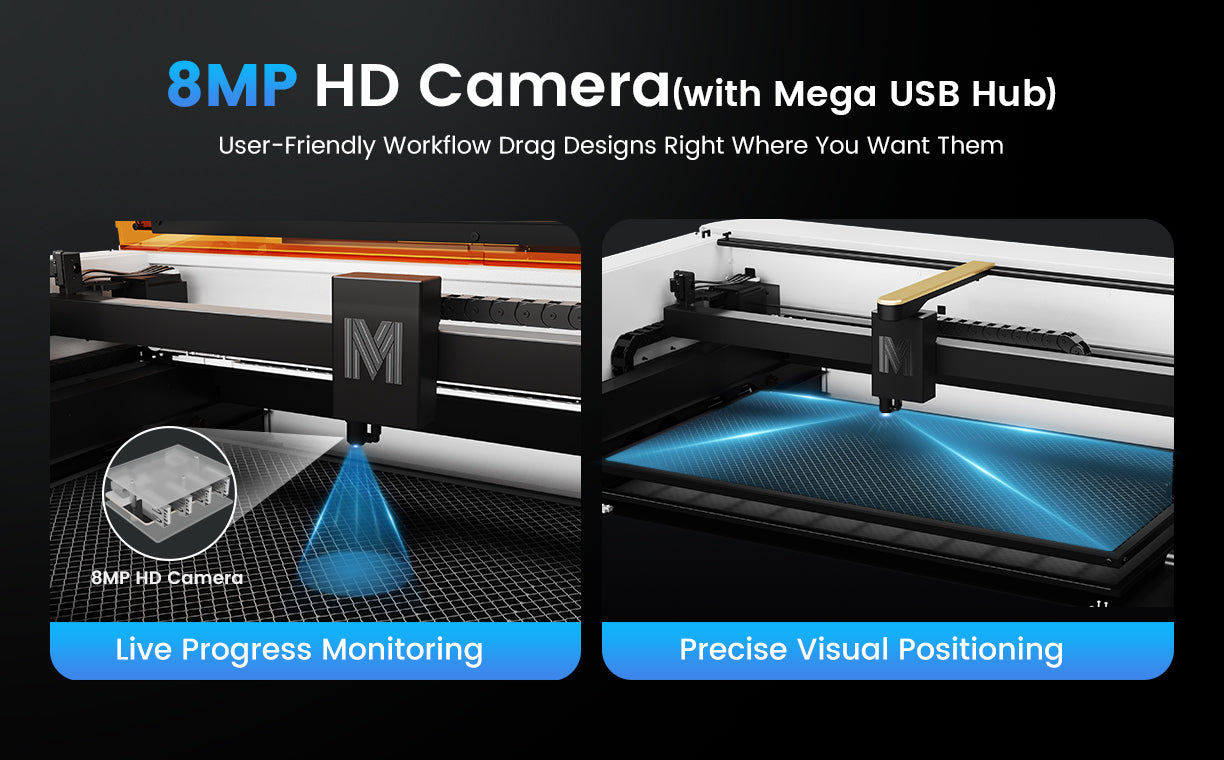

Streamline your workflow with precise visual positioning and real-time progress monitoring.
User-Friendly Workflow: Simply drag and drop designs exactly where you want them.
Live Progress Monitoring: Stay in control with instant feedback on your project.
High Definition Precision: The 8MP HD camera ensures every detail is captured for flawless engraving.
Unlock seamless operation and maximum precision with the power of clear visuals and real-time control.

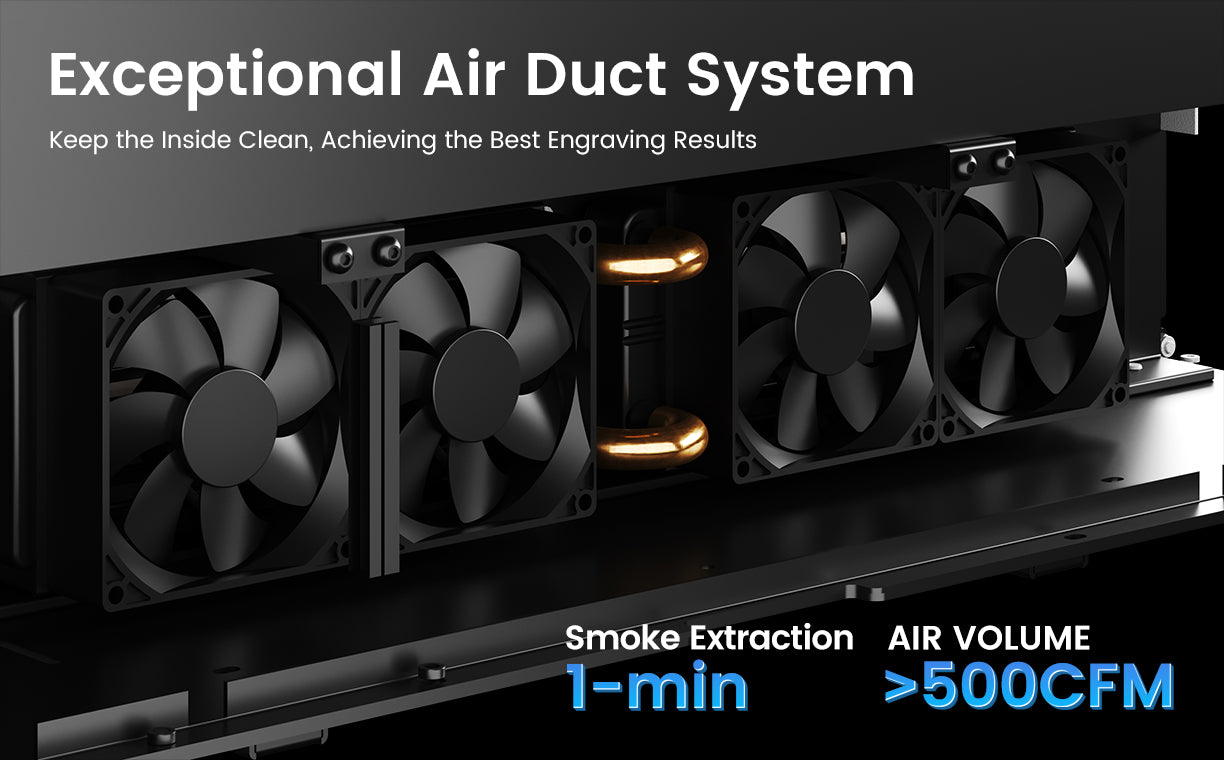

Exceptional Air Duct System for Clean, Precision Engraving.
Experience superior air circulation to keep the interior clean and enhance engraving quality.
Air Volume: >500 CFM
Designed to maintain a spotless working environment for optimal engraving results.
Keep your machine running smoothly and achieve the best engraving outcomes with powerful air flow.
| Item | Specification |
| Bed Size | 30.71''×17.32''(780x440mm) |
| Working Space | 27.56"x13.78"(700x350mm) |
| Laser Power | 70W CO2 Laser |
| Product Size | 44.09’'×26.38''×12.99''.(1120x670x330mm) |
| Product Weight | 70kg |
| Coltage/Current | 110V/10A or 220V/5A |
| Max. Working Speed | 600mm/s (> 600m/s [Lightburn]） |
| Max. Workpiece Height | 0-3.54''(0-90mm) |
| Rotary Engraving Diameter | 0-60mm |
| Z-Axis Movement | 0-1.18“(30mm) |
| Operating Ambient Temperature | (10-30°C 10-86°F)*lf the temperature drops below 10°C (50°F),please add antifreeze |
| Storage Temperature | 10-45°C (50-113°F) |
| Air Assist | Included |
| Air Pump Presssure | 50kPa |
| Exhaust Fan | ＞500 CFM |
| Number of Fan | 9 |
| Visible Optical Path | Included（Red/Green） |
| Optical Target Assembly | Included（Used for Auxiliary Aligning） |
| Type of Guide Rail | Linear Guide |
| Sealability of GuideRail | Enclosed Guide Rails |
| Type of Motor | 1.8 Degree 57mm Stepper Motor |
| Number of door detection sensors | 6 |
| Type of Extinguishing System | Built-in |
| Weight of Extinguishing Gas | Recyclable 40g CO2 cylinder (TR21-4 Needle Valve) |
| Daily Maintenance | Just Need a Simple Wipe |
| Water-Cooling System | Capacity: 1.2L(0.32gal) |
| Ranging System | LiDAR Ranging System |
| Camera Type | Panoramic Camera |
| Number of Pixels (Effective) | 8MP×1 |
| Vision Precision | 0.3mm |
| lmage Resolution | 1000 DPI |
| Focus Mode | Manual Focus |
| Software | Lightburn |
| Connection | USB |
| Support File | Png / jpg / jpeg / jfif / jfi / gpe,bmp / jp2 / svg / webp,etc |
| Support Systems | Windows / Mac |
