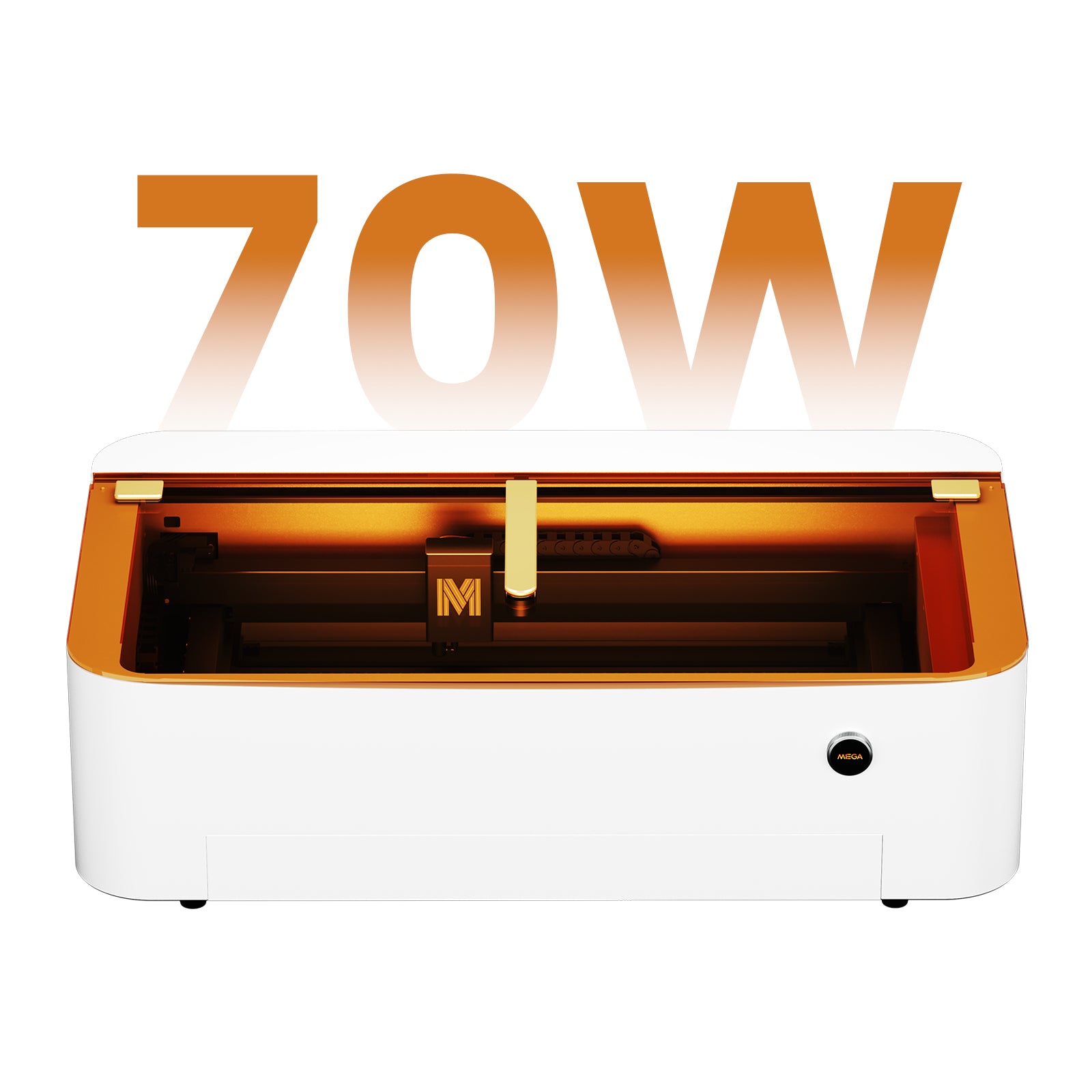

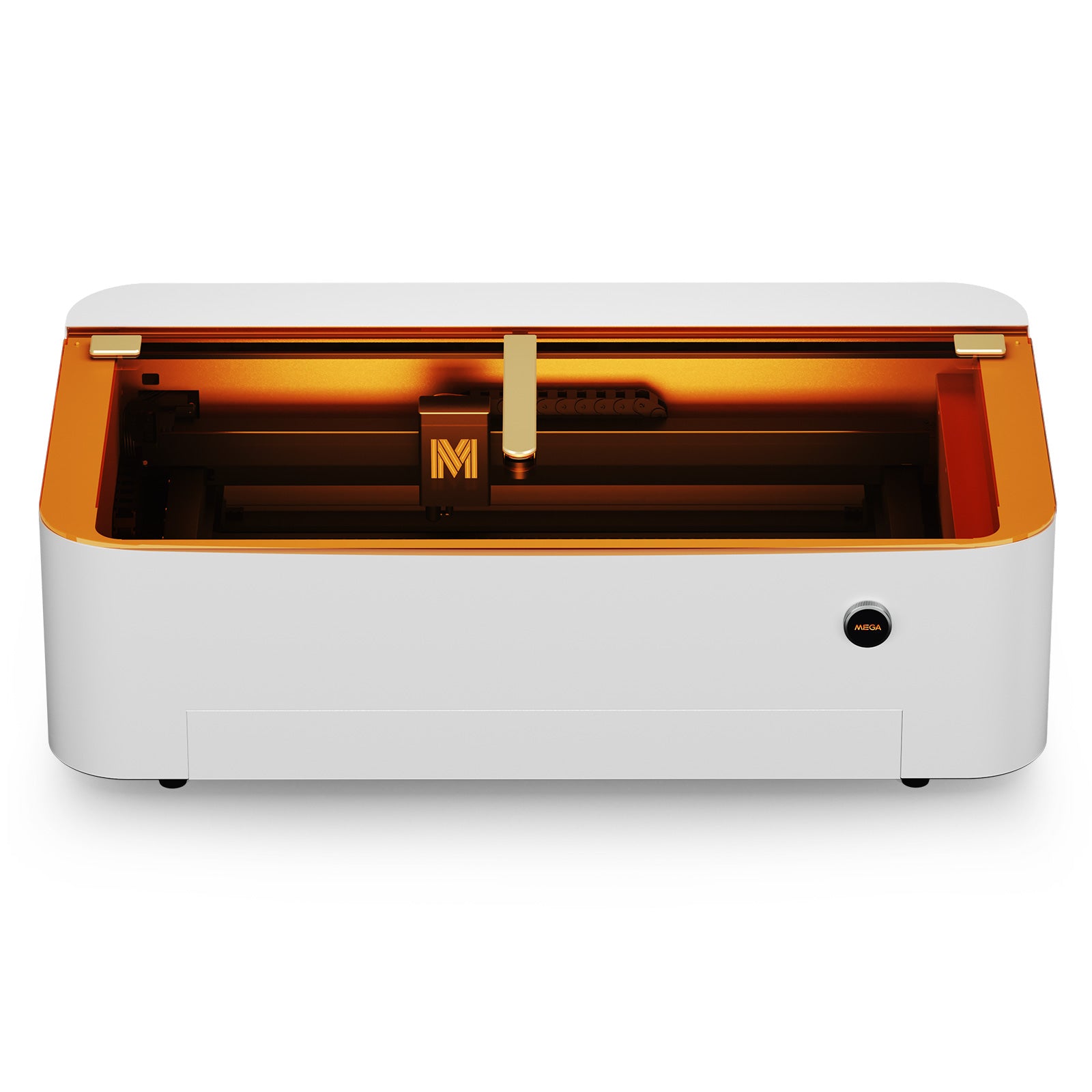

Name: Monport Mega: The World's Premier 70W Intelligent Desktop Engraving Machine
Brand: Monportlaser
SKU: 0F49TA00000US
Price: 3199.0 USD
Availability: InStock

Overview

Features

Specifications

Application

Performance

Outstanding Features

Why Choose Mega

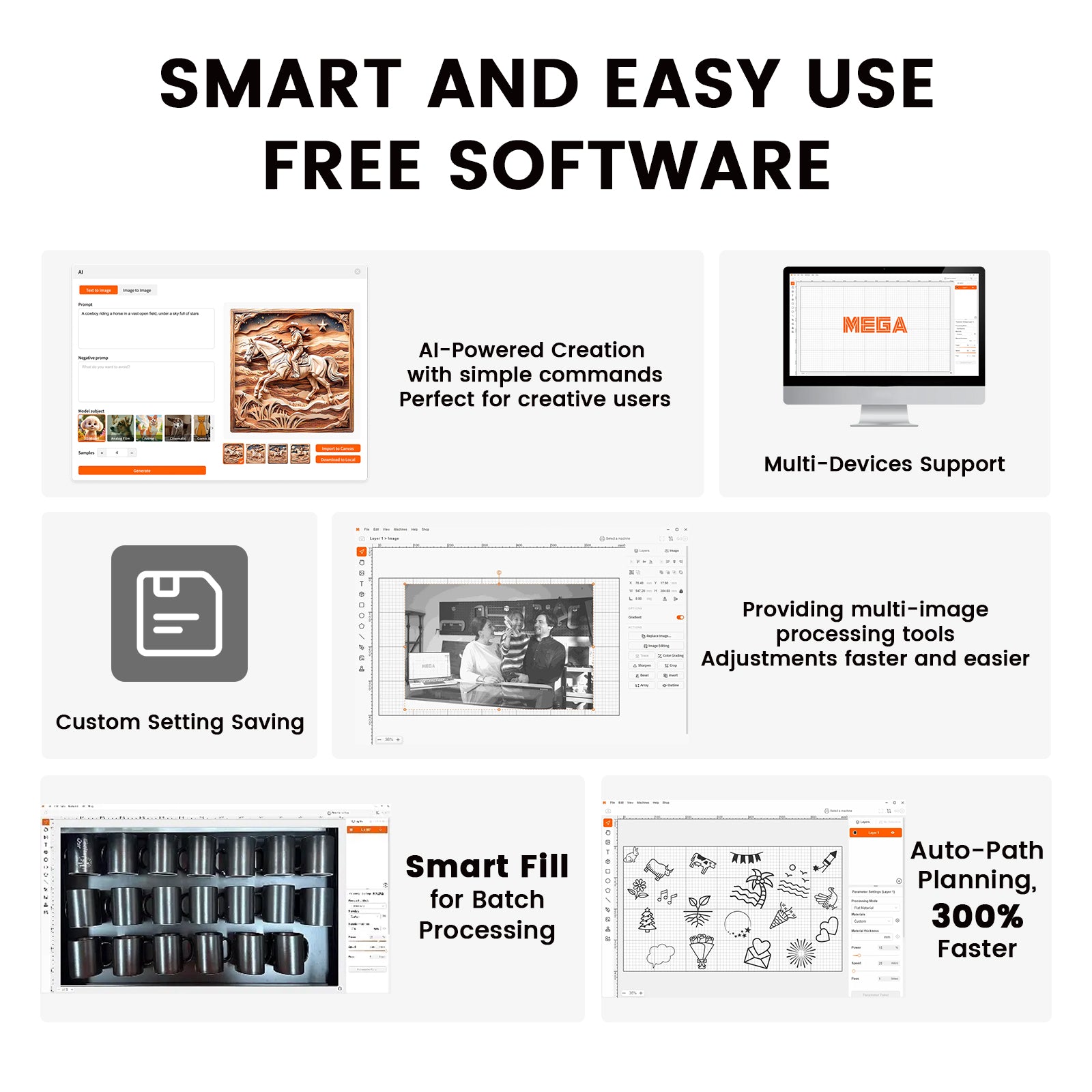

Download M-design Software

Material

Specs

Package Includes

Customer Reviews

FAQ

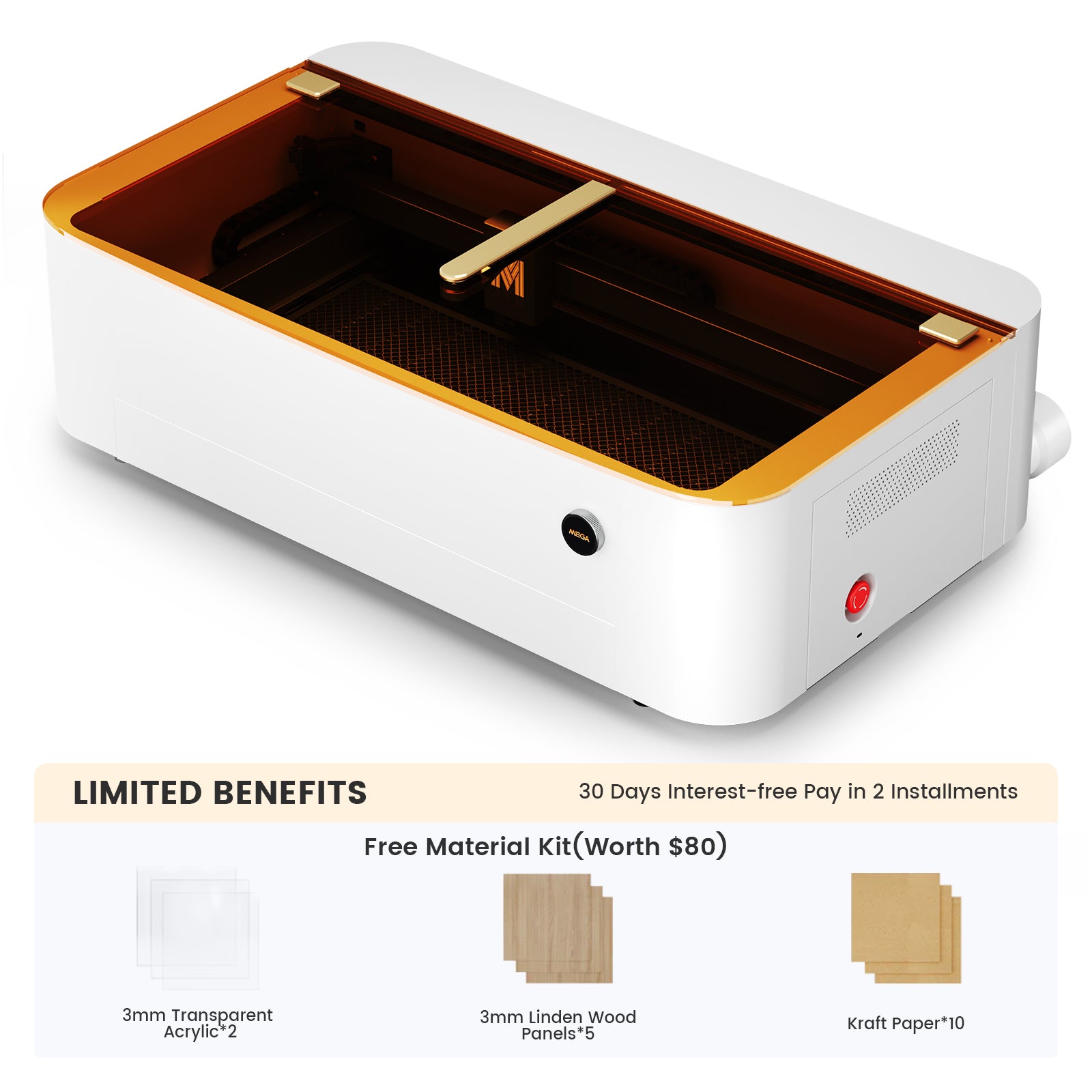

Monport Mega: The World's Premier 70W Intelligent Desktop Engraving Machine

Your Questions Answered

Monport Mega: The World's Premier 70W Intelligent Desktop Engraving Machine

Save $1,800.00

$3,199.00

$3,199.00 - $3,199.00

$3,199.00

$4,999.00

$4,999.00 - $4,999.00

$4,999.00

Tip: All Rotary Accessories in the website are not compatible with this product！

Quantity

Logistics

Free Shipping

2-Year Warranty

Learn More

Dimension & Specifications

Product Size: 44.09"×26.38"×12.99"(1120x670x330mm)

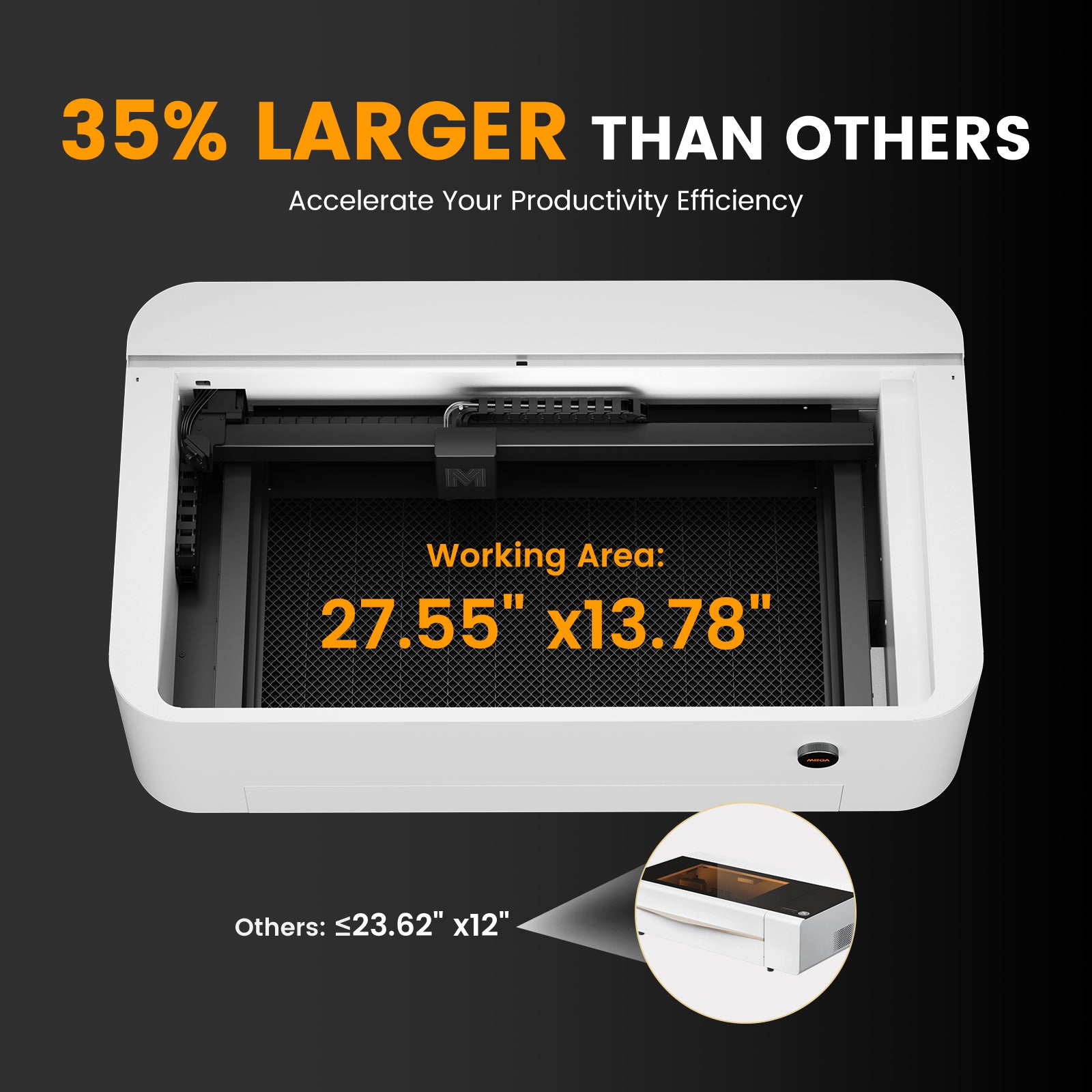

Working Space: 27.56"×13.78"(700x350mm)
Max. Working Speed: 1000mm/s (X - Axis Max Acceleration 12000mm/s²)
Max. Workpiece Height: 0-3.54''(0-90mm)
Z-Axis Movement: 0-1.18“(30mm)
Focus Mode: Autofocus
Air Assist: Included

Package Contents

Mega Desktop Machine*1

3mm Transparent Acrylic *2
3mm Linden Wood Panels *5
Kraft Paper *10
Air Duct Hose and Clamp *1
1L Antifreeze *1
Air Duct Adapter *1
Power Cord *1
USB Type C Cable *1
Optical Target Assembly *1
Screwdriver Kit *1
Funnel *1
Fixing Clips Set *1
Hex Wrenches Set *1 Woven Straps *2
Business Cards *5
Mega User Manual *1

Warranty & Certifications

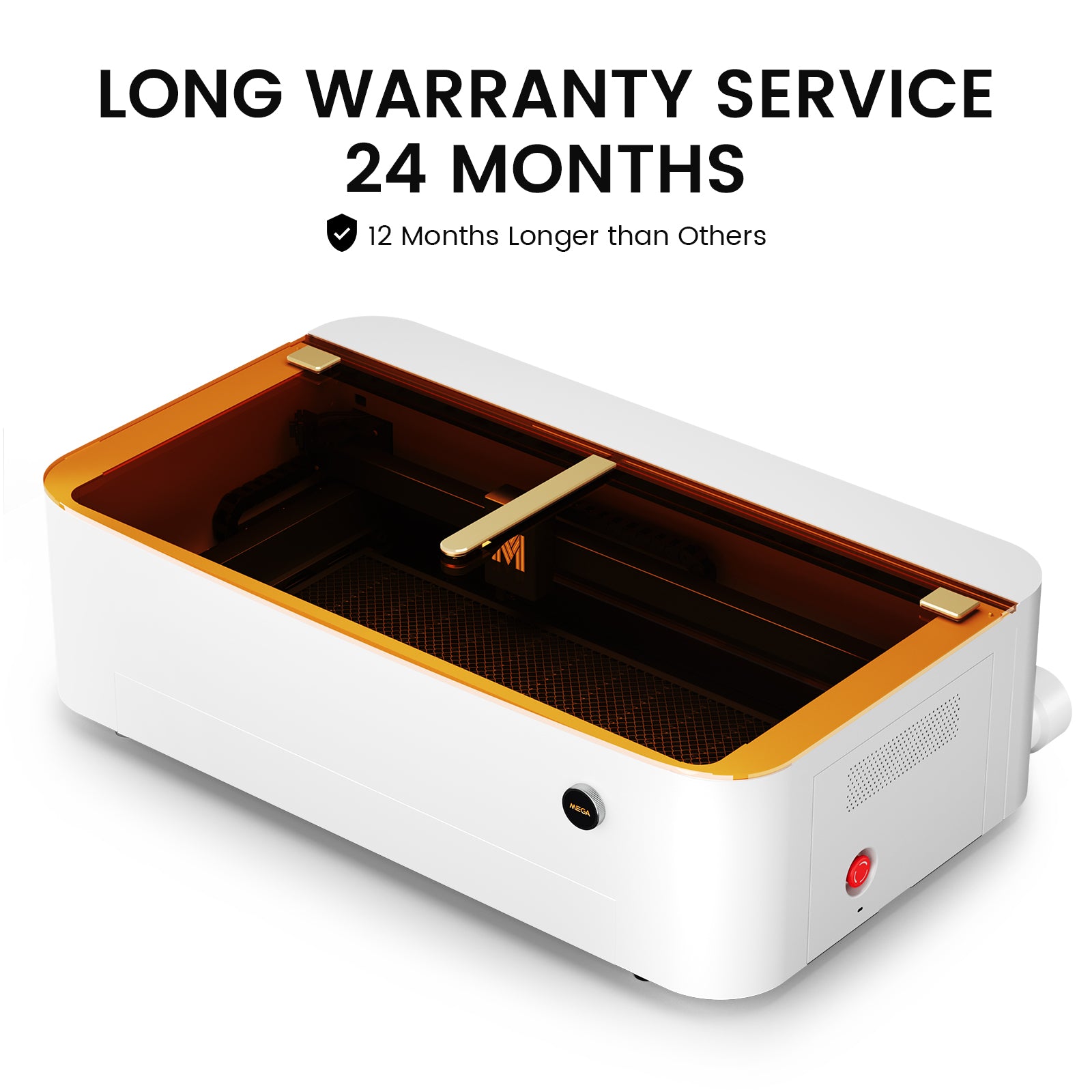

2-year warranty on the machine (excluding laser tubes).

6-month warranty on laser tubes.

Manuals, materials, tools, and grease are not warranted.

60% Prepayment Promotion

Pay 60% upfront, and settle the remaining balance after 30 days.

For return policies, please refer to our Refund Policy.

User Manual

Download Mega User Manual Here

Crafting Made Easy

Mega

Designed for Speed & Power

1000mm/s

Speed

27.56" x 13.78"

Area

70W

Power

0.01mm

Accuracy

Core Intelligent Features

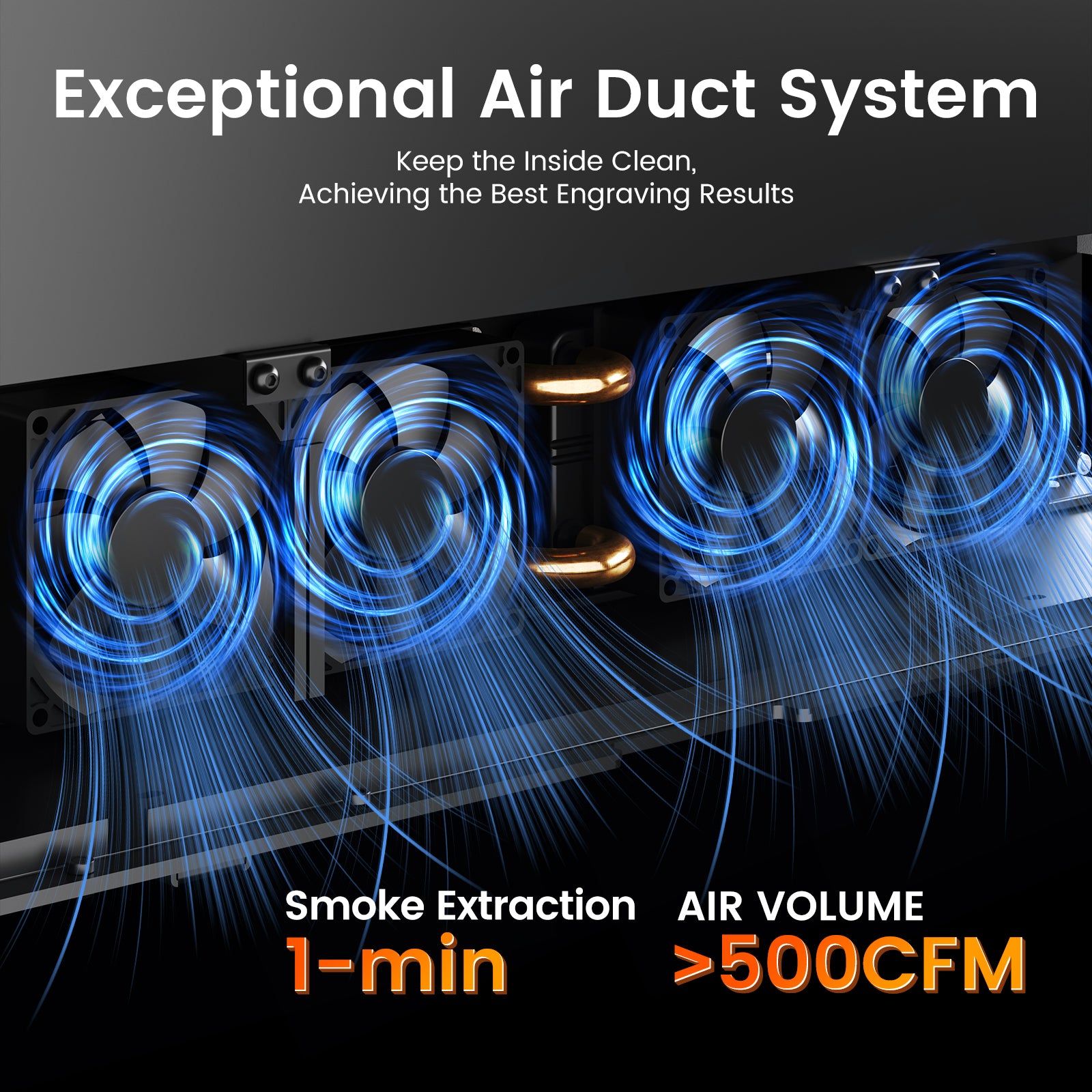

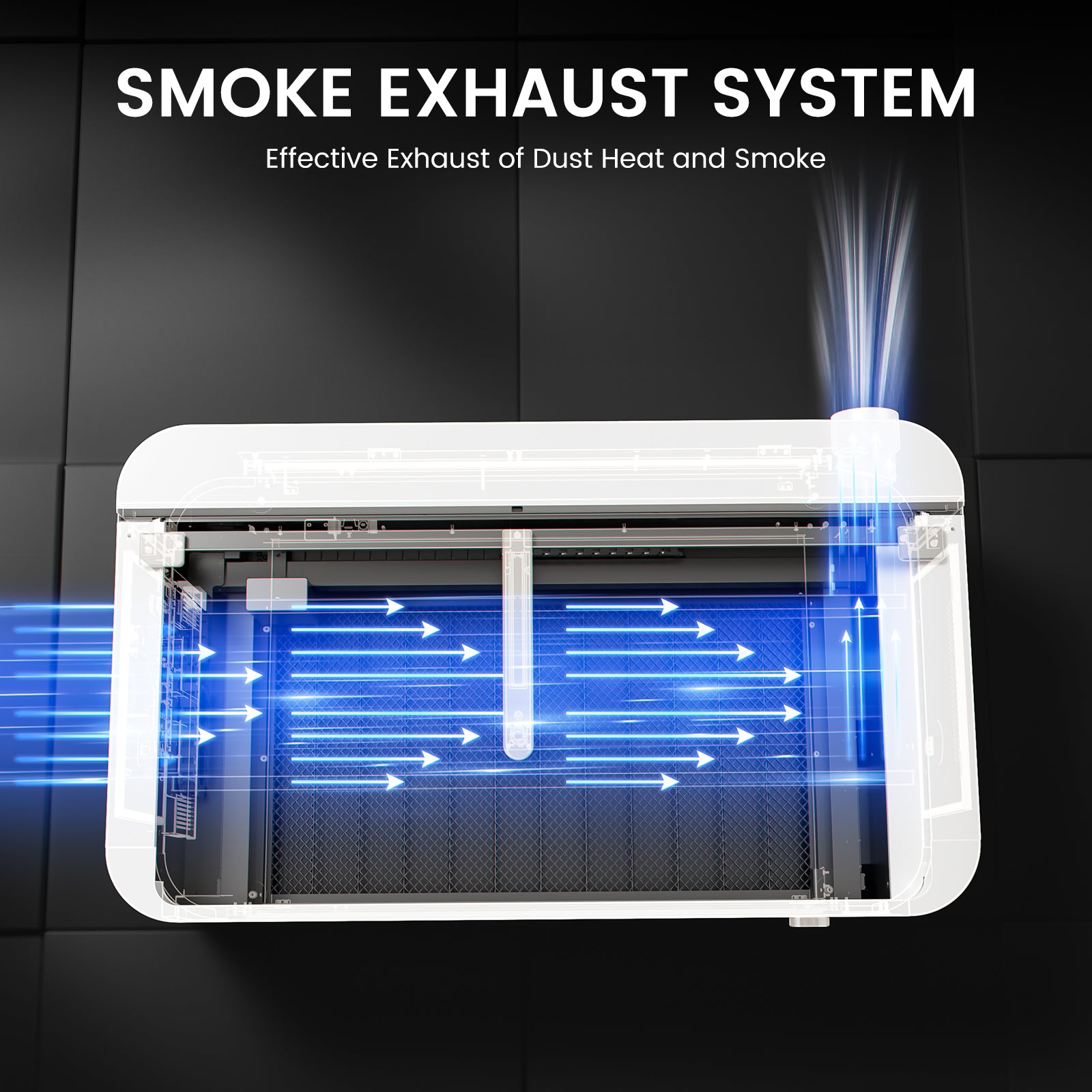

Exceptional Air Duct System

The Air Duct System of our engraving machine efficiently exhausts smoke, ensuring a clean environment with powerful suction.

Enclosed Guide Rail Design

The Enclosed Guide Rail Design effectively prevents dust contamination of the guide rail, significantly extending its lifespan and ensuring smooth operation overtime.

Precision in Speed

Experience engraving excellence! Our system maintains high precision even during rapid engraving. The combination of speed and quality ensures top-notch results with unmatched efficiency.

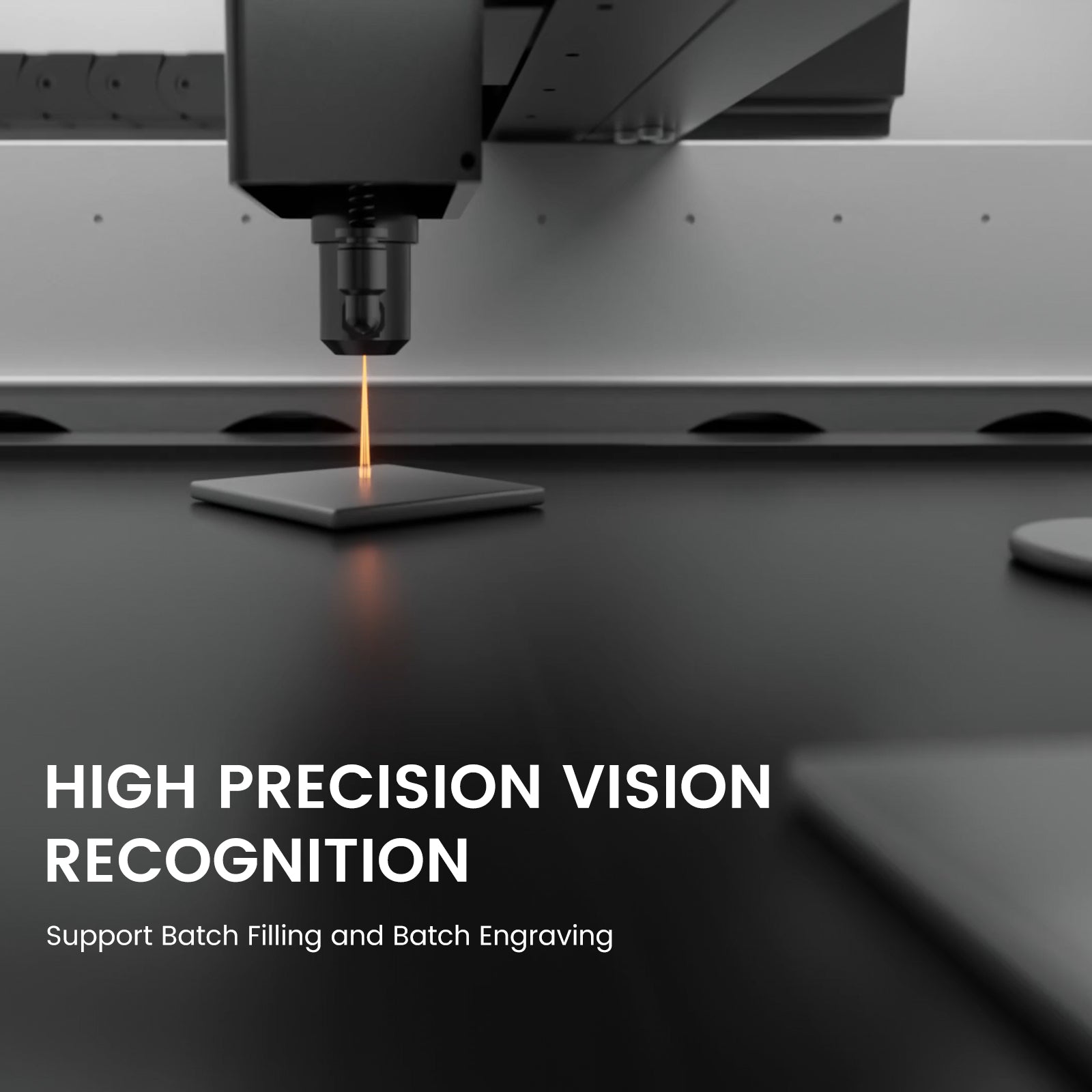

High Precision Vision Recognition

Our system supports batch engraving and engraving on curved surfaces. It delivers high precision and efficiency, reducing processing time while ensuring excellent results.

Intelligent Touch Screen

Our intelligent touch screen is versatile. It supports touch, rotary, and press operations, providing a user-friendly interface for seamless interaction and enhanced functionality.

Safety First

Mega Laser ensures safety and success with its laser leakage preventing design.

Smart Tech Revolution

If a fire is detected, the system automatically extinguishes the flames, ensuring your safety is always the top priority!

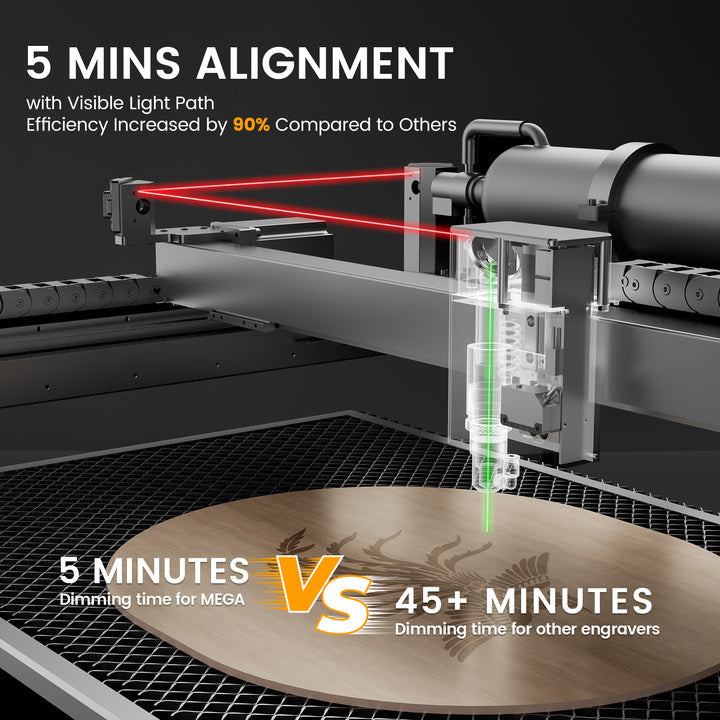

Experience the MEGA difference with our visual light path technology. While others spend over 40 minutes on laser alignment, MEGA gets you set up in just 5 minutes, revolutionizing your engraving efficiency.

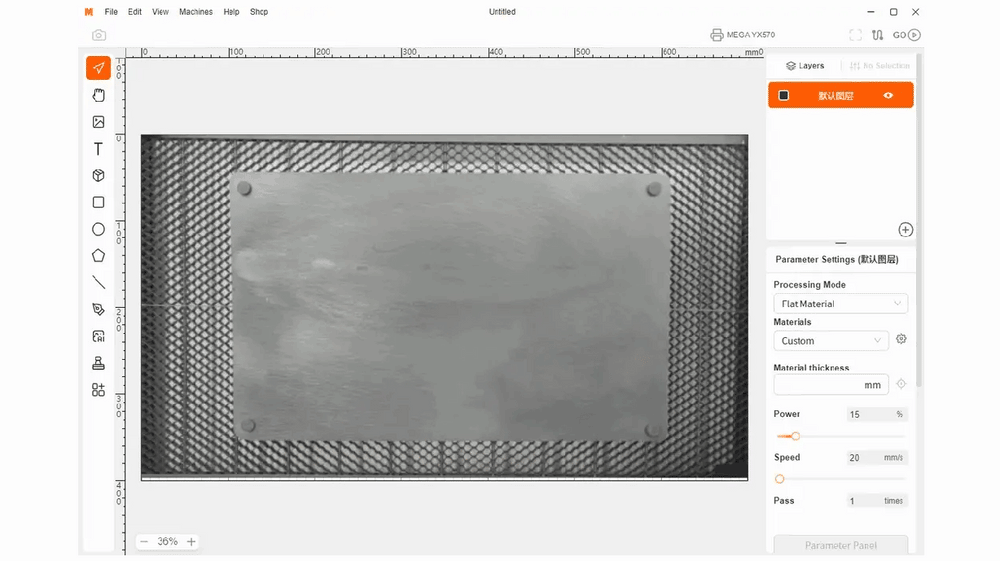

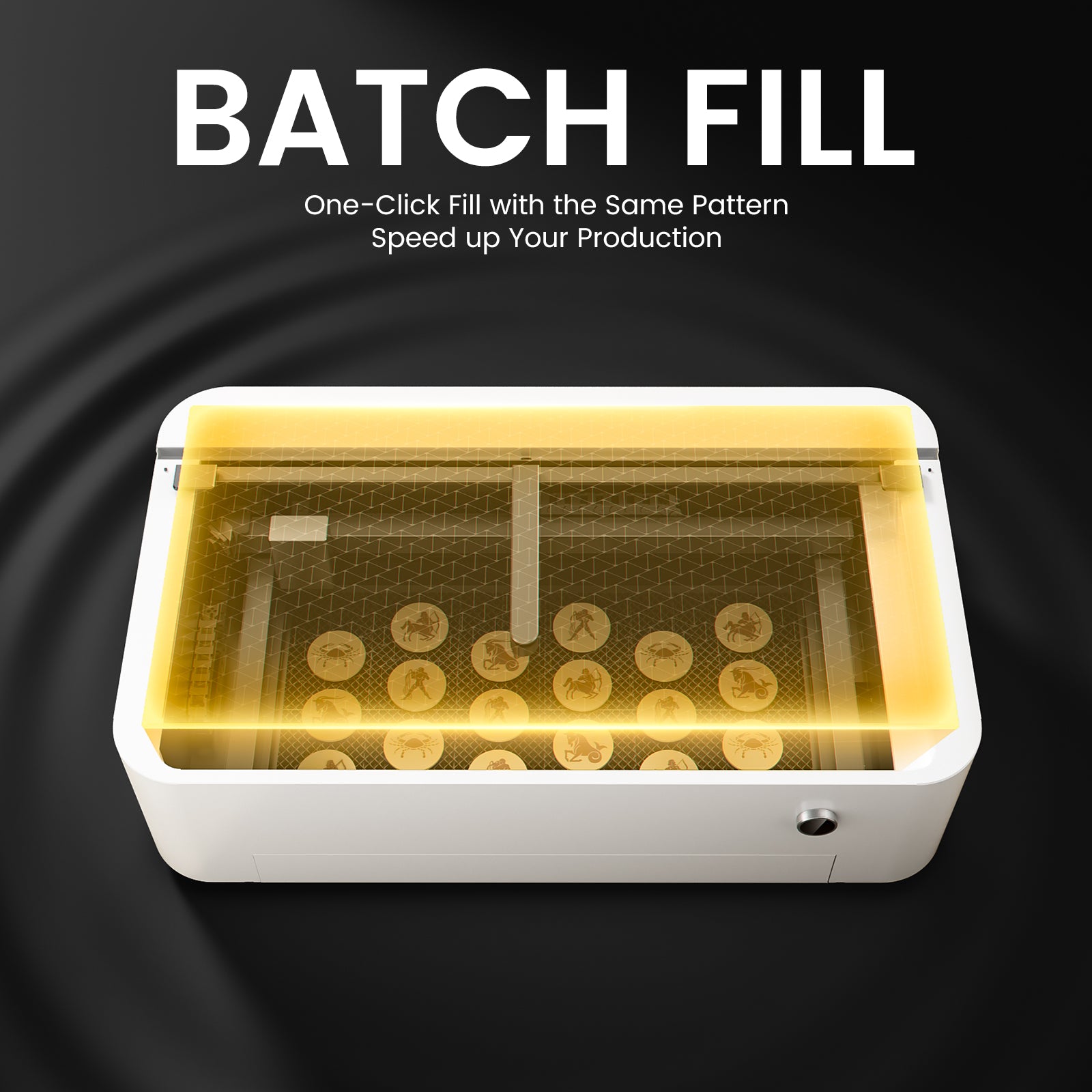

Unlock the power of MEGA with its ultra-wide-angle 8MP camera. Efficiently engrave complex, curved items in bulk by recognizing and replicating patterns across multiple objects automatically.

More Advanced Features

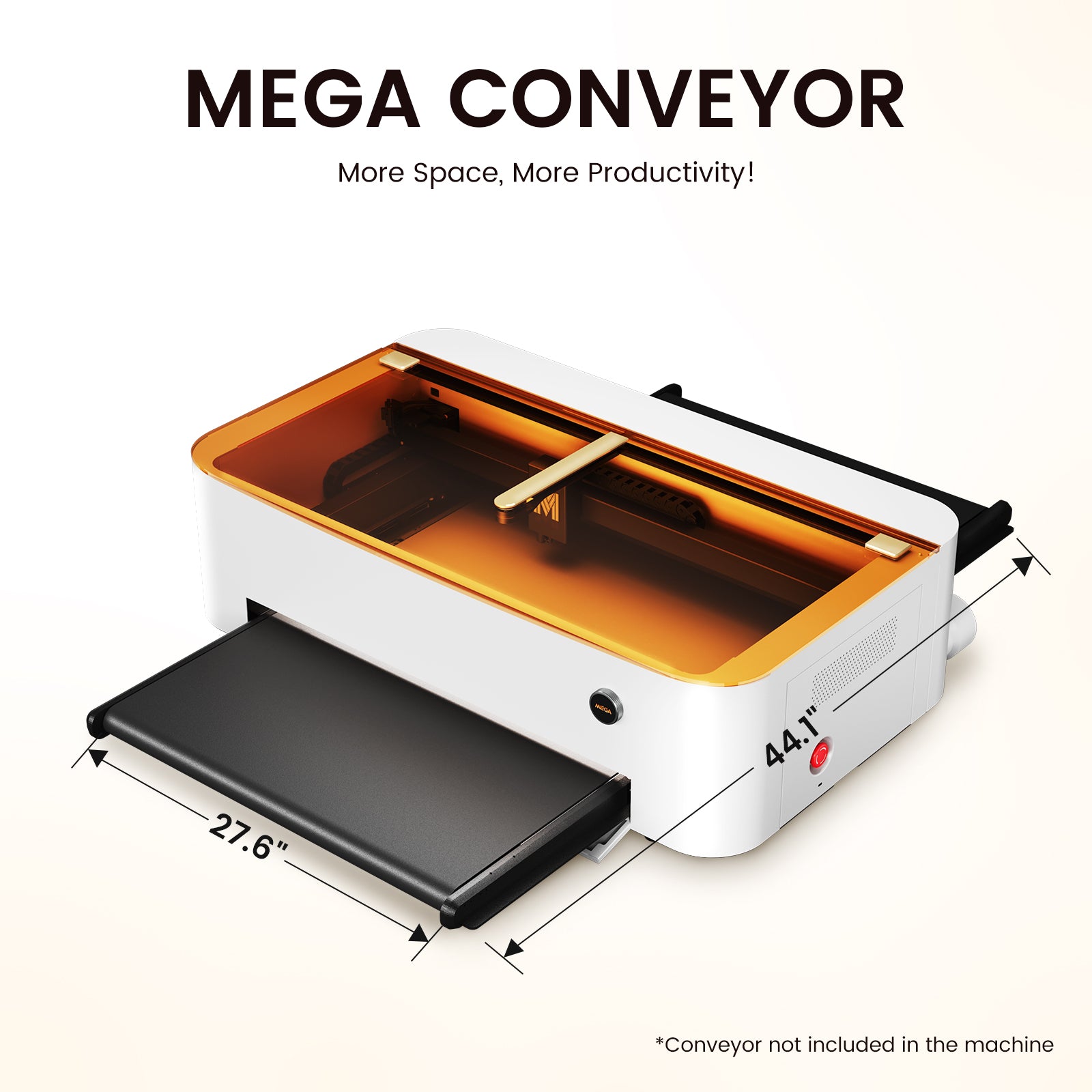

Expansion Accessories

Supports additional accessories, including cylindrical engraving attachments.

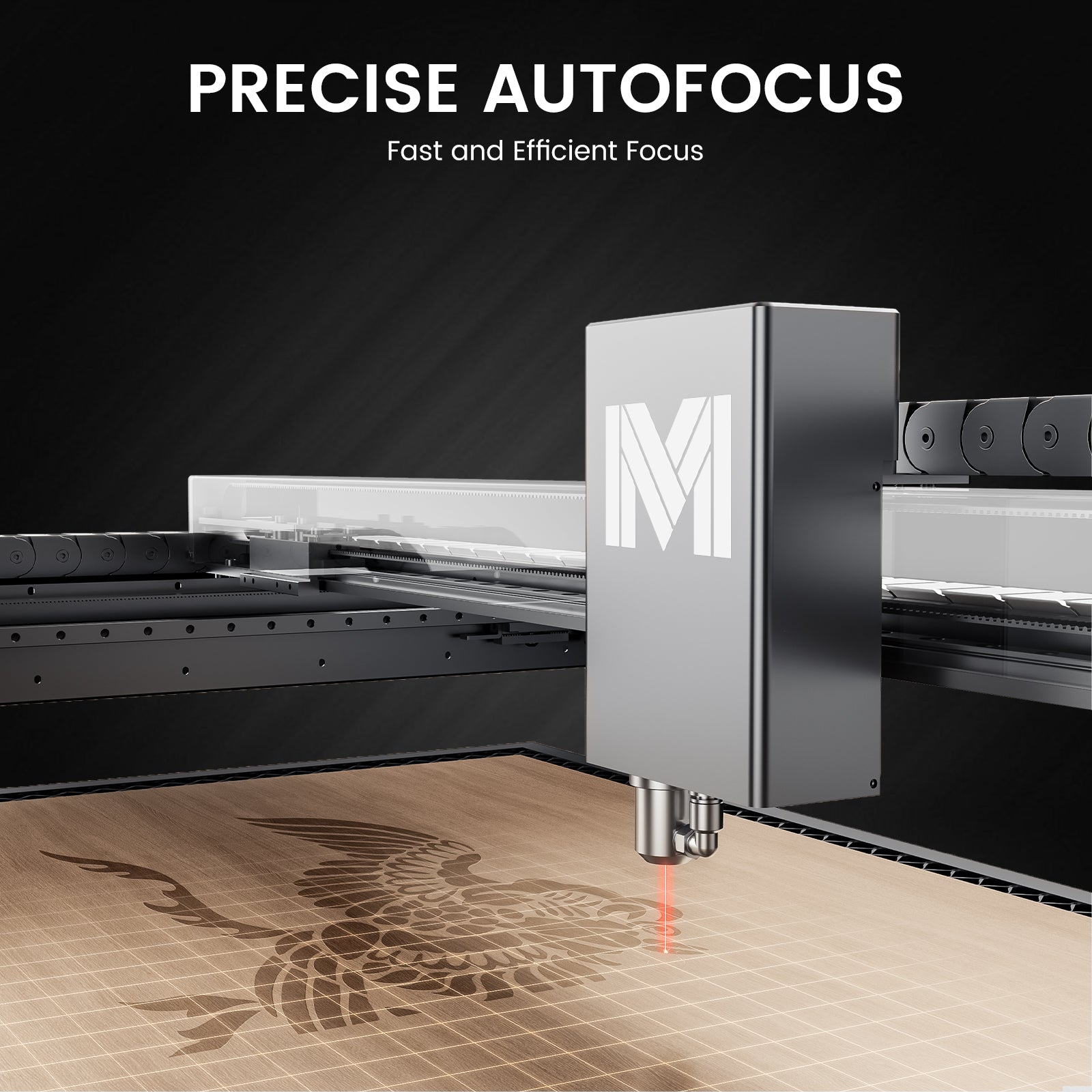

Auto-Focus

Automatically measures material thickness, height, and contours.

Safety Enclosure Design

Includes a drawer for safely engraving cylindrical and curved items.

Visual Light Adjustment Design

Utilizes integrated lights for quick and easy adjustments-no masking tape needed.

Machine Noise

Operating noise remains below 65dB in a 50dB environment.

Class 1 Laser Standard

Complies with IEC 60825 Class 1 safety standards and is certified for Class 4.

Enclosed Track Design

The enclosed track prevents dust accumulation, extending the rails' lifespan.

Flame Detection &Extinguishing Design

Equipped with fire safety systems for flame detection and suppression.

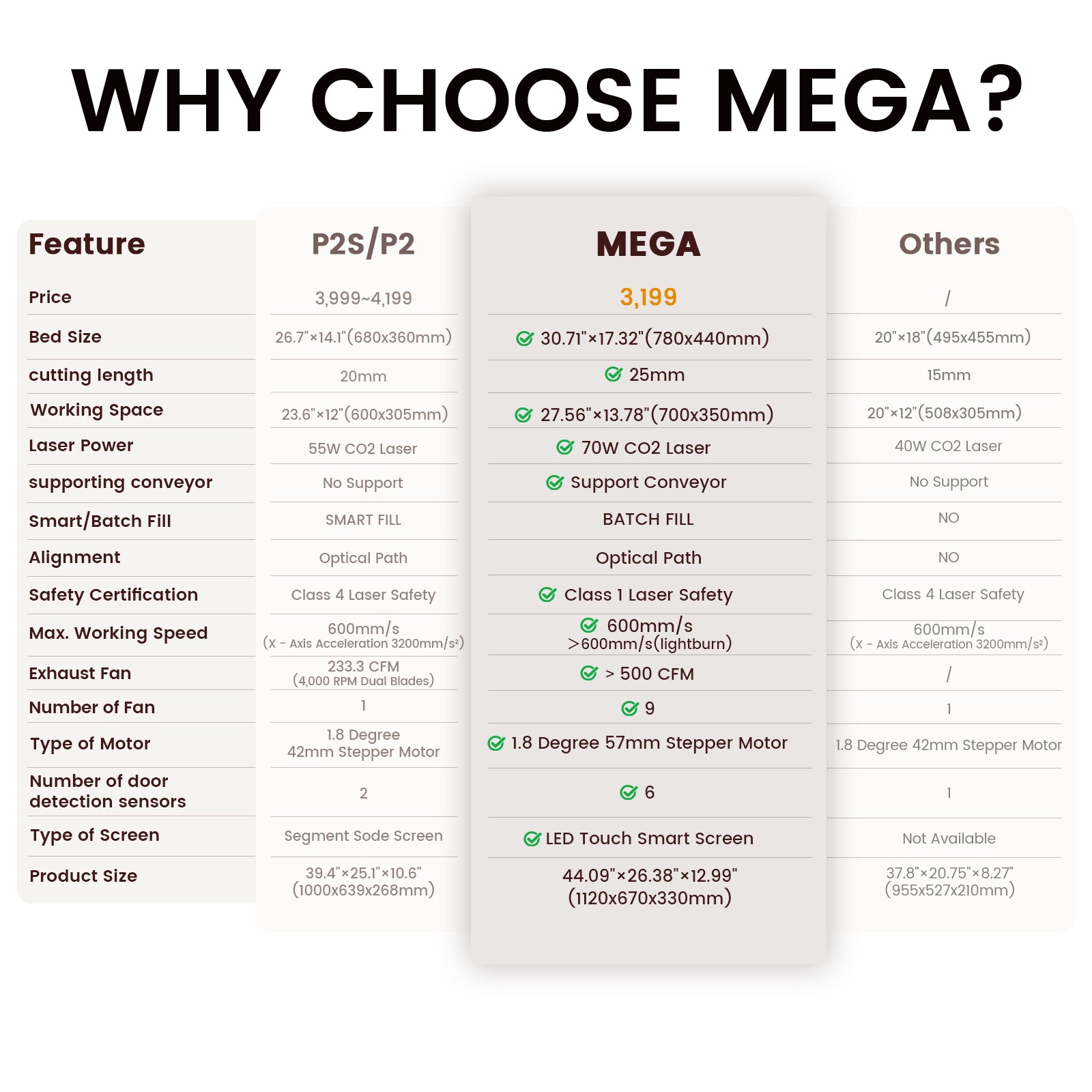

Feature	MEGA	P2S	P2	Others
Price	3199	4199	3699	/
Bed Size	30.71"×17.32"(780x440mm)	26.7"×14.1"(680x360mm)	26.7"×14.1"(680x360mm)	20"×18"(495x455mm)
Working Space	27.56"×13.78"(700x350mm)	23.6"×12"(600x305mm)	23.6"×12"(600x305mm)	20"×12"(508x305mm)
Laser Power	70W CO₂ Laser	55W CO₂ Laser	55W CO₂ Laser	40W CO₂ Laser
Product Size	44.09"×26.38"×12.99"(1120x670x330mm)	39.4"×25.1"×10.6"(1000x639x268mm)	39.4"×25.1"×10.6"(1000x639x268mm)	37.8"×20.75"×8.27"(955x527x210mm)
Product Weight	70kg	45kg	45kg	40kg
Max. Working Speed	1000mm/s (X - Axis Max Acceleration 12000mm/s²)	600mm/s (X - Axis Acceleration 3200mm/s²)	600mm/s (X - Axis Acceleration 3200mm/s²)	600mm/s (X - Axis Acceleration 3200mm/s²)
Exhaust Fan	> 500 CFM	233.3 CFM(4,000 RPM Dual Blades)	145 CFM(7,000 Single Blade)	/
Number of Fan	9	1	1	1
Optical Target Assembly	Included (Used for Auxiliary Aligning)	Included	Included	Not Available
Type of Motor	1.8 Degree 57mm Stepper Motor	1.8 Degree 42mm Stepper Motor	1.8 Degree 42mm Stepper Motor	1.8 Degree 42mm Stepper Motor
Number of door detection sensors	6	2	2	1
Type of Extinguishing System	Built - in	External (Be Purchased Separately)	External (Be Purchased Separately)	Not Available
Weight of Extinguishing Gas	Recyclable 40g CO₂ cylinder (TR21 - 4 Needle Valve)	Disposable 16g CO₂ gas cylinder	Disposable 16g CO₂ gas cylinder	Not Available
Type of Screen	LED Touch Smart Screen	Segment Sode Screen	Segment Sode Screen	Not Available

Expand+

Explore More Difference Between Mega and P2

Best of the Best: Top Picks in Design and Media

In-Depth Professional Reviews

Craft on Various Materials with Our Precision Engraver

Craft on Various Materials with Our Precision Engraver

Wood

Leather

Coated Metal

Glass

Rock

Others

Document

Item	Specification
Bed Size	30.71''×17.32''(780x440mm)
Working Space	27.56"x13.78"(700x350mm)
Laser Power	70W CO2 Laser
Product Size	44.09’'×26.38''×12.99''.(1120x670x330mm)
Product Weight	70kg
Coltage/Current	110V/10A or 220V/5A
Max. Working Speed	1000mm/s (X-Axis Max Acceleration 12000mm/s²）
Max. Workpiece Height	0-3.54''(0-90mm)
Rotary Engraving Diameter	0-60mm
Z-Axis Movement	0-1.18“(30mm)
Operating Ambient Temperature	10-30°C 10-86°F)*lf the temperature drops below 10°C (50°F),please add antifreeze
Storage Temperature	10-45°C (50-113°F)
Air Assist	Included
Air Pump Presssure	50kPa
Exhaust Fan	＞500 CFM
Number of Fan	9
Visible Optical Path	Included（Red/Green）
Optical Target Assembly	Included（Used for Auxiliary Aligning）
Type of Guide Rail	Linear Guide
Sealability of GuideRail	Enclosed Guide Rails
Type of Motor	1.8 Degree 57mm Stepper Motor
Number of door detection sensors	6
Type of Extinguishing System	Built-in
Weight of Extinguishing Gas	Recyclable 40g CO2 cylinder (TR21-4 Needle Valve)
Type of Screen	LED Touch Smart Screen
Daily Maintenance	Just Need a Simple Wipe
Water-Cooling System	Capacity: 1.2L(0.32gal)
Ranging System	LiDAR Ranging System
Camera Type	Panoramic Camera
Number of Pixels (Effective)	8MP×1
Vision Precision	0.3mm
lmage Resolution	1000 DPI
Focus Mode	Autofocus
Software	M-Design Hub / Lightburn
Connection	WiFi & USB
Support File	SVG/DXF/IPG/IPEG/PNG/BMP,etc
Support Systems	Windows / Mac

Expand+

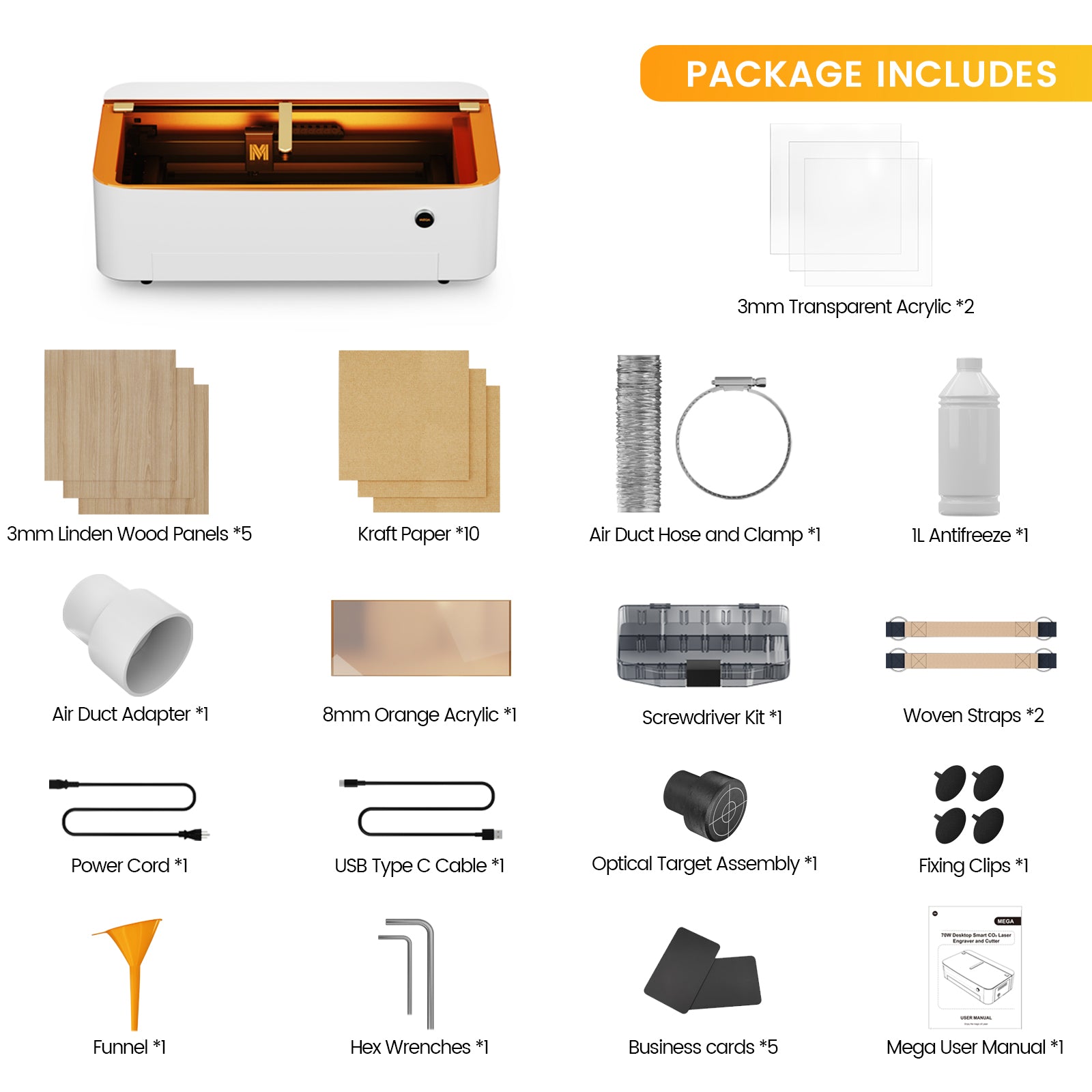

What's in the Box

70W CO2 Laser *1

3mm Transparent Acrylic *2

3mm Linden Wood Panels *5

Kraft Paper *10

Air Duct Hose and Clamp *1

1L Antifreeze *1

Air Duct Adapter *1

Power Cord *1

USB Type C Cable *1

Optical Target Assembly *1

Screwdriver Set *1

Funnel *1

Fixing Clips Set *1

Hex Wrenches Set *1

Woven Straps *2

Business Cards *5

Mega User Manual *1

Frequently Asked Questions

1. What is the bed size and maximum engraving size?

The bed size is 27.56" × 13.78", which is also the maximum engraving size.

2. What size of material can I put in MEGA?

MEGA can handle materials up to 30.71" × 17.32".

3. Does the mega have a passthrough or a continuous feed like the P2?

Yes, The Mega laser has front and rear passthrough.

4. Would you recommend that fume extractor for the 70w Mega?

220w/350W.

5. Does MEGA have air assist and a water cooler?

Yes, it has built-in air assist and a water cooler.

6. Does MEGA support Lightburn?

Yes, MEGA is compatible with Lightburn.

7. Can this work with safari? I just want to be certain the software will work with a MacBook？

You need to use professional engraving software when operating this machine. Our machine comes with M-Design Hub software. You can download M-Design Hub on your mobile phone or computer to operate the machine. And, The M-Design Hub software is compatible with MacBook.

8. Does MEGA have a camera?

Yes, it features a 8MP camera.
