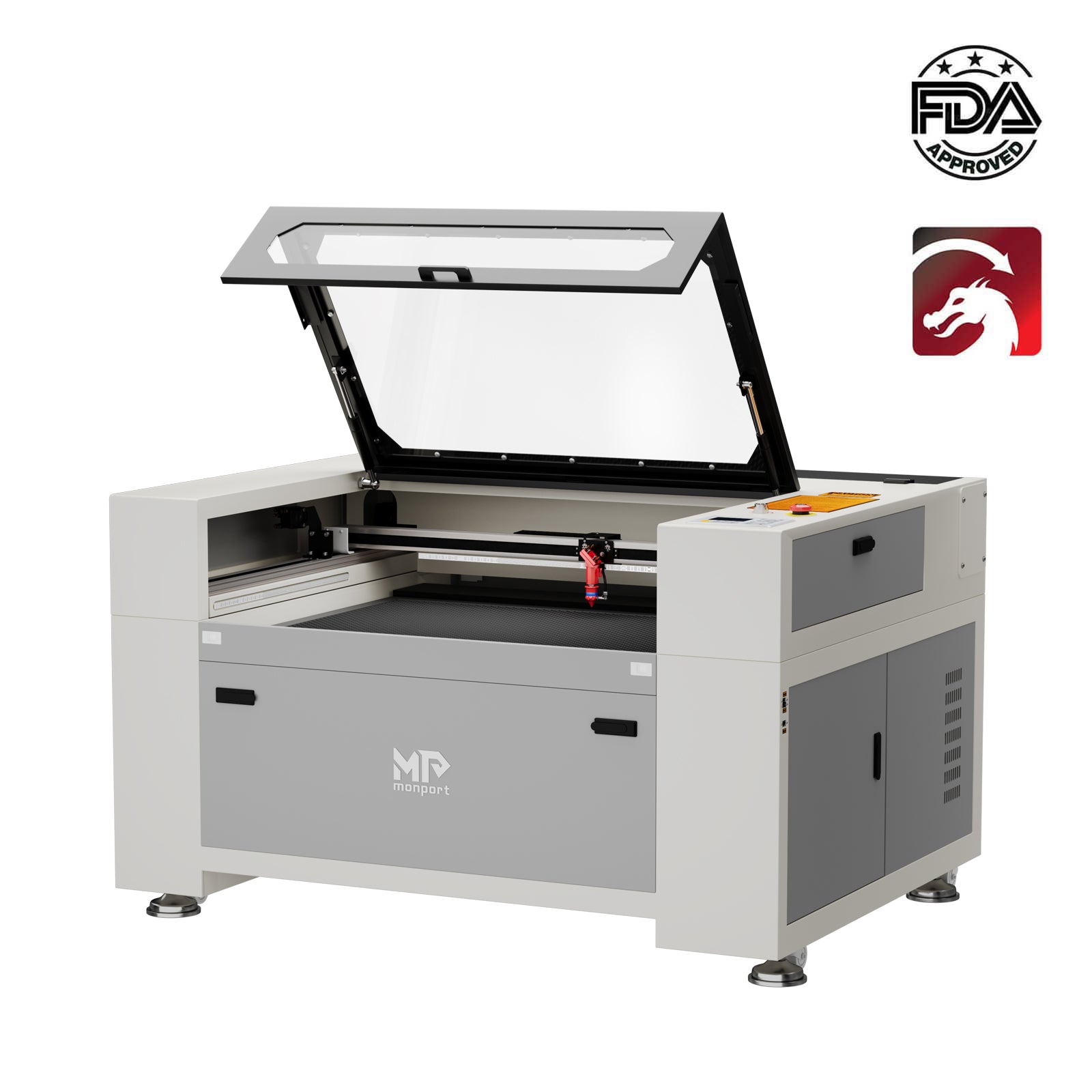

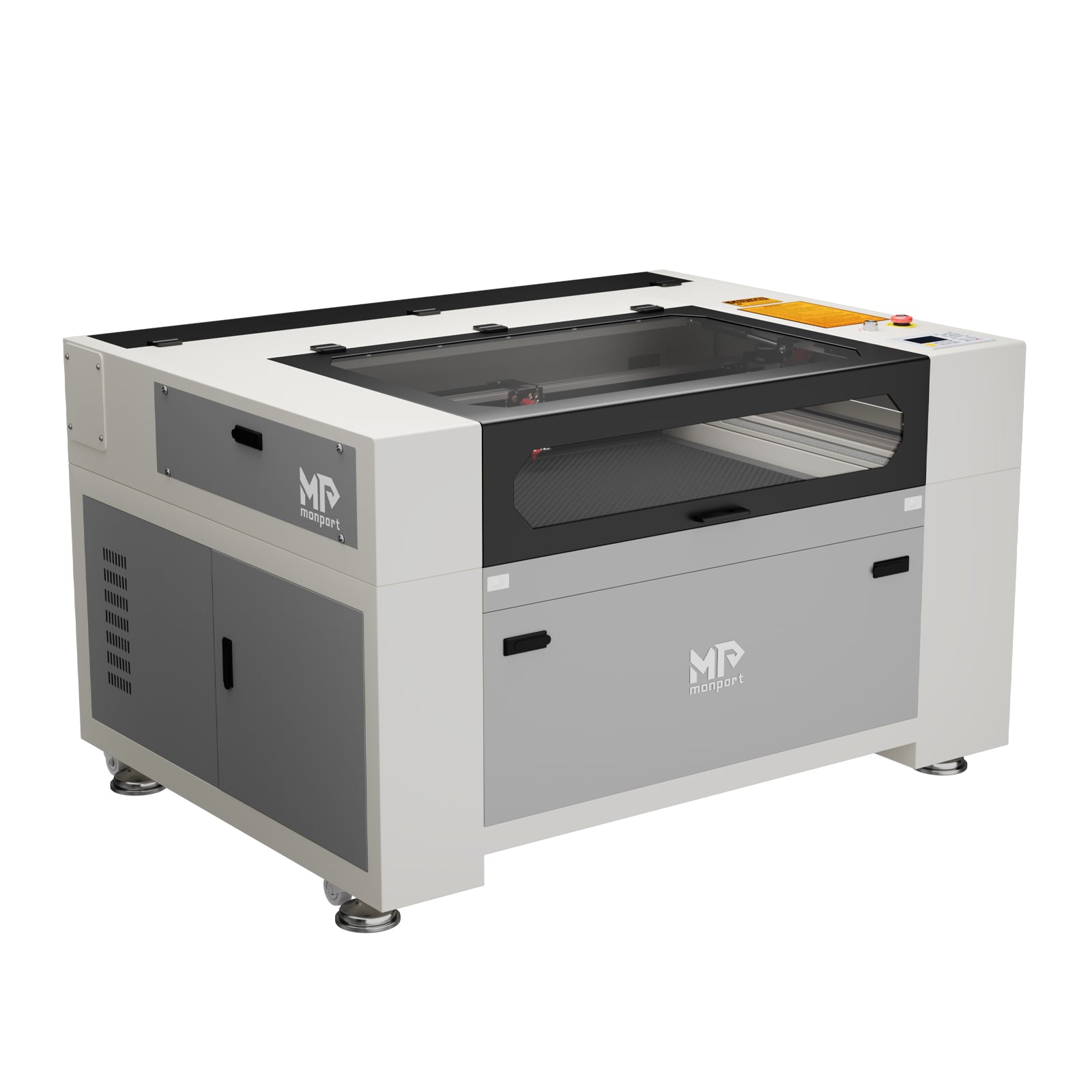

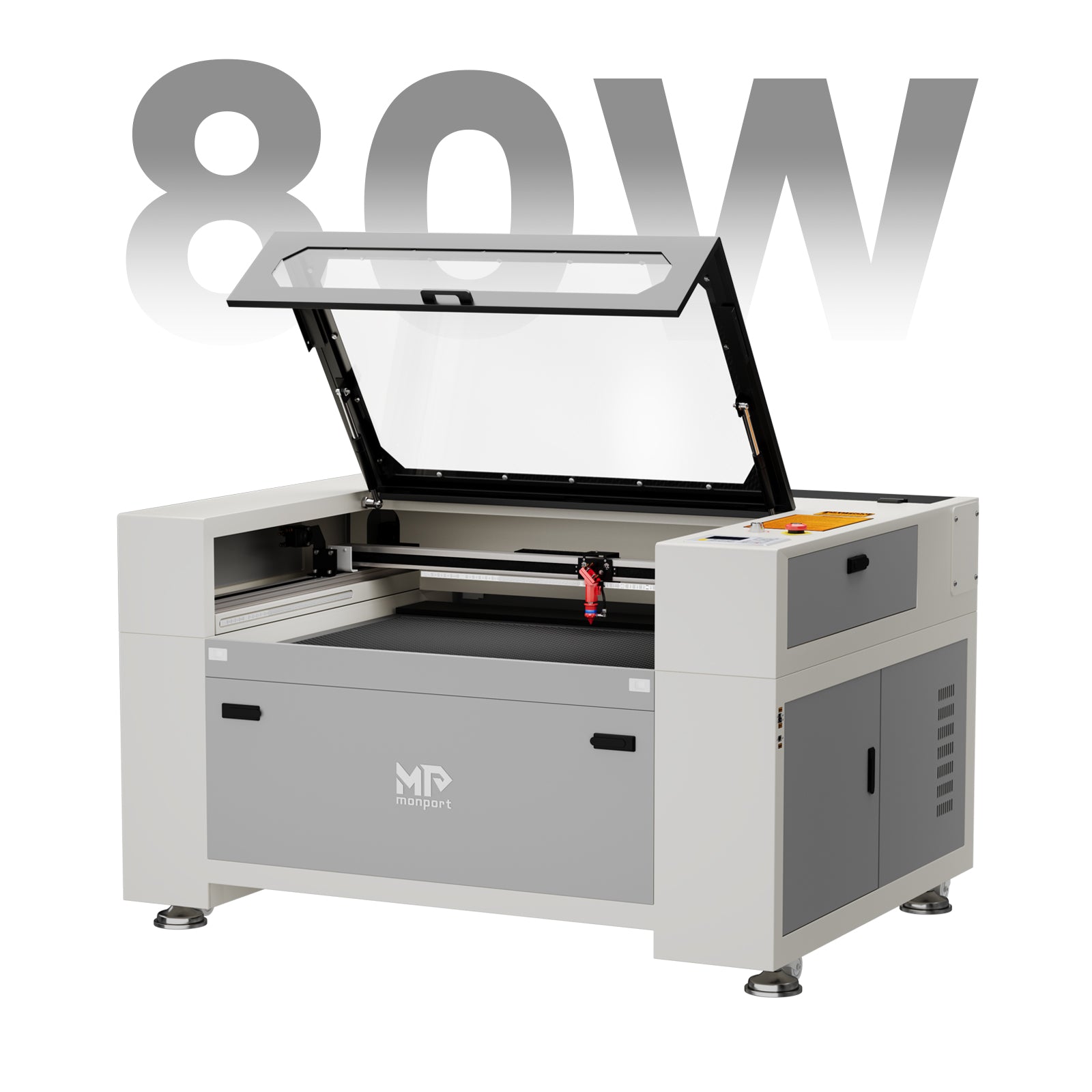

Special Offer | Monport 80W Built-in Chiller CO2 Laser Engraver & Cutter (36" x 24")
Save $1,500.00
Current price
$3,699.99
$3,699.99
-
$3,999.99
Current price
$3,699.99
Original price
$5,199.99
Original price
$5,199.99
-
Original price
$5,499.99
Original price
$5,199.99
🎁Mystery box may contain 2-3 items such as air purifier, laser glasses, or antifreeze coolant, valued above the box price. Selecting this option activates a $200 discount on purchases over $3999.
Ask a Question
Free Shipping
2-Year Warranty
Dimension & Specifications
Machine Dimension: 57'' x 43'' x 35''( 145cm x 110cm x 90cm )
Package Dimension: 61” x 47” x 47” ( 156 cm x 120 cm x 119 cm )

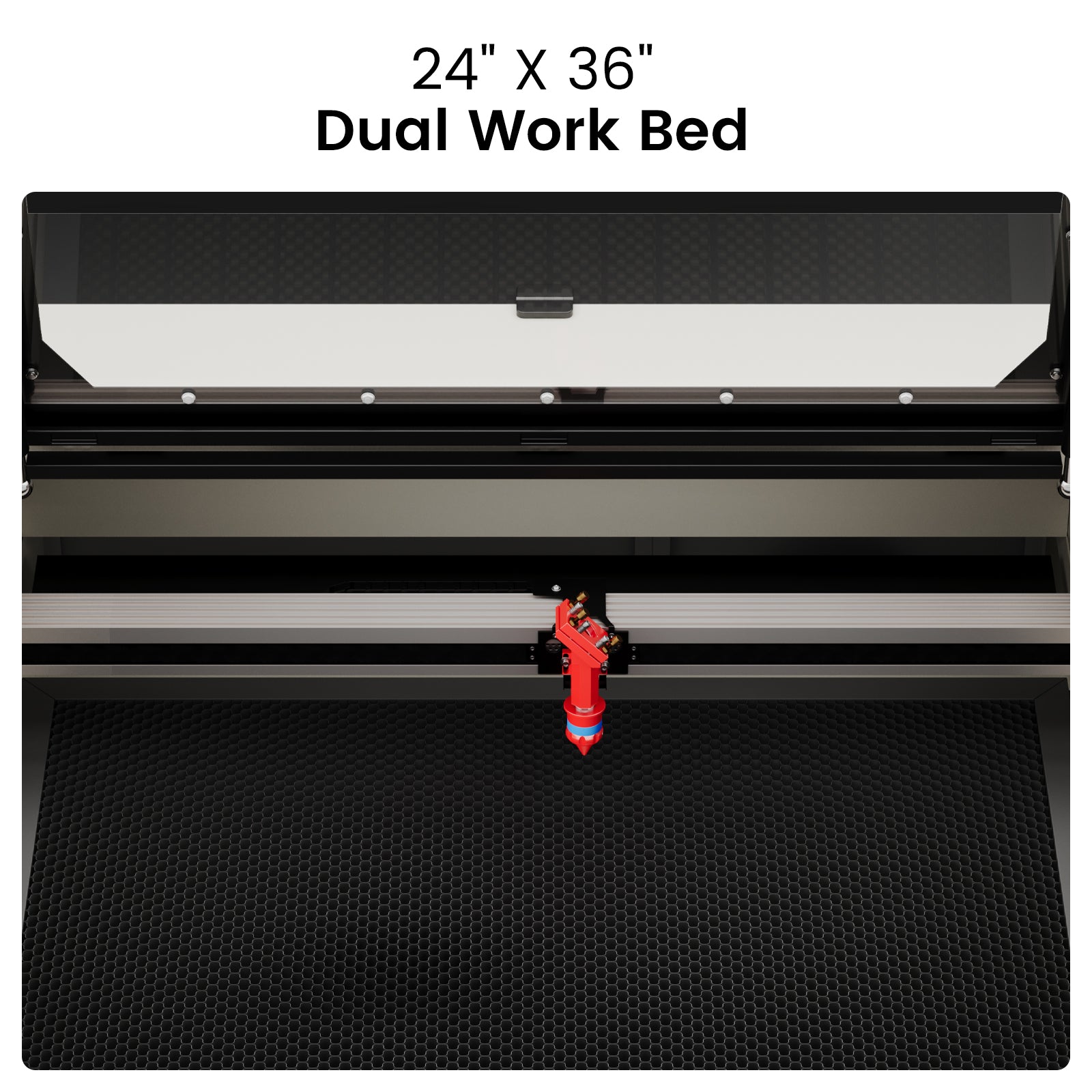

Working Dimension: 24'' x 36'' ( 61 cm x 91.5 cm )
Pass-through Dimension: 2.9'' x 37.4''( 7.5cm x 95 cm )
Max Engraving Speed: 800mm/s
Max Engraving Depth: 19.05mm
Min Engraving Depth: 0.01mm
Focal Lens Diameter: 18mm
Mirror Diameter: 25mm
Max Z-depth: 13.7"
Package Weight: 568.8 lbs ( 258 kg )

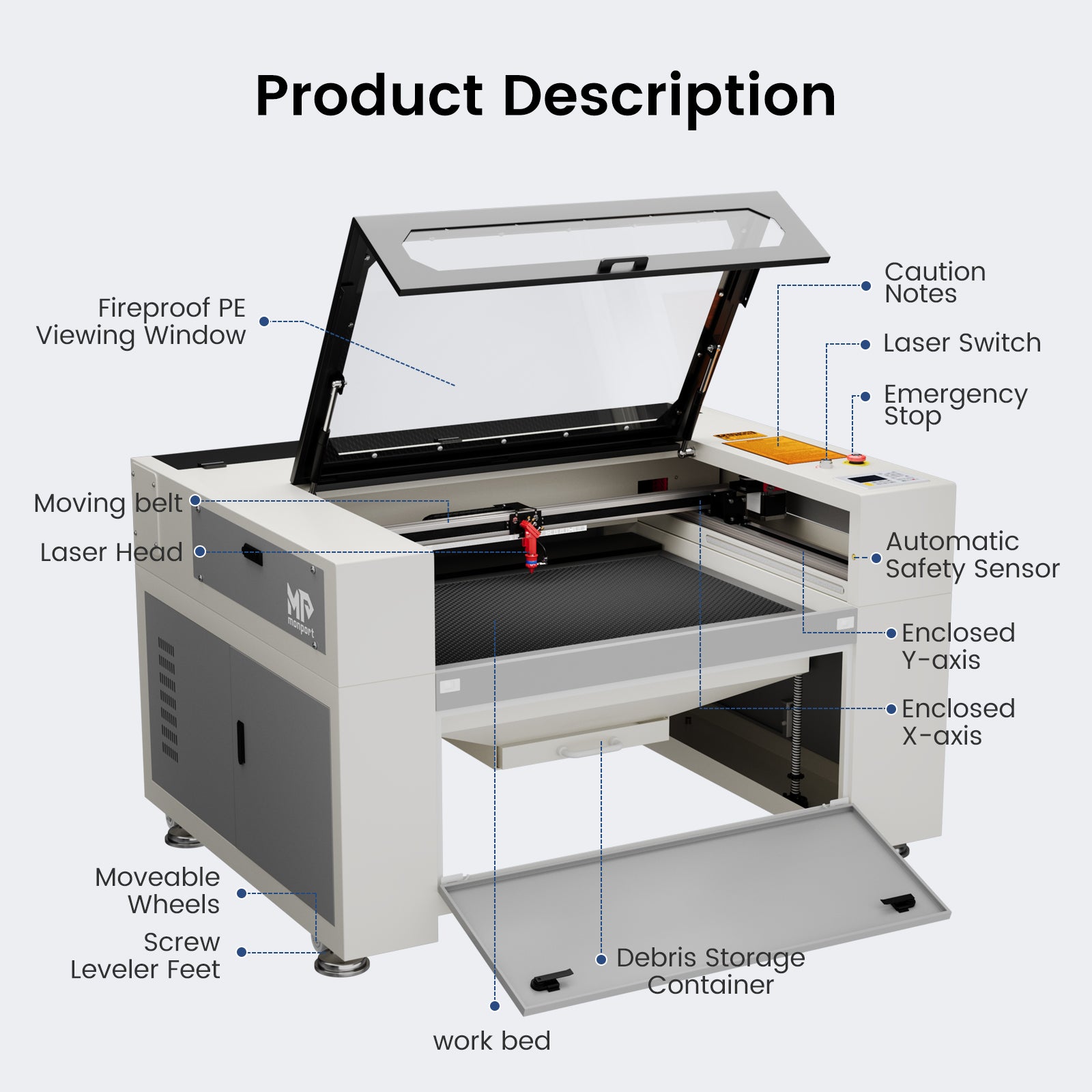

Monport 80W Benefits
Fireproof Viewing Window
This viewing window is made from special fire-resistant polyester with iron frames. The melting point of this polyester ranges from 432° to 488° and the ignition temperature of it is over 1000°, which can dramatically decrease the possibility of fire accidents caused by the heat of laser burning the materials.

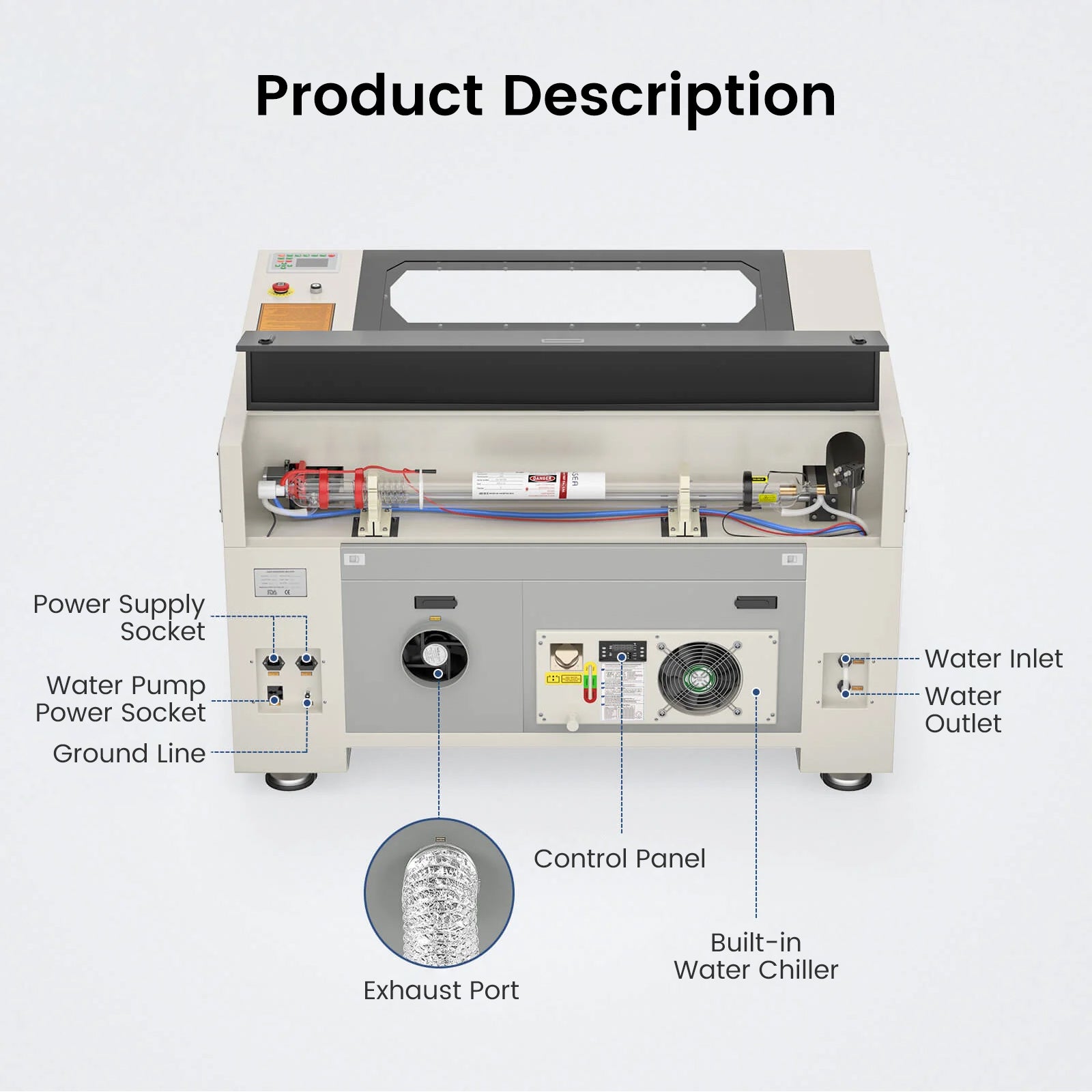

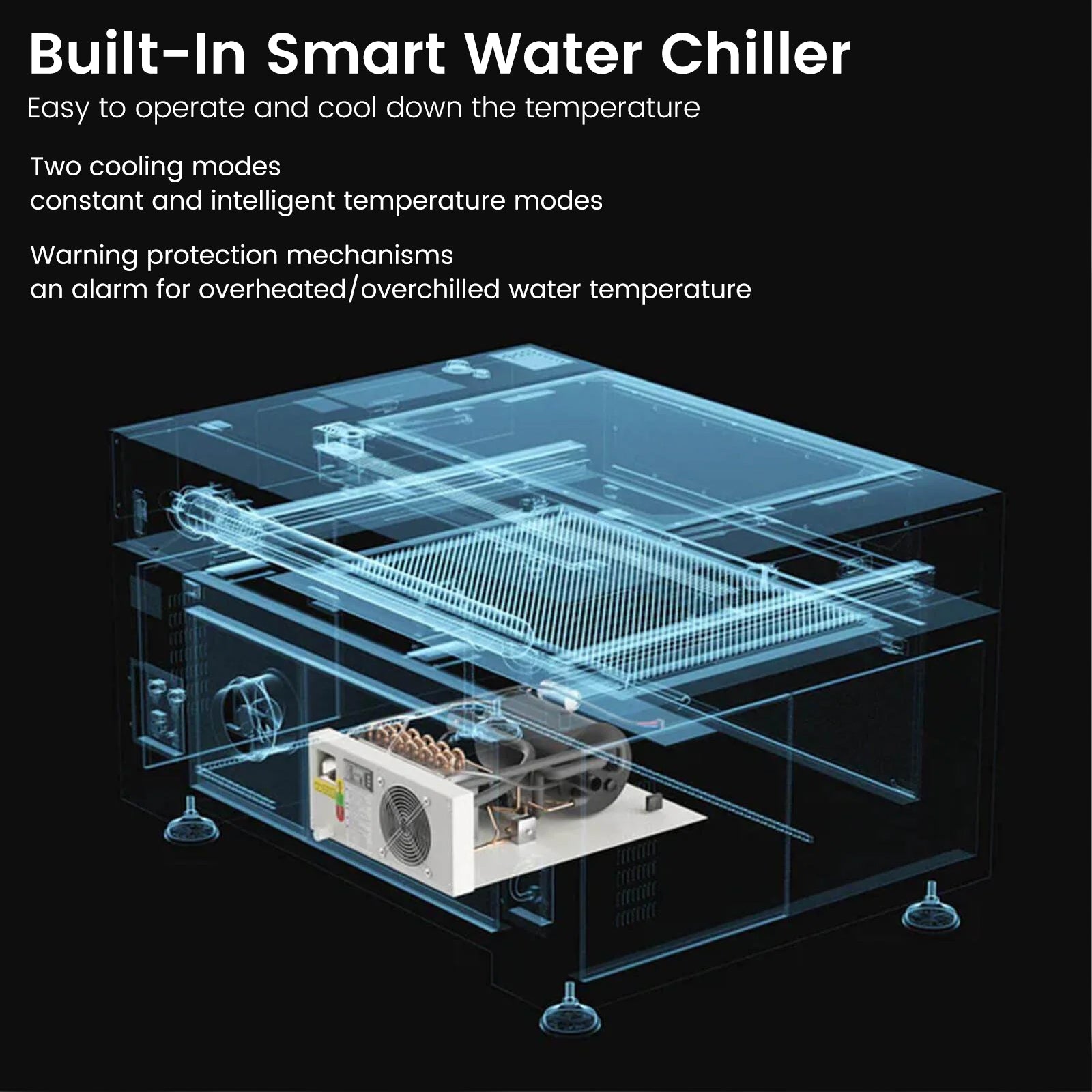

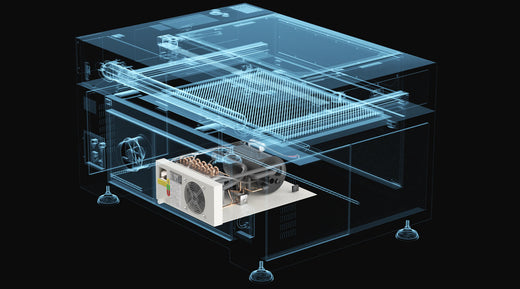

Built-in Smart Water Chiller
The built-in 3L water chiller is easy to operate and cools down the temperature without any other machines. To meet different needs, there are two cooling modes, constant and intelligent temperature modes. This professional water chiller has multiple warning protection mechanisms such as an alarm for ambient temperature, an alarm for overheated/overchilled water temperature, and so on. When the alarm occurs, the display will alternate between the water temperature and the error.
Enclosed Aeronautical Aluminum Rail
Equipped with X and Y stepper motors, this rail features efficient power transmission with high precision. The enclosed rail is designed to avoid smoke and debris and prolong the service time of rail units.
Laser Protective Glasses for Free
Lasers emit radiation in the invisible form of light. This pair of laser protective glasses is certified to protect your eyes against radiation damage by looking at the class 4 laser in any way (directly, indirectly, or even looking at the laser dot on a surface can damage your eyes).
Ruida Digital Controller
Whether your chosen software is LightBurn, RDworks, AutoCAD, or CorelDRAW, this Ruida digital controller can support the given platform. The Ruida Controller with a digital display can control the laser head, start or stop projects, adjust laser power and speed settings and so on.
80W CO2 Engraver Features
High Speed and Resolution
The Engraving Speed is up to 600 mm/s;
The Resolution is up to 4500 dpi;
3 LED light strips above the work bed provide illumination for precision;
2.0" Focal distance provides high resolution and etching of tiny fonts
Autofocus
Use the control panel to correct the focus automatically at the touch of a button — no more manual testing and adjustment.
Built-in Air Assist
A built-in air assist system guides a pressurized air stream through the laser head nozzle to displace debris, heat, and combustible gases from the engraving surface and laser beam path, keeping engravings more precise.
3-ways to Connect with PC End
Two USB ports provide options including flash drive connectivity and a USB-to-USB PC connection. In addition, one ethernet port is also available for connection.
Red Dot Guidance
The red dot shows the laser head position, marks the working path and frames the project sizes, assisting you with more convenience and guidance.
Automatic Safety Sensor
The safety shutdown sensor helps stopping the machine even if the window cover is on. Once closed, press the “Enter” button to continue operation.
80W CO2 Engraver Specification
Software
Works on Windows XP, 2000, Vista, WIN 7, 8, 10 & 11, both 64 & 32 bit
MacOS (Version 10.11 and higher) ONLY with LightBurn software
Compatible with Lightburn, RDWorks, Coreldraw, Auto-CAD
Supported image formats: BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others
Laser System
Laser Wavelength 10640 nm;
Rated at over 80 watt;
Mechanics
Linear System— Enclosed aeronautical aluminum rails
Motion— Equipped with stepper X, Y, Z axis, plus mechanical limit switches
Cooling— Built-in 4L water chiller with two operating modes
Air Assist— Built-in air assist with no external compressor required
Ventilation— On-board exhaust fan, as well as an exhaust hose so you can vent the fumes to the outdoors
Standard 110V, AC power connection
4-pin port connection for rotary axis devices
Temperature
Recommended Operating Temperature: 60-104 °F (16C-40C)
Attention: the CO2 water temperature must be maintained at60-70°F (16-21°C)
Laser Tube Lifetime
80W CO2 laser tube with an estimated lifetime of up to 8,000 operation hours depending on power setting usage and water cooling performance
PLEASE NOTE: Frequent use of high laser power settings will shorten the laser tube lifetime as follows:
Low Power 10–40% = 7,000–8,000 Hours
Moderate Power 40–70% = 5,000–6,500 Hours
High Power 70–100% = 3,000–4,000 Hours
Material Capability
Can safely engrave or cut any laser-compatible material
Wood, glass, acrylic, fabric, leather, paper, cardboard, rubber
Contact us with questions on specific materials not listed. If necessary, we can test it for you

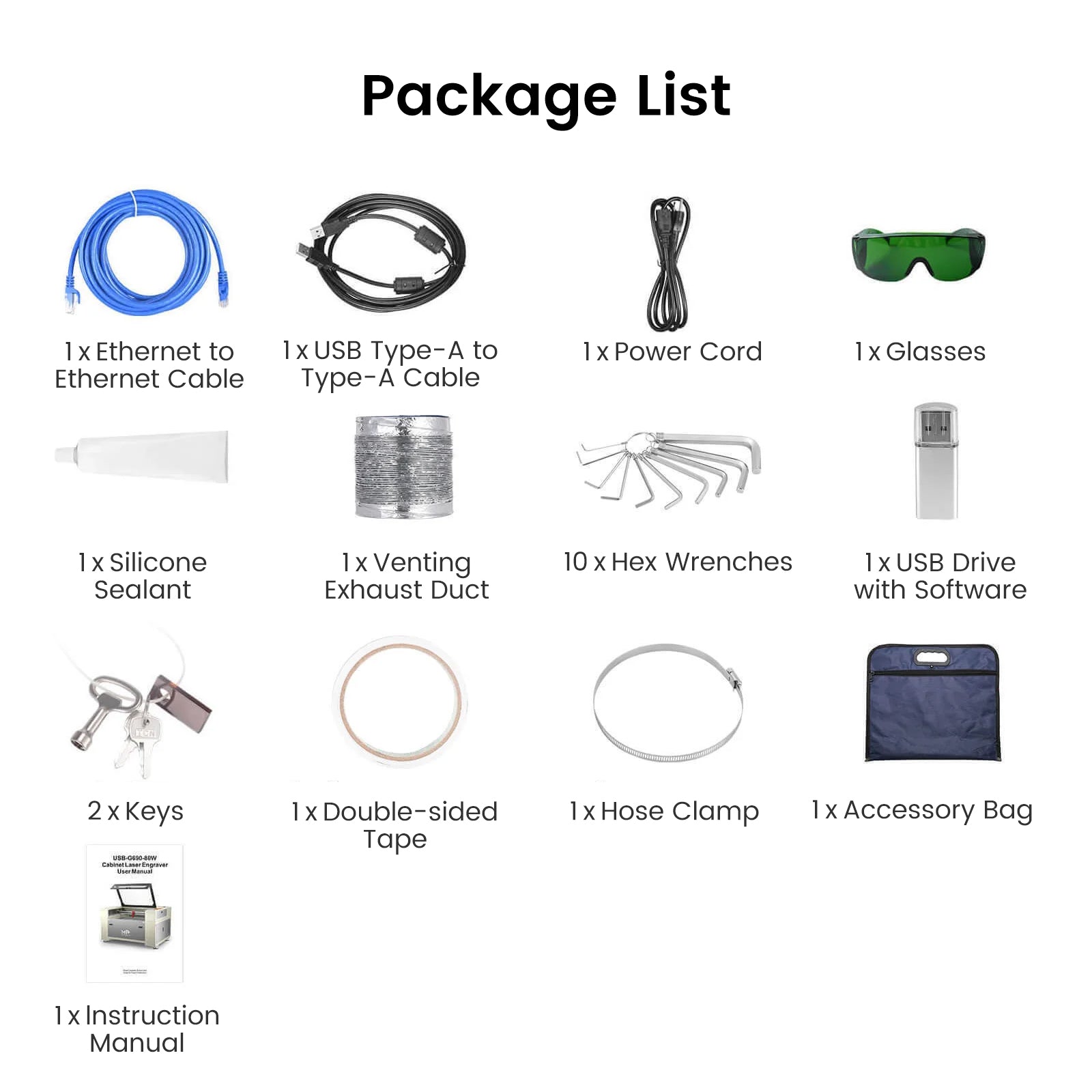

Package Contents
Laser Engraver Machine *1
A Pair of Laser Protective Glasses *1
Accessory Bag *1
Ethernet to Ethernet Cable *1
USB Type-A to Type-A Cable *1
Venting Exhaust Duct *1
USB Drive with Software (RDworks) *1
Hex Wrenches *10
Double-sided Tape *1
Power Cord *2
Keys *2
Silicone Sealant *1
Stainless Steel Clamp *1
Instruction Manual *1
Warranty & Certifications
2-year warranty on all 80W laser machines and parts
1-year warranty on laser tube
FDA Approved & CE Certified
About More
Download the software RDworks
Download the Manual: 80W CO2 User Manual
Download the Built-in Chiller Manual: Built-in Chiller User Manual
Download the Settings: CO2 Parameter Settings
We offer compatible Rotary Axis and Water Chiller!
We sponsor CDR files: https://kokorosastudio.com
Questions & Answers
Have a Question?
-
can I engrave wine bottles with this
Yes, you can engrave on wine bottles with this engraver. You can use the rotary to work with the machine engrave on wine bottles. https://monportlaser.com/collections/rotary-axises/products/4-wheel-rotary-axis. This Rotary is is suitable for the 2-14 inches long and 0.4-5 inch in diameter objects.
-
Does the 80w with built in chiller have pass through slots?
Yes. This machine has the pass through slots. The Pass-through Dimension is 2.9'' x 37.4''( 7.5cm x 95 cm )
-
Does this laser cut metal
No, the Monport 80W Built-in Chiller CO2 Laser Engraver & Cutter is primarily designed for engraving and cutting non-metal materials. CO2 lasers are commonly used for engraving and cutting materials such as wood, acrylic, leather, fabric, paper, and certain plastics.
-
: What materials can the 60W-150W CO2 laser engraver machine engrave?
: Engrave: Wood, acrylic, glass, fabric, leather, paper, cardboard, rubber, stone and anodized aluminum. Cut: wood, acrylic, fabric, leather, paper, cardboard, rubber.
-
: What is the Pass-through dimension of Monport CO2 laser engraver machine?
: "Monport 60w(16’’x14’’) pass-through dimension : 730mm*40mm
Monport 60w(20’’x28’’) pass-through dimension : 700mm*95mm?
Monport 80w(24’’x36’’) ?pass-through dimension :950mm*75mm
Monport 100w(24’’x40’’) pass-through dimension : 1095mm*75mm
Monport 130w(35’’x55’’) pass-through dimension : 1395mm*75mm
Monport 150w(40’’x64’’) pass-through dimension : 1695mm*75mm" -
: What model Ruida controller does the 60w-150w have?
: 6442G
-
: Does the Gcode lightburn suit for the 60W-150W CO2 laser engraver machine?
: The Gcode is not compatible with 60w-150w CO2 machines. But you can click here to buy the DSP version.
-
: Is this CO2 laser engraving cutting machine a plug and play product out of the box, or will I need additional accessories/components?
: Yes, it's plug and play. But you still need to check the mirror alignment after you get the machine.For beter engraving effect and the longevity of the laser tube, we recommend you consider the 5200 chiller. Also, if you'd like to engrave tumblers, the 4-wheel rotary is need.
-
: How does this CO2 laser engraving cutting machine achieve autofocus?
: Autofocus means distance is automatically calculated and focus is automatically corrected at the touch of a button via the ruida control panel - no more manual testing and adjustments.
80W Built-in Chiller CO2 Unboxing Video
FEATURES
Monport 80w Features
Aluminum Rail & Autofocus
The enclosed rail is designed to avoid smoke and debris and prolong the service time of rail units.
Use the control panel to correct the focus automatically at the touch of a button — no more manual testing and adjustment.
Aluminum Rail
Autofocus
Built-in Smart Water Chiller
The built-in 3L water chiller is easy to operate and cools down the temperature without any other machines.
More space-saving and convenient
Smart Water Chiller
High Speed and Resolution
The Engraving Speed is up to 800 mm/s.
The Resolution is up to 4500 dpi;
Speed: 800mm/s
Compatible with Lightburn, RDWorks.

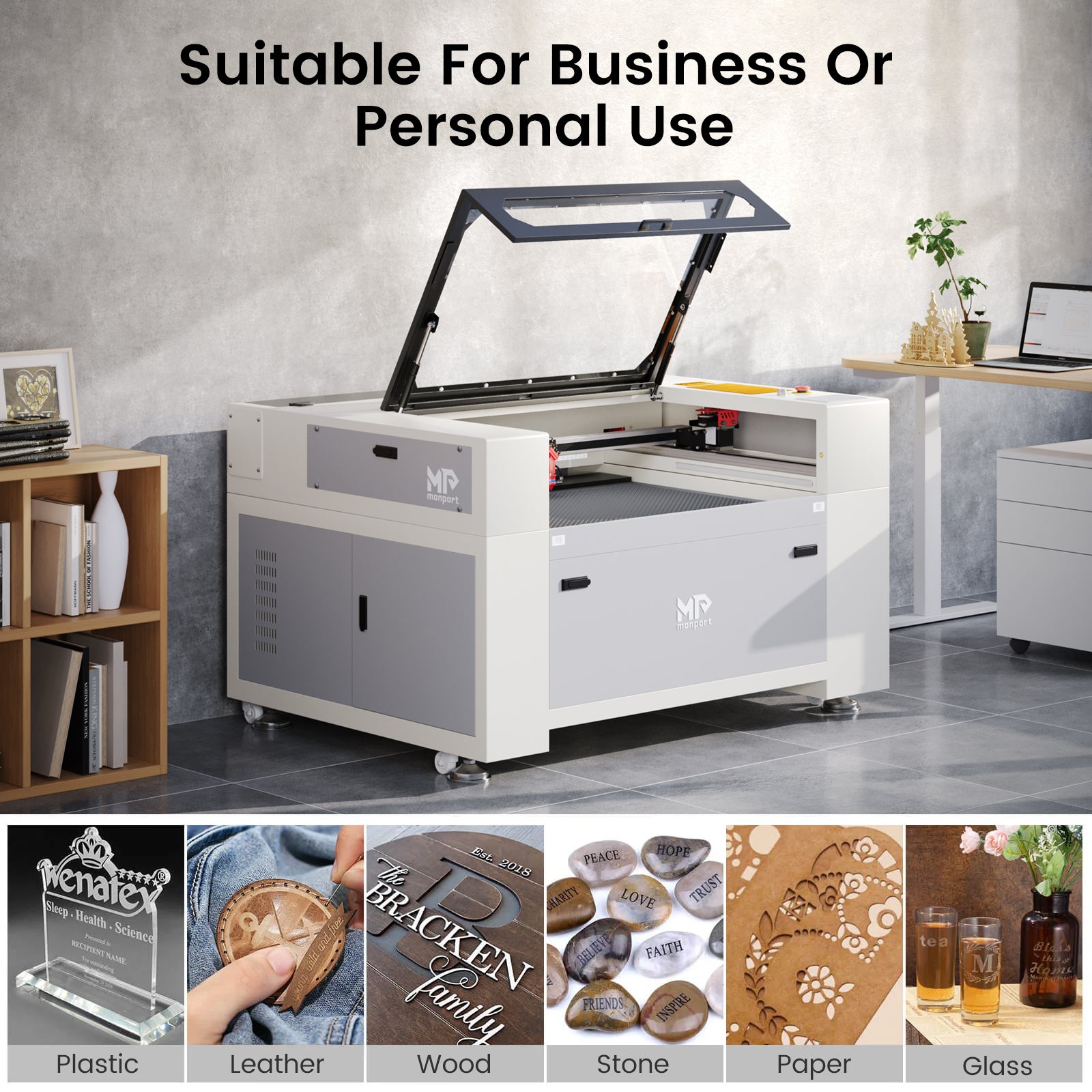

Wide Application
Easy to Use
Excellent Cutting and Engraving Capabilities
Monport 80W CO2 Laser can cut different of wood, acrylic, stone and etc.
Various Materials
DETAILED PARAMETERS
Compare Each Built-in CO2 Laser Model
| Manchine Model | Monport 80W Built-in Chiller | Monport 100W Built-in Chiller | Monport 130W Built-in Chiller | Monport 150W Built-in Chiller |
|---|---|---|---|---|
| Working Area | 24"x 36" | 24" x 40" | 55" x 35" | 64" x 40" |
| Max. Marking Speed | 800mm/s | 800mm/s | 800mm/s | 800mm/s |
| Machine Dimension | 57"x 43" x 35" | 61"x 43" x 35" | 72.8" x 55" x 35" | 84.6" x 59" x 35" |
| Pass-through Dimension | 2.9"x 37.4" | 2.9" x 43" | 2.9" x 54.9" | 2.9" x 66.7" |
| Wheels Height | 3.9" | 3.9" | 3.9" | 3.9" |
| Output Power | 80W | 100W | 130W | 150W |
| Cooling method | Built-in Chiller | Built-in Chiller | Built-in Chiller | Built-in Chiller |
| Provided Operating Software | RDworks | RDworks | RDworks | RDworks |
| Laser Wavelength | 10640nm | 10640nm | 10640nm | 10640nm |
| Expected Service Life | 12,000hr | 12,000hr | 12,000hr | 12,000hr |
| Product Weight | 568.8 lbs | 639.3 lbs | 873 lbs | 1036 lbs |
| Supported image formats | BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others | BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others | BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others | BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others |
| Compatible Software | Lightburn, RDWorks, Coreldraw, Auto-CAD | Lightburn, RDWorks, Coreldraw, Auto-CAD | Lightburn, RDWorks, Coreldraw, Auto-CAD | Lightburn, RDWorks, Coreldraw, Auto-CAD |
