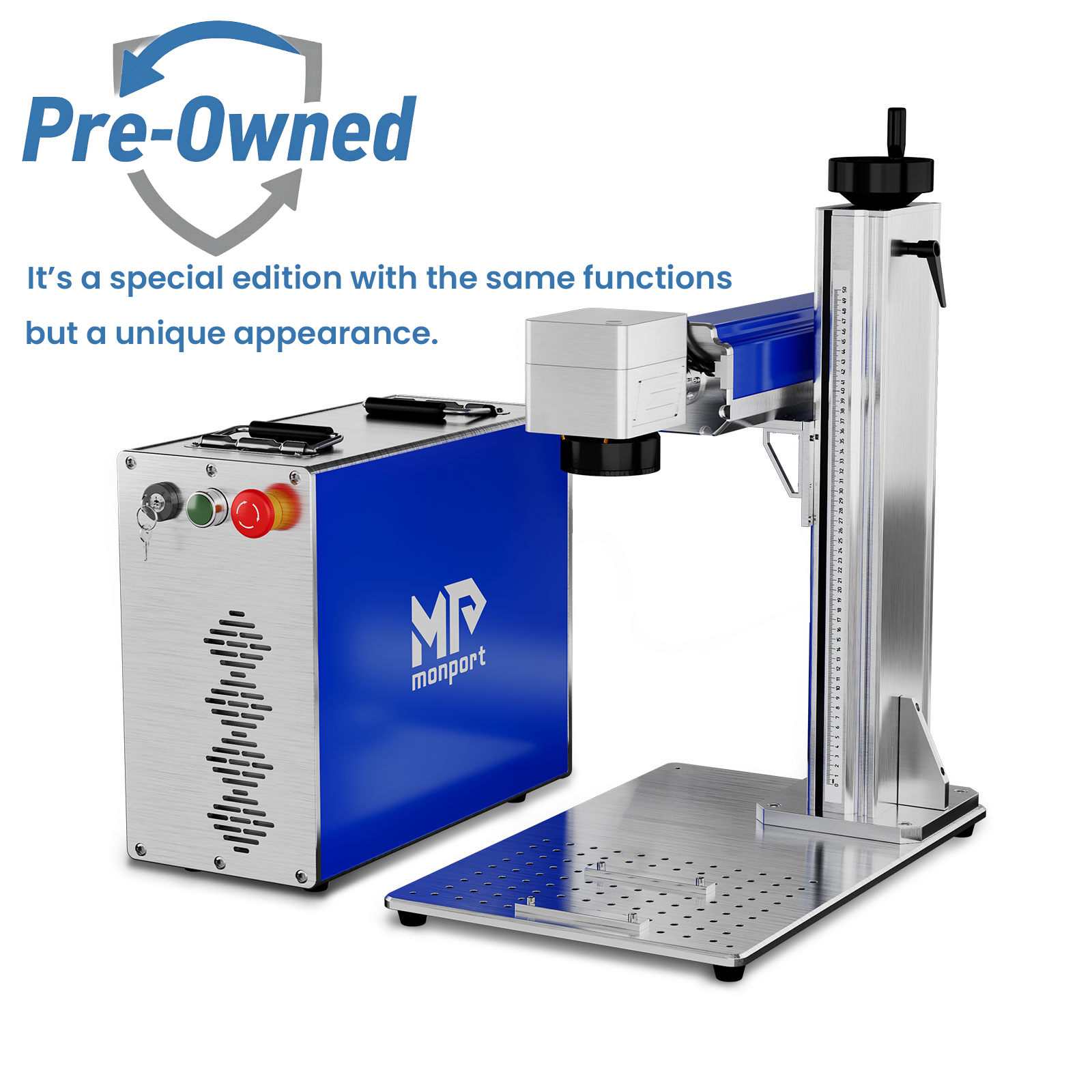

Monport GQ 30W (5.9" x 5.9") Fiber Laser Engraver & Marking Machine with FDA Approval
Save $1,600.00
Current price
$2,299.99
$2,299.99
-
$2,589.98
Current price
$2,299.99
Original price
$3,899.99
Original price
$3,899.99
-
Original price
$4,189.98
Original price
$3,899.99
Black Friday Blowout
$1600 Savings & $100 Gift Card
Free Shipping
US Delivery time : 3-5 Business Days
2-Year Warranty
Dimension
Working Area: 5.9" X 5.9"
Machine Dimension: 8.2" x 17.7" x 15.3"( 21cm x 45cm x 39cm )
Main Tower Dimension: 13.7" x 21.6" x 26,9" ( 35cm x 55cm x 68.5cm )
Field Lens Dimension: 150mm x 150mm
Fiber Lens Model: M85(85-68MM)
Machine Weight: 69lbs ( 31.5 kg )

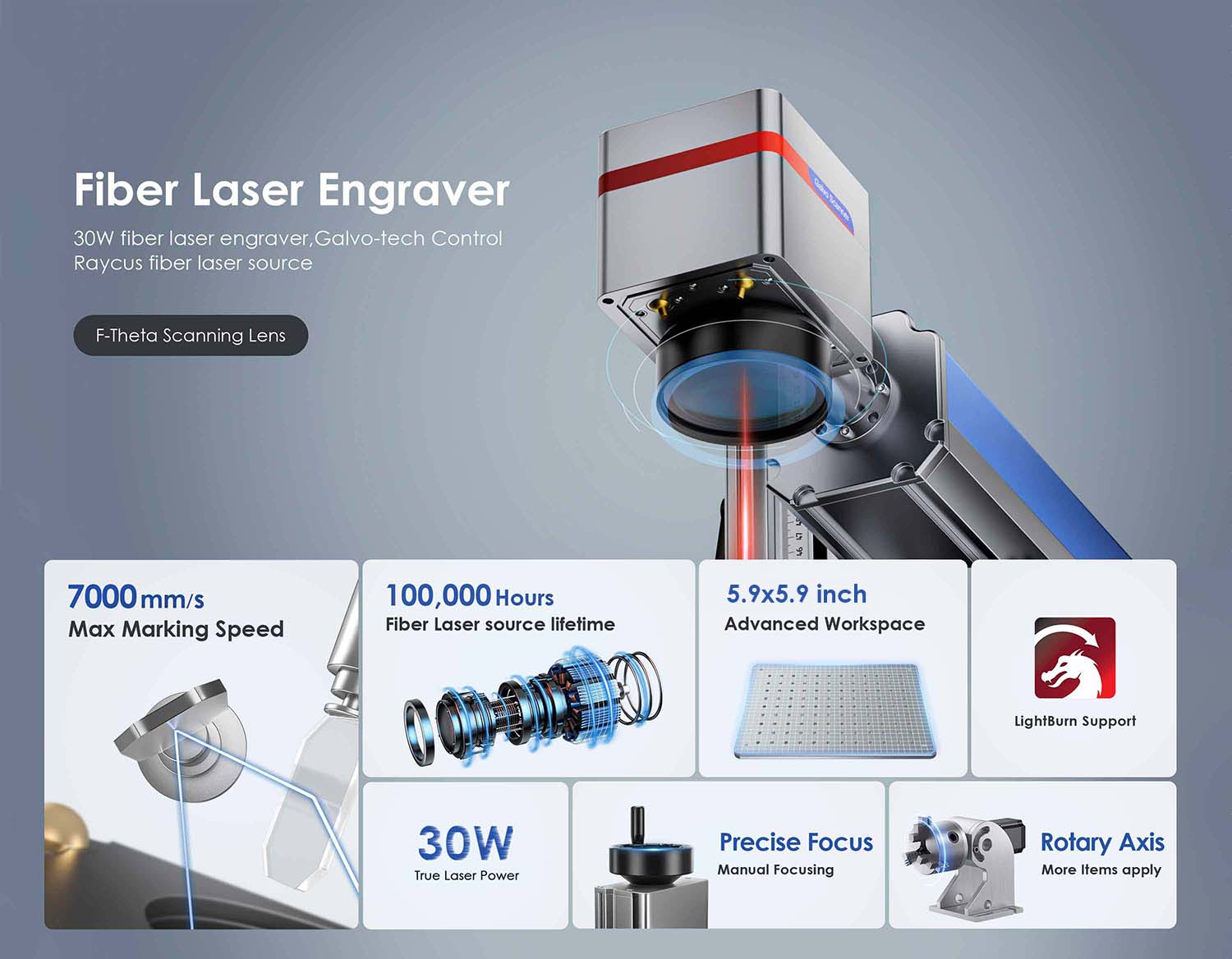

Monport 30W Features & Benefits
Galvo-tech Control
The Sino-Galvo delivers the laser beam with incredible speed and a much higher degree of accuracy than a regular CO2 laser. Its extreme stability ensures quick scanning, engraving, and project turnaround.
The Raycus fiber laser source
The source has an estimated lifetime of up to 100,000 hours, depending on power setting usage, which can safely mark most metals, such as stainless steel, gold, silver, and brass.
Advanced Workspace
This laser machine has a built-in workspace grid with removable positioning bars for precise material placement. It also supports an optional rotary axis (not included) to mark tubes, bottles, pipes, and other curved surfaces.
Portable Size
The most versatile machine can accept a wide range of accessories sizes and fits well on a desk or can be taken in any studio easily.
Additional Laser Guidance
Once properly adjusted, the external red dot locator calibrates with the laser's scanner to allow a quick and accurate laser focus setup.
ManualFocus
By rotating the focus-height wheel, you can quickly focus the galvanometer laser on various materials like gold, silver, brass, stainless steel, etc. Plus, the vertical supporting tower is equipped with a ruler for convenient focus height measurements.
Monport 30W Specification
Compatibility
Includes EzCad2 software compatible with Windows XP/7/10/11 (32 and 64 bits)
Compatible with Lightburn, AutoCAD, CorelDraw and more supported image formats: BMP, GIF, JPG, DXF, PNG and others
Laser System
Rated at 30 watt
Maximum marking speed of 7000 mm/s
Laser Wavelength: 1064 nm
Material Capability
Metals: Stainless Steel, Aluminum, Common Alloys, anodized aluminum, Brass, Chromium, Gold&Silver, Titanium
Non-Metals: Slate, Hard Plastics, Artificial Leather, Colored Acrylic
Package Contents
30 Watt Fiber Laser Marker Machine *1
Power Cable *1
Foot Pedal *1
Laser Safety Glasses *1
USB Flash Drive *1
Clips *2
Bolts *4
Instruction Manual *1
Warranty & Certifications
- 2-year warranty on every fiber laser machine
- 1-year warranty on fiber laser source
- FDA Approved & CE Certified
About More
Download the User Manual: 30W Fiber User Manual
Download the Software: EzCad2
Download the Software Manual: EzCad2 Description
We offer compatible accessories: Fiber Laser Rotary
We sponsor CDR files: https://kokorosastudio.com
Questions & Answers
Have a Question?
-
Hi do these engrave tungsten rings as well? Thank you
Yes, if you want to engrave on the rings, you need to use the Rotary with machine. Here is the link to the rotary： https://monportlaser.com/collections/rotary-axis/products/monport-80mm-three-jaws-rotary-axis-attachment-for-fiber-engravers-only
-
: What are the update points for split fiber laser marking machines?
1.One-click start design
2. Safety key protection
3.Emergency Button
4.Advanced cooling fans -
: Which Fiber Laser Engraver should I choose?
: Spilted & GP Series: Standard marking/partial engraving on most metal materials, stone and hard plastic. GI Series: Faster marking/engraving on most metal materials, stone and hard plastic. + High-precision marking + Color marking on titanium and stainless steel (with high recovery and accuracy on metal materials)
-
: What brand of laser is used in the split fiber marking machine?
: The laser brand of Split and GP series is Raycus, and the laser brand of GI series is JPT MOPA.
-
: What engraving software does this split fiber marking machine require? Which computer systems is the software compatible with?
: This machine comes with ezcad2 engraving software, it can be compatible with Windows XP, WIN7, WIN8, Win10, Win11.If your computer system is a mac, you can purchase the GALVO version of Lightburn software to connect to the machine.
-
: Besides the rotary, what other accessories do you provide?
: At present we only provide the lens and rotary. But we are also planning to release the cover and the air purifier. So if you have that need, please contact us.
See How GQ Fiber Laser Marks on Rotary Cups
FEATURES.
Monport 30w Features
Raycus fiber laser source
Raycus fiber laser source estimated lifetime of up to 100,000 hours
100,000 hours
Galvo-tech
Precise Focus.
By rotating the focus-height wheel, you can quickly focus the item.
Red Dot Guidance
ManualFocus
Variety Materials Capability
Monport fiber can engrave most metals and non-metals such as Slate, Hard Plastics, Artificial Leather, Colored Acrylic
Speed:7000mm/s
Various Materials
Surface Engraving.
With rotary axis, the fiber laser can easily curving engrave.
Curved Surfaces
Accuracy: 0.01mm
DETAILED PARAMETERS
Compare Each Fiber Laser Model
| Product | GQ 20 | GQ 30 | GQ 50 | |
| Input Power | 110-120V 60Hz | |||
| Rated Power | 20W | 30W | 50W | |
| Expected Service Life | 100,000 hr. | |||
| Central Wavelength | 1064 nm | |||
| Laser Frequency | 30-60 kHz | 40-60 kHz | 50-100 kHz | |
| Beam Diameter | 5.7-8 mm | 5.7-8 mm | 5.7-8 mm | |
| Beam Quality M2 | ＜1.5 | ＜1.6 | ＜1.6 | |
| Maximum Pulse Energy | 0.67 | 0.75 | 1 | |
| Processing Area | 4.3x4.3 in. (110×110 mm) |
5.9x5.9 in. (150×150 mm) |
7.9x7.9 in. (200×200 mm) |
|
| Max. Marking Speed | 393.7 ips(10000 mm/s) | |||
| Min. Marking Depth | 0.0002 in.(0.005 mm) | |||
| Max. Marking Depth on a Single Pass |
0.002in. (0.04mm) |
0.003in. (0.08mm) |
0.004in. (0.1mm) |
|
| Min. Line Width | 0.006 in.(0.15 mm) | |||
| Precision | ±0.1 µm | |||
| Required Operating Environment |
Max. Humidity | <70% | ||
| Temp. Range | 32–104°F(0 - 40°C) | |||
| Provided Operating Software | EZCad | |||
