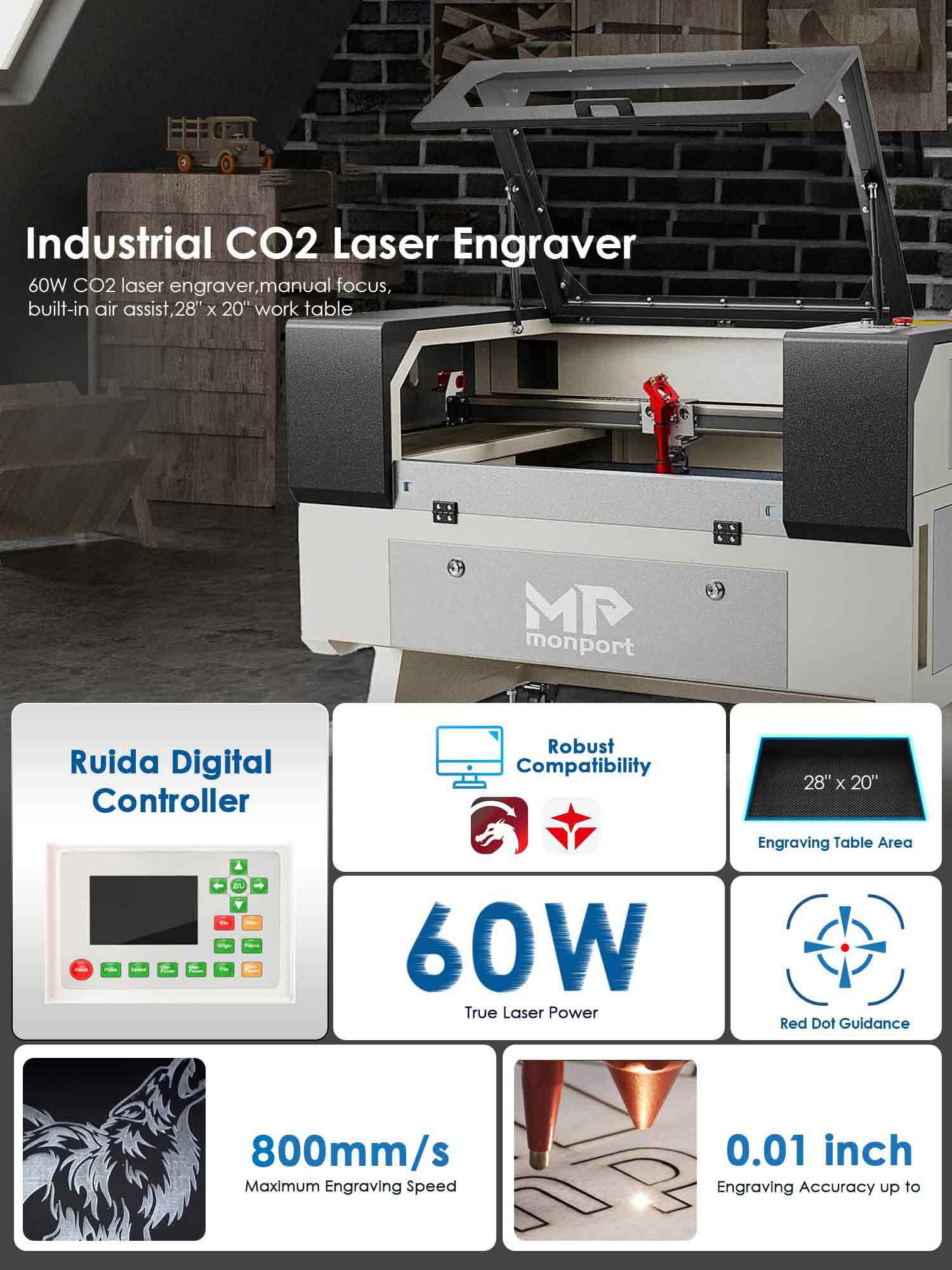

Monport 60W CO2 Laser Engraver & Cutter (28" x 20") with Manual Focus

Sold out
Current price $2,699.99
$2,699.99 - $2,699.99
Current price $2,699.99
Original price $2,899.99
Original price $2,899.99 - Original price $2,899.99
Original price $2,899.99

This product is tax -included(US ONLY)

Free Shipping

US Delivery time : 7-10 Business Days

2-Year Warranty
Dimension & Specifications

Machine Dimension: 49.2‘’ x 36'' x 36.2''(125cm x 91.5cm x 92cm)

Package Dimension: 52.2" x 40.2” x 45" ( 135 cm x 102 cm x 114 cm )

Working Dimension: 20'' x 28' ( 50 cm x 70 cm)

Pass-through Dimension:1.5'' x 28''(4cm x 73 cm )

Max Engraving Speed: 800mm/s

Max Cutting Speed: 400mm/s

Max Engraving Depth: 10mm

Min Engraving Depth: 0.01mm

Focal Lens Diameter: 18mm

Mirror Diameter: 25mm

Max Z-depth:8.6"

Product Weight: 319.7 lbs

60W CO2 Engraver Features

Fireproof Viewing Window

This viewing window is made from special fire-resistant polyester with iron frames. The melting point of this polyester ranges from 432° to 488° and the ignition temperature of it is over 1000°, which can dramatically decrease the possibility of fire accidents caused by the heat of laser burning the materials.

Enclosed Aeronautical Aluminum Rail

Equipped with X and Y stepper motors, this rail features efficient power transmission with high precision. The enclosed rail is designed to avoid smoke and debris and prolong the service time of rail units.

Ruida Digital Controller

Whether your chosen software is LightBurn, RDworks, AutoCAD, or CorelDRAW, this Ruida digital controller can support the given platform. The Ruida Controller with a digital display can  control the laser head, start or stop projects, adjust laser power and speed settings and so on.

High Speed and Resolution

The Engraving Speed is up to 600 mm/s;
The Cutting Speed is up to 400 mm/s;
The Resolution is up to 4500 dpi;
2.0" Focal distance provides high resolution and etching of tiny fonts

Built-in Air Assist

A built-in air assist system guides a pressurized air stream through the laser head nozzle to displace debris, heat, and combustible gases from the engraving surface and laser beam path, keeping engravings more precise.

3-ways to Connect with PC End

Two USB ports provide options including flash drive connectivity and a USB-to-USB PC connection. In addition, one ethernet port is also available for connection.

Red Dot Guidance

The red dot shows the laser head position, marks the working path and frames the project sizes, assisting you with more convenience and guidance.

Automatic Safety Sensor

The safety shutdown sensor helps stopping the machine even if the window cover is on. Once closed, press the “Enter” button to continue operation.

Package Contents

Laser Engraver Machine *1

Water Pump *1

Ethernet to Ethernet Cable *1

USB Type-A to Type-A Cable *1

Venting Exhaust Duct (4 ft. max. length) *1

Water Hoses *2

USB Drive with Software (RDworks) *1

Hex Wrenches *10

Double-sided Tape *1

Power Cord *2

Hose Clamp *1

Accessory Bag *1

Keys *2

Silicone Sealant *1

Instruction Manual *1

Warranty & Certifications

2 year warranty on all 60W laser machines and parts

6 month warranty on 60W laser tubes

FDA Approved & CE Certified

Manual List

Download the Software: RDworks

Download the Manual: 60W CO2 User Manual

Download the Settings: CO2 Parameter Settings

Compatible Accessories: Rotary AxisWater Chiller

We sponsor CDR files:


Ask a Question
  • : What materials can the 60W-150W CO2 laser engraver machine engrave?

    : Engrave: Wood, acrylic, glass, fabric, leather, paper, cardboard, rubber, stone and anodized aluminum. Cut: wood, acrylic, fabric, leather, paper, cardboard, rubber.

  • : What is the Pass-through dimension of Monport CO2 laser engraver machine?

    : "Monport 60w(16’’x14’’) pass-through dimension : 730mm*40mm

    Monport 60w(20’’x28’’) pass-through dimension : 700mm*95mm?

    Monport 80w(24’’x36’’) ?pass-through dimension :950mm*75mm

    Monport 100w(24’’x40’’) pass-through dimension : 1095mm*75mm

    Monport 130w(35’’x55’’) pass-through dimension : 1395mm*75mm

    Monport 150w(40’’x64’’) pass-through dimension : 1695mm*75mm"

  • : What model Ruida controller does the 60w-150w have?

    : 6442G

  • : Does the Gcode lightburn suit for the 60W-150W CO2 laser engraver machine?

    : The Gcode is not compatible with 60w-150w CO2 machines. But you can click here to buy the DSP version.

  • : Is this CO2 laser engraving cutting machine a plug and play product out of the box, or will I need additional accessories/components?

    : Yes, it's plug and play. But you still need to check the mirror alignment after you get the machine.For beter engraving effect and the longevity of the laser tube, we recommend you consider the 5200 chiller. Also, if you'd like to engrave tumblers, the 4-wheel rotary is need.

  • : How does this CO2 laser engraving cutting machine achieve autofocus?

    : Autofocus means distance is automatically calculated and focus is automatically corrected at the touch of a button via the ruida control panel - no more manual testing and adjustments.

Made by Monport 60W

Compare Each High Power CO2 Laser Model
Manchine Model 60W CO2 (16" x 24") with Manual Focus 60W CO2 (16" x 24") with Autofocus 60W CO2 (20" x 28") with Manual Focus 60W CO2 (20" x 28") with Autofocus
Focus Method Manual Focus Autofocus Manual Focus Autofocus
Working Area 16" x 24" 16" x 24" 20" x 28" 20" x 28"
Max. Marking Speed 800mm/s 800mm/s 800mm/s 800mm/s
Machine Dimension 44.1'' x 29.5'' x 25'' 44.1'' x 29.5'' x 25'' 49.2” x 36” x 36.2” 49.2” x 36” x 36.2”
Pass-through Dimension 1.5'' x 28'' 1.5'' x 28'' 3.7"x27.5" 3.7"x27.5"
Wheels Height 3.9" 3.9" 3.9" 3.9"
Output Power 60W 60W 60W 60W
Provided Operating Software RDworks RDworks RDworks RDworks
Laser Wavelength 10640nm 10640nm 10640nm 10640nm
Expected Service Life 12,000hr 12,000hr 12,000hr 12,000hr
Product Weight 209 lbs 209 lbs 319.7 lbs 319.7 lbs
Supported Image Formats BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others
Compatible Software Lightburn, RDWorks, Coreldraw, Auto-CAD Lightburn, RDWorks, Coreldraw, Auto-CAD Lightburn, RDWorks, Coreldraw, Auto-CAD Lightburn, RDWorks, Coreldraw, Auto-CAD
