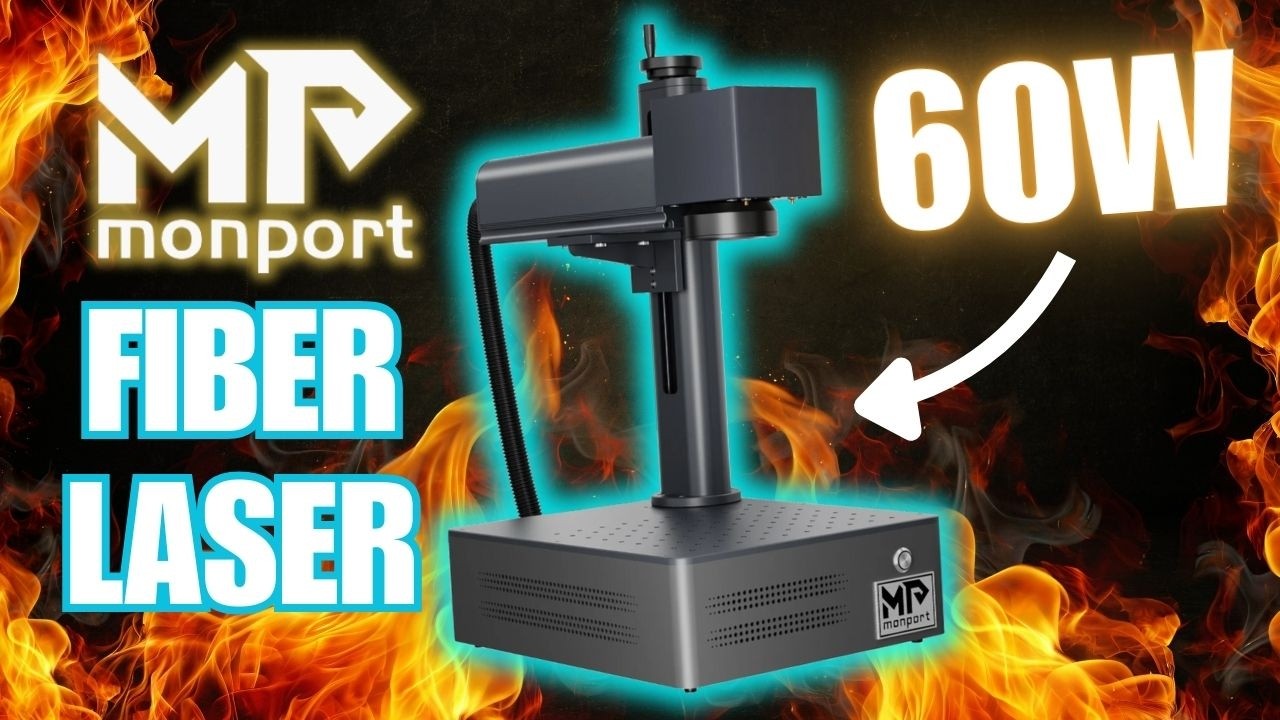

Monport GM 60W Integrated JPT MOPA Fiber Laser Engraver & Marking Machine
Monport GM 60W Integrated JPT MOPA Fiber Laser Engraver & Marking Machine
Regular price
$3,699.99
Sale price
$3,699.99
Regular price
$5,699.99
In stock
Couldn't load pickup availability
Payment methods
Faster and More Accurate
The newly customized galvanometer system is equipped with more expensive silicon material reflectors, allowing for a maximum speed of 10000mm/s. Monport has also customized an F-theta field mirror, which, together with the entire marking system, can achieve a carving accuracy of 0.01mm.
Gold Marking Area
For a mopa fber laser, a marking area of 175*175mm is optimal.Excessive engraving area may result in poor engraving effect or even distortion.After special tuning by Monport, even when carving at the edges, there will be no weak light.
True color marking
Monport uses JPT MOPA laser to achieve true color marking, including stainless steel color marking, brass color marking, aluminum blackening and other applications (Frequency adjustable range 1-4000kHz, pulse width adjustable range 2-500ns).You can set different parameters to achieve various colors, and of course Monport will also provide a large number of color printing parameters as a reference.
Rich Compatibility with Accessories
You can pair it with a rotary (marking circular objects), a smoke purifier (absorbing smoke and dust), a protective cover (noise reduction, safety), and all of which are sold in Monport stores.
GM Model Quick Compare
| Product Name | GM20 | GM30 | GM50 | GM30 MOPA | GM60 MOPA |
| Laser Power | 20W | 30W | 50W | 30W | 60W |
| Engraving Area | 4.3 × 4.3 in. (110 × 110 mm) |
5.9 × 5.9 in. (150 × 150 mm) |
5.9 × 5.9 in. (150 × 150 mm) |
6.9 × 6.9 in. (175 × 175 mm) |
6.9 × 6.9 in. (175 × 175 mm) |
| Max. Marking Depth (single pass, material dependent) |
0.002 in. (0.04 mm) |
0.003 in. (0.08 mm) |
0.004 in. (0.10 mm) |
0.003 in. (0.08 mm) |
0.004 in. (0.10 mm) |
| Max Engraving Speed | 10 000 mm/s (393.7 ips) |
10 000 mm/s (393.7 ips) |
10 000 mm/s (393.7 ips) |
10 000 mm/s (393.7 ips) |
10 000 mm/s (393.7 ips) |
| Engraving Accuracy | 0.01 mm | 0.01 mm | 0.01 mm | 0.01 mm | 0.01 mm |
| Positioning Accuracy | ± 0.1 µm | ± 0.1 µm | ± 0.1 µm | ± 0.1 µm | ± 0.1 µm |
| Input Power | 110–120 V 60 Hz | 110–120 V 60 Hz | 110–120 V 60 Hz | 110–120 V 60 Hz | 110–120 V 60 Hz |
| Beam Quality M² | < 1.5 | < 1.5 | < 1.6 | < 1.4 | < 1.5 |
| Beam Diameter | 6–8 mm | 6–8 mm | 6–8 mm | 7 ± 0.5 mm | 7 ± 0.5 mm |
| Maximum Pulse Energy | 0.78 mJ | 0.78 mJ | 1.1 mJ | 0.8 mJ | 2 mJ |
| Max Z Height (field lens to workbench) |
350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Central Wavelength | 1 064 nm | 1 064 nm | 1 064 nm | 1 064 nm | 1 064 nm |
| Frequency Range | 29–60 kHz | 30–60 kHz | 45–170 kHz | 1–4 000 kHz | 1–4 000 kHz |
| Pulse Width | 80–120 ns Unadjustable (Fixed pulse width) |
80–120 ns Unadjustable (Fixed pulse width) |
90–110 ns Unadjustable (Fixed pulse width) |
2–500 ns | 2–500 ns |
| Expected Service Life (MTTF) | 100 000 h | 100 000 h | 100 000 h | 100 000 h | 100 000 h |
| Color Engraving | NO | NO | NO | YES | YES |
| Focus Mode | Manual focus | Manual focus | Manual focus | Manual focus | Manual focus |
| Electric Lifting | NO | NO | NO | NO | NO |
| Cooling Type | Air Cooling | Air Cooling | Air Cooling | Air Cooling | Air Cooling |
| Rotation Axis Function | YES | YES | YES | YES | YES |
| Galvanometer Thread Size | M68 | M68 | M68 | M68 | M68 |
| Field Lens Dimension | M85 | M85 | M85 | M85 | M85 |
| Foot Pedal Function | External foot pedal | External foot pedal | External foot pedal | External foot pedal | External foot pedal |
| Materials Suitable for Engraving | Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. | Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. | Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. | Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. | Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. |
| Compatible Operating Systems | Windows / macOS | Windows / macOS | Windows / macOS | Windows / macOS | Windows / macOS |
| Compatible Software | BSLcad, Lightburn | BSLcad, Lightburn | BSLcad, Lightburn | BSLcad, Lightburn | BSLcad, Lightburn |
| Data Transmission | USB Cable | USB Cable | USB Cable | USB Cable | USB Cable |
| Product Dimensions (L × W × H) | 14.57 × 11.81 × 21.65 in (37.0 × 30.0 × 55.0 cm) |
14.57 × 11.81 × 21.65 in (37.0 × 30.0 × 55.0 cm) |
14.57 × 11.81 × 21.65 in (37.0 × 30.0 × 55.0 cm) |
14.57 × 11.81 × 21.65 in (37.0 × 30.0 × 55.0 cm) |
14.57 × 11.81 × 21.65 in (37.0 × 30.0 × 55.0 cm) |
| Package Dimension (L × W × H) | 21.46 × 15.35 × 13.78 in (54.5 × 39.0 × 35.0 cm) |
21.46 × 15.35 × 13.78 in (54.5 × 39.0 × 35.0 cm) |
21.46 × 15.35 × 13.78 in (54.5 × 39.0 × 35.0 cm) |
21.46 × 15.35 × 13.78 in (54.5 × 39.0 × 35.0 cm) |
21.46 × 15.35 × 13.78 in (54.5 × 39.0 × 35.0 cm) |
| Product Weight | 33.1 lb (15 kg) | 34.2 lb (15.5 kg) | 32.0 lb (14.5 kg) | 32.0 lb (14.5 kg) | 34.2 lb (15.5 kg) |
| Gross Weight | 36.4 lb (16.5 kg) | 37.5 lb (17 kg) | 35.3 lb (16 kg) | 35.3 lb (16 kg) | 37.5 lb (17 kg) |
| Warranty | 2-year (1 year for laser source) |
2-year (1 year for laser source) |
2-year (1 year for laser source) |
2-year (1 year for laser source) |
2-year (1 year for laser source) |
Package List
1x Fiber Laser Engraver
1x USB Cable(2 meters)
1x Power Cord(1.5 meters)
1x USB Flash Drive
1x User Manual
1x Goggles
1x Wrench Set
1x Ruler（30cm）
1x Foot Switch
2x Positioning Bars
4x Screws M6*12
4x Screws M6*10
4x Screws M5*16
1x Usb to TypeC Adapter
10x Test Aluminum Sheets
Questions & Answers
Have a Question?
-
Can you increase the work area beyond 6.9 × 6.9 in by purchasing a different lens or other accessory?
The Monport GM 60W Integrated MOPA Fiber Laser Engraver & Marking Machine comes with a 175mm*175mm . If you require a different working area, you can purchase a machine with an M85 thread size on our website.
