Dimension
Working Dimension: 8'' x 8'' ( 20 cm x 20 cm )

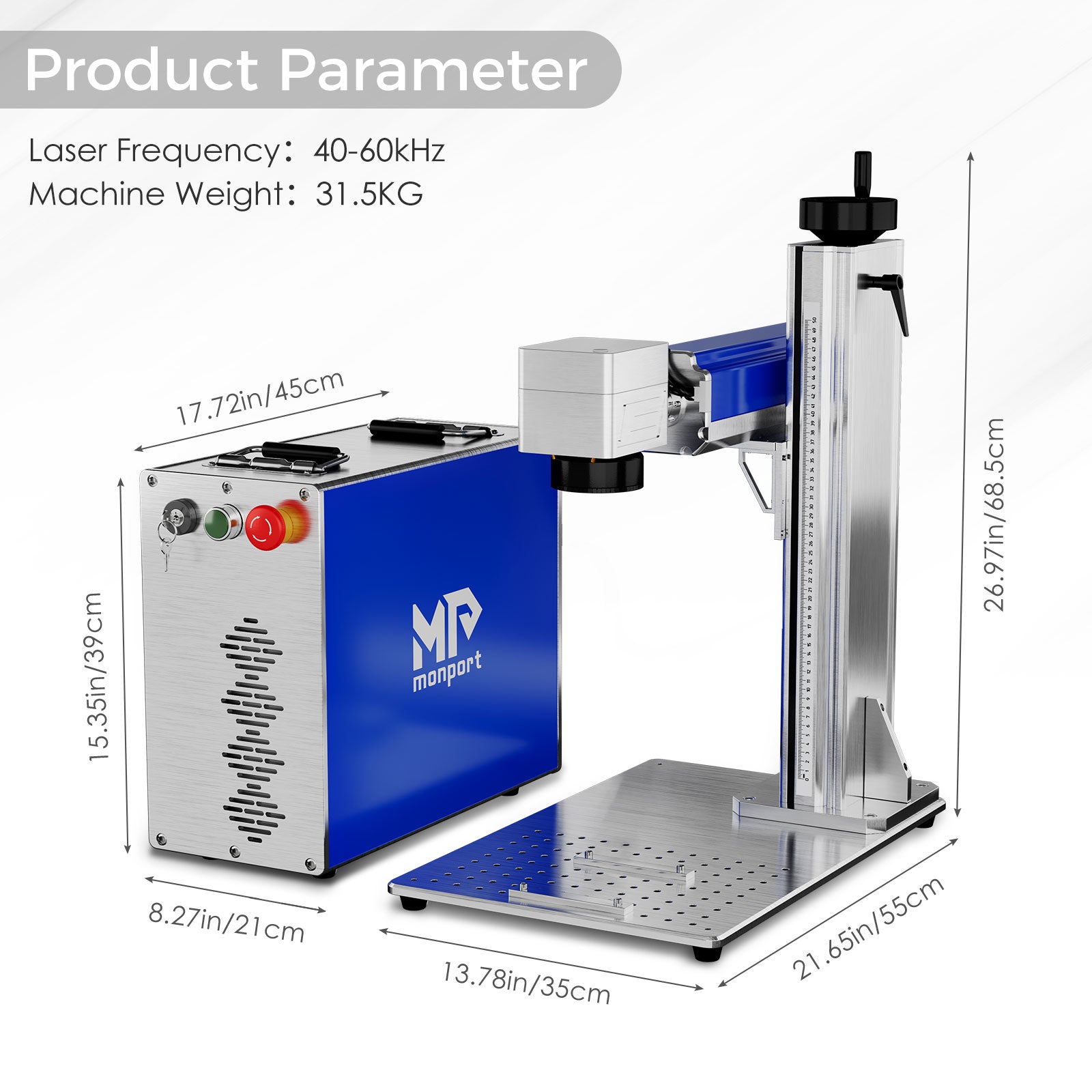

Machine Dimension: 13.7'' x 21.6'' x 26,9'' ( 35cm x 55cm x 68.5cm )
Main Tower Dimension: 8.2'' x 17.7'' x 15.3'' ( 21cm x 45cm x 39cm )
Fiber Lens Dimension: 200mm x 200mm
Package Dimension: 31.1'' x 29.5'' x 14.5'' ( 79 cm x 75 cm x 37 cm )
Product Weight: 110 lbs ( 50 kg )
Monport Features & Benefits

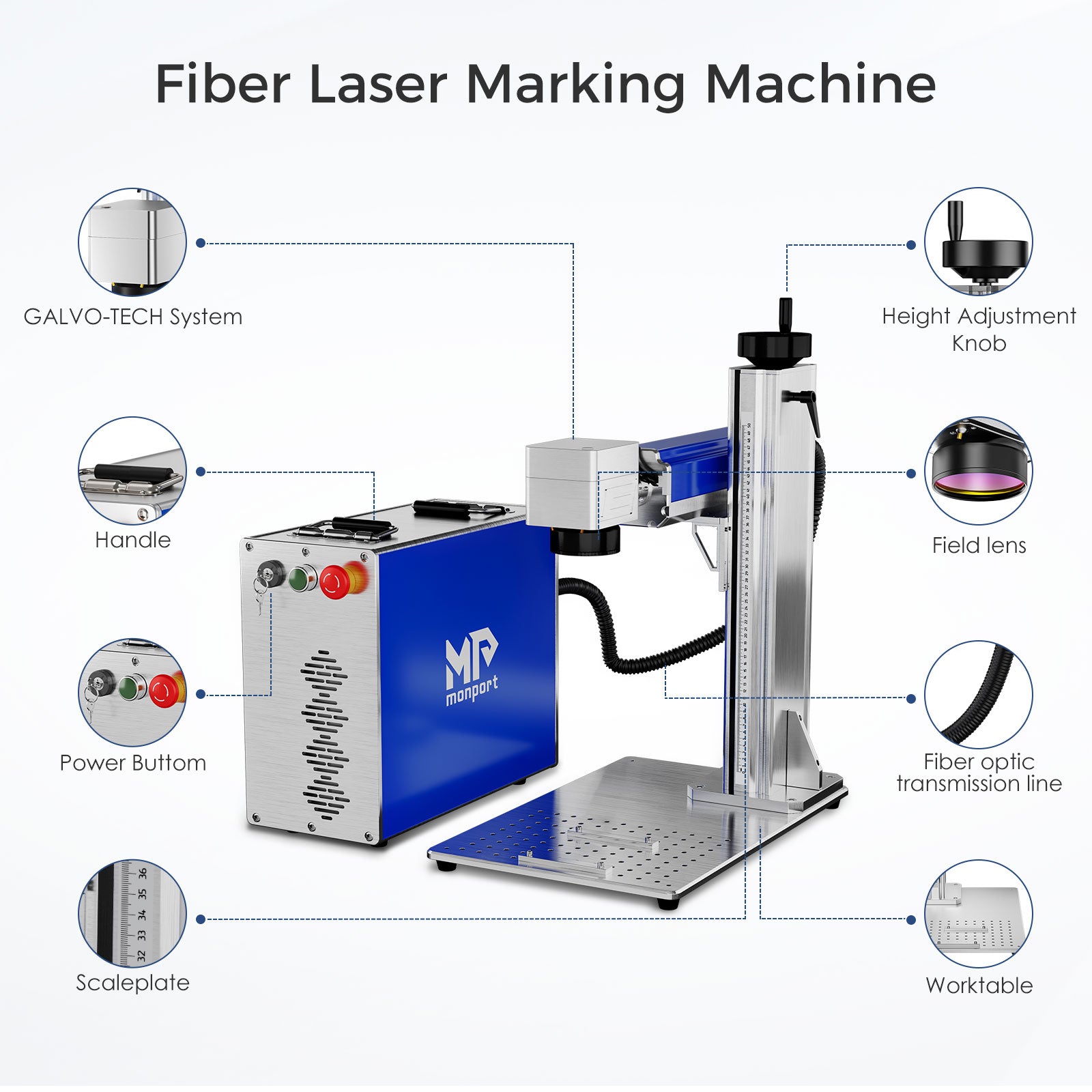

Galvo-tech Control
The Sino-Galvo delivers the laser beam with incredible speed and a much higher degree of accuracy than a regular CO2 laser. Its extreme stability ensures quick scanning, engraving, and project turn around.
The Raycus fiber laser source
The source has an estimated lifetime of up to 100,000 hours, depending on power setting usage, which can safely mark most metals, such as stainless steel, gold, silver, and brass.
Advanced Workspace

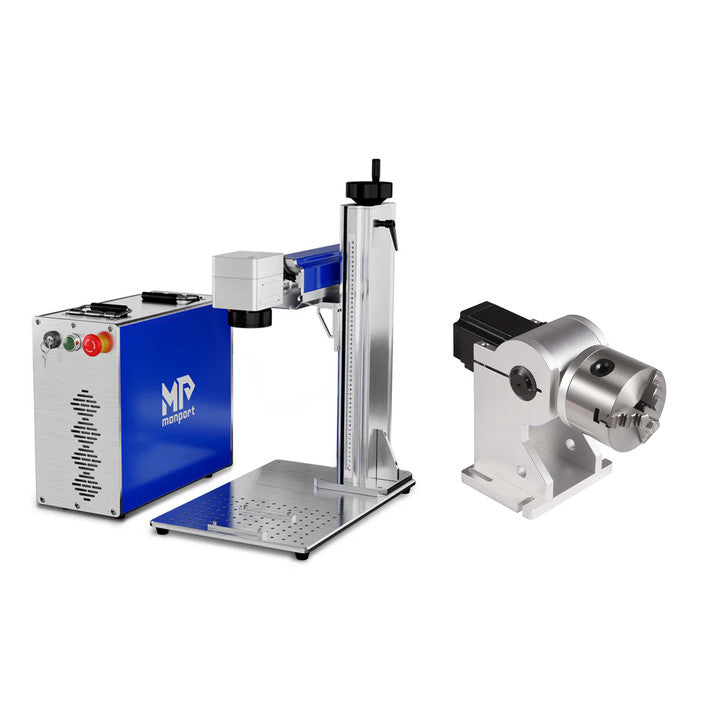

This laser machine has a built-in workspace grid with removable positioning bars for precise material placement. It also supports an optional rotary axis (not included) to mark tubes, bottles, pipes, and other curved surfaces.
Portable Size
The most versatile machine can accept a wide range of accessories sizes and fits well on a desk or can be taken in any studios easily.
Additional Laser Guidance

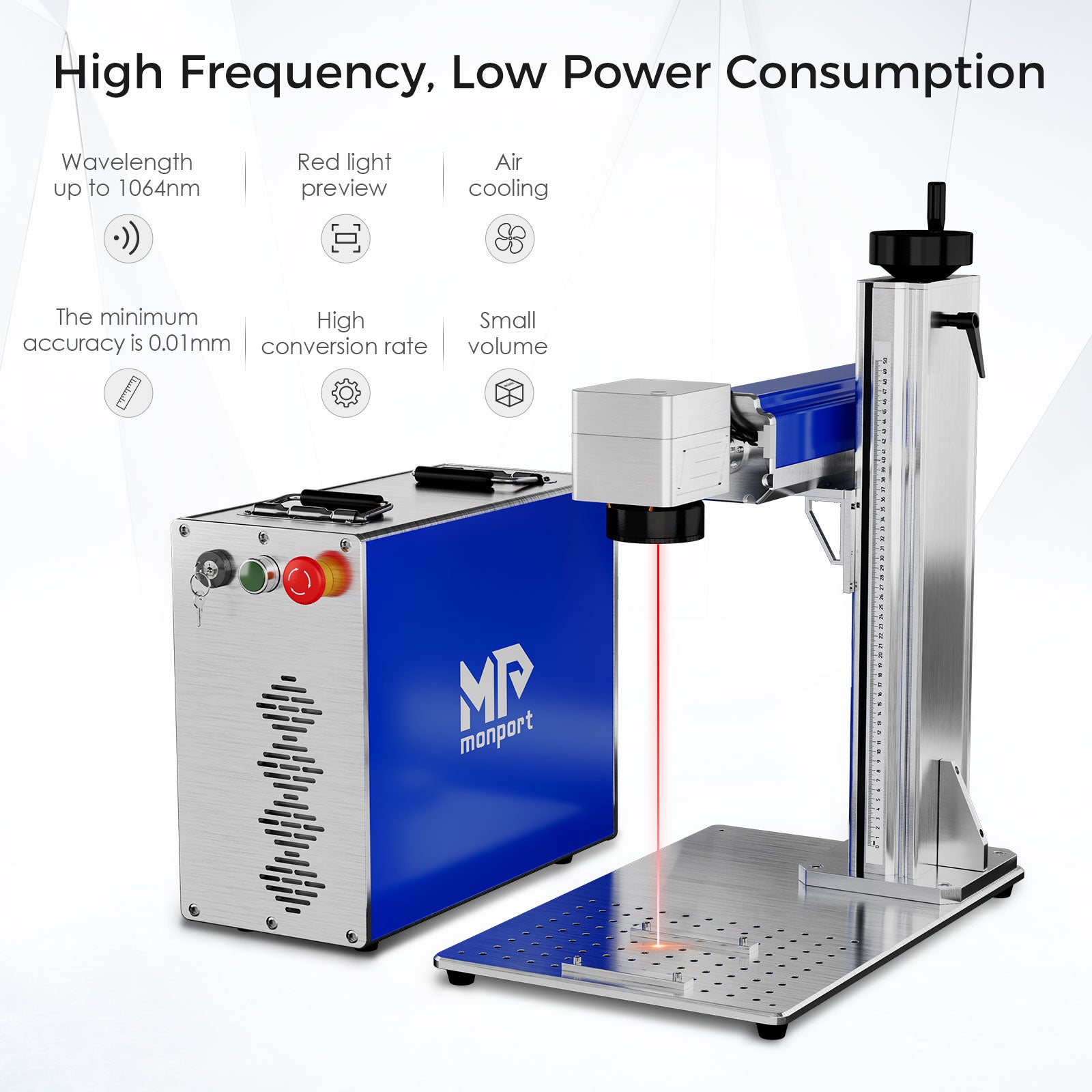

Once properly adjusted, the external red dot locator calibrates with the laser's scanner to allow a quick and accurate laser focus setup.
ManualFocus
By rotating the focus-height wheel, you can quickly focus the galvanometer laser on various materials like gold, silver, brass, stainless steel, etc . Plus, the vertical supporting tower is equipped with a ruler for convenient focus height measurements.

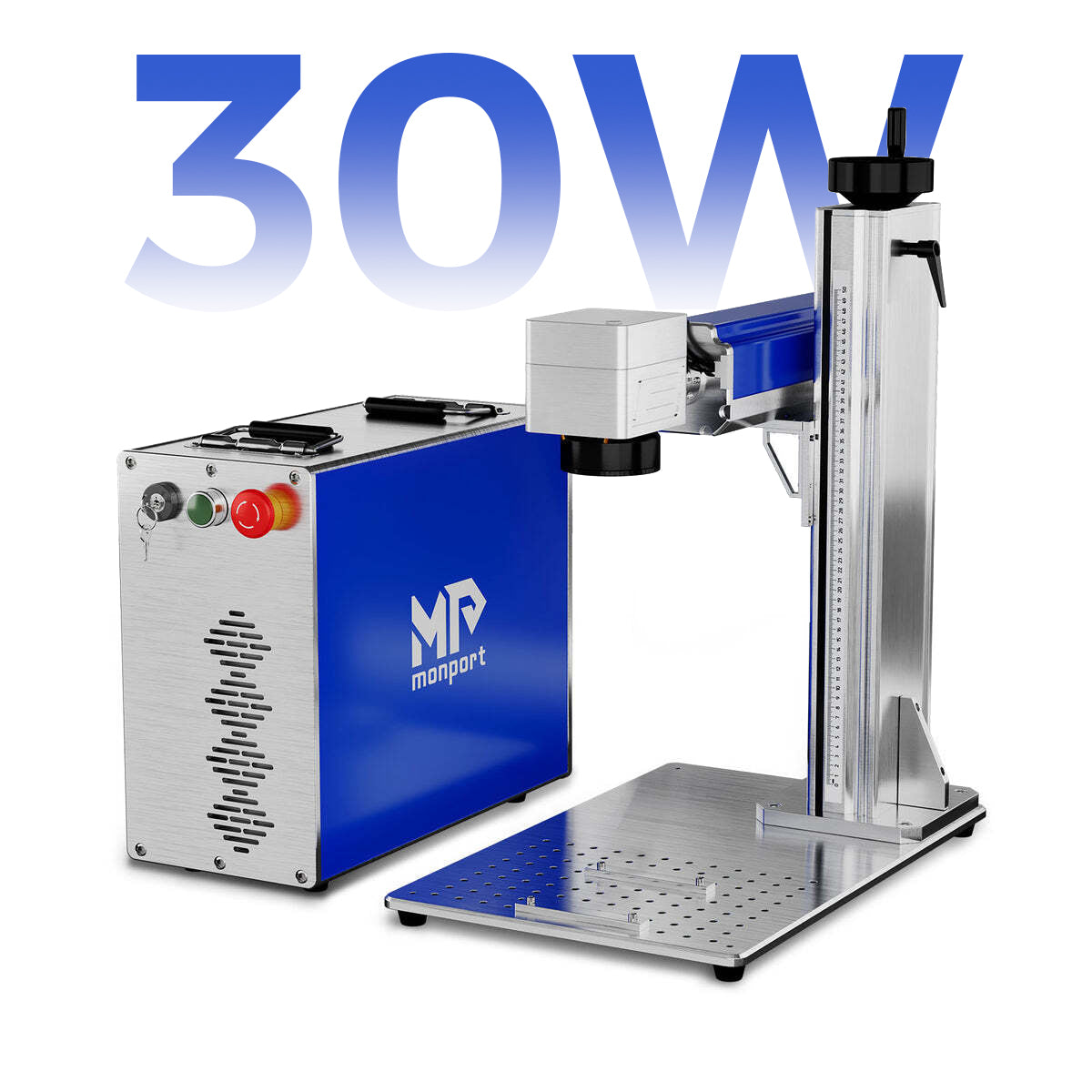

Monport 30W Specification

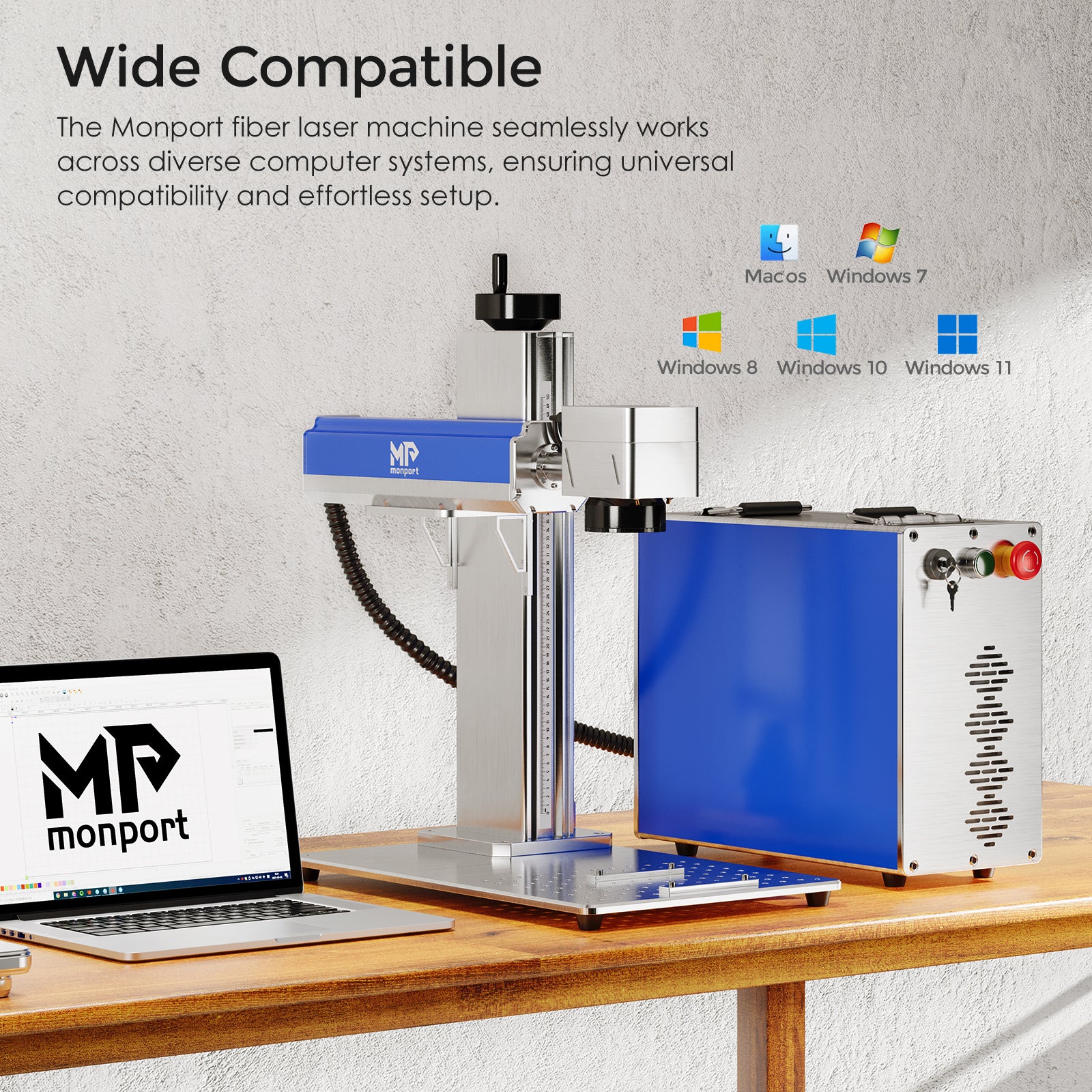

Compatibility
Includes EzCad2 software compatible with Windows XP/7/10 (32 and 64 bits)

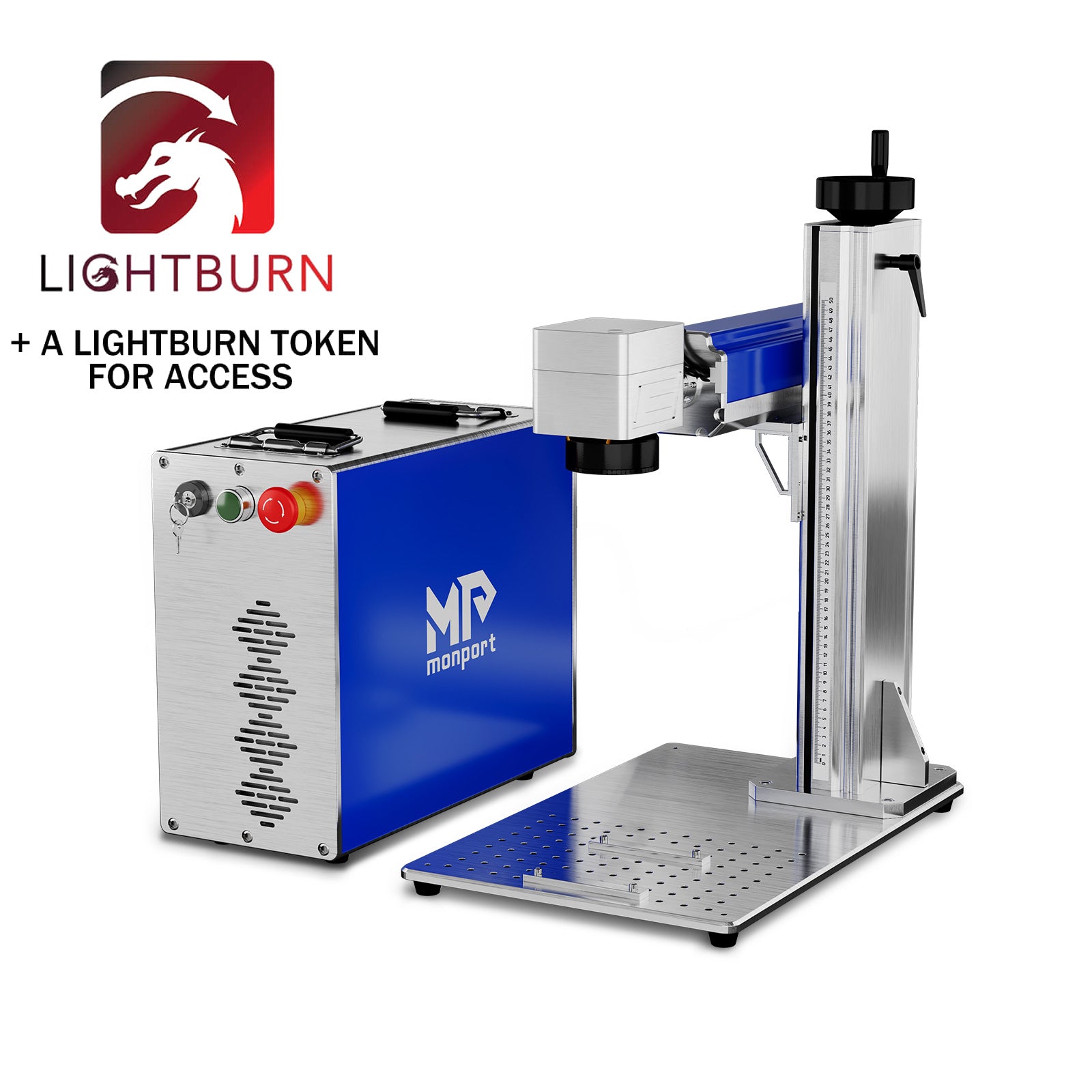

Compatible with Lightburn, AutoCAD, Corel
Draw and moreSupported image formats:BMP, GIF, JPG, DXF, PNG and others
Laser System
Rated at 30 watt
Maximum marking speed of 7000 mm/s
Laser Wavelength: 1064 nm

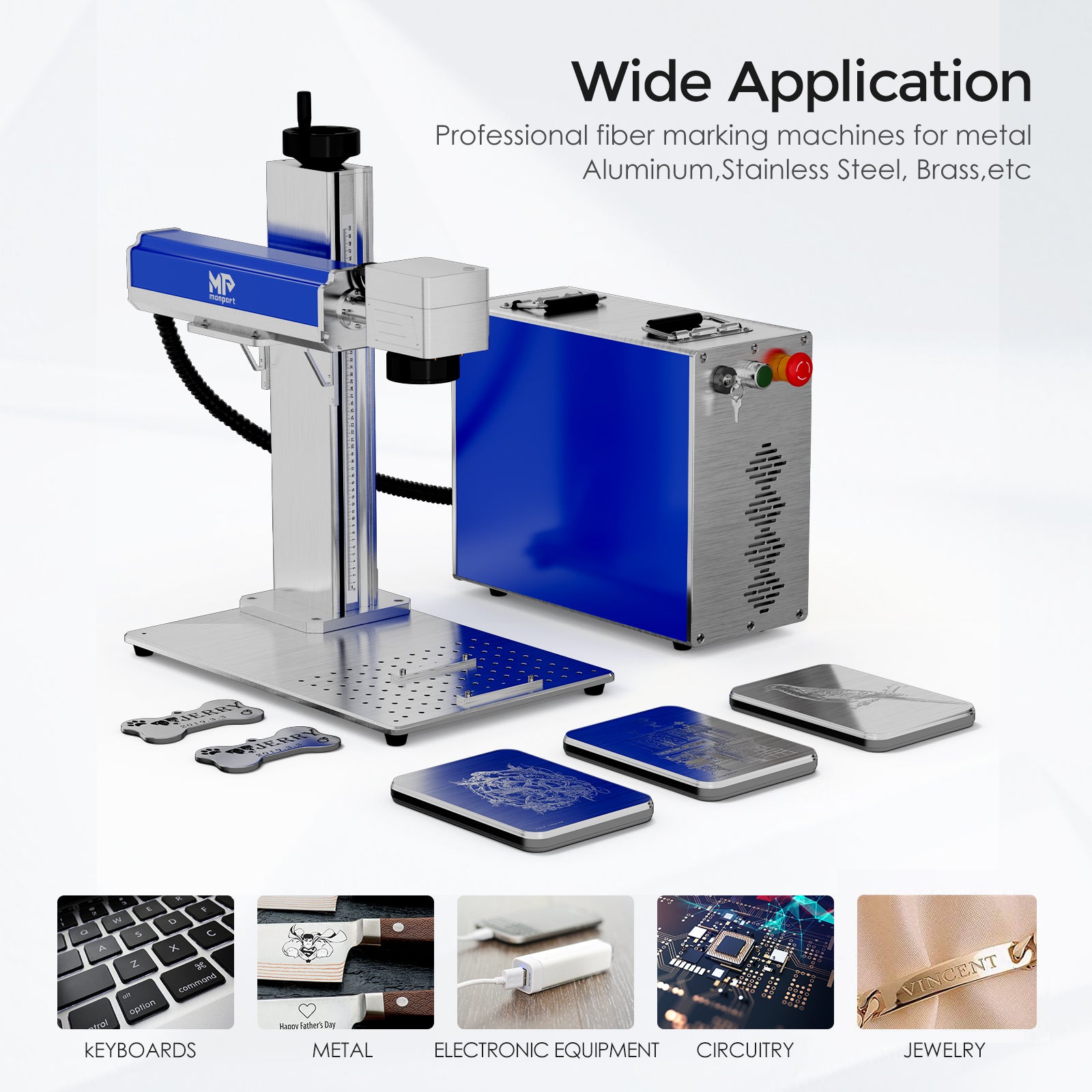

Material Capability
Most Metals
Package Contents
30 Watt Fiber Laser Marker Machine *1
Screen Fixing Bracket *1
Power Cable *1
Foot Pedal *1
Laser Safety Glasses *1
Measuring Tape *1
USB Flash Drive *1
Accessory Bag *1
Clips *2
Bolts *4
Hex Wrenches *10
Instruction Manual *1
Warranty & Certifications
2-year warranty on every fiber laser machine
FDA Approved & CE Certified
About More
Download the User Manual: 30W Fiber User Manual
Download the Software: EzCad2
Download the Software Manual: EzCad2 Description
We offer compatible accessories: Fiber Laser Rotary
We sponsor CDR files: https://kokorosastudio.com
