Save $1,100.00

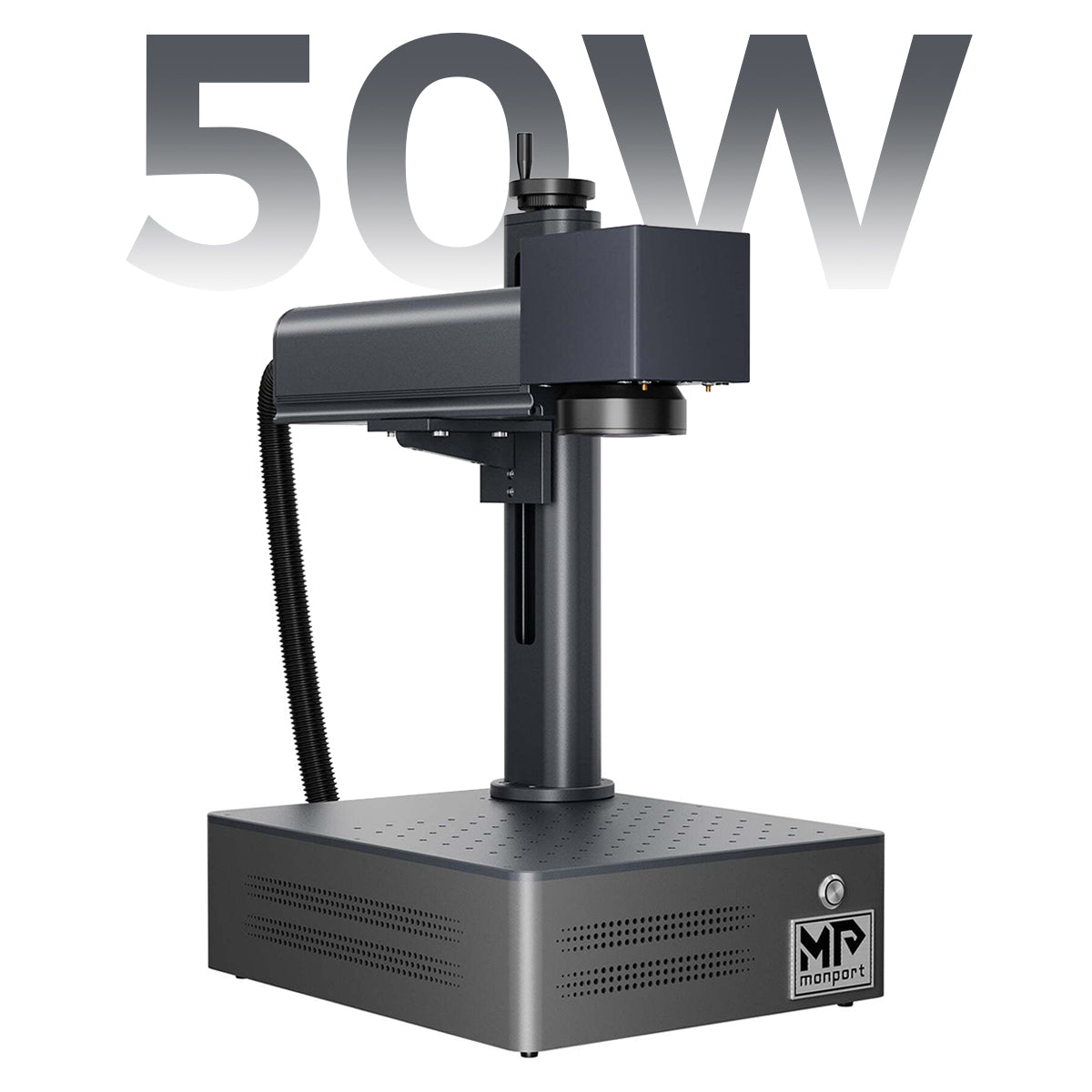

Monport GM 50W Integrated Fiber Laser Engraver & Marking Machine
Monport GM 50W Integrated Fiber Laser Engraver & Marking Machine
Regular price
$2,499.99
Sale price
$2,499.99
Regular price
$3,599.99
In stock
Payment methods
Couldn't load pickup availability

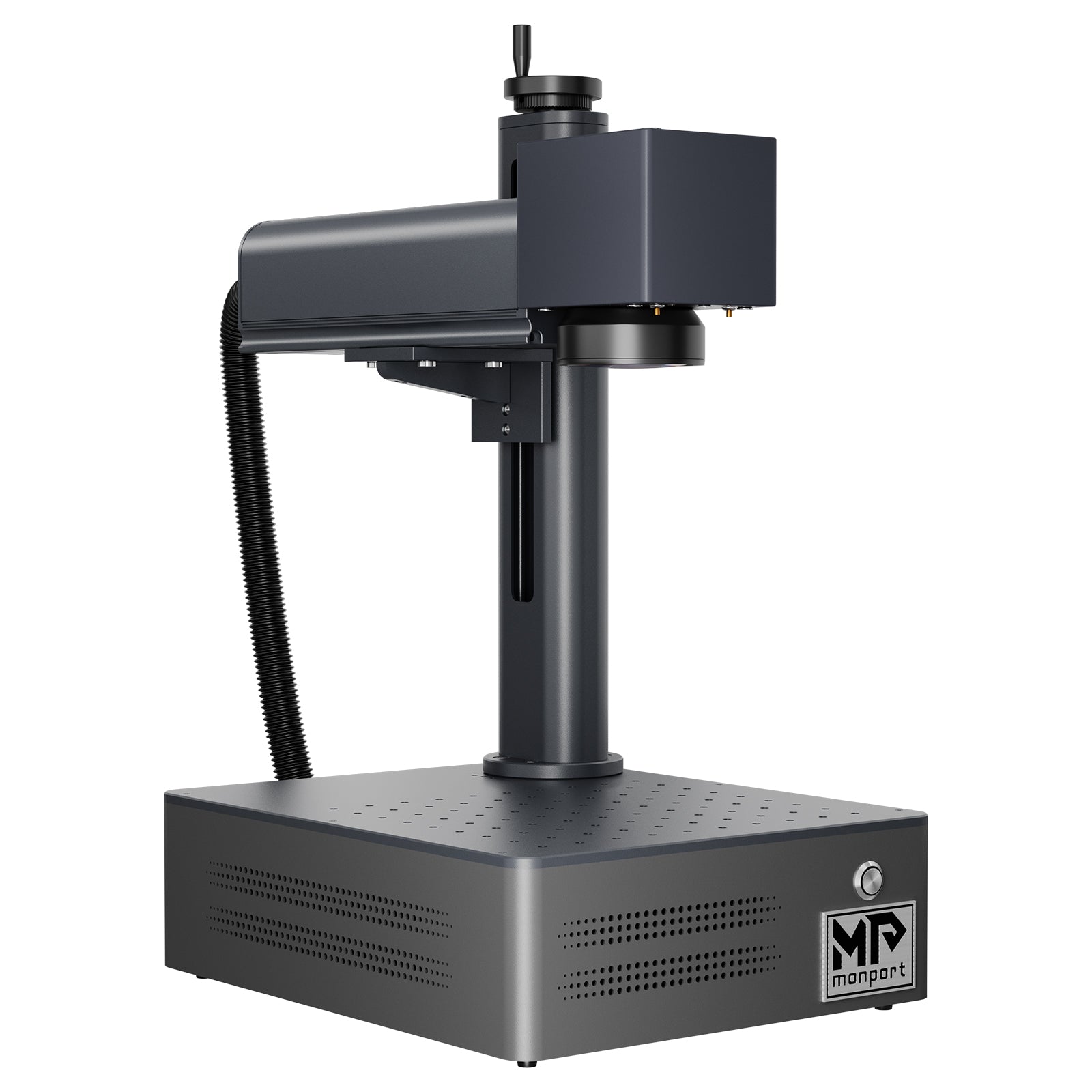

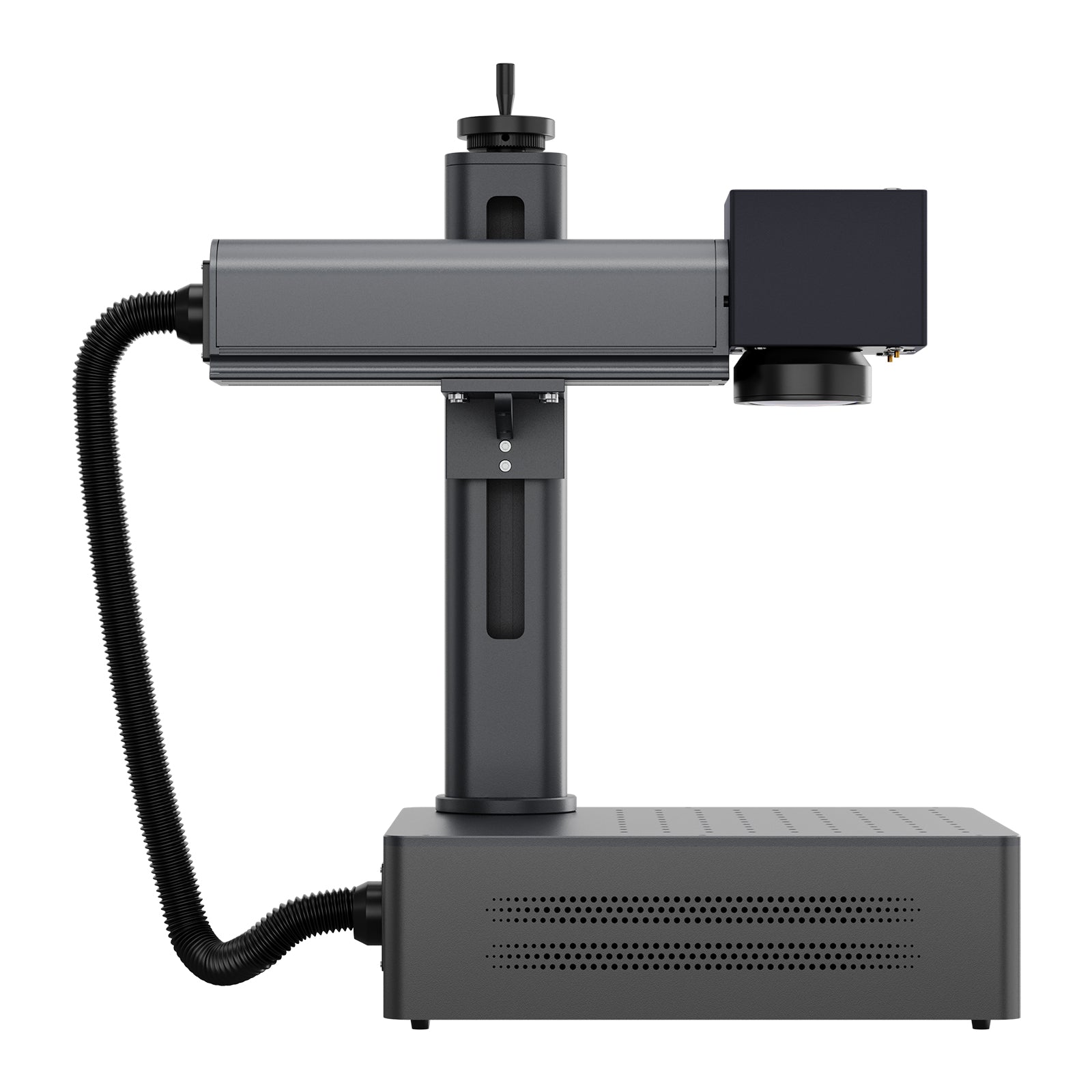

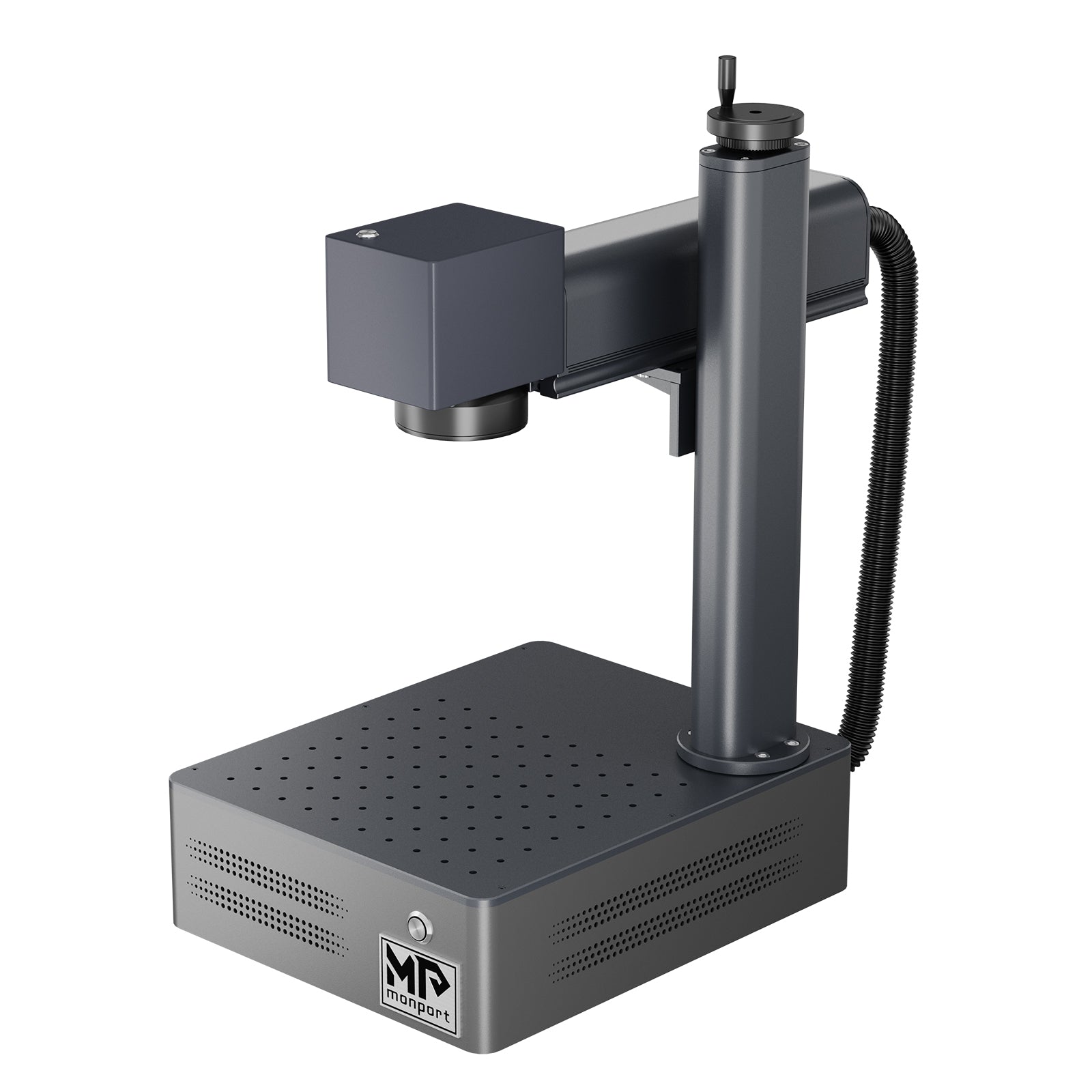

Brand New Integrated Mini Fiber Laser

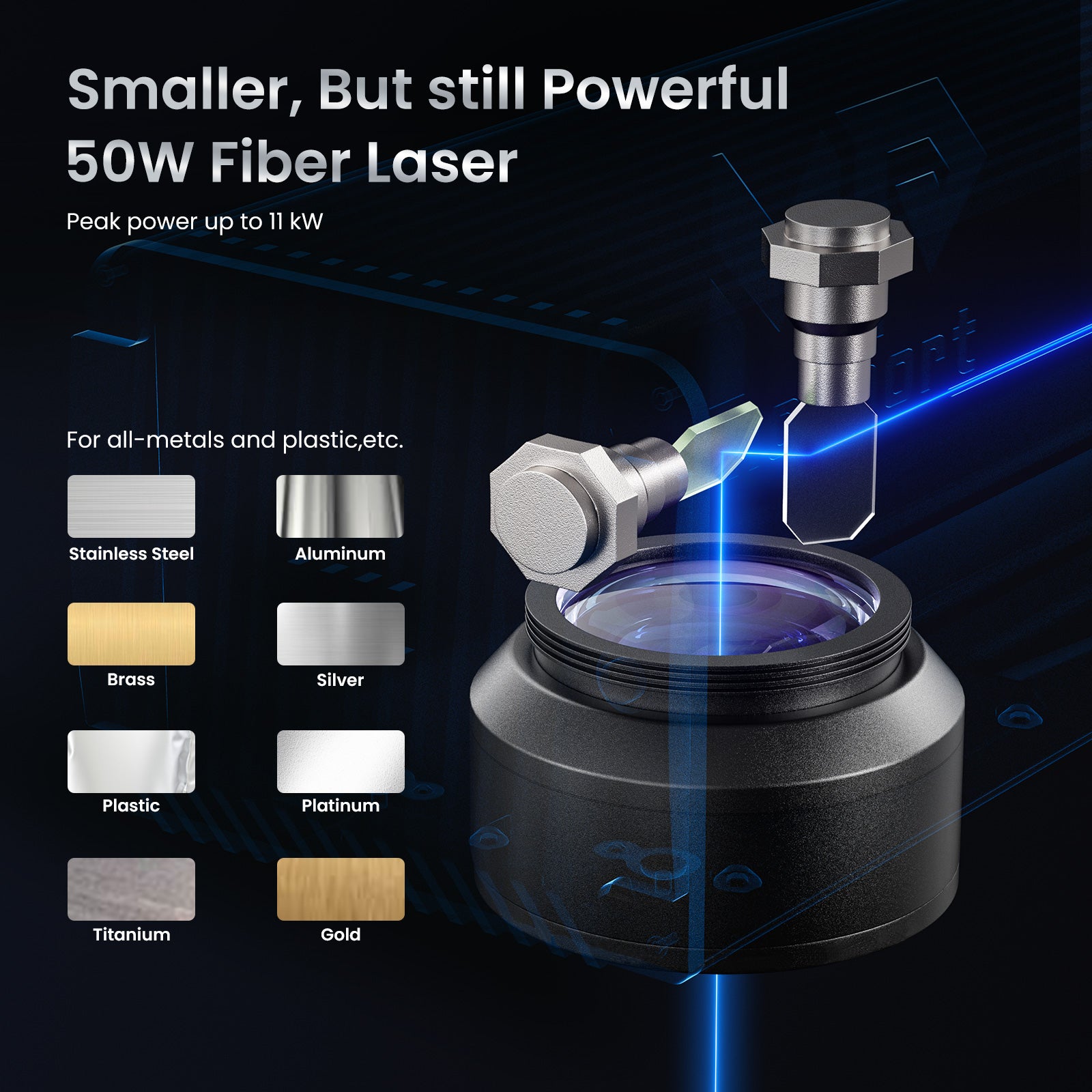

The brand new Monport fiber marking machine has a smaller size and lighter weight; Simultaneously maintaining the original high performance and a lifespan of up to 100000 hours.The fiber laser can engrave all metals. (gold, silver, copper, stainless steel, brass, titanium, etc.)

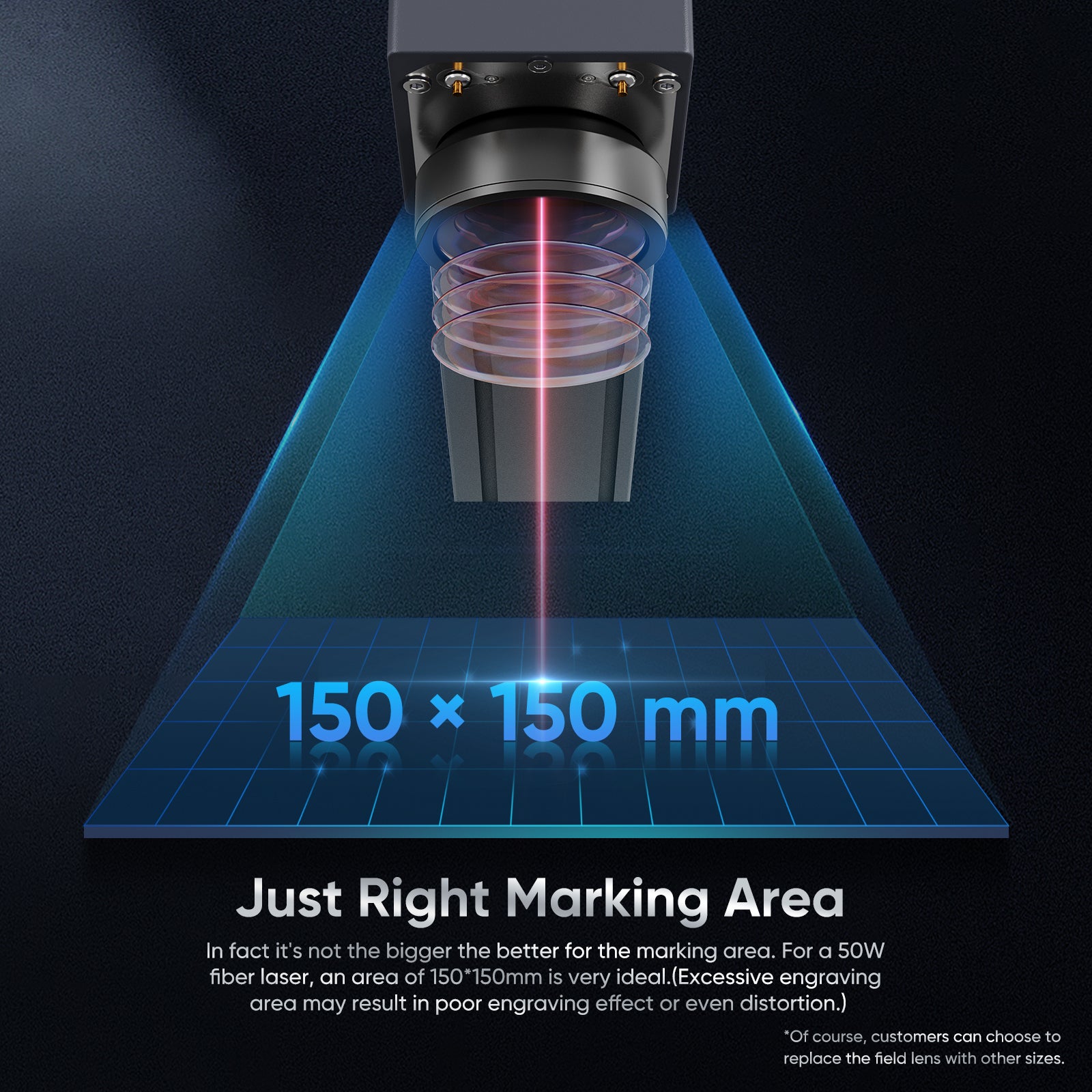

Just Right Working Area
For a 50W fiber laser, an area of 150*150mm is optimal, as excessive engraving area may result in poor engraving effect or even distortion.After special tuning by Monport, even when carving at the edges, there will be no weak light.
Deep Engraving and Cutting Capabilities

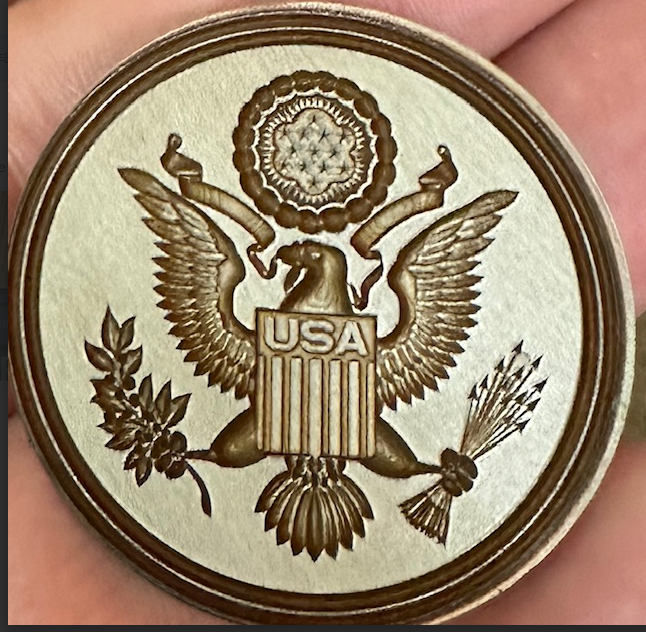

With this 50W fiber laser marking machine, you can perform 2.5D metal engraving, deep metal engraving, and even some metal sheet cutting (usually the higher the power, the stronger the deep engraving and cutting ability, and the higher the efficiency. If you want stronger and faster results, Monport recommends purchasing a 50W or above machine)

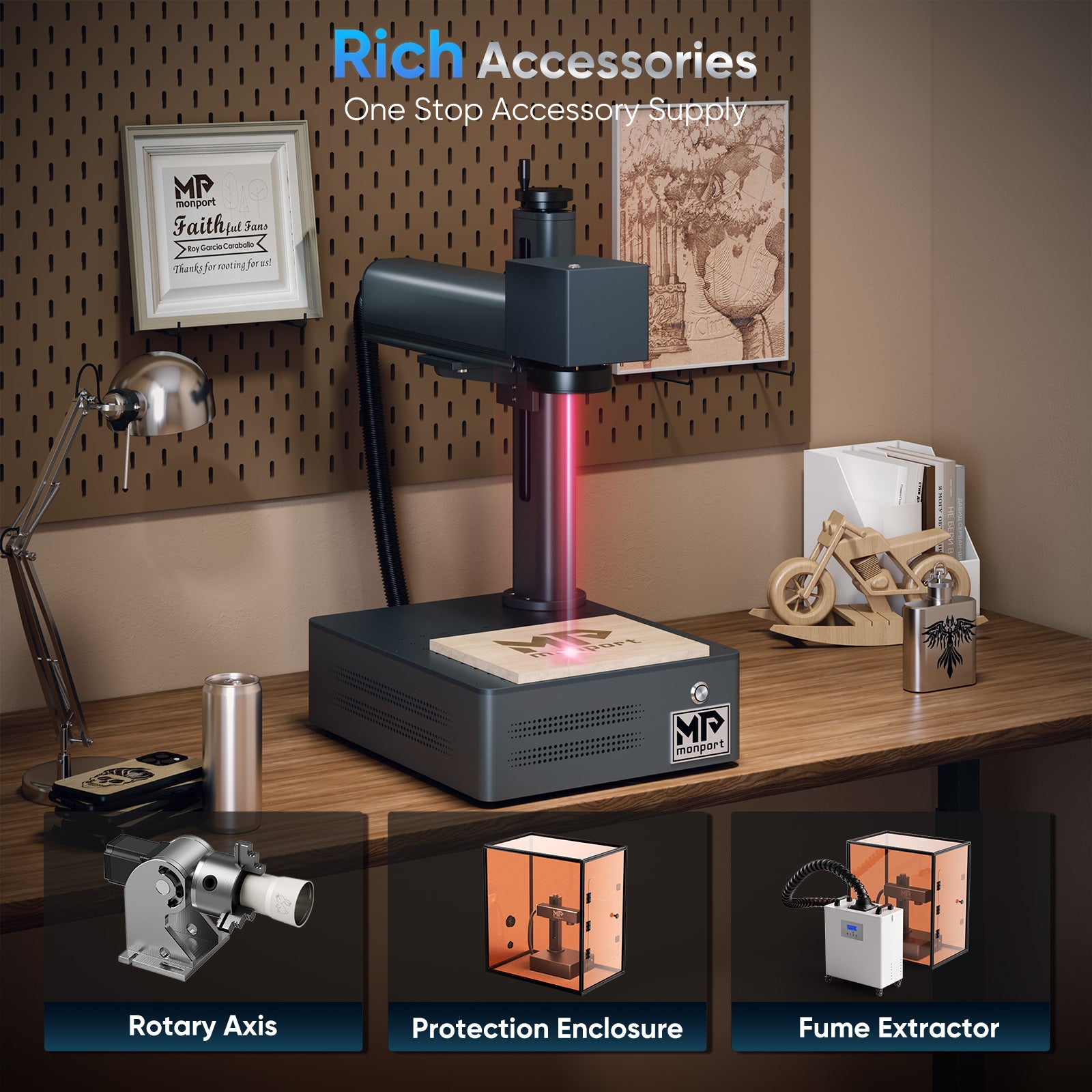

Rich Compatibility with Accessories
You can pair it with a rotary (marking circular objects), a smoke purifier (absorbing smoke and dust), a protective cover (noise reduction, safety), and all of which are sold in Monport stores.
GM Model Quick Compare
| Product Name | GM20 | GM30 | GM50 | GM30 MOPA | GM60 MOPA |
| Laser Power | 20W | 30W | 50W | 30W | 60W |
| Engraving Area | 4.3 × 4.3 in. (110 × 110 mm) |
5.9 × 5.9 in. (150 × 150 mm) |
5.9 × 5.9 in. (150 × 150 mm) |
6.9 × 6.9 in. (175 × 175 mm) |
6.9 × 6.9 in. (175 × 175 mm) |
| Max. Marking Depth (single pass, material dependent) |
0.002 in. (0.04 mm) |
0.003 in. (0.08 mm) |
0.004 in. (0.10 mm) |
0.003 in. (0.08 mm) |
0.004 in. (0.10 mm) |

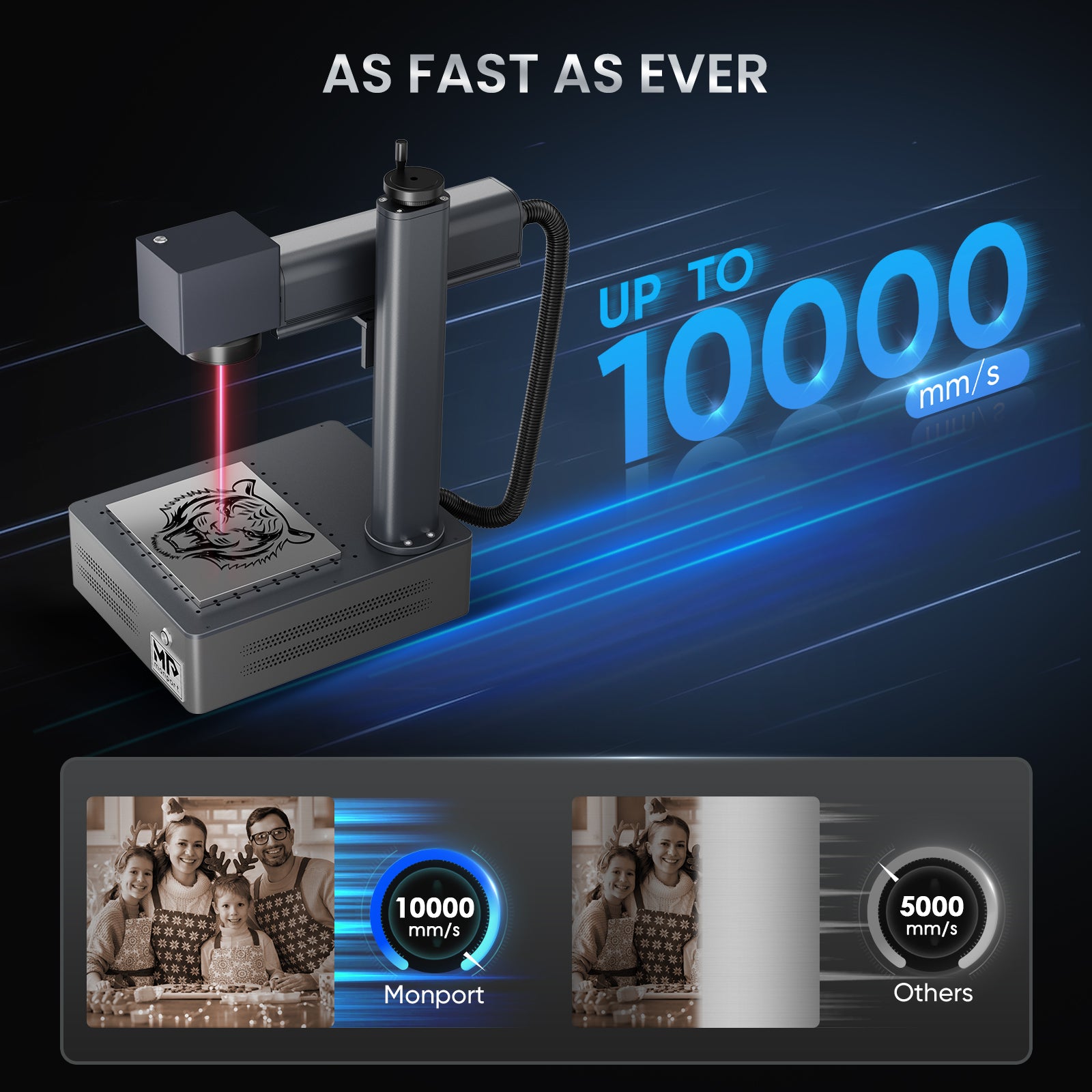

| Max Engraving Speed | 10 000 mm/s (393.7 ips) |
10 000 mm/s (393.7 ips) |
10 000 mm/s (393.7 ips) |
10 000 mm/s (393.7 ips) |
10 000 mm/s (393.7 ips) |

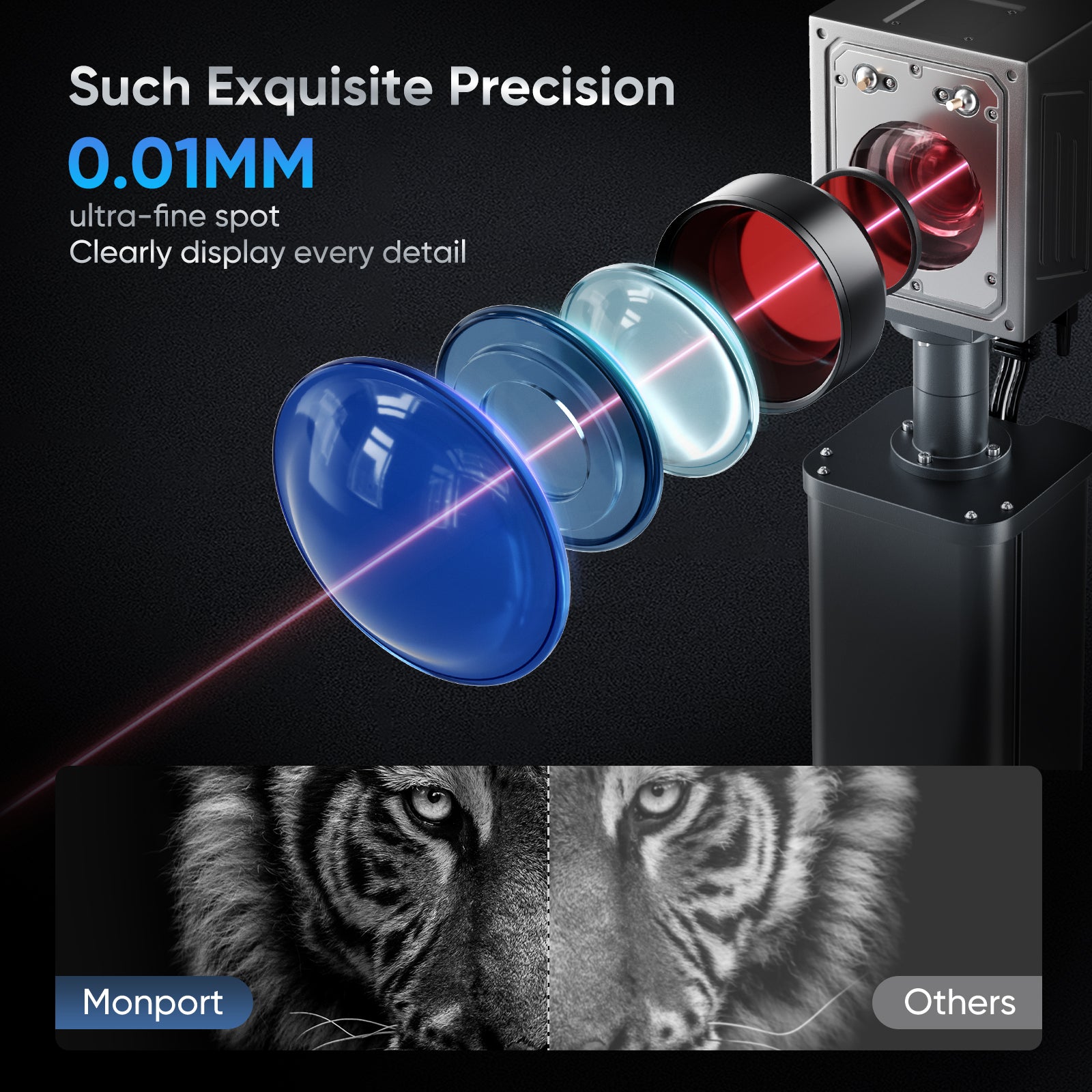

| Engraving Accuracy | 0.01 mm | 0.01 mm | 0.01 mm | 0.01 mm | 0.01 mm |
| Positioning Accuracy | ± 0.1 µm | ± 0.1 µm | ± 0.1 µm | ± 0.1 µm | ± 0.1 µm |
| Laser Source | JPT | JPT | JPT | JPT | JPT |
| Input Power | 110–120 V 60 Hz | 110–120 V 60 Hz | 110–120 V 60 Hz | 110–120 V 60 Hz | 110–120 V 60 Hz |
| Beam Quality M² | < 1.5 | < 1.5 | < 1.6 | < 1.4 | < 1.5 |
| Beam Diameter | 6–8 mm | 6–8 mm | 6–8 mm | 7 ± 0.5 mm | 7 ± 0.5 mm |
| Maximum Pulse Energy | 0.78 mJ | 0.78 mJ | 1.1 mJ | 0.8 mJ | 2 mJ |
| Max Z Height (field lens to workbench) |
350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Central Wavelength | 1 064 nm | 1 064 nm | 1 064 nm | 1 064 nm | 1 064 nm |
| Frequency Range | 29–60 kHz | 30–60 kHz | 45–170 kHz | 1–4 000 kHz | 1–4 000 kHz |
| Pulse Width | 80–120 ns Unadjustable (Fixed pulse width) |
80–120 ns Unadjustable (Fixed pulse width) |
90–110 ns Unadjustable (Fixed pulse width) |
2–500 ns | 2–500 ns |
| Expected Service Life (MTTF) | 100 000 h | 100 000 h | 100 000 h | 100 000 h | 100 000 h |
| Color Engraving | NO | NO | NO | YES | YES |
| Focus Mode | Manual focus | Manual focus | Manual focus | Manual focus | Manual focus |
| Electric Lifting | NO | NO | NO | NO | NO |
| Cooling Type | Air Cooling | Air Cooling | Air Cooling | Air Cooling | Air Cooling |
| Rotation Axis Function | YES | YES | YES | YES | YES |
| Galvanometer Thread Size | M68 | M68 | M68 | M68 | M68 |
| Field Lens Dimension | M85 | M85 | M85 | M85 | M85 |
| Foot Pedal Function | External foot pedal | External foot pedal | External foot pedal | External foot pedal | External foot pedal |
| Materials Suitable for Engraving | Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. | Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. | Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. | Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. | Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. |
| Compatible Operating Systems | Windows / macOS | Windows / macOS | Windows / macOS | Windows / macOS | Windows / macOS |
| Compatible Software | BSLcad, Lightburn | BSLcad, Lightburn | BSLcad, Lightburn | BSLcad, Lightburn | BSLcad, Lightburn |
| Data Transmission | USB Cable | USB Cable | USB Cable | USB Cable | USB Cable |

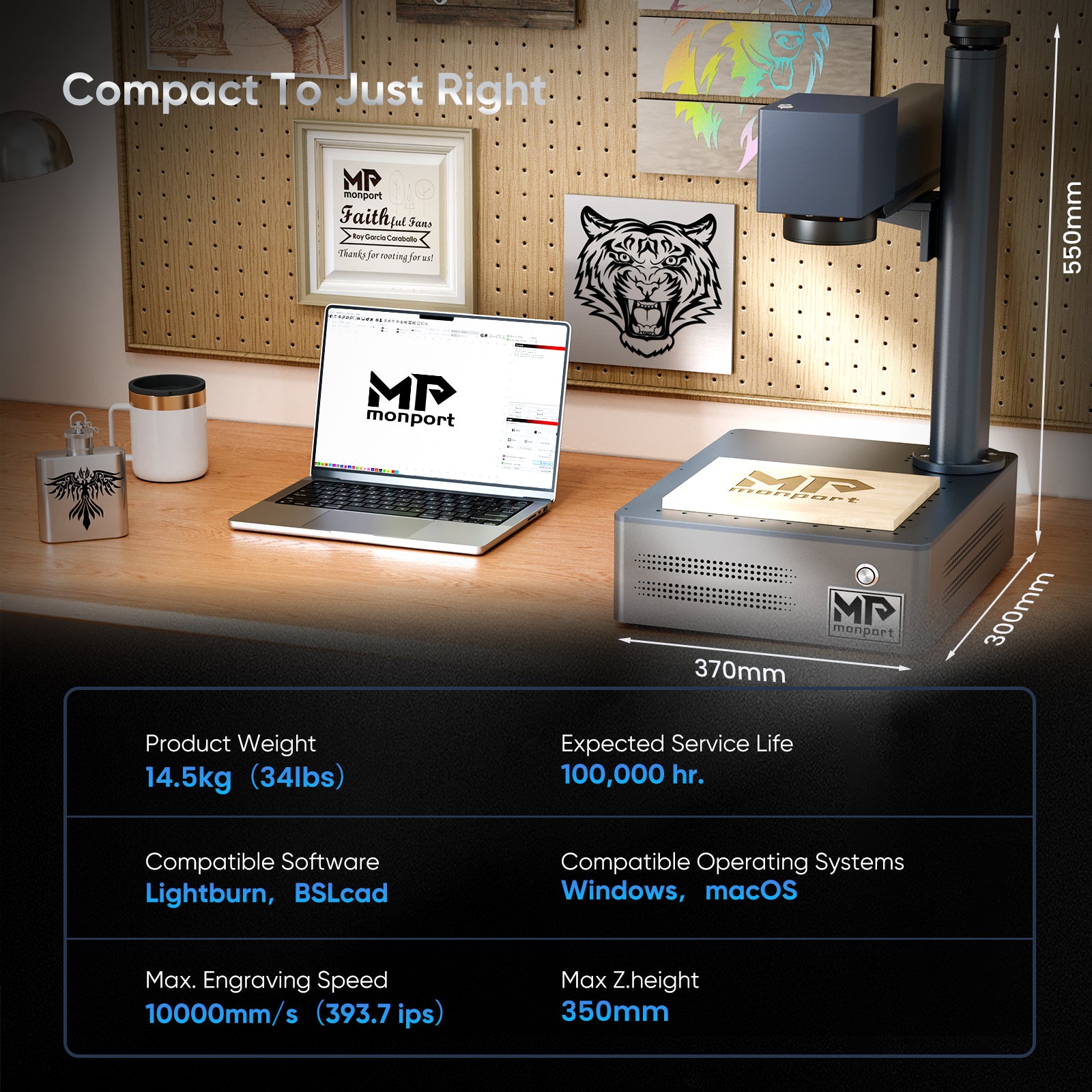

| Product Dimensions (L × W × H) | 14.57 × 11.81 × 21.65 in (37.0 × 30.0 × 55.0 cm) |
14.57 × 11.81 × 21.65 in (37.0 × 30.0 × 55.0 cm) |
14.57 × 11.81 × 21.65 in (37.0 × 30.0 × 55.0 cm) |
14.57 × 11.81 × 21.65 in (37.0 × 30.0 × 55.0 cm) |
14.57 × 11.81 × 21.65 in (37.0 × 30.0 × 55.0 cm) |
| Package Dimension (L × W × H) | 21.46 × 15.35 × 13.78 in (54.5 × 39.0 × 35.0 cm) |
21.46 × 15.35 × 13.78 in (54.5 × 39.0 × 35.0 cm) |
21.46 × 15.35 × 13.78 in (54.5 × 39.0 × 35.0 cm) |
21.46 × 15.35 × 13.78 in (54.5 × 39.0 × 35.0 cm) |
21.46 × 15.35 × 13.78 in (54.5 × 39.0 × 35.0 cm) |
| Product Weight | 33.1 lb (15 kg) | 34.2 lb (15.5 kg) | 32.0 lb (14.5 kg) | 32.0 lb (14.5 kg) | 34.2 lb (15.5 kg) |
| Gross Weight | 36.4 lb (16.5 kg) | 37.5 lb (17 kg) | 35.3 lb (16 kg) | 35.3 lb (16 kg) | 37.5 lb (17 kg) |
| Warranty | 2-year (1 year for laser source) |
2-year (1 year for laser source) |
2-year (1 year for laser source) |
2-year (1 year for laser source) |
2-year (1 year for laser source) |
Package List
1x Fiber Laser Engraver
1x USB Cable(2 meters)
1x Power Cord(1.5 meters)
1x USB Flash Drive
1x User Manual
1x Goggles
1x Wrench Set
1x Ruler（30cm）
1x Foot Switch
2x Positioning Bars
4x Screws M6*12
4x Screws M6*10
4x Screws M5*16
1x Usb to TypeC Adapter
10x Test Aluminum Sheets
Questions & Answers
Have a Question?
-
Which of your fiber lasers have the auto focusing Z?
The Max Z.height (Field Lens to Workbench) is 350mm.
