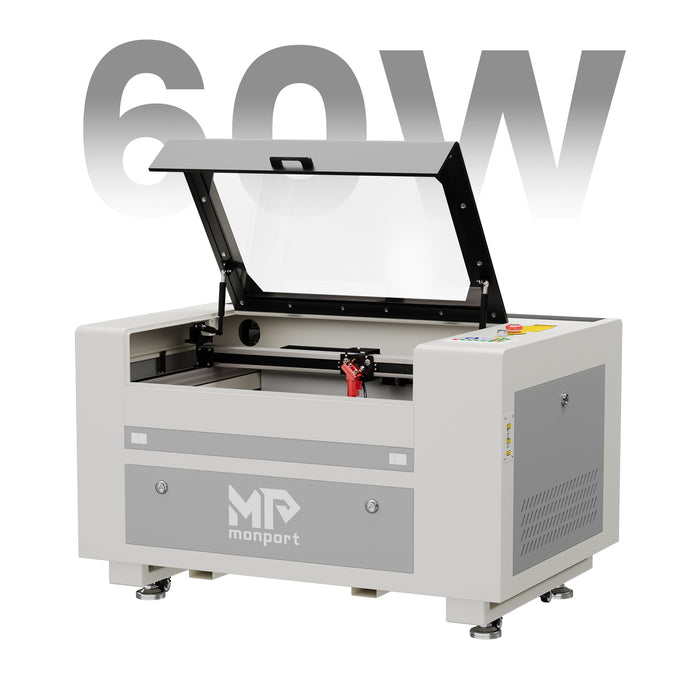

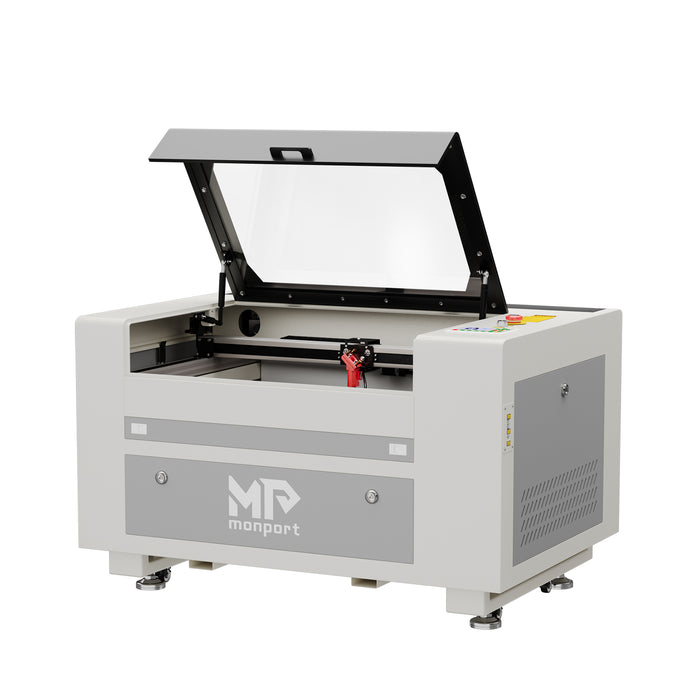

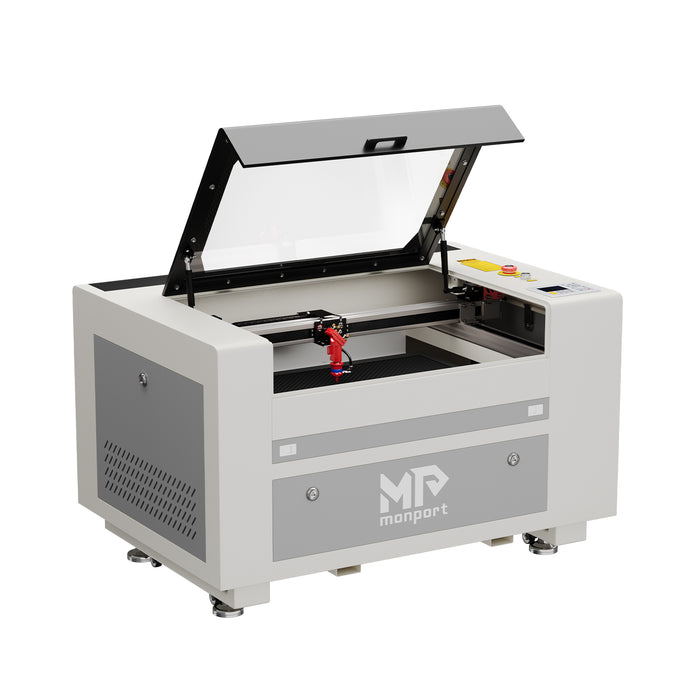

Monport 60W CO2 Laser Engraver & Cutter (24" x 16") with Autofocus
Monport 60W CO2 Laser Engraver & Cutter (24" x 16") with Autofocus
In stock
Couldn't load pickup availability
Dimension & Specifications
Dimension & Specifications
Machine Dimension: 44.1''x 29.5'' x 25'' (112cm x 75cm x 64cm）
Package Dimension: 48.8" x 34.6'' x 45.7'' ( 124 cm x 88 cm x 116 cm )

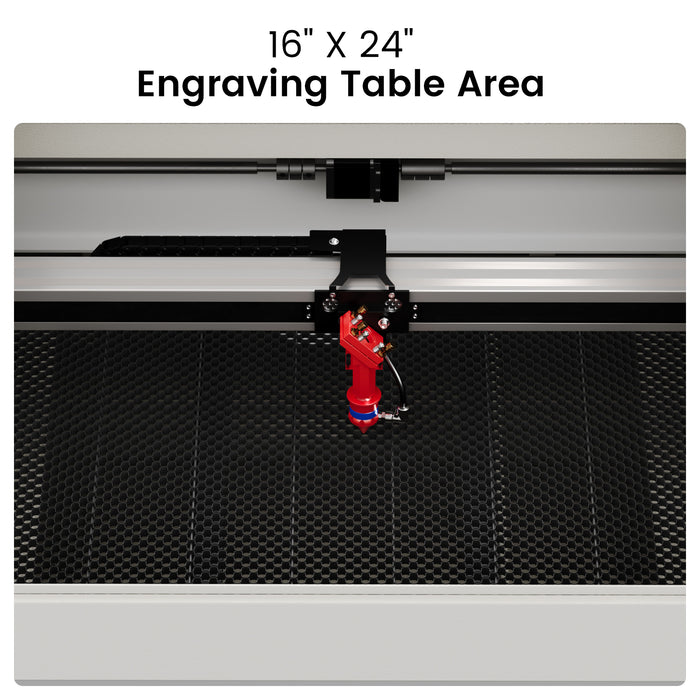

Working Dimension: 16" x 24" ( 40 cm x 60 cm )
Pass-through Dimension: 1.5'' x 28''（4cm x 73 cm )
Max Engraving Speed: 800mm/s
Focal Lens Diameter: 18mm
Mirror Diameter: 25mm
Max. Z-depth: 9.8”
Product Weight: 209 lbs
60W CO2 Engraver Features
60W CO2 Engraver Features

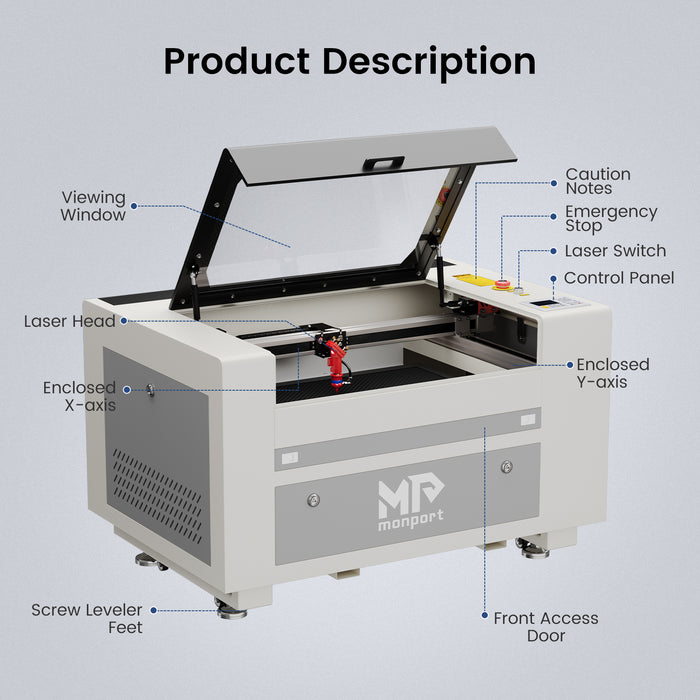

Fireproof Viewing Window
This viewing window is made from special fire-resistant polyester with iron frames. The melting point of this polyester ranges from 432° to 488° and the ignition temperature of it is over 1000°, which can dramatically decrease the possibility of fire accidents caused by the heat of laser burning the materials.
Enclosed Aeronautical Aluminum Rail
Equipped with X and Y stepper motors, this rail features efficient power transmission with high precision. The enclosed rail is designed to avoid smoke and debris and prolong the service time of rail units.
Laser Protective Glasses for Free
Lasers emit radiation in the invisible form of light. This pair of laser protective glasses is certified to protect your eyes against radiation damage by looking at the class 4 laser in any way (directly, indirectly, or even looking at the laser dot on a surface can damage your eyes).
Ruida Digital Controller
Whether your chosen software is LightBurn, RDworks, AutoCAD, or CorelDRAW, this Ruida digital controller can support the given platform. The Ruida Controller with a digital display can control the laser head, start or stop projects, adjust laser power and speed settings and so on.

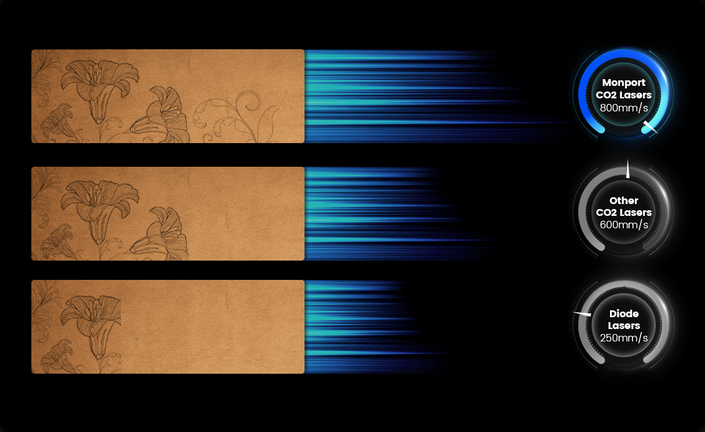

High Speed and Resolution
The Engraving Speed is up to 800 mm/s;
The Cutting Speed is up to 400 mm/s;
The Resolution is up to 4500 dpi;
3 LED light strips above the work bed provide illumination for precision;
2.0" Focal distance provides high resolution and etching of tiny fonts
Autofocus
Use the control panel to correct the focus automatically at the touch of a button — no more manual testing and adjustment.

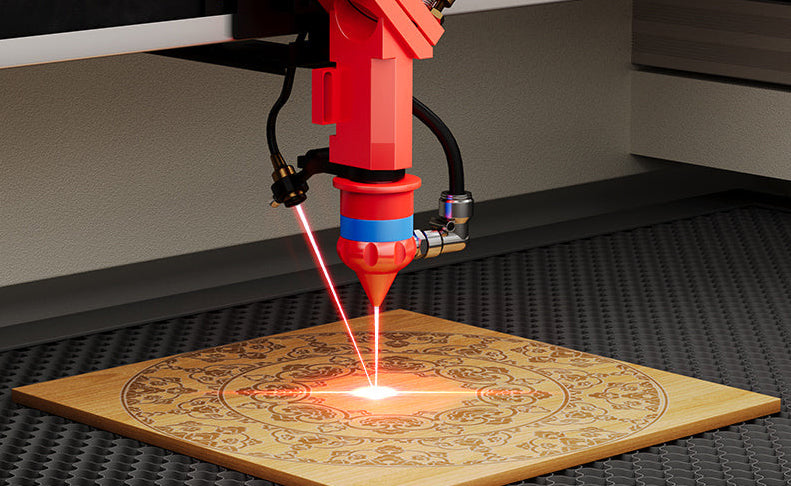

Built-in Air Assist
A built-in air assist system guides a pressurized air stream through the laser head nozzle to displace debris, heat, and combustible gases from the engraving surface and laser beam path, keeping engravings more precise.
3-ways to Connect with PC End
Two USB ports provide options including flash drive connectivity and a USB-to-USB PC connection. In addition, one ethernet port is also available for connection.
Red Dot Guidance
The red dot shows the laser head position, marks the working path and frames the project sizes, assisting you with more convenience and guidance.
Automatic Safety Sensor
The safety shutdown sensor helps stopping the machine even if the window cover is on. Once closed, press the “Enter” button to continue operation.

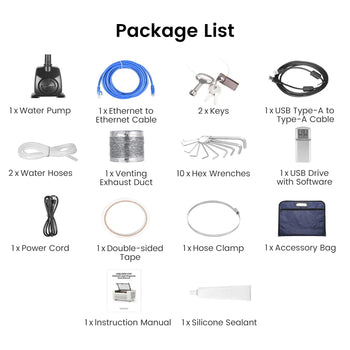

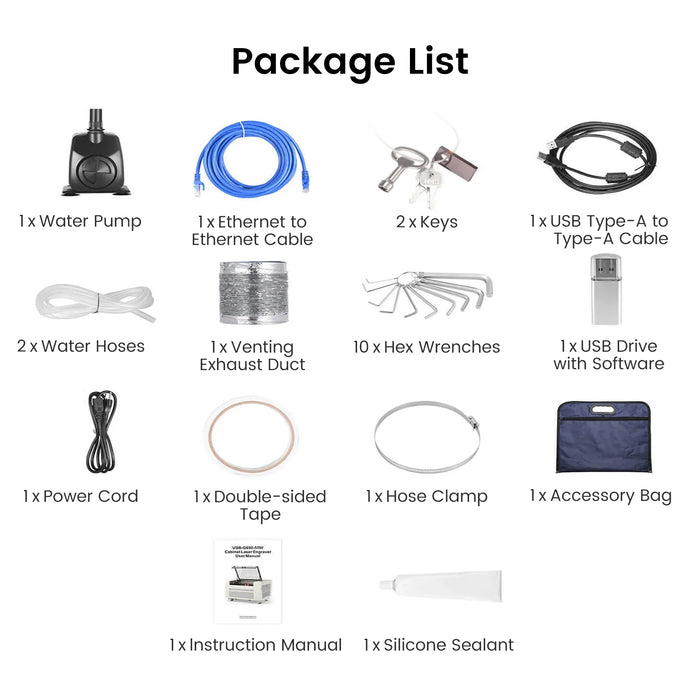

Package Contents
Package Contents
Laser Engraver Machine *1
A Pair of Laser Protective Glasses *1
Accessory Bag *1
Ethernet to Ethernet Cable *1
USB Type-A to Type-A Cable *1
Venting Exhaust Duct *1
USB Drive with Software (RDworks) *1
Hex Wrenches *10
Double-sided Tape *1
Power Cord *2
Keys *2
Silicone Sealant *1
Stainless Steel Clamp *1
Instruction Manual *1
Warranty & Certifications
Warranty & Certifications
2-year warranty on all laser machines and components
6-month warranty on the laser tube

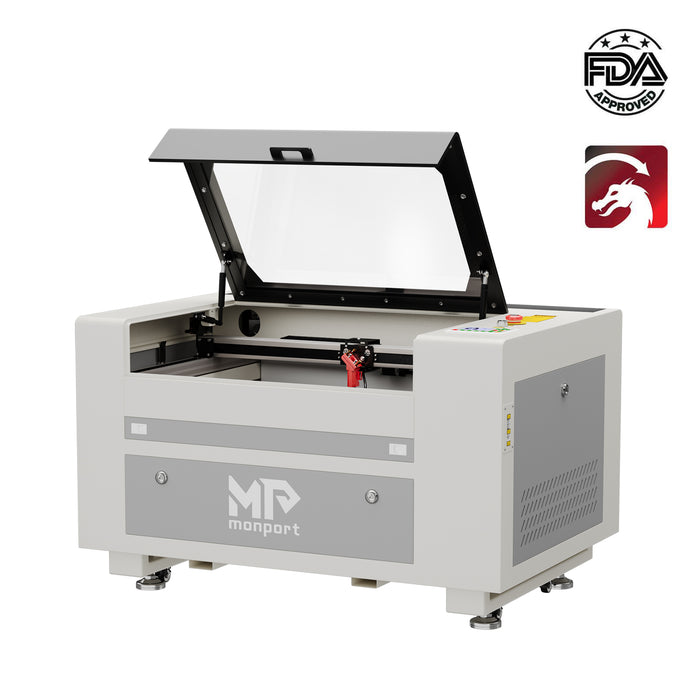

FDA Approved & CE Certified
Manual List
Manual List
Download the Software: RDworks
Download the Manual: 60W CO2 User Manual
Download the Settings: CO2 Parameter Settings
Compatible Accessories: Rotary Axis, Water Chiller
We sponsor DIY laser files: Free DIY laser files
| Product Name | 60W CO2 (24" x 16") with Autofocus | 60W CO2 (28" x 20") with Autofocus | 80W CO2 (24" x 16") with Autofocus |
| Output Power | 60W | 60W | 80W |
| Max. Marking Speed | 800mm/s | 800mm/s | 800mm/s |
| Focus Method | Autofocus | Autofocus | Autofocus |
| Working Area | 24" x 16" | 28" x 20" | 24" x 16" |
| Compatible Software | Lightburn, RDWorks, Coreldraw, Auto-CAD | Lightburn, RDWorks, Coreldraw, Auto-CAD | Lightburn, RDWorks, CorelLaser |
| Pass-through Dimension | 1.5'' x 28'' | 3.7"x27.5" | 3.9"x32.3" |
| Expected Service Life | 12,000hr | 12,000hr | 12,000hr |
| Laser Wavelength | 10640nm | 10640nm | 10640nm |
| Supported Image Formats | BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others | BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others | BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others |
| Machine Dimension | 44.1'' x 29.5'' x 25'' | 49.2” x 36” x 36.2” | 44.1" x 29.5" x 25" |
| Product Weight | 209 lbs | 319.7 lbs | 258 lb |
| Price | $2,099.99 | $2,399.99 | $2,349.99 |
| Shop Now | Shop Now | Shop Now |
Questions & Answers
Have a Question?
-
what is the life expectancy of the laser tube on the 60watt with autofocus?
The expected service life for the 60W laser tube is approximately 12,000 hours.
-
what Amps does the Monport 60W CO2 Laser Engraver & Cutter (24" x 16") with Autofocus use
The Rated current is 10A.
-

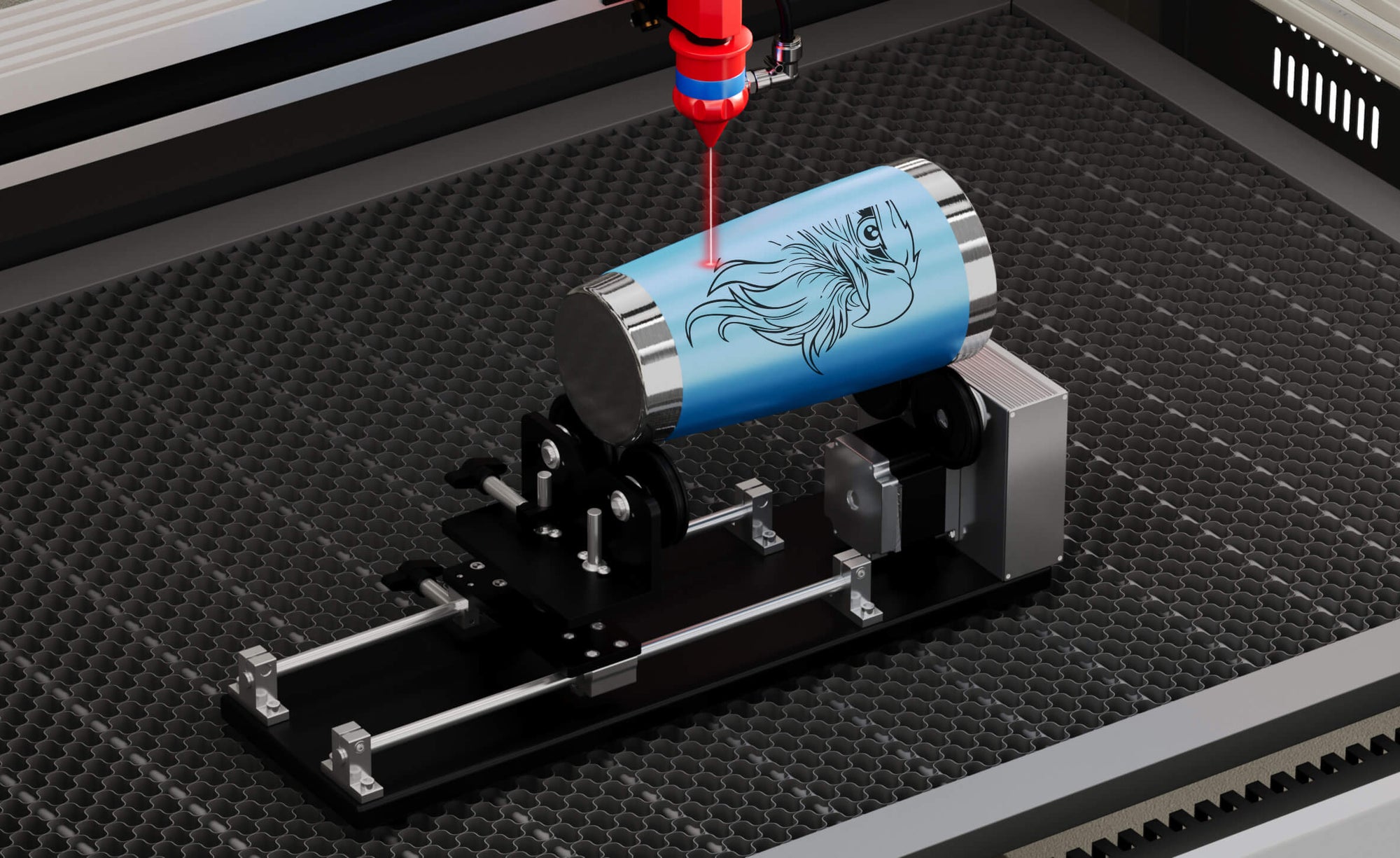

Can it engrave tumblers?
Yes, this machine can engrave on tumblers, and we recommand you can purchase a rotary work with the laser. Here is the link, please check it out: https://monportlaser.com/collections/rotary-axises/products/4-wheel-rotary-axis
-
Do you need a chiller with this machine?
Yes. The chiller can increase the working life of the engraving machine; it can also exchange heat for the heating laser and related lenses to maintain the temperature required for work; it can also stabilize the effect of the laser spot mode; and maintain the stability of the laser tube power.
-
Can this laser cut laser acrylic? How thick?
Yes, The 60W CO2 laser can cut acrylic. It can cut up to 3/4in acrylic at a time.
-
How long is the ethernet cable that comes with the 60w 1624 laser?
150cm
-
Do you offer a machine that can cut glass (4mm or 6mm thick)?
Because the glass material has a high light refractive index and is not suitable for the wavelength of CO2 laser so that our machine cannot cut glass. Our machine can only engrave on glass.
-
what metals can i engrave
This machine can only engrave on painted metal, it cannot engrave directly on metal. If you want to engrave metal, we recommend you consider a laser laser. Monport fiber lasers can engrave on all kinds of metal including Stainless Steel, Aluminum, Gold, Silver, Alloy ,Ceramic,Marble, Leather,Plastics,Colored Acrylic etc.
-
Hi will the 40watt lightburn software that you sale work with the Monport 60W CO2 Laser Engraver & Cutter (24" x 16") with Autofocus
No, you can't use 40W lightburn software to 60W CO2 laser engraver, I suggest you need to check this out: https://monportlaser.com/collections/software-1/products/lightburn-software-download-dsp-license-key-for-co2-laser-engraver-cutter
-

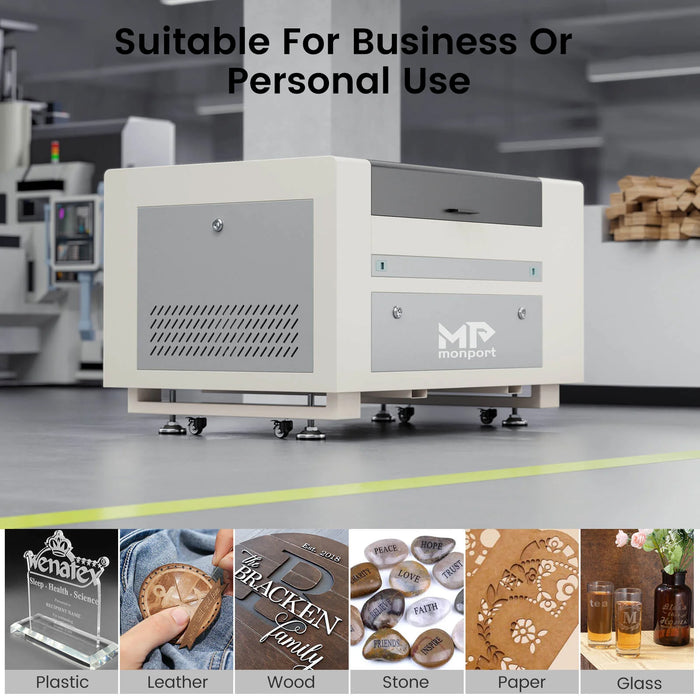

: What materials can the 60W-150W CO2 laser engraver machine engrave?
: Engrave: Wood, acrylic, glass, fabric, leather, paper, cardboard, rubber, stone and anodized aluminum. Cut: wood, acrylic, fabric, leather, paper, cardboard, rubber.
-
: What is the Pass-through dimension of Monport CO2 laser engraver machine?
: "Monport 60w(16’’x14’’) pass-through dimension : 730mm*40mm
Monport 60w(20’’x28’’) pass-through dimension : 700mm*95mm?
Monport 80w(24’’x36’’) ?pass-through dimension :950mm*75mm
Monport 100w(24’’x40’’) pass-through dimension : 1095mm*75mm
Monport 130w(35’’x55’’) pass-through dimension : 1395mm*75mm
Monport 150w(40’’x64’’) pass-through dimension : 1695mm*75mm" -
: Does the Gcode lightburn suit for the 60W-150W CO2 laser engraver machine?
: The Gcode is not compatible with 60w-150w CO2 machines. But you can click here to buy the DSP version.
-
: Is this CO2 laser engraving cutting machine a plug and play product out of the box, or will I need additional accessories/components?
: Yes, it's plug and play. But you still need to check the mirror alignment after you get the machine.For beter engraving effect and the longevity of the laser tube, we recommend you consider the 5200 chiller. Also, if you'd like to engrave tumblers, the 4-wheel rotary is need.
-
: How does this CO2 laser engraving cutting machine achieve autofocus?
: Autofocus means distance is automatically calculated and focus is automatically corrected at the touch of a button via the ruida control panel - no more manual testing and adjustments.
