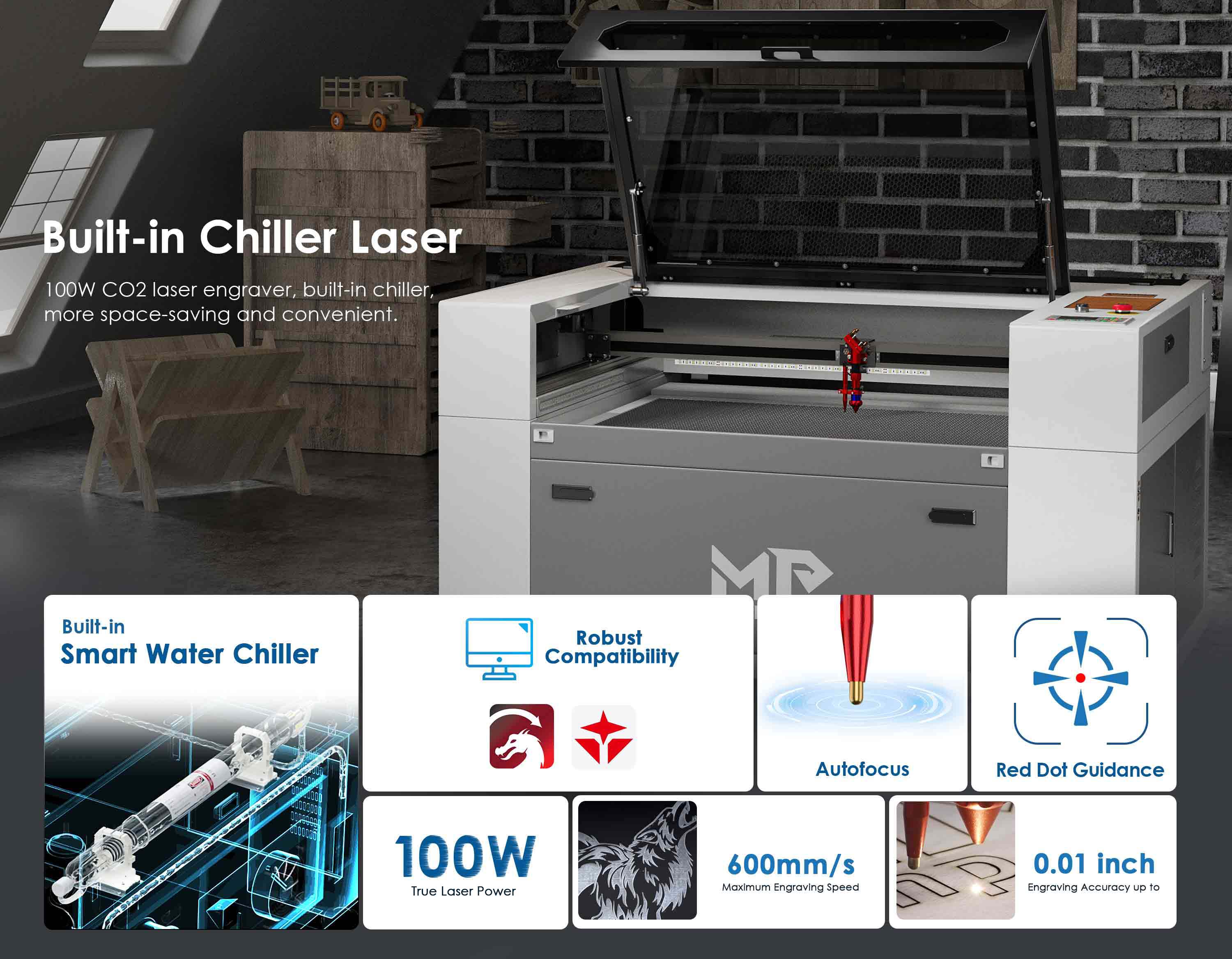

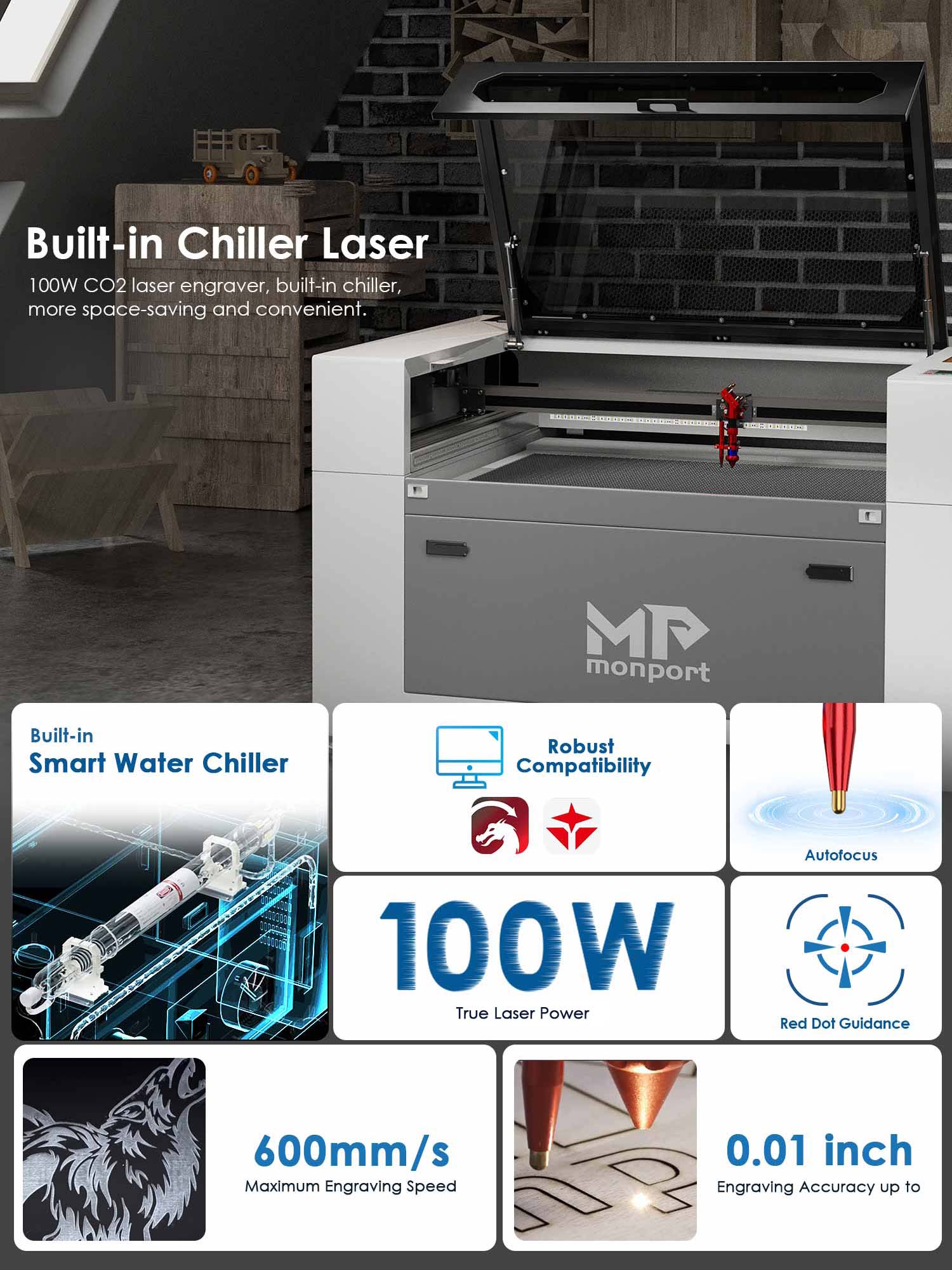

Monport Fireproof 100W Built-in Chiller CO2 Laser Engraver (24" x 40")

Original price $5,599.99 - Original price $5,599.99
Original price
$5,599.99 - $5,599.99
Current price $5,599.99
Dimension & Specifications

Working Dimension: 24” x 40” ( 60 cm x 100 cm )

Pass-through Dimension:2.9'' x 43''(7.5cm x 109.5 cm )

Machine Dimension: 61'' x 43'' x 35'' ( 155cm x 110cm x 90cm)

Max Engraving Speed: 600mm/s

Max Cutting Speed: 30mm/s ( actual speed depends on material )

Max Engraving Depth: 19.05mm

Min Engraving Depth : 0.01 mm

Focal Lens Diameter: 18mm

Mirror Diameter: 25mm

Package Dimension: 67.7” x 48.4” x 43.7” ( 172 cm x 123 cm x 111 cm )

7” Standard Z-depth and 8” Max Z-depth

Net Weight: 639.3 lbs ( 290 kg )

Monport 100W Benefits

Fireproof Viewing Window

This viewing window is made from special fire-resistant polyester with iron frames. The melting point of this polyester ranges from 432° to 488° and the ignition temperature of it is over 1000°, which can dramatically decrease the possibility of fire accidents caused by the heat of laser burning the materials.

Built-in Smart Water Chiller

The built-in 3L water chiller is easy to operate and cools down the temperature without any other machines. To meet different needs, there are two cooling modes, constant and intelligent temperature modes. This professional water chiller has multiple warning protection mechanisms such as an alarm for ambient temperature, an alarm for overheated/overchilled water temperature, and so on. When the alarm occurs, the display will alternate between the water temperature and the error.

Enclosed Aeronautical Aluminum Rail

Equipped with X and Y stepper motors, this rail features efficient power transmission with high precision. The enclosed rail is designed to avoid smoke and debris and prolong the service time of rail units.

Laser Protective Glasses for Free

Lasers emit radiation in the invisible form of light. This pair of laser protective glasses is certified to protect your eyes against radiation damage by looking at the class 4 laser in any way (directly, indirectly, or even looking at the laser dot on a surface can damage your eyes).

Ruida Digital Controller

Whether your chosen software is LightBurn, RDworks, AutoCAD, or CorelDRAW, this Ruida digital controller can support the given platform. The Ruida Controller with a digital display can  control the laser head, start or stop projects, adjust laser power and speed settings and so on.

100W CO2 Engraver Features

High Speed and Resolution

The Engraving Speed is up to 800 mm/s;
The Cutting Speed is up to 400 mm/s;
The Resolution is up to 4500 dpi;
3 LED light strips above the work bed provide illumination for precision;
2.0" Focal distance provides high resolution and etching of tiny fonts


Use the control panel to correct the focus automatically at the touch of a button — no more manual testing and adjustment.

Built-in Air Assist

A built-in air assist system guides a pressurized air stream through the laser head nozzle to displace debris, heat, and combustible gases from the engraving surface and laser beam path, keeping engravings more precise.

3-ways to Connect with PC End

Two USB ports provide options including flash drive connectivity and a USB-to-USB PC connection. In addition, one ethernet port is also available for connection.

Red Dot Guidance

The red dot shows the laser head position, marks the working path and frames the project sizes, assisting you with more convenience and guidance.

Automatic Safety Sensor

The safety shutdown sensor helps stopping the machine even if the window cover is on. Once closed, press the “Enter” button to continue operation.

100W CO2 Engraver Specification


Works on Windows XP, 2000, Vista, WIN 7, 8, 10 & 11, both 64 & 32 bit

MacOS (Version 10.11 and higher) ONLY with LightBurn software

Compatible with Lightburn, RDWorks, Coreldraw, Auto-CAD

Supported image formats: BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others

Laser System

Laser Wavelength 10640 nm;

Rated at over 100 watt;

Recommended engraving speed: 100 - 500mm/s

Recommended cutting speed: 1 - 30mm/s (actual speed depends on the thickness of material)


Linear System— Enclosed aeronautical aluminum rails

Motion— Equipped with stepper X, Y, Z axis, plus mechanical limit switches

Cooling— Built-in 4L water chiller with two operating modes

Air Assist— Built-in air assist with no external compressor required

Ventilation— On-board exhaust fan, as well as an exhaust hose so you can vent the fumes to the outdoors

Standard 110V, AC power connection

4-pin port connection for rotary axis devices


Recommended Operating Temperature: 60-104 °F (16C-40C)

Attention: the CO2 water temperature must be maintained at 60-70°F (16-21°C)

Laser Tube Lifetime

100W CO2 laser tube with an estimated lifetime of up to 12,000 operation hours depending on power setting usage and water cooling performance

PLEASE NOTE: Frequent use of high laser power settings will shorten the laser tube lifetime as follows:

Low Power 10–40% = 11,000–12,000 Hours

Moderate Power 40–70% = 8,000–10,000 Hours

High Power 70–100% = 4,5000–5,000 Hours

Material Capability

Can safely engrave or cut any laser-compatible material

Wood, glass, acrylic, fabric, leather, paper, cardboard, rubber

 Contact us with questions on specific materials not listed. If necessary, we can test it for you

Package Contents

Laser Engraver Machine *1

A Pair of Laser Protective Glasses *1

Accessory Bag *1

Ethernet to Ethernet Cable *1

USB Type-A to Type-A Cable *1

Venting Exhaust Duct *1

USB Drive with Software (RDworks) *1

Hex Wrenches *10

Double-sided Tape *1

Power Cord *2

Keys *2

Silicone Sealant *1

Stainless Steel Clamp *1

Instruction Manual *1

Warranty & Certifications

2-year warranty on all 100W laser machines and parts

1-year warranty on laser tube

FDA Approved & CE Certified

About More

Download the software RDworks

Download the Manual: 100W CO2 User Manual

Download the Settings: CO2 Parameter Settings

We offer compatible Rotary Axis and Water Chiller!
