High Efficiency
Monport’s 100W laser power supply provides excellent performance with greater than 90% efficiency and response at a millisecond rate. It is designed professionally for engraving machines and can be applicable to 100W laser tube of various manufacturers.
Real-time LCD Display
The built-in LCD display conveniently provides the output current amperage as well as the status of the laser and its water protection system, so you can easily monitor your laser engraver. The separate TEST button also speeds fault detection, so you can troubleshoot system problems with ease.

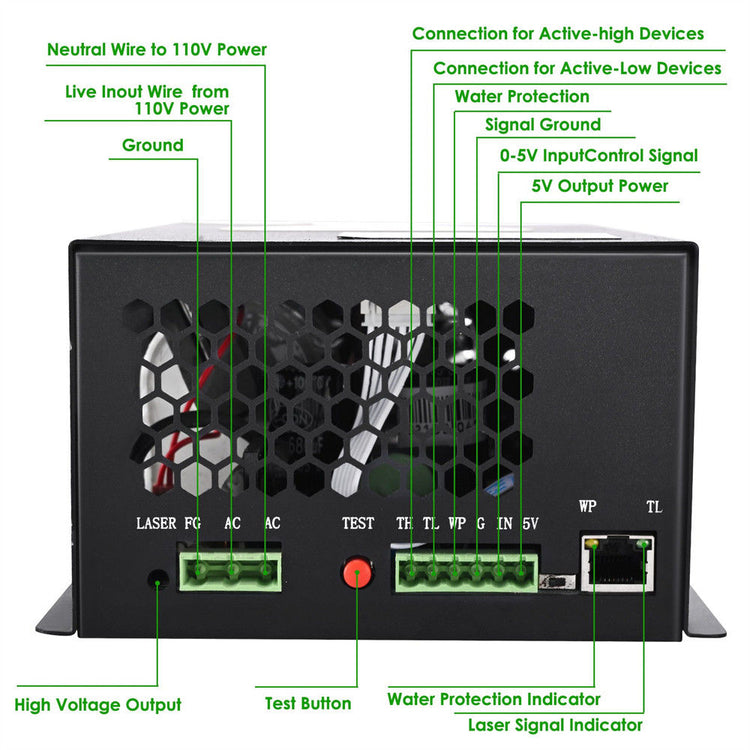

Simple Port Control
The power supply comes with TTL signal indication,water-through signal indication and laser output indication. The start and stop of laser can be easily controlled by TTL level. And there is a protection switch to test the external water, ventilation, etc.
Open-Circuit Protection
With a well-grounded enclosure, the power supply can work in open-circuit, which could avoid the damage of laser power supply.
Quality Approved
Monport's laser power supplies have been rigorously tested to provide the highest quality and efficiency on the market.
Package Dimensions: 13.6” x 9.4” x 5.7” ( 34.5 x 24 x 14.5 cm )
Package Weight: 7 lbs ( 3.2 kg )
Input Voltage: 110V AC
Input AC Frequency: 47-440Hz
Max. Output Voltage: 28kV DC
Max. Output Current: 30mA DC
Efficiency: ≥ 90%
Mean Time Between Failure (MTBF): ≥ 30000 hr.
Response Time: ≤ 1 millisecond
High-Level Voltage Range: ≥ 3.0V
Low-Level Voltage Range: ≤ 0.7V
Package Contents
100W Laser Power Supply *1
Warranty
1-year warranty on laser power supplies
Certifications
FDA Compliant
CE Certification
