Dimension & Specifications
Working Dimension: 24'' x 36'' ( 61 cm x 91.5 cm )
Pass-through Dimension: 2.9'' x 37.4''（7.5cm x 95 cm )
Machine Dimension: 57'' x 43'' x 35''(145cm x 110cm x 90cm )
Max Engraving Speed: 600mm/s
Max Cutting Speed: 30mm/s ( actual speed depends on material )
Max Engraving Depth: 19.05mm
Min Engraving Depth : 0.01 mm
Focal Lens Diameter: 18mm
Mirror Diameter: 25mm
Package Dimension: 61” x 47” x 43” ( 155 cm x 120 cm x 110 cm )
7” Standard Z-depth and 8” Max Z-depth
Net Weight: 396.8 lbs ( 180 kg )
Package Weight: 529.1 lbs ( 240 kg )
Monport 80W Benefits
Fireproof Viewing Window
This viewing window is made from special fire-resistant polyester with iron frames. The melting point of this polyester ranges from 432° to 488° and the ignition temperature of it is over 1000°, which can dramatically decrease the possibility of fire accidents caused by the heat of laser burning the materials.
Enclosed Aeronautical Aluminum Rail
Equipped with X and Y stepper motors, this rail features efficient power transmission with high precision. The enclosed rail is designed to avoid smoke and debris and prolong the service time of rail units.
Laser Protective Glasses for Free
Lasers emit radiation in the invisible form of light. This pair of laser protective glasses is certified to protect your eyes against radiation damage by looking at the class 4 laser in any way (directly, indirectly, or even looking at the laser dot on a surface can damage your eyes).

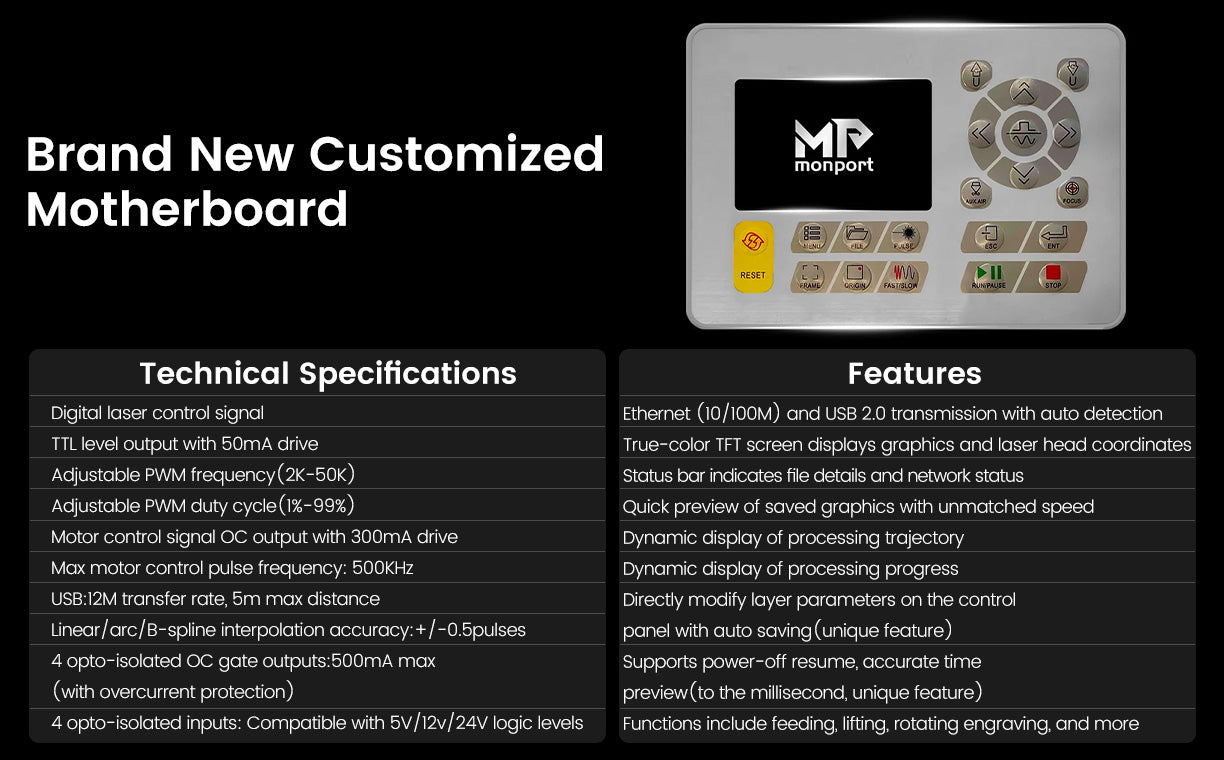

Ruida Digital Controller
Whether your chosen software is LightBurn, RDworks, AutoCAD, or CorelDRAW, this Ruida digital controller can support the given platform. The Ruida Controller with a digital display can control the laser head, start or stop projects, adjust laser power and speed settings and so on.
80W CO2 Engraver Features
High Speed and Resolution
The Engraving Speed is up to 800 mm/s;
The Cutting Speed is up to 400 mm/s;
The Resolution is up to 4500 dpi;
3 LED light strips above the work bed provide illumination for precision;
2.0" Focal distance provides high resolution and etching of tiny fonts

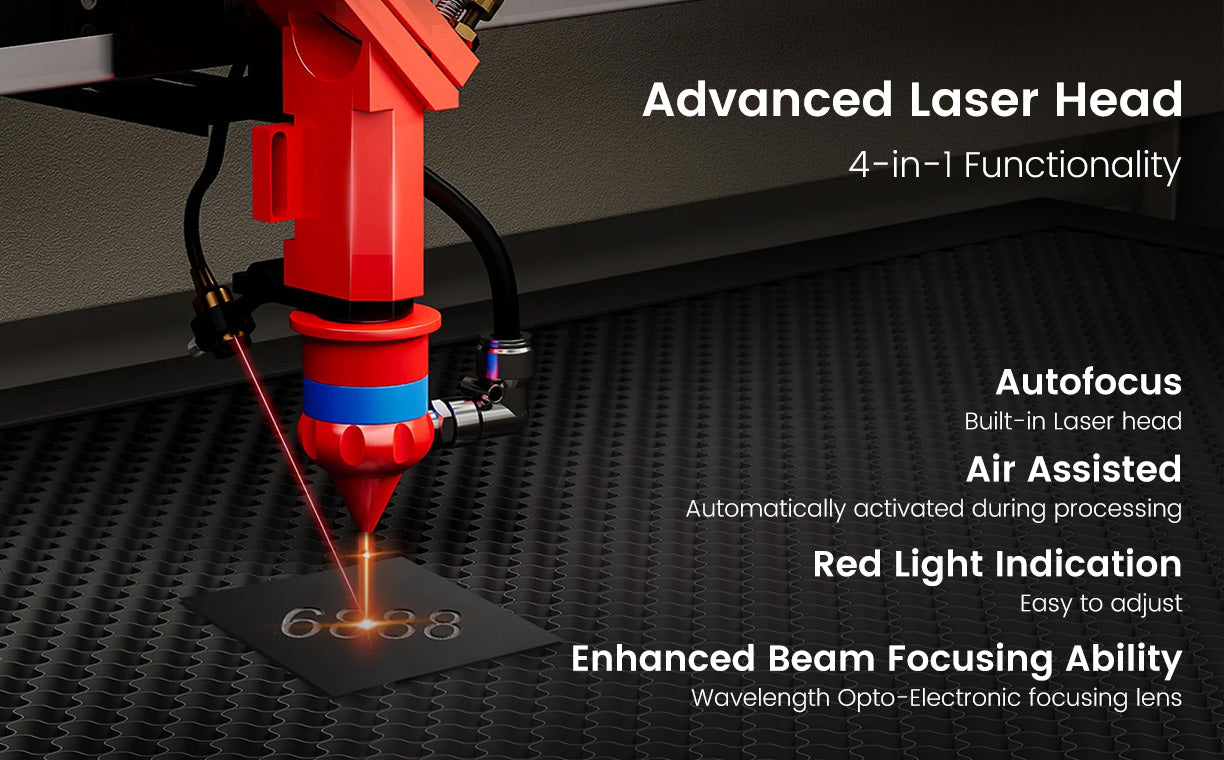

Autofocus
Use the control panel to correct the focus automatically at the touch of a button — no more manual testing and adjustment.
Built-in Air Assist
A built-in air assist system guides a pressurized air stream through the laser head nozzle to displace debris, heat, and combustible gases from the engraving surface and laser beam path, keeping engravings more precise.
3-ways to Connect with PC End
Two USB ports provide options including flash drive connectivity and a USB-to-USB PC connection. In addition, one ethernet port is also available for connection.
Red Dot Guidance
The red dot shows the laser head position, marks the working path and frames the project sizes, assisting you with more convenience and guidance.
Automatic Safety Sensor
The safety shutdown sensor helps stopping the machine even if the window cover is on. Once closed, press the “Enter” button to continue operation.
80W CO2 Engraver Specification
Software
Works on Windows XP, 2000, Vista, WIN 7, 8, 10 & 11, both 64 & 32 bit
MacOS (Version 10.11 and higher) ONLY with LightBurn software
Compatible with Lightburn, RDWorks, Coreldraw, Auto-CAD
Supported image formats: BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others
Laser System
Laser Wavelength 10640 nm;
Rated at over 80 watt;
Recommended engraving speed: 100 - 500mm/s
Recommended cutting speed: 1 - 30mm/s (actual speed depends on the thickness of material)
Mechanics
Linear System— Enclosed aeronautical aluminum rails
Motion— Equipped with stepper X, Y, Z axis, plus mechanical limit switches
Cooling— easy-to-setup water pump and hoses
Air Assist— Built-in air assist with no external compressor required
Ventilation— On-board exhaust fan, as well as an exhaust hose so you can vent the fumes to the outdoors
Standard 110V, AC power connection
4-pin port connection for rotary axis devices
Temperature
Recommended Operating Temperature: 60-104 °F (16C-40C)
Attention: the CO2 water temperature must be maintained at 60-70°F (16-21°C)
Laser Tube Lifetime
80W CO2 laser tube with an estimated lifetime of up to 8,000 operation hours depending on power setting usage and water cooling performance
PLEASE NOTE: Frequent use of high laser power settings will shorten the laser tube lifetime as follows:
Low Power 10–40% = 7,000–8,000 Hours
Moderate Power 40–70% = 5,000–6,500 Hours
High Power 70–100% = 3,000–4,000 Hours
Material Capability
Can safely engrave or cut any laser-compatible material
Wood, glass, acrylic, fabric, leather, paper, cardboard, rubber
Contact us with questions on specific materials not listed. If necessary, we can test it for you
Package Contents
A Pair of Laser Protective Glasses *1
Laser Engraver Machine *1
Water Pump *1
Storage Tank *1
Ethernet to Ethernet Cable *1
USB Type-A to Type-A Cable *1
Venting Exhaust Duct (4 ft. max. length) *1
Water Hoses *2
USB Drive with Software (RDworks) *1
Hex Wrenches *10
Double-sided Tape *1
Power Cord *2
Accessory Bag *1
Keys *2
Silicone Sealant *1
Instruction Manual *1
Stainless Steel Clamp *1
Warranty & Certifications
2-year warranty on all 80W laser machines and parts
1-year warranty on laser tube
FDA Approved & CE Certified
About More
Download the software RDworks
Download the Manual: 80W CO2 User Manual
Download the Settings: CO2 Parameter Settings
We offer compatible Rotary Axis and Water Chiller!
