Choosing an Engraving Machine for Business: A Practical Fiber Laser Comparison

Choosing the right engraving machine for your business is about more than simply picking the laser with the highest wattage. The right machine depends on what you plan to engrave, how large your products are, how deep you need to mark, how quickly you need to complete orders, and whether you need specialized features such as color engraving.

For a small business, buying too little power can become frustrating when orders grow. On the other hand, buying far more power than your products require can mean spending money on capabilities you may rarely use.

This fiber laser comparison for business looks at Monport's GM, GT, and GA Series to help you understand their differences and choose a machine based on your actual production needs.

What Should You Consider Before Buying a Fiber Laser?

Before comparing machines, start with your business rather than the product names.

What Materials Will You Engrave?

Fiber lasers are primarily used for marking compatible metals and certain other materials. Monport lists materials such as metals, hard plastic, titanium, gold, silver, steel, and stone among its compatible materials.

However, material compatibility is only the starting point. Different materials can require different laser parameters, so testing your actual products before production is important.

How Deep Do You Need to Engrave?

A business producing names, logos, serial numbers, or decorative marks may not need the same power as a workshop producing deep engravings or 3D relief designs.

The machines in this comparison offer different power levels and maximum single-pass marking depths. The listed models range from approximately 0.08 mm to 0.20 mm, depending on the machine and material.

These are maximum specifications, not guarantees for every material or application.

How Large Are Your Products?

The engraving area determines how much you can process in one setup.

The standard GM30 Pro and GM50 Pro provide 150 × 150 mm working areas, while the GM30 Pro MOPA and GM60 Pro MOPA increase that to 175 × 175 mm. The GT50 provides an even larger 200 × 200 mm field.

A larger work area can be useful for bigger products or batch engraving.

Do You Need Color Engraving?

Color marking can give businesses another way to differentiate personalized products.

MOPA fiber lasers offer additional control over laser pulse characteristics. The Monport MOPA models use adjustable pulse widths of 2–500 ns, and the MOPA configurations support color engraving.

This can be especially useful for businesses producing decorative metal products, personalized gifts, and premium finishes.

GM Series: Compact Fiber Lasers for Business

The GM Series gives businesses several options for everyday fiber laser engraving, from a standard 30W configuration to higher-power MOPA models.

For this comparison, the relevant models are:

• GM30 Pro
• GM50 Pro
• GM30 Pro MOPA
• GM60 Pro MOPA

The important thing to understand is that GM30 Pro and GM30 Pro MOPA are not the same machine. Both are rated at 30W, but they use different laser sources and have different working areas and pulse characteristics.

GM Series Comparison

The key distinction is that the GM30 Pro uses a MAX fiber laser source with a 150 × 150 mm field and fixed 80–120 ns pulse width, while the GM30 Pro MOPA uses a JPT source, 175 × 175 mm field, and adjustable 2–500 ns pulse width.

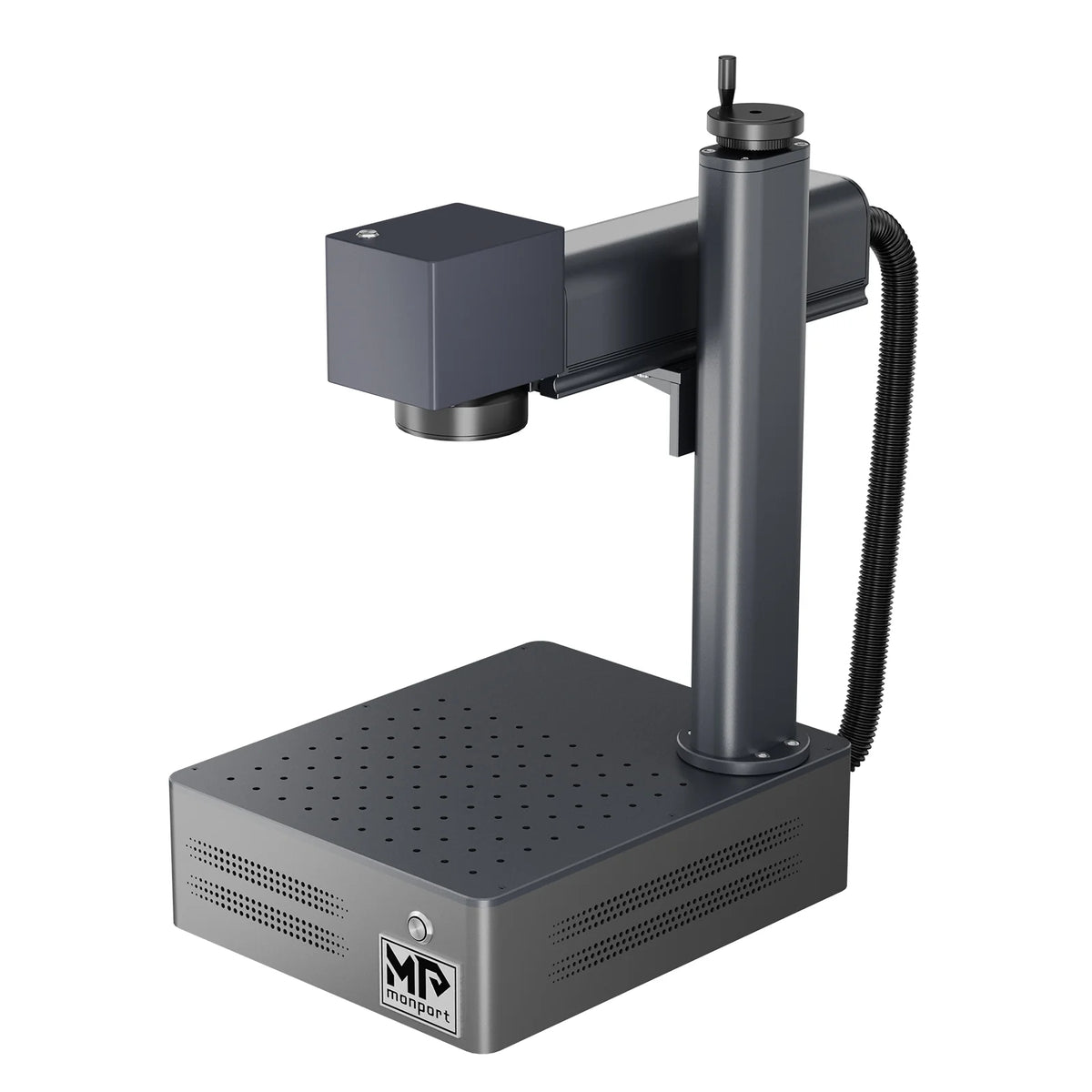

GM30 Pro: Standard 30W Fiber Laser

The GM30 Pro is the standard 30W model in the GM lineup.

It uses a MAX fiber laser source, a 1064nm wavelength, and a 30–60 kHz frequency range. Its pulse width is 80–120 ns and unadjustable, distinguishing it from the MOPA version.

The GM30 Pro provides a 150 × 150 mm engraving area and reaches a maximum engraving speed of 10,000 mm/s (393.7 ips).

Its listed maximum single-pass marking depth is 0.08 mm, depending on the material, while engraving accuracy is specified at 0.01 mm.

For businesses that primarily need standard marking of logos, text, identification numbers, and other designs, the GM30 Pro provides a straightforward 30W option without the additional MOPA controls.

GM30 Pro MOPA: 30W With Greater Pulse Control

The GM30 Pro MOPA is a different model despite sharing the 30W rating.

It uses a JPT MOPA fiber laser source, a 1064nm wavelength, a 1–4,000 kHz frequency range, and an adjustable 2–500 ns pulse width. It also provides a larger 175 × 175 mm engraving area.

Its maximum engraving speed is 10,000 mm/s (393.7 ips), with engraving accuracy down to 0.01 mm. The maximum single-pass marking depth is listed as 0.08 mm, depending on the material.

One-Touch Autofocus

The GM30 Pro MOPA includes one-touch autofocus, designed to make setup faster and more precise.

For businesses processing multiple orders, reducing manual focusing steps can make the production workflow more convenient.

Custom-Engineered Galvanometer System

The GM30 Pro MOPA uses a galvanometer system with silicon reflectors and a custom F-theta field mirror.

This supports the machine's maximum engraving speed of 10,000 mm/s while maintaining a specified engraving accuracy of 0.01 mm.

For small text, logos, patterns, and detailed designs, consistent accuracy can be especially valuable.

A 175 × 175 mm Working Area

The GM30 Pro MOPA has a 175 × 175 mm engraving area.

Monport describes this as the optimized working area for the 30W MOPA configuration. The machine is tuned to maintain consistent laser power across the field, including toward the edges.

This can be useful for businesses that need consistent results across an entire batch rather than only in the center of the work area.

Deep Engraving and 3D Relief Engraving

The GM30 Pro MOPA is also designed for deep engraving and 3D relief engraving.

Higher power and appropriate laser parameters can provide greater engraving depth and detail. Actual results will depend on the material and processing settings.

0.01 mm Professional-Grade Accuracy

The GM30 Pro MOPA is specified with 0.01 mm engraving accuracy.

For business applications involving detailed logos, text, patterns, and intricate designs, consistent precision can help produce repeatable results across multiple orders.

Compact All-in-One Design

The GM30 Pro MOPA measures 400 × 330 × 620 mm and weighs 15.6 kg according to the specifications provided for this model.

Monport also describes the GM Pro MOPA design as 50% smaller and 50% lighter, emphasizing its compact all-in-one construction.

For small workshops, studios, or businesses working with limited space, this can be a meaningful advantage.

GM50 Pro: More Power for Deeper Engraving

The GM50 Pro is a 50W standard fiber laser rather than a MOPA model.

It uses a MAX fiber laser source, provides a 150 × 150 mm engraving area, and reaches a maximum engraving speed of 10,000 mm/s. Its listed maximum single-pass marking depth is 0.10 mm, depending on the material.

It also provides autofocus, electric lifting, and rotation-axis functionality.

For businesses where deeper engraving is becoming a regular part of production, the additional power of the GM50 Pro can provide more capability than the standard 30W GM30 Pro.

GM60 Pro MOPA: More MOPA Power

The GM60 Pro MOPA increases the power to 60W while retaining the 175 × 175 mm engraving area.

It uses a JPT MOPA fiber laser source, a 1–4,000 kHz frequency range, and a 2–500 ns adjustable pulse width. Its maximum single-pass marking depth is listed as 0.10 mm, depending on the material.

The GM60 Pro MOPA also supports color engraving, making it an option for businesses that want both higher power and MOPA flexibility.

GT Series: A Wider Power Range for Growing Businesses

The GT Series provides a broader range of power options, including standard and MOPA configurations.

For this article, the relevant models are:

• GT30
• GT50
• GT60 MOPA
• GT100 MOPA
• GT200 MOPA

The GT30 MOPA and GT80 MOPA are excluded from this comparison.

GT Series Comparison

GT30

The GT30 provides 30W of Q-switched fiber laser power with a 150 × 150 mm engraving area.

It reaches up to 10,000 mm/s and includes autofocus, electric lifting, a rotation-axis function, and an external foot pedal.

For businesses looking for a straightforward 30W fiber laser for general marking rather than specialized MOPA applications, the GT30 is a practical option.

GT50

The GT50 increases the power to 50W and expands the working area to 200 × 200 mm.

The supplied specifications list a maximum engraving speed of 10 000 mm/s and a maximum single-pass marking depth of 0.10 mm, depending on the material.

The larger field can be particularly useful for businesses producing larger designs or arranging multiple smaller products for batch processing.

GT60 MOPA

The GT60 MOPA moves into higher-power MOPA engraving with 60W of laser power and a 175 × 175 mm engraving area.

Its MOPA configuration provides adjustable pulse width and color engraving capability, making it more suitable for businesses that need greater control over marking characteristics.

GT100 MOPA

The GT100 MOPA provides 100W of MOPA fiber laser power.

Its listed maximum single-pass marking depth is 0.15 mm, depending on the material.

This power level can be worth considering for businesses where deeper engraving and more demanding production are central to the workflow.

GT200 MOPA

At the top of the GT lineup is the GT200 MOPA with 200W of laser power.

It features:

• 175 × 175 mm engraving area
• 22,000 mm/s maximum engraving speed
• 0.20 mm maximum single-pass marking depth, depending on material
• Autofocus
• Color engraving
• Electric lifting
• Rotation-axis function
• 0.01 mm engraving accuracy
• ±0.1 µm positioning accuracy
• 1.5 mJ maximum pulse energy
• Air cooling
• BslAppSimple and LightBurn compatibility

These specifications make it the highest-powered machine in this comparison.

GA Series: Integrated MOPA Performance

The GA Series provides an integrated approach to MOPA fiber laser engraving.

For this comparison, the models covered are:

• GA MOPA 60W
• GA MOPA 100W

The GA MOPA 30W has been removed from the comparison.

GA Series Comparison

*The supplied specifications state a 2-year warranty, with 1 year for the laser source.

GA MOPA 60W

The GA MOPA 60W provides 60W of MOPA fiber laser power and a 175 × 175 mm engraving area.

It supports color engraving, autofocus, electric lifting, and rotation-axis functionality. Its maximum single-pass marking depth is listed as 0.10 mm, depending on the material.

The GA60 also features an integrated design, one-click autofocus, and a vertical arm capable of ±90° rotation.

GA MOPA 100W

The GA MOPA 100W is the highest-power model in the GA lineup.

It provides 100W of MOPA fiber laser power, a 175 × 175 mm engraving area, color engraving, autofocus, and 0.01 mm engraving accuracy.

Its listed maximum single-pass marking depth is 0.15 mm, depending on the material.

GM vs. GT vs. GA: Which Series Is Right for Your Business?

The GM Series is particularly attractive if space and compact design are important. It includes both standard and MOPA configurations, allowing businesses to choose between straightforward fiber engraving and the greater pulse control of MOPA technology.

The GT Series is the broadest range in terms of power. With options extending to 200W, it provides more choices for businesses with increasingly demanding engraving requirements.

The GA Series focuses on integrated MOPA systems and, in this comparison, provides 60W and 100W options.

How Much Power Does Your Business Actually Need?

30W: Detailed Everyday Engraving

A 30W fiber laser can be a practical starting point for businesses focused on personalized products, logos, text, identification marks, and detailed designs.

The GM30 Pro provides standard fiber laser performance with a 150 × 150 mm work area.

The GM30 Pro MOPA provides the same 30W rating but adds MOPA technology, a larger 175 × 175 mm field, adjustable 2–500 ns pulse width, and color engraving.

The GT30 provides another 30W option with a Q-switched configuration and 150 × 150 mm field.

50W–60W: Growing Production

If deeper engraving and higher production capability are becoming more important, 50W and 60W machines offer additional capacity.

Relevant options include the GM50 Pro, GM60 Pro MOPA, GT50, GT60 MOPA, and GA MOPA 60W.

100W: More Demanding Applications

At 100W, you are moving toward equipment intended for more demanding engraving applications.

The GT100 MOPA and GA MOPA 100W provide options in this power range.

200W: High-Power Production

The GT200 MOPA is the highest-power option in this comparison at 200W.

That level of power should not be chosen simply because it is the largest number available. It makes the most sense when your actual products and production requirements justify it.

Why MOPA Matters for Business

MOPA is particularly useful when you want more control over how the laser interacts with a material.

The MOPA models in this comparison support an adjustable 2–500 ns pulse width, giving users more control over laser parameters than the fixed-pulse configurations used by standard models such as the GM30 Pro and GT30.

Color engraving is another important advantage. If your business sells personalized metal products, decorative pieces, or premium gifts, the ability to produce different visual finishes can help expand your product range.

Don't Choose an Engraving Machine Based on Wattage Alone

A 100W or 200W machine is not automatically a better business investment than a 30W machine.

If your products are small and your engraving requirements are relatively simple, a compact 30W machine may be more practical.

But even among 30W machines, the differences matter. A GM30 Pro and GM30 Pro MOPA have the same rated power but are not interchangeable: the standard GM30 Pro uses a MAX source and fixed pulse configuration, while the GM30 Pro MOPA uses a JPT MOPA source with adjustable pulse width and a larger engraving field.

If your business requires deeper engraving, 3D relief, greater production capability, or specialized marking, higher power may provide a meaningful advantage.

The goal is not to buy the most powerful engraving machine you can afford. The goal is to buy the machine whose capabilities match the products customers are actually paying you to make.

Think About Your Workspace Too

Machine size can matter just as much as laser power, especially when workspace is limited.

The GM30 Pro MOPA measures 400 × 330 × 620 mm and weighs 15.6 kg, making it a compact option for businesses with limited workspace. By comparison, the standard GM30 Pro weighs approximately 17.1 kg and has the same 400 × 330 × 620 mm overall machine dimensions, but uses a smaller 150 × 150 mm engraving field.

Before purchasing, measure the space where you plan to use your machine. Be sure to leave enough room not only for the engraver itself, but also for positioning your products, operating the equipment comfortably, and maintaining a safe workspace.

Plan for Future Growth

Your business may start with personalized metal gifts and eventually expand into corporate branding, industrial marking, deeper engraving, or larger production batches.

That is why your first laser should not necessarily be selected only for your first few products.

If you expect rapid growth, a machine with additional power or specialized capabilities may prevent you from reaching your machine's limits too quickly.

However, don't pay for capacity you have no realistic plan to use. A balanced investment is usually better than buying the biggest machine simply for future possibilities.

Key Takeaways

• The right engraving machine depends on your materials, product size, desired depth, production volume, and available workspace.
• The GM Series in this comparison includes the GM30 Pro, GM50 Pro, GM30 Pro MOPA, and GM60 Pro MOPA.
• The GM30 Pro is a standard 30W fiber laser using a MAX source, with a 150 × 150 mm engraving area, 30–60 kHz frequency range, and fixed 80–120 ns pulse width.
• The GM30 Pro MOPA is a separate 30W JPT MOPA model with a 175 × 175 mm engraving area, 1–4,000 kHz frequency range, adjustable 2–500 ns pulse width, and color engraving.
• The GM30 Pro MOPA also features one-touch autofocus, 0.01 mm accuracy, and a 15.6 kg product weight.
• The GT Series ranges from 30W to 200W in the models covered here, making it the broadest power range.
• The GA Series in this comparison offers integrated MOPA options at 60W and 100W.
• MOPA models provide adjustable 2–500 ns pulse width and color engraving capabilities.
• The GT50 provides a 200 × 200 mm work area, while the GM30 Pro MOPA, GM60 Pro MOPA, GT MOPA models, and GA MOPA models use 175 × 175 mm fields where specified.
• The GT200 MOPA reaches 200W, 22,000 mm/s, and a listed maximum single-pass marking depth of 0.20 mm, depending on material.
• The most powerful machine is not automatically the best machine. Match the equipment to your actual business needs.

Conclusion

Choosing the right engraving machine is easier when you look beyond wattage and focus on how the machine fits your business.

The GM Series provides several compact options for businesses that want practical fiber laser capabilities. However, it is important to distinguish the models correctly. The GM30 Pro is the standard 30W configuration with a MAX source, 150 × 150 mm working area, and fixed pulse characteristics. The GM30 Pro MOPA is a separate 30W JPT MOPA machine with a larger 175 × 175 mm working area, adjustable 2–500 ns pulse width, and color engraving.

The GM50 Pro provides 50W of standard fiber laser power, while the GM60 Pro MOPA brings MOPA technology to 60W.

The GT Series offers the widest power range, from 30W through 200W in the models covered in this comparison. This makes it worth considering for businesses that expect their engraving requirements to become significantly more demanding.

The GA Series provides integrated MOPA options at 60W and 100W, giving businesses another route to color engraving, adjustable pulse control, autofocus, and higher-power marking.

Ultimately, there is no universal winner in this fiber laser comparison for business. A standard 30W machine may be the perfect fit for a small personalization business, while a business that wants color engraving and more pulse control may find a 30W MOPA machine more suitable.

Start with your products, materials, workpiece dimensions, desired engraving depth, production volume, and workspace. Then choose the engraving machine that gives you the capabilities you need without paying for capacity you are unlikely to use.

Frequently Asked Questions

What is the difference between the GM30 Pro and GM30 Pro MOPA?

The GM30 Pro is a standard 30W fiber laser with a MAX source, 150 × 150 mm engraving area, 30–60 kHz frequency range, and fixed 80–120 ns pulse width. The GM30 Pro MOPA uses a JPT MOPA source, has a 175 × 175 mm area, 1–4,000 kHz frequency range, and adjustable 2–500 ns pulse width.

Is the GM30 Pro MOPA more flexible than the GM30 Pro?

Yes, particularly for applications that benefit from adjustable pulse control and color engraving. The GM30 Pro MOPA supports a 2–500 ns pulse width and color engraving, while the standard GM30 Pro uses a fixed 80–120 ns pulse width and does not support color engraving.

Is a 30W MOPA fiber laser enough for business engraving?

For many detailed engraving and personalization applications, 30W can provide a useful balance of power and flexibility. The GM30 Pro MOPA also offers a 10,000 mm/s maximum engraving speed, 175 × 175 mm work area, one-touch autofocus, and 0.01 mm engraving accuracy.

Which fiber laser series is best for color engraving?

MOPA models are the primary options to consider for color engraving. In this comparison, the GM30 Pro MOPA, GM60 Pro MOPA, GT MOPA, and GA MOPA models support color engraving.

Should I buy a 100W or 200W fiber laser?

Only if your actual applications require that level of power. Higher-power machines can support deeper engraving and more demanding production, but a 30W, 50W, or 60W machine may be more practical for businesses focused on standard personalization and detailed marking.
