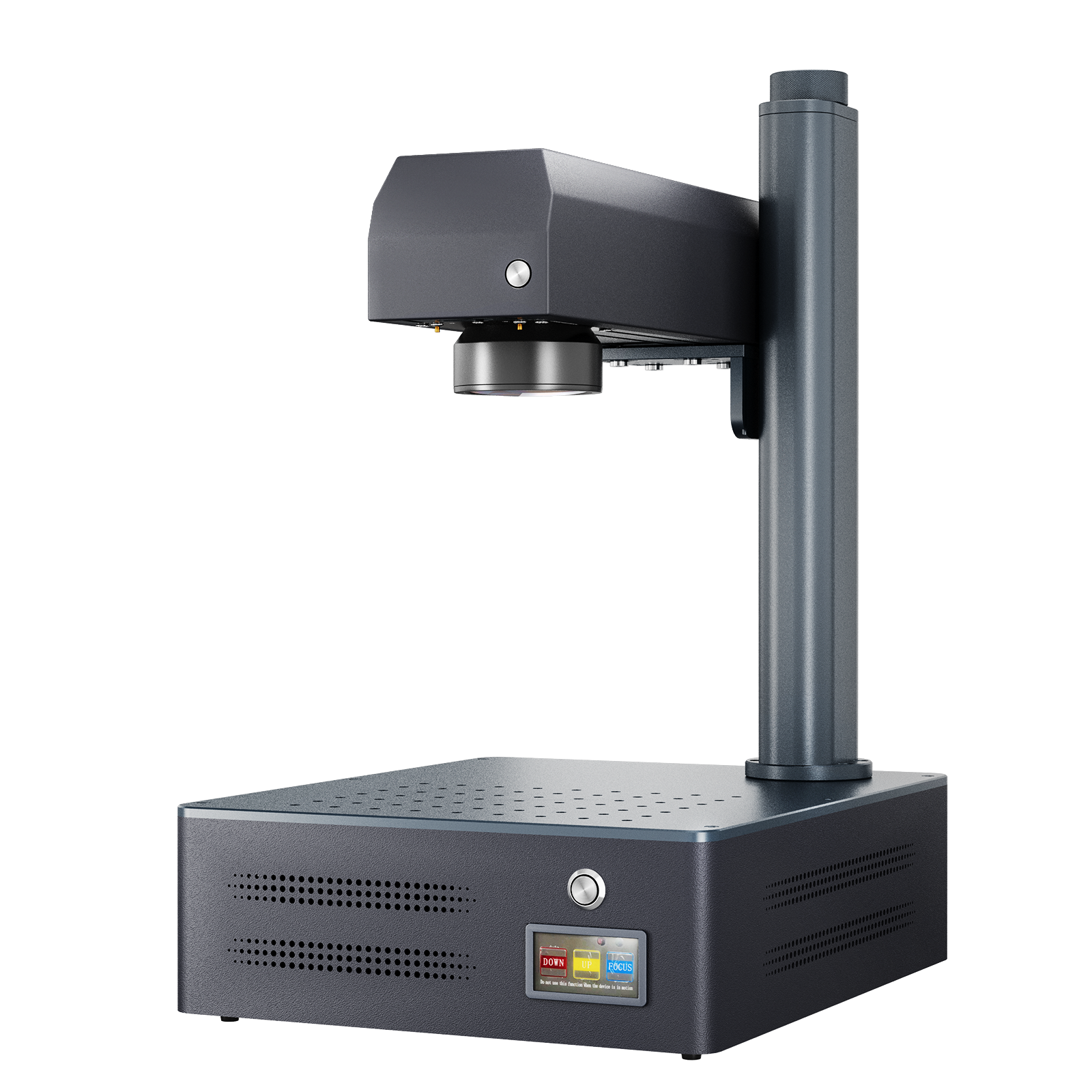

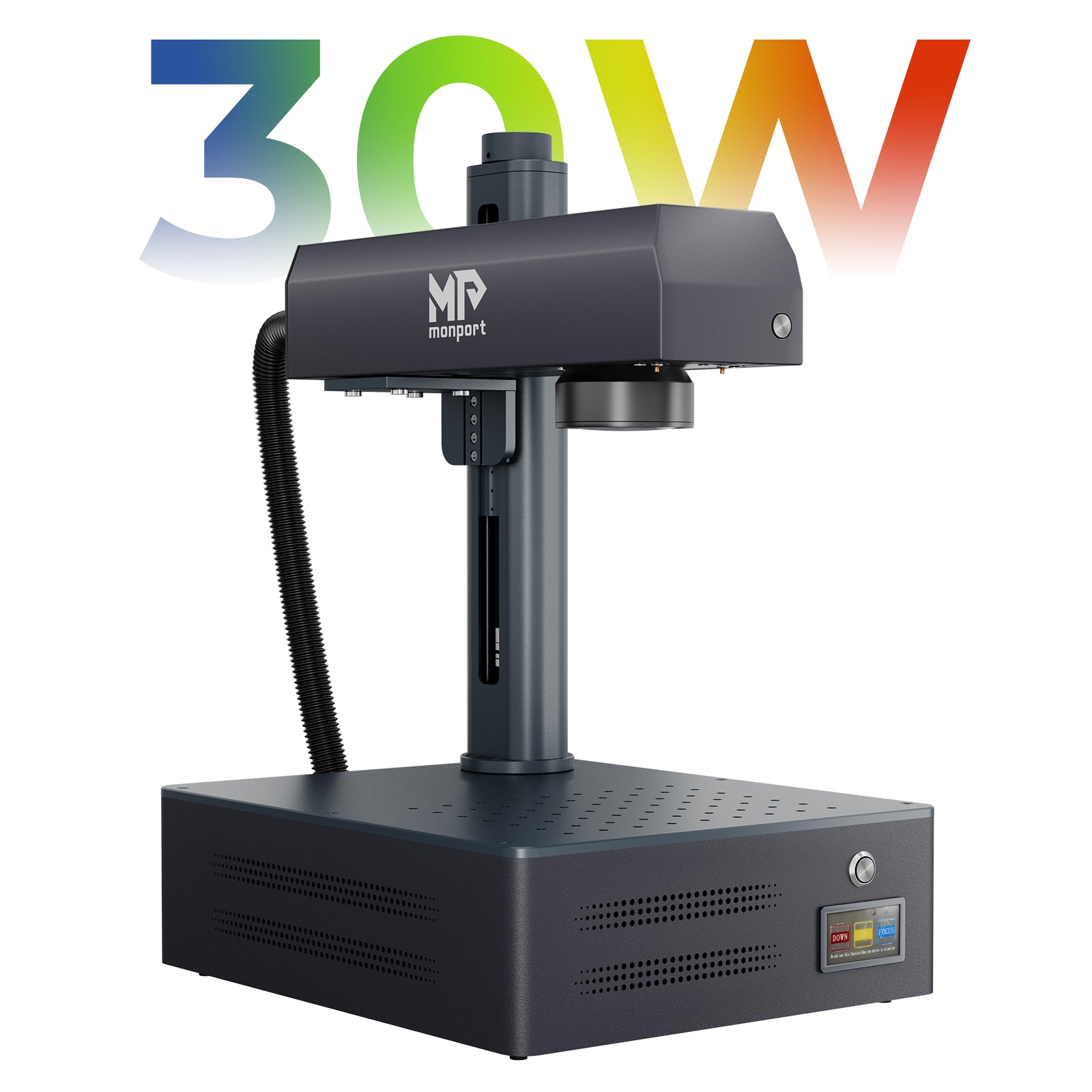

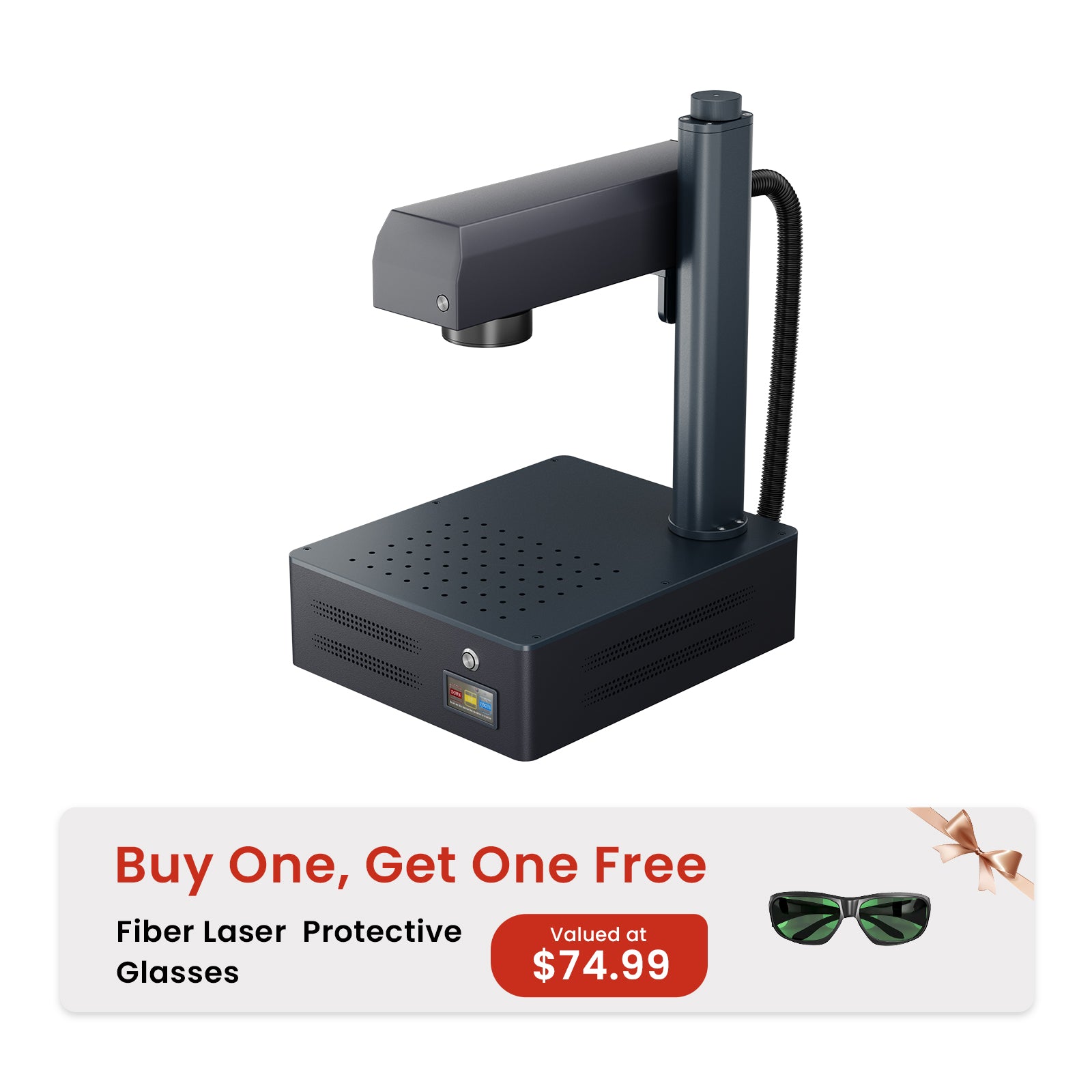

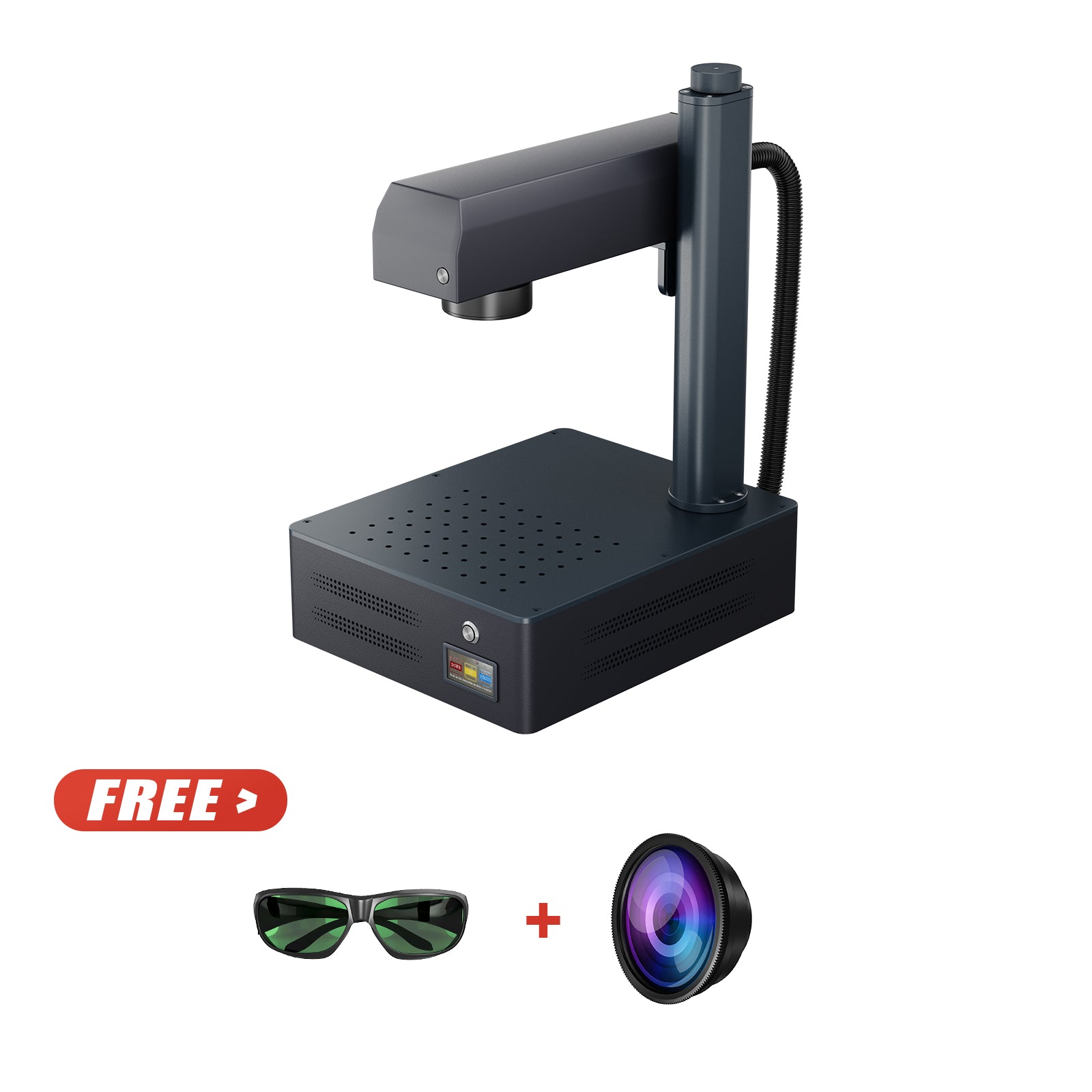

Monport GM 30W Pro Integrated JPT MOPA Fiber Laser Engraver & Marking Machine with AutoFocus
Monport GM 30W Pro Integrated JPT MOPA Fiber Laser Engraver & Marking Machine with AutoFocus
Regular price
$3,320.00
MSRP
Sale price
$3,320.00
Regular price
$4,399.99
Frequently Bought Together
Payment methods
Couldn't load pickup availability
Info
Vs
Pkg List
Craft
Q&A

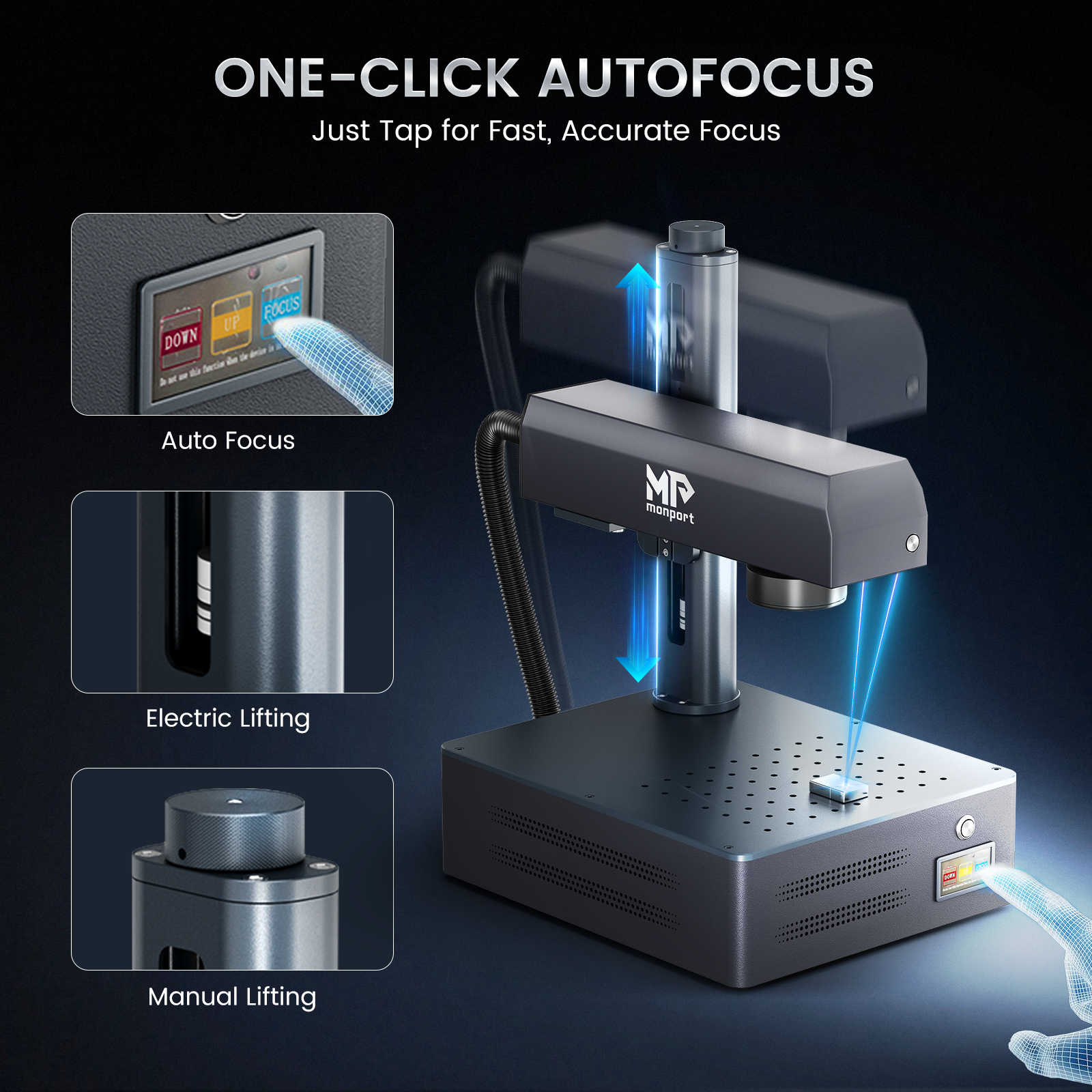

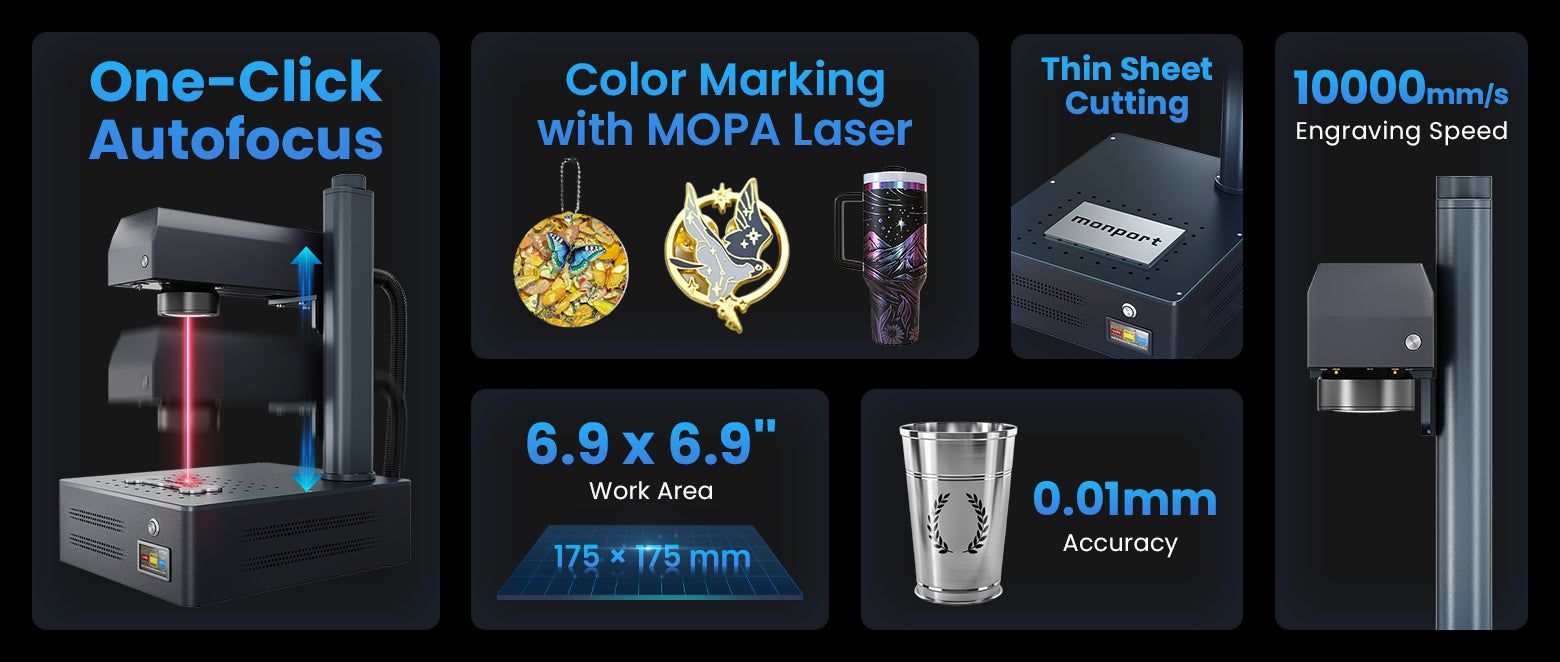

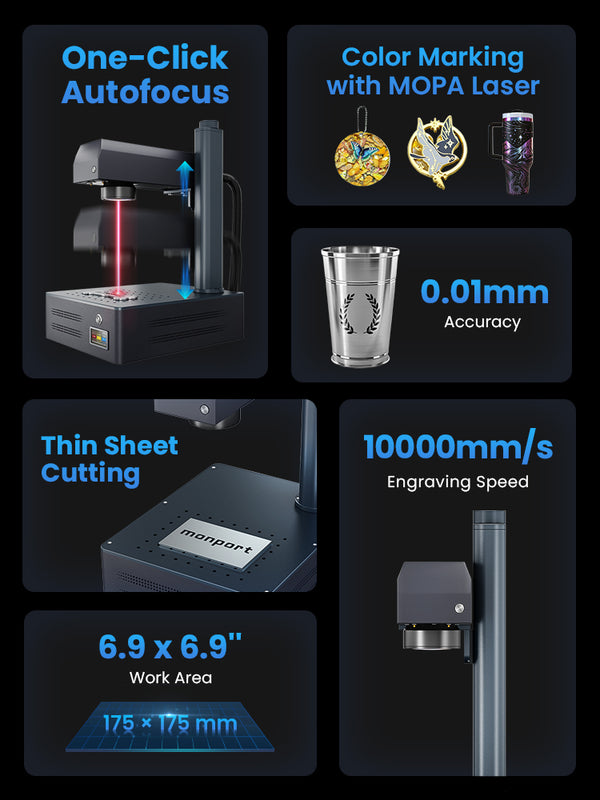

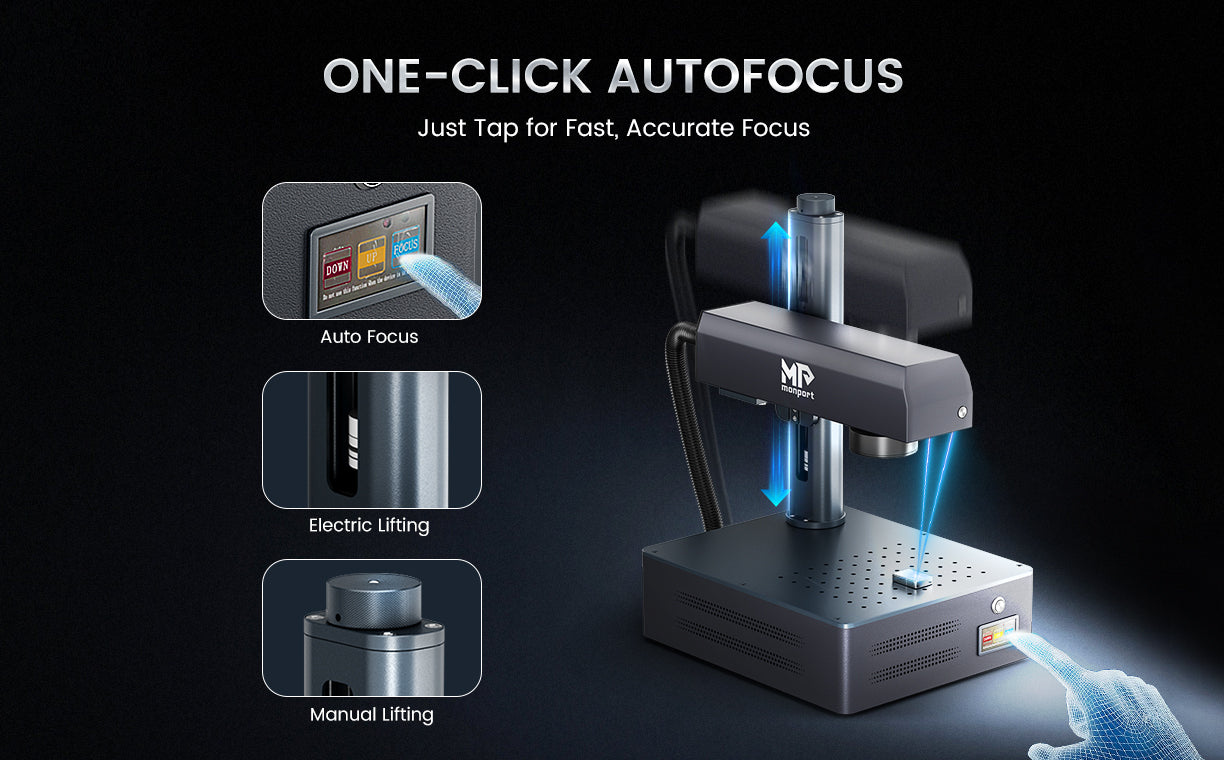

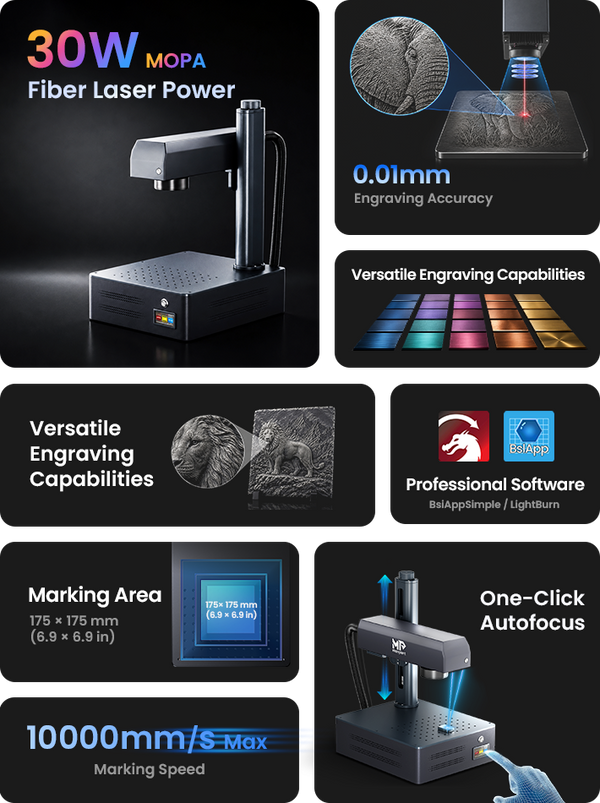

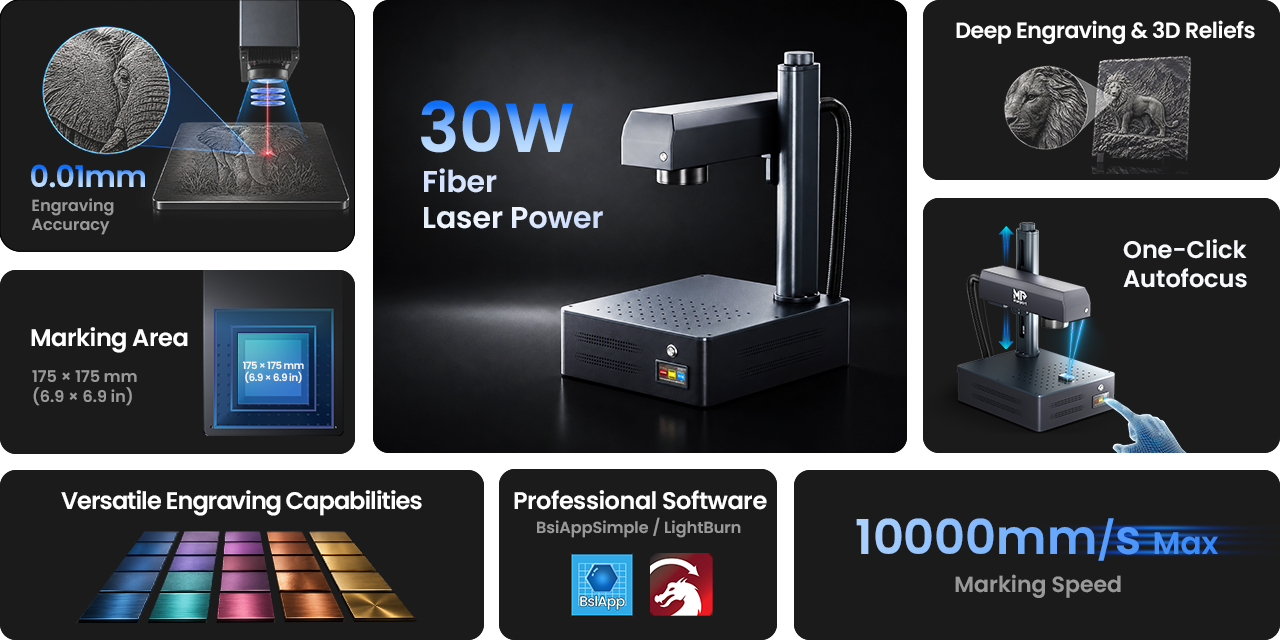

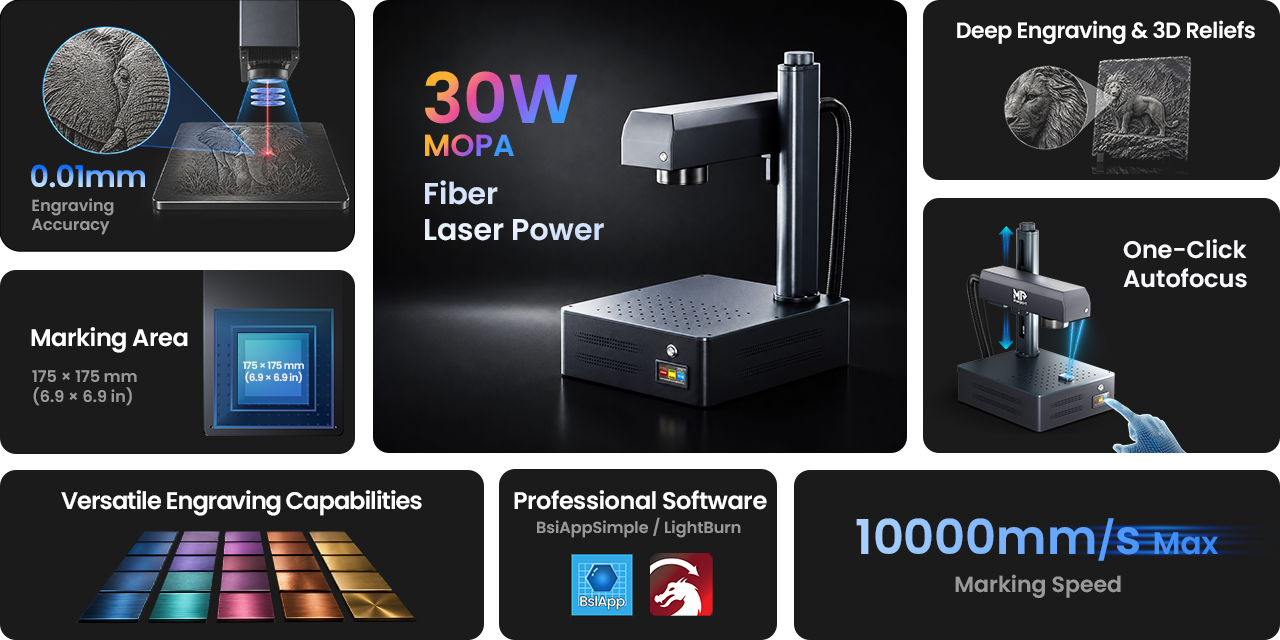

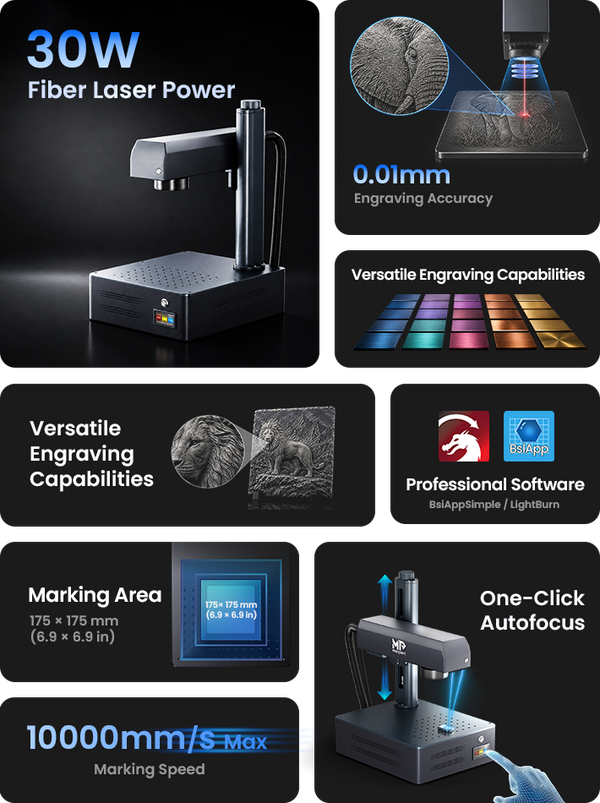

One-Touch Autofocus
Achieve faster setup and precise focus with one tap for consistent, high-quality engraving.

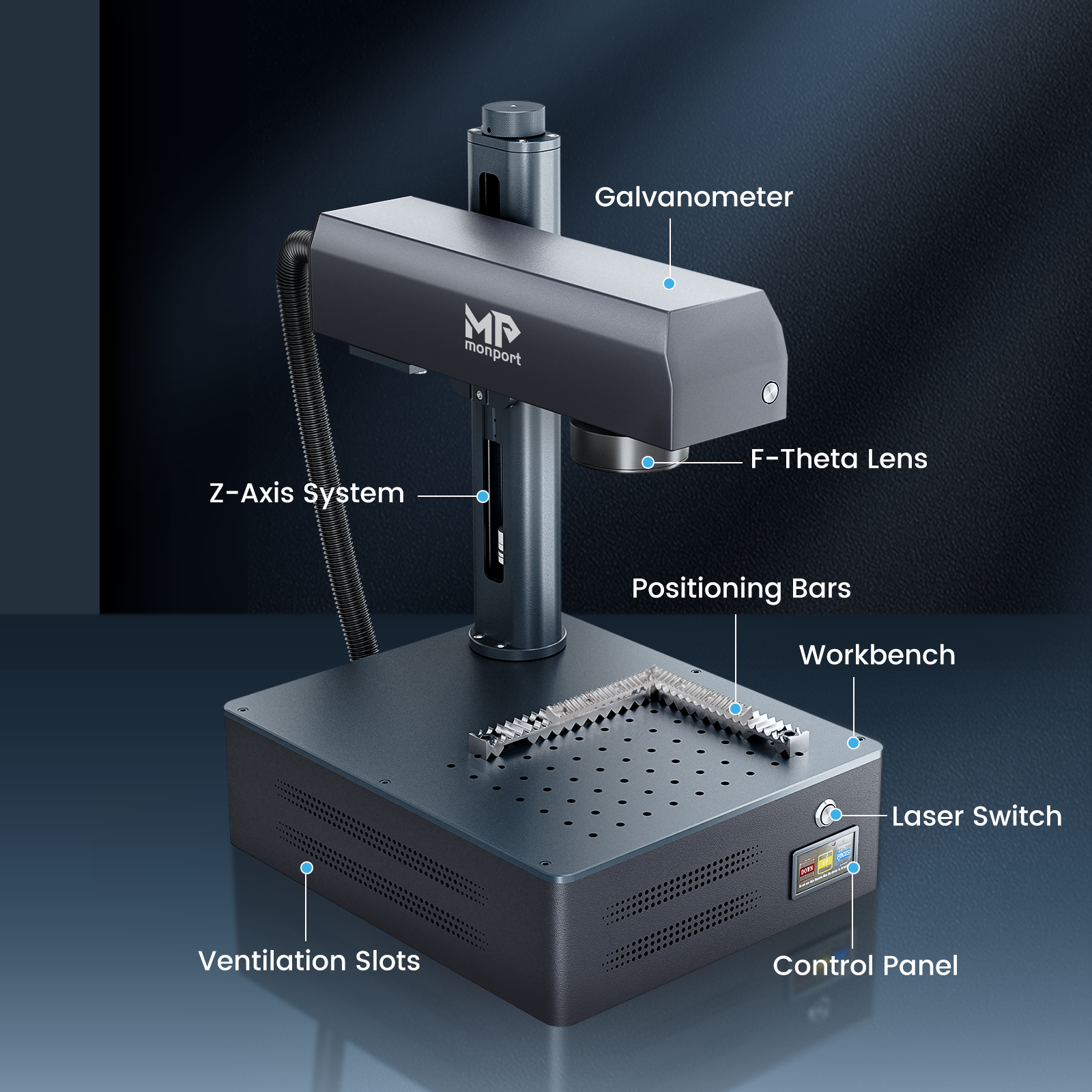

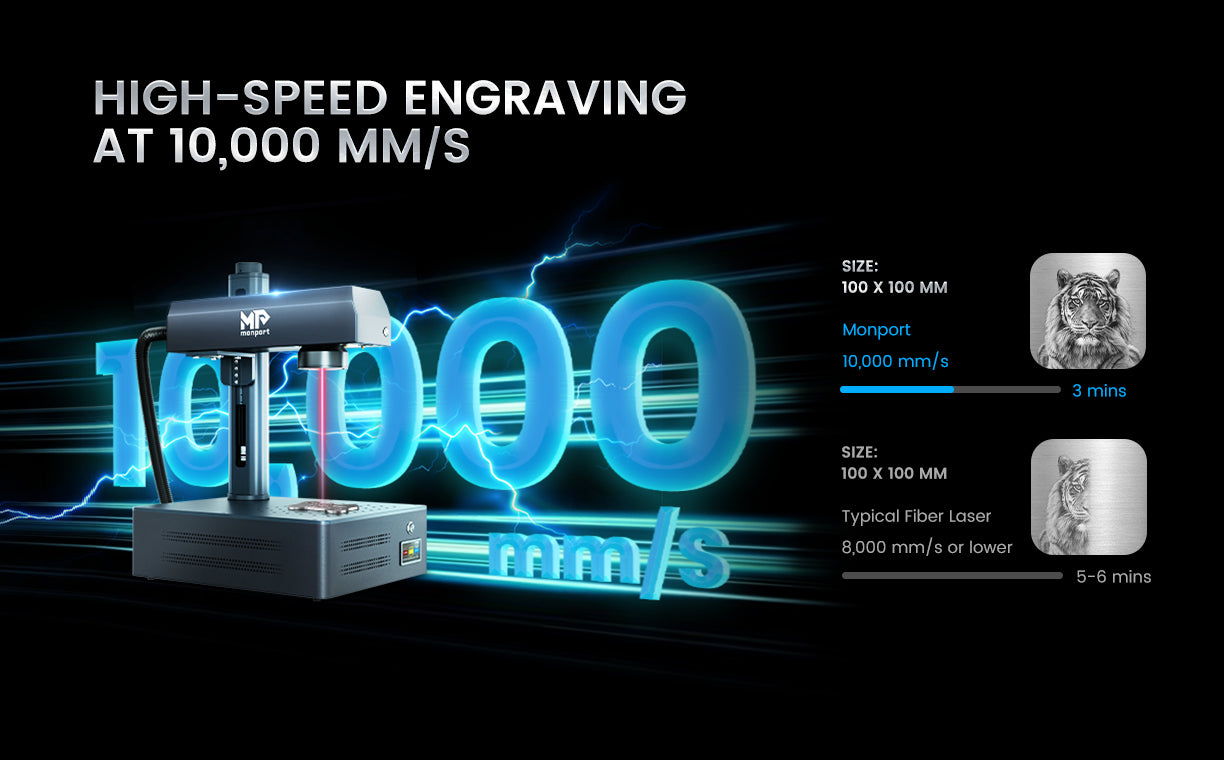

Precision Galvanometer System
Featuring silicon reflectors and a custom F-theta lens for up to 10,000mm/s engraving speed and 0.01mm accuracy.

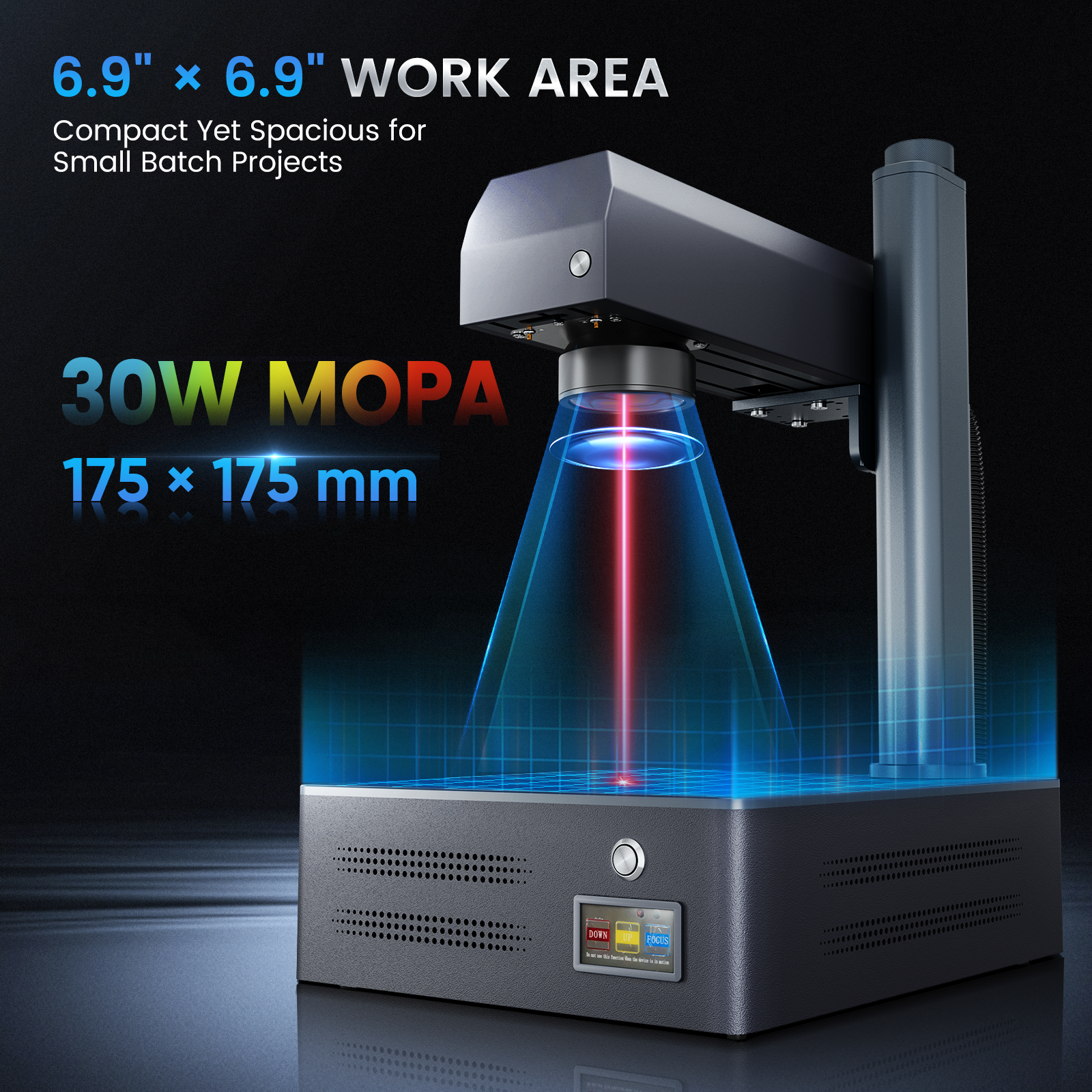

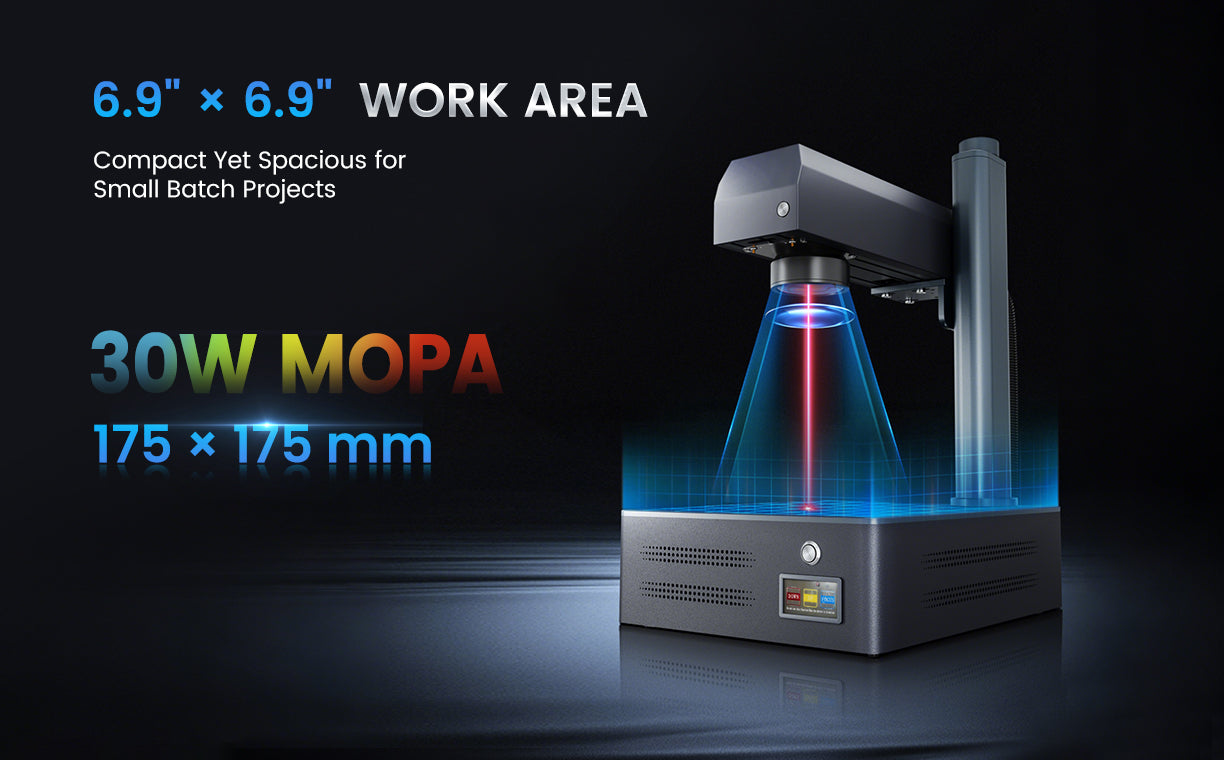

Perfectly Sized Working Area
Optimized for a 175 × 175mm working area, delivering consistent laser power and precise engraving across the entire field—even at the edges.

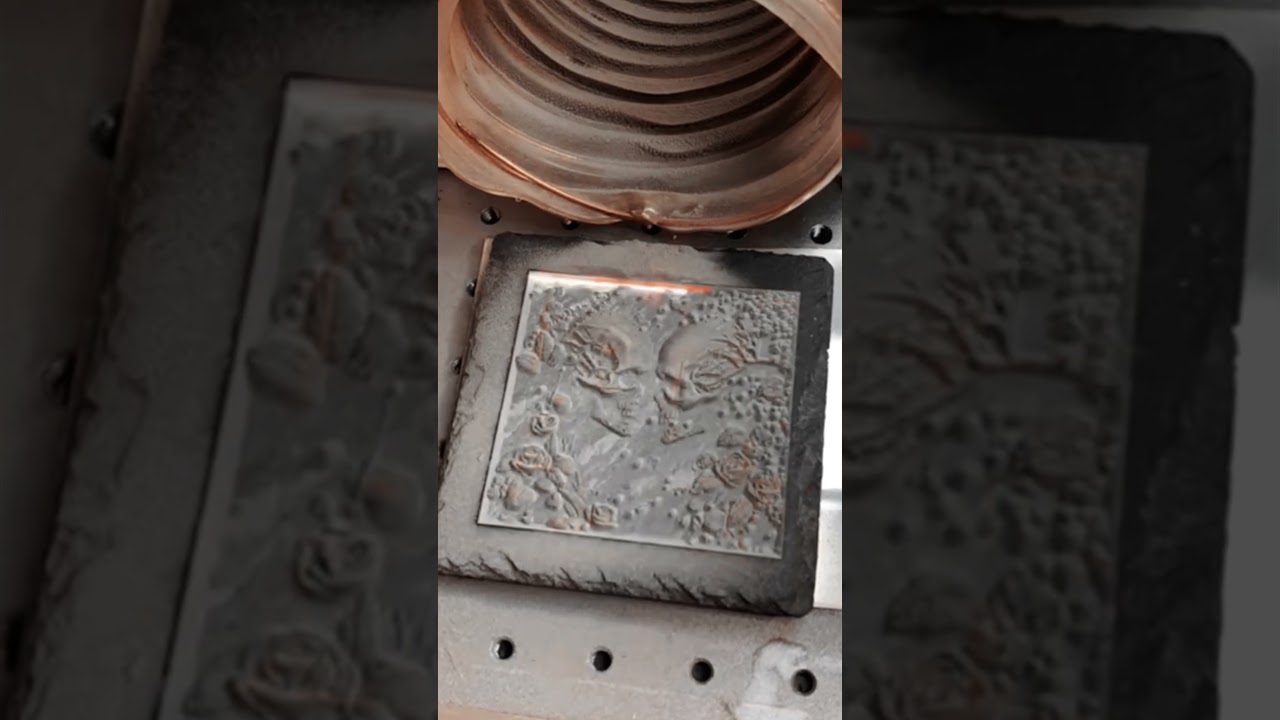

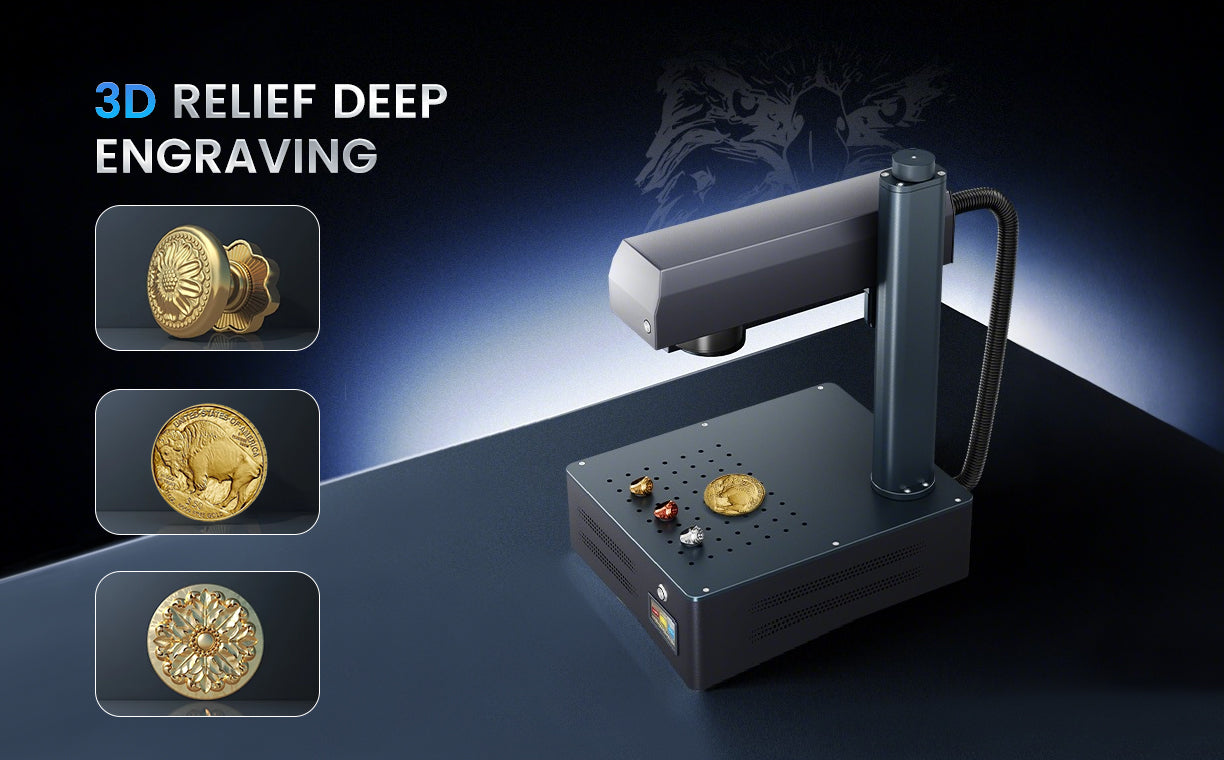

Deep Engraving and 3D Relief Engraving
Delivers high-depth metal engraving and detailed 3D relief effects with stable, precise performance.

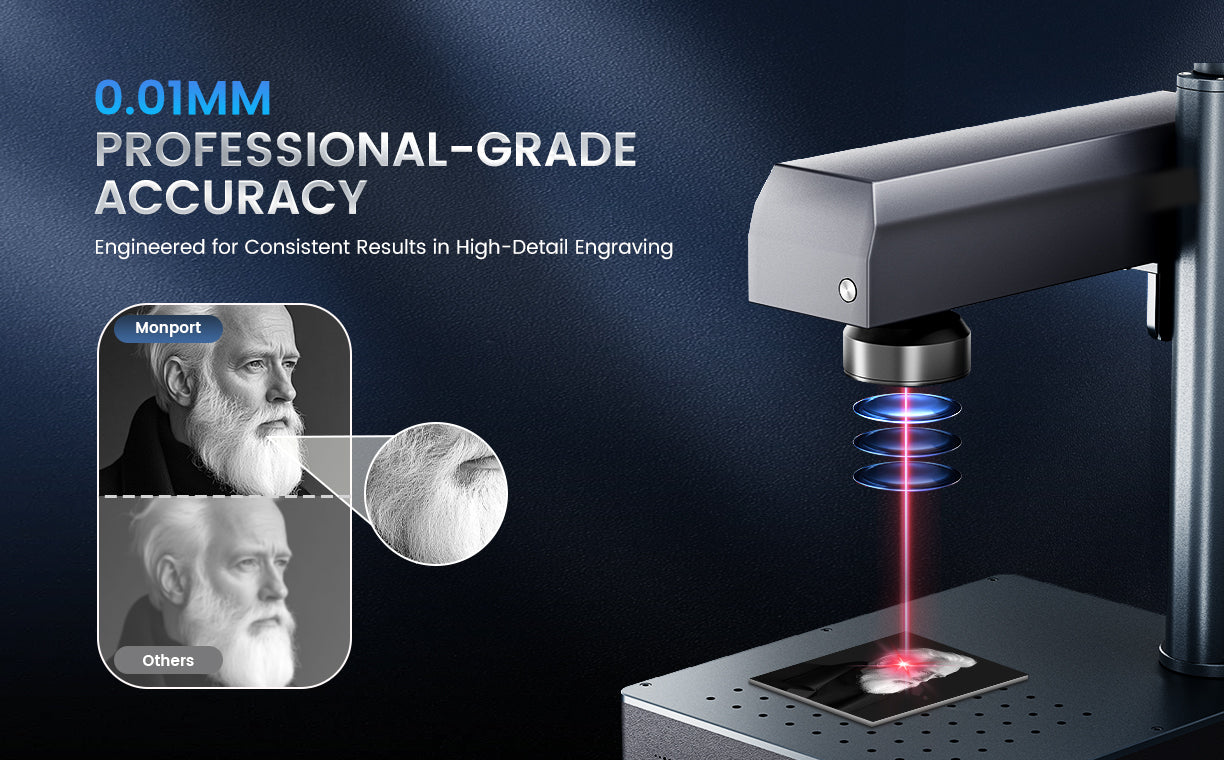

0.01mm Professional-Grade Accuracy
Delivers consistent, high-accuracy results for clean and detailed engraving every time.
GM Pro Model Quick Compare
| Product Name | GM30 Pro | GM50 Pro | GM30 Mopa Pro | GM60 Mopa Pro |
| Laser Power | 30 W | 50 W | 30 W | 60 W |
| Engraving Area | 5.9 × 5.9 in. (150 × 150 mm) |
5.9 × 5.9 in. (150 × 150 mm) |
6.9 × 6.9 in. (175 × 175 mm) |
6.9 × 6.9 in. (175 × 175 mm) |
| Max. Marking Depth (single pass, material dependent) |
0.003 in. (0.08 mm) |
0.004 in. (0.10 mm) |
0.003 in. (0.08 mm) |
0.004 in. (0.10 mm) |
| Max Engraving Speed | 10 000 mm/s (393.7 ips) |
10 000 mm/s (393.7 ips) |
10 000 mm/s (393.7 ips) |
10 000 mm/s (393.7 ips) |
| Engraving Accuracy | 0.01 mm | 0.01 mm | 0.01 mm | 0.01 mm |
| Positioning Accuracy | ± 0.1 µm | ± 0.1 µm | ± 0.1 µm | ± 0.1 µm |
| Laser Source | MAX | MAX | JPT | JPT |
| Input Power | 110–120 V 60 Hz | 110–120 V 60 Hz | 110–120 V 60 Hz | 110–120 V 60 Hz |
| Beam Quality M² | < 1.5 | < 1.6 | < 1.4 | < 1.5 |
| Beam Diameter | 6–8 mm | 6–8 mm | 7 ± 1 mm | 7 ± 1 mm |
| Maximum Pulse Energy | 0.78 mJ | 1.1 mJ | 1 mJ | 2 mJ |
| Max Z Height (field lens to workbench) |
400 mm | 400 mm | 400 mm | 400 mm |
| Central Wavelength | 1 064 nm | 1 064 nm | 1 064 nm | 1 064 nm |
| Frequency Range | 30–60 kHz | 45–170 kHz | 1–4 000 kHz | 1–4 000 kHz |
| Pulse Width | 80–120 ns (Unadjustable) |
90–110 ns (Unadjustable) |
2–500 ns | 2–500 ns |
| Expected Service Life (MTTF) | 100 000 h | 100 000 h | 100 000 h | 100 000 h |
| Color Engraving | NO | NO | YES | YES |
| Focus Mode | Autofocus | Autofocus | Autofocus | Autofocus |
| Electric Lifting | YES | YES | YES | YES |
| Cooling Type | Air Cooling | Air Cooling | Air Cooling | Air Cooling |
| Rotation Axis Function | YES | YES | YES | YES |
| Galvanometer Thread Size | M68 | M68 | M68 | M68 |
| Field Lens Dimension | M85 | M85 | M85 | M85 |

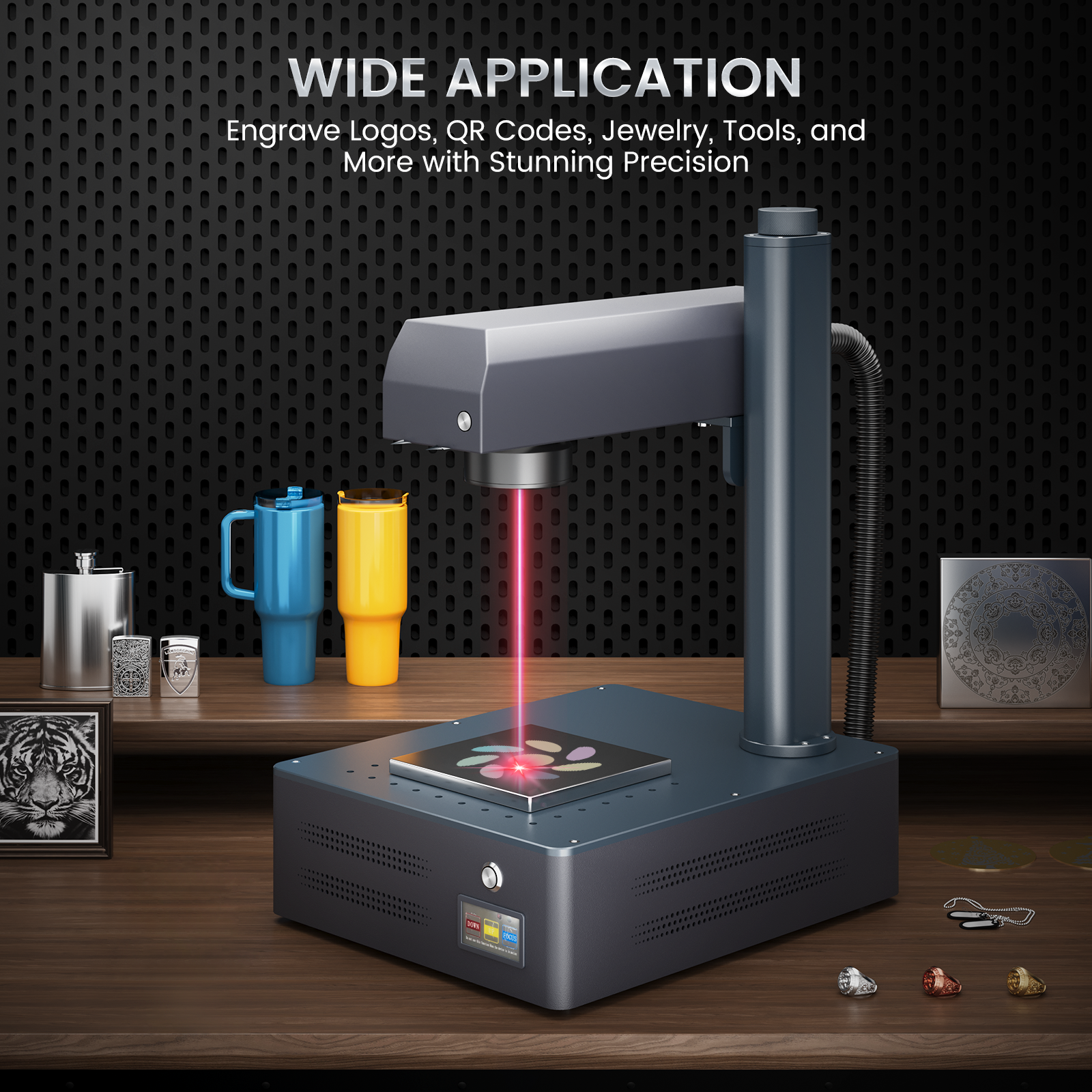

| Materials Suitable for Engraving | Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. | Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. | Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. | Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. |

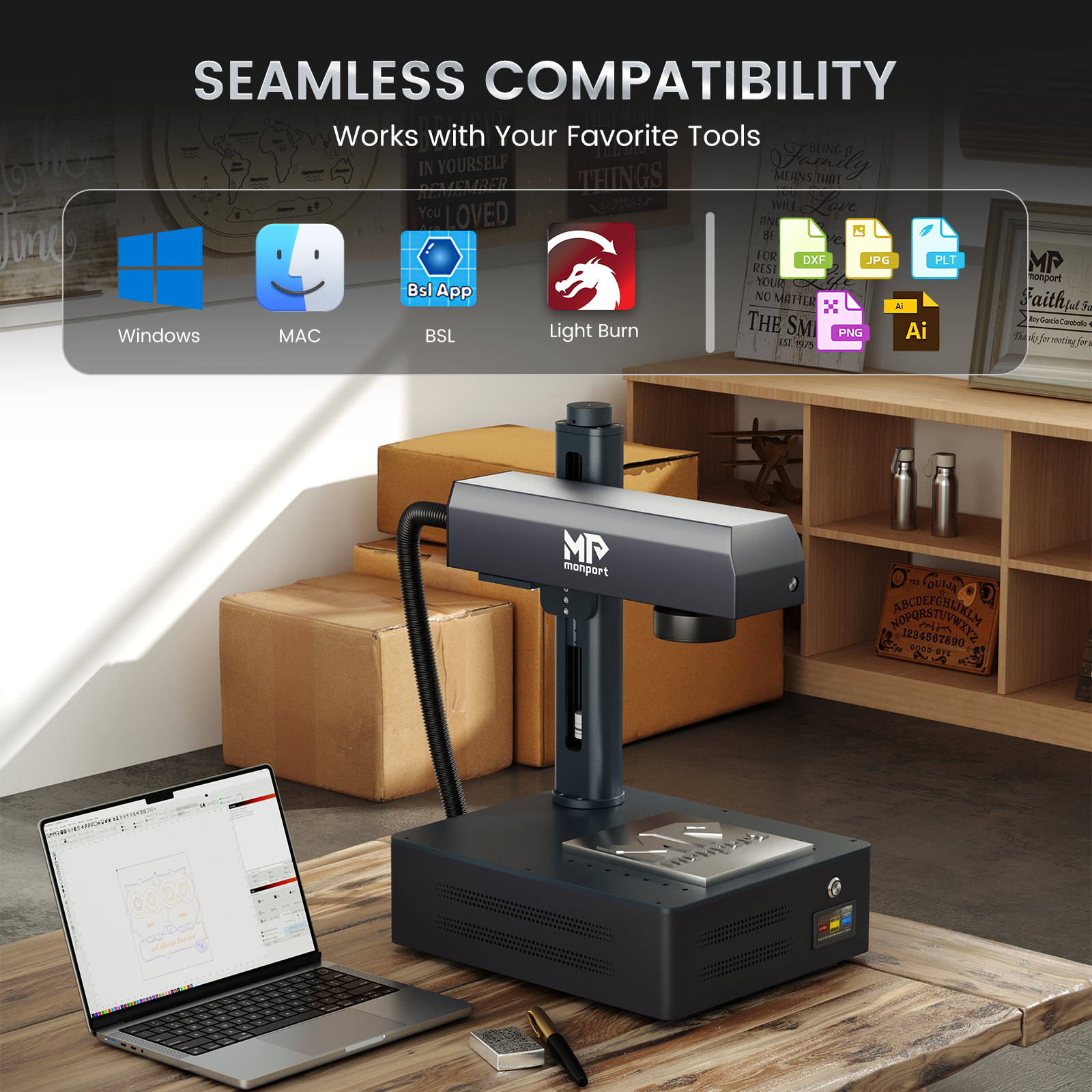

| Compatible Operating Systems | Windows / macOS | Windows / macOS | Windows / macOS | Windows / macOS |

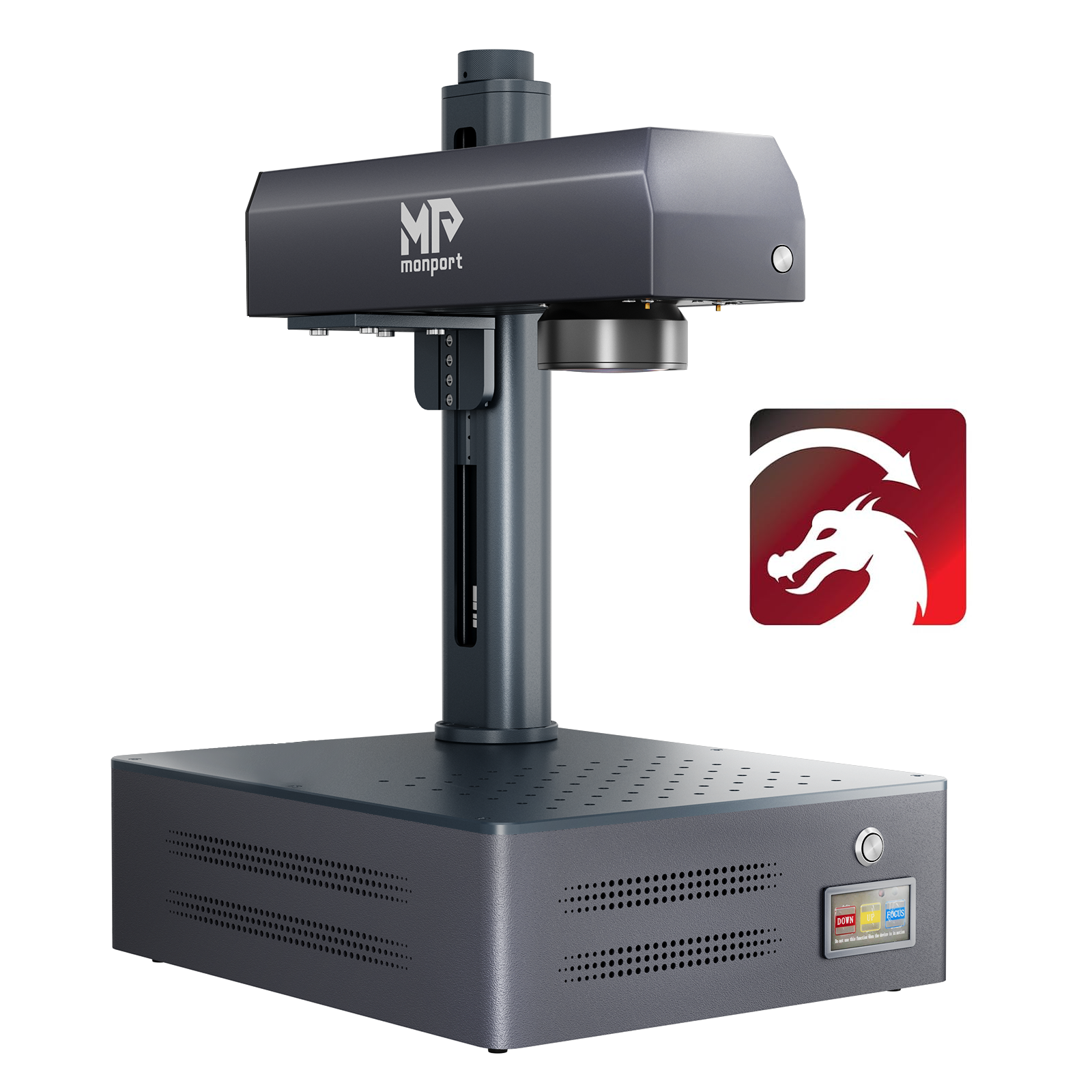

| Compatible Software | BslAppSimple, Lightburn | BslAppSimple, Lightburn | BslAppSimple, Lightburn | BslAppSimple, Lightburn |
| Data Transmission | USB Cable | USB Cable | USB Cable | USB Cable |

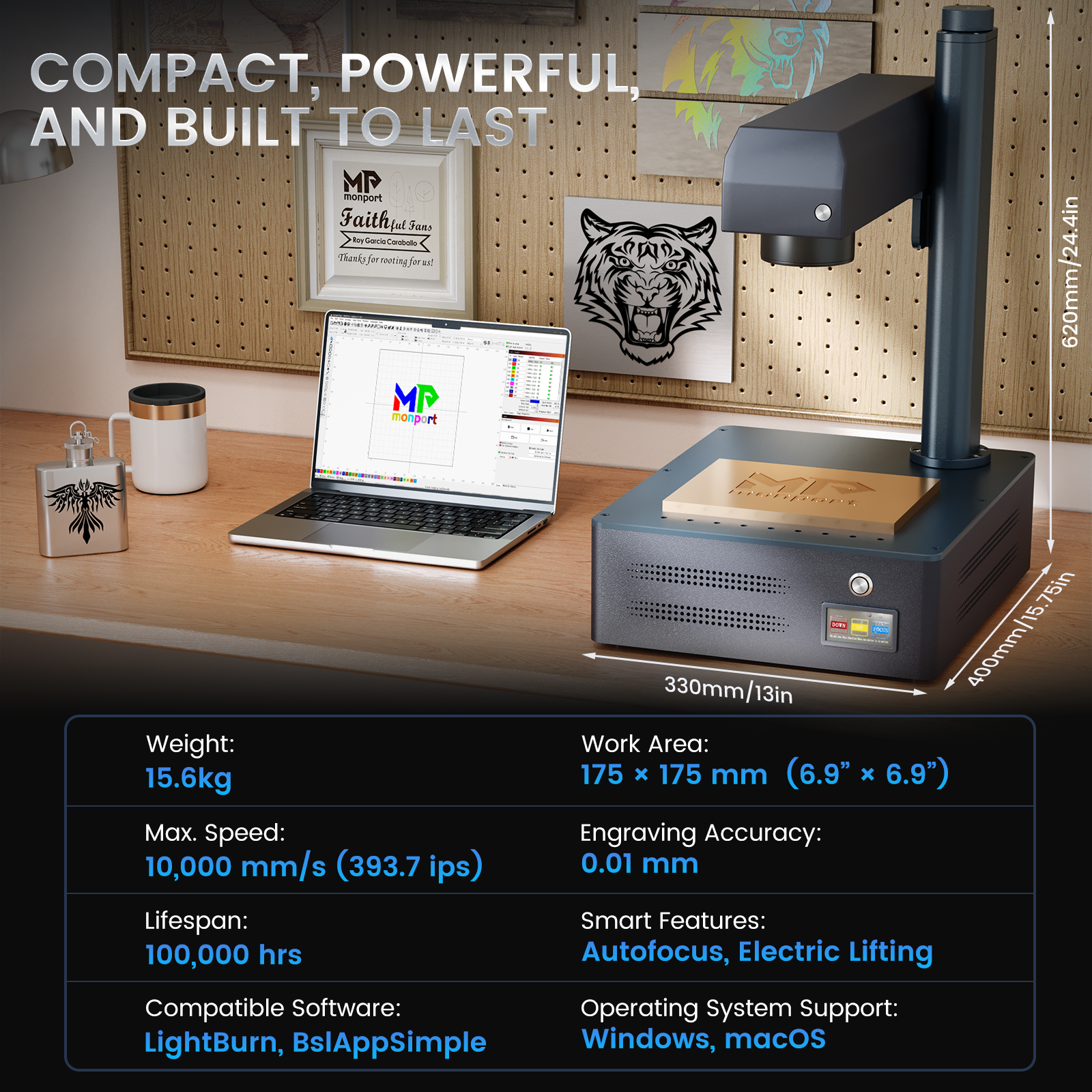

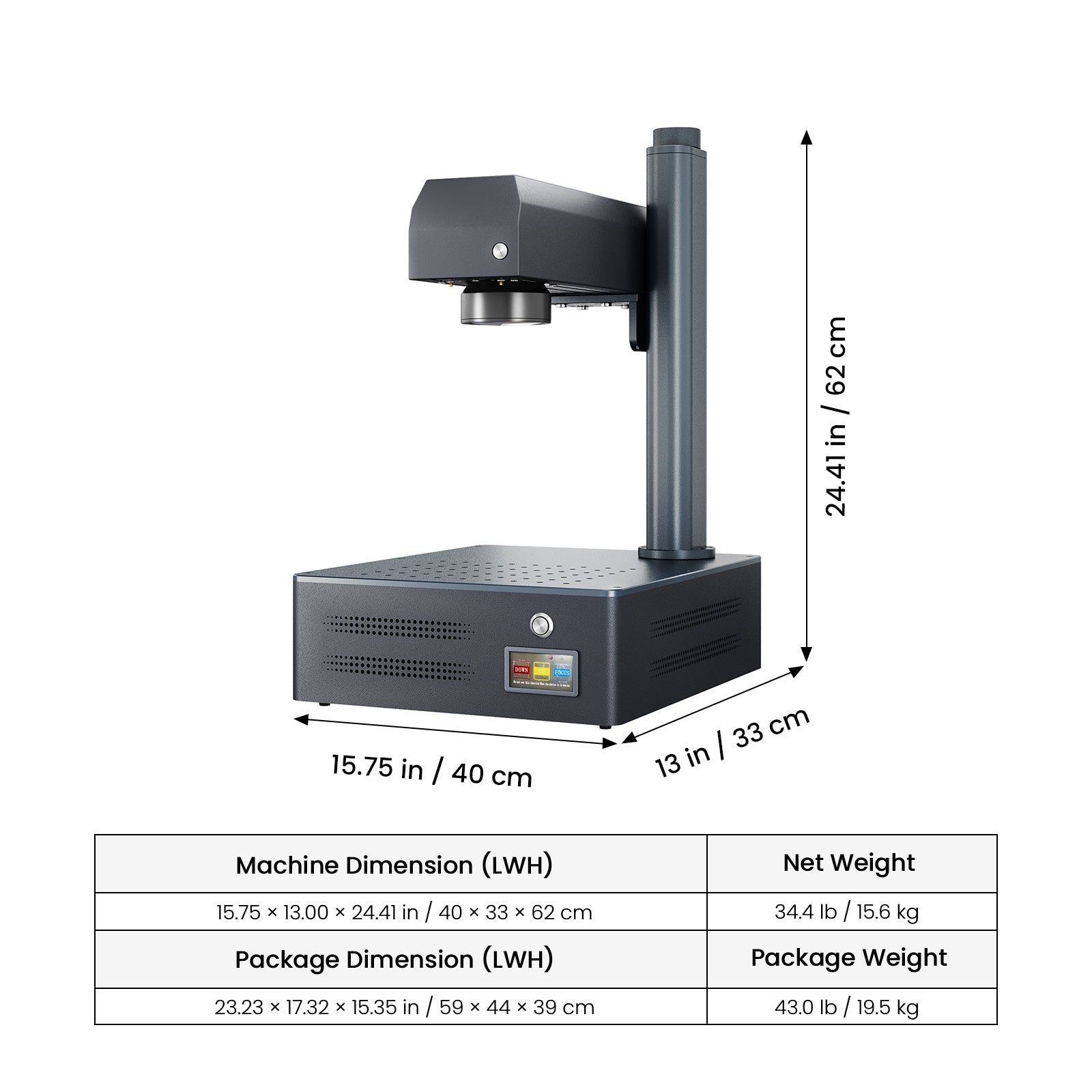

| Product Dimensions (L × W × H) | 15.75 × 13.00 × 24.41 in (40 × 33 × 62 cm) |
15.75 × 13.00 × 24.41 in (40 × 33 × 62 cm) |
15.75 × 13.00 × 24.41 in (40 × 33 × 62 cm) |
15.75 × 13.00 × 24.41 in (40 × 33 × 62 cm) |
| Package Dimension (L × W × H) | 23.23 × 17.32 × 15.35 in (59 × 44 × 39 cm) |
23.23 × 17.32 × 15.35 in (59 × 44 × 39 cm) |
23.23 × 17.32 × 15.35 in (59 × 44 × 39 cm) |
23.23 × 17.32 × 15.35 in (59 × 44 × 39 cm) |
| Product Weight | 37.7 lb (17.1 kg) | 34.4 lb (15.6 kg) | 34.4 lb (15.6 kg) | 36.6 lb (16.6 kg) |
| Gross Weight | 46.3 lb (21 kg) | 43.0 lb (19.5 kg) | 43.0 lb (19.5 kg) | 45.2 lb (20.5 kg) |
| Warranty | 2-year (1 year for laser source) |
2-year (1 year for laser source) |
2-year (1 year for laser source) |
2-year (1 year for laser source) |

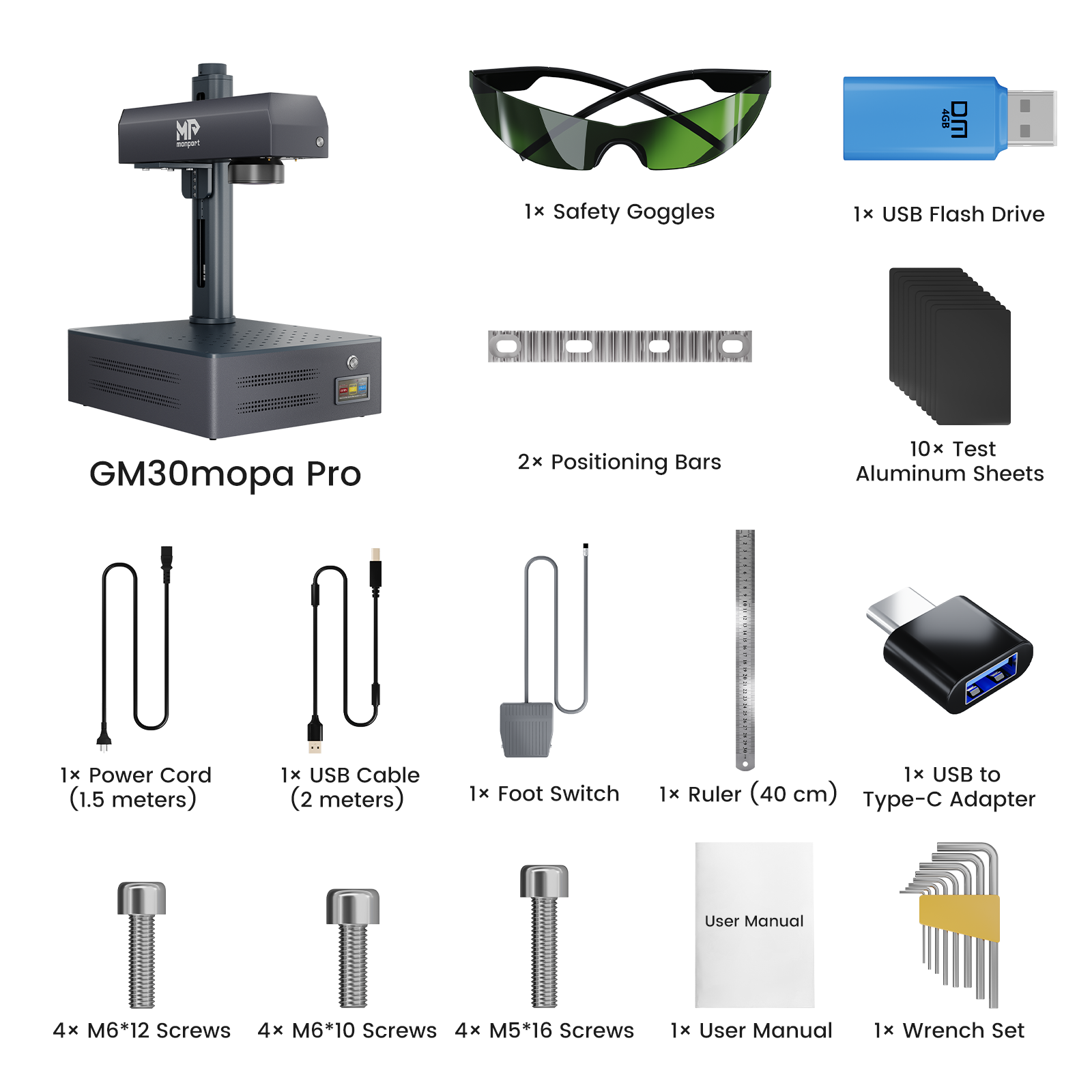

Package List
