Input Voltage:24v

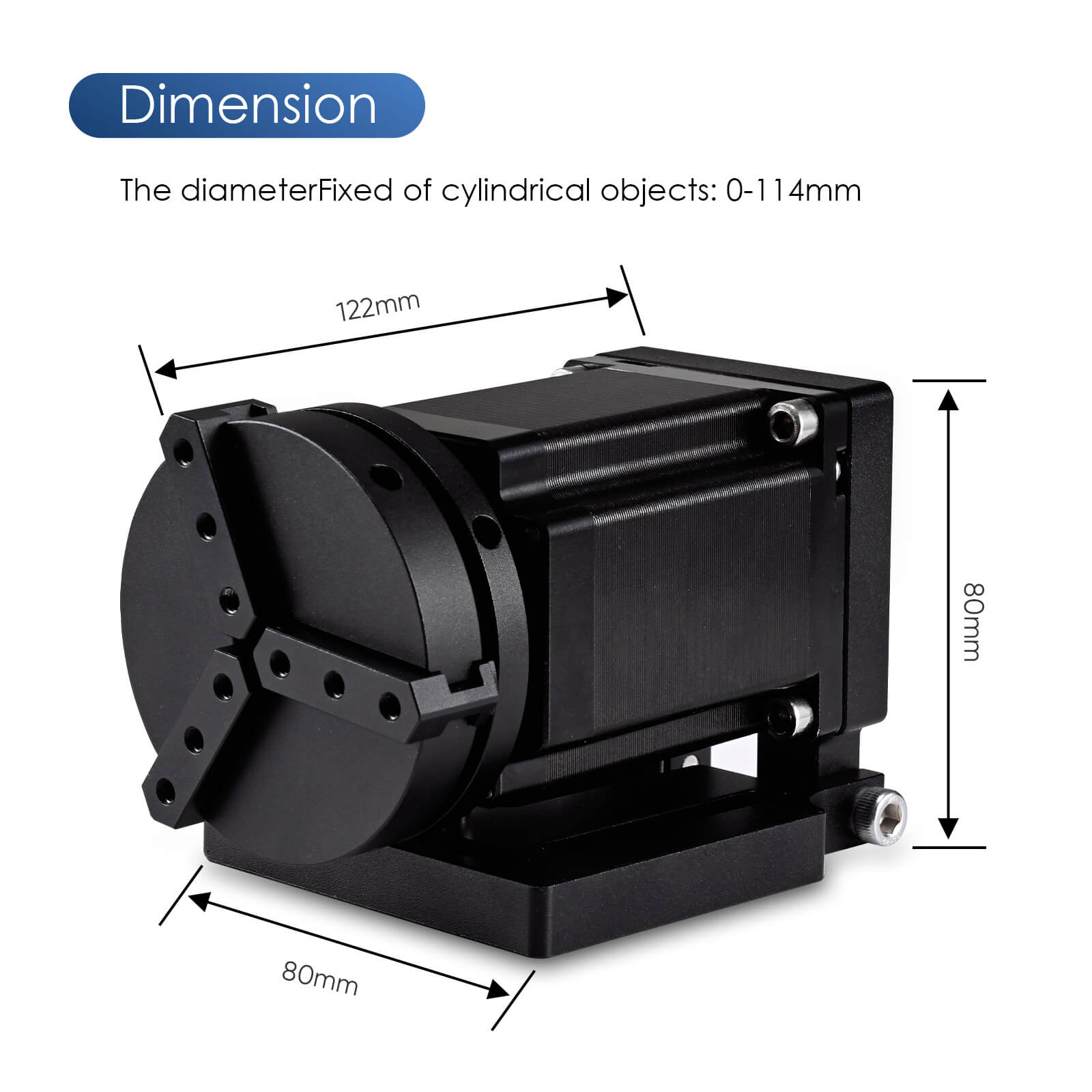

Base Length:3.8in.(97mm)

Base Width:3.1in.(80mm)

Chuck Diameter:2.8in(70mm)

Chuck Clamping Range:0-4.5in.（0-114mm）

Product Dimensions:4.8*3.1*3.1in.（122*80*80mm）

Net Weight:4.76lb（2.16kg）

Warranty: 1-year warranty on the rotary roller axis

Certifications: FDA Approved & CE Certified

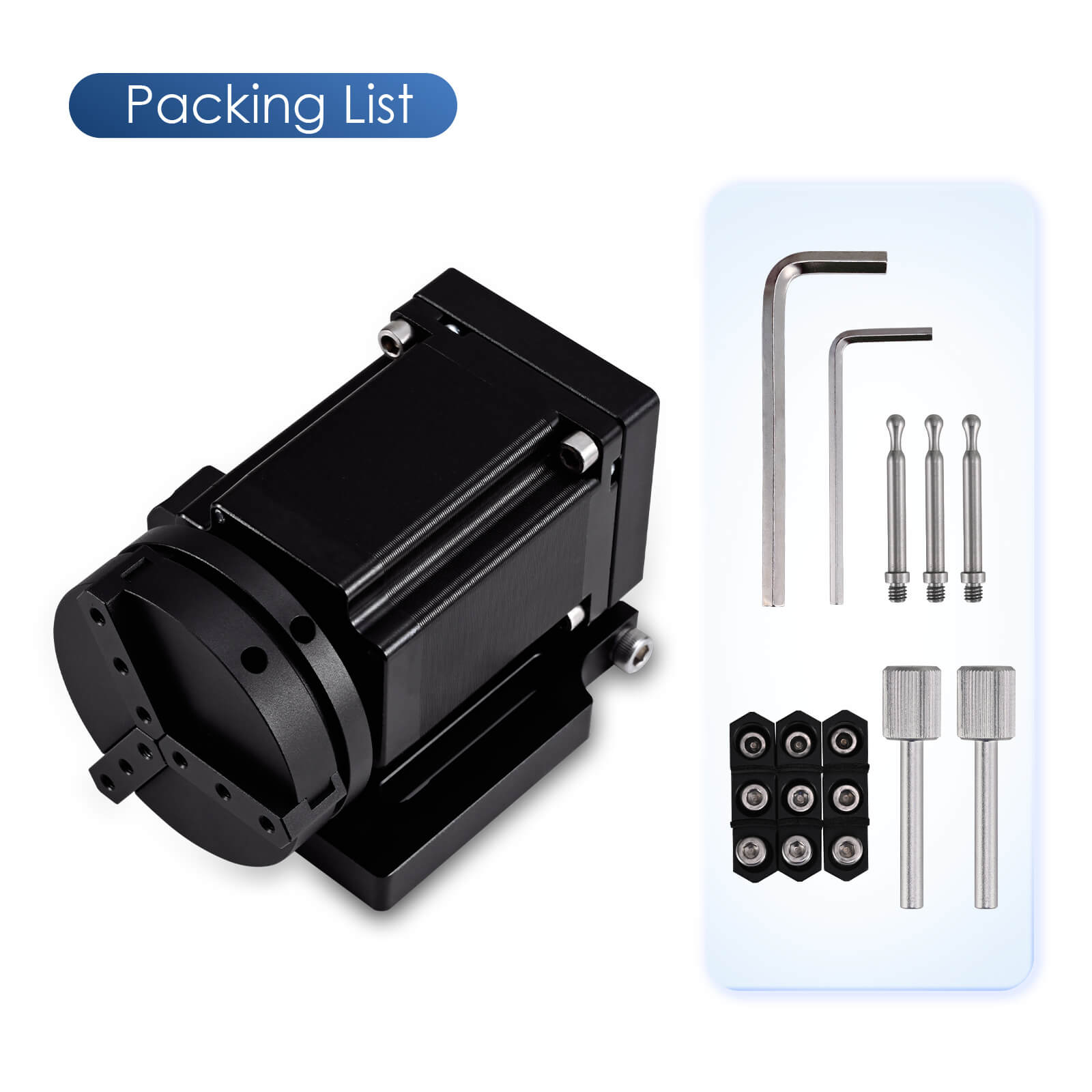

Package Contents

Rotary Axis *1

Cable *1

Download the User Manual

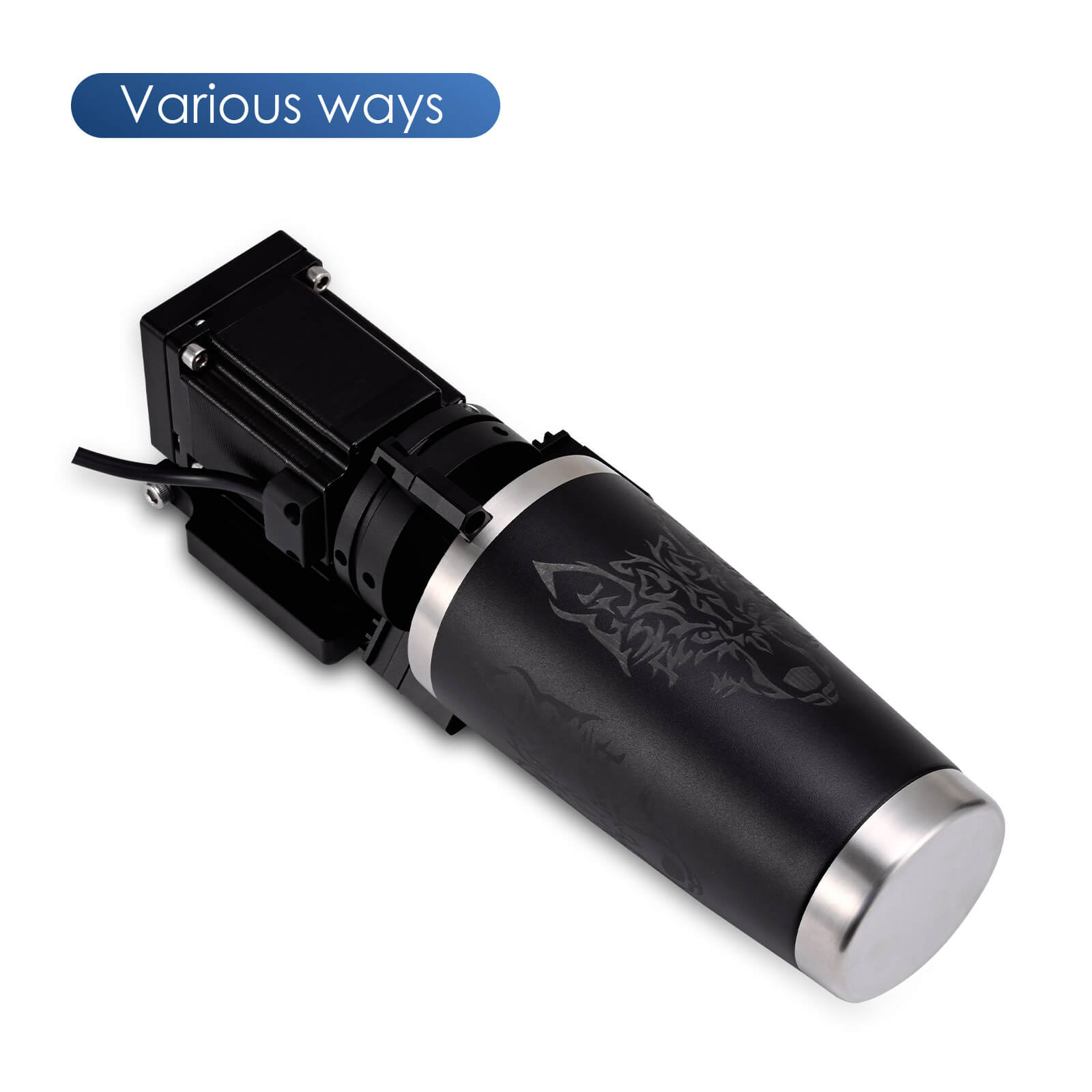

360° Rotary Engraving

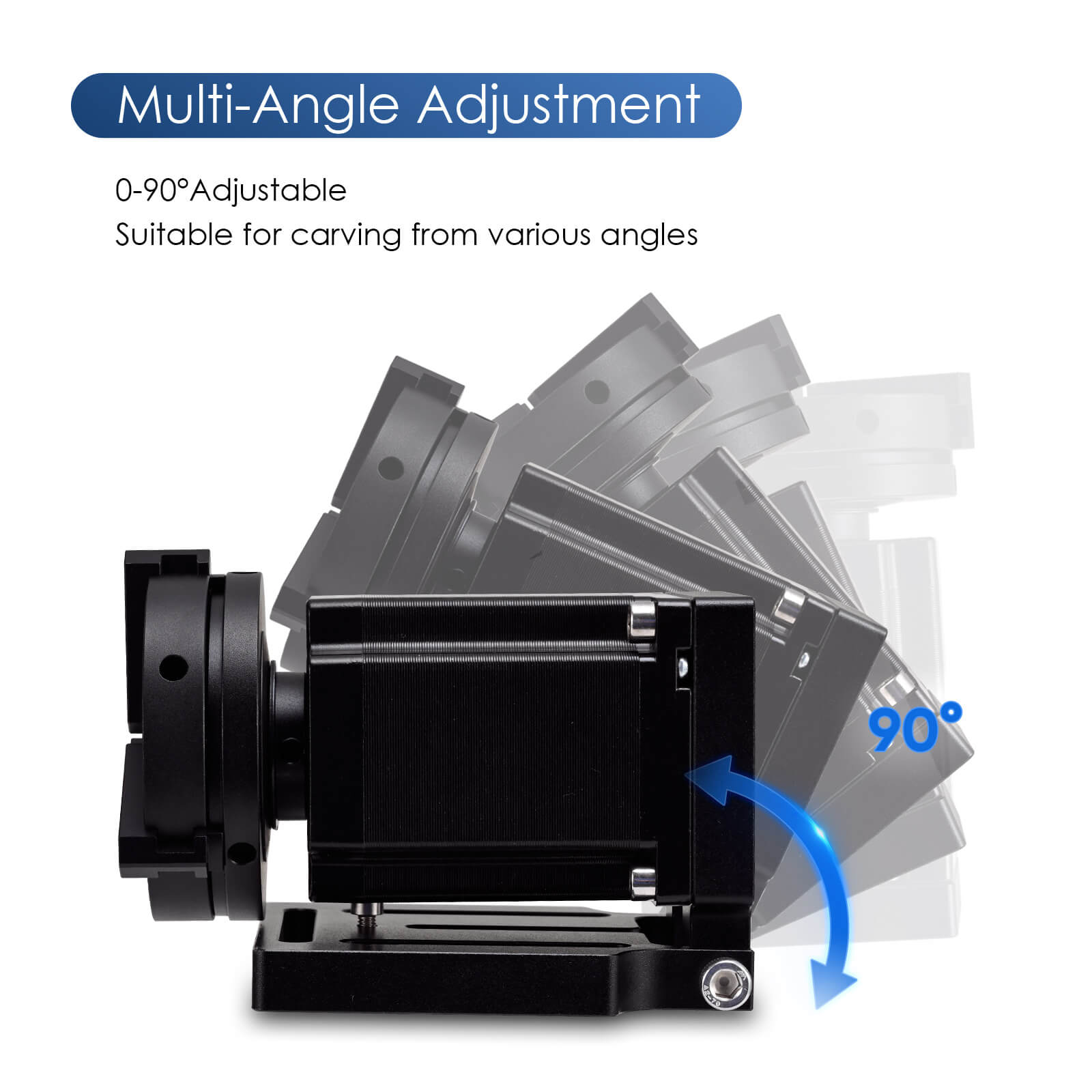

Monport rotating chuck can rotate 360°freely, making it easy to engrave on the entire inner or outer circumference of a circular object; And it can be adjusted in the 0-90°direction for multi angle engraving.

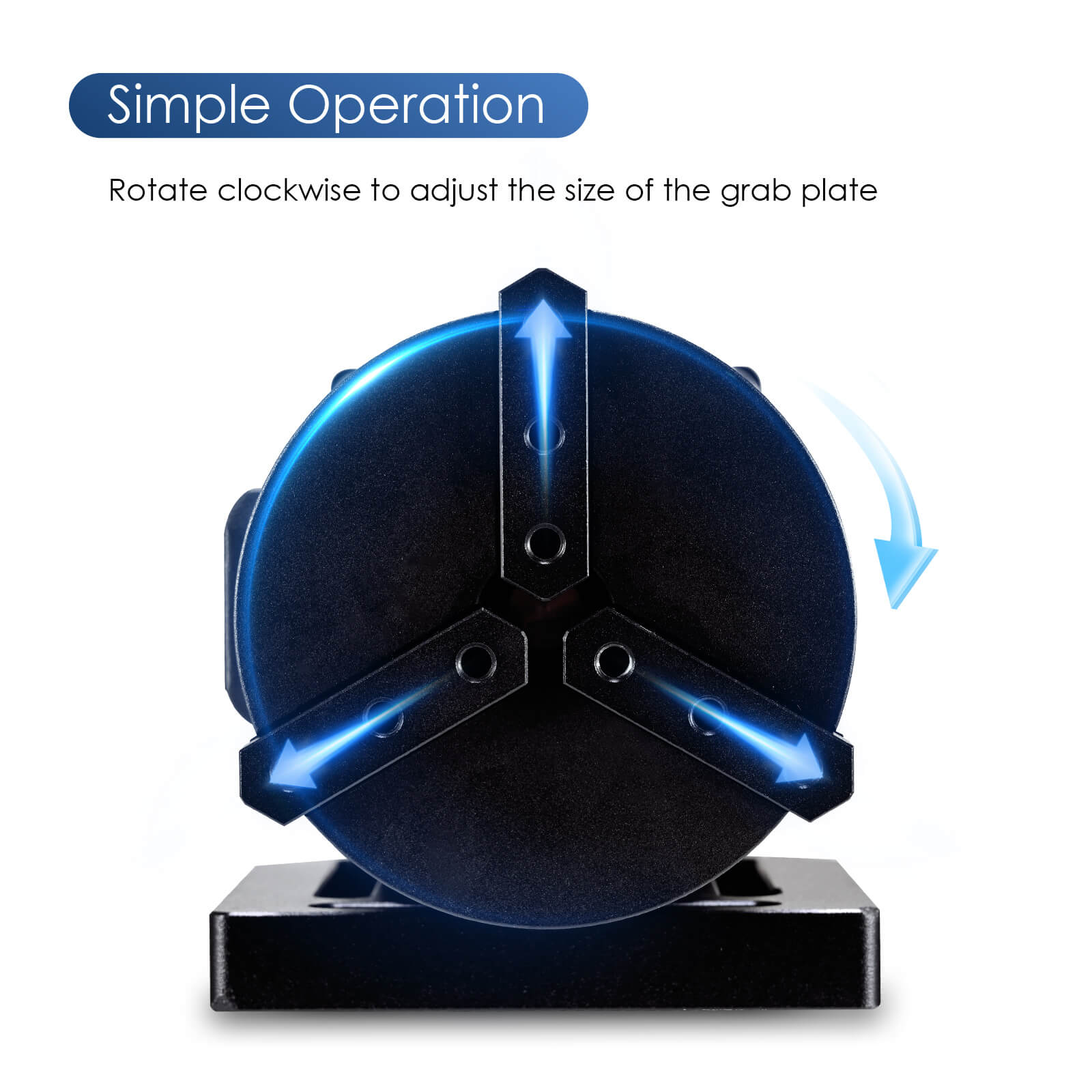

Adjustable Grab Plate

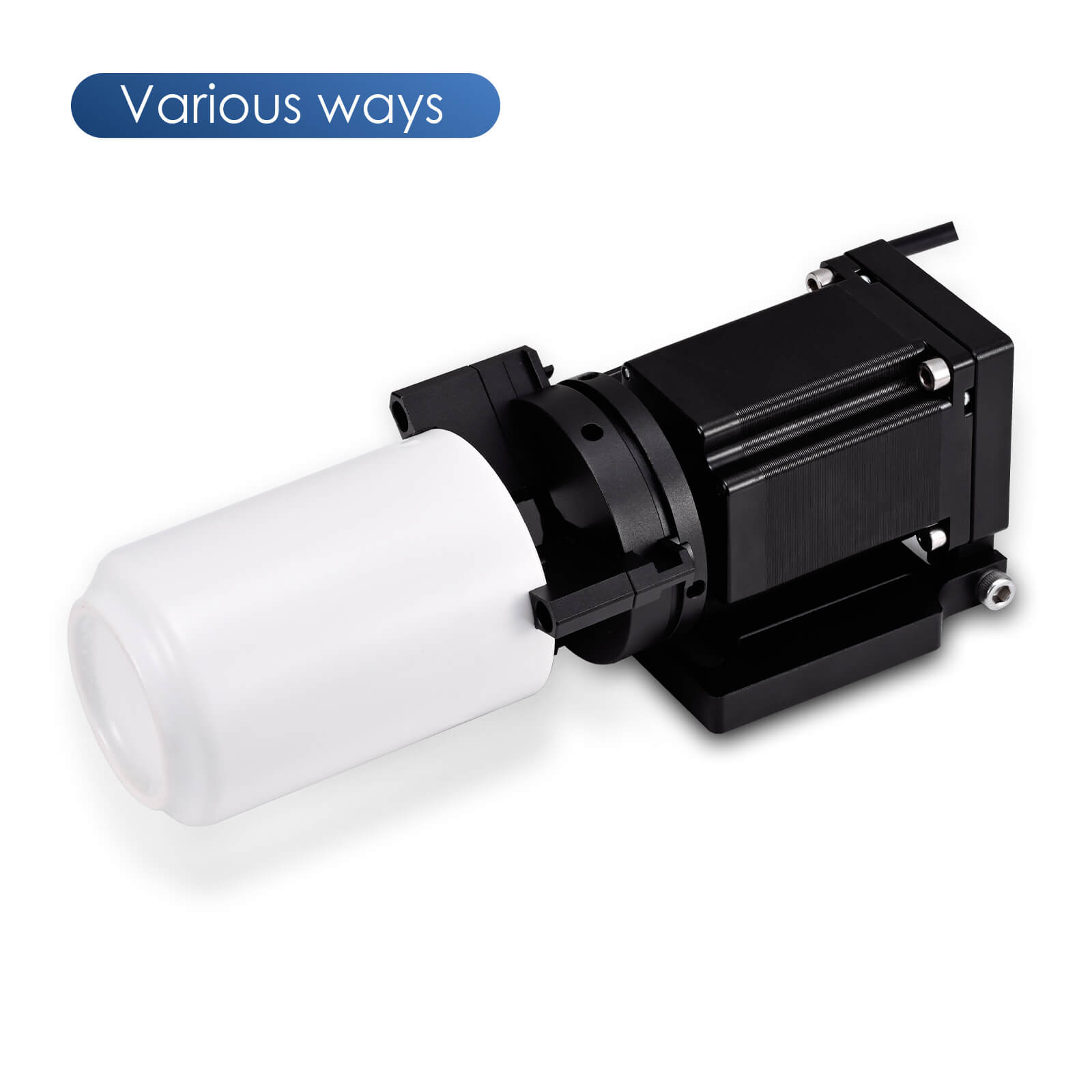

This laser engraving machine rotary accessory includes three chuck jaws and three pins, which can be extended to 4.5 inches (114 mm) and can be pushed or pushed out by its pins to fix the external 0-4.5 inch rings and cylinders. The flexible adjustment function allows carving operations on any size ring, bracelet, anklet, bottle, cup, disc, etc. within the range.

Easy to Install

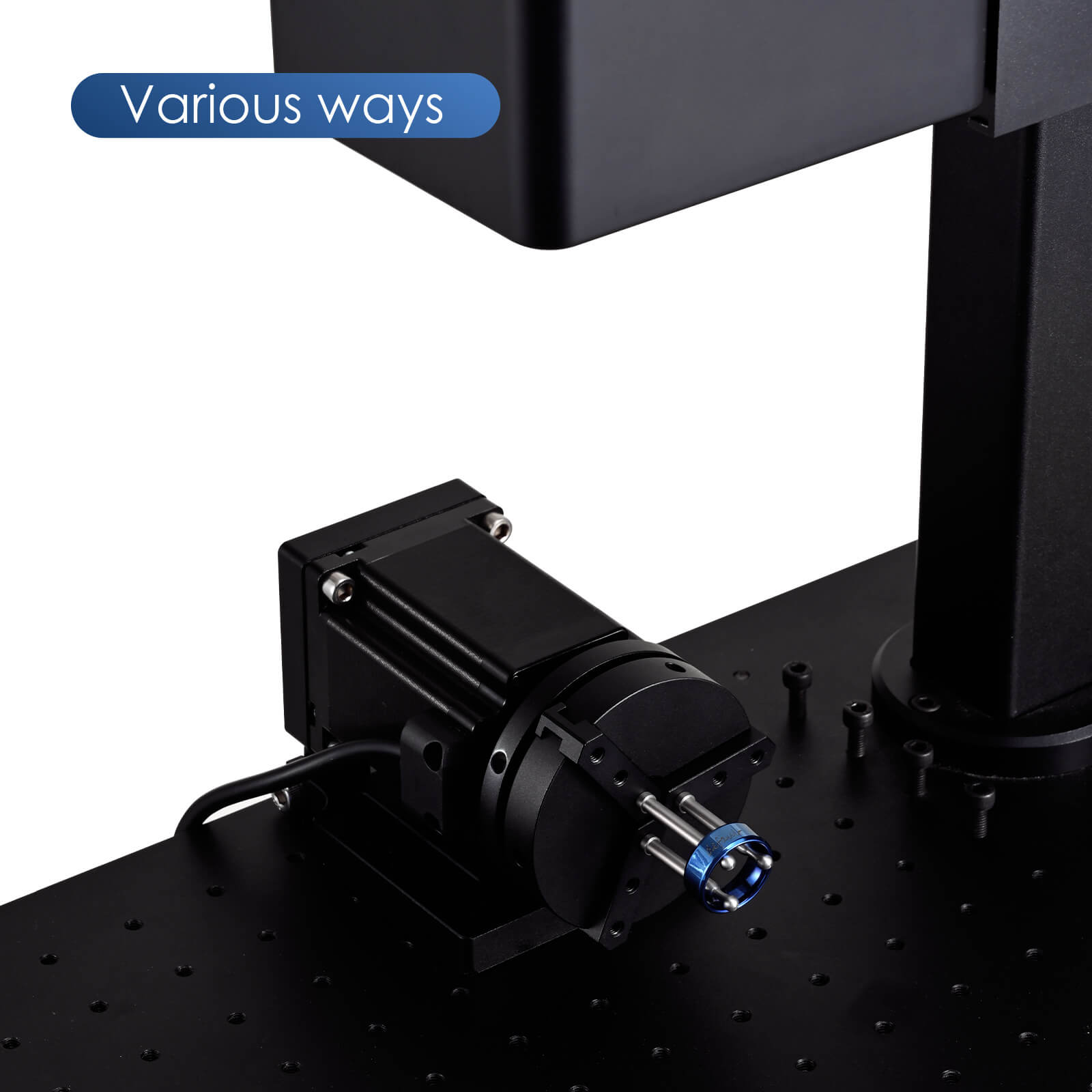

Simply place the rotary chuck on the laser engraving machine workbench, connect the cable to the control board, and finally configure the software to start engraving.

Durable and Efficient

Powered by a Nema17 stepper motor, it features a sturdy SPCC steel structure with soft pads on each layer of claws, ensuring smooth and noise-free operation without scratching the surface of carved objects.
