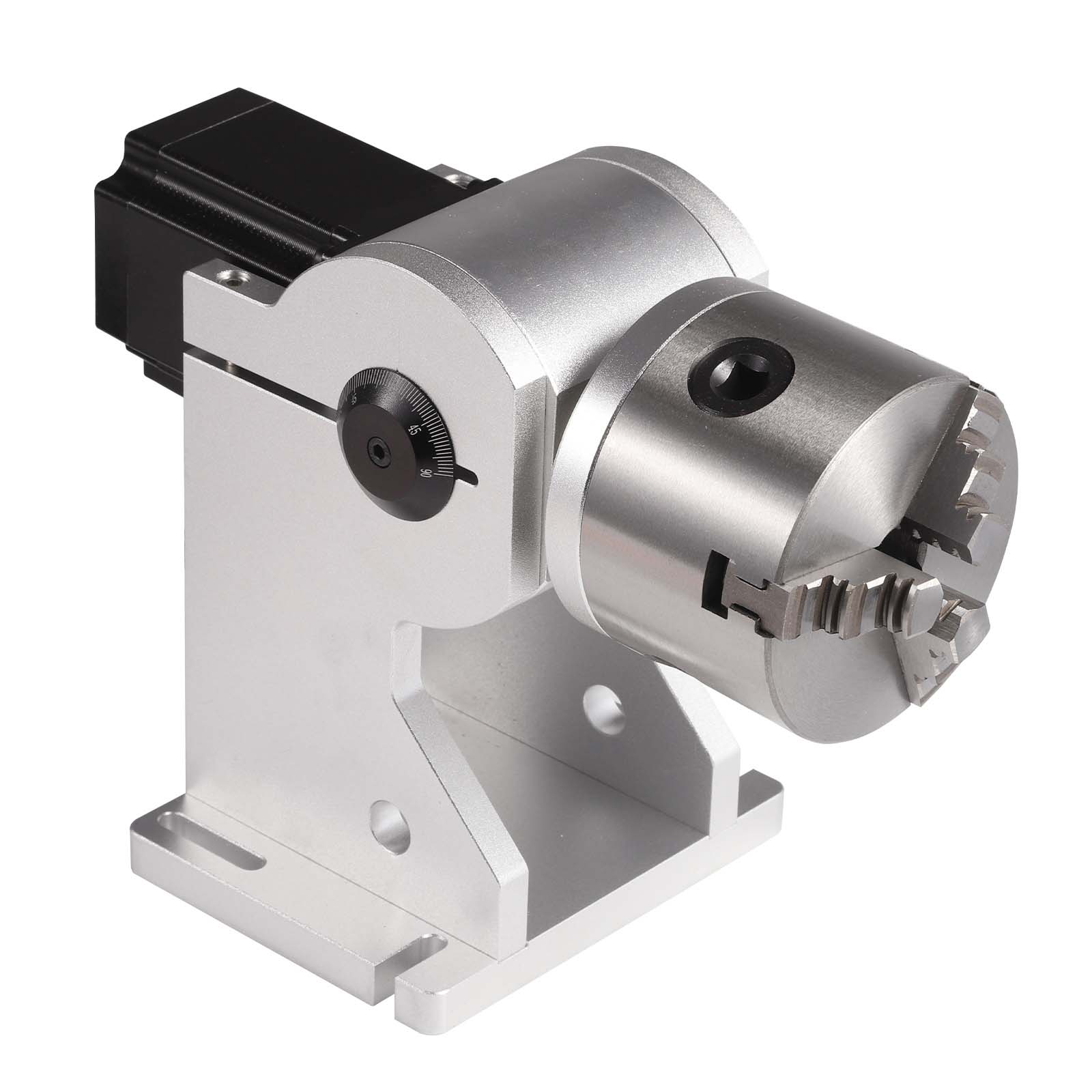

Monport 80MM Three Jaws Rotary Axis Attachment with a Scale Dial (for Fiber Engravers only)
US Delivery time : 3-5 Business Days

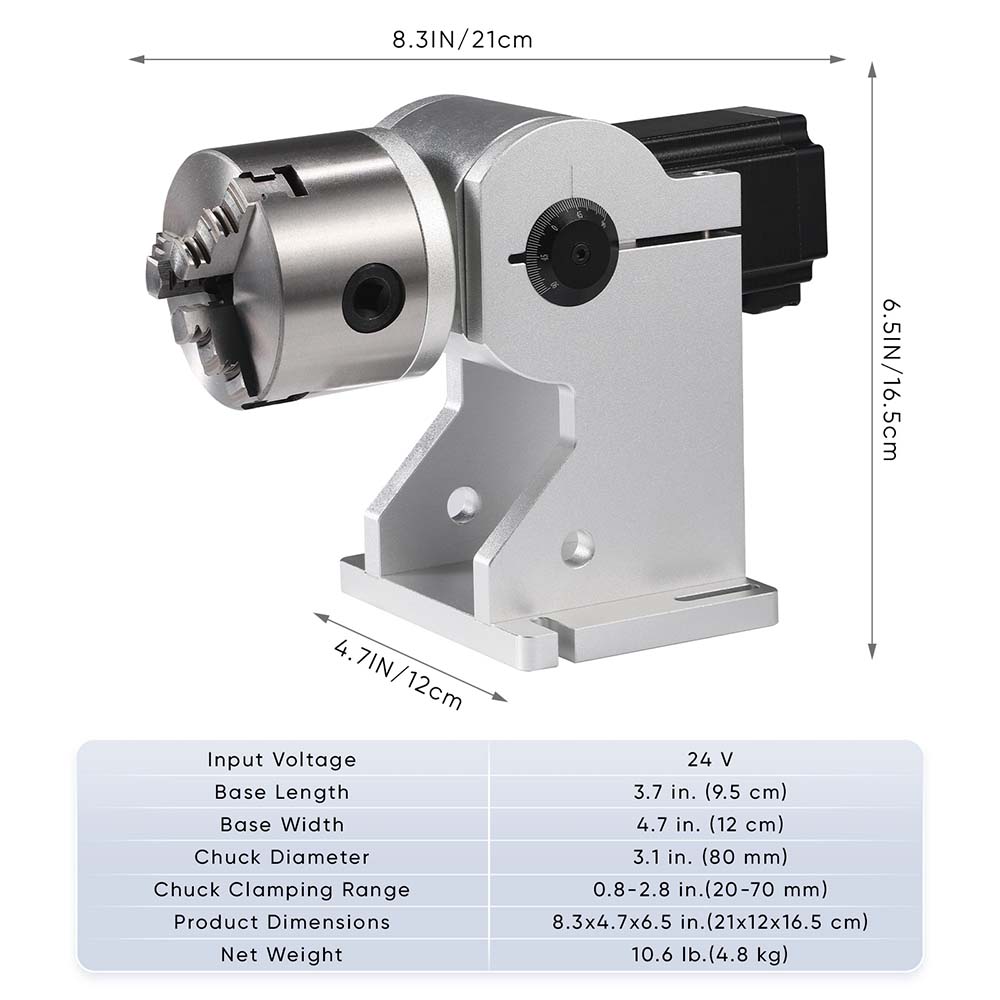

Dimension & Specifications
Input Voltage: 24 V
Base Length: 3.7 in. (9.5 cm)
Base Width: 4.7 in. (12 cm)
Chuck Diameter: 3.1 in. (80 mm)
Chuck Clamping Range: 0.8-2.8 in.(20-70 mm)
Product Dimensions: 8.3x4.7x6.5 in.(21x12x16.5 cm)
Net Weight: 10.6 lb.(4.8 kg)
Benefits & Features

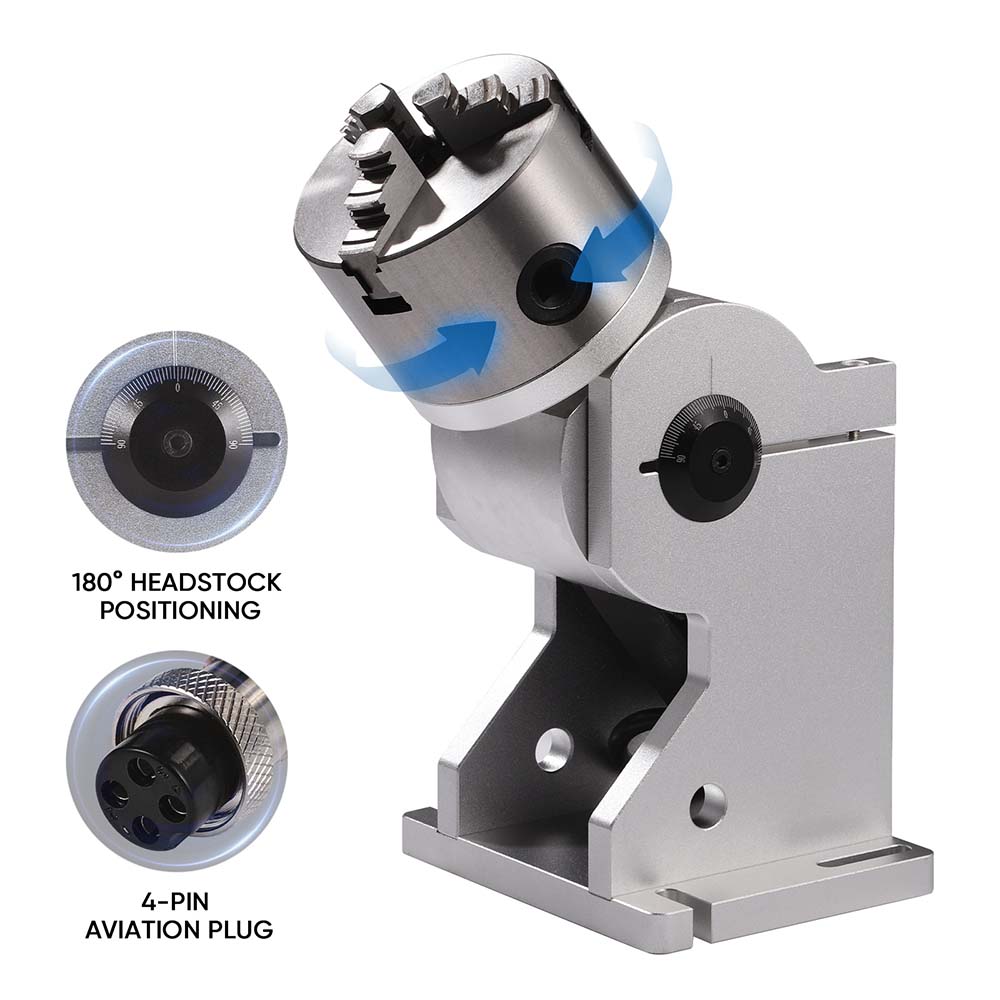

360° Rotary Marking
Monport's 80mm 3 jaw rotary axis boasts 180° stepless angle adjustment and 360° smooth rotation for engraving around the complete inner or outer circumference of round objects, ideal for rings, bracelets, pens, cups, tubes, and more!
Adjustabke Jaws
Our rotary laser marker and engraver attachment has 6 clamping jaws and a chuck key included to securely hold cylinders 0.08-2.5 inches (2-75 mm) in external diameter or 1-2.7 inches (25-75 mm) in inner diameter.
Easy Installation

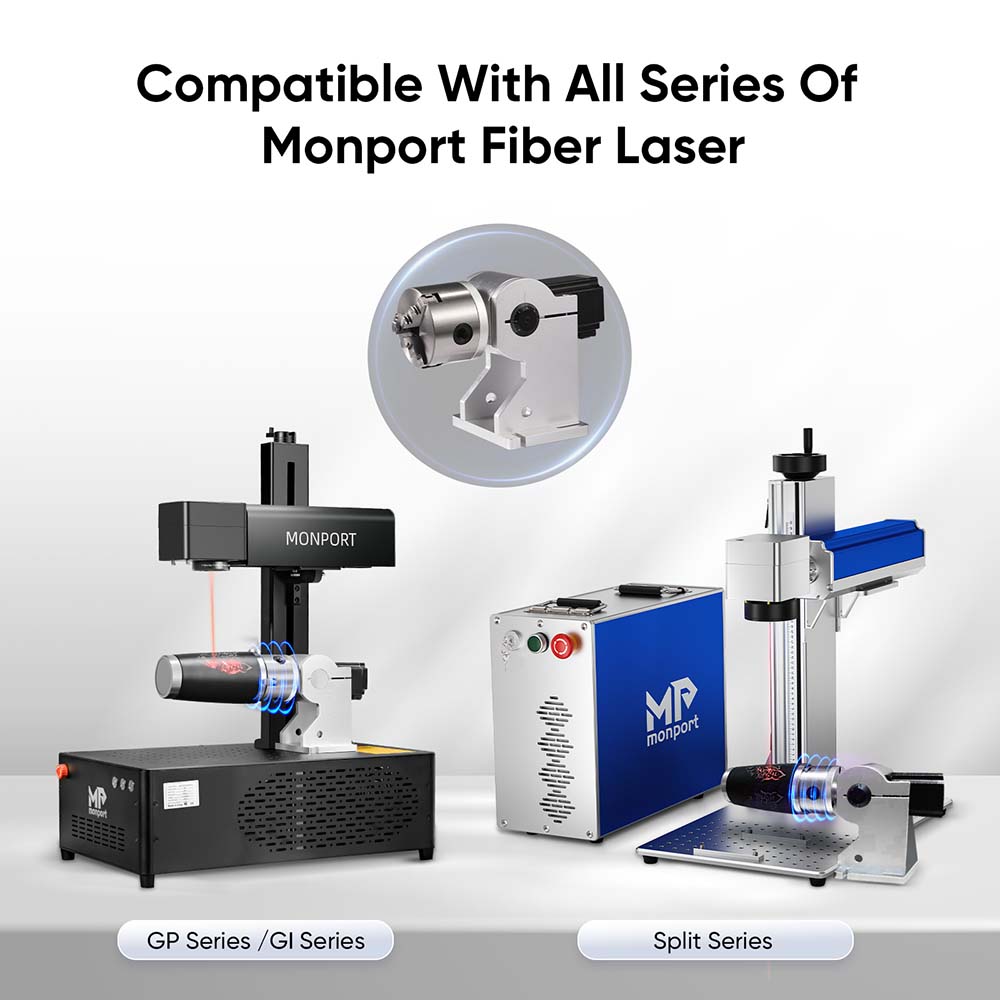

Just connect the rotary tool's convenient and secure 4 pin aviation plug to the dedicated port on your Monport fiber laser machine and configure the settings in your software to get your marking project started.
Powerful Operation
Our chuck rotary axis uses a NEMA 23 2-phase stepper motor to provide precise positioning and smooth motion for efficient operation; the aluminum and stainless steel construction ensures lasting corrosion resistance.
Superior Support & Service
Order this rotary axis attachment today and enjoy fast US-based shipping, a strong 1 year warranty, and Monport's ever helpful customer service and tech support.
Warranty & Certifications
1-year warranty on the rotary roller axis
FDA Compliant & CE Certification

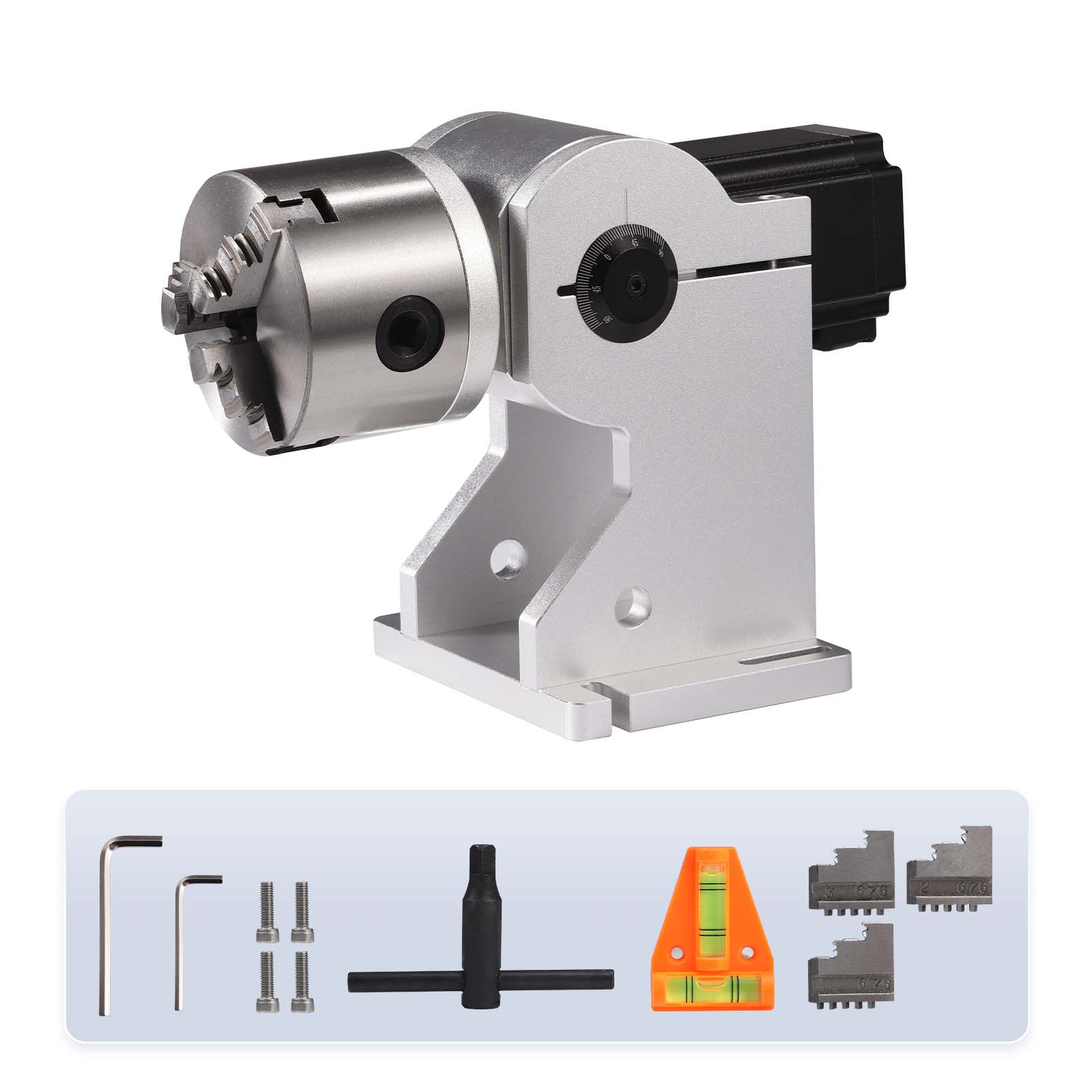

Package Includes
1 x Chuck Rotary Axis
1 x Instructions
