Save 41%

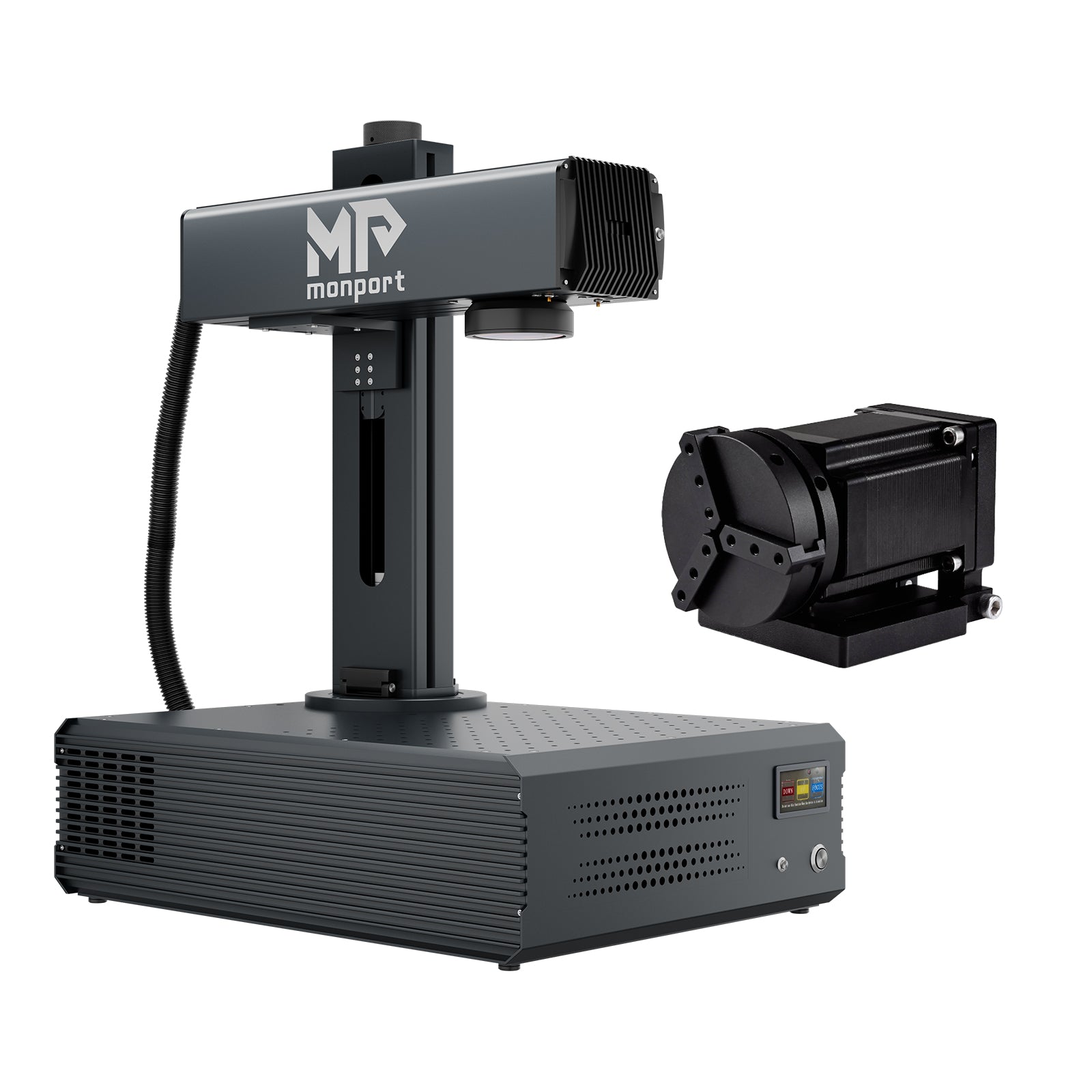

Monport GA 60W MOPA Fiber Laser Integrated Engraver & Color Marking Machine with AutoFocus
Monport GA 60W MOPA Fiber Laser Integrated Engraver & Color Marking Machine with AutoFocus
Final Price
$3,719.99
Saved$3,080.00
Regular price
$3,999.99
MSRP
Sale price
$3,999.99
Regular price
$6,799.99
- Compact design with 60W laser power
- Color marking, 3D deep engraving, and cutting capabilities
- Easy setup and auto-focus technology
- The laser head rotates 90° to expand the engraving area to 300 x 300 mm
Show More
Frequently Bought Together
Payment methods
Expedited Shipping
Expedited Shipping
Fast. Secure. Guaranteed.
Enjoy rapid delivery with complete protection. Your machine ships securely and is guaranteed to arrive in perfect condition.
Our Guarantee:
- Delivery within 3 business days or your shipping fee refunded.
- Fully insured — if damaged, our priority team resolves it immediately.
-Note: Delivery may vary in remote areas. Available for machines only. Select Expedited (Machines only) at checkout.
Couldn't load pickup availability
Watch Creators Unbox & Put It to Work
×
Fast & Accurate Marking
One-click autofocus with micron-level precision and 10,000 mm/s speed.
1-Minute Setup
Ready to engrave in minutes with a simple two-screw installation.
90° Rotary Marking
Rotate the mast up to 90° for precise marking on multiple surfaces.
Sub-Micron Precision
Create vivid color markings with exceptional accuracy.
Max Metal Cutting Capability
Powerful cutting performance across stainless steel, aluminum, and brass.
Deep Engraving & 3D Relief
Create intricate designs with impressive depth and detail.
GA & GM60 Pro MOPA Model Quick Compare
| Product Name | GM60 Mopa Pro | GA MOPA 60W | GA MOPA 100W |
| Laser Power | 60W | 60W | 100W |
| Engraving Area | 6.9 × 6.9 in. (175 × 175 mm) |
6.9 x 6.9 in. 175 × 175 mm |
6.9 x 6.9 in. 175 × 175 mm |
| Max. Marking Depth In a Single Pass (depending on material) |
0.004 in. (0.10 mm) |
0.004 in. (0.1mm) |
0.006 in. (0.15mm) |
| Central Wavelength | 1064nm | 1064nm | 1064nm |
| Input Power | 110–120V 60Hz | 110-120V 60Hz | 110-120V 60Hz |
| Laser Frequency | 1-4000 kHz | 1-3000 kHz | 1-3000 kHz |
| Max Z Height (Field lens to workbench) |
350 mm | 410 mm | 410 mm |
| Engraving Accuracy | 0.01 mm | 0.01 mm | 0.01 mm |
| Positioning Accuracy | ±0.1 µm | ±0.1 µm | ±0.1 µm |
| Pulse Width | 2–500 ns | 2-500 ns | 2-500 ns |
| Max Engraving Speed | 10000 mm/s (393.7 ips) |
10000 mm/s 393.7 ips |
10000 mm/s 393.7 ips |
| Beam Quality M2 | <1.5 | <1.8 | <1.8 |
| Beam Diameter | 7 ± 1 mm | 7 ± 1mm | 7 ± 1mm |
| Maximum Pulse Energy | 2 mJ | 1.5 mJ | 1.5 mJ |
| Color Engraving | YES | YES | YES |
| Focus Mode | Autofocus | Autofocus | Autofocus |
| Machine Dimension(L*W*H) | 15.75 × 13.00 × 24.41 in (40 × 33 × 62 cm) |
14.8 x 19.7 x 25.6 in (37.5 x 50 x 65 cm) |
14.8 x 19.7 x 25.6 in (37.5 x 50 x 65 cm) |
| Package Dimension(L*W*H) | 23.23" × 17.32" × 15.35" (59 × 44 × 39 cm) |
29.53" × 27.17" × 14.17" (75 × 69 × 36 cm) |
29.53" × 27.17" × 14.17" (75 × 69 × 36 cm) |
| Package Weight | 45.2 lb (20.5 kg) | 78.3 lb (35.5 kg) | 82.7 lb (37.5 kg) |
| Net Weight | 36.6 lb (16.6 kg) | 70.5 lb (32 kg) | 75.0 lb (34 kg) |
| Expected Lifetime(MTTF) | 100000 hr. | 100000 hr. | 100000 hr. |
| Cooling Type | Air Cooling | Air Cooling | Air Cooling |
| Electric Lifting | YES | YES | YES |
| Rotary Axis Function | YES | YES | YES |
| Field Lens Dimension | M85 | M85 | M85 |
| Galvanometer Thread Size | M68 | M68 | M68 |
| Foot Pedal Function | Built-in Foot Pedal Function | Built-in Foot Pedal Function | Built-in Foot Pedal Function |
| Supported Image Formats | BMP, GIF, JPG, JPEG, DXF, DST, etc. | BMP, GIF, JPG, JPEG, DXF, DST, etc. | BMP, GIF, JPG, JPEG, DXF, DST, etc. |
| Materials Suitable for Engraving | Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. | Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. | Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. |
| System Support | Windows, macOS | Windows, macOS | Windows, macOS |
| Compatible Software | BslAppSimple, Lightburn | BslAppSimple Lightburn |
BslAppSimple Lightburn |
| Warranty | 2 Years (1 Year for Laser Source) |
2 Years (1 Year for Laser Source) |
2 Years (1 Year for Laser Source) |
Package List
Monport Empowers Multiple Industries
