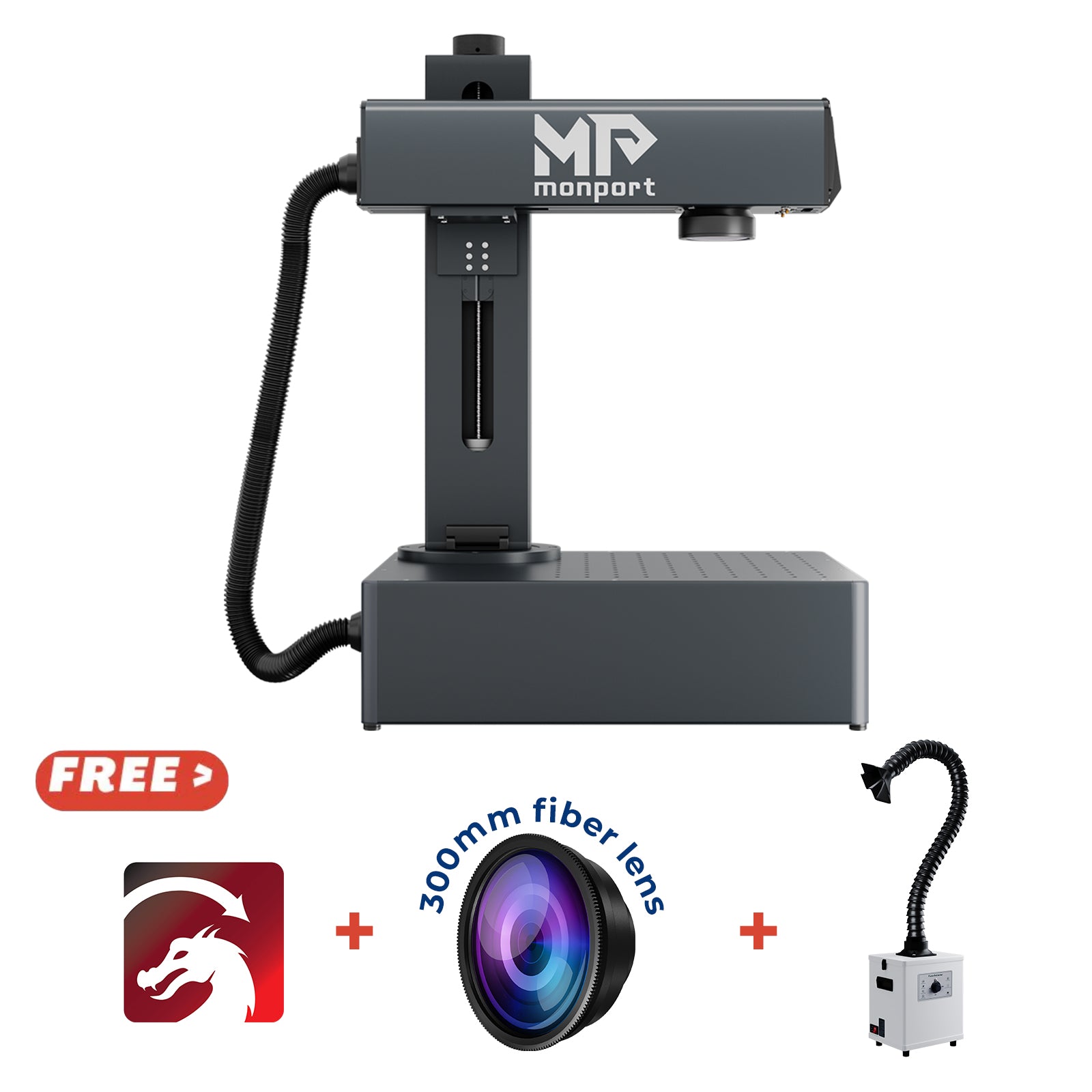

Bundle Sale | Monport GA 60W Upgraded Integrated MOPA Fiber Laser Engraver
Bundle Sale | Monport GA 60W Upgraded Integrated MOPA Fiber Laser Engraver
In stock
Expedited Shipping
Expedited Shipping
Fast. Secure. Guaranteed.
Enjoy rapid delivery with complete protection. Your machine ships securely and is guaranteed to arrive in perfect condition.
Our Guarantee:
- Delivery within 3 business days or your shipping fee refunded.
- Fully insured — if damaged, our priority team resolves it immediately.
-Note: Delivery may vary in remote areas. Available for machines only. Select Expedited (Machines only) at checkout.
Couldn't load pickup availability
Elevate Business Projects
Boasting an unparalleled marking speed up to 10000mm/s, Monport GA MOPA Fiber Laser is designed to cater to the most demanding industrial and creative applications, ensuring that your projects are not only completed with precision but also with an efficiency that sets new industry standards.
Galvo Scanning Technology
Equipped with the cutting-edge Galvo Tech drive and scanning system, Monport GA MOPA FIber Laser can attain a marking speed of up to 10,000mm/s while consistently delivering exceptional precision and steadfast, rapid marking capabilities.
Sub-Micron Precision
Equipped with a powerful 60W driver and 60W laser source, Monport GA MOPA Fiber Laser delivers striking color marking on stainless steel, aluminium, and other metals while maintaining sub-micron precision and error-free accuracy.
| Product Name | GA MOPA 30W | GA MOPA 60W | GA MOPA 100W |
| Laser Power | 30W | 60W | 100W |
| Engraving Area | 6.9 x 6.9 in. 175 × 175 mm |
6.9 x 6.9 in. 175 × 175 mm |
6.9 x 6.9 in. 175 × 175 mm |
| Max. Marking Depth In a Single Pass (depending on material) |
0.003 in. (0.08mm) |
0.004 in. (0.1mm) |
0.006 in. (0.15mm) |
| Central Wavelength | 1064nm | 1064nm | 1064nm |
| Input Power | 110-120V 60Hz | 110-120V 60Hz | 110-120V 60Hz |
| Laser Frequency | 1-3000 kHz | 1-3000 kHz | 1-3000 kHz |
| Max Z Height (Field lens to workbench) |
410 mm | 410 mm | 410 mm |
| Engraving Accuracy | 0.01 mm | 0.01 mm | 0.01 mm |
| Positioning Accuracy | ±0.1 µm | ±0.1 µm | ±0.1 µm |
| Pulse Width | 2-500 ns | 2-500 ns | 2-500 ns |
| Max Engraving Speed | 10000 mm/s 393.7 ips |
10000 mm/s 393.7 ips |
10000 mm/s 393.7 ips |
| Beam Quality M2 | <1.5 | <1.8 | <1.8 |
| Beam Diameter | 7 ± 1mm | 7 ± 1mm | 7 ± 1mm |
| Maximum Pulse Energy | 0.8 mJ | 1.5 mJ | 1.5 mJ |
| Color Engraving | YES | YES | YES |
| Focus Mode | Autofocus | Autofocus | Autofocus |
| Machine Dimension(L*W*H) | 13.8 x 16.5 x 24.4 in (35 x 42 x 62 cm) |
14.8 x 19.7 x 25.6 in (37.5 x 50 x 65 cm) |
14.8 x 19.7 x 25.6 in (37.5 x 50 x 65 cm) |
| Expected Lifetime(MTTF) | 100000 hr. | 100000 hr. | 100000 hr. |
| Cooling Type | Air Cooling | Air Cooling | Air Cooling |
| Electric Lifting | YES | YES | YES |
| Rotary Axis Function | YES | YES | YES |
| Field Lens Dimension | M85 | M85 | M85 |
| Galvanometer Thread Size | M68 | M68 | M68 |
| Foot Pedal Function | Built-in Foot Pedal Function | Built-in Foot Pedal Function | Built-in Foot Pedal Function |
| Supported Image Formats | BMP, GIF, JPG, JPEG, DXF, DST, etc. | BMP, GIF, JPG, JPEG, DXF, DST, etc. | BMP, GIF, JPG, JPEG, DXF, DST, etc. |
| Materials Suitable for Engraving | Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. | Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. | Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. |
| System Support | Windows, macOS | Windows, macOS | Windows, macOS |
| Compatible Software | BslAppSimple Lightburn |
BslAppSimple Lightburn |
BslAppSimple Lightburn |
| Warranty | 2 Years (1 Year for Laser Source) |
2 Years (1 Year for Laser Source) |
2 Years (1 Year for Laser Source) |
