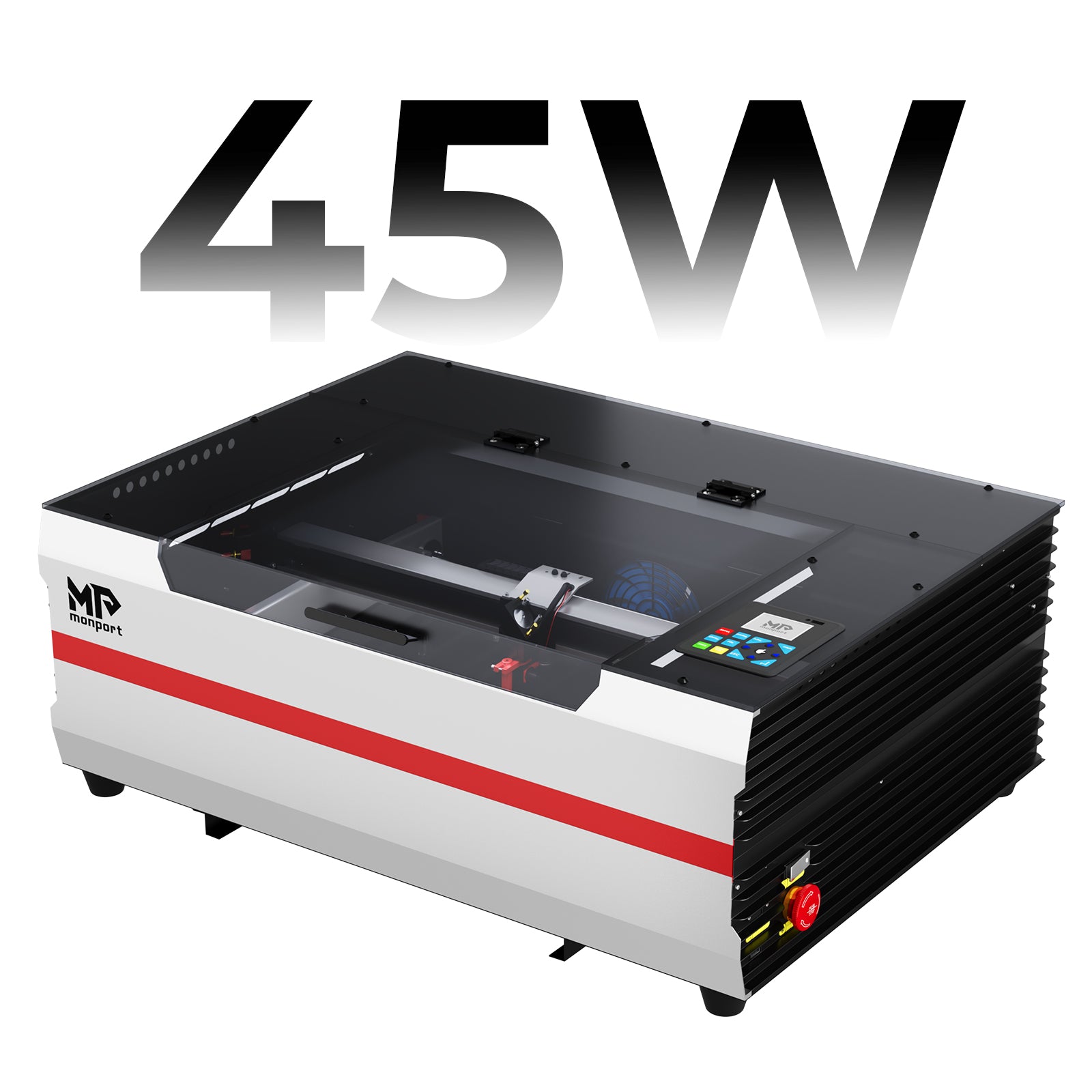

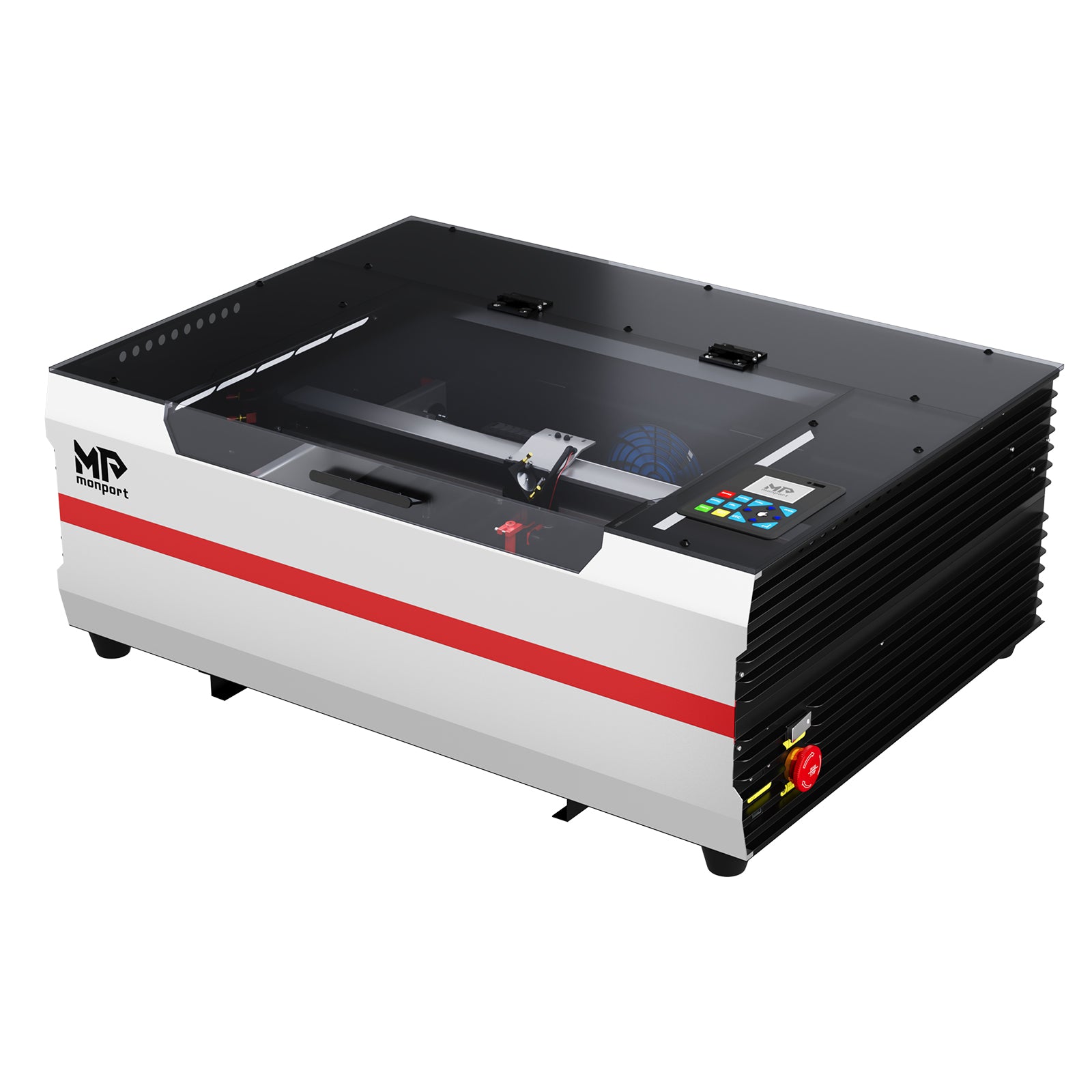

Monport Reno45 Pro 45W Desktop CO2 Laser Engraver & Cutter (16" X 12") with Magnetic Assisted Autofocus
Monport Reno45 Pro 45W Desktop CO2 Laser Engraver & Cutter (16" X 12") with Magnetic Assisted Autofocus
Available in stock
Couldn't load pickup availability
Why is the cutting ability of Reno series several times that of K40?
This is thanks to Monport's independent participation in the research and development of laser tubes, as well as the use of high-quality reflective and focusing lenses. Monport also does not cut corners in unseen places, so Reno45 can cut acrylic up to 15mm thick.
The engineers at Monport have designed an extremely clever focusing method that is efficient, convenient, and maintains high cost-effectiveness. Even if you are a beginner, you can complete focusing in just a few seconds. Magnetic feedback makes you love it once you use it.
Why can the Reno45 PRO achieve a processing speed of 600mm/s, comparable to top products in the industry?
Because Monport has independently designed a brand new mechanism, including lightweight design, high-precision slides, customized motors and drives. This is what makes the Reno45 PRO so efficient.
Considering the limitations of processing similar products in the market, Monport has achieved a working surface area of 400*300mm (twice that of K40) while maintaining a small body size. At the same time, the Z-axis can be adjusted up to 100mm (not available for other desktop products), and additional dual working platforms are provided: blade flat platform and honeycomb; Finally, there is a hidden front passthrough design. All of this is to give Reno stronger processing space.
Featuring excellent noise control, this laser operates with minimal sound, making it ideal for home or office use. The precise red light indication allows for accurate alignment of your projects, enhancing precision during engraving and cutting. Equipped with a silent assist air system, exhaust system, and water pump, it efficiently removes smoke and debris without generating excess noise, contributing to a peaceful workspace.
Rated Power: 45W
Max. Engraving Speed: 600mm/s(23.6ips)
Engraving Area: 16 x 12 in.(400x300mm)
Z-Axis Movement: 4 in.(100mm)
Front Pass-Through Size: 470 x 7mm
Focus Mode: Magnetic Assisted Focus
Est. Laser Service Life: 3000 hr.
Max. Resolution: 1000 dpi
Cooling system: External Water Pump, Q-MAX: 800L/H
Air Assist: 18L/min(Adjustable Air Volume)
Working Table: Honeycomb Workbed：440*340mm, Blade Workbed：9pcs
Wavelength: 10600nm
Air Outlet Size: 100mm
Data Transmission: USB Cable, WiFi, U-DISK
Compatible Software: LightBurn, Autolaser, TopwisdomLaser
Compatible Operating Systems: Windows, macOS, Linux, Android, iOS
Operating Ambient Temperature: 5-30°C (41-86℉)
Product Dimensions: 800 x 575 x 285mm
Net Weight: 67 lb.(30kg)
Package Dimension: 91*70*44cm
Gross Weight: 105 lb.(47.5kg)
Certification: FDA, CE
Warranty: 2 Years (6 Months for the laser tube)
1x 45W CO2 Laser Engraver
1x Honeycomb Board
9x Aluminum Blade
1x Water Pump
1x Exhaust Pipe
2x Pipe Clamp
1x USB Cable
1x Power Cord
1x USB Flash Drive
1x Focus Strip
1x Hexagonal T-shaped Wrench
1x User Manual
1x Goggles
2x Roll of Dimming Paper
1x Wrench Set
Questions & Answers
Have a Question?
-
Does this laser come with light burn?
This software does not come with Lightburn, you need to purchase it separately. You can follow this link to purchase the lightburn:https://monportlaser.com/collections/software-1/products/lightburn-software-download-for-fiber-laser-engraver
-
is that come with the honeycomb
Yes, The Reno45 Pro omes with the honeycomb.
