Machine Dimension: 57'' x 43'' x 35''(145cm x 110cm x 90cm )

Package Dimension: 61” x 47” x 43” ( 155 cm x 120 cm x 110 cm )

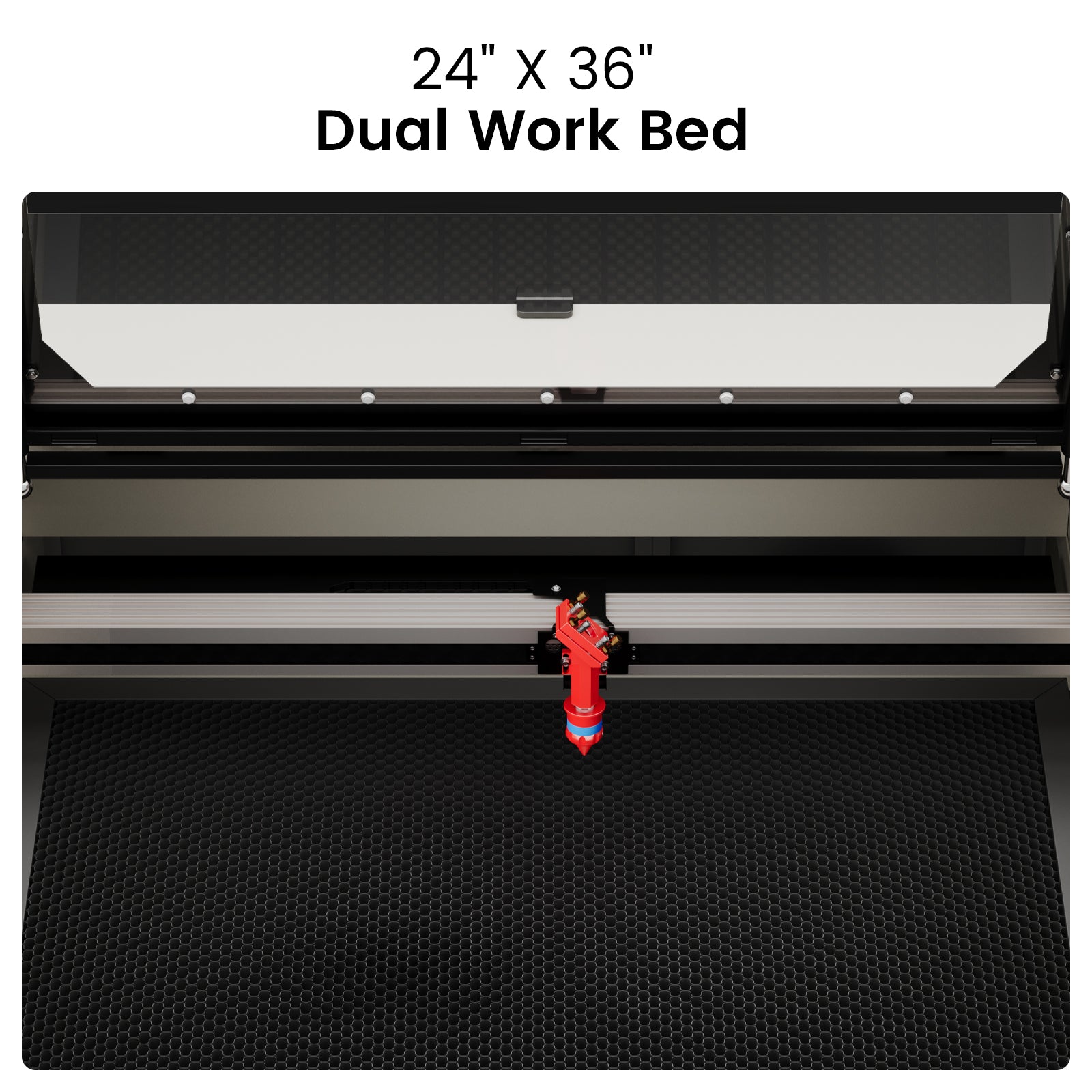

Working Dimension: 24'' x 36'' ( 61 cm x 91.5 cm )

Pass-through Dimension: 2.9'' x 37.4''（7.5cm x 95 cm )

Max Engraving Speed: 800mm/s

Max Cutting Speed: 30mm/s ( actual speed depends on material )

Max Engraving Depth: 19.05mm

Min Engraving Depth : 0.01 mm

Focal Lens Diameter: 18mm

Mirror Diameter: 25mm

Max Z-depth: 13.7"

Net Weight: 396.8 lbs ( 180 kg )

Package Weight: 529.1 lbs ( 240 kg )

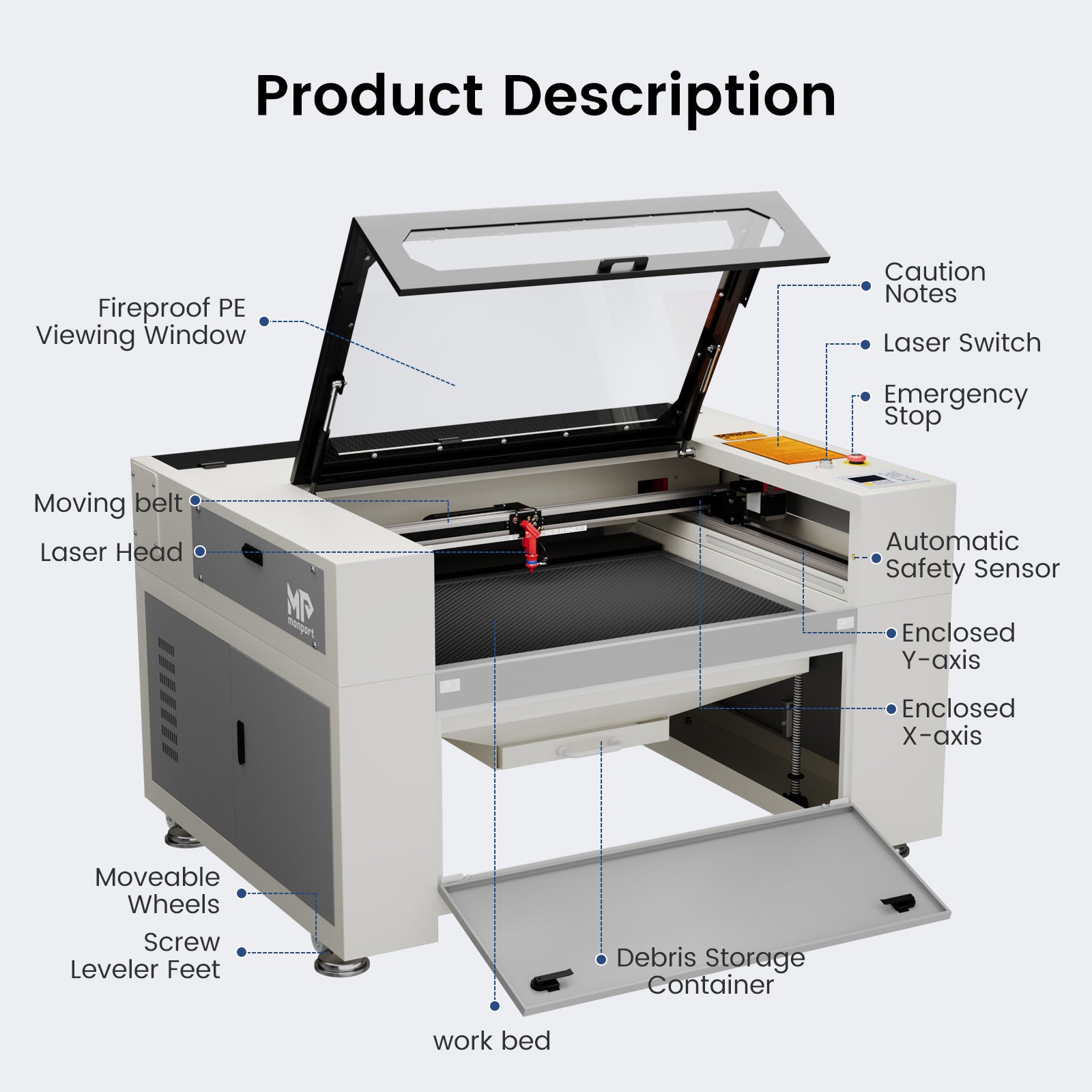

Fireproof Viewing Window

This viewing window is made from special fire-resistant polyester with iron frames. The melting point of this polyester ranges from 432° to 488° and the ignition temperature of it is over 1000°, which can dramatically decrease the possibility of fire accidents caused by the heat of laser burning the materials.

Enclosed Aeronautical Aluminum Rail

Equipped with X and Y stepper motors, this rail features efficient power transmission with high precision. The enclosed rail is designed to avoid smoke and debris and prolong the service time of rail units.

Laser Protective Glasses for Free

Lasers emit radiation in the invisible form of light. This pair of laser protective glasses is certified to protect your eyes against radiation damage by looking at the class 4 laser in any way (directly, indirectly, or even looking at the laser dot on a surface can damage your eyes).

Ruida Digital Controller

Whether your chosen software is LightBurn, RDworks, AutoCAD, or CorelDRAW, this Ruida digital controller can support the given platform. The Ruida Controller with a digital display can  control the laser head, start or stop projects, adjust laser power and speed settings and so on.

High Speed and Resolution

The Engraving Speed is up to 600 mm/s;
The Cutting Speed is up to 400 mm/s;
The Resolution is up to 4500 dpi;
3 LED light strips above the work bed provide illumination for precision;
2.0" Focal distance provides high resolution and etching of tiny fonts

Autofocus

Use the control panel to correct the focus automatically at the touch of a button — no more manual testing and adjustment.

Built-in Air Assist

A built-in air assist system guides a pressurized air stream through the laser head nozzle to displace debris, heat, and combustible gases from the engraving surface and laser beam path, keeping engravings more precise.

3-ways to Connect with PC End

Two USB ports provide options including flash drive connectivity and a USB-to-USB PC connection. In addition, one ethernet port is also available for connection.

Red Dot Guidance

The red dot shows the laser head position, marks the working path and frames the project sizes, assisting you with more convenience and guidance.

Automatic Safety Sensor

The safety shutdown sensor helps stopping the machine even if the window cover is on. Once closed, press the “Enter” button to continue operation.

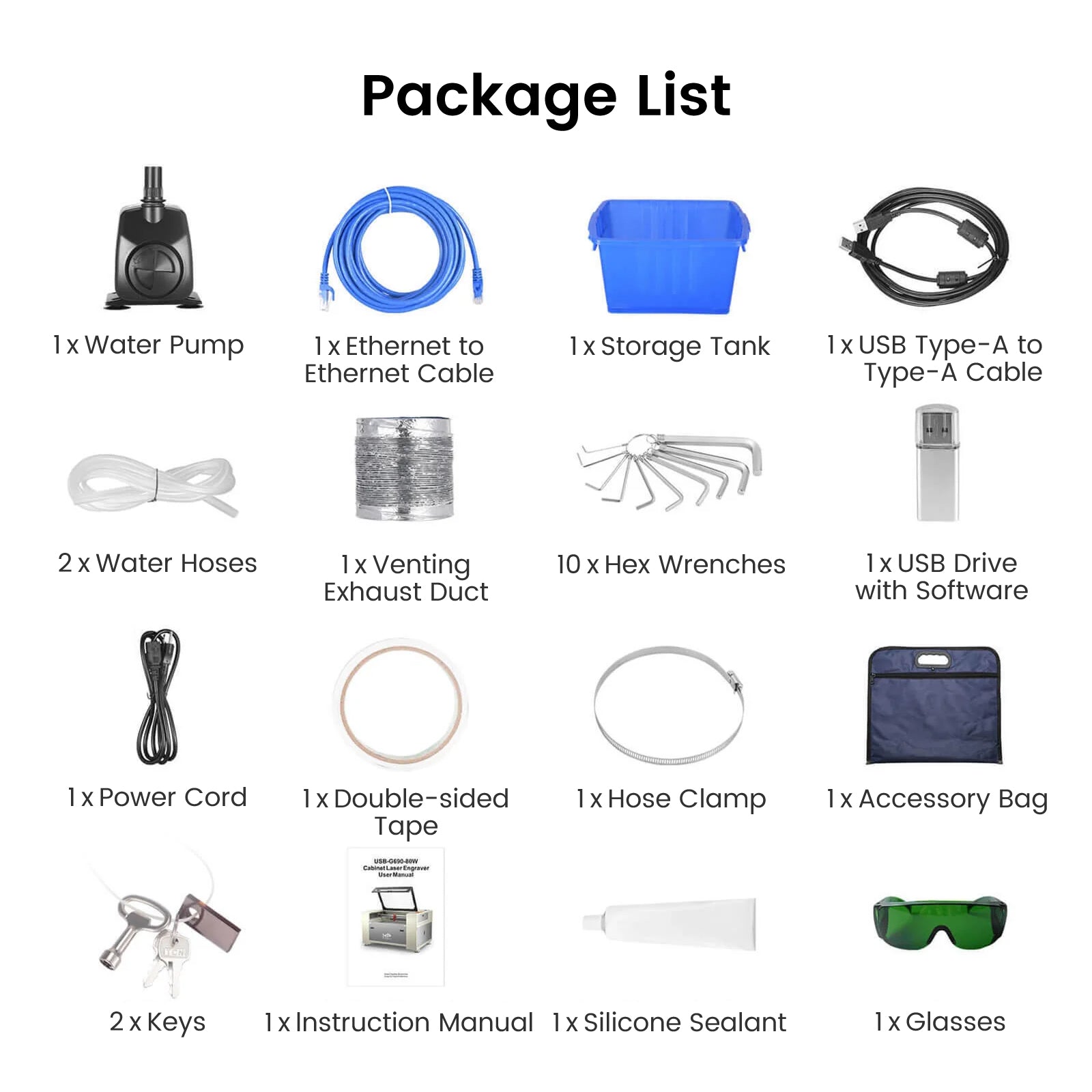

Laser Engraver Machine *1

A Pair of Laser Protective Glasses *1

Accessory Bag *1

Ethernet to Ethernet Cable *1

USB Type-A to Type-A Cable *1

Venting Exhaust Duct *1

USB Drive with Software (RDworks) *1

Hex Wrenches *10

Double-sided Tape *1

Power Cord *2

Keys *2

Silicone Sealant *1

Stainless Steel Clamp *1

Instruction Manual *1

Due to current market conditions and in order to better serve you and manage our inventory, Monport has made adjustments to our warranty periods.

2-year warranty is now 18 months.
1-year warranty is now 9 months.

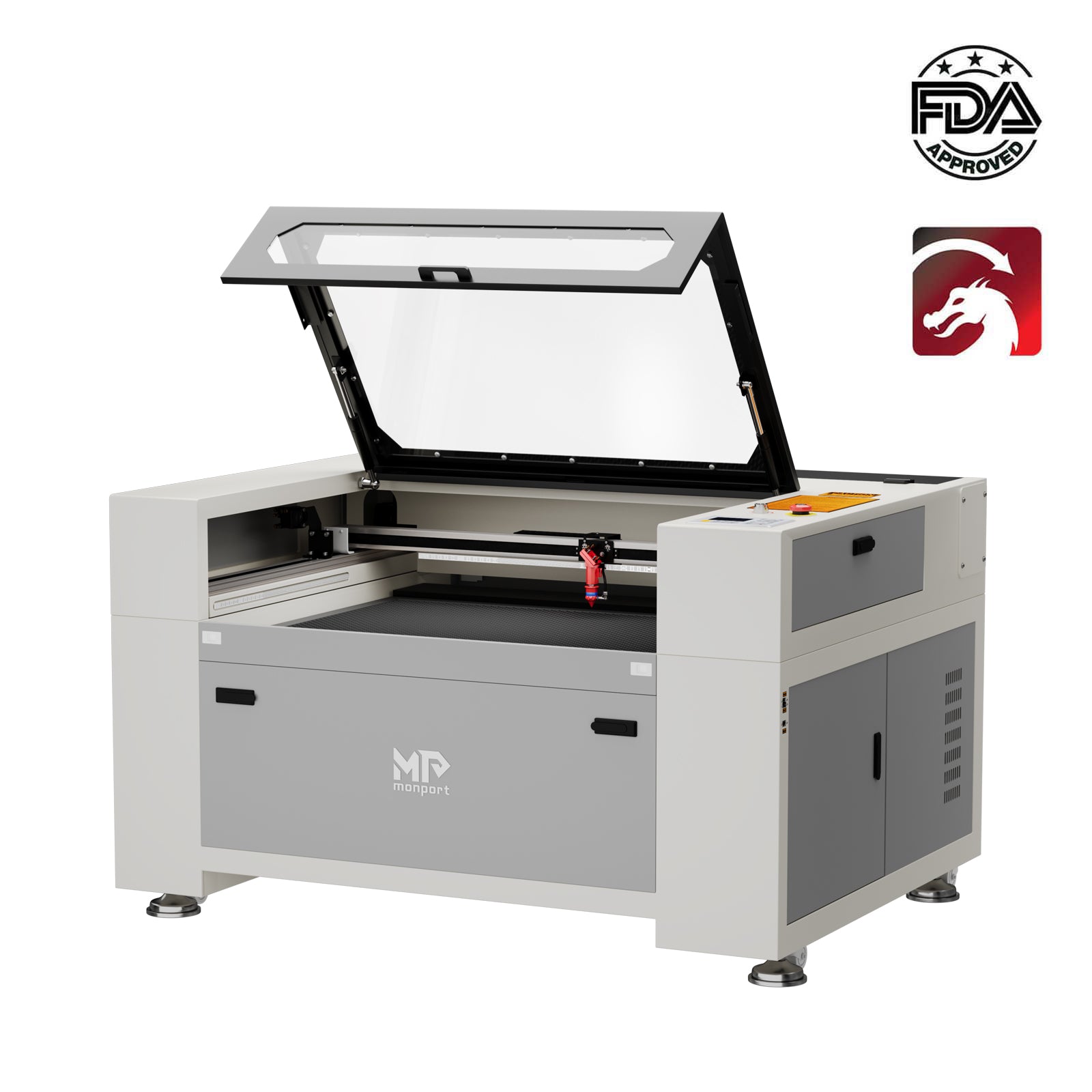

FDA Approved & CE Certified

We appreciate your understanding and continued support. If you have any questions, feel free to contact us.

Download the software RDworks

Download the Manual: 90W CO2 User Manual

Download the Settings: CO2 Parameter Settings
