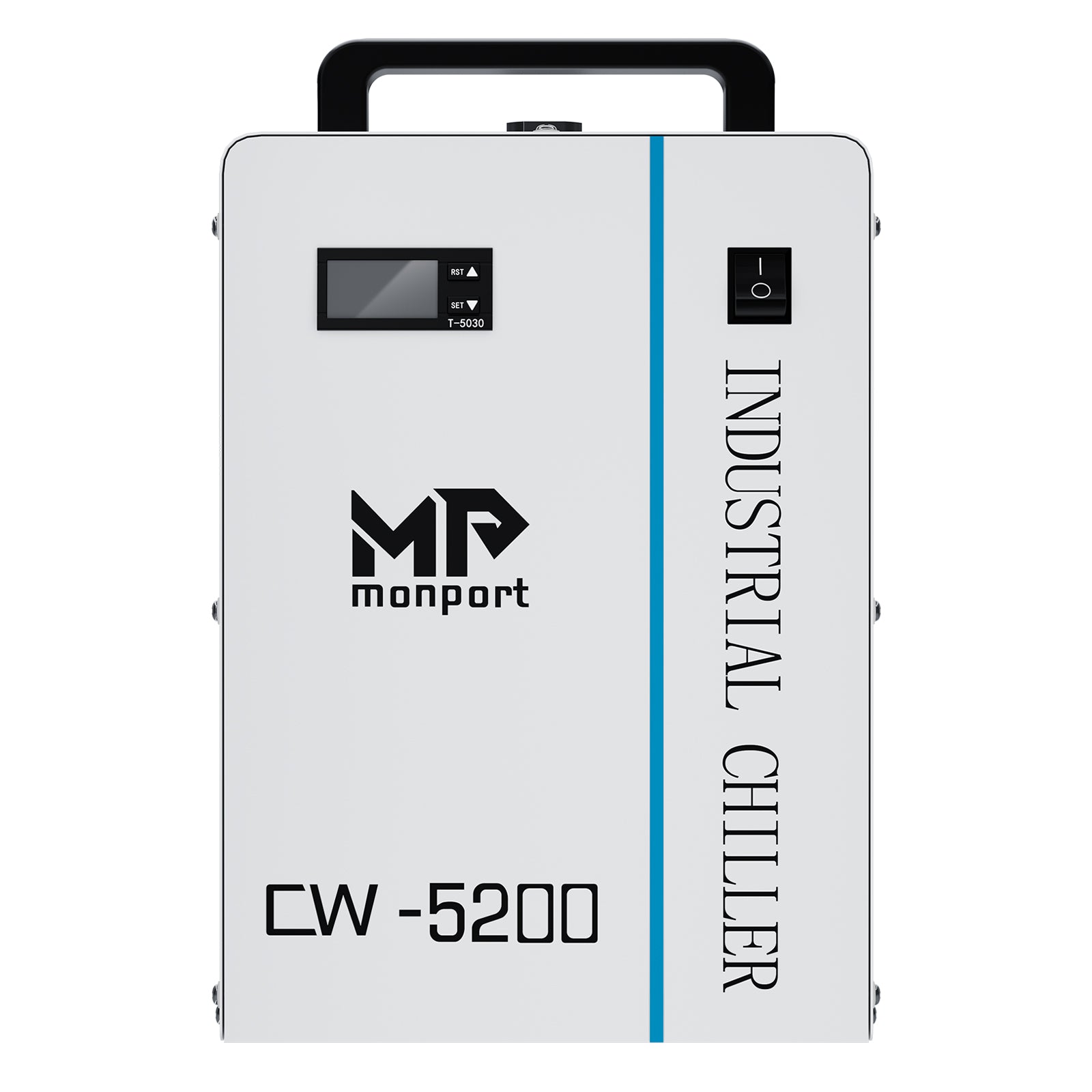

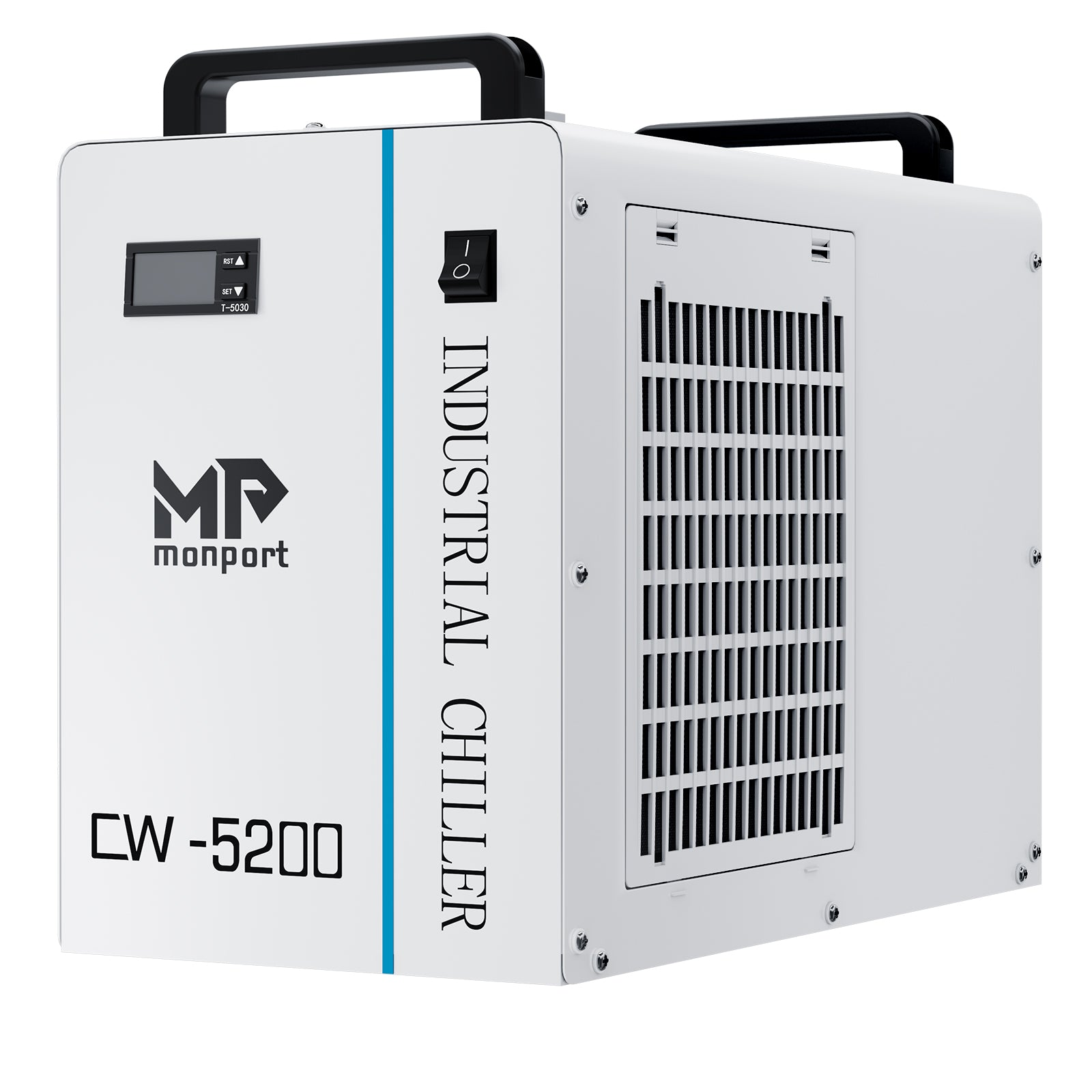

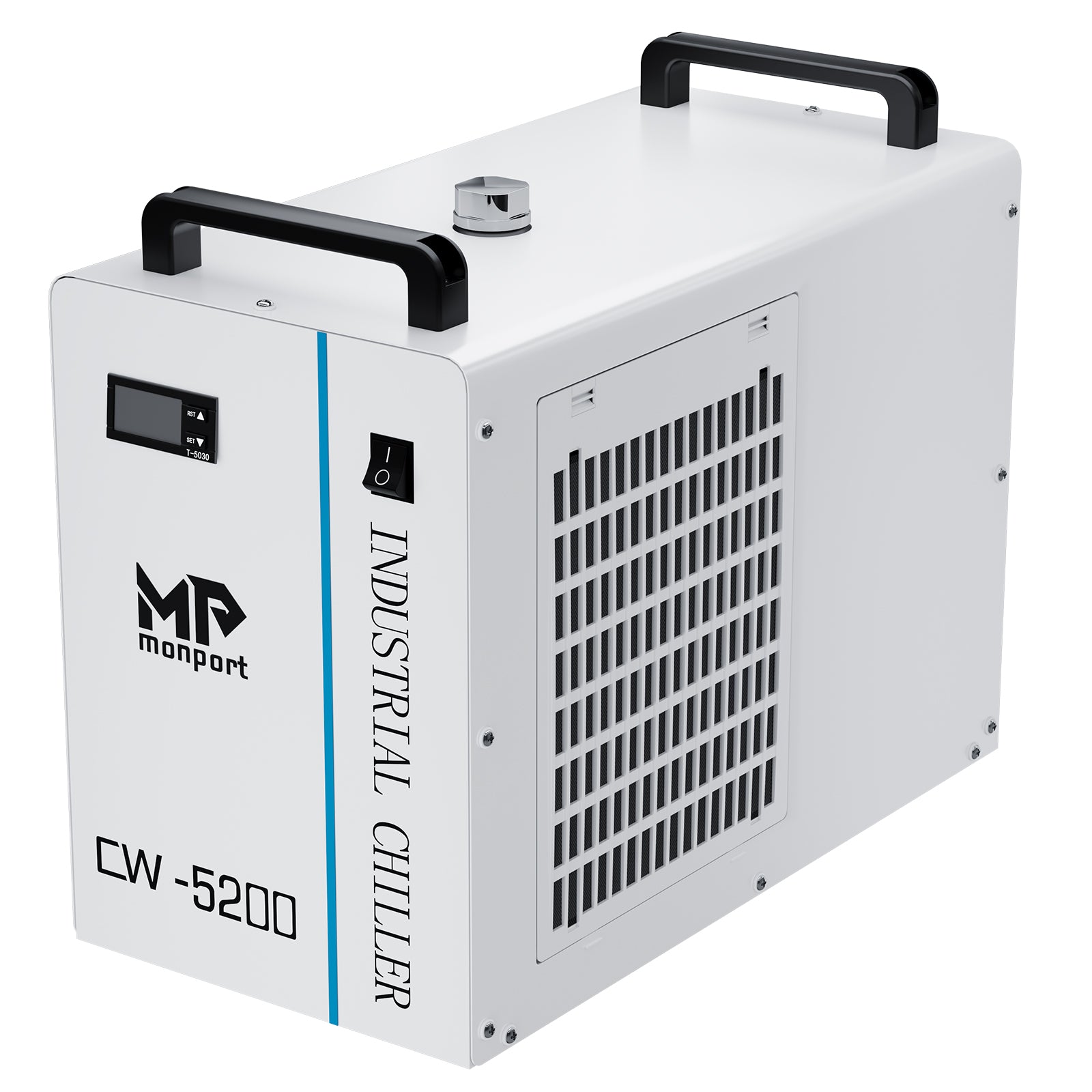

Monport 6L CW-5200 Industrial Water Chiller for 55W-150W CO2 Laser Engraver
Monport 6L CW-5200 Industrial Water Chiller for 55W-150W CO2 Laser Engraver
Monport 6L CW-5200 Industrial Water Chiller for 55W-150W CO2 Laser Engraver
monportcw5200waterchillersteadytemperature
Monport 6L CW-5200 Industrial Water Chiller for 55W-150W CO2 Laser Engraver
monportcw5200waterchillercooldowntemperature
Monport 6L CW-5200 Industrial Water Chiller for 55W-150W CO2 Laser Engraver

Monport 6L CW-5200 Industrial Water Chiller for 55W-150W CO2 Laser Engraver

Regular price $529.99

Starting at /mo with

/
Shipping calculated at checkout.
  • US Free shipping
  • In stock, ready to ship
  • Inventory on the way
monporttrustbadge

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

monportguarantee

Brief Information

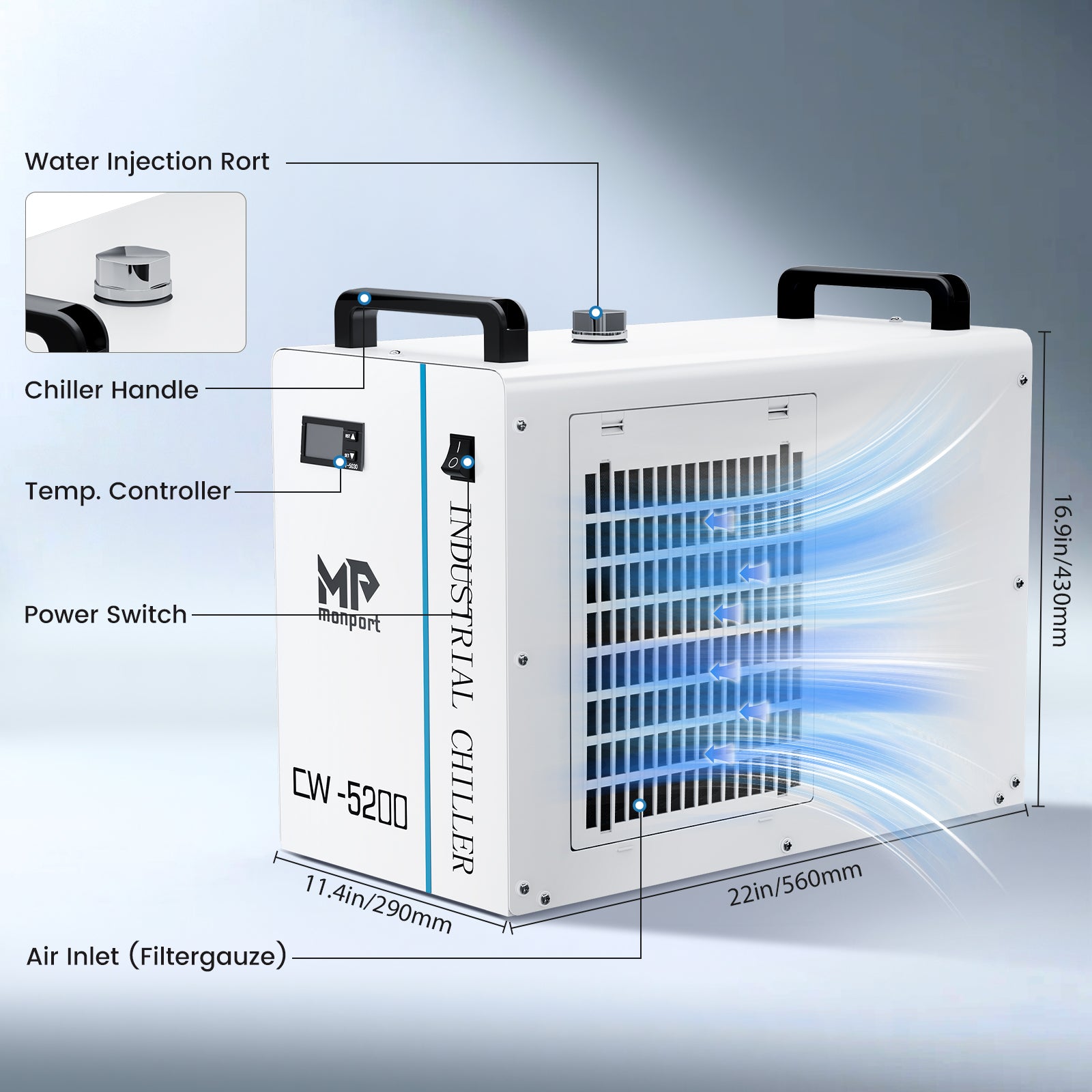

Product dimension: 27” x 16” x 22” ( 68.5 x 41 x 56 cm )

Total weight: 59.5 lb ( 27 kg )

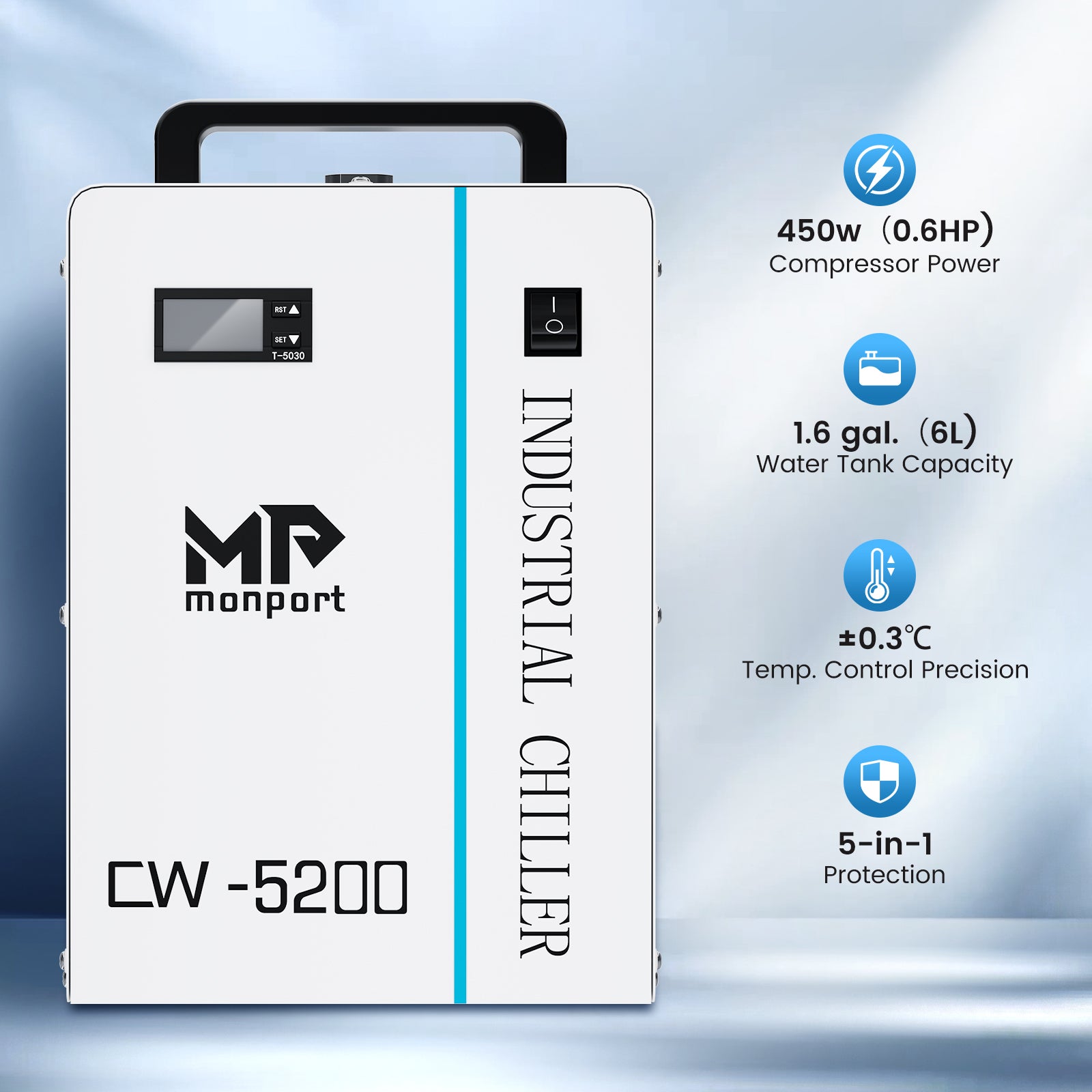

Monport Water Chiller Specifications

Model Number: CW-5200 Water Chiller

Compressor Power: 0.6 HP (0.45kW)

Air Compressor: standard R410a refrigerant

Input Power Supply: 110 V / 60Hz

Maximum Flow: 2.6 gallon / min. (10L / min)

Maximum Lift: 29.5 ft (9 m)

Current: 4.6-6.5A

Monport Water Chiller Benefits

Dual Operating Mode

There are two cooling modes of CW5200, constant temperature mode and intelligent temperature mode. The intelligent mode will keep your laser tube within 2°C of the ambient room temperature, which is the optimal setting for your CO2 tube. The constant mode allows you to set the temperature range manually.

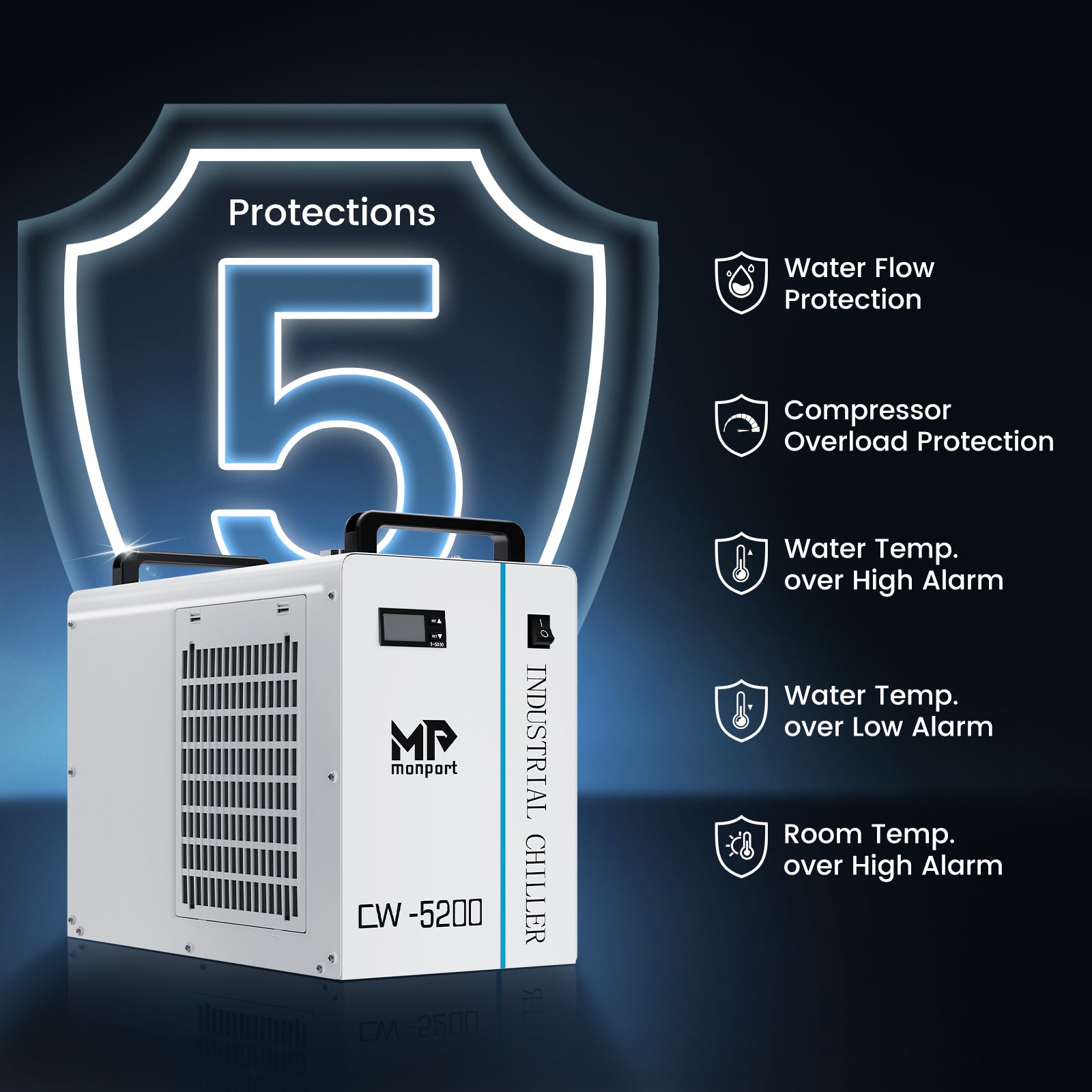

Multiple Safety Guarantee

This professional chiller has multiple warning protection mechanisms such as alarms for ambient temperature, alarms for overheated/overchilled water temperature. When an alarm occurs, the display will alternate between the water temperature and the error. E1: Overheated Room Temperature; E2: Overheated Water Temperature; E3: Overchilled Water Temperature; E4: Room Temperature Sensor Failure; E5: Water Temperature Sensor Failure

Large Water Cooling Capacity

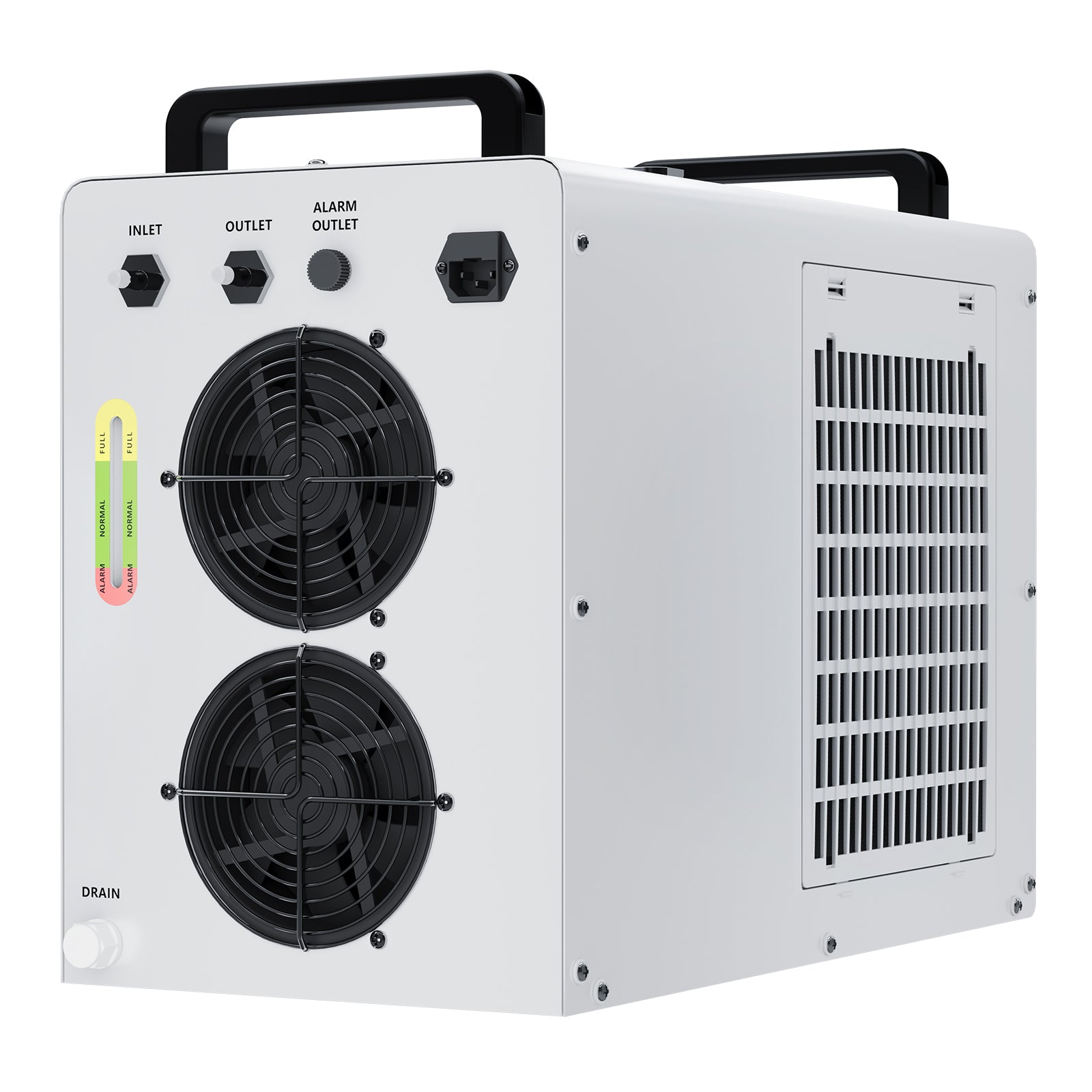

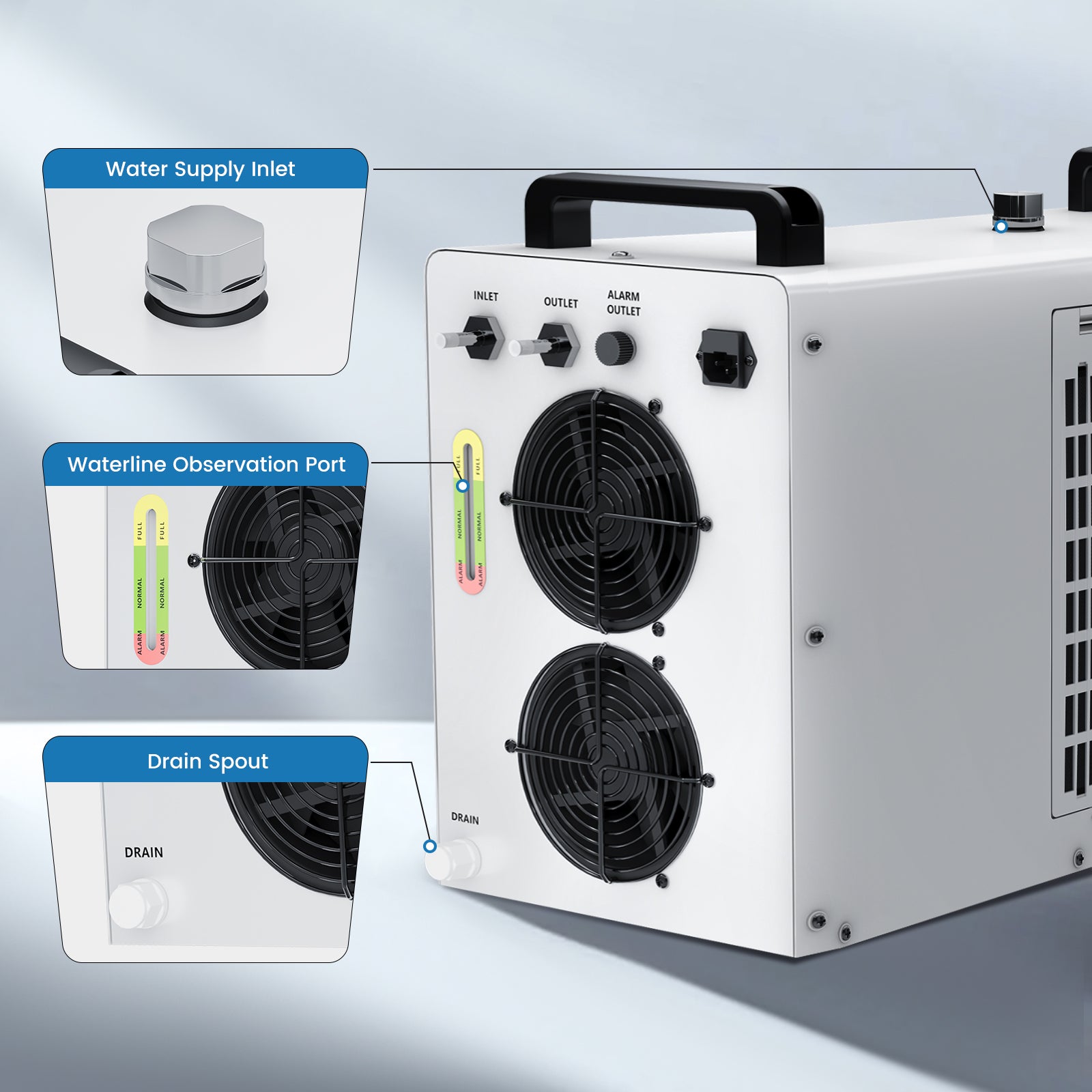

1.6 gallon (6L) water tank features a closed design to reduce water evaporation and ensures a powerful cooling performance. The water level observation window at the back of the machine lets you keep track of use and know when to refill the tank.

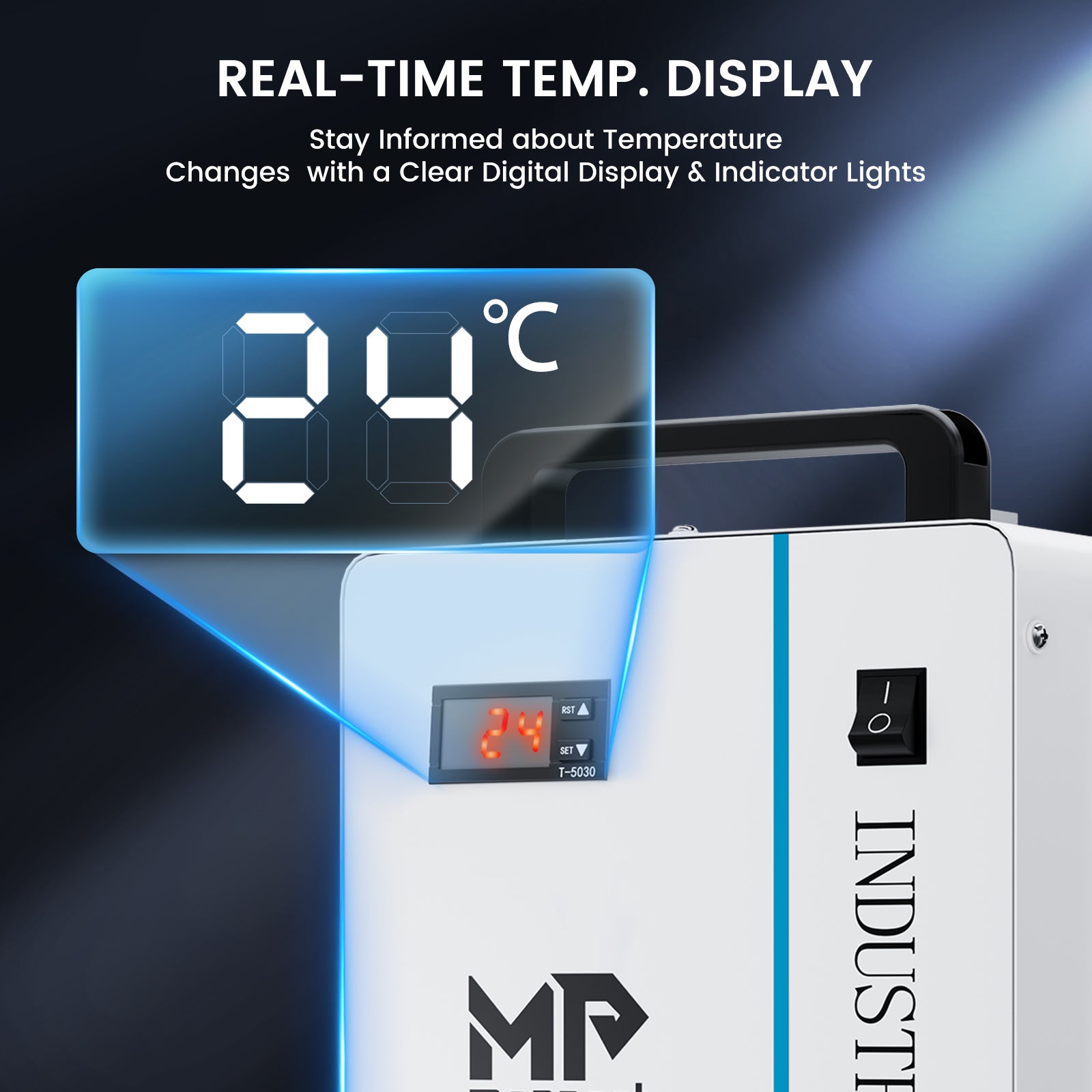

Digital Screen with Real-time Data

It is very easy to monitor the real-time temperature on the screen. Besides, you can get immediate information about whether the water/room temperature is abnormal. It never deviates outside of the range defined in the setup.

Super Quiet

It's about as loud as a mini-fridge (only around 50 dB) when the built-in air compressor is cooling and is almost silent when cooling is cycled off.

High-Grade Ports

Monport CW5200 chiller’s inlet and outlet ports are made of high-quality brass to keep long-term, non-corrosion performance and prevent any issues with leaks as it operates.

Monport Warranty

1-year warranty on all water chillers

Package List

The CW5200 Industrial chiller *1

Power Cord *1

Alarm Signal Output Plug *1

Spare Fuse *1

User manual *1

Water Chiller Manual

Download the User Manual

Similar Products

Mode

Difference

Maximum Flow

Water Capacity

Power

CW3000

Built-in a fan

2.6 Gal / Min

2.4 Gallon

AC110V/60Hz

CW5200

Built-in an air compressor

2.6 Gal / Min

1.6 Gallon

AC110V/60Hz

monportguarantee

Brief Information

Product dimension: 27” x 16” x 22” ( 68.5 x 41 x 56 cm )

Total weight: 59.5 lb ( 27 kg )

Monport Water Chiller Specifications

Model Number: CW-5200 Water Chiller

Compressor Power: 0.6 HP (0.45kW)

Air Compressor: standard R410a refrigerant

Input Power Supply: 110 V / 60Hz

Maximum Flow: 2.6 gallon / min. (10L / min)

Maximum Lift: 29.5 ft (9 m)

Current: 4.6-6.5A

Monport Water Chiller Benefits

Dual Operating Mode

There are two cooling modes of CW5200, constant temperature mode and intelligent temperature mode. The intelligent mode will keep your laser tube within 2°C of the ambient room temperature, which is the optimal setting for your CO2 tube. The constant mode allows you to set the temperature range manually.

Multiple Safety Guarantee

This professional chiller has multiple warning protection mechanisms such as alarms for ambient temperature, alarms for overheated/overchilled water temperature. When an alarm occurs, the display will alternate between the water temperature and the error. E1: Overheated Room Temperature; E2: Overheated Water Temperature; E3: Overchilled Water Temperature; E4: Room Temperature Sensor Failure; E5: Water Temperature Sensor Failure

Large Water Cooling Capacity

1.6 gallon (6L) water tank features a closed design to reduce water evaporation and ensures a powerful cooling performance. The water level observation window at the back of the machine lets you keep track of use and know when to refill the tank.

Digital Screen with Real-time Data

It is very easy to monitor the real-time temperature on the screen. Besides, you can get immediate information about whether the water/room temperature is abnormal. It never deviates outside of the range defined in the setup.

Super Quiet

It's about as loud as a mini-fridge (only around 50 dB) when the built-in air compressor is cooling and is almost silent when cooling is cycled off.

High-Grade Ports

Monport CW5200 chiller’s inlet and outlet ports are made of high-quality brass to keep long-term, non-corrosion performance and prevent any issues with leaks as it operates.

Monport Warranty

1-year warranty on all water chillers

Package List

The CW5200 Industrial chiller *1

Power Cord *1

Alarm Signal Output Plug *1

Spare Fuse *1

User manual *1

Water Chiller Manual

Download the User Manual

Similar Products

Mode

Difference

Maximum Flow

Water Capacity

Power

CW3000

Built-in a fan

2.6 Gal / Min

2.4 Gallon

AC110V/60Hz

CW5200

Built-in an air compressor

2.6 Gal / Min

1.6 Gallon

AC110V/60Hz

FAQs

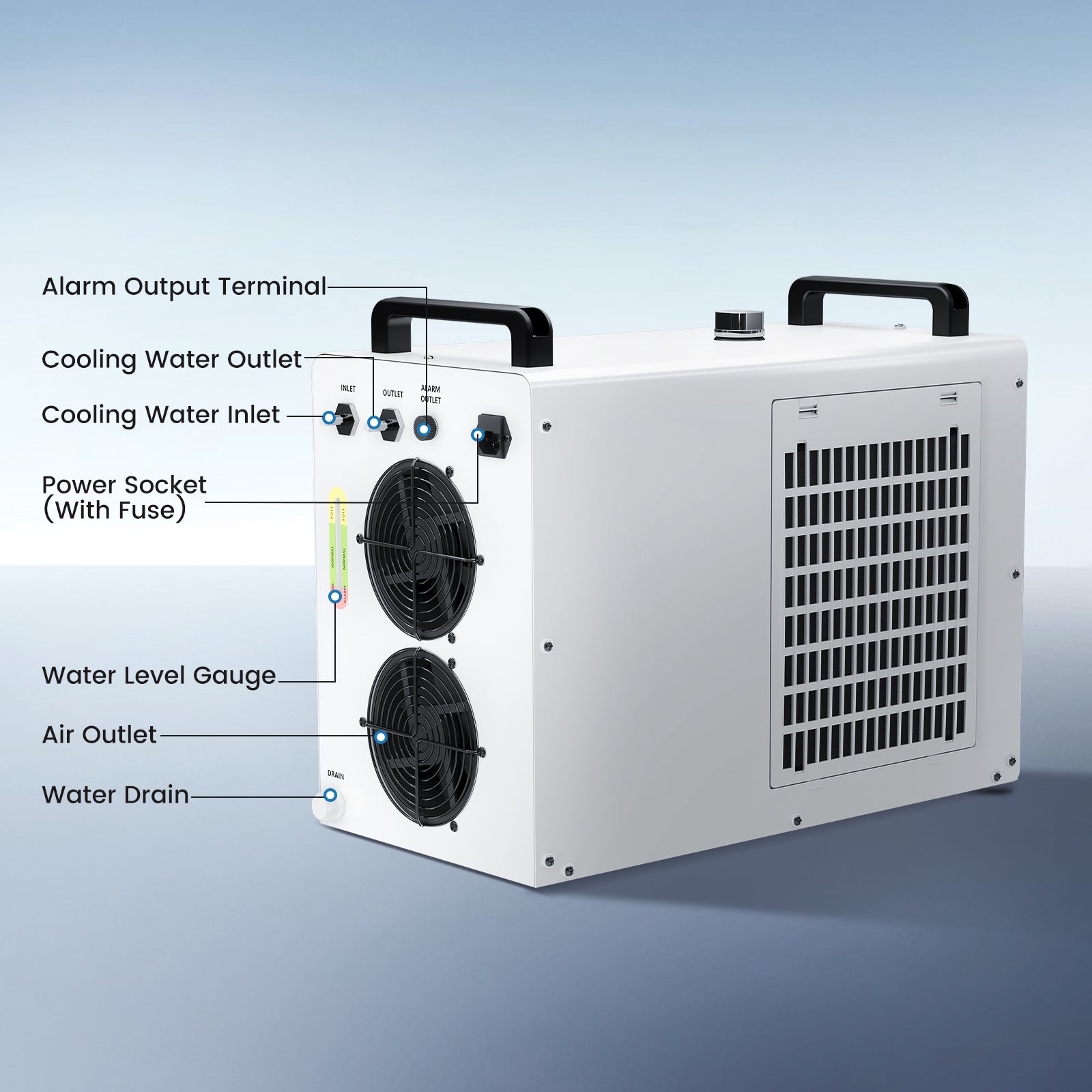

A: You can connect inlet and outlet ports with the water hoses. The inlet on chiller goes to the outlet on laser, the outlet on chiller goes to the inlet on laser. You can take a look at this user manual.

A: We often recommend the “intelligent mode”. Intelligent mode will keep your laser tube within 2°C of the ambient room temperature, which is the optimal setting for your laser tube.  -5°C or more below ambient room temperature may/will lead to condensation on the tube and a probable “short down” which can/will damage the tube and cause it to stop operating, requiring replacement. The water in your tube and chiller should never be more than 5°C lower than room temperature.

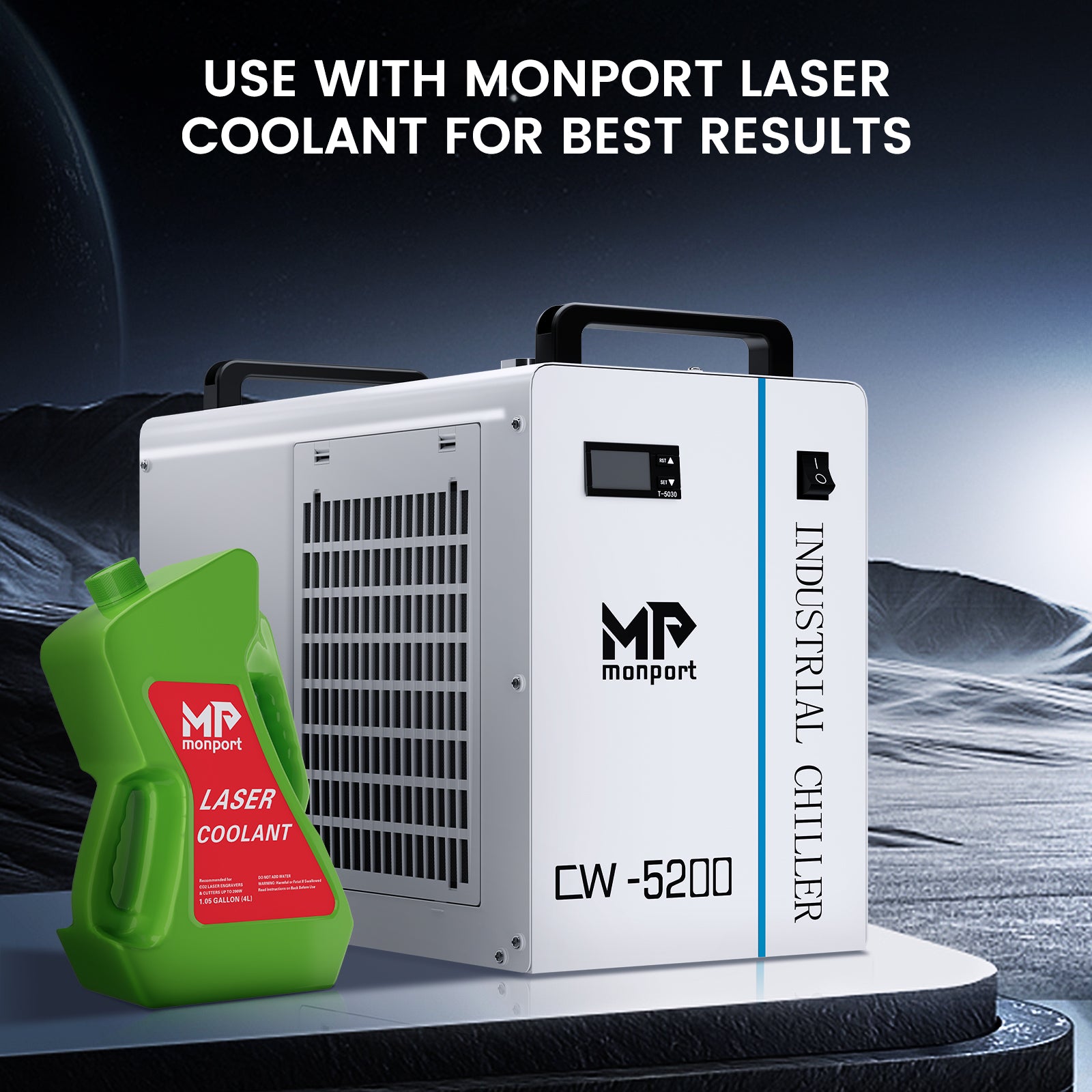

A: Use the distilled water or purified water only!

A: CW3000 is not actual something that gets down below room temperature. It is a fan and brings the water temperature back down to room temperature, which is OK if you have low power laser (40w).
