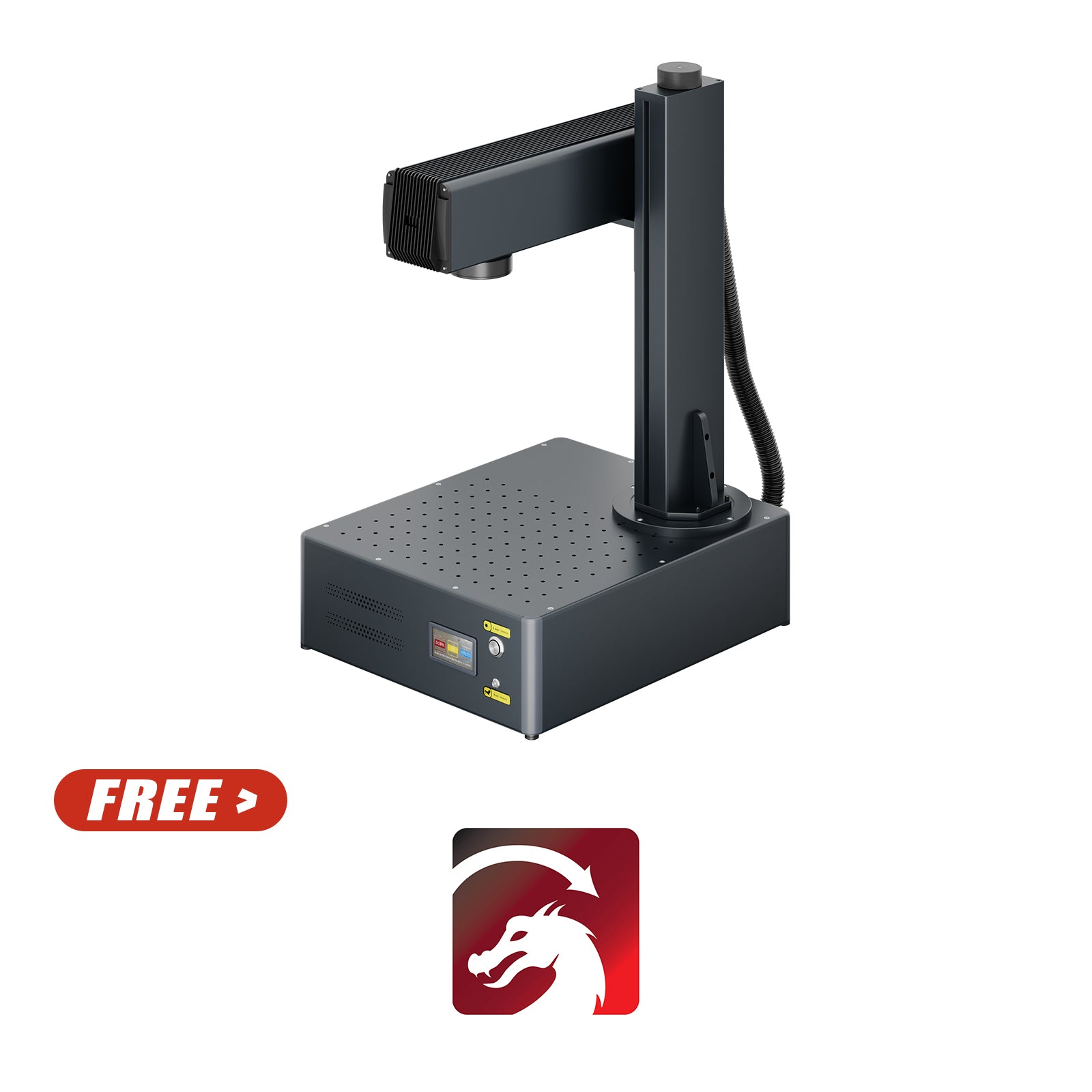

Monport GA 100W Upgraded Integrated MOPA Fiber Laser Engraver & Marking Machine with Auto Focus
US Delivery time : 3-5 Business Days
Dimension & Specifications
Model: YXF100
Laser Power: 100W
Laser Type: JPT MOPA Fiber
Color Marking: YES
Working Area: 6.9"x 6.9"
Wavelength: 1064nm
Machine Dimension: 50cm x 37.5cm x 65cm
Package Dimension: 75cm x 69cm x 37cm
Working Dimension: 175mm x 175mm
Marking Speed: Up to 10000mm/s
Expected Service Life (MTTF): 100,000 hr.
GA Fiber Laser Benefits
All-in-One Fiber Laser
Experience Monport's latest, independently developed autofocuslaser marking machine. Upgraded for enhanced performance and cost-effectiveness, users can enjoy advanced features without significant cost increase. The machine arrives ready-to-use with easy installation, quick setup, and user-friendly operation.
Aluminum Body with Integrated Optics
Monport combines functionality and aesthetics in industrial gradefiber laser engravers. The entire machine features a robust aluminum casing, with the auto-focus and galvanometer modules integrated into the optical path. This integration, paired with sleek exterior lines and a minimalist structure, positions it far ahead of industry competitors.
Auto-Focus Innovation
Monport introduces our proprietary auto-focus technology, achieving high precision with a single click (error<±1mm). This streamlined process enhances work efficiency and focus accuracy compared to traditional manual methods. For added flexibility, manual focus is also possible, supported by three red lights.
Enhanced Performance
Beyond its outstanding design, Monport's desktop marking machine outperforms competitors also in performance. Every component has been rigorously tested for ultra-high stability, precision positioning, rapid marking speeds, and robust anti-interference capabilities (see detailed specifications for reference).
±90° Vertical Arm Rotation
The vertical arm offers an infinitely adjustable range of ±90°. Users can fix it at any angle within this range, promoting unlimited creativity in marking applications. Adjustments are convenient, requiring just the loosening of screws without the need for complete unscrewing.
Widely adjustable frequency and pulse width
Stainless steel colorful marking,including anodized aluminum black marking, precision cutting, drilling, conventional marking, plastic keystroke surface marking, etc.
(Note: Laser Frequency 1-4000kHz,Pulse Width 2-500ns)
One-Minute Installation
Installing this LightBurn compatible fiber laser marker is a breeze with its excellent foldable vertical arm design —just tighten two screws, and you're ready to go. Monport promises that even beginners can complete the setup within a minute after unboxing for a hassle-free experience.

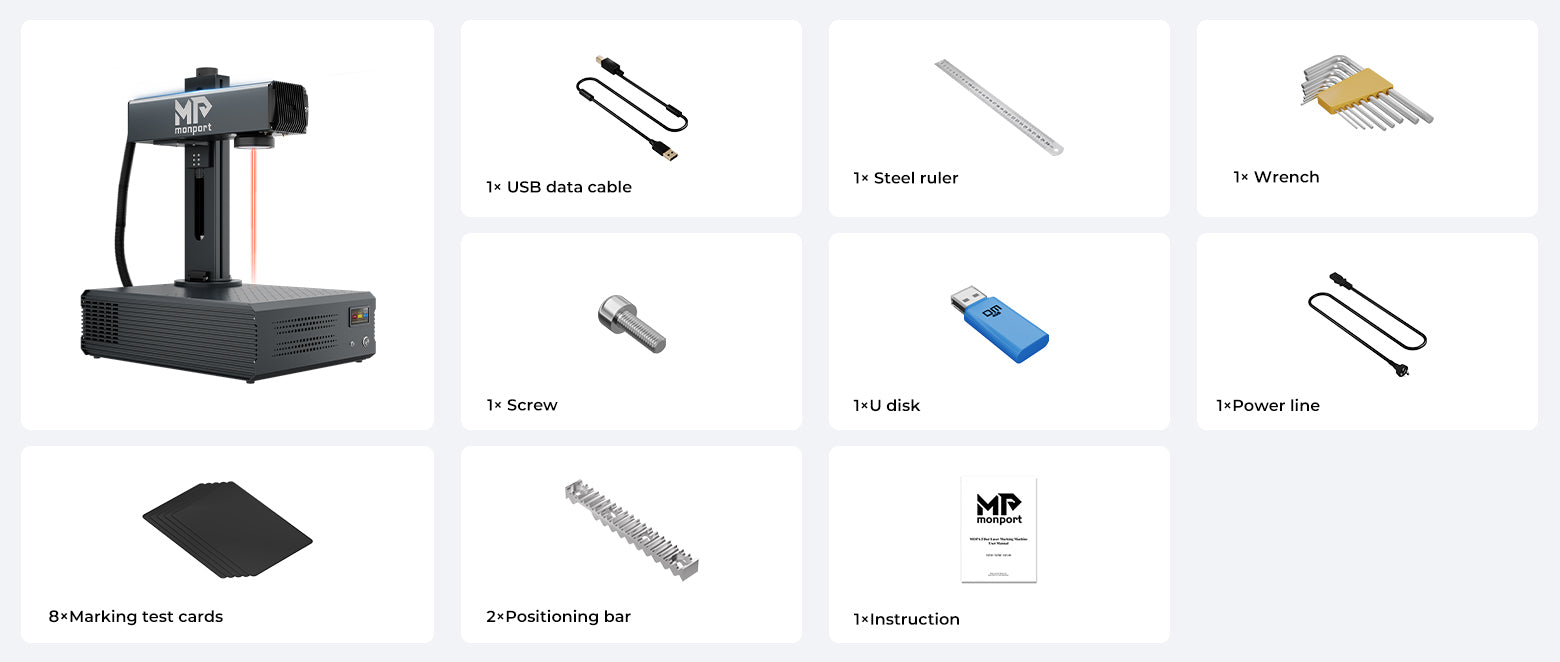

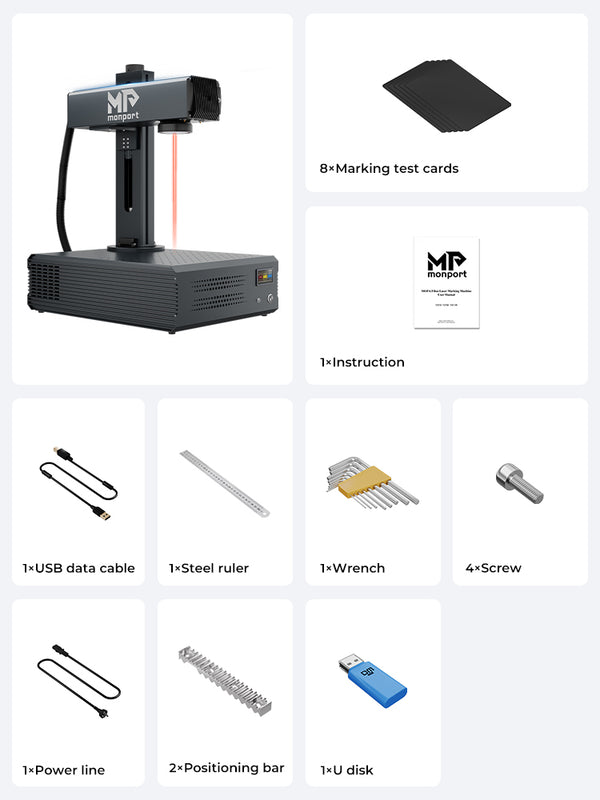

Package List
Fiber marking machine*1
Marking test cards*8
USB data cable*1
U disk*1
Wrench*1
Steel ruler*1
Positioning bar*2
Screw*4
Power line*1
Protective glasses*1
Instruction*1
Warranty & Certifications
- 2-year parts warranty on all GA fiber laser machines
- 1-year warranty on fiber laser source
- FDA COMPLIANT
- CE CERTIFICATION
About Delivery
Some tips about delivery in the continental US (except preorder)
You will get the tracking number within 2 business days.
The delivery time varies from 3 to 7 business days.
If your address is outside the continental US, Please read the Shipping Policy carefully before buying.
If the arrived outer package is damaged, please refuse to sign for it and take a photo, then contact Monport via support@monportlaser.com.
We are very glad to help you with the exchange process.
User Manual
Download GA User Manual Here
Questions & Answers
Have a Question?
-
What’s the difference between GA and Gl model?
Thank you for your attention and your contact!
GA is autofocus while GI is manual focus.
In addition, the vertical arm of the GA model can be folded, making installation easier and more portable.
GA MOPA Fiber Laser Unboxing Video
Elevate Business Projects
Boasting an unparalleled marking speed up to 10000mm/s, Monport GA MOPA Fiber Laser is designed to cater to the most demanding industrial and creative applications, ensuring that your projects are not only completed with precision but also with an efficiency that sets new industry standards.
Galvo Scanning Technology
Equipped with the cutting-edge Galvo Tech drive and scanning system, Monport GA MOPA FIber Laser can attain a marking speed of up to 10,000mm/s while consistently delivering exceptional precision and steadfast, rapid marking capabilities.
Sub-Micron Precision
Equipped with a powerful 100W driver and JPT 100W laser source, this system delivers striking color marking while maintaining sub-micron precision and error-free accuracy.
Product | GA30 | GA60 | GA100 | |
Model | YXF30 | YXF60 | YXF100 | |
Rated Power | 30W | 60W | 100W | |
Beam Quality M2 | <1.4 | <1.5 | <1.6 | |
Maximum Pulse Energy | 0.8 | 2 | 1.5 | |
Max. Marking Depth on a Single Pass |
0.003in. (0.08mm) |
0.004in. (0.1mm) |
0.006in. (0.15mm) |
|
Required Operating Environment |
Max. Humidity | <70% | ||
Temp. Range | 32–104°F(0 - 40°C) | |||
Expected Service Life | 100,000 hr. | |||
Input Power | 110-120V 60Hz | |||
Central Wavelength | 1064 nm | |||
Laser Frequency | 1-4000 kHz | |||
Pulse Width | 2-500 ns | |||
Beam Diameter | 7±0.5 mm | |||
Processing Area | 6.9x6.9 in. (175×175 mm) |
|||
Max. Marking Speed | 393.7 ips(10000 mm/s) | |||
Min. Marking Depth | 0.0002 in.(0.005 mm) | |||
Min. Line Width | 0.006 in.(0.15 mm) | |||
Precision | ±0.1 µm | |||
Provided Operating Software | EZCad |
