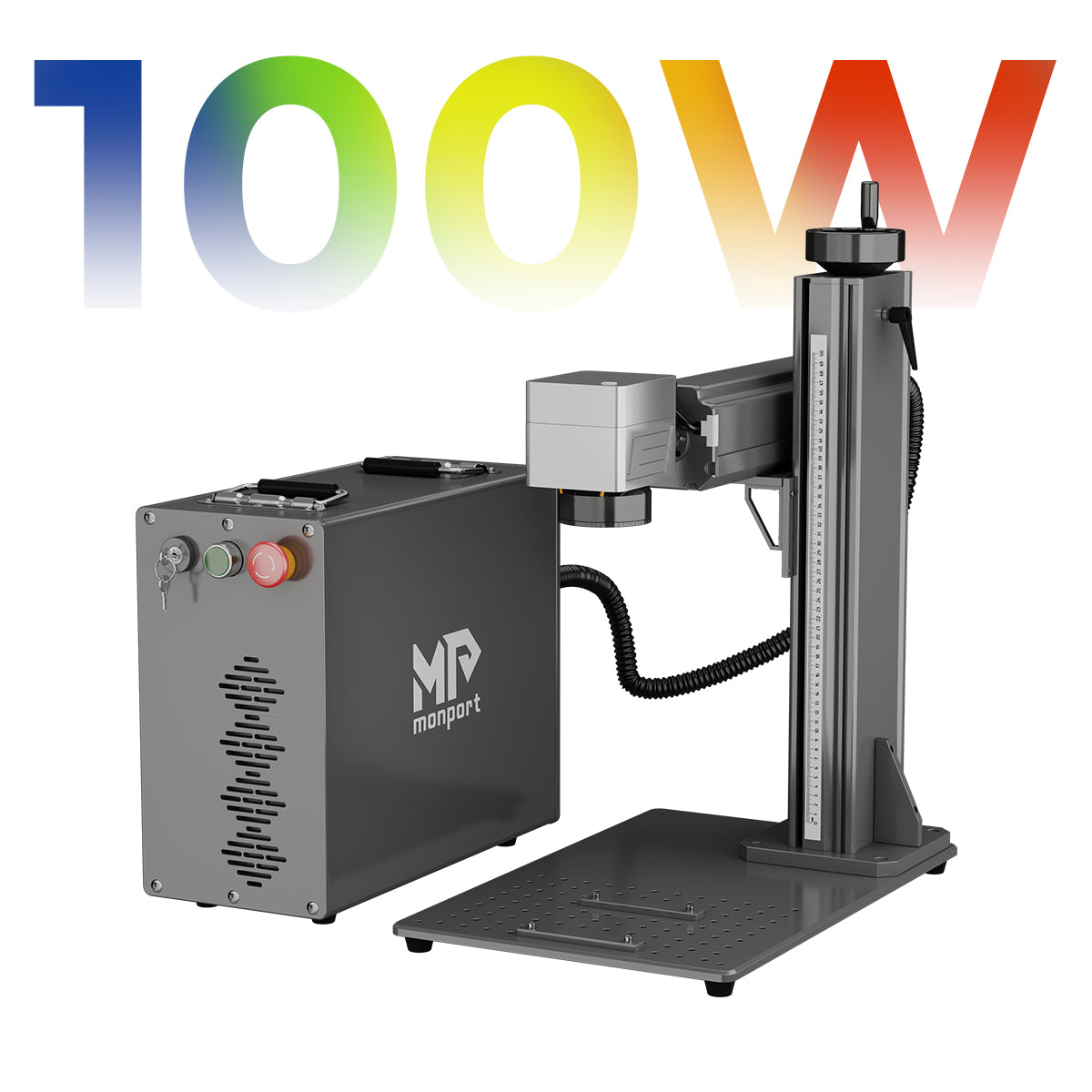

Monport GPro 100W Split MOPA Fiber Laser Engraver & Marking Machine With Manual Focus
Monport GPro 100W Split MOPA Fiber Laser Engraver & Marking Machine With Manual Focus
Monport GPro 100W Split MOPA Fiber Laser Engraver & Marking Machine With Manual Focus
Monport GPro 100W Split MOPA Fiber Laser Engraver & Marking Machine With Manual Focus
Monport GPro 100W Split MOPA Fiber Laser Engraver & Marking Machine With Manual Focus
Monport GPro 100W Split MOPA Fiber Laser Engraver & Marking Machine With Manual Focus
Monport GPro 100W Split MOPA Fiber Laser Engraver & Marking Machine With Manual Focus
Monport GPro 100W Split MOPA Fiber Laser Engraver & Marking Machine With Manual Focus
Monport GPro 100W Split MOPA Fiber Laser Engraver & Marking Machine With Manual Focus
Monport GPro 100W Split MOPA Fiber Laser Engraver & Marking Machine With Manual Focus
Monport GPro 100W Split MOPA Fiber Laser Engraver & Marking Machine With Manual Focus
Monport GPro 100W Split MOPA Fiber Laser Engraver & Marking Machine With Manual Focus
Monport GPro 100W Split MOPA Fiber Laser Engraver & Marking Machine With Manual Focus
Monport GPro 100W Split MOPA Fiber Laser Engraver & Marking Machine With Manual Focus
Monport GPro 100W Split MOPA Fiber Laser Engraver & Marking Machine With Manual Focus
Monport GPro 100W Split MOPA Fiber Laser Engraver & Marking Machine With Manual Focus
Monport GPro 100W Split MOPA Fiber Laser Engraver & Marking Machine With Manual Focus
24/7 Service
2-Year Warranty
2-year warranty on machines 1-year warranty on fiber laser source
Free Shipping
Get Tracking Number: 1-2 business days Delivery Time: 3-7 business days
Use Manual
GPro Manual Lens Picks
Pre SaleSave $4,600.00

Monport GPro 100W Split MOPA Fiber Laser Engraver & Marking Machine With Manual Focus

Monport GPro 100W Split MOPA Fiber Laser Engraver & Marking Machine With Manual Focus

$6,899.99
$6,899.99 $11,499.99
Final Price: $6486.00
Option: Machine
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
Powerful Laser Core & High-Performance Marking Controller
Monport GPro 100W MOPA Fiber Laser Marking Machine utilizes a specially tailored 100W MOPA laser. Paired with the marking controller, GPro 100W removes limitations on your creativity and processing capabilities.
Premium Galvanometer
A superior fiber laser demands a top-notch galvanometer. Monport opts for the high-end Sino-Galvo RC1001 galvanometer for exceptional stability, precise positioning, rapid marking speed, and robust anti-interference capabilities. The overall performance surpasses other brands by 100%.

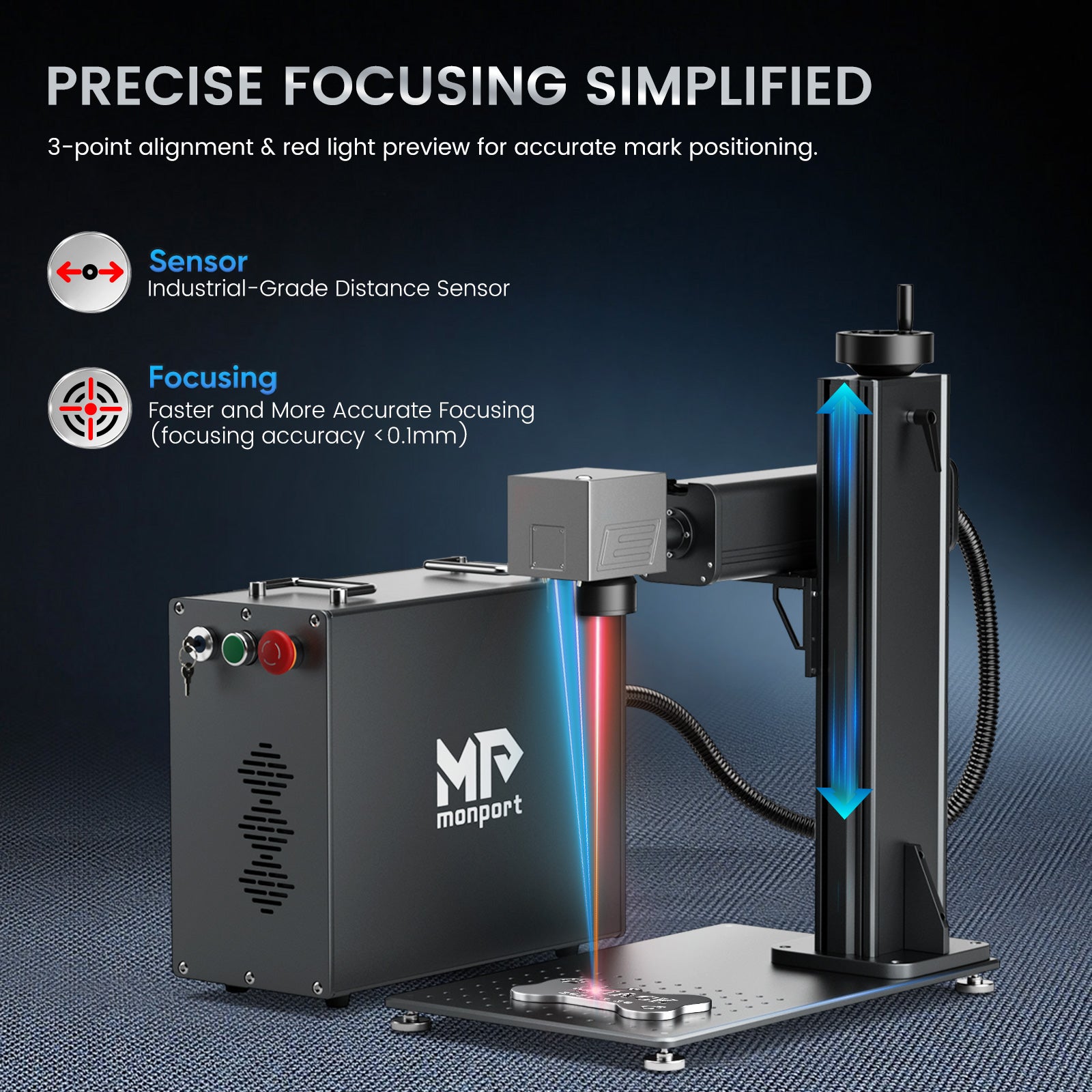

Easy, Fast, Accurate Focusing
Monport GPro MOPA Fiber laser machine features three-point red light alignment for easy focusing and allows for red light preview. Preview the marking area through the red light, swiftly confirming your marking positions with precision.

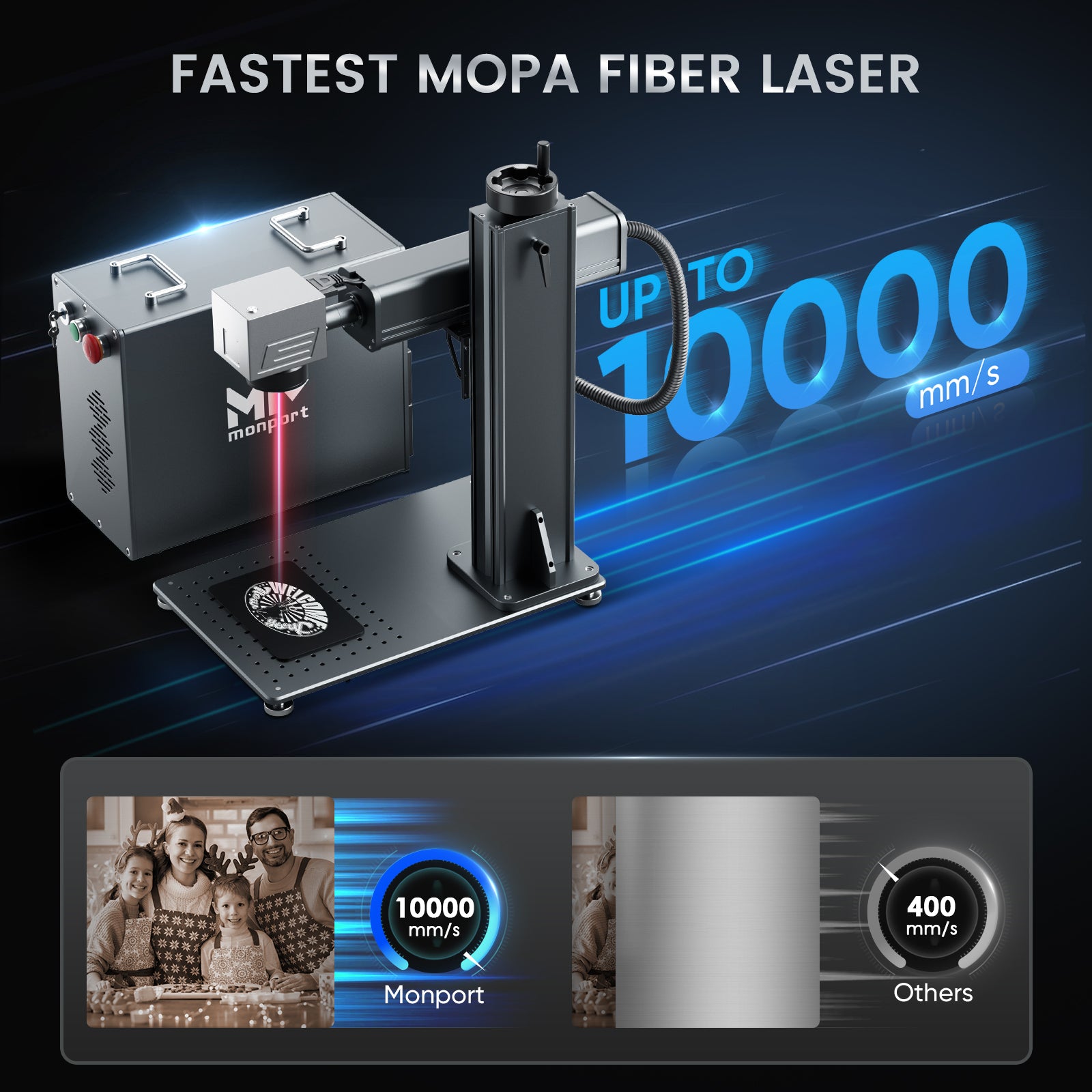

Fastest MOPA Fiber Laser
Boasting an unparalleled marking speed up to 10000mm/s, Monport GPro MOPA Fiber Laser is designed to cater to the most demanding industrial and creative applications, ensuring that your projects are not only completed with precision but also with an efficiency that sets new industry standards.
Versatile Color Marking Capacity
Monport GPro MOPA Fiber Laser, with adjustable frequency (1-3000kHz) and pulse width (2-500ns), delivers striking color marking on stainless steel, aluminium, and other metals, also precise cutting, drilling, and intricate designs on plastic buttons. Experience rich and precise visual effects with ease.
Sub-Micron Precision
Experience the pinnacle of engraving accuracy with the Monport GPro MOPA Fiber Laser, featuring sub-micron high-precision technology. Designed for professionals who demand nothing but the best, the state-of-the-art GPro MOPA fiber laser redefines precision, allowing you to create intricate designs and detailed colorful markings with unparalleled clarity.
GPro MOPA Model Quick Compare
Product Name GPro 30W MOPA GPro 60W MOPA GPro 80W MOPA GPro 100W MOPA
Laser Power 30W 60W 80W 100W

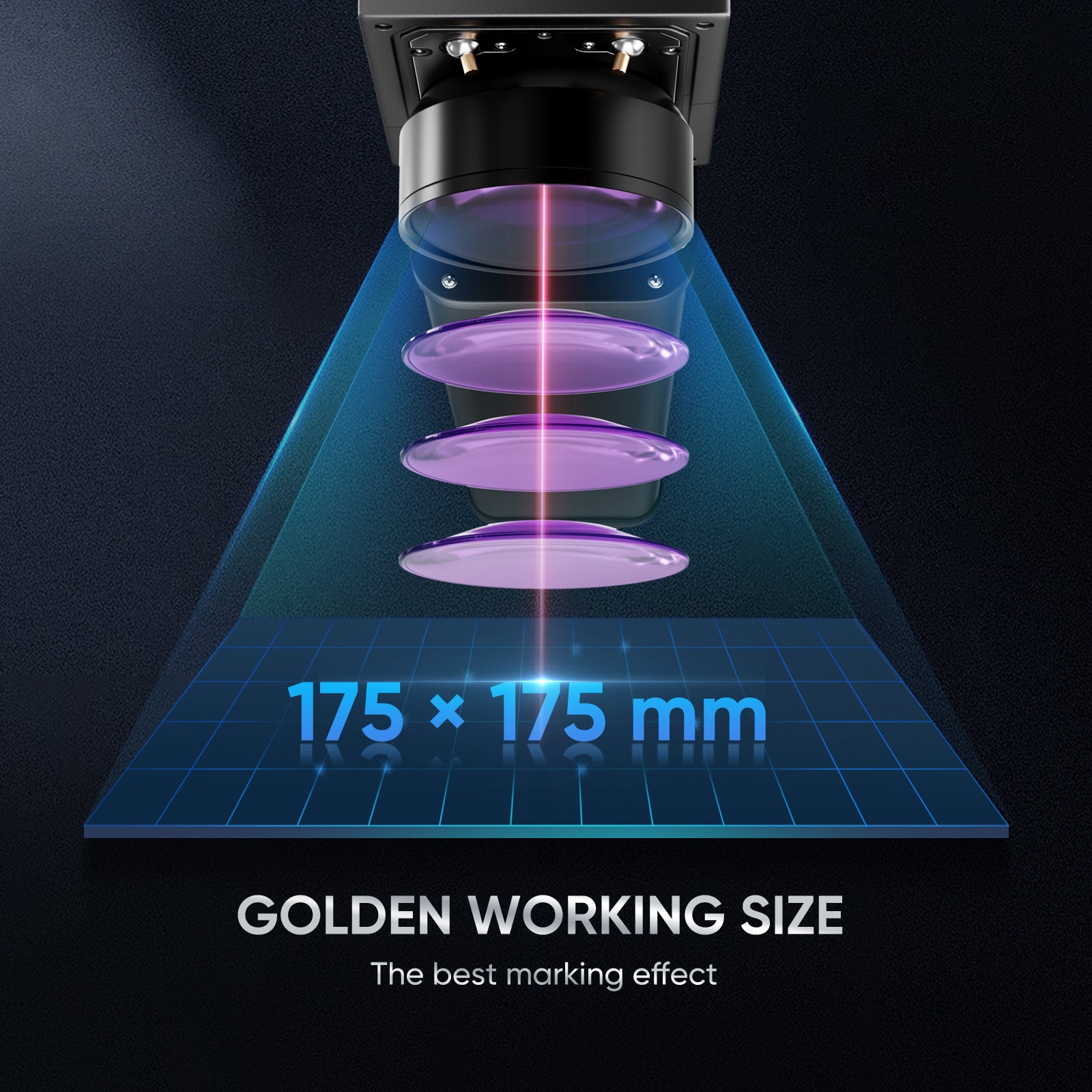

Engraving Area 6.9 × 6.9 in.
(175 × 175 mm)		 6.9 × 6.9 in.
(175 × 175 mm)		 6.9 × 6.9 in.
(175 × 175 mm)		 6.9 × 6.9 in.
(175 × 175 mm)
Max. Marking Depth
(single pass, material dependent)		 0.003 in.
(0.08 mm)		 0.004 in.
(0.10 mm)		 0.005 in.
(0.13 mm)		 0.006 in.
(0.15 mm)
Central Wavelength 1 060-1 080 nm 1 060-1 080 nm 1 060-1 080 nm 1 060-1 080 nm
Input Power 110–120 V 60 Hz 110–120 V 60 Hz 110–120 V 60 Hz 110–120 V 60 Hz
Laser Frequency 1–3 000 kHz 1–3 000 kHz 1–3 000 kHz 1–3 000 kHz
Max Z Height
(field lens to workbench)		 550 mm 550 mm 550 mm 550 mm
Engraving Accuracy 0.01 mm 0.01 mm 0.01 mm 0.01 mm
Positioning Accuracy ± 0.1 µm ± 0.1 µm ± 0.1 µm ± 0.1 µm
Pulse Width 2–500 ns 2–500 ns 2–500 ns 2–500 ns
Max Engraving Speed 10 000 mm/s
(393.7 ips)		 10 000 mm/s
(393.7 ips)		 10 000 mm/s
(393.7 ips)		 10 000 mm/s
(393.7 ips)
Beam Quality M² < 1.35 < 1.8 < 1.8 < 1.8
Beam Diameter 7 ± 1 mm 7 ± 1 mm 7 ± 1 mm 7 ± 1 mm
Maximum Pulse Energy 0.8 mJ 1.5 mJ 1.5 mJ 1.5 mJ
Expected Lifetime (MTTF) 100 000 h 100 000 h 100 000 h 100 000 h
Color Engraving YES YES YES YES
Focus Mode Manual Focusing Manual Focusing Manual Focusing Manual Focusing

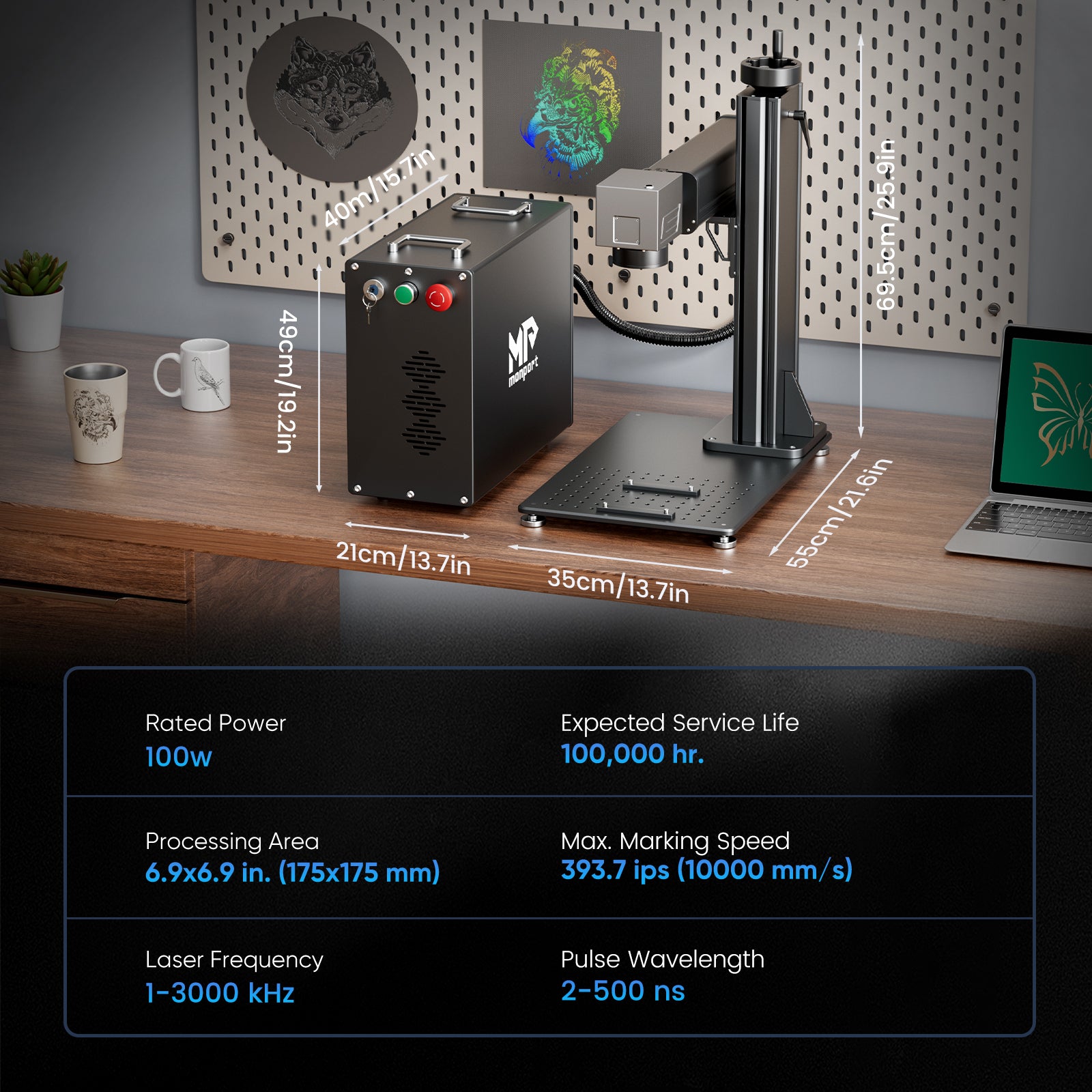

Product Dimensions (L × W × H) Main Unit:
8.2" × 17.7" × 15.3"
(21 cm × 45 cm × 39 cm)
Main Power Supply:
13.7" × 21.6" × 26.9"
(35 cm × 55 cm × 68.5 cm) 		Main Unit:
8.2" × 17.7" × 15.3"
(21 cm × 45 cm × 39 cm)
Main Power Supply:
13.7" × 21.6" × 26.9"
(35 cm × 55 cm × 68.5 cm) 		Main Unit:
8.2" × 17.7" × 15.3"
(21 cm × 45 cm × 39 cm)
Main Power Supply:
13.7" × 21.6" × 26.9"
(35 cm × 55 cm × 68.5 cm) 		Main Unit:
8.2" × 17.7" × 15.3"
(21 cm × 45 cm × 39 cm)
Main Power Supply:
13.7" × 21.6" × 26.9"
(35 cm × 55 cm × 68.5 cm)
Cooling Type Air Cooling Air Cooling Air Cooling Air Cooling
Electric Lifting NO NO NO NO
Galvanometer Thread Size M78 M78 M78 M78

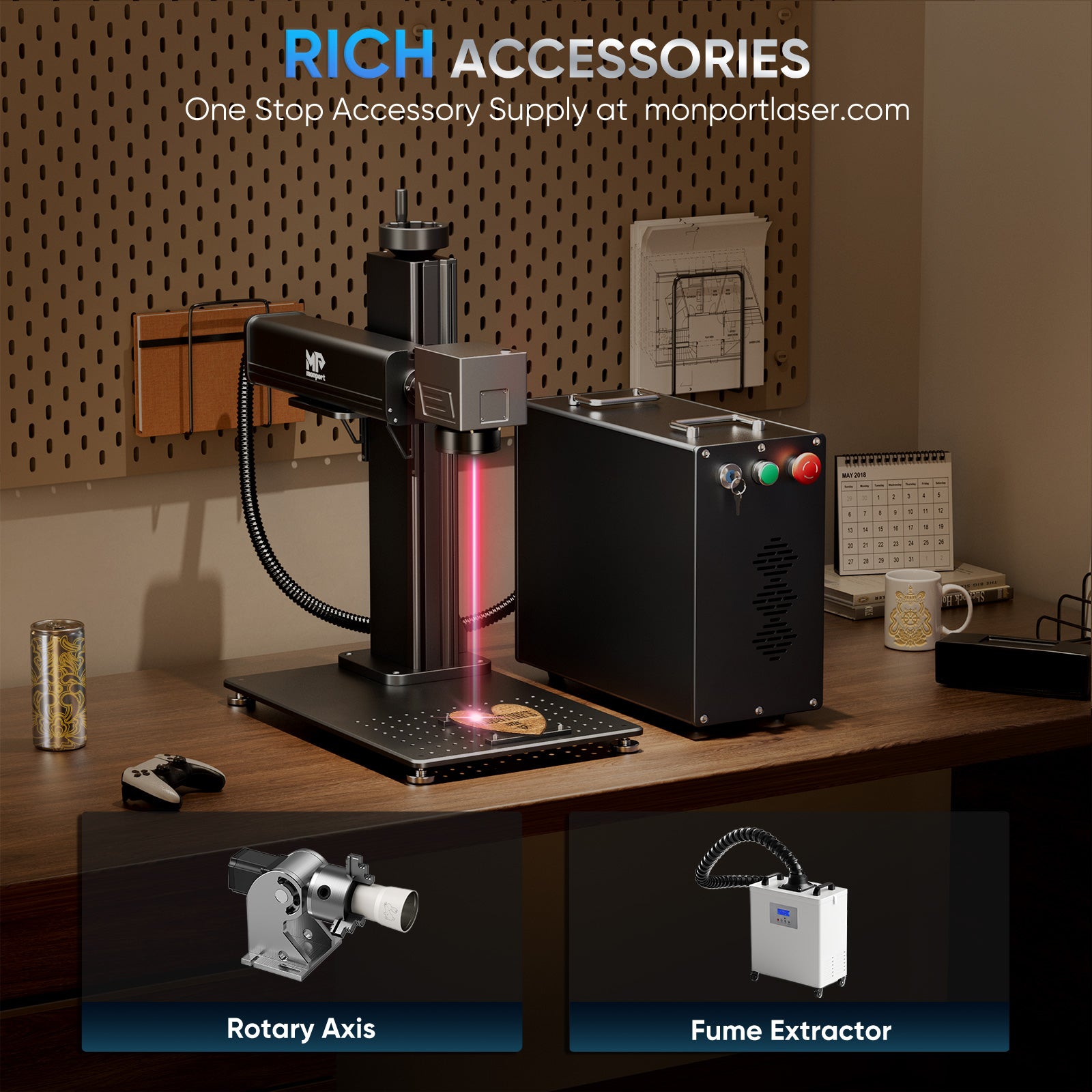

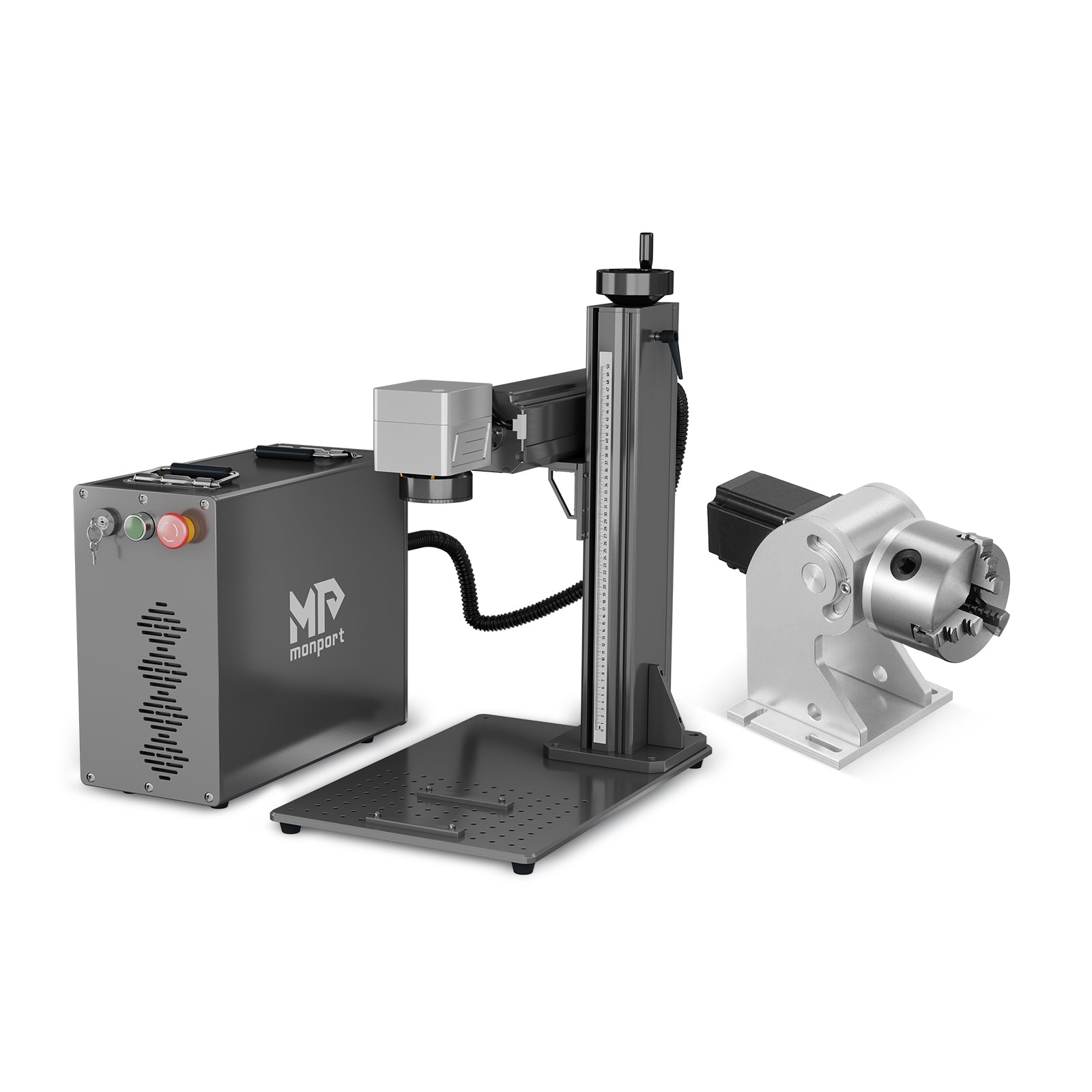

Rotary Axis Function YES YES YES YES
Foot Pedal Function External Foot Pedal External Foot Pedal External Foot Pedal External Foot Pedal
Materials Suitable for Engraving Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc.
Supported Image Formats BMP, GIF, JPG, JPEG, DXF, DST, etc. BMP, GIF, JPG, JPEG, DXF, DST, etc. BMP, GIF, JPG, JPEG, DXF, DST, etc. BMP, GIF, JPG, JPEG, DXF, DST, etc.
System Support Windows, macOS Windows, macOS Windows, macOS Windows, macOS
Compatible Software BslAppSimple
Lightburn		 BslAppSimple
Lightburn		 BslAppSimple
Lightburn		 BslAppSimple
Lightburn
Warranty 2 Years
(1 Year for Laser Source)		 2 Years
(1 Year for Laser Source)		 2 Years
(1 Year for Laser Source)		 2 Years
(1 Year for Laser Source)
Read more+
Package List
Fiber marking machine*1
U disk*1
Positioning bar*2
Ground wire*1
Instruction*1
Marking test cards*10
Wrench*1
Screw*4
Protective glasses*1
Pedal*1
Steel ruler*1
Power line*1
USB to Type-C connector*1

Questions & Answers

Have a Question?

Ask a Question

  • I'm expert with Illustrator, Photoshop, Aspire, VistaSculpt, Plasticity. Own a sign biz. A Mac user. Can I use these programs to create files to be cut on your machine with Lightburn? I want to engrave and 3D engrave metals, rock, shale and clear cast Acrylic. I understand wood is not doable? What materials are unsuitable for this machine?

    Hi. Our machine support BMP, GIF, JPG, JPEG, DXF, DST, Al.etc image formats.  You can create files and export picture formats with Illustrator, Photoshop, Aspire, VistaSculpt, and Plasticity, and then cut them with Lightburn. Our machine can be used to engrave metal, rock, shale, opaque acrylic. It cannot be used to engrave clear cast acrylic. This machine is not suitable for engraving cloth, wood, and some materials that produce toxic gases when processed.

  • Hello, could I change the head and get a larger engraving area?? What is the largest area I can engrave with a head change?

    Yes, you can replace the fiber lens and get a larger area. The largest area you can get is 300 lens. You can follow this link: https://monportlaser.com/collections/fiber-parts/products/monport-f-theta-m52-300mm-300mm-replacement-optical-scanning-lens-for-fiber-laser-engraver
