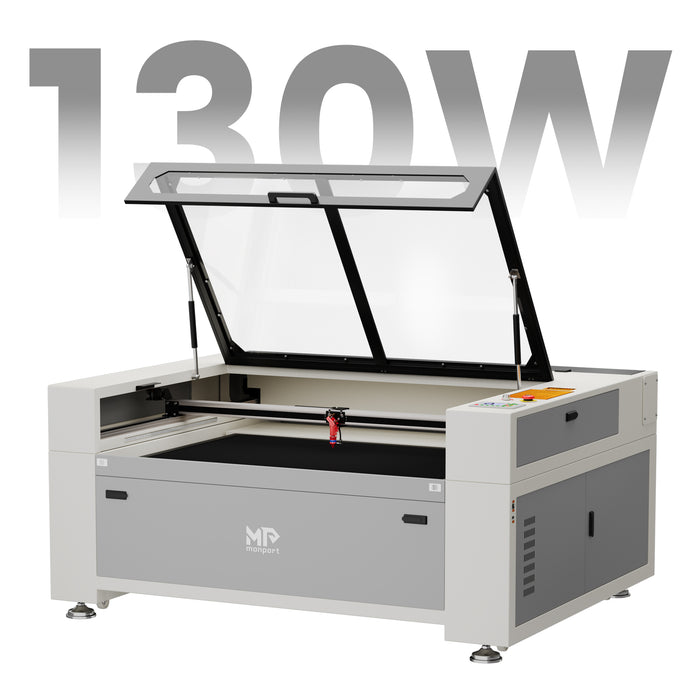

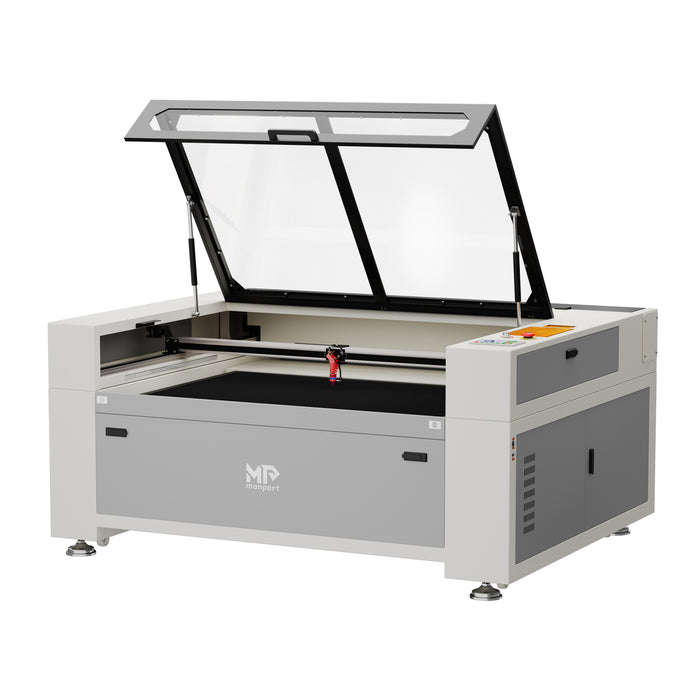

Monport 130W CO2 Laser Engraver & Cutter (55" x 35") with FDA Approved
Save $1,600.00
Current price
$5,499.99
$5,499.99
-
$5,499.99
Current price
$5,499.99
Original price
$7,099.99
Original price
$7,099.99
-
Original price
$7,099.99
Original price
$7,099.99
Black Friday Blowout
$1600 Savings & $300 Gift Card
Free Shipping
US Delivery time : 3-10 Business Days
2-Year Warranty
Dimension & Specifications
Machine Dimension: 72.8" x 55" x 35" （185cm x 140cm x 95cm）

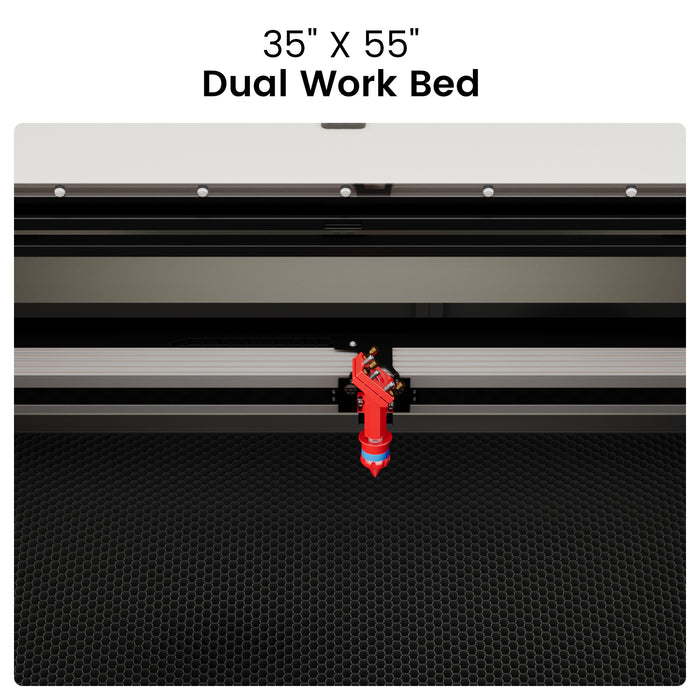

Working Dimension: 35” x 55” (90 cm x 137 cm)
Pass-through Dimension：2.9'' x 54.9''（7.5cm x 139.5 cm )
Max Engraving Speed: 800mm/s
Max Cutting Speed: 30mm/s ( actual speed depends on material )
Max Engraving Depth: 19.05mm
Min Engraving Depth : 0.01 mm
Focal Lens Diameter: 18mm
Mirror Diameter: 25mm
Max Z-depth: 7"

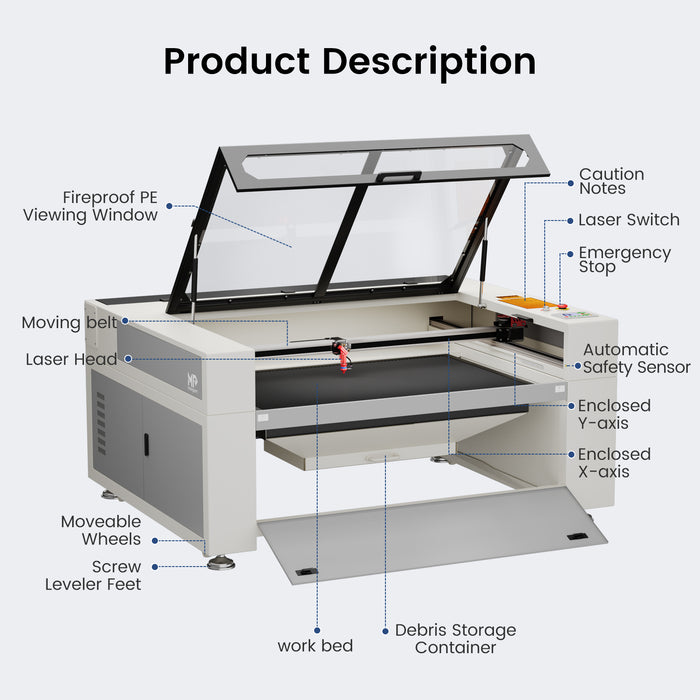

130W CO2 Engraver Features
Fireproof Viewing Window
This viewing window is made from special fire-resistant polyester with iron frames. The melting point of this polyester ranges from 432° to 488° and the ignition temperature of it is over 1000°, which can dramatically decrease the possibility of fire accidents caused by the heat of laser burning the materials.
Enclosed Aeronautical Aluminum Rail
Equipped with X and Y stepper motors, this rail features efficient power transmission with high precision. The enclosed rail is designed to avoid smoke and debris and prolong the service time of rail units.
Laser Protective Glasses for Free
Lasers emit radiation in the invisible form of light. This pair of laser protective glasses is certified to protect your eyes against radiation damage by looking at the class 4 laser in any way (directly, indirectly, or even looking at the laser dot on a surface can damage your eyes).
Ruida Digital Controller
Whether your chosen software is LightBurn, RDworks, AutoCAD, or CorelDRAW, this Ruida digital controller can support the given platform. The Ruida Controller with a digital display can control the laser head, start or stop projects, adjust laser power and speed settings and so on.
High Speed and Resolution
The Engraving Speed is up to 800 mm/s;
The Cutting Speed is up to 400 mm/s;
The Resolution is up to 4500 dpi;
3 LED light strips above the work bed provide illumination for precision;
2.0" Focal distance provides high resolution and etching of tiny fonts
Autofocus
Use the control panel to correct the focus automatically at the touch of a button — no more manual testing and adjustment.
Built-in Air Assist
A built-in air assist system guides a pressurized air stream through the laser head nozzle to displace debris, heat, and combustible gases from the engraving surface and laser beam path, keeping engravings more precise.
3-ways to Connect with PC End
Two USB ports provide options including flash drive connectivity and a USB-to-USB PC connection. In addition, one ethernet port is also available for connection.
Red Dot Guidance
The red dot shows the laser head position, marks the working path and frames the project sizes, assisting you with more convenience and guidance.
Automatic Safety Sensor
The safety shutdown sensor helps stopping the machine even if the window cover is on. Once closed, press the “Enter” button to continue operation.

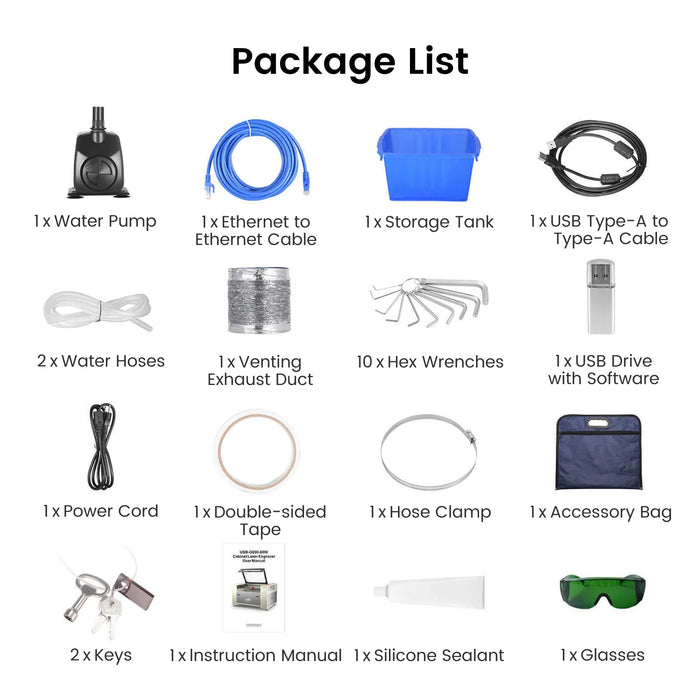

Package Contents
Laser Engraver Machine *1
A Pair of Laser Protective Glasses *1
Accessory Bag *1
Ethernet to Ethernet Cable *1
USB Type-A to Type-A Cable *1
Venting Exhaust Duct *1
USB Drive with Software (RDworks) *1
Hex Wrenches *10
Double-sided Tape *1
Power Cord *2
Keys *2
Silicone Sealant *1
Stainless Steel Clamp *1
Instruction Manual *1
Warranty & Certifications
2-year warranty on all 130W laser machines and parts
1-year warranty on laser tube
FDA Approved & CE Certified
Manual List
Download the software RDworks
Download the Manual: 130W CO2 User Manual
Download the Settings: CO2 Parameter Settings
We offer compatible Rotary Axis and Water Chiller!
We sponsor CDR files: https://kokorosastudio.com
Forklift Unloading Note
Our prices cover transportation but does not forklift unloading. If your address is not convenient for truck transportation, forklift assistance is required. Please contact us at support@monportlaser.com, and we will provide you with a customized quote.
Questions & Answers
Have a Question?
-
: What materials can the 60W-150W CO2 laser engraver machine engrave?
: Engrave: Wood, acrylic, glass, fabric, leather, paper, cardboard, rubber, stone and anodized aluminum. Cut: wood, acrylic, fabric, leather, paper, cardboard, rubber.
-
: What is the Pass-through dimension of Monport CO2 laser engraver machine?
: "Monport 60w(16’’x14’’) pass-through dimension : 730mm*40mm
Monport 60w(20’’x28’’) pass-through dimension : 700mm*95mm?
Monport 80w(24’’x36’’) ?pass-through dimension :950mm*75mm
Monport 100w(24’’x40’’) pass-through dimension : 1095mm*75mm
Monport 130w(35’’x55’’) pass-through dimension : 1395mm*75mm
Monport 150w(40’’x64’’) pass-through dimension : 1695mm*75mm" -
: What model Ruida controller does the 60w-150w have?
: 6442G
-
: Does the Gcode lightburn suit for the 60W-150W CO2 laser engraver machine?
: The Gcode is not compatible with 60w-150w CO2 machines. But you can click here to buy the DSP version.
-
: Is this CO2 laser engraving cutting machine a plug and play product out of the box, or will I need additional accessories/components?
: Yes, it's plug and play. But you still need to check the mirror alignment after you get the machine.For beter engraving effect and the longevity of the laser tube, we recommend you consider the 5200 chiller. Also, if you'd like to engrave tumblers, the 4-wheel rotary is need.
-
: How does this CO2 laser engraving cutting machine achieve autofocus?
: Autofocus means distance is automatically calculated and focus is automatically corrected at the touch of a button via the ruida control panel - no more manual testing and adjustments.
130W CO2 Laser Installation Video
FEATURES
Monport 130w Features
Enclosed Aeronautical Aluminum Rail & Autofocus
The enclosed rail is designed to avoid smoke and debris and prolong the service time of rail units.
Use the control panel to correct the focus automatically at the touch of a button — no more manual testing and adjustment.
Aluminum Rail
Autofocus
High Speed and Resolution
The Engraving Speed is up to 800 mm/s.
The Resolution is up to 4500 dpi;
Speed: 800mm/s
Compatible with Lightburn, RDWorks.
Easy to Use

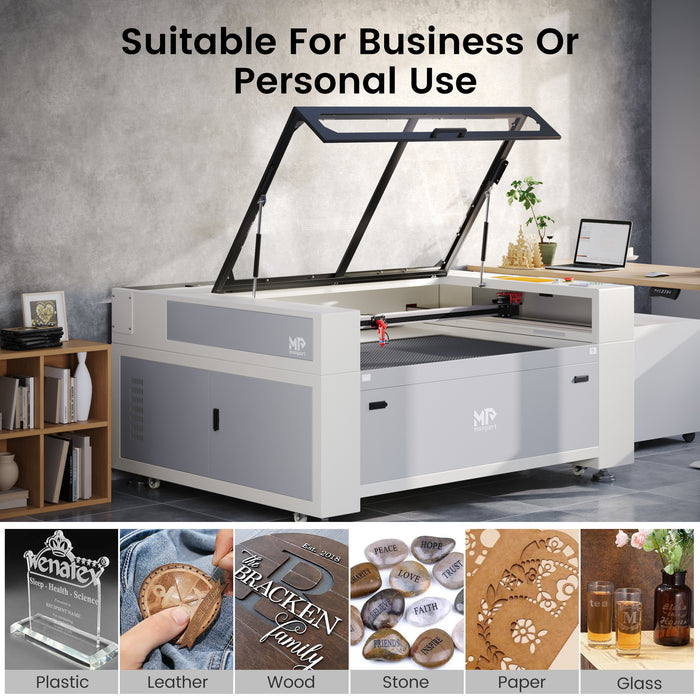

Wide Application
Excellent Cutting and Engraving Capabilities
Monport 130W CO2 Laser can cut different of wood, acrylic, stone and etc.
Various Materials
DETAILED PARAMETERS
Compare Each High Power CO2 Laser Model
| Manchine Model | Monport 80W CO2 | Monport 100W CO2 | Monport 130W CO2 | Monport 150W CO2 |
|---|---|---|---|---|
| Working Area | 24"x 36" | 24" x 40" | 55" x 35" | 64" x 40" |
| Max. Marking Speed | 800mm/s | 800mm/s | 800mm/s | 800mm/s |
| Machine Dimension | 57"x 43" x 35" | 61"x 43" x 35" | 72.8" x 55" x 35" | 84.6" x 59" x 35" |
| Pass-through Dimension | 2.9"x 37.4" | 2.9" x 43" | 2.9" x 54.9" | 2.9" x 66.7" |
| Wheels Height | 3.9" | 3.9" | 3.9" | 3.9" |
| Output Power | 80W | 100W | 130W | 150W |
| Provided Operating Software | RDworks | RDworks | RDworks | RDworks |
| Laser Wavelength | 10640nm | 10640nm | 10640nm | 10640nm |
| Expected Service Life | 12,000hr | 12,000hr | 12,000hr | 12,000hr |
| Product Weight | 396.8 lbs | 578 lbs | 790 lbs | 1000 lbs |
| Supported image formats | BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others | BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others | BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others | BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others |
| Compatible Software | Lightburn, RDWorks, Coreldraw, Auto-CAD | Lightburn, RDWorks, Coreldraw, Auto-CAD | Lightburn, RDWorks, Coreldraw, Auto-CAD | Lightburn, RDWorks, Coreldraw, Auto-CAD |
