Pet tags are more than simple identification pieces; they are essential safety items and personalized accessories. However, standard engraving methods often fall short when working with metal tags. Traditional laser markers frequently produce faded, low-contrast text that wears off quickly, while standard Q-switched lasers build up excessive heat, leading to warped metal, blurry edges, and unwanted surface discoloration around delicate fonts. For professional dog club organizations and custom engravers, these quality defects lead to wasted materials, client complaints, and slow, frustrating production runs. Mastering stainless steel engraving with the right technology is the only way to solve these issues and ensure that vital contact details remain crisp, highly visible, and permanent over years of outdoor wear, especially when using advanced machinery like the Monport GPro Vision Split MOPA Fiber Laser Engraver.
When processing items like standard 1-1/16 in × 1-9/16 in metal tags with a 1/8 in top hole, achieving a precise depth between 0.001 and 0.005 inches requires the right technology. Understanding the principles of stainless steel engraving allows operators to produce vibrant, double-sided tags efficiently without damaging the thin metal substrate.

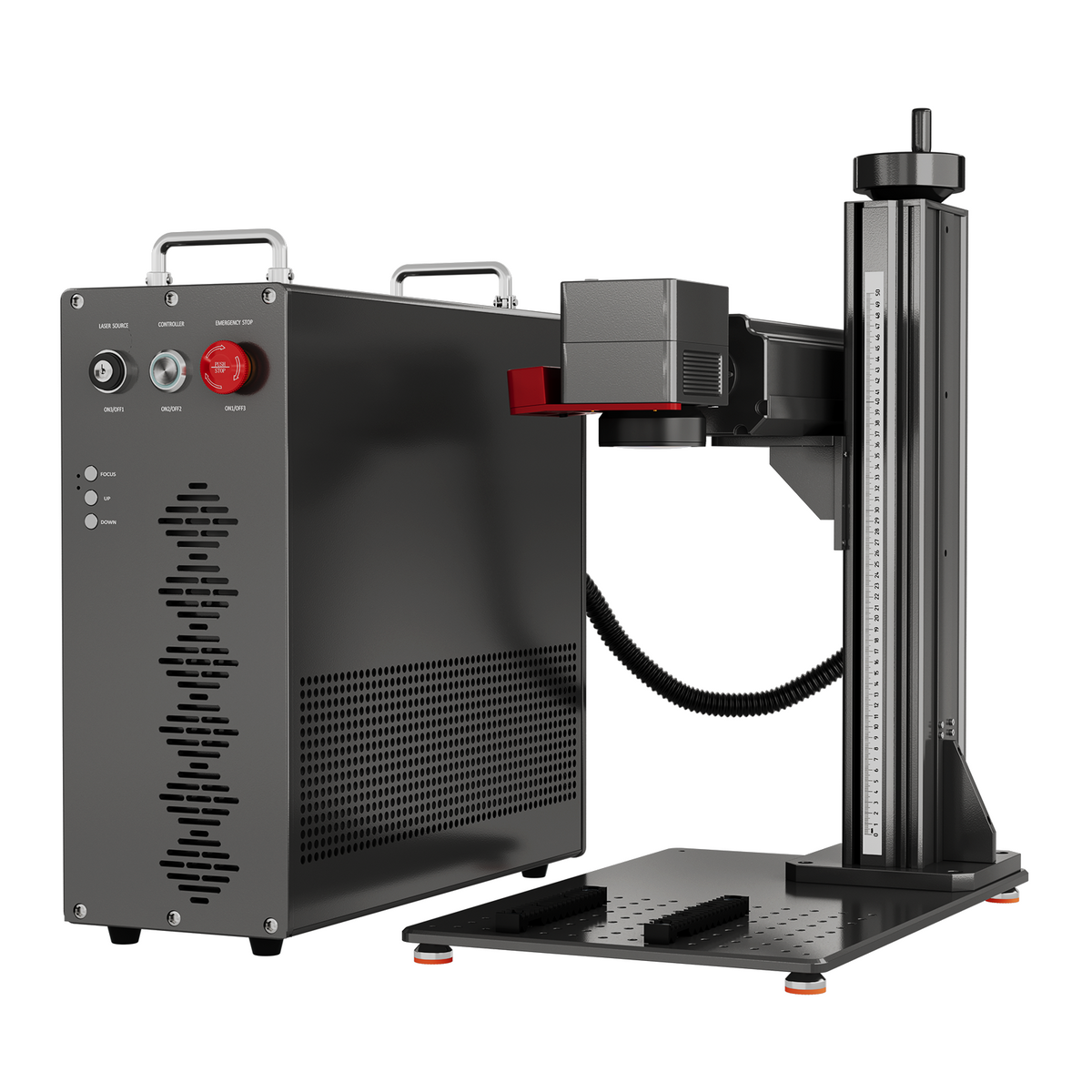

Monport GPro Vision Split MOPA Fiber Laser Engraver with Color Marking & Auto Focus
Why MOPA Fiber Lasers Are Ideal for Stainless Steel Tag Engraving
Standard Q-switched fiber lasers perform well for basic metal marking, but they offer limited pulse frequency controls. MOPA (Master Oscillator Power Amplifier) fiber lasers stand out because they allow independent adjustment of pulse duration and pulse frequency.
This level of control prevents unwanted heat buildup on thin metal tags. Excessive heat causes warping and surface discoloration around fine text. With a MOPA system, you can fine-tune peak power to execute clean stainless steel engraving while preserving structural integrity.
MOPA technology also expands your capabilities beyond plain grayscale marking. By varying pulse widths at specific frequencies, you can generate controlled oxidation layers that produce rich, vibrant colors directly on stainless steel surfaces.
How Color Marking Creates Customized Metal Tags
Color marking on stainless steel is an optical effect caused by thin-film interference. When the laser beam heats the steel surface under controlled oxygen exposure, an oxide layer forms.
The thickness of this oxide layer determines which light wavelengths reflect back to the human eye. By precisely tuning your laser parameters on the Monport GPro Vision Split MOPA Fiber Laser Engraver, you can create distinct hues ranging from deep blues and purples to vibrant golds and bronze shades.
Adding color marking elevates standard dog tags into premium customized merchandise. Pet owners and club organizations value vivid, colorful logos and text that do not fade or scratch easily.
Improving Efficiency for Small-Batch Daily Production
Managing a daily output of roughly 40 double-sided tags per day requires a streamlined workflow. Manually aligning dozens of small metal tags individually consumes time and introduces human error.
Integrating smart vision alignment with the Monport GPro Vision Split MOPA Fiber Laser Engraver significantly reduces setup friction. A high-resolution camera system detects tag placement on the workbed automatically, aligning the artwork to the exact target coordinates within fractions of a millimeter.
Autofocus capabilities further optimize continuous small-batch production. Eliminating manual focal adjustments speeds up job setup when switching between flat tags, rotary items, or thicker substrates.
Recommended Settings and Workflow for Double-Sided Dog Tag Engraving
Executing clean stainless steel engraving on double-sided tags requires structured parameter selection. Standard metal dog tags (1-1/16 in × 1-9/16 in) need sharp, high-contrast text on the back and decorative artwork or logos on the front.
Practical Parameter Settings
| Application | Laser Power | Speed (mm/s) | Frequency (kHz) | Pulse Width (ns) | Passes |
| Deep Text Engraving (0.001–0.005 in) | 60%–80% | 1000–1500 | 30–50 | 200–350 | 3–5 |
| High-Contrast Black Marking | 35%–50% | 1500–2500 | 60–80 | 100–150 | 1–2 |
| Vibrant Blue Color Marking | 25%–35% | 800–1200 | 200–300 | 20–45 | 1 |
| Gold / Bronze Color Marking | 30%–40% | 1000–1500 | 150–250 | 35–60 | 1 |
General Parameter Guidelines
-
Target Engraving Depth: 0.001 in – 0.005 in
-
Laser Wavelength: 1064 nm
-
Spot Dimension: 0.01 mm
-
Front Side (Color/Logo): Shorter pulse widths, high frequency, moderate speed (1000–2000 mm/s) to generate uniform oxide layers without heavy ablation.
-
Back Side (Deep Contact Text): Wider pulse widths, lower frequency, higher power settings to rapidly achieve the 0.001–0.005 in depth mark.
Step-by-Step Workflow
-
Pre-Clean the Tags: Remove dust or manufacturing oils using isopropyl alcohol to ensure consistent thermal absorption.
-
Focus and Align: Place tags on the bed and use Auto Focus to establish exact focal height. Utilize software preview tools to position artwork clear of the 1/8 in top hole.
-
Engrave Side A: Run the color logo routine on the front side.
-
Flip and Secure: Turn the tags over. If using a jig, place them back into the designated slots.
-
Engrave Side B: Run the deep text pass for owner details and phone numbers.
Monport GPro Vision Split MOPA: The Complete Production Solution
For workshop managers looking to upgrade their production line, the Monport GPro Vision Split MOPA Fiber Laser Engraver provides the ideal industrial framework for high-precision stainless steel engraving.
Equipped with a 16MP HD Camera, the visual system delivers smart vision positioning with a camera positioning accuracy of 0.3mm. This "what-you-see-is-what-you-get" interface makes batch engraving 40+ tags per day effortless, offering full compatibility with conveyor systems.
Technical Specifications Overview
-
Laser Power Options: Available in 50W (7.9" × 7.9" working area), 60W MOPA, 100W MOPA, and 200W MOPA (6.9" × 6.9" working area)
-
Laser Type & Wavelength: Split MOPA with Camera operating at 1064 nm
-

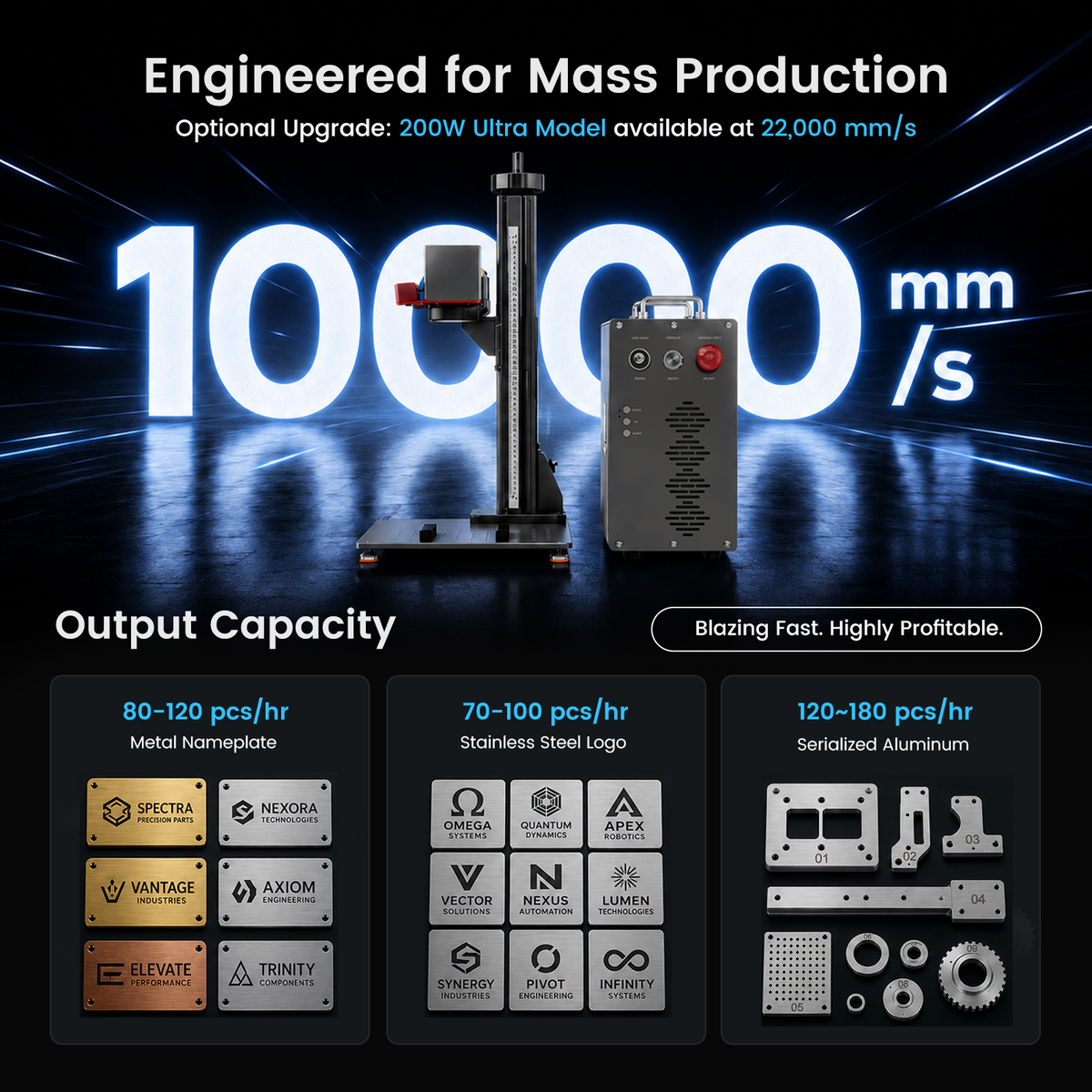

Working Speed: Standard 10,000 mm/s; up to 22,000 mm/s on the 200W MOPA variant
-
Precision: 0.01mm laser spot dimension with 0.001mm motion accuracy
-
Focusing: Integrated Auto Focus mechanism
-
Rotary Support: Full 360 Rotary Engraving supported
-
Operational Lifespan: 100,000-hour core life designed for 24/7 uninterrupted operation
-
Processing Modes: Laser Engraving, Laser Cutting, Color Marking, 3D Embossing (Deep 3D Relief)
-
Material Support: Stainless steel, aluminum, brass, copper, gold, silver, stone, leather, plastic (150+ materials)
-
Software & OS: Compatible with Lightburn and SapphireMark on Windows and macOS, supporting file formats like DXF, AI, SVG, PLT, PNG, JPG, and G-CODE
The Monport GPro Vision system easily handles delicate stainless steel engraving runs while providing room to expand into rotary cylinder marking or deep 3D relief embossing.
Key Takeaways
-
MOPA fiber lasers grant full control over pulse durations, making them superior for delicate stainless steel engraving without thermal distortion.
-
Controlled laser heat creates vibrant color marking on stainless steel tags through thin-film oxide layers.
-
Smart vision alignment and autofocus drastically reduce setup time for daily small-batch orders.
-
Achieving a 0.001 to 0.005 in depth on 1-1/16 in × 1-9/16 in dog tags ensures permanent text legibility.
-
If you're ready to grow your business, Shop Now and use code BESTMP10 to enjoy 8% OFF your Monport purchase.
Frequently Asked Questions
Can a MOPA laser perform deep stainless steel engraving on small dog tags?
Yes, by increasing power and adjusting pulse width, a MOPA laser achieves precise depths between 0.001 and 0.005 inches cleanly.
Does color marking on stainless steel rub off over time?
No, color marking relies on an integrated surface oxide layer formed during stainless steel engraving, offering excellent resistance to standard wear.
How does camera positioning assist in daily dog tag batch production?
A 16MP camera overlays design artwork directly onto a live view of the workbed, ensuring accurate alignment on small tags automatically.
What software works best for double-sided MOPA tag engraving?
Lightburn and SapphireMark provide robust control over MOPA pulse settings, layer colors, and vector graphic alignment across Windows and macOS.
Is the Monport GPro Vision MOPA suitable for continuous daily operation?
Yes, it features a core lifespan of over 100,000 hours and is rated for uninterrupted 24/7 industrial performance.
Conclusion
Mastering stainless steel engraving requires understanding how pulse frequency, depth control, and alignment tools work together. Whether you are running a daily production queue of customized tags for a professional dog club or building an independent metal crafts studio, choosing a versatile machine like the Monport GPro Vision Split MOPA Fiber Laser Engraver ensures consistent, high-contrast results.
