Power: 150W

Machine Dimension: 30cm x 24.2cm x 34.3cm

Package Dimension: 54cm x 36cm x 31.5cm

Max. Airflow Speed: 258m³/h

Filter Layers: 3

Air Inlet Diameter: 82mm

Extraction Tube: 1.2m length, φ55mm

Filter Effect: 0.3μm, 99.97%

Max. Noise Level: ＜50db

Highest Negative Pressure: 2200pa

Universal Wheels: no

Control Method: knob

Strong Suction Power

With 150W strong power, the YW150 fume extractor generates 258 cubic meters/hour of airflow. It can better absorb visible particles and fine dust around the hood head to achieve ideal ventilation effects.

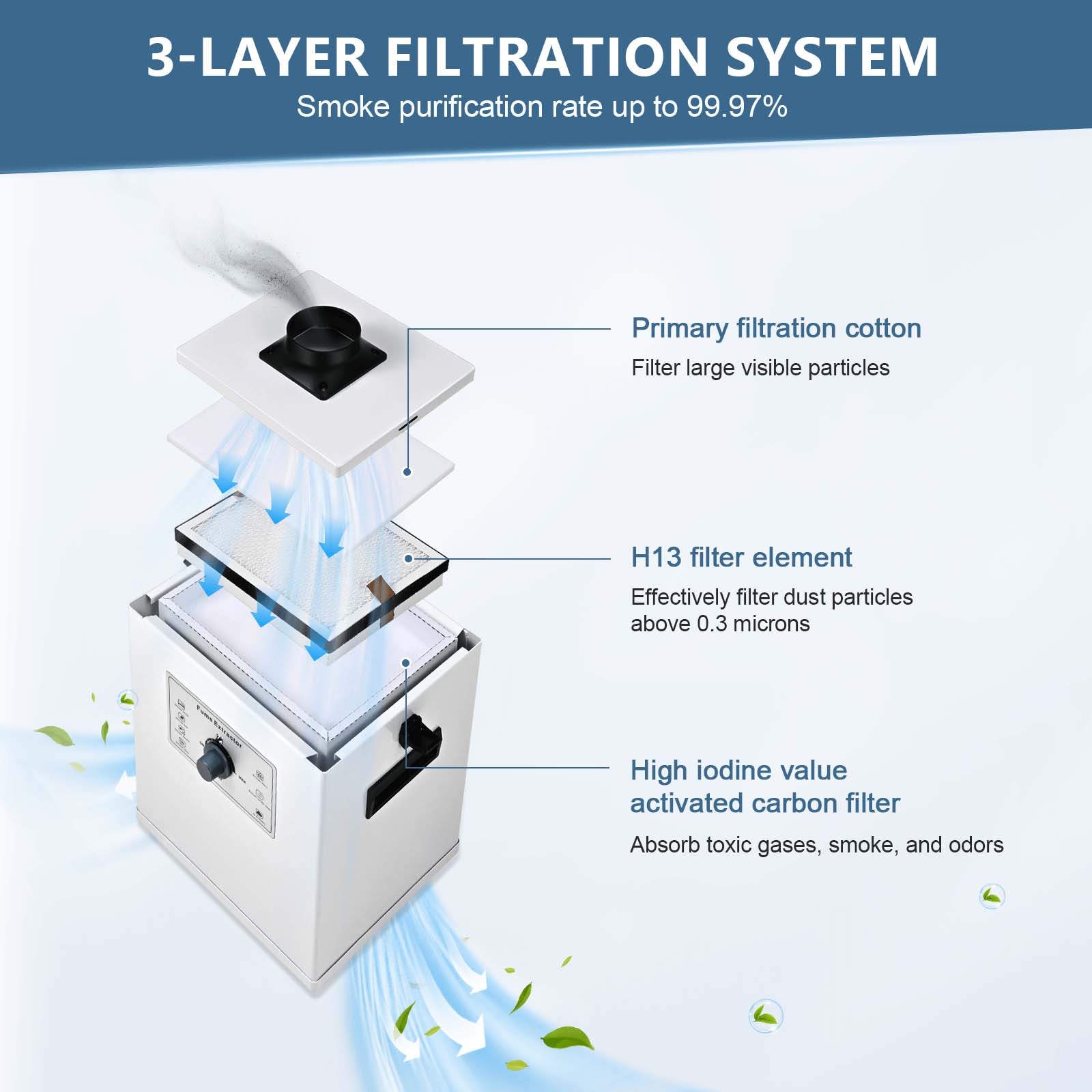

Multi-Layer Filter

This fume extractor is designed with primary filtration cotton, an H13 filter element, and activated carbon. The 3-layer filter provides a purification rate of up to 99.97% to keep the air in the best condition, effectively filtering dust particles above 0.3 microns and absorbing toxic gases, smoke, and odour. (Note: Comes with 4 sheets of primary filtration cotton)

High-Iodine Columnar Carbon

This laser fume extractor uses columnar carbon with 1000-1100 high iodine to provide you with a fresh working environment to ensure respiratory health. (Note: Pillar carbon is affected by the iodine value. The higher the iodine value, the greater the porosity; the larger the surface area, the stronger the adsorption capacity. Its service life is 1.4 times that of ordinary coal-based carbon, and it has higher purification and deodorization capabilities than ordinary activated carbon.)

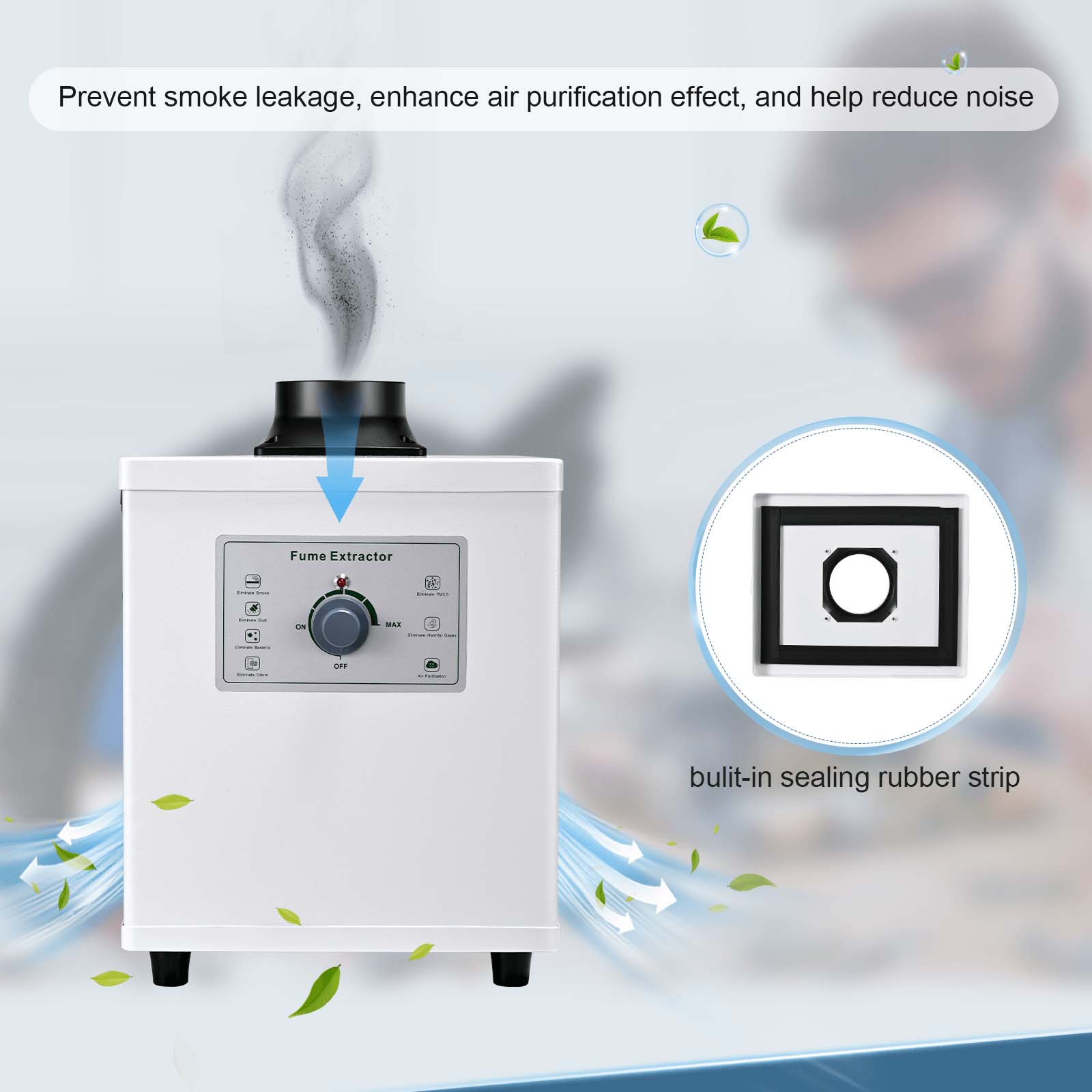

Foam Cotton Sealing

There is foam cotton on the inside of the cover, which not only prevents smoke leakage, but also enhances the air purification effect, and helps reduce noise to ensure a quiet working environment.

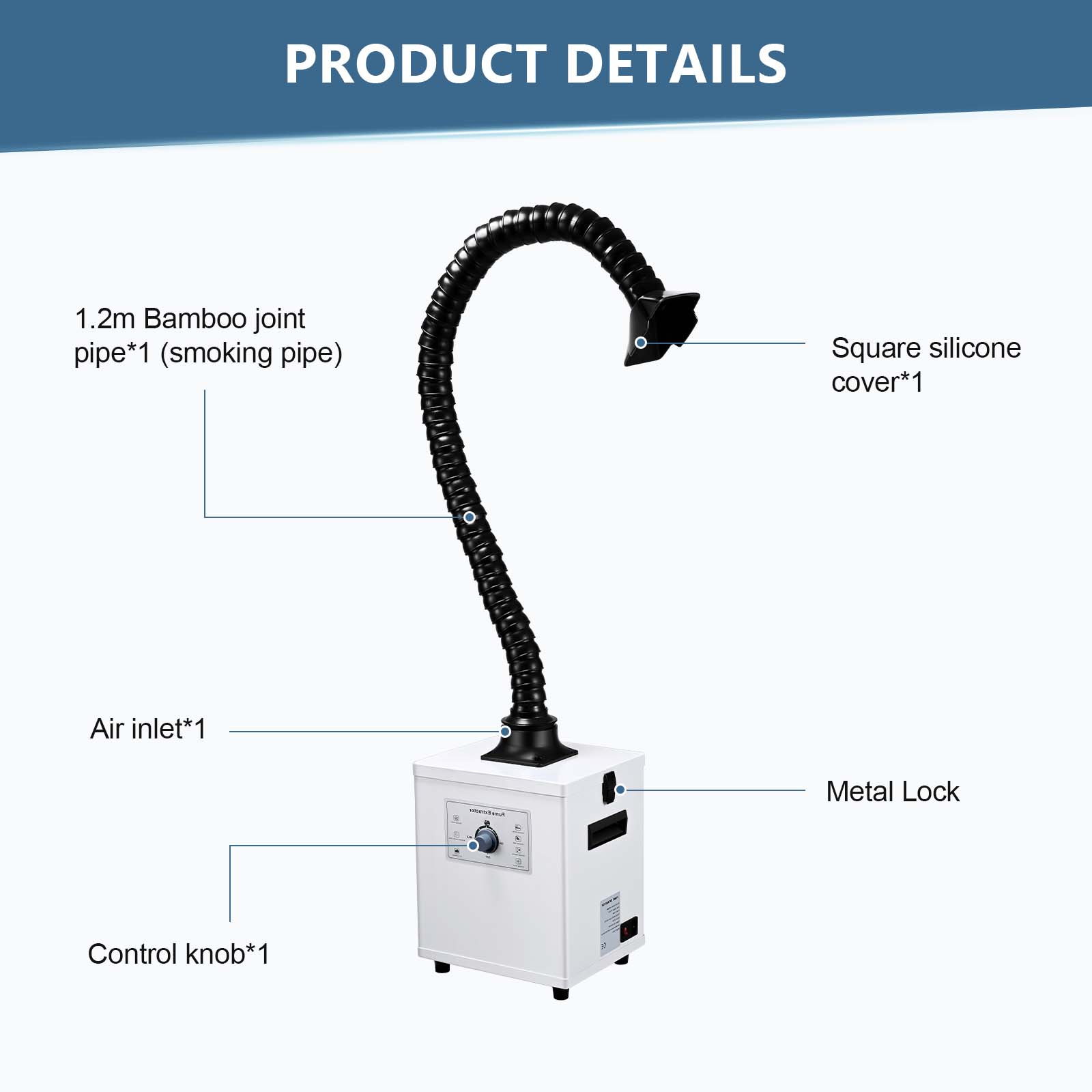

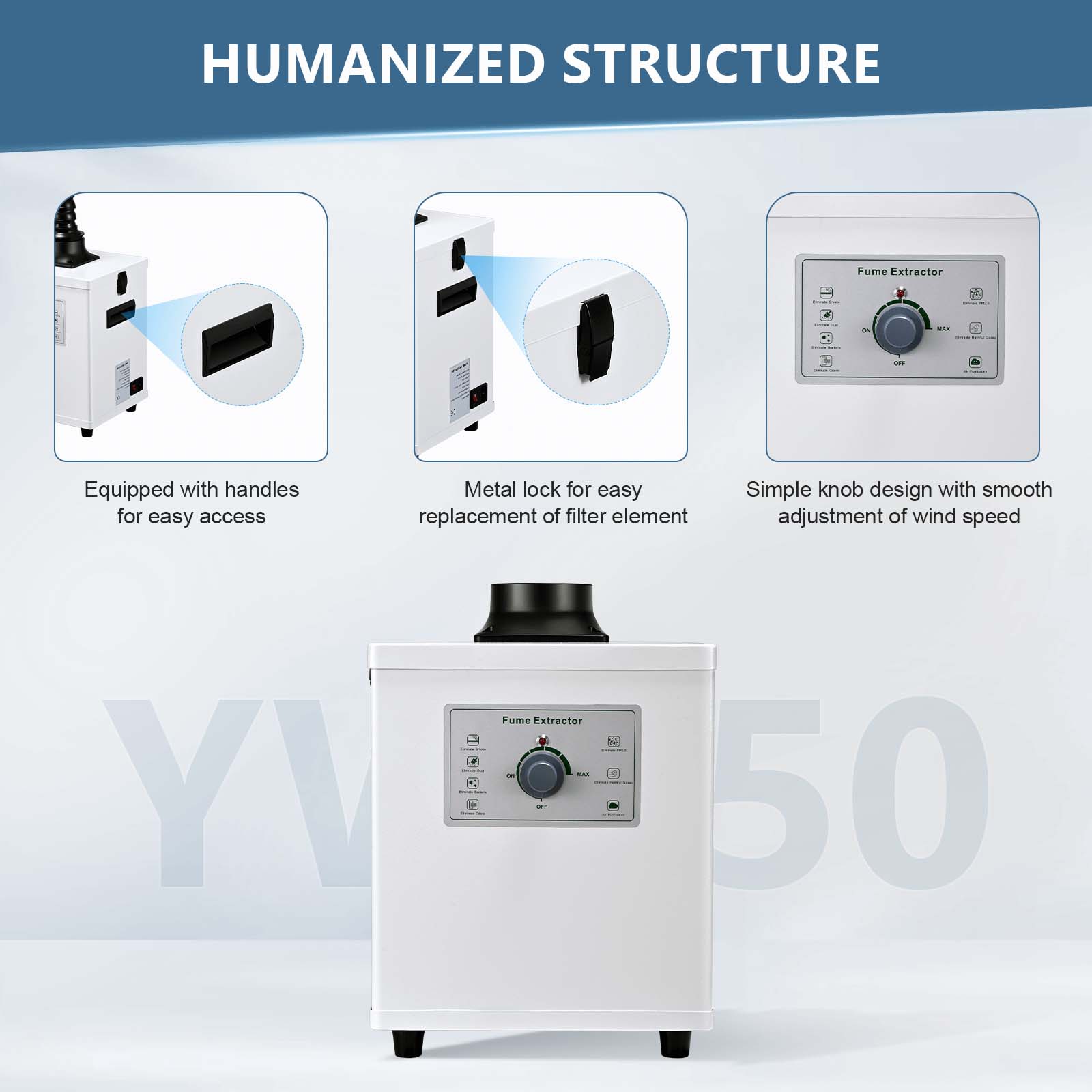

Humanized Design

The body is a durable metal frame. The vents on both sides of the fuselage assist air diffusion. Knob and handle design provide simple and convenient operation.

Compatible Models

This fume extractor provides 100mm adapter and bamboo tube. The 82mm air inlet is suitable for 82mm bamboo tubes and 100mm smoke pipes. It is recommended to use our co2 engraving machines and optical fiber marking machines below 50W. It is also compatible with most diode engraving machines, optical fiber marking machines, and co2 engraving machines on the market.

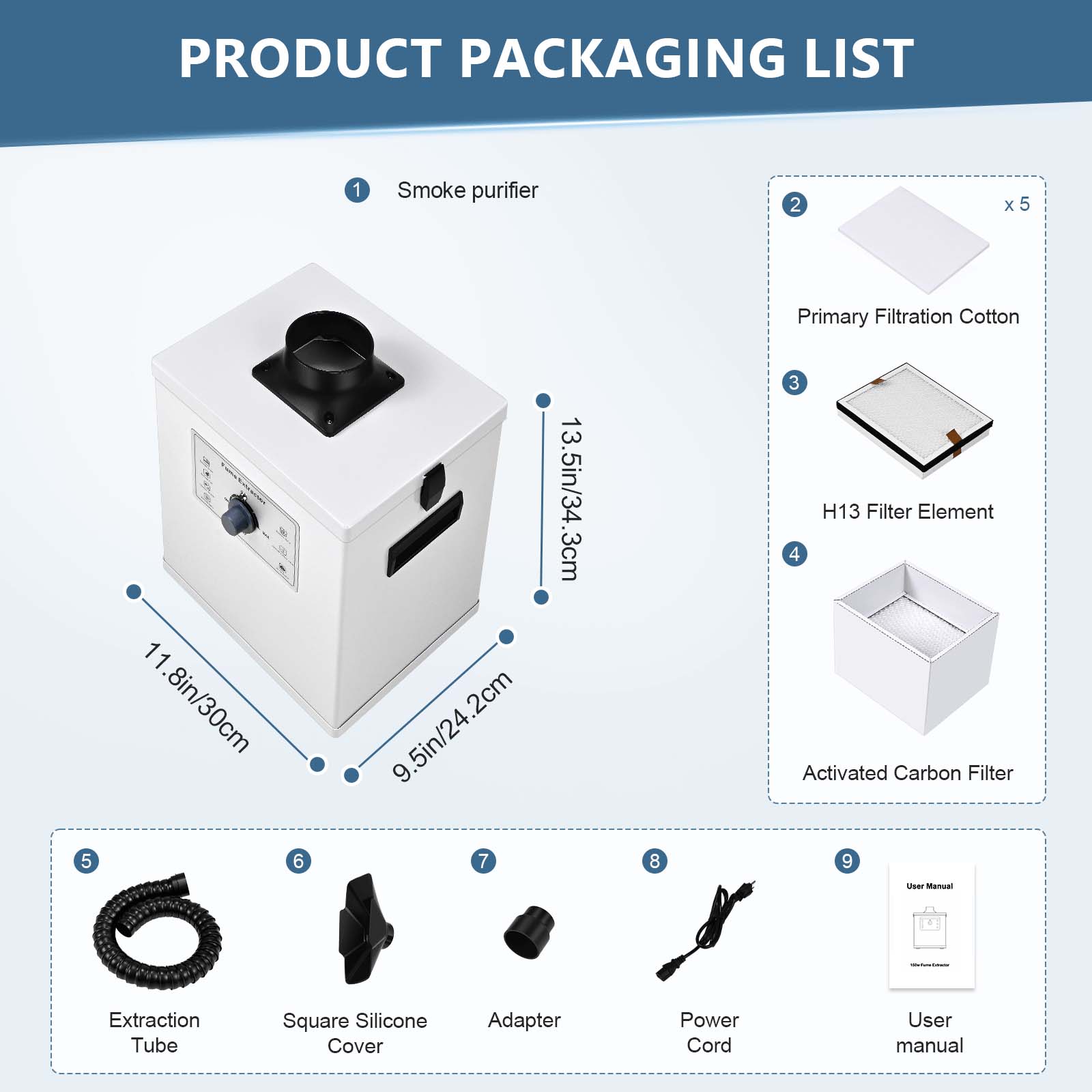

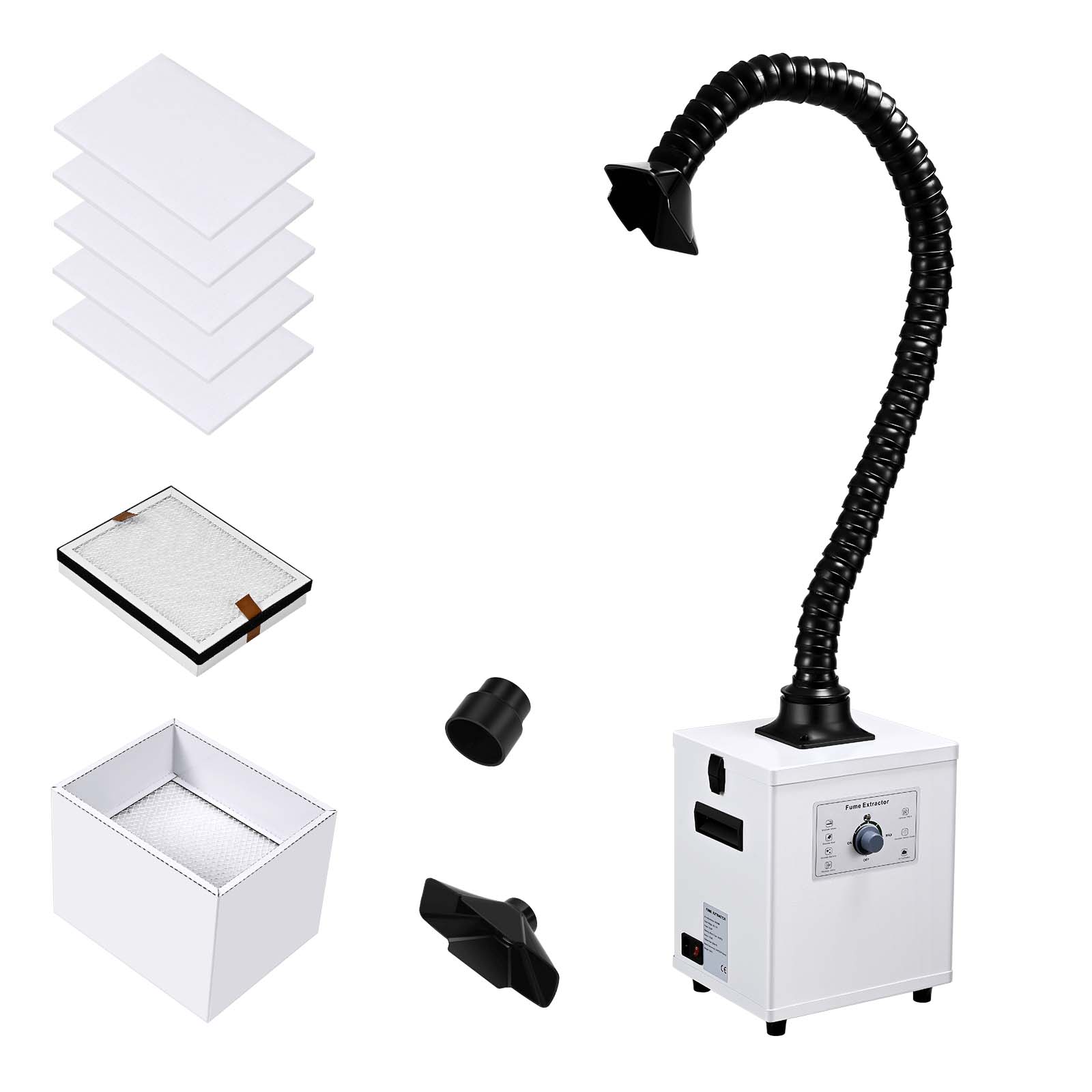

Fume Extractor*1

Extraction Tube*1

Square Silicone Cover*1

Power Cord*1

English Manual*1

Adapter*1

Primary Filtration Cotton*5

H13 Filter Element*1

High Iodine Activated Carbon Filter*1

1-year warranty on all 150W laser fume extractor

150W Fume Extractor User Manual
