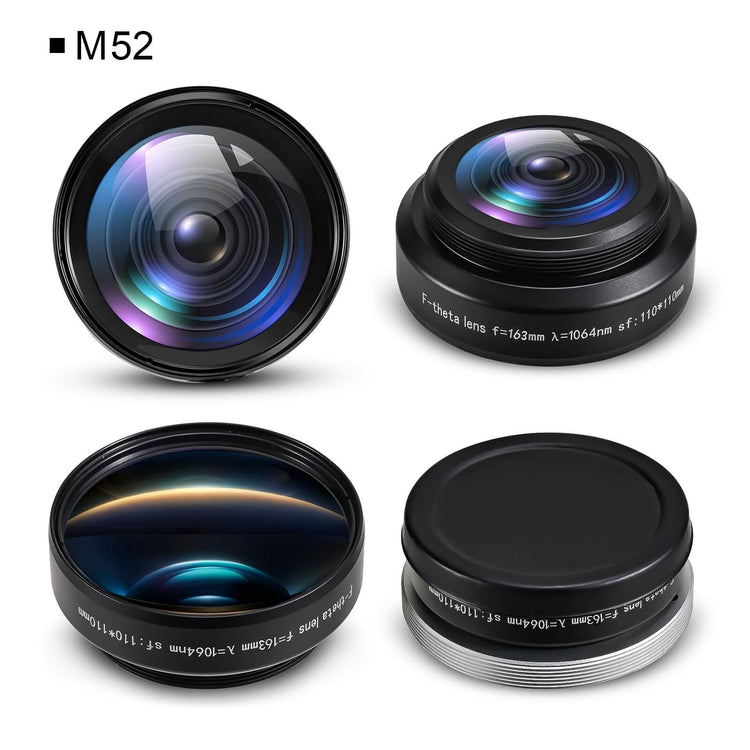

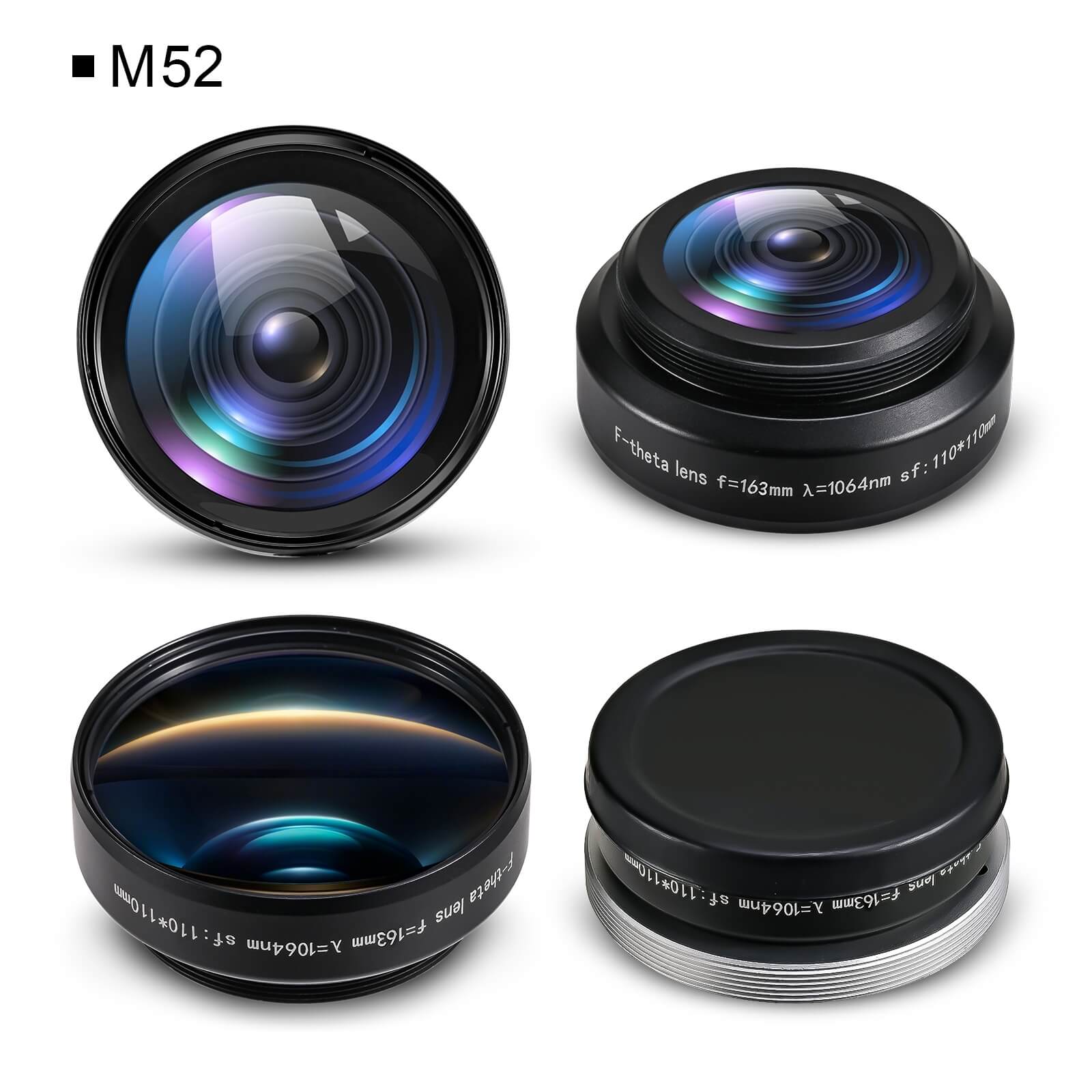

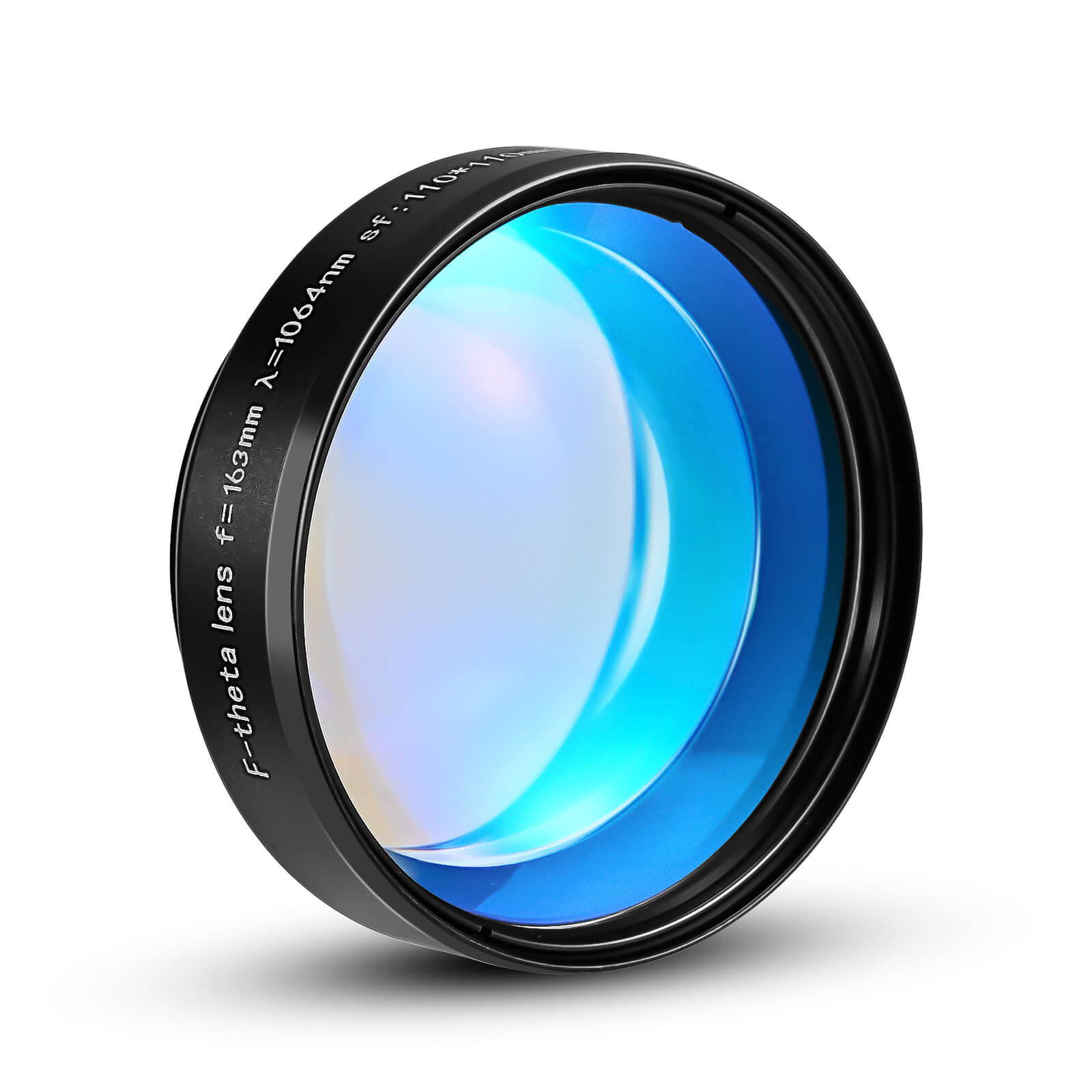

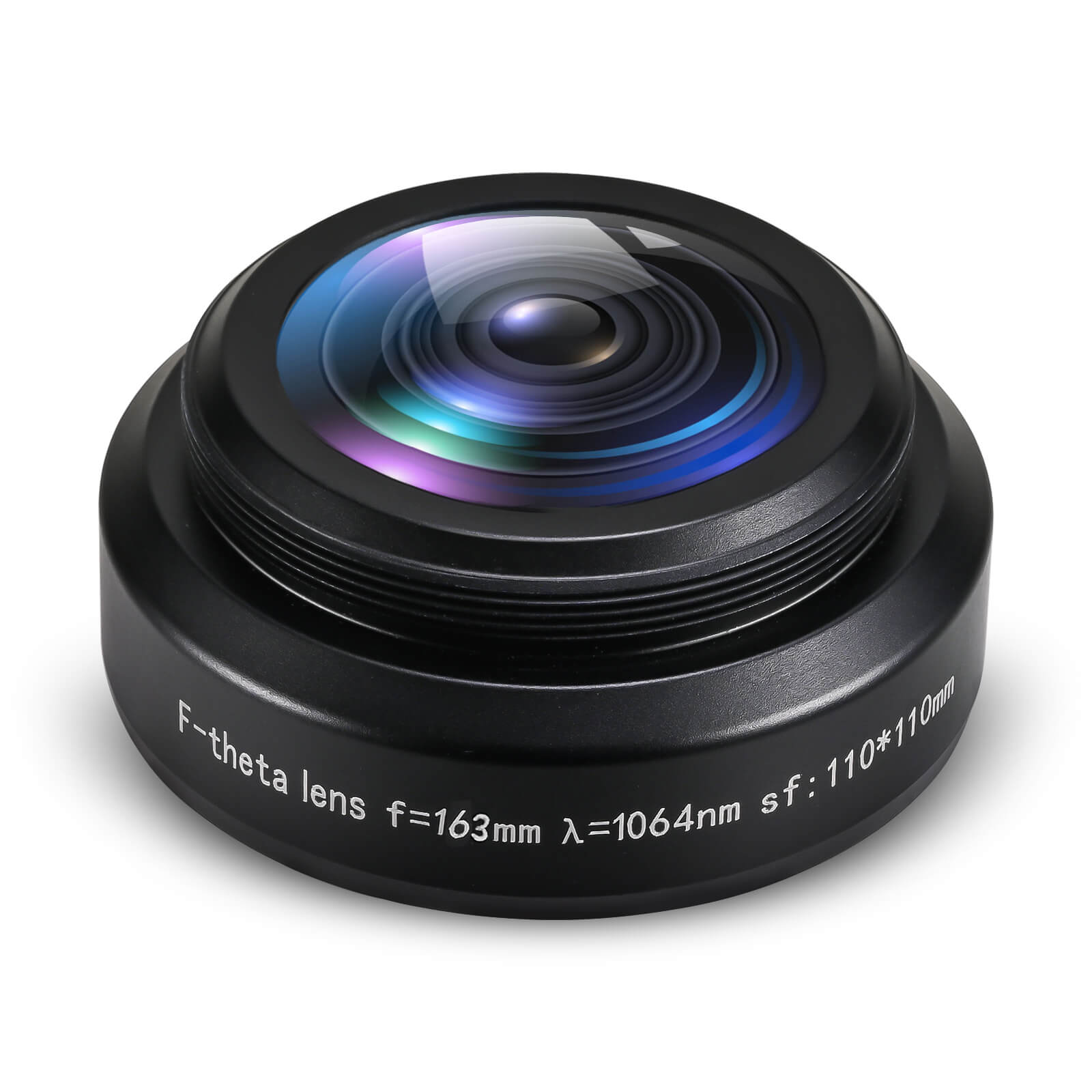

Monport F-theta M52 110mm*110mm Replacement Optical Scanning Lens for Fiber Laser Engraver

$99.99 - $99.99
Current price $99.99
Original price $99.99 - Original price $99.99
Original price $99.99

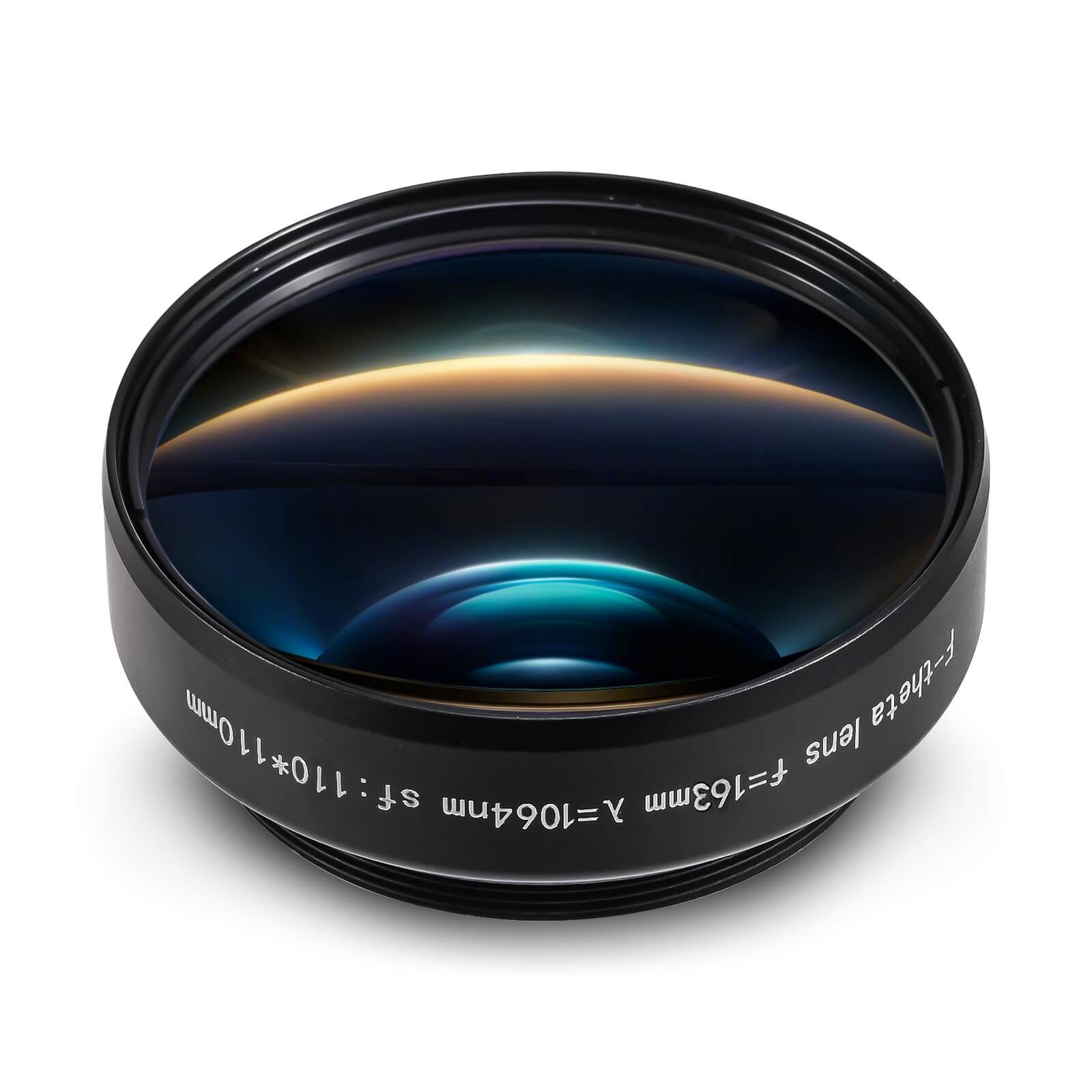

110x110mm FIELD LENS

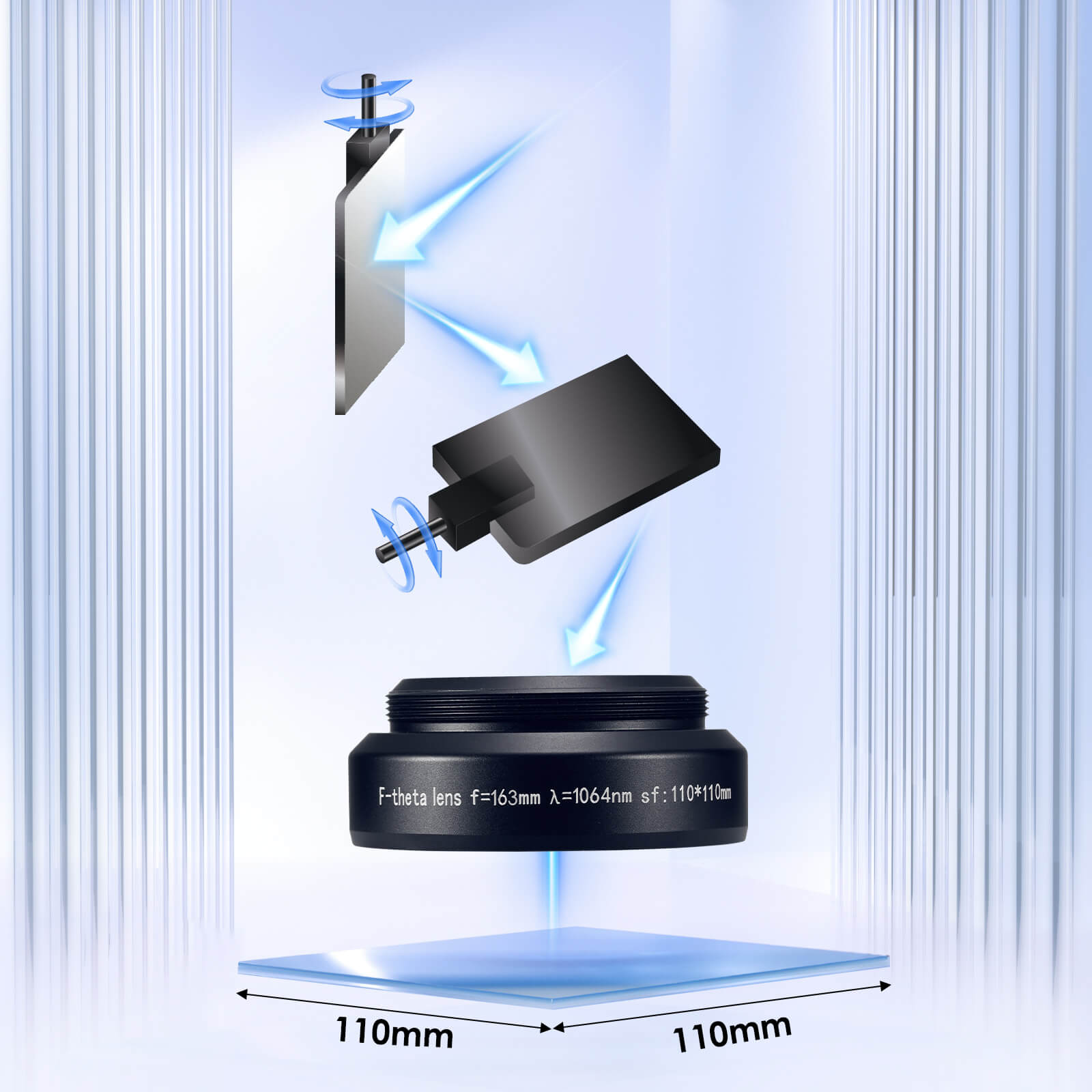

This powerful F-theta laser focus lens from Monport is ideal for laser marking, engraving, image transfer, material processing, and cutting systems; It can move markings within a 4.3x4.3 inch work area, and can even perfectly complete any design you need.

Precision Focusing
Our F-theta scanning lens meets fast positioning and precision focusing, so you can mark steel, aluminum, gold, etc. with a consistent and precise 31.7 μm spot size at any location within the 110x110mm lens range.

This fiber laser lenses' double-sided multilayered coatings improve their natural optical properties and optimize the performance of the field lens. While also strengthening them against scratches and damage during daily use, prolonging the service life.

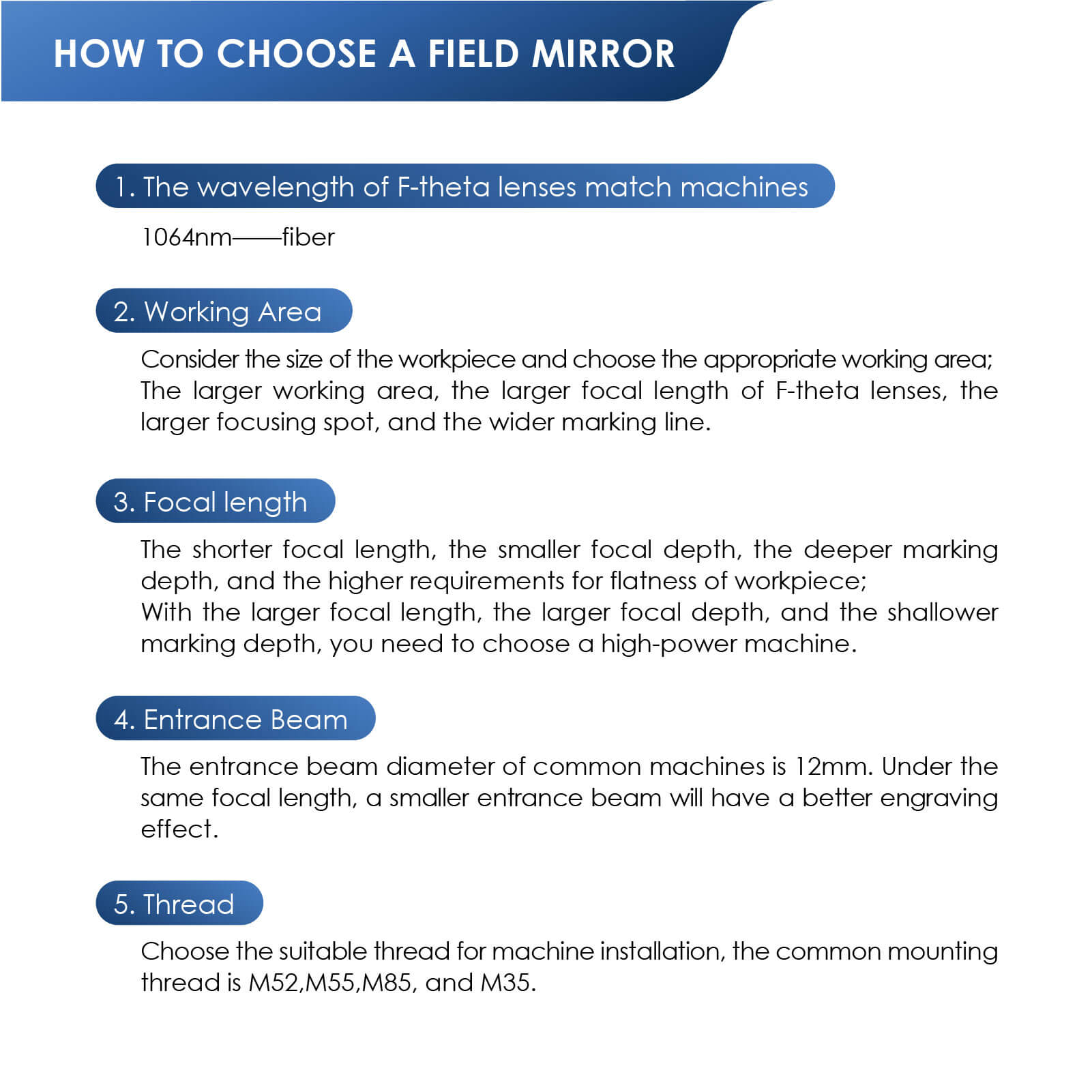

The standard M52 threading and 52-68 adapter ring ensure easy installation and quick replacement. Please confirm whether the size of the field mirror matches before purchasing. If unable to confirm, please contact customer service for consultation.

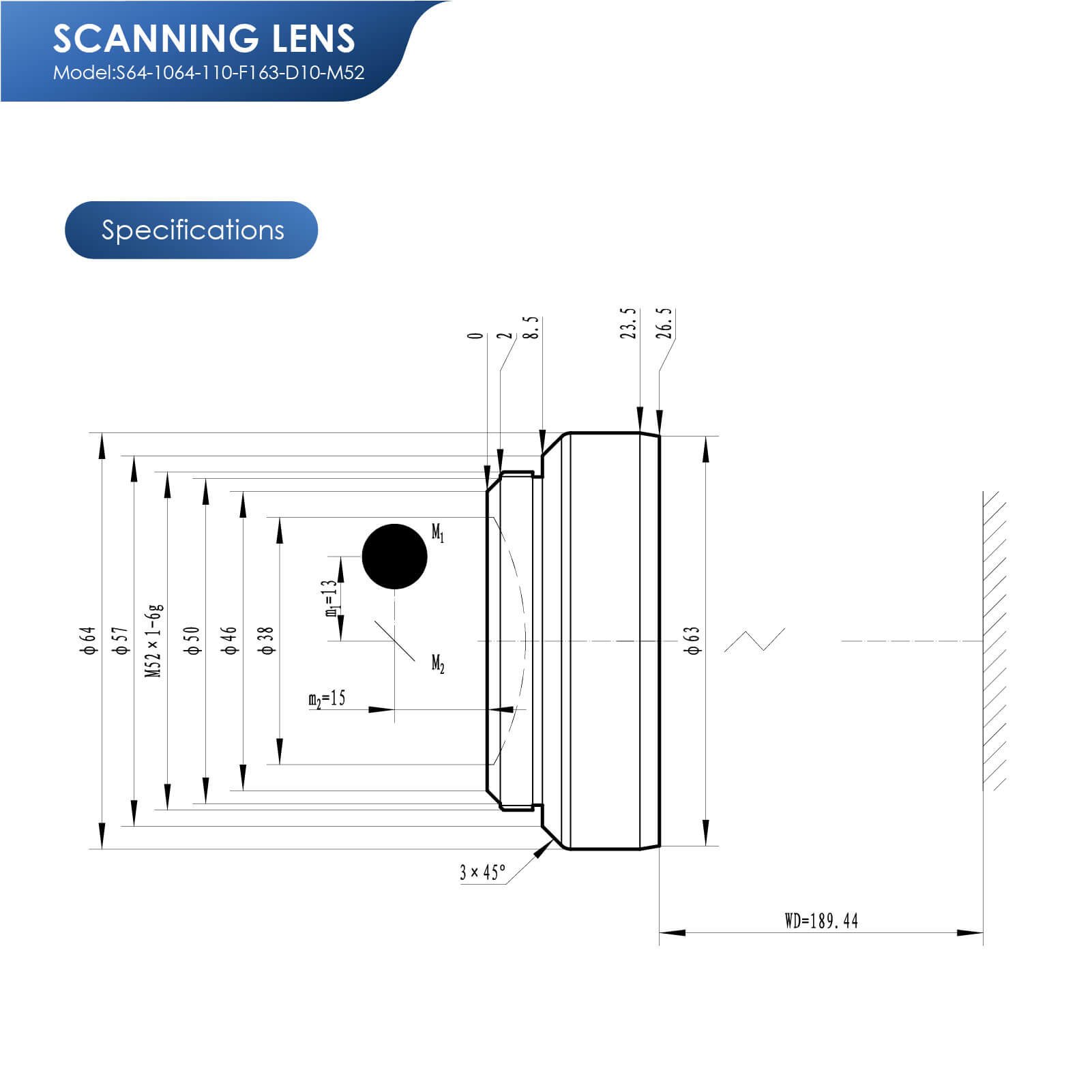

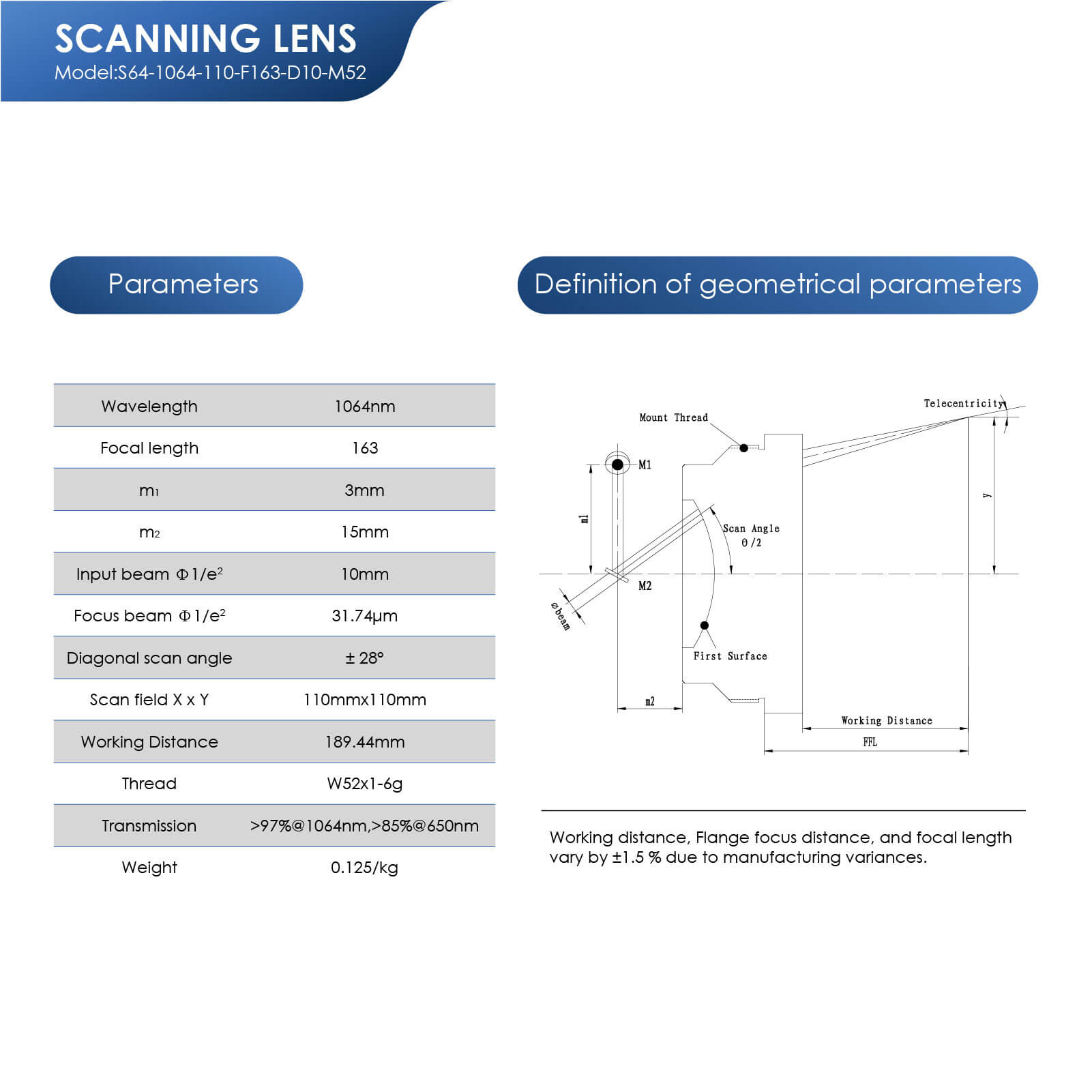

Material: K9 Glass, Plastic
Scanning Area:4.3x4.3 in. (110x110 mm)
Operating Wavelength: 1064 nm (1.064 μm)
Focal Length: 6.4 in. (163 mm)
Entrance Beam Diameter: 0.4 in. (10 mm)
Spot Size: 31.74 μm
Working Distance: 7.4 in. (189.44 mm)
Threading: M52x1
Overall Dimensions: 2.5x1.2 in. (65x30 mm)
Net Weight: 4.4 oz. (125g)

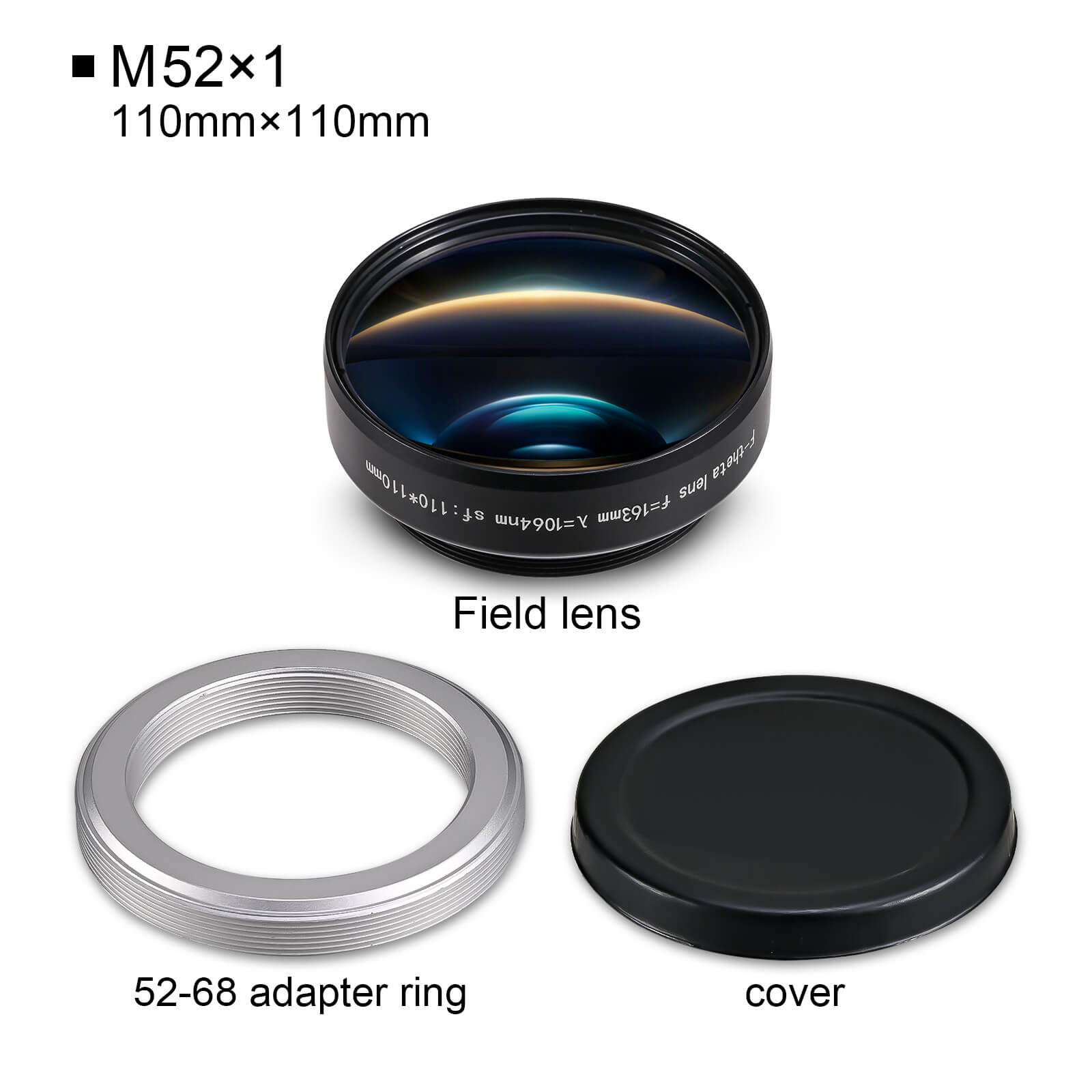

Package List

F Theta Field Lens*1

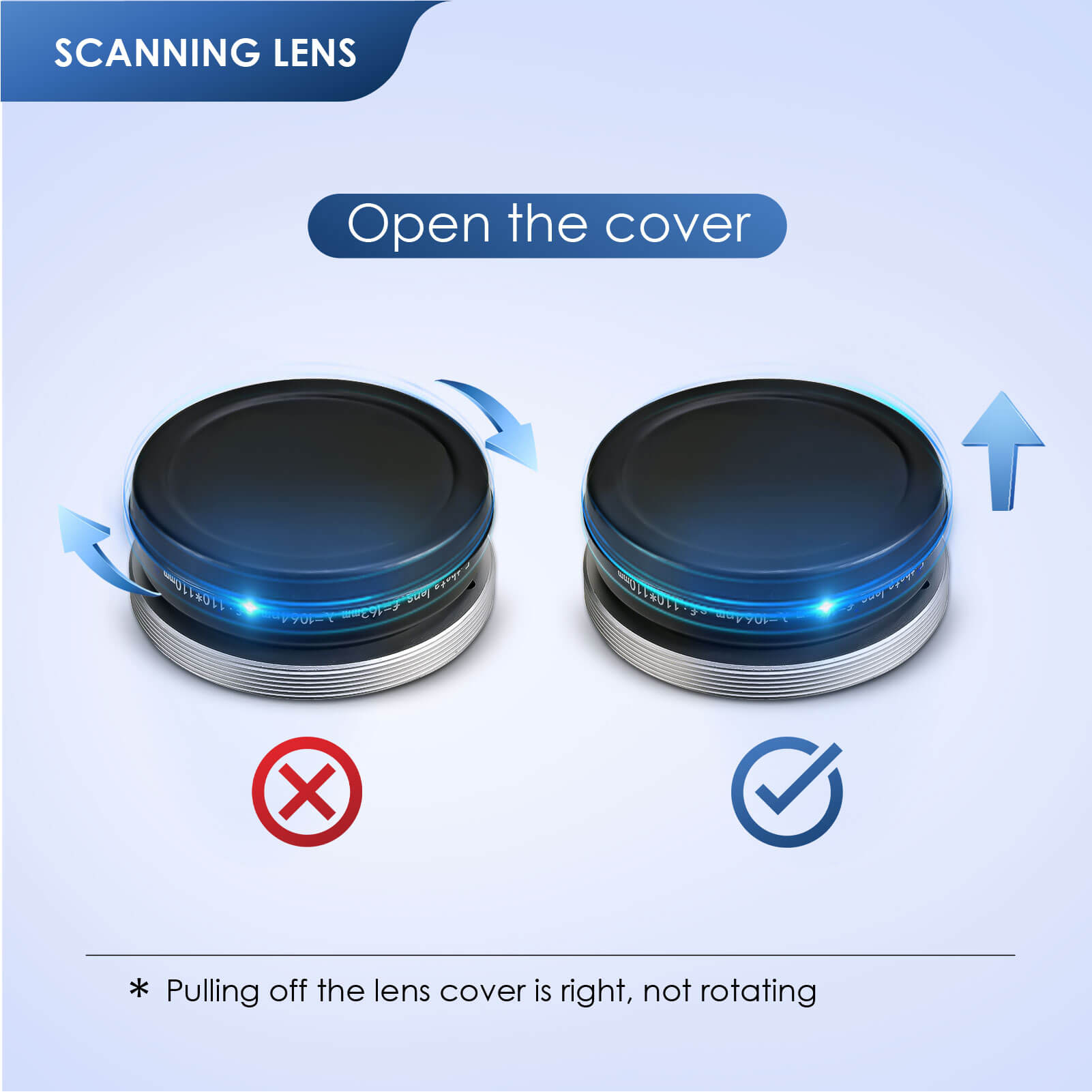

Field Mirror Cover*1

52-68 Adapter Ring*1
