Dimension
Working Dimension: 8’’ x 12’’ (200 mm x 300 mm)
Package Dimension: 37” x 25” x 16” ( 94 cm x 64 cm x 41 cm )
0.5” Standard Z-depth ( workspace height with the vented level board installed )
2.5” Max Z-depth ( workspace height with vented level board removed )
Net Weight: 48.5 lbs. ( 22 kg )
Package Weight: 63 lbs. ( 28.6 kg )
Monport 40W Benefits
Compatible with Lightburn
With the upgraded control board, this 40w machine can be compatible with Lightburn, which is the most popular and widly-used softare on the market.
Laser Protective Glasses for Free
Lasers emit radiation in the invisible form of light. This pair of laser protective glasses is certified to protect your eyes against radiation damage by looking at the class 4 laser in any way (directly, indirectly, or even looking at the laser dot on a surface can damage your eyes).
3 LED Monitor Displays
There are 3 LED displays with real-time data. They can monitor the water temperature, laser temperature and the current power, which help you to find wheter any problem occurs.
Red Dot Guidance

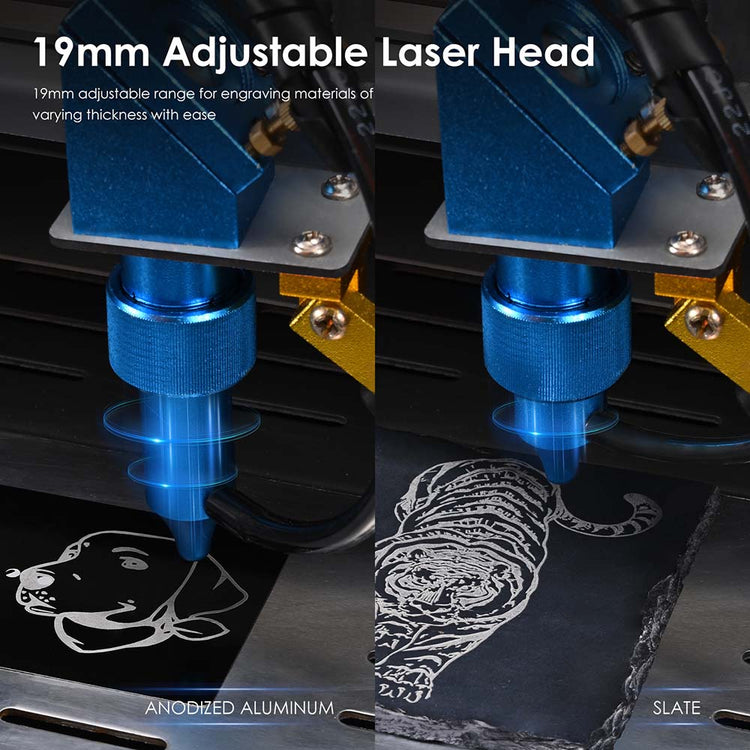

It mounts on the laser head which shows the laser path of the machine and can offer more precision when lining up cutting and engraving.
No Need for Other Motherboard
The Lightburn supported control panel has already installed in this machine, so you don't need to buy another motherboard. Just connect this k40 to your computer then play it!
40W CO2 Engraver Features
Compact & Portable Design
The Monport 40W laser engraver fits well on most hobby worktables, with its space-saving design.
Suitable for Beginners
With 40w of CO2 laser power, an affordable price & easy-to-operate process, Monport's 40w machine is the perfect choice for beginners to learn laser engraving.
High Precision
A professional laser system ensures stability and reliability.
Dual Work Bed
2 options for more possibilities.
A stabilizer clamp: It can keep irregularly shaped objects in place.
A vented level board: It is for regular shapes.
Built-in Ventilation
Integrated fan to boost laser performance, improve ventilation, and reduce noise.
The exhaust port helps to create a safe work environment, so you can vent the fumes to the outdoors.
Emergency Stop Button
The E-Stop safety button is easy to operate in emergency situations. It is used to shut off machinery in an emergency when it cannot be shut down in the usual manner.
Water Cooling System
The easy setup water cooling system, including a compact water pump & built-in hoses. This ensures the machine works within the tube's temperature parameters for longer life.
A better cooling system with distilled water only so that it can keep the temperature of the laser tube maintained at 60–70°F (16–21°C).
40W CO2 Engraver Specification
Lightburn Software
Lightburn is a layout, editing, and control software for your laser cutter.
With Lightburn laser software, you can:
Import artwork in a variety of common vector graphic and image formats (including AI, PDF, SVG, DXF, PLT, PNG, JPG, GIF, and BMP).
Arrange, edit, and even create new vector shapes within the editor, with powerful features like offsetting, boolean operations, welding, and node editing.
Apply settings like power, speed, number of passes, cut order, brightness & contrast, dithering mode, and much more.Send the result directly to your laser cutter.
Laser System
Rated at over 40 watts
Easy-to-adjust Optical path
12mm Focal lens diameter & 2.0" Focal distance
20mm Mirror diameter
Recommended engraving speeds: 100–255 mm/s
Recommended cutting speeds: 1–20mm/s (actual speed depends on the thickness of the material)
Lighting
An LED light strip under the lid gives you a good illuminated view of the work area
Mechanics
Linear rails system— Custom extruded aluminum linear rails
Motion— Equipped with stepper X, Y axis, plus mechanical limit switches
Cooling— Easy-to-setup water pump and hoses
Ventilation— On-board exhaust fan, as well as an exhaust hose so you can vent the fumes to the outdoors
Standard 110V, AC power connection
Temperature
Recommended Operating Temperature: 60F-104F (16°C-40°C)
Attention: the Co2 water temperature must be controlled at 60–70°F (16–21°C).
GCode License Key
This is a LightBurn software license key for users with GCode controllers (DIY / hobby). It unlocks the trial version of the software for permanent use, and allows installing on up to two computers, PC, Mac, Or Linux.
The GCode version supports Cohesion3D, Smoothieware, Grbl, Marlin, and Grbl-LPC based controllers. (Note, if you have an Emblaser from Darkly Labs, please purchase your LightBurn license directly from them)
Please use the trial period to test it with your hardware to be sure it will work for you.
Laser Tube Lifetime
Up to 2,000 operation hours depending on power setting
Attention:
Running the machine at a high power frequently will surely shorten the service life of the laser tube as follows:
Minimum Power 10–40% → laser tube lifespan 1,500–2,000 Hours
Optimal Power 40–70% → laser tube lifespan 1,000–1,200 Hours
Not Recommended but Accessible Power 70–100% → laser tube lifespan 400–600 Hours
Material Capability
Can safely engrave or cut any laser-compatible material
Wood, glass, acrylic, fabric, leather, paper, cardboard, rubber
Contact us with questions on specific materials not listed. If necessary, we can test it for you
Package Contents
Laser Engraver Machine *1
A Pair of Laser Protective Glasses *1
Accessory Bag *1
Venting Exhaust Duct *1
USB 2.0 Cable *1
Power Cord *1
Stainless Steel Clamp *1
Water Pump *1
Double-sided Tape *1
Silicone Sealant *1
Random Material for Test *1
Wrench *1
A Focus Plate *1
Instruction Manual *1
Warranty & Certifications
1-year warranty on all 40W laser machines and parts
6-month warranty on laser tube
FDA Approved & CE Certified
About More
Download the Software: LaserDRW K40 Whisperer
Download the Settings: 40W Parameter Settings
Download the Manual: 40W Lightburn User Manual
We offer compatible accessories: CW3000, Rotary Axis
We sponsor CDR files: https://kokorosastudio.com
Attention
The GCode CANNOT be returned or refunded.
Please leave your Email and name as a note when checkout, this GCode will be sent to your email within 5-7 business days.
