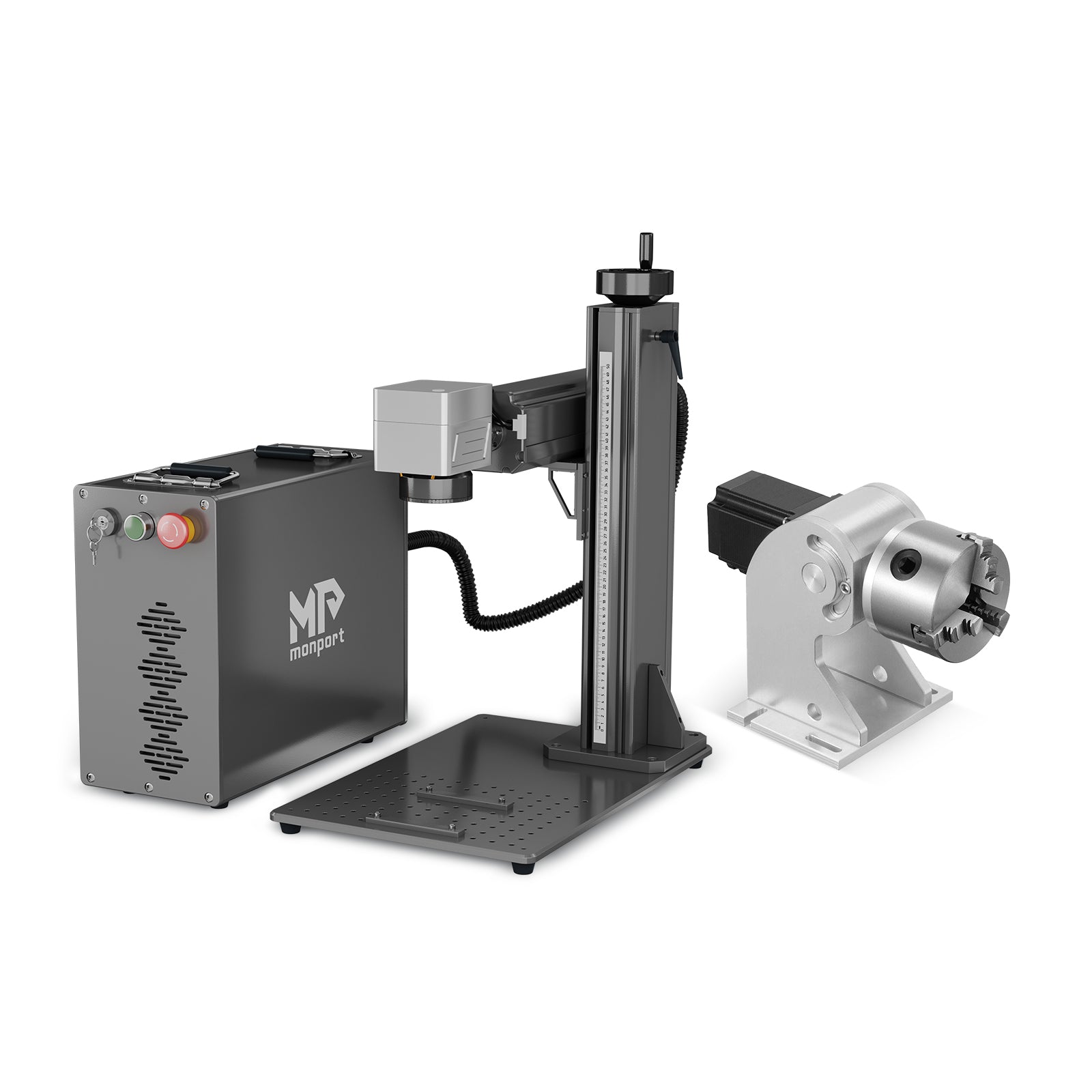

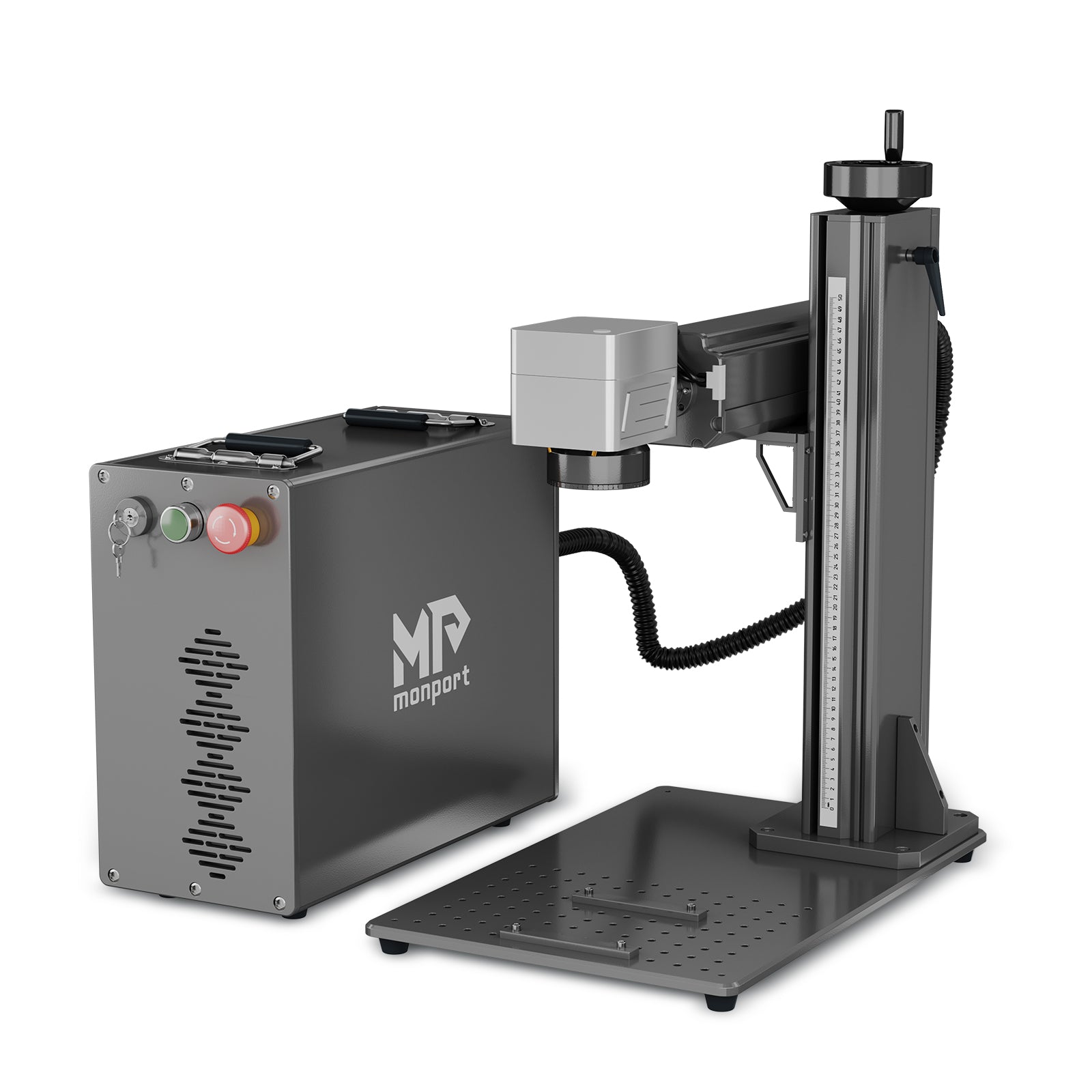

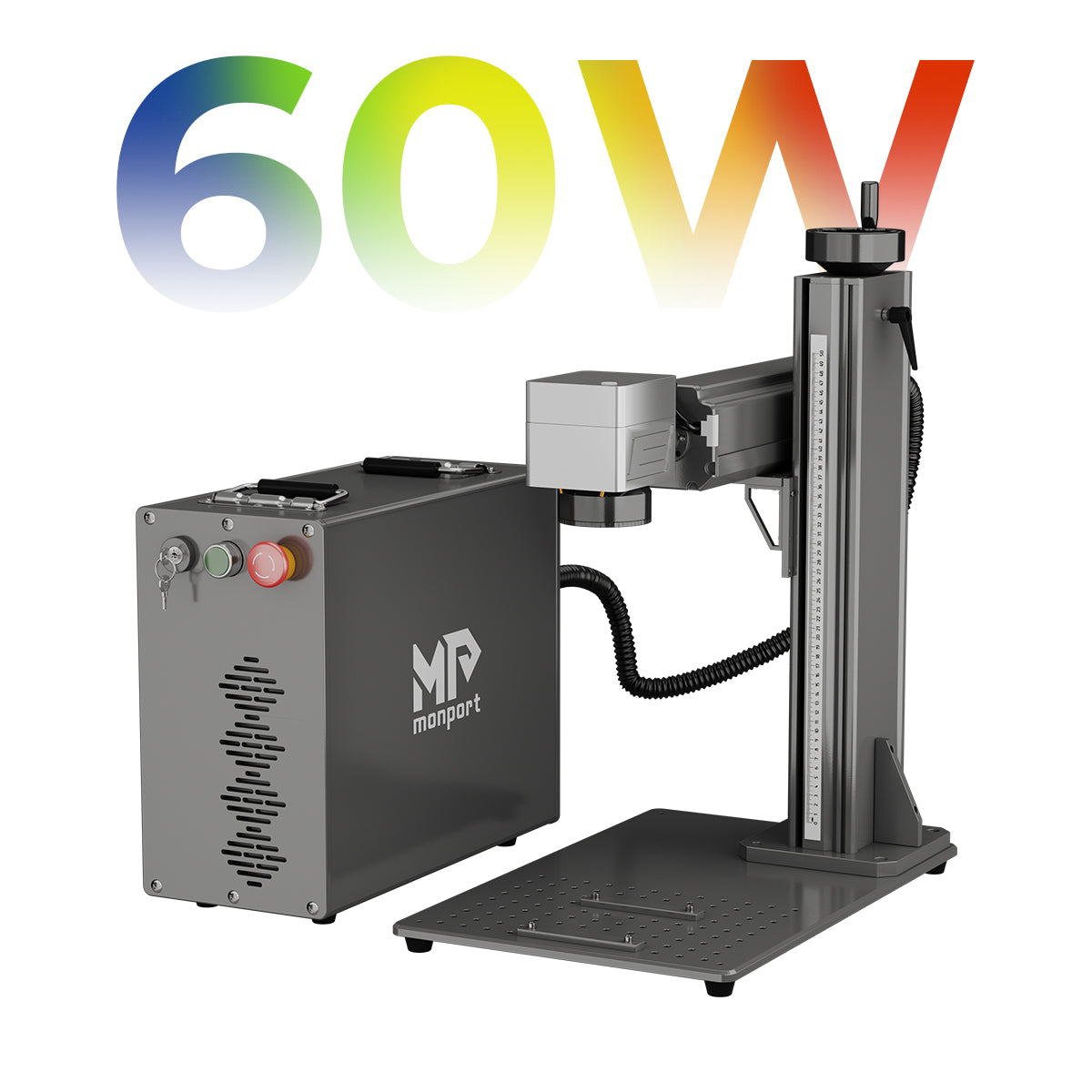

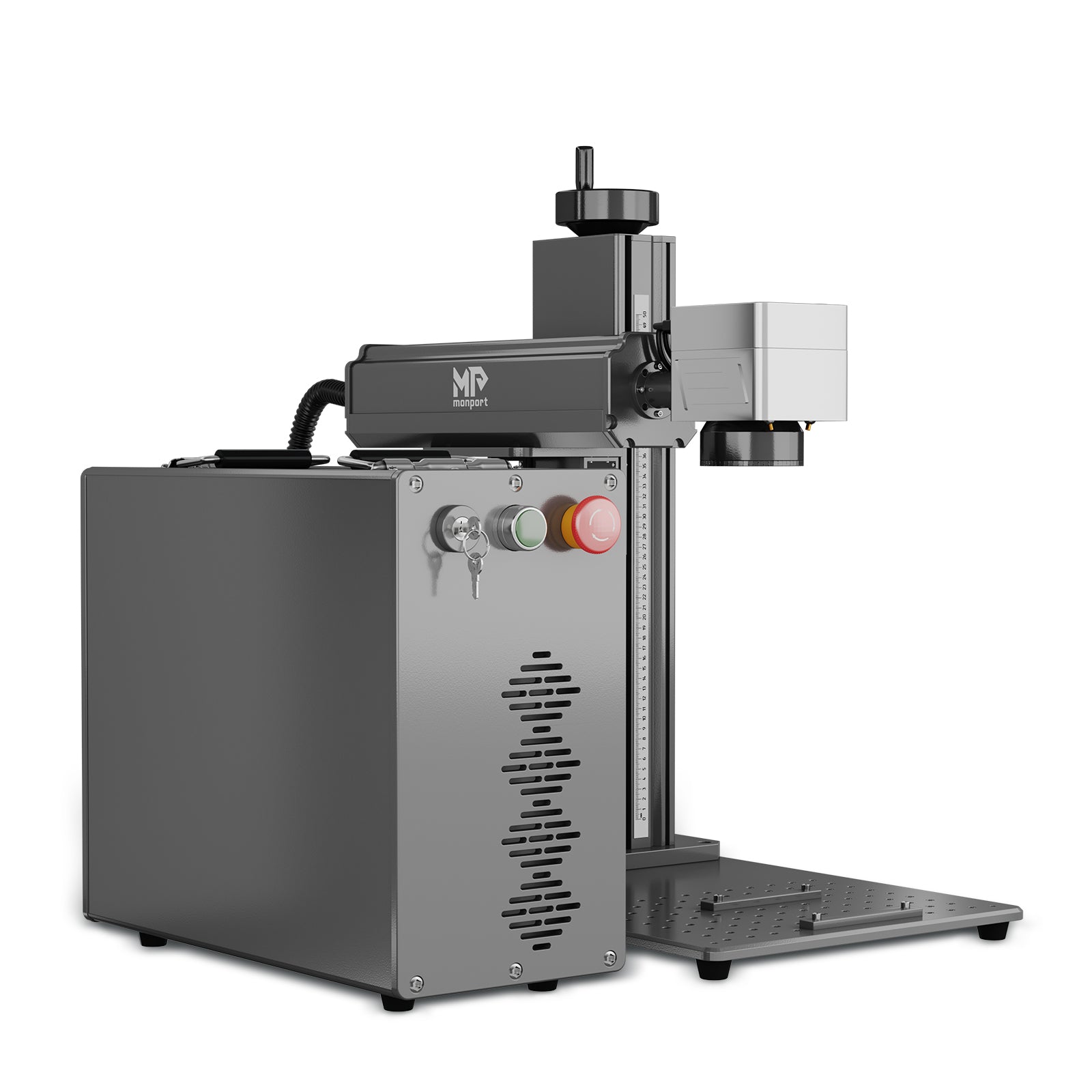

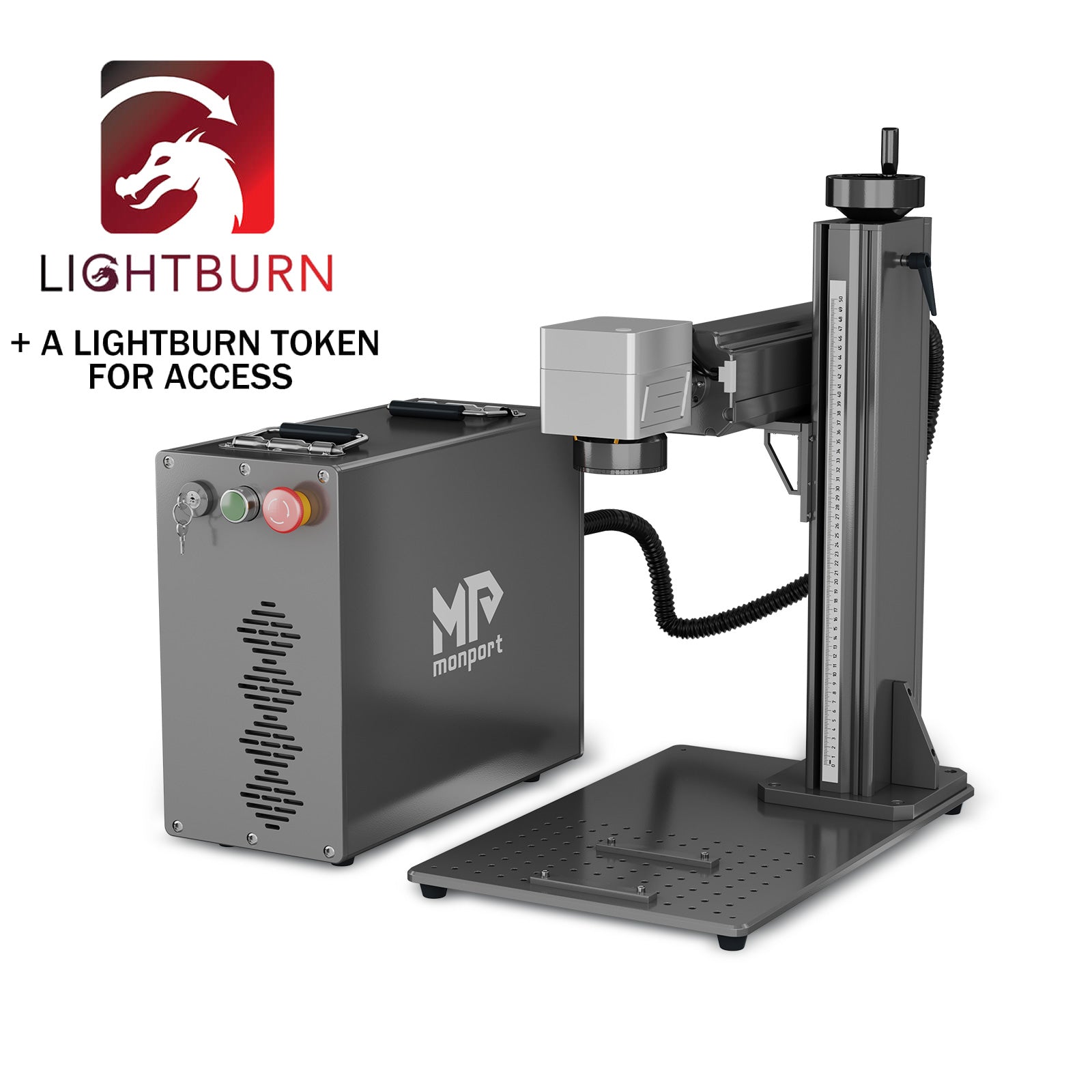

Monport GPro 60W Split MOPA Fiber Laser Engraver & Marking Machine With Manual Focus
Monport GPro 60W Split MOPA Fiber Laser Engraver & Marking Machine With Manual Focus
Low stock
Couldn't load pickup availability
Dimension & Specifications
Dimension & Specifications
Laser Power: 60W
Working Area: 6.9"x 6.9"

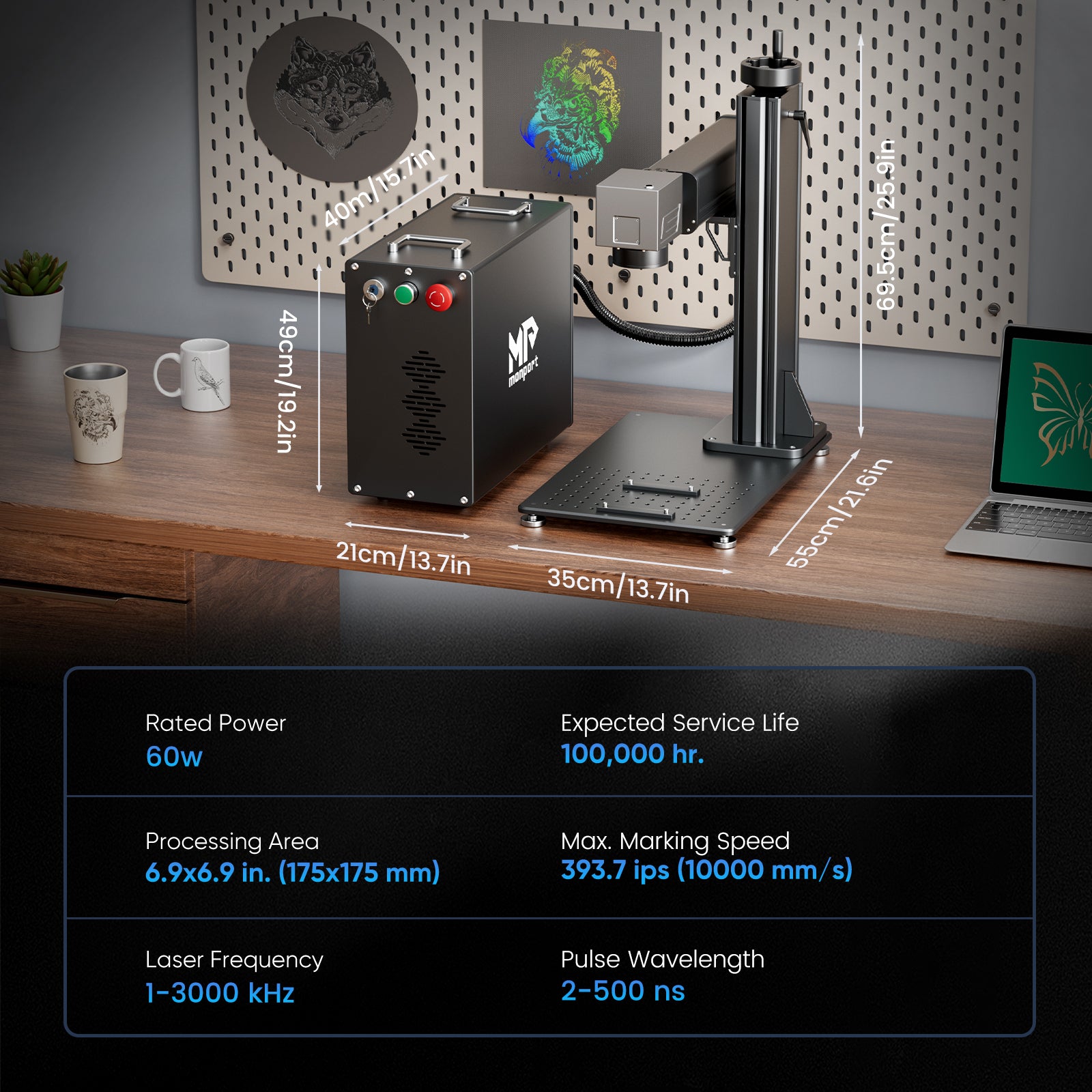

Machine Dimension: 35cm x 55cm x 69.5cm
Package Dimension: 48cm x 76cm x 80cm
Wavelength: 1060-1080 nm

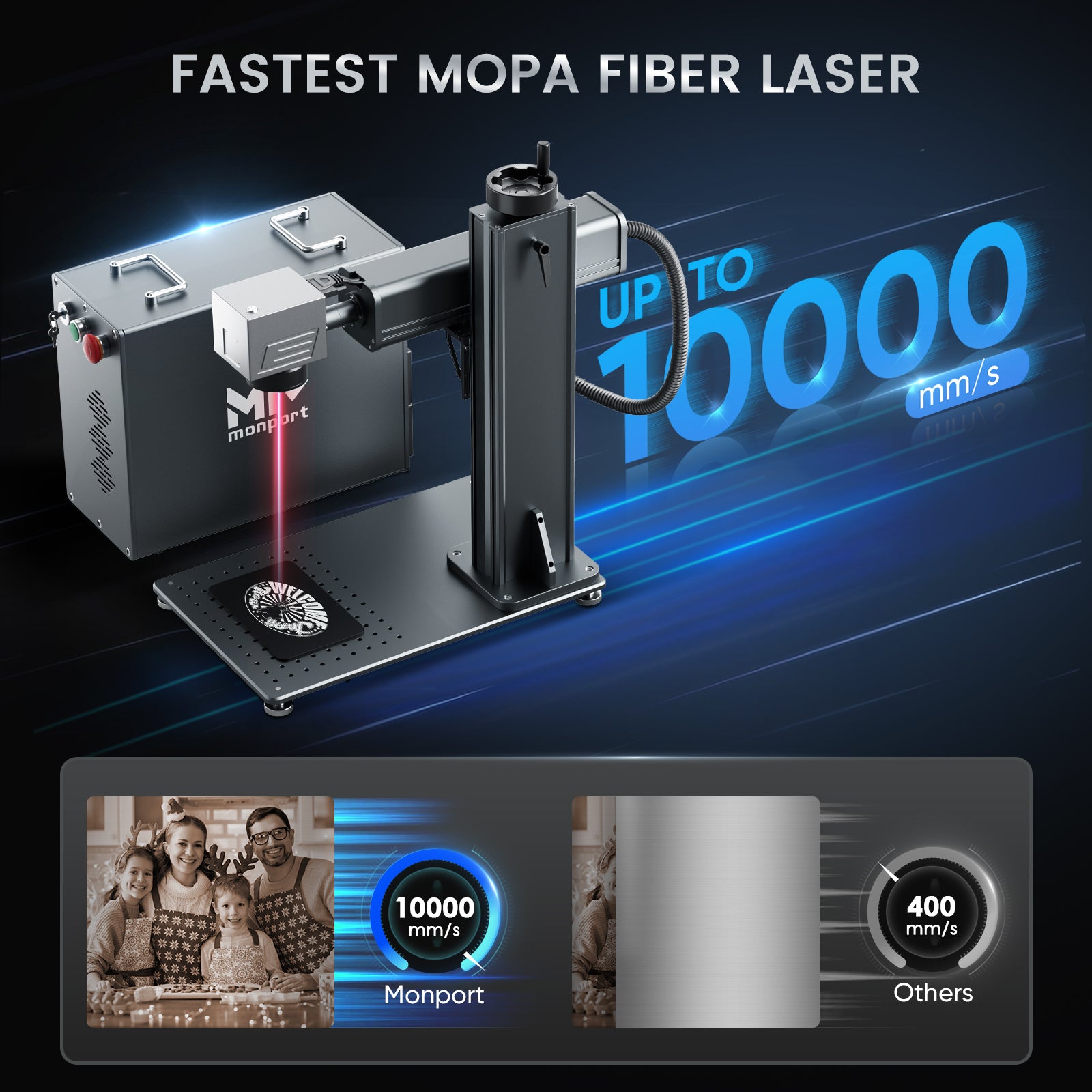

Marking Speed: 10000mm/s （Up to 15000mm/s）
Expected Service Life (MTTF): 100,000 hr.
GPro60 MOPA Fiber Features
GPro60 MOPA Fiber Features

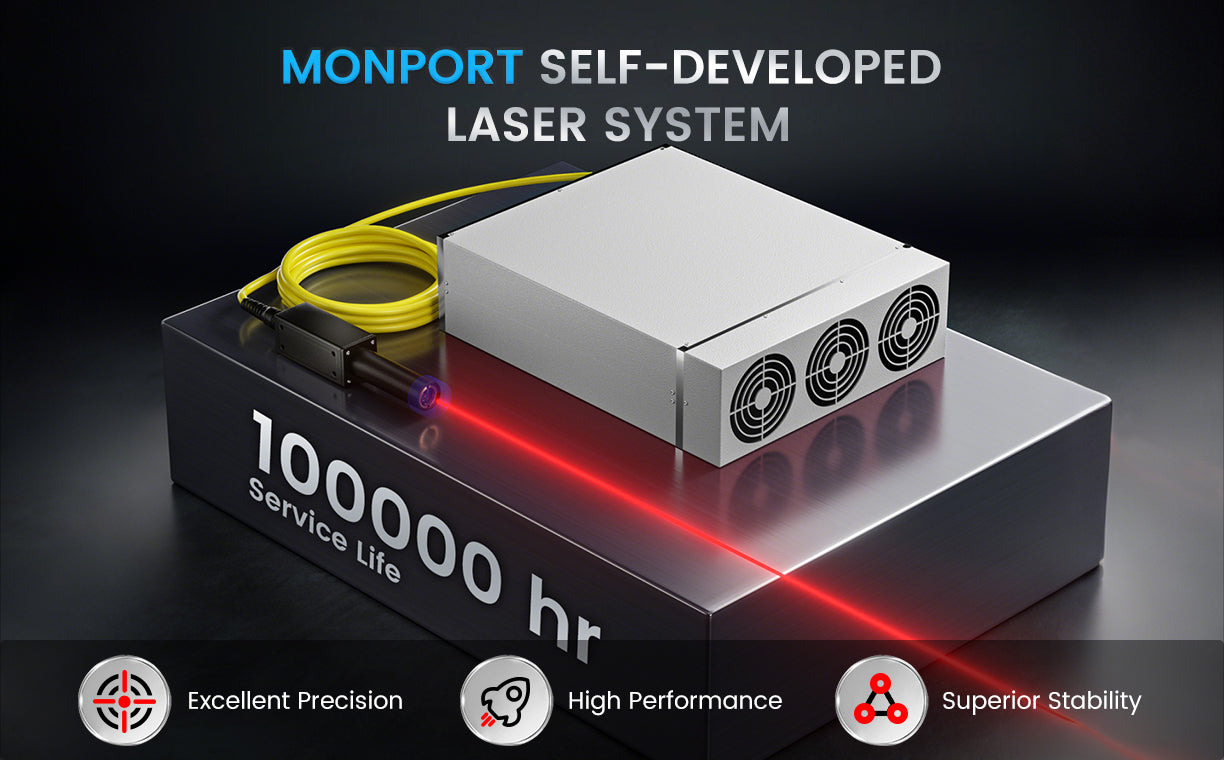

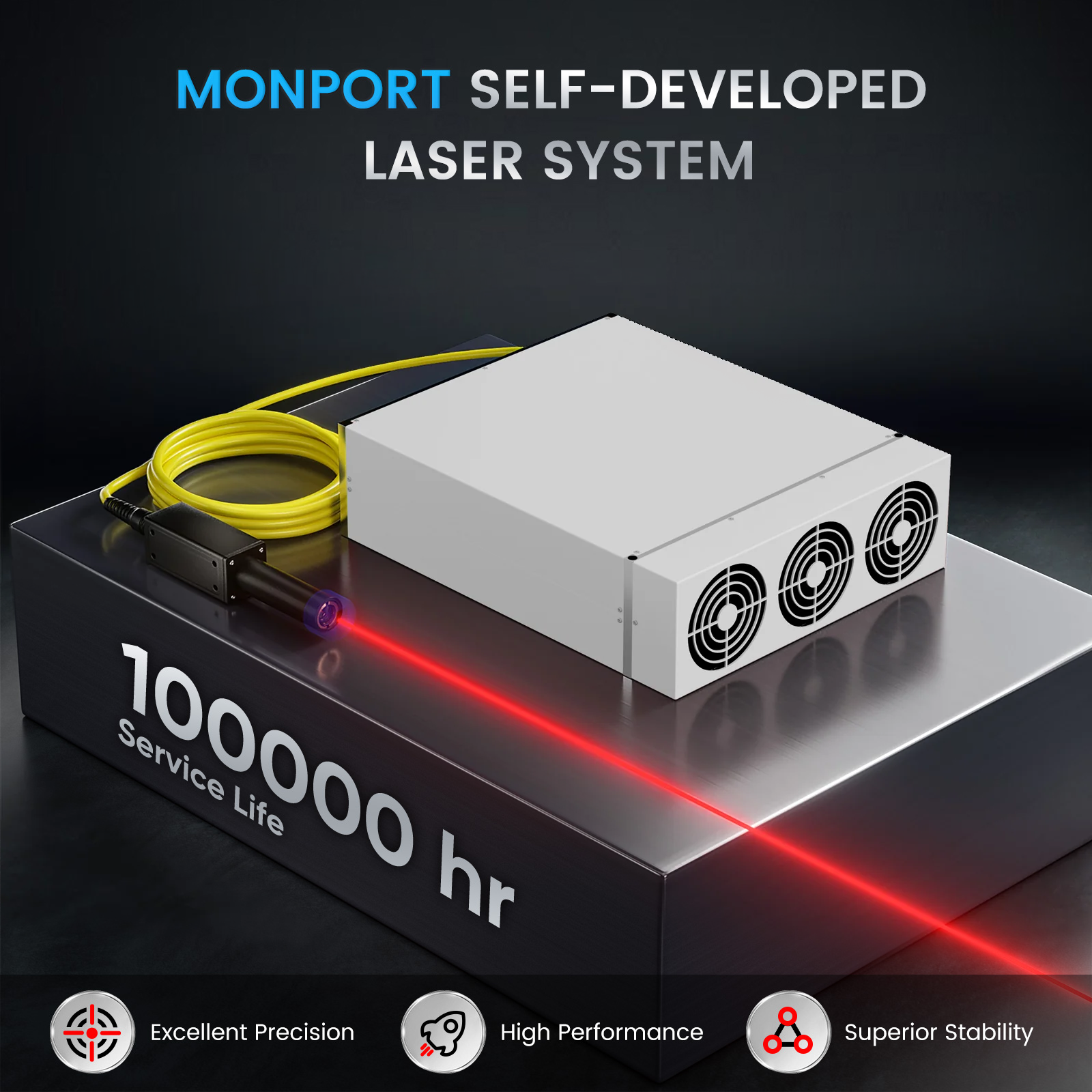

Powerful Laser Core & High-Performance Marking Controller
Monport's 60W fiber laser marking machine, equipped with the marking controller, ensures powerful performance and precision, removing limitations on your creativity and processing capabilities.
Versatile Laser Marking Capabilities

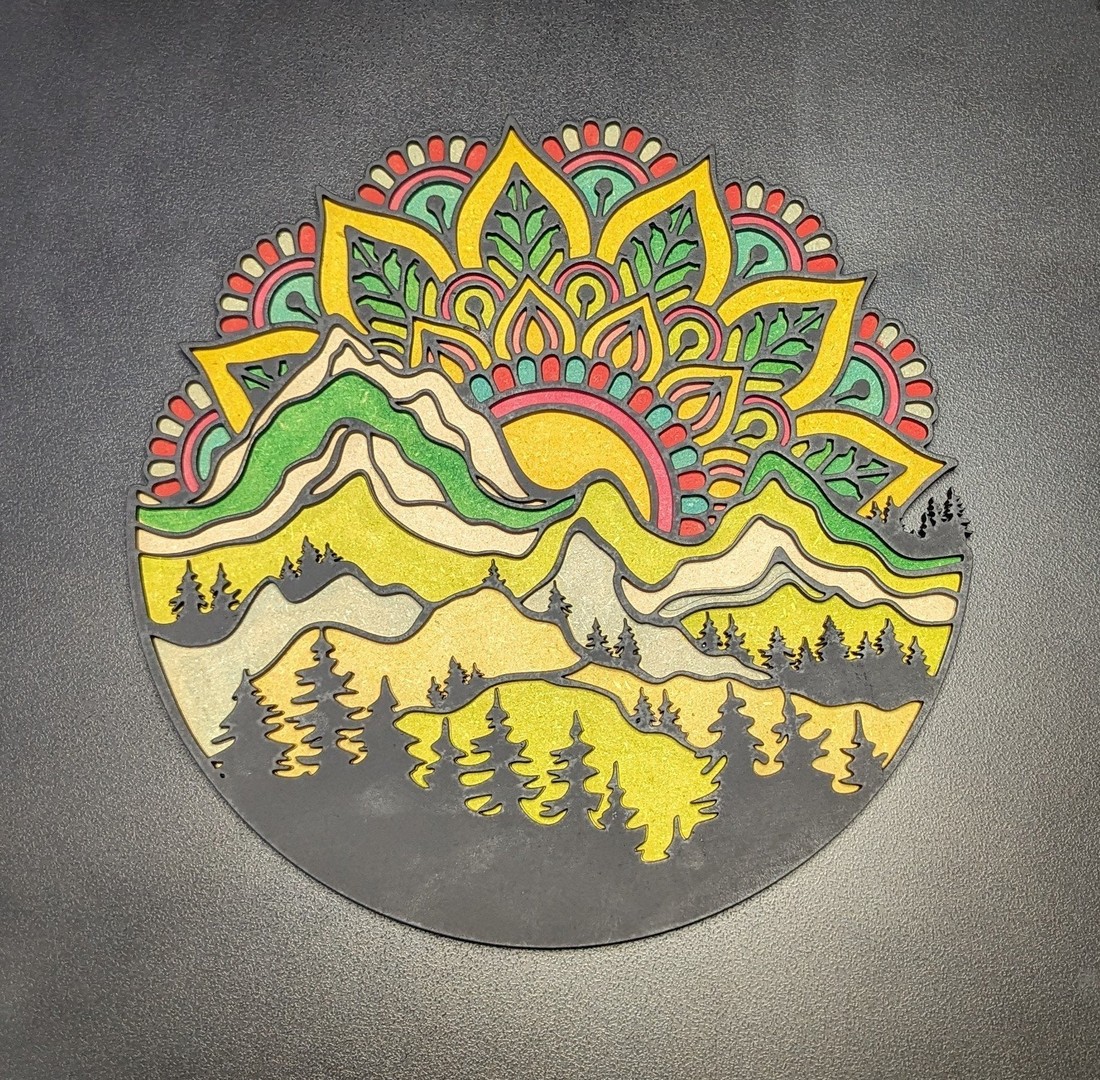

Our fiber laser engraver, with adjustable frequency (1-3000kHz) and pulse width (2-500ns), enables vibrant stainless steel markings, anodized aluminum black engraving, precise cutting, drilling, and intricate designs on plastic buttons. Experience rich and precise visual effects with ease.

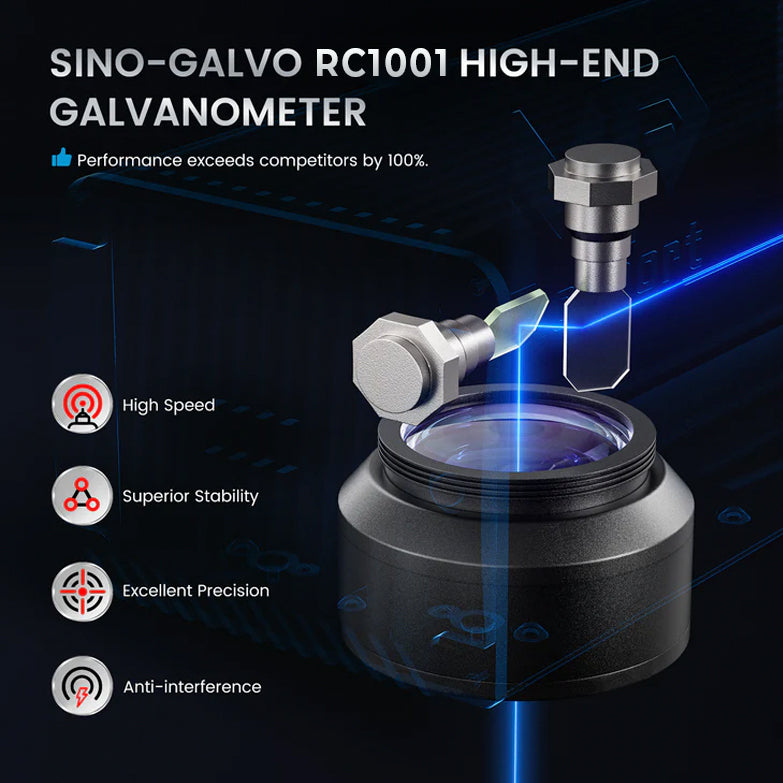

Premium Galvanometer
A superior fiber laser demands a top-notch galvanometer. Monport opts for the high-end Sino-Galvo RC1001 galvanometer for exceptional stability, precise positioning, rapid marking speed, and robust anti-interference capabilities. The overall performance surpasses other brands by 100%.

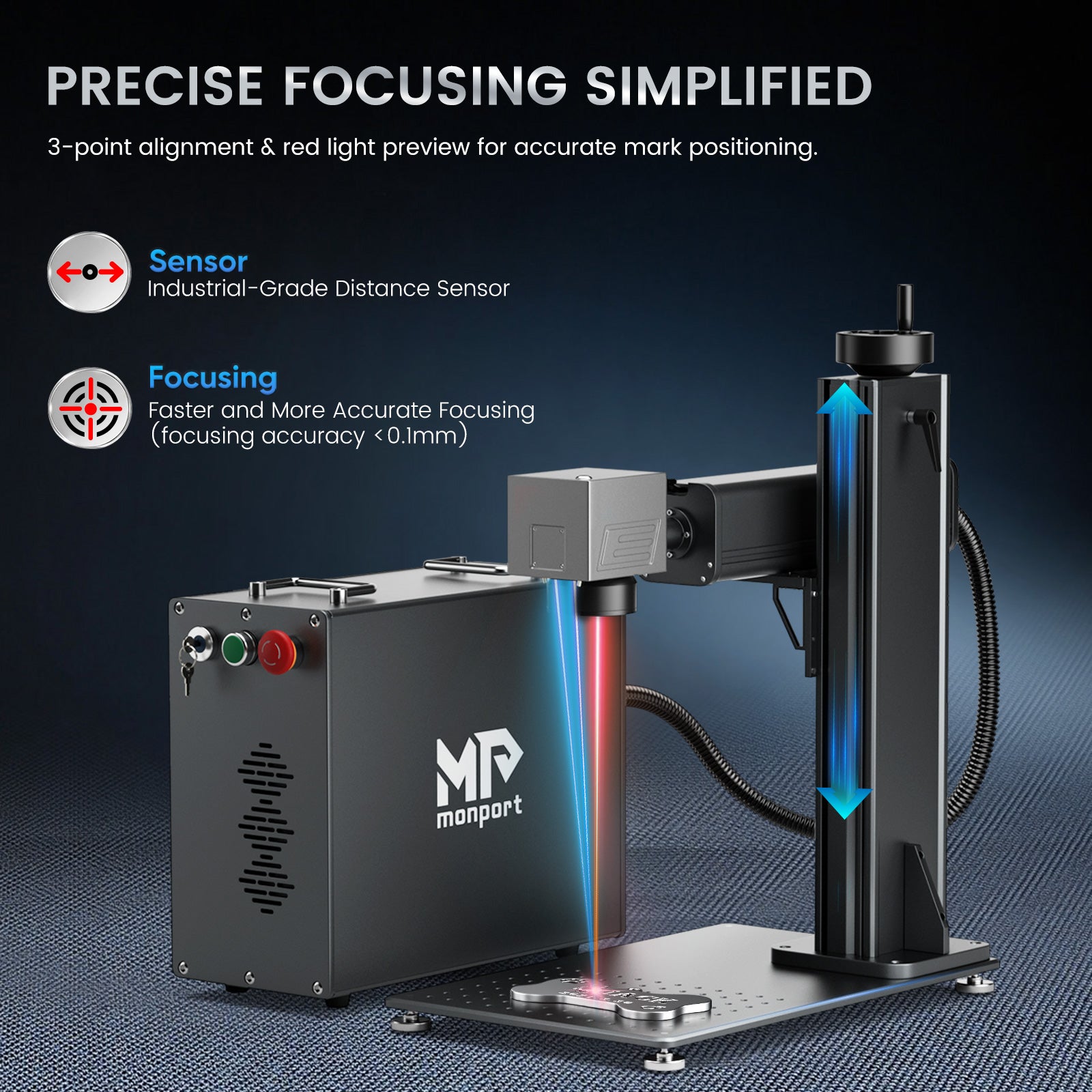

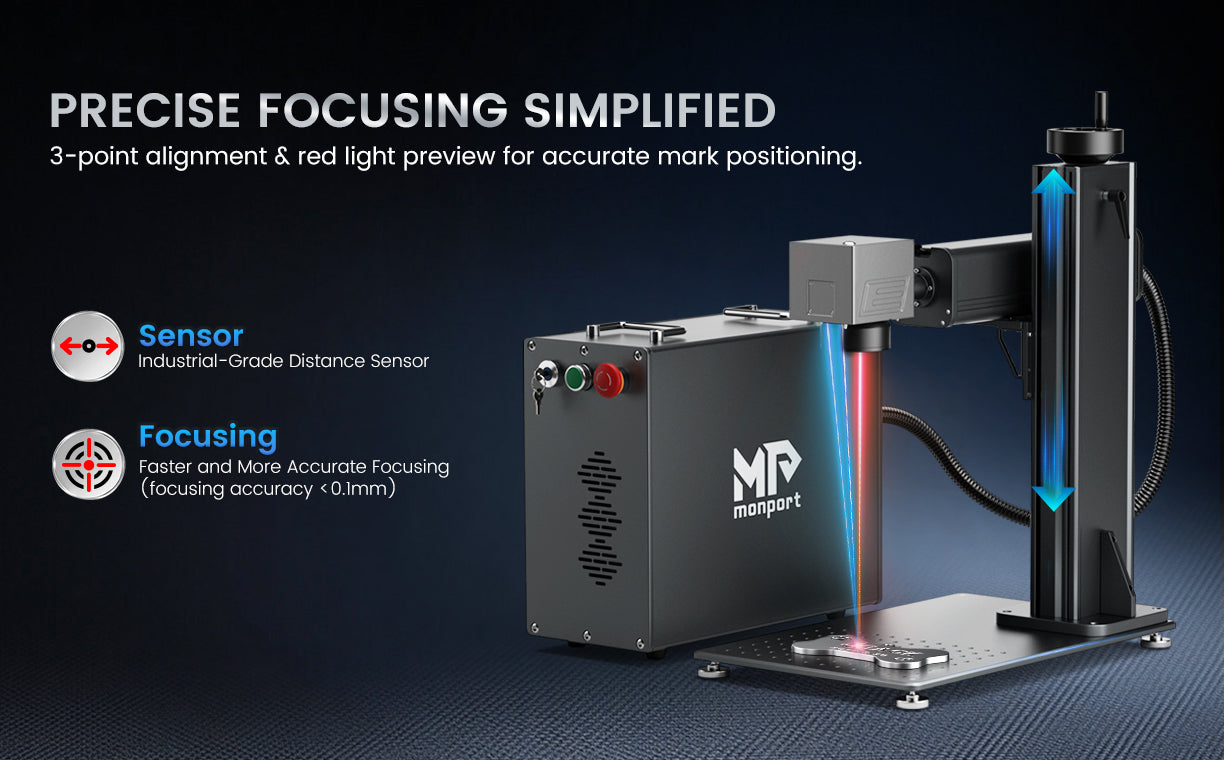

Easy Focus with Precision
Our laser engraver machine features three-point red light alignment for easy focusing and allows for red light preview. Preview the marking area through the red light, swiftly confirming your marking positions with precision.
Enhanced Security Features
We've adopted the access key to prevent any unauthorized laser use, while the large E-stop button is readily available for emergencies, ensuring high levels of safety.

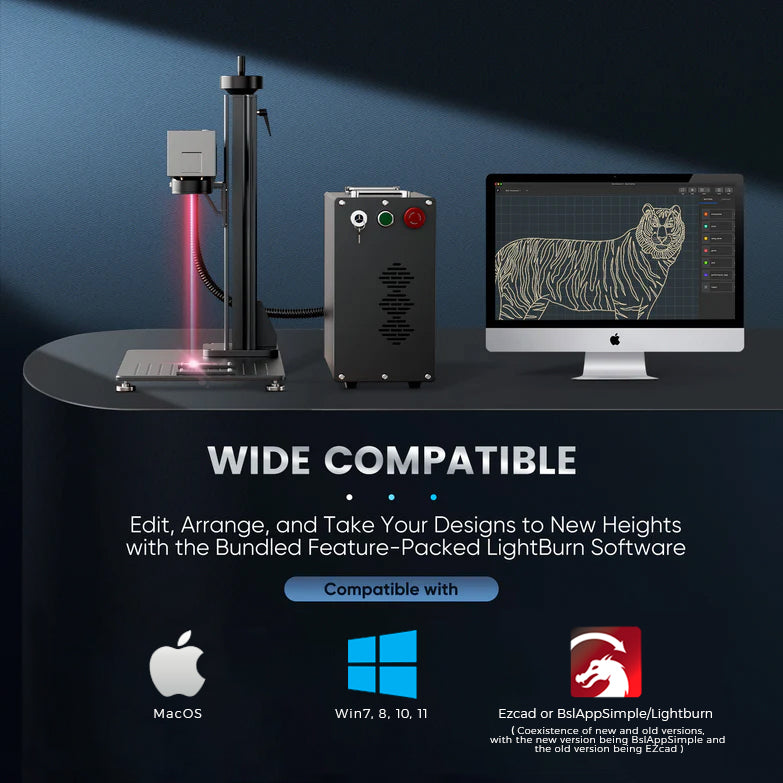

Versatile Operating Software
Monport's fiber laser marker is compatible with EZcad or BslAppSimple（Coexistence of new and old versions, with the new version being BslAppSimple and the old version being EZcad）for seamless operation, catering to both Windows and Mac systems. Note that LightBurn is exclusively available for use on Mac systems.

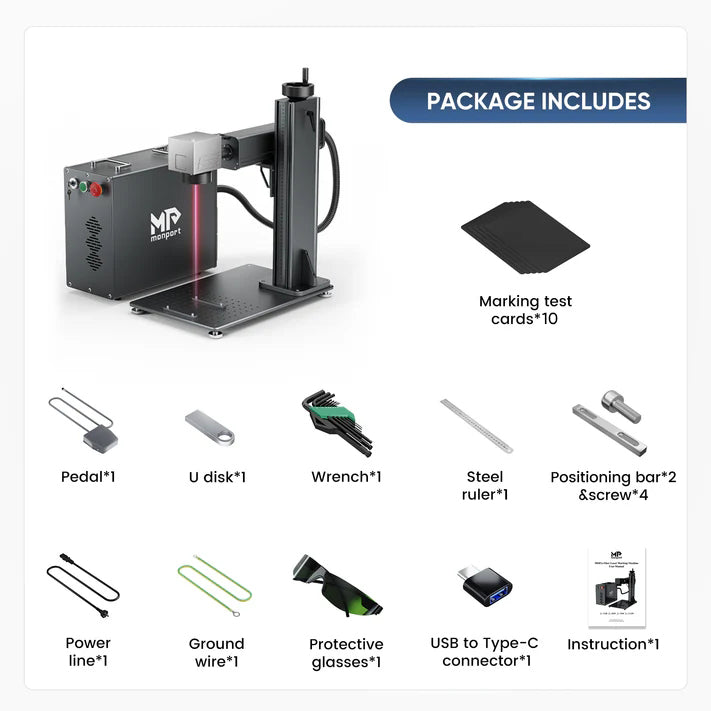

Package Contents
Package Contents
Fiber marking machine*1
Marking test cards*10
Pedal*1
U disk*1
Wrench*1
Steel ruler*1
Positioning bar*2
Screw*4
Power line*1
Ground wire*1
Protective glasses*1
USB to Type-C connector*1
Instruction*1
Warranty & Certifications
Warranty & Certifications
- 2-year warranty on all GPro MOPA fiber laser machines and parts
- 1-year warranty on fiber laser source
About Delivery
About Delivery
Some tips about delivery in the continental US (except preorder)
You will get the tracking number within 2 business days.
The delivery time varies from 3 to 7 business days.
If your address is outside the continental US, Please read the Shipping Policy carefully before buying.
If the arrived outer package is damaged, please refuse to sign for it and take a photo, then contact Monport via support@monportlaser.com.
We are very glad to help you with the exchange process.
User Manual
User Manual
Download the User Manual Here
Questions & Answers
Have a Question?
-
Can you expand the laser working area on the 60W split Mopa model?
Yes, We can expand the laser working area on the 60W split Mopa model. The largest working area can be expanded to 300mm*300mm. You can change the working area of the machine by replacing the field mirrors of different sizes.
| Product | GPro 30 | GPro 60 | GPro 80 | GPro 100 | |
| Model | JL-F30W | JL-F60W | JL-F80W | JL-F100W | |
| Rated Power | 30W | 60W | 80W | 100W | |
|
Max. Marking Depth on a Single Pass |
0.003in. (0.08mm) |
0.004in. (0.1mm) |
0.005in. (0.13mm) |
0.006in. (0.15mm) |
|
| Beam Quality M2 | ＜1.35 | ＜1.8 | |||
| Maximum Pulse Energy | 0.8 | 1.5 | |||
| Required Operating Environment |
Max. Humidity | <70% | |||
| Temp. Range | 40–95°F(5–35°C) | ||||
| Input Power | 110-120V 60Hz | ||||
| Expected Service Life | 100,000 hr. | ||||
| Central Wavelength | 1060-1080 nm | ||||
| Laser Frequency | 1-3000 kHz | ||||
| Pulse Width | 2-500 ns | ||||
| Beam Diameter | 7±1 mm | ||||

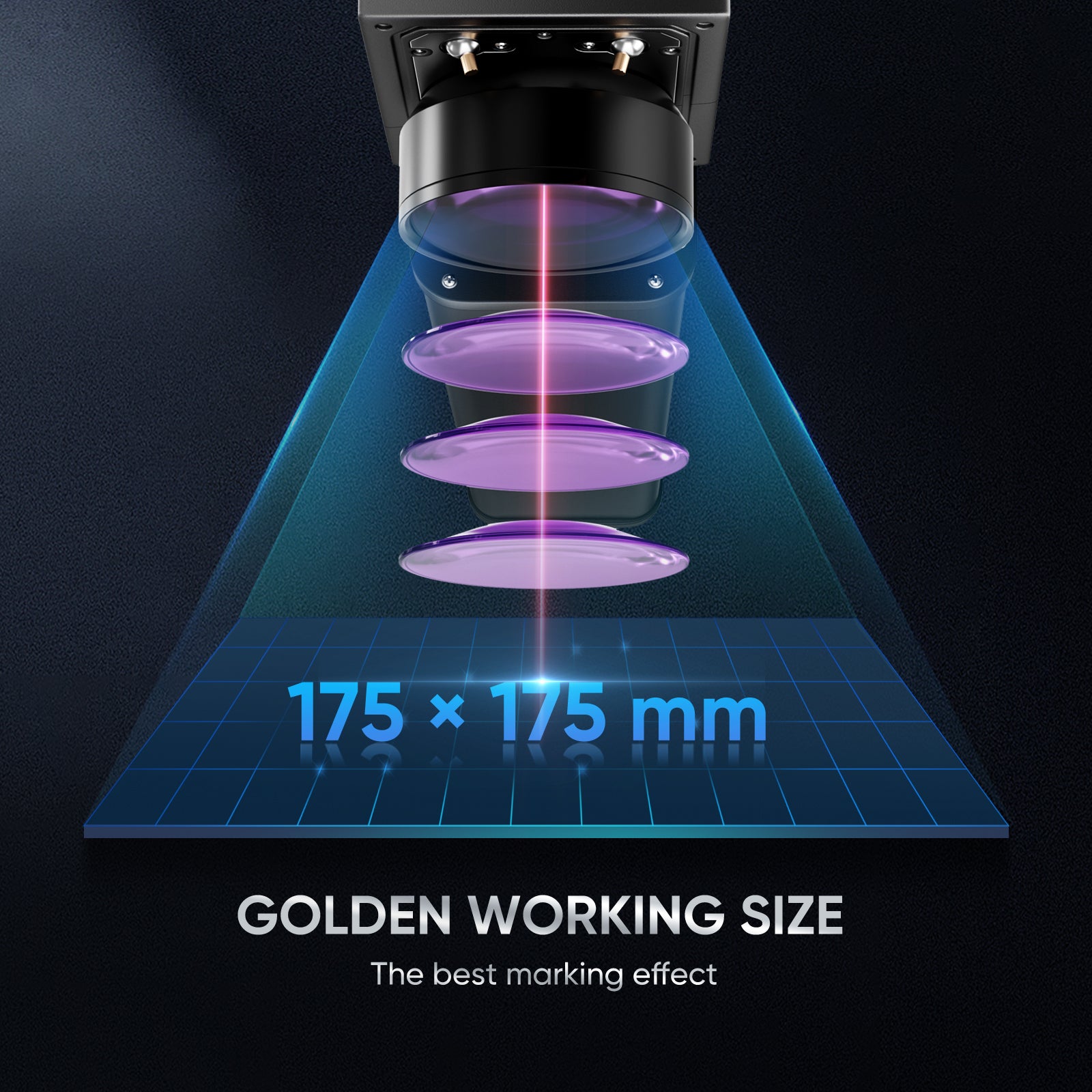

| Processing Area | 6.9×6.9 in.(175×175 mm) | ||||
| Max. Marking Speed | 393.7 ips(10000 mm/s) | ||||
| Min. Marking Depth | 0.0002 in.(0.005 mm) | ||||
| Min. Line Width | 0.006 in.(0.15 mm) | ||||
| Precision | ±0.1 µm | ||||
| Provided Operating Software | EZcad or BslAppSimple（Coexistence of new and old versions, with the new version being BslAppSimple and the old version being EZcad） | ||||
