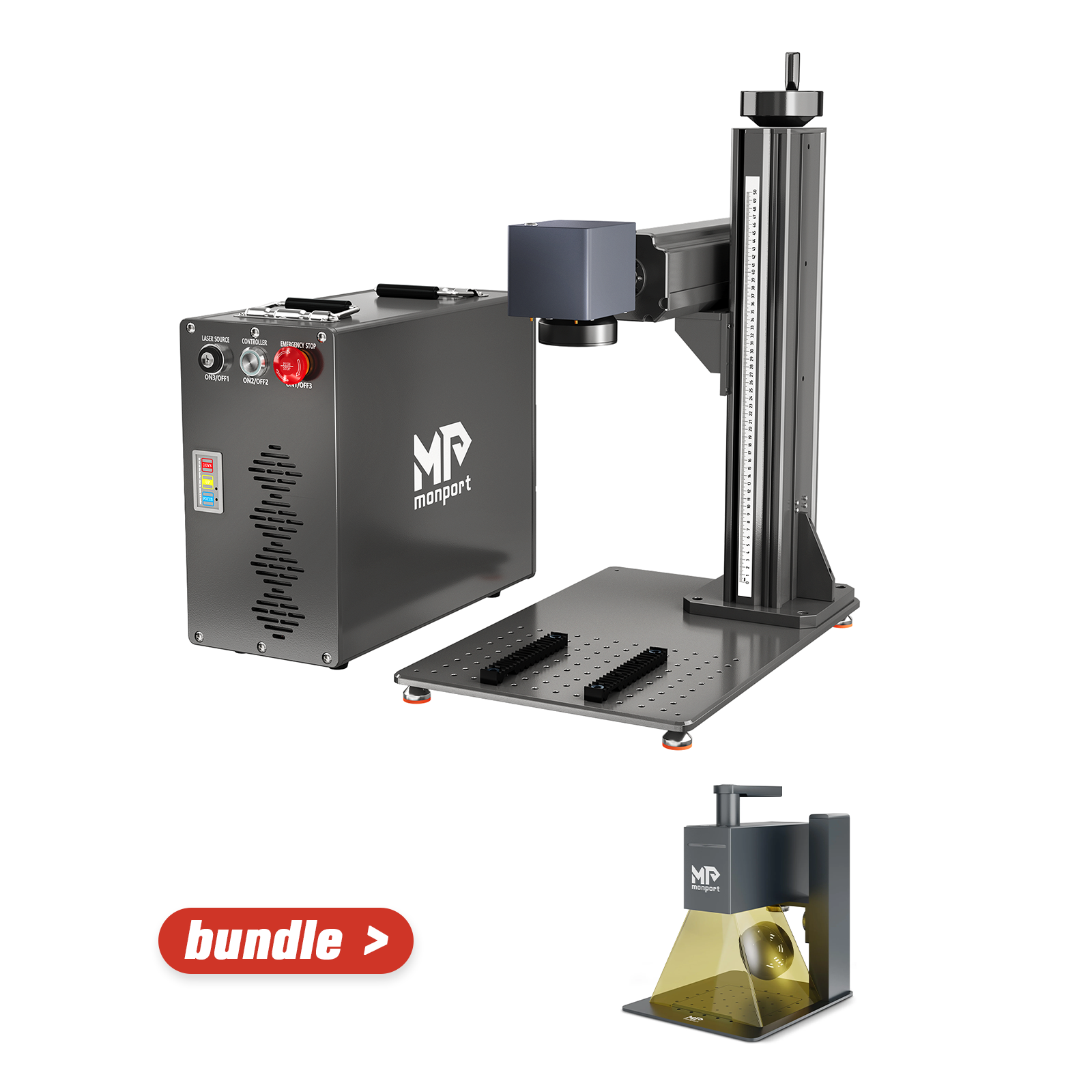

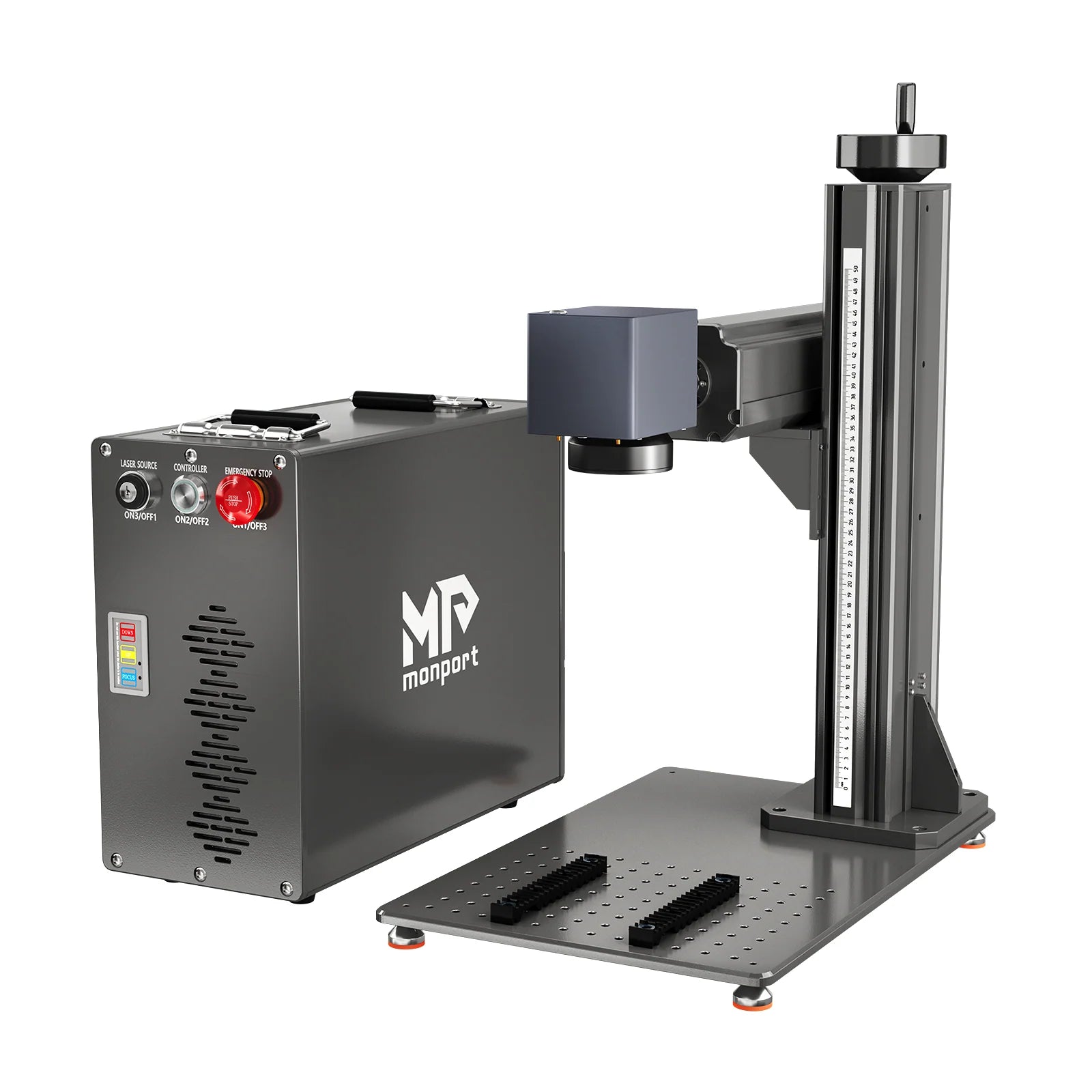

Monport GPro 100W Split MOPA Fiber Laser Engraver & Marking Machine With Manual Focus
Monport GPro 100W Split MOPA Fiber Laser Engraver & Marking Machine With Manual Focus
Couldn't load pickup availability
Dimension & Specifications
Dimension & Specifications
Laser Power: 100W
Machine Dimension: 35cm x 55cm x 69.5cm
Package Dimension: 48cm x 76cm x 80cm
Working Area: 6.9"x 6.9"
Wavelength: 1060-1080 nm
Marking Speed: 10000mm/s （Up to 15000mm/s）
Expected Service Life (MTTF): 100,000 hr.
GPro100 MOPA Fiber Features
GPro100 MOPA Fiber Features
Powerful Laser Core & High-Performance Marking Controller
Monport's fiber laser marking machine utilizes a specially tailored 100W MOPA laser. Paired with the marking controller, it removes limitations on your creativity and processing capabilities.
Versatile Laser Marking Capabilities
Our fiber laser engraver, with adjustable frequency (1-3000kHz) and pulse width (2-500ns), enables vibrant stainless steel markings, anodized aluminum black engraving, precise cutting, drilling, and intricate designs on plastic buttons. Experience rich and precise visual effects with ease.
Premium Galvanometer
A superior fiber laser demands a top-notch galvanometer. Monport opts for the high-end Sino-Galvo RC1001 galvanometer for exceptional stability, precise positioning, rapid marking speed, and robust anti-interference capabilities. The overall performance surpasses other brands by 100%.
Easy Focus with Precision
Our laser engraver machine features three-point red light alignment for easy focusing and allows for red light preview. Preview the marking area through the red light, swiftly confirming your marking positions with precision.
Enhanced Security Features
We've adopted the access key to prevent any unauthorized laser use, while the large E-stop button is readily available for emergencies, ensuring high levels of safety.
Versatile Operating Software
Monport's fiber laser marker is compatible with EZcad or BslAppSimple（Coexistence of new and old versions, with the new version being BslAppSimple and the old version being EZcad）for seamless operation, catering to both Windows and Mac systems. Note that LightBurn is exclusively available for use on Mac systems.
Quartz FTheta Field Lenses
Monport's 100W laser engraving machine uses quartz material FTheta field lenses, tailored for high-power laser processing. These lenses ensure accuracy, stability, and robust interference resistance, underscoring our commitment to precision in every aspect.
Package List
Package List
Fiber marking machine*1
Marking test cards*10
Pedal*1
U disk*1
Wrench*1
Steel ruler*1
Positioning bar*2
Screw*4
Power line*1
Ground wire*1
Protective glasses*1
USB to Type-C connector*1
Instruction*1
Warranty & Certifications
Warranty & Certifications
- 2-year warranty on all GPro MOPA fiber laser machines and parts
- 1-year warranty on fiber laser source
About Delivery
About Delivery
Some tips about delivery in the continental US (except preorder)
You will get the tracking number within 2 business days.
The delivery time varies from 3 to 7 business days.
If your address is outside the continental US, Please read the Shipping Policy carefully before buying.
If the arrived outer package is damaged, please refuse to sign for it and take a photo, then contact Monport via support@monportlaser.com.
We are very glad to help you with the exchange process.
User Manual
User Manual
Download the User Manual Here
| Product | GPro 30 | GPro 60 | GPro 80 | GPro 100 | |
| Model | JL-F30W | JL-F60W | JL-F80W | JL-F100W | |
| Rated Power | 30W | 60W | 80W | 100W | |
|
Max. Marking Depth on a Single Pass |
0.003in. (0.08mm) |
0.004in. (0.1mm) |
0.005in. (0.13mm) |
0.006in. (0.15mm) |
|
| Beam Quality M2 | ＜1.35 | ＜1.8 | |||
| Maximum Pulse Energy | 0.8 | 1.5 | |||
| Required Operating Environment |
Max. Humidity | <70% | |||
| Temp. Range | 40–95°F(5–35°C) | ||||
| Input Power | 110-120V 60Hz | ||||
| Expected Service Life | 100,000 hr. | ||||
| Central Wavelength | 1060-1080 nm | ||||
| Laser Frequency | 1-3000 kHz | ||||
| Pulse Width | 2-500 ns | ||||
| Beam Diameter | 7±1 mm | ||||
| Processing Area | 6.9×6.9 in.(175×175 mm) | ||||
| Max. Marking Speed | 393.7 ips(10000 mm/s) | ||||
| Min. Marking Depth | 0.0002 in.(0.005 mm) | ||||
| Min. Line Width | 0.006 in.(0.15 mm) | ||||
| Precision | ±0.1 µm | ||||
| Provided Operating Software | EZcad or BslAppSimple（Coexistence of new and old versions, with the new version being BslAppSimple and the old version being EZcad） | ||||
Questions & Answers
Have a Question?
-
I'm expert with Illustrator, Photoshop, Aspire, VistaSculpt, Plasticity. Own a sign biz. A Mac user. Can I use these programs to create files to be cut on your machine with Lightburn? I want to engrave and 3D engrave metals, rock, shale and clear cast Acrylic. I understand wood is not doable? What materials are unsuitable for this machine?
Hi. Our machine support BMP, GIF, JPG, JPEG, DXF, DST, Al.etc image formats. You can create files and export picture formats with Illustrator, Photoshop, Aspire, VistaSculpt, and Plasticity, and then cut them with Lightburn. Our machine can be used to engrave metal, rock, shale, opaque acrylic. It cannot be used to engrave clear cast acrylic. This machine is not suitable for engraving cloth, wood, and some materials that produce toxic gases when processed.
-
Hello, could I change the head and get a larger engraving area?? What is the largest area I can engrave with a head change?
Yes, you can replace the fiber lens and get a larger area. The largest area you can get is 300 lens. You can follow this link: https://monportlaser.com/collections/fiber-parts/products/monport-f-theta-m52-300mm-300mm-replacement-optical-scanning-lens-for-fiber-laser-engraver
