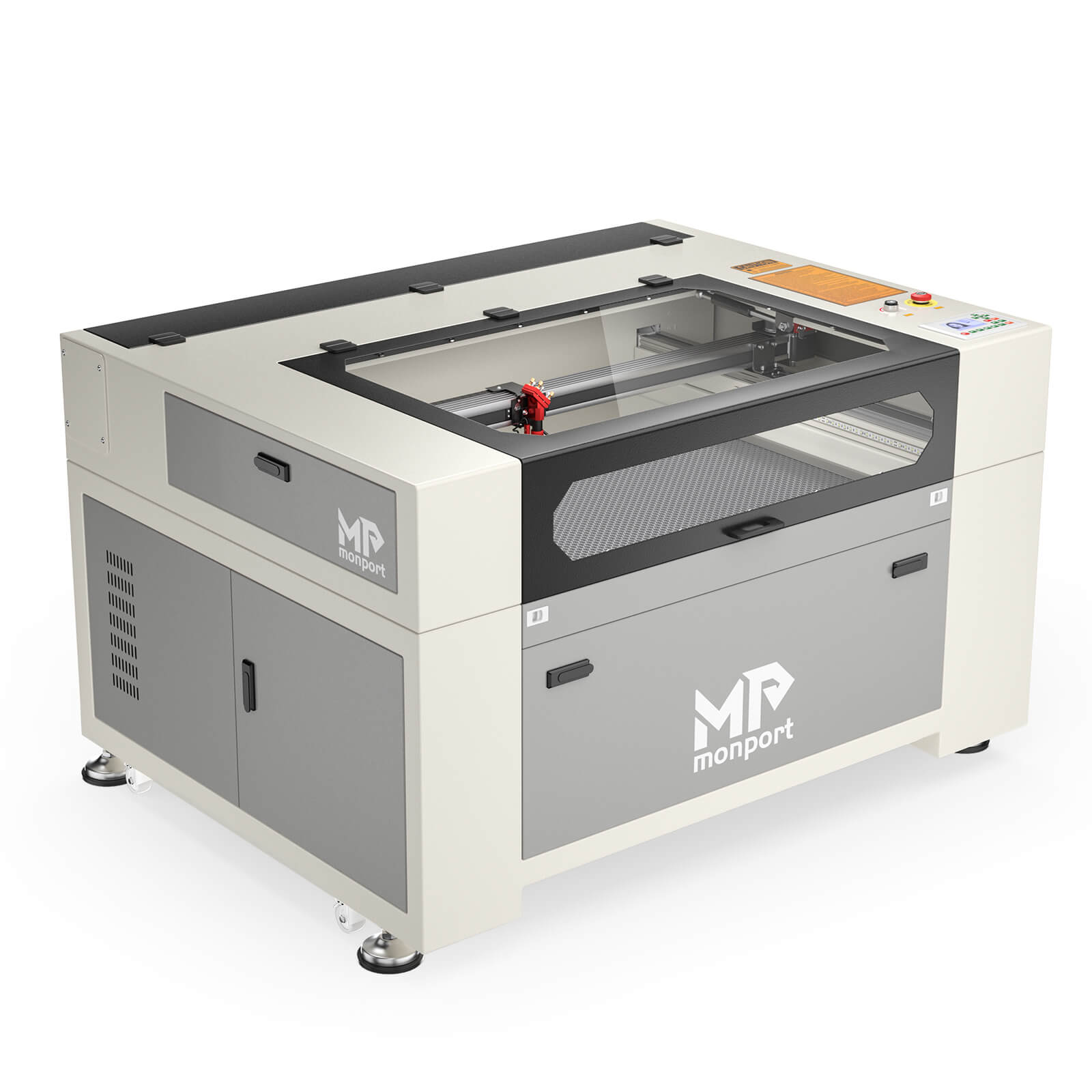

Machine Dimension: 57'' x 43'' x 35''( 145cm x 110cm x 90cm )

Package Dimension: 61” x 47” x 47” ( 156 cm x 120 cm x 119 cm )

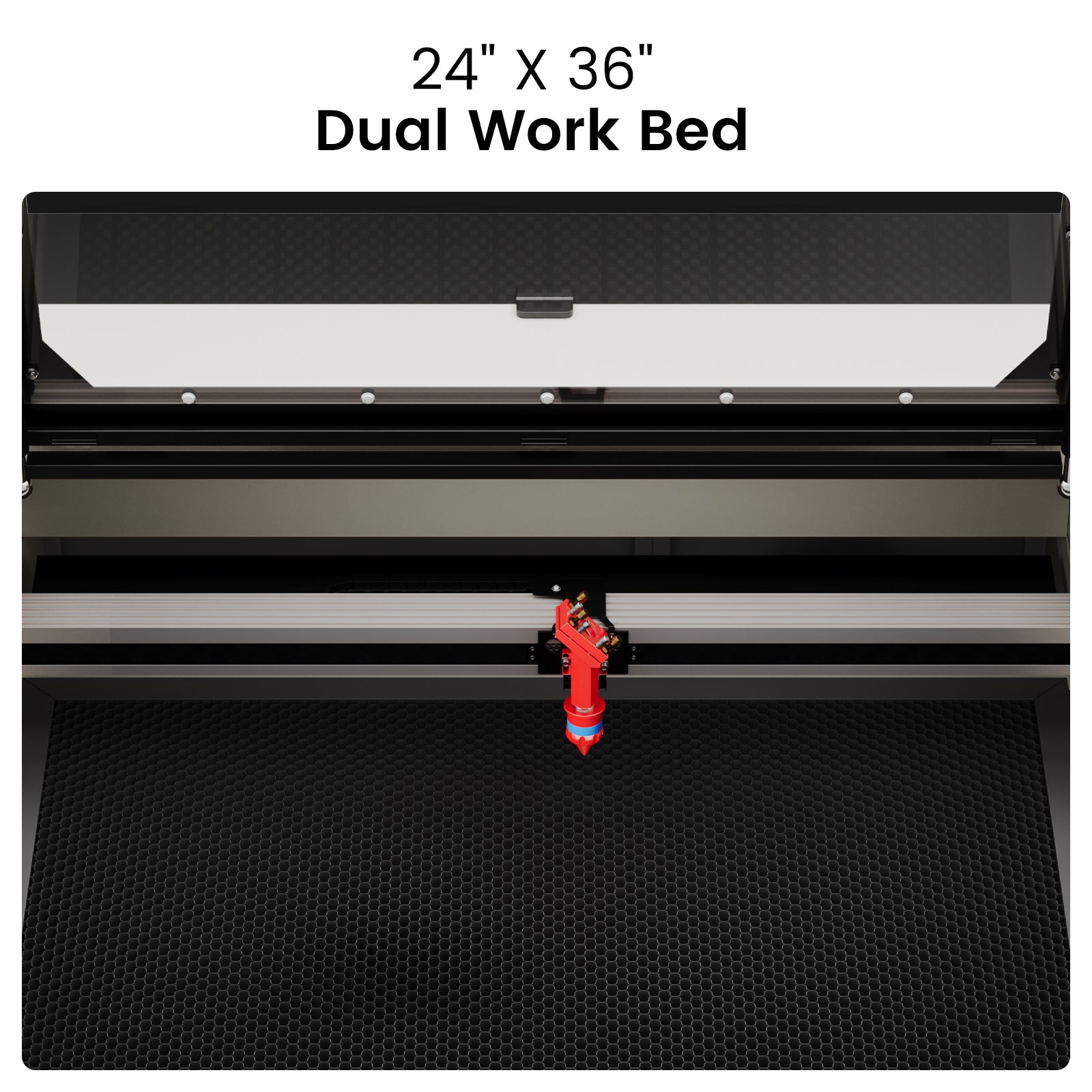

Working Dimension: 24'' x 36'' ( 61 cm x 91.5 cm )

Pass-through Dimension: 2.9'' x 37.4''( 7.5cm x 95 cm )

Max Engraving Speed: 800mm/s

Max Engraving Depth: 19.05mm

Min Engraving Depth: 0.01mm

Focal Lens Diameter: 18mm

Mirror Diameter: 25mm

Max Z-depth: 13.7"

Package Weight: 568.8 lbs ( 258 kg )

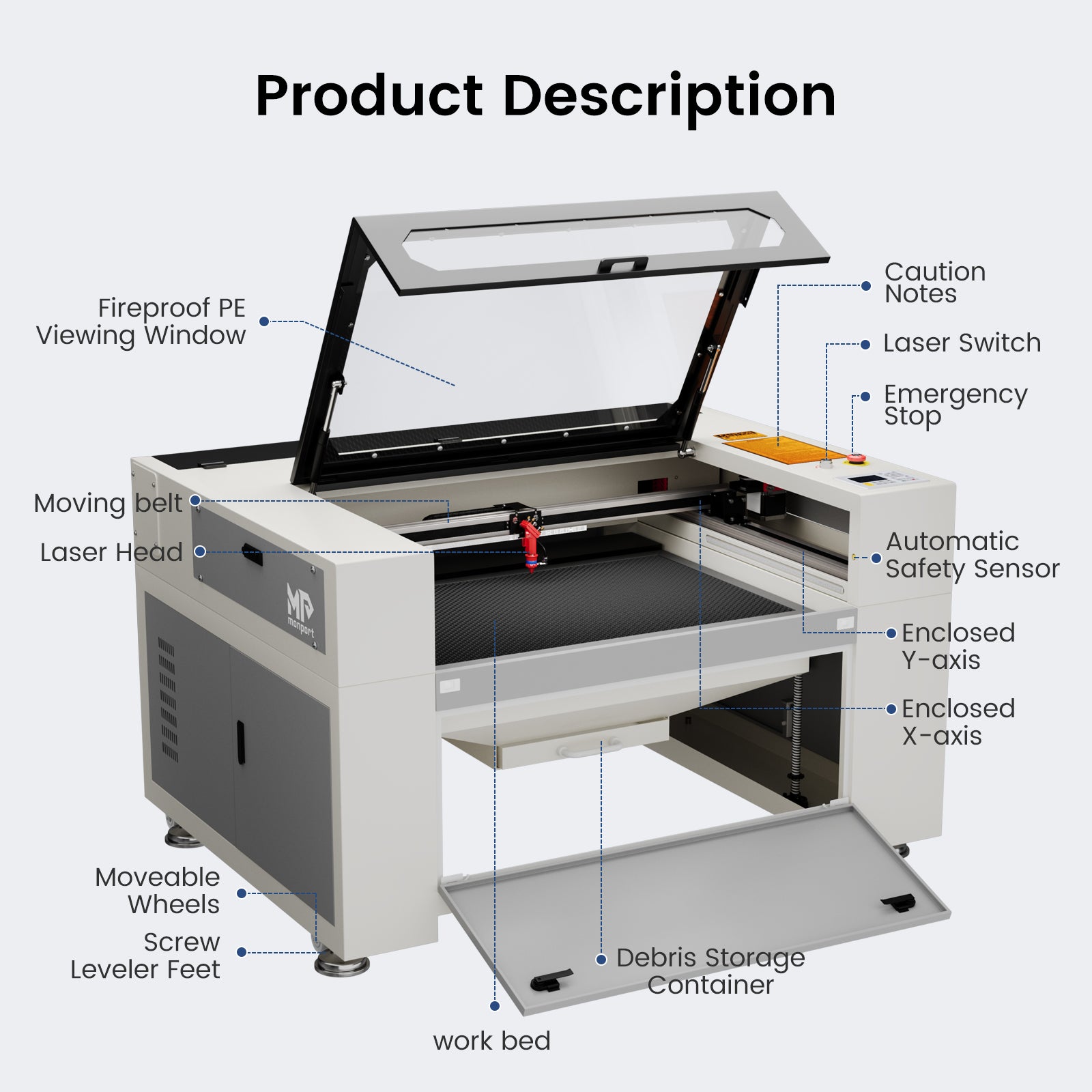

Fireproof Viewing Window

This viewing window is made from special fire-resistant polyester with iron frames. The melting point of this polyester ranges from 432° to 488° and the ignition temperature of it is over 1000°, which can dramatically decrease the possibility of fire accidents caused by the heat of laser burning the materials.

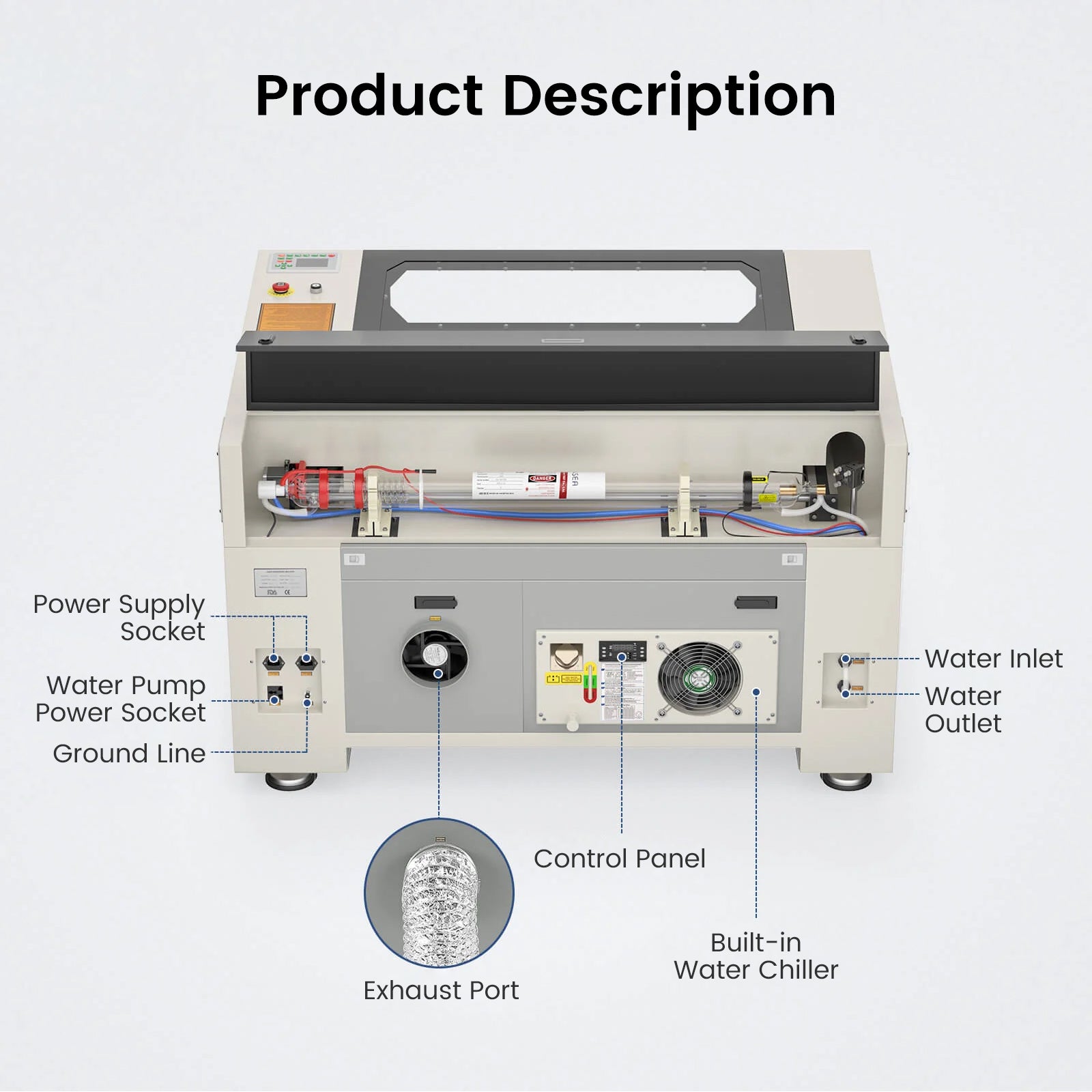

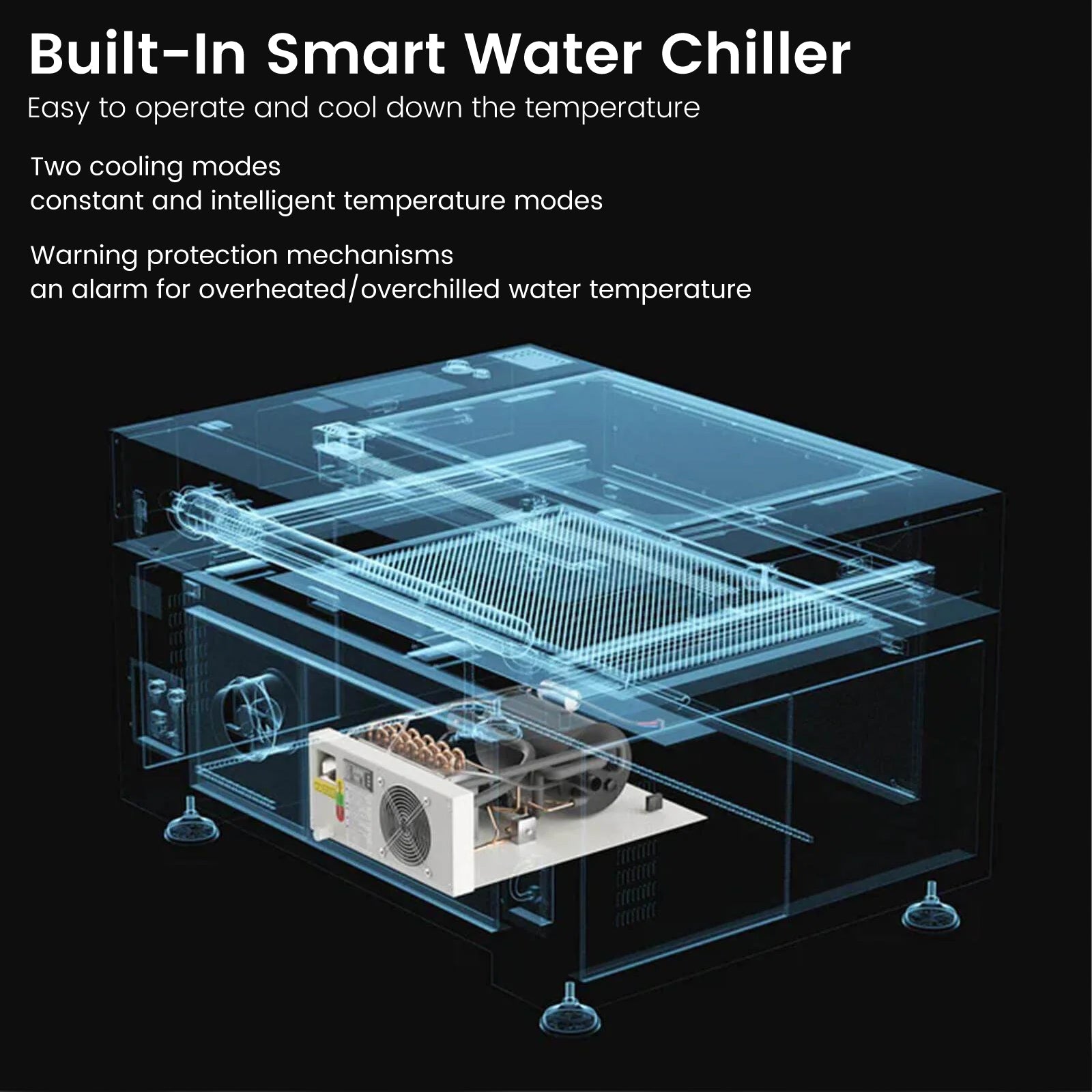

Built-in Smart Water Chiller

The built-in 3L water chiller is easy to operate and cools down the temperature without any other machines. To meet different needs, there are two cooling modes, constant and intelligent temperature modes. This professional water chiller has multiple warning protection mechanisms such as an alarm for ambient temperature, an alarm for overheated/overchilled water temperature, and so on. When the alarm occurs, the display will alternate between the water temperature and the error.

Enclosed Aeronautical Aluminum Rail

Equipped with X and Y stepper motors, this rail features efficient power transmission with high precision. The enclosed rail is designed to avoid smoke and debris and prolong the service time of rail units.

Laser Protective Glasses for Free

Lasers emit radiation in the invisible form of light. This pair of laser protective glasses is certified to protect your eyes against radiation damage by looking at the class 4 laser in any way (directly, indirectly, or even looking at the laser dot on a surface can damage your eyes).

Ruida Digital Controller

Whether your chosen software is LightBurn, RDworks, AutoCAD, or CorelDRAW, this Ruida digital controller can support the given platform. The Ruida Controller with a digital display can  control the laser head, start or stop projects, adjust laser power and speed settings and so on.

Software

Works on Windows XP, 2000, Vista, WIN 7, 8, 10 & 11, both 64 & 32 bit

MacOS (Version 10.11 and higher) ONLY with LightBurn software

Compatible with Lightburn, RDWorks, Coreldraw, Auto-CAD

Supported image formats: BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others

Laser System

Laser Wavelength 10640 nm;

Rated at over 90 watt;

Mechanics

Linear System— Enclosed aeronautical aluminum rails

Motion— Equipped with stepper X, Y, Z axis, plus mechanical limit switches

Cooling— Built-in 4L water chiller with two operating modes

Air Assist— Built-in air assist with no external compressor required

Ventilation— On-board exhaust fan, as well as an exhaust hose so you can vent the fumes to the outdoors

Standard 110V, AC power connection

4-pin port connection for rotary axis devices

Temperature

Recommended Operating Temperature: 60-104 °F (16C-40C)

Attention: the CO2 water temperature must be maintained at60-70°F (16-21°C)

90W CO2 laser tube with an estimated lifetime of up to 8,000 operation hours depending on power setting usage and water cooling performance

PLEASE NOTE: Frequent use of high laser power settings will shorten the laser tube lifetime as follows:

Low Power 10–40% = 7,000–8,000 Hours

Moderate Power 40–70% = 5,000–6,500 Hours

High Power 70–100% = 3,000–4,000 Hours

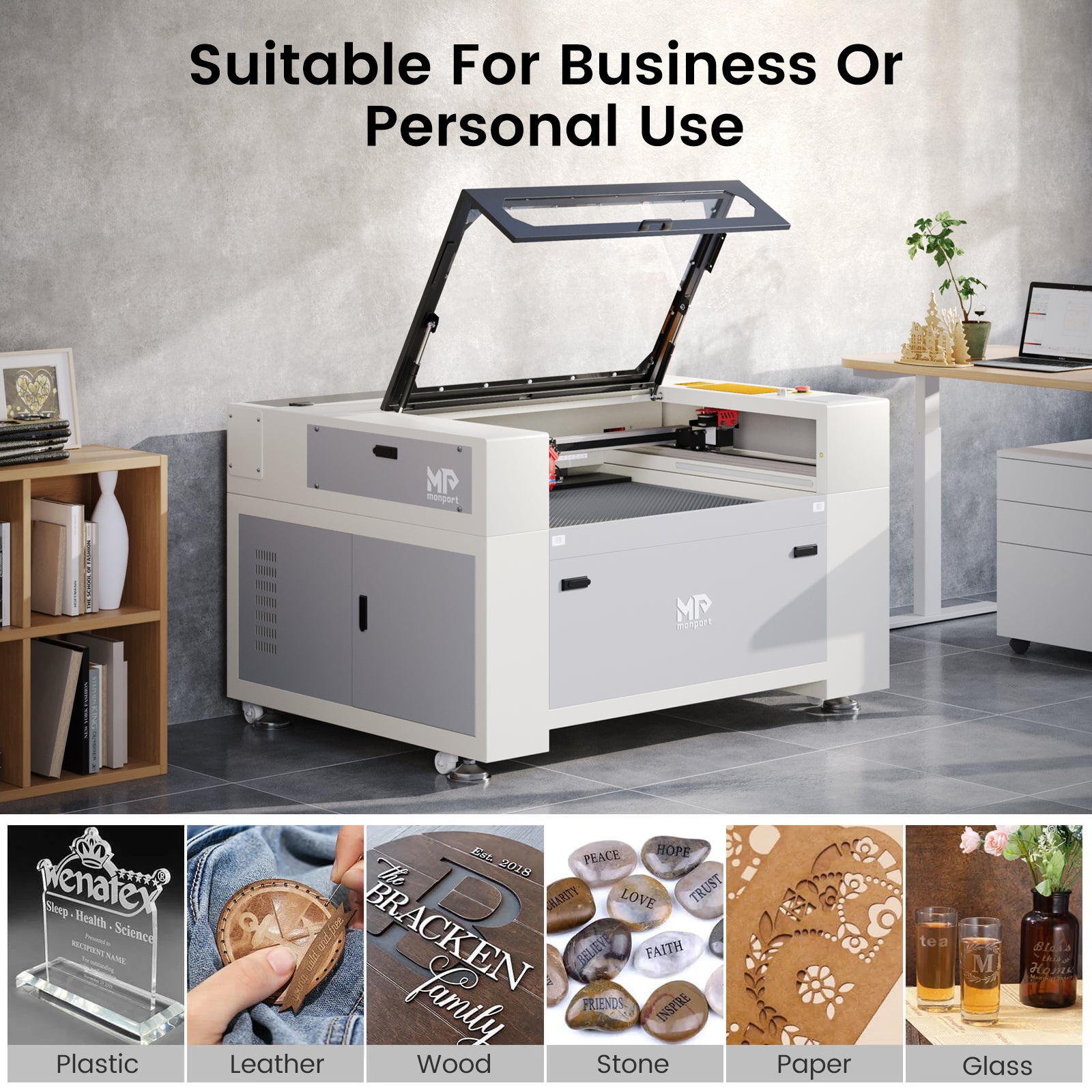

Can safely engrave or cut any laser-compatible material

Wood, glass, acrylic, fabric, leather, paper, cardboard, rubber

 Contact us with questions on specific materials not listed. If necessary, we can test it for you

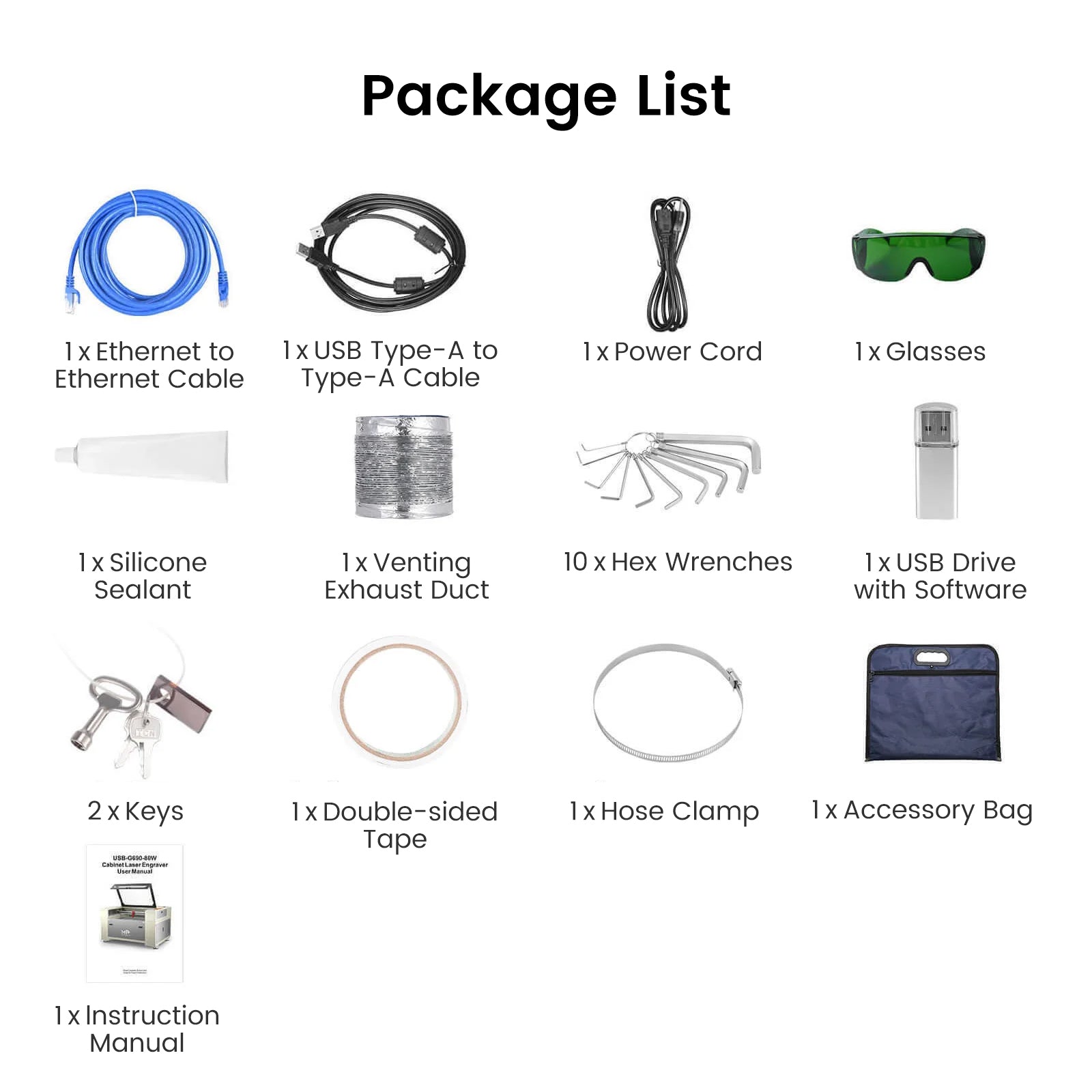

Laser Engraver Machine *1

A Pair of Laser Protective Glasses *1

Accessory Bag *1

Ethernet to Ethernet Cable *1

USB Type-A to Type-A Cable *1

Venting Exhaust Duct *1

USB Drive with Software (RDworks) *1

Hex Wrenches *10

Double-sided Tape *1

Power Cord *2

Keys *2

Silicone Sealant *1

Stainless Steel Clamp *1

Instruction Manual *1

2-year warranty on all 90W laser machines and parts

1-year warranty on laser tube

FDA Approved & CE Certified

Download the software RDworks

Download the Manual:90W CO2 User Manual

Download the Built-in Chiller Manual: Built-in Chiller User Manual

Download the Settings: CO2 Parameter Settings

We offer compatible Rotary Axis and Water Chiller!
