One-Touch Autofocus
Monport innovative one-click autofocus feature guarantees meticulous distance measurement and exact focus adjustments, ensuring zero-error operation down to the micron level.
Autofocus
Speed:10000mm/s
Installed in 1 Minute
Exceptionally Easy Installation. Upon unpacking, gently place the machine onto your tabletop, carefully straighten the upright mast, and secure it in place with just two screws.
Safe
Galvo
90° Rotary Marking
Enabled with a vertically rotating mast capable of infinite 90° rotation, Monport GA MOPA boasts unrestricted high-definition marking capabilities over all angles and surfaces of workpieces.
Various Materials
Accuracy: 0.01mm
Monportlaser

Elevate Business Projects

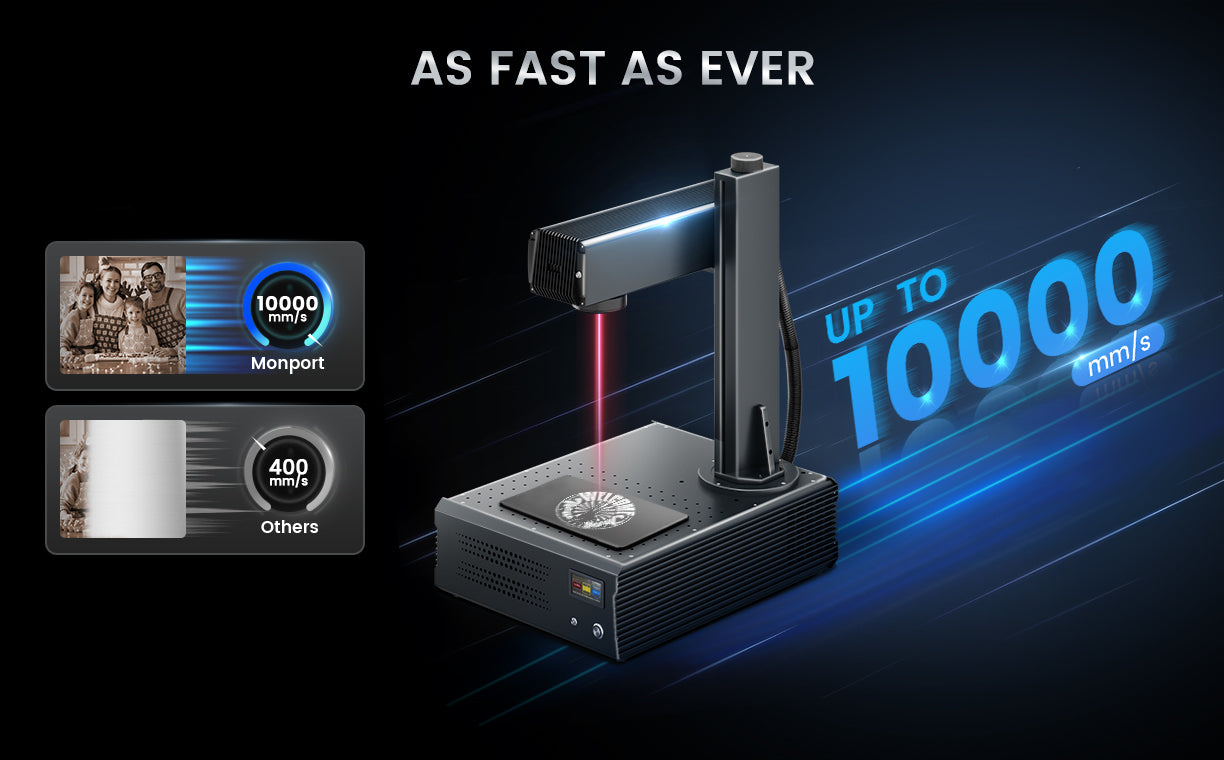

Boasting an unparalleled marking speed up to 10000mm/s, Monport GA MOPA Fiber Laser is designed to cater to the most demanding industrial and creative applications, ensuring that your projects are not only completed with precision but also with an efficiency that sets new industry standards.

Monportlaser

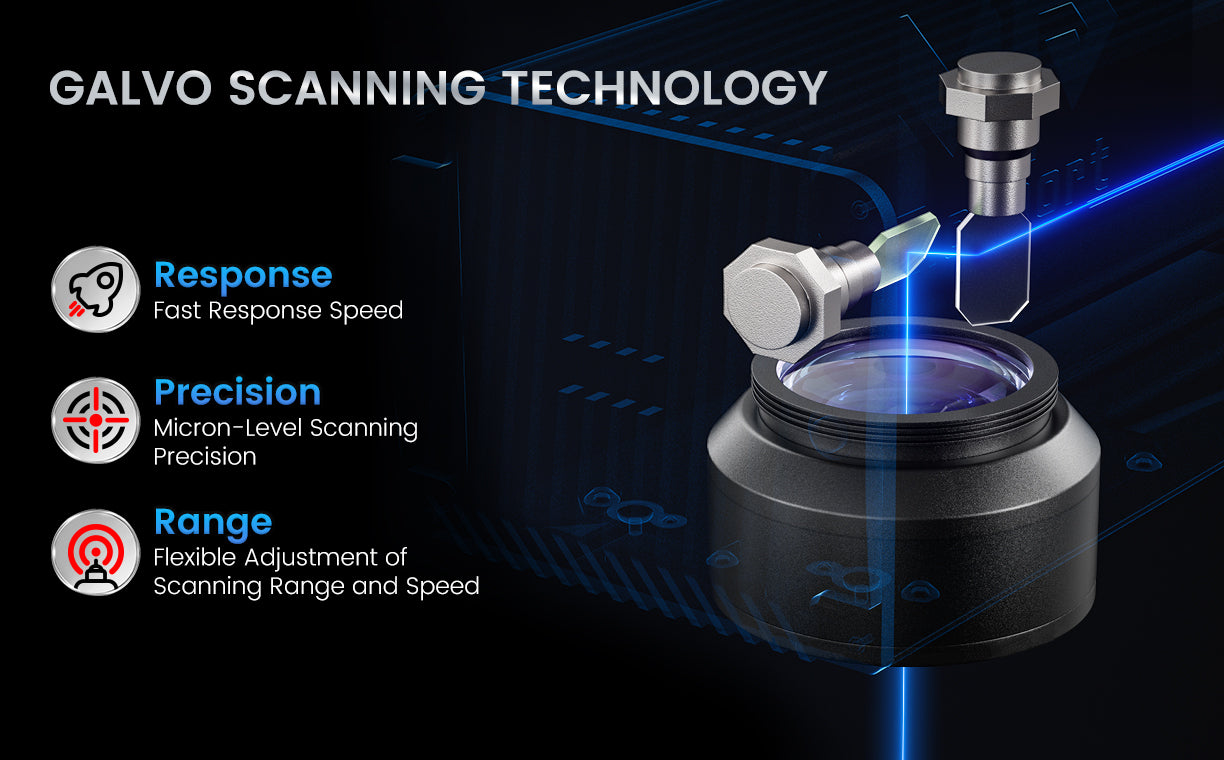

Galvo Scanning Technology

Equipped with the cutting-edge Galvo Tech drive and scanning system, Monport GA MOPA FIber Laser can attain a marking speed of up to 10,000mm/s while consistently delivering exceptional precision and steadfast, rapid marking capabilities.

Monportlaser

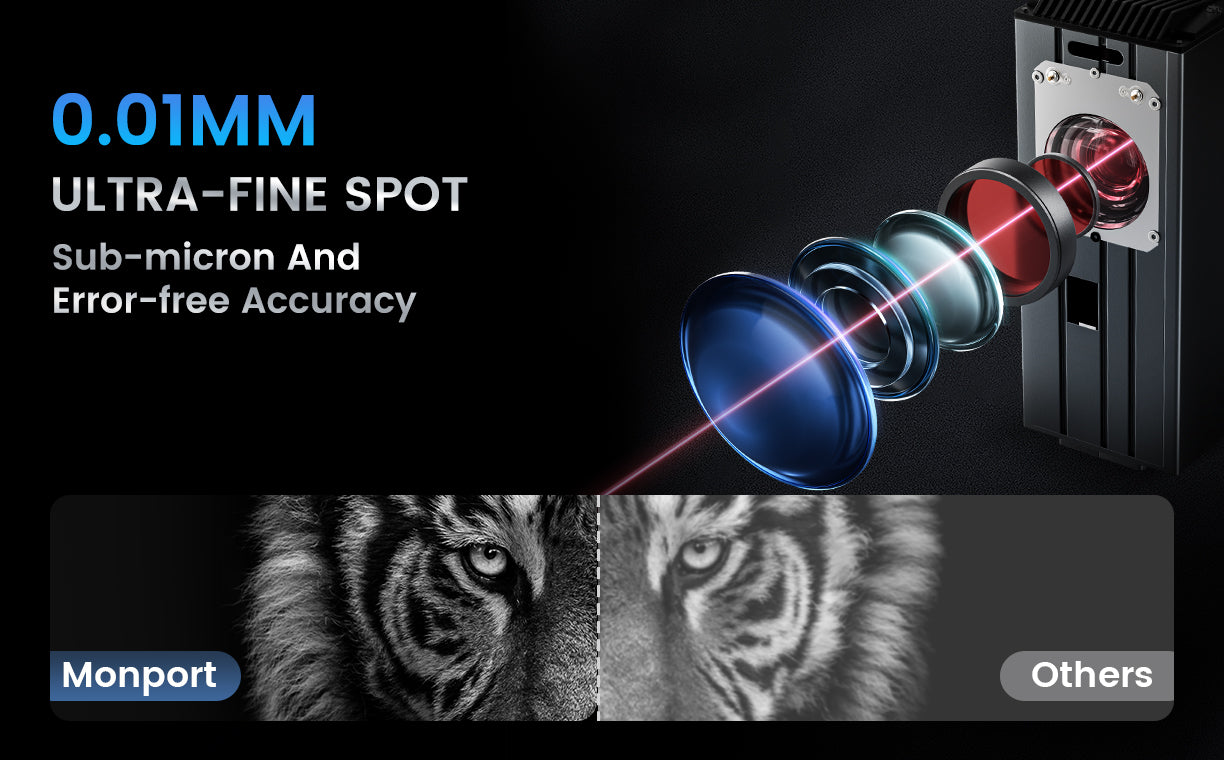

Sub-Micron Precision

Equipped with a powerful 60W driver and 60W laser source, Monport GA MOPA Fiber Laser delivers striking color marking on stainless steel, aluminium, and other metals while maintaining sub-micron precision and error-free accuracy.

GA MOPA Model Quick Compare
Product Name GA MOPA 30W GA MOPA 60W GA MOPA 100W
Laser Power 30W 60W 100W
Engraving Area 6.9 x 6.9 in.
175 × 175 mm
6.9 x 6.9 in.
175 × 175 mm
6.9 x 6.9 in.
175 × 175 mm
Max. Marking Depth
In a Single Pass (depending on material)
0.003 in.
(0.08mm)
0.004 in.
(0.1mm)
0.006 in.
(0.15mm)
Central Wavelength 1064nm 1064nm 1064nm
Input Power 110-120V 60Hz 110-120V 60Hz 110-120V 60Hz
Laser Frequency 1-3000 kHz 1-3000 kHz 1-3000 kHz
Max Z Height
(Field lens to workbench)
410 mm 410 mm 410 mm
Engraving Accuracy 0.01 mm 0.01 mm 0.01 mm
Positioning Accuracy ±0.1 µm ±0.1 µm ±0.1 µm
Pulse Width 2-500 ns 2-500 ns 2-500 ns
Max Engraving Speed 10000 mm/s
393.7 ips
10000 mm/s
393.7 ips
10000 mm/s
393.7 ips
Beam Quality M2 <1.5 <1.8 <1.8
Beam Diameter 7 ± 1mm 7 ± 1mm 7 ± 1mm
Maximum Pulse Energy 0.8 mJ 1.5 mJ 1.5 mJ
Color Engraving YES YES YES
Focus Mode Autofocus Autofocus Autofocus
Machine Dimension(L*W*H) 13.8 x 16.5 x 24.4 in
(35 x 42 x 62 cm)
14.8 x 19.7 x 25.6 in
(37.5 x 50 x 65 cm)
14.8 x 19.7 x 25.6 in
(37.5 x 50 x 65 cm)
Expected Lifetime(MTTF) 100000 hr. 100000 hr. 100000 hr.
Cooling Type Air Cooling Air Cooling Air Cooling
Electric Lifting YES YES YES
Rotary Axis Function YES YES YES
Field Lens Dimension M85 M85 M85
Galvanometer Thread Size M68 M68 M68
Foot Pedal Function Built-in Foot Pedal Function Built-in Foot Pedal Function Built-in Foot Pedal Function
Supported Image Formats BMP, GIF, JPG, JPEG, DXF, DST, etc. BMP, GIF, JPG, JPEG, DXF, DST, etc. BMP, GIF, JPG, JPEG, DXF, DST, etc.
Materials Suitable for Engraving Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc.
System Support Windows, macOS Windows, macOS Windows, macOS
Compatible Software BslAppSimple
Lightburn
BslAppSimple
Lightburn
BslAppSimple
Lightburn
Warranty 2 Years
(1 Year for Laser Source)
2 Years
(1 Year for Laser Source)
2 Years
(1 Year for Laser Source)
Package List
Fiber marking machine*1
U disk*1
Positioning bar*2
Protective glasses*1
Marking test cards*8
Wrench*1
Screw*4
Instruction*1
USB data cable*1
Steel ruler*1
Power line*1

Questions & Answers

Have a Question?

Ask a Question
  • Can you use a 300x300 lens with this machine?

    Yes, you can use a M85 300mm*300mm lens with the GA60W fiber laser.

  • Does this machine have Wi-Fi? How is it connected to the pc?

    This machine does not have Wi-Fi. You can connect to your computer using a USB cable.

  • Is this Macinoths compatible?

    Yes. Our machine is compatiable with MacOS, Window xp/7/8/10/11. And our machine support EzCad2, Lightburn.

  • can this engrave on firearms?

    Yes, this machine can engrave on irearms. It can engrave on solder masks, stone,plastics (hard and non-transparent), metals and wood. (No plexiglass).

  • What lens did my GA60W upgraded laser come with?

    M52 175mm*175mm Replacement Optical Scanning Lens
