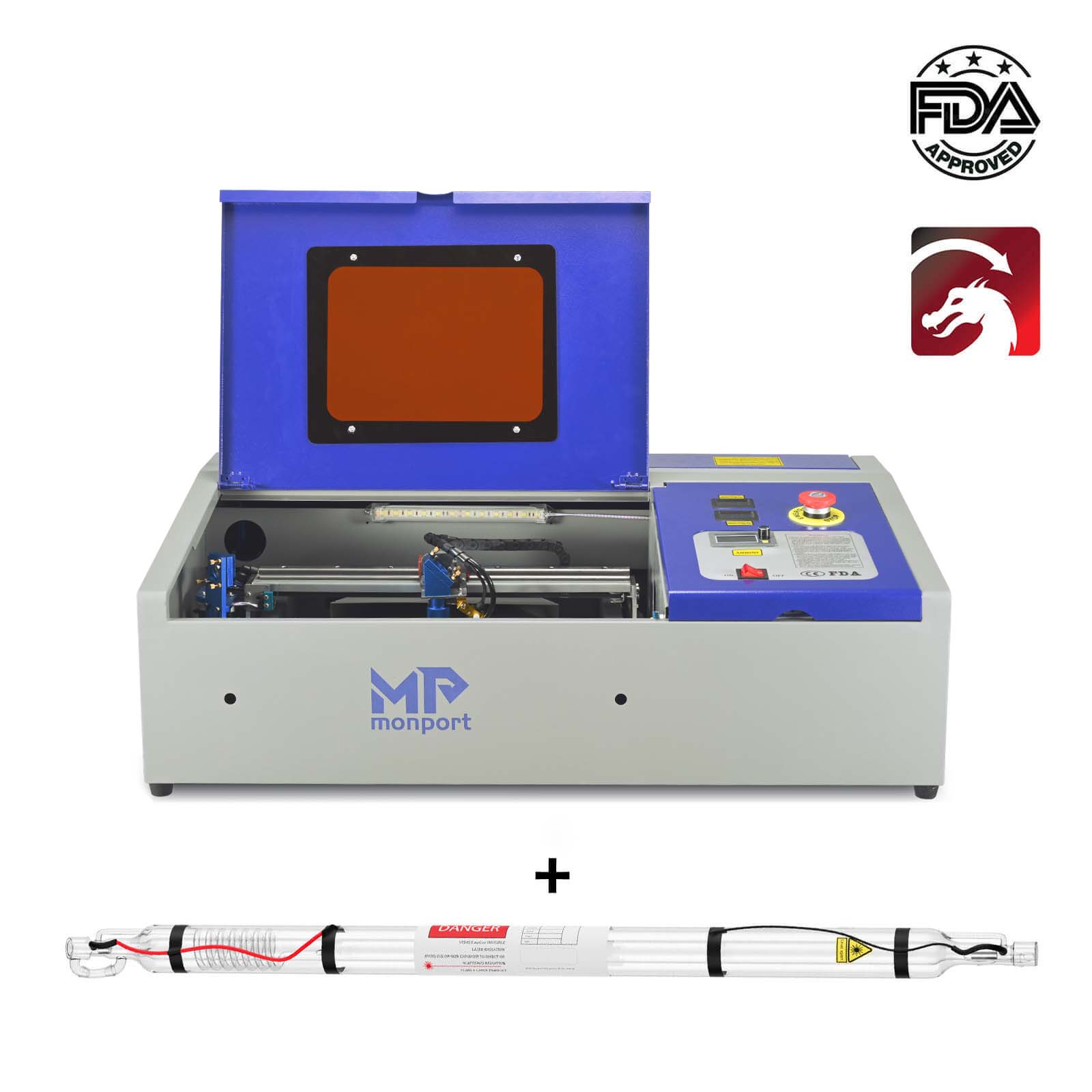

Bundle Sale | 40W Pro CO2 Laser + Extra 40W Laser Tube
Description

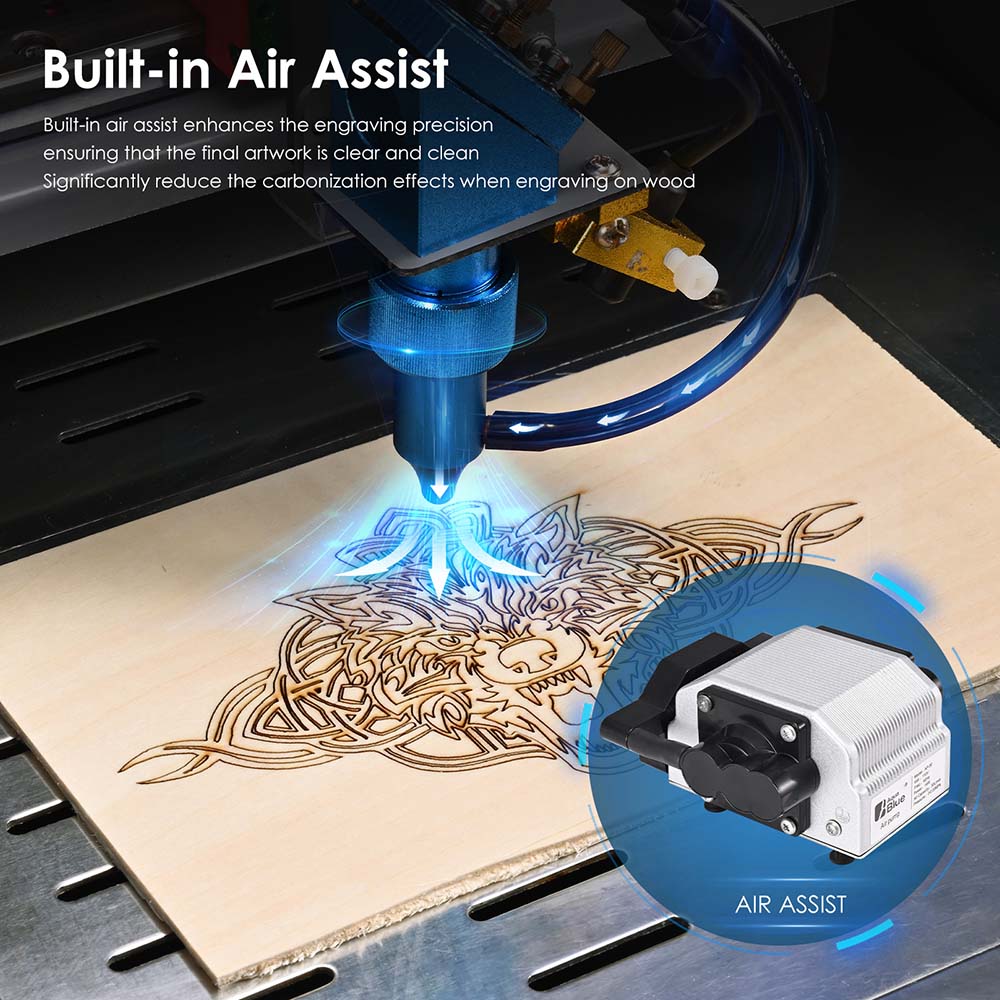

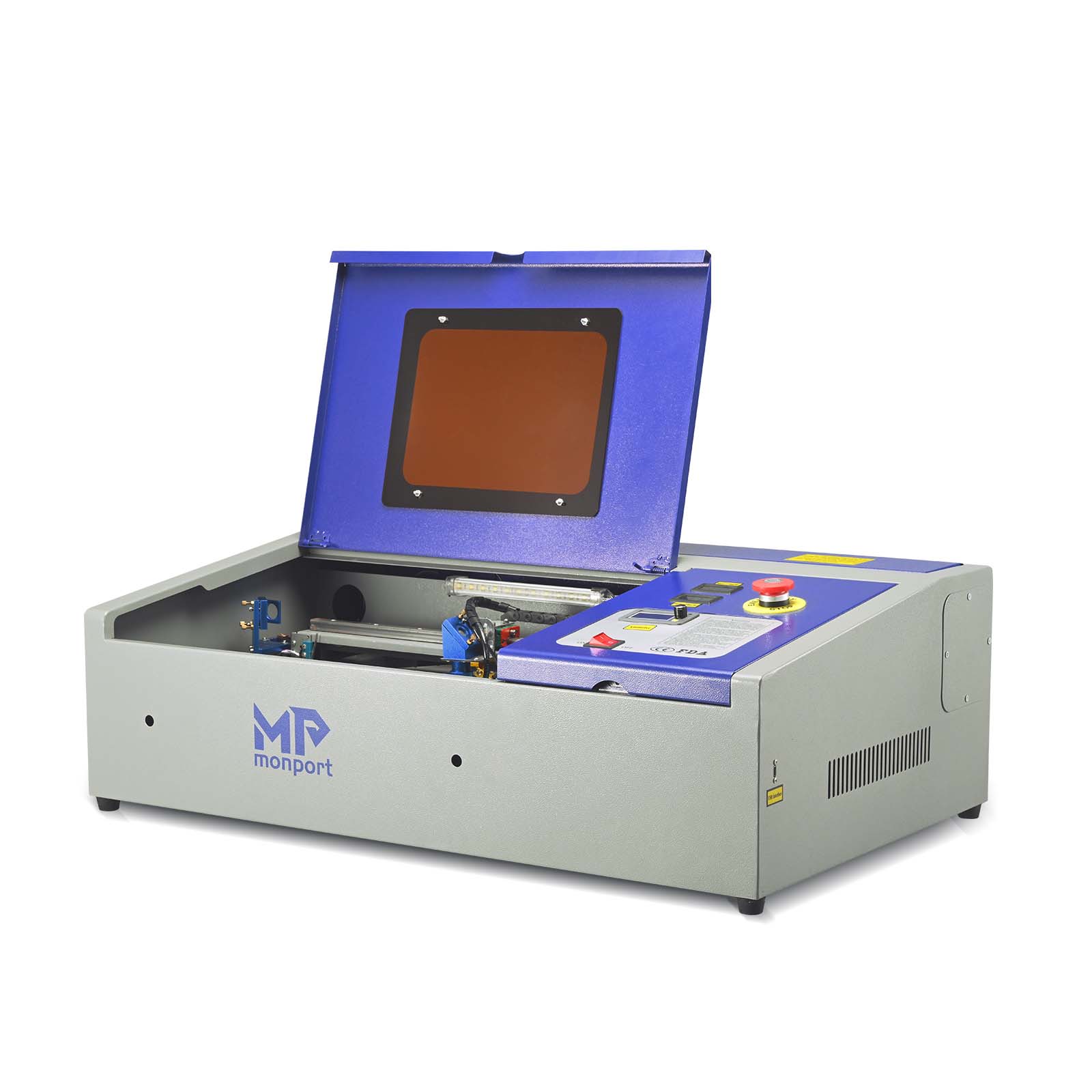

Discover the power of Monport's upgraded 40W Pro CO2 laser engraver. Staying true to its compatibility with Lightburn and Laser GRBL software, this advanced model introduces the Built-in Air Assist, combating wood discoloration and delivering pristine, high-clarity results that stand out.
Dive into the expansive 8"x12" (200x300 mm) flat work table, accompanied by an innovative clamping design table, catering to a plethora of design ventures while supercharging your small business productivity.
40W CO2 Engraver Features
Exceptional Speed and Precision
Our Desktop Engraving Machine guarantees high-speed engraving, reaching up to 350mm/s. It's also incredibly precise, offering an engraving accuracy of 0.01 inches. Whether it's wood, glass, acrylic, or leather, this machine engraves it all with utmost perfection.
Lightburn Compatibility
We've equipped this 40W machine with an upgraded control board to ensure compatibility with Lightburn - the leading, most widely-used software in the industry. With Lightburn, your design possibilities are virtually limitless.
Red Dot Guidance
Never miss the mark with our Red Dot Guidance feature. Mounted on the laser head, it illustrates the laser's path, providing unparalleled precision when lining up your cuts and engravings.
Innovative Dual Work Bed
The machine comes with a dual work bed, offering two options for more possibilities. The stabilizer clamp secures irregularly shaped objects in place, while the vented level board caters to regular shapes, making every engraving project a breeze.
Built-in Ventilation
Integrated fan to boost laser performance, improve ventilation, and reduce noise.The exhaust port helps to create a safe work environment, so you can vent the fumes to the outdoors.
40W CO2 Engraver Specifications
Working Dimension: 8’’ x 12’’ (200 mm x 300 mm)
Machine Dimension: 31.4'' x 19.7'' x 10'' ( 79cm x 50cm x 26cm )
Package Dimension: 37” x 25” x 16” ( 94 cm x 64 cm x 41 cm )
Maximum Engraving/Cutting Speed: 350mm/s
Max Engraving Depth: 10mm
Min Engraving Depth: 0.2mm
Focal Lens Diameter: 12mm
Mirror Diameter: 20mm
Exhaust Port Diameter: 4''
Precision: 0.01''
0.5” Standard Z-depth ( workspace height with the vented level board installed )
2.5” Max Z-depth ( workspace height with vented level board removed )
Net Weight: 48.5 lbs. ( 22 kg )
Package Weight: 63 lbs. ( 28.6 kg )
40W Tube Features
Easy to Install

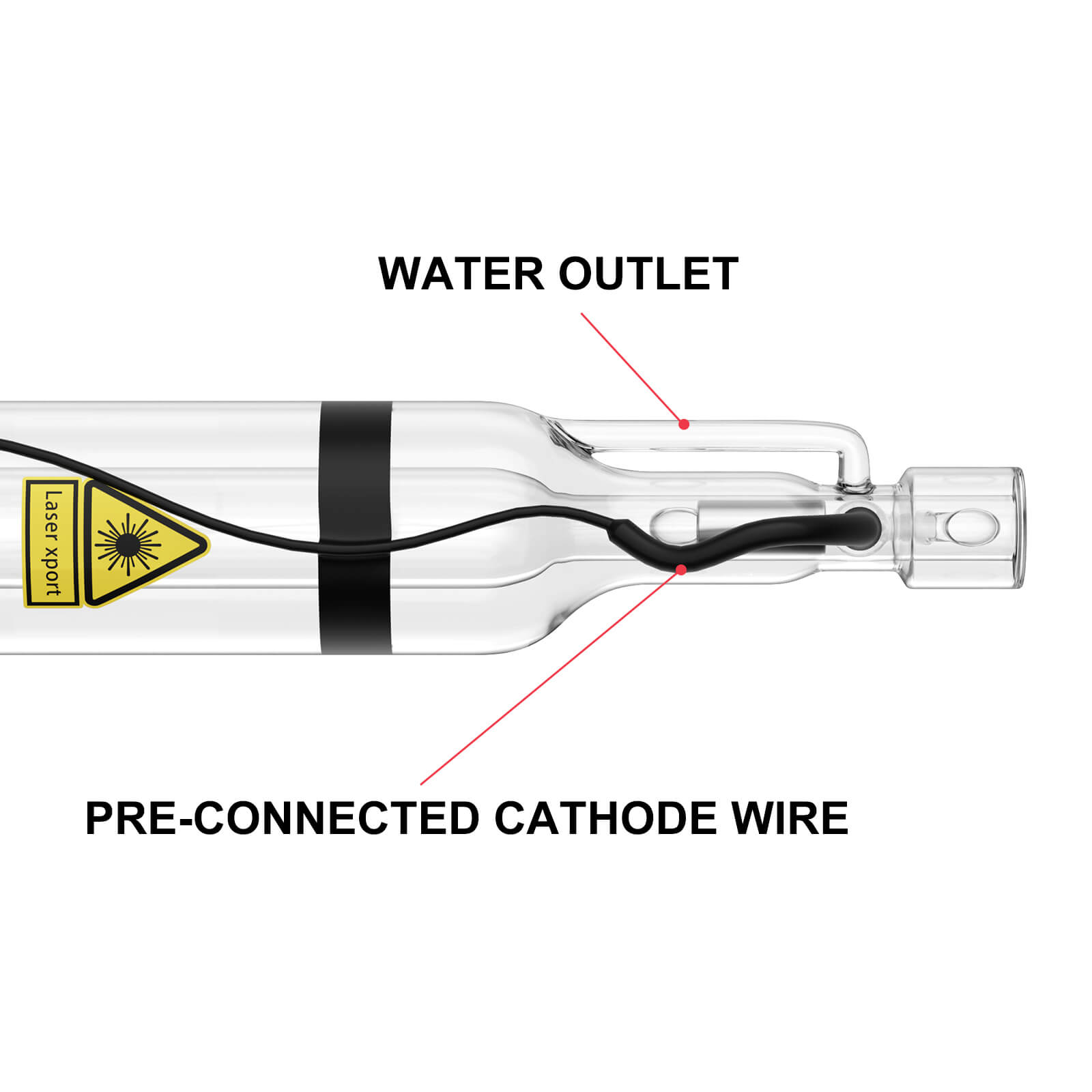

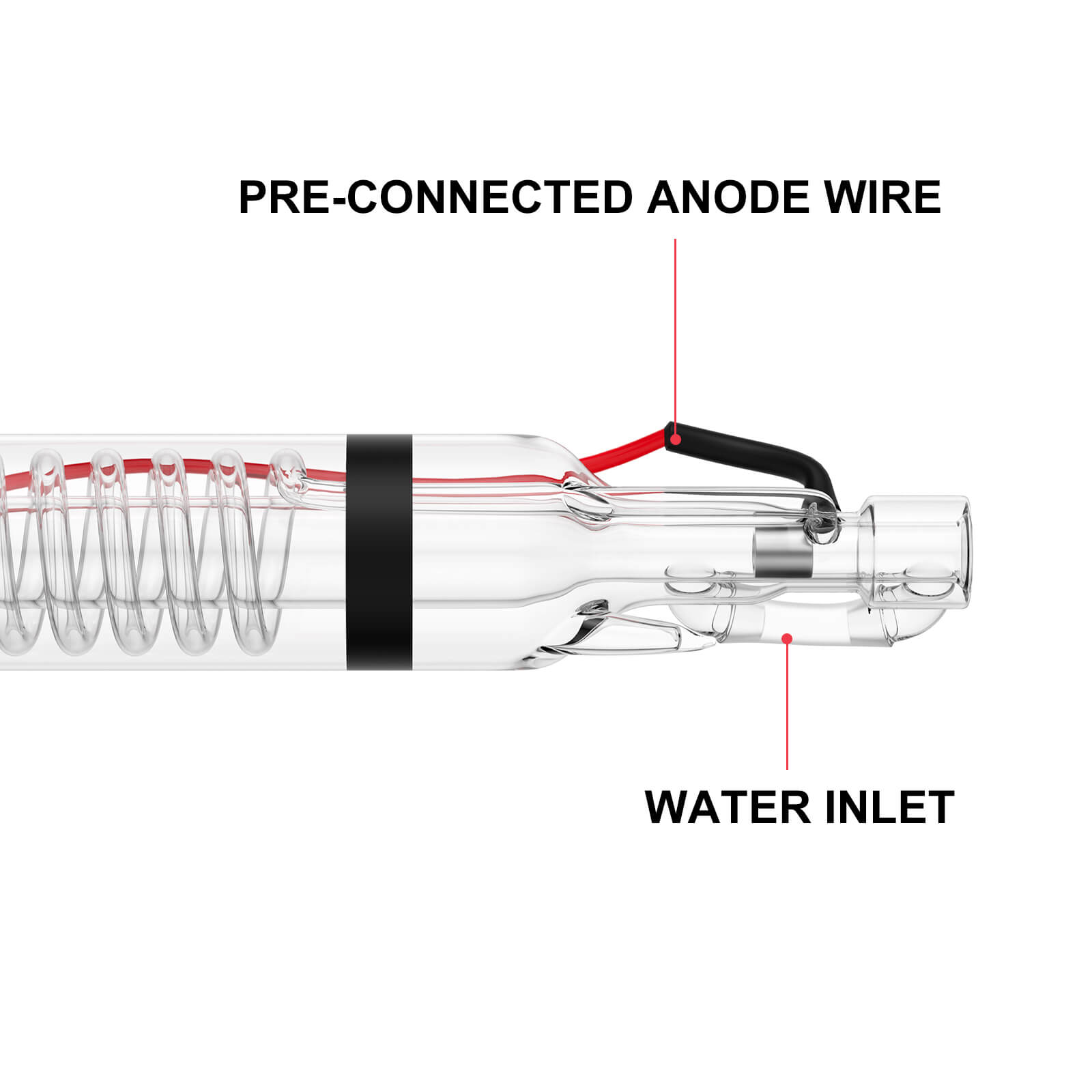

Pre-connected cathode wire and anode wire allow you to connect this laser tube and laser engraver machines with a few link steps. The water outlet and inlet make cooling water flow efficiently.
High Quality
This laser tube is made of borosilicate glass, copper, and plastic. The metal head is hard to crack, ensures stable structure, laser beam quality and output power, and helps achieving better heat control while operating.
Long-lasting Performance
The excellent design and materials of this replacement laser tube create a durable hermetic seal and offer superior heat dissipation to give you a maximum service life of 2,000 hours of operation at low-intensity settings. Use high-pressure protective sleeve, effectively solves some problems that often happen on others tubes, such as power leakage, static electricity, poor contact, etc. Also, the two layers ensure its stronger sealing, higher safety and anti-falling.
40W Tube Specifications
Product Length: 27.56” (700mm)
Product Diameter: 50mm
Net Weight: 2.2 lb
Allowable Humidity: <85%
Maximum Power: 40W
Laser Beam Diameter: 2.5mm
Triggering Voltage: 20 KV
Working Voltage: 15 KV
Optimal Operating Current: 10-13 mA
Power Stability: ±5%
Wavelength: 10,640 nm
Up to 2,000 operation hours depending on power setting
Attention:
Running the machine at a high power frequently will surely shorten the service life of the laser tube as follows:
Minimum Power 10–40% → laser tube lifespan 1,500–2,000 Hours
Optimal Power 40–70% → laser tube lifespan 1,000–1,200 Hours
Not Recommended but Accessible Power 70–100% → laser tube lifespan 400–600 Hours
Package Contents
Laser Engraver Machine *1
Extra 40W Laser Tube *1
A Pair of Laser Protective Glasses *1
Accessory Bag *1
Venting Exhaust Duct *1
USB 2.0 Cable *1
Power Cord *1
Stainless Steel Clamp *1
Water Pump *1
Double-sided Tape *1
Silicone Sealant *1
Random Material for Test *1
Wrench *1
A Focus Plate *1
Instruction Manual *1
Manual List
Download the Settings: 40W Parameter Settings
Download the Manual: 40W Lightburn User Manual
We offer compatible accessories: CW3000, Rotary Axis
Warranty
1-year warranty on all 40W laser machines and parts
6-month warranty on laser tube
FDA Approved & CE Certified
FAQ
Q1. What is the lifespan of the laser tube？
A1. The lifespan of laser tube is up to 2,000 operation hours depending on power setting.
Q2. What materials can this engraving machine engrave and cut?
A2. Can safely engrave or cut any laser-compatible material.
Wood, glass, acrylic, fabric, leather, paper, cardboard, rubber.
Contact us with questions on specific materials not listed. If necessary, we can test it for you
Q3. Do I need to purchase additional cooling system?
A3. This product comes with a convenient, easy-to-set-up water cooling system, featuring a compact water pump and built-in hoses.
This design ensures that the machine operates within the tube's optimal temperature range, significantly prolonging its lifespan.
For superior cooling performance, consider upgrading to a Monport 5200 Chiller or 3000 Cooling System.
