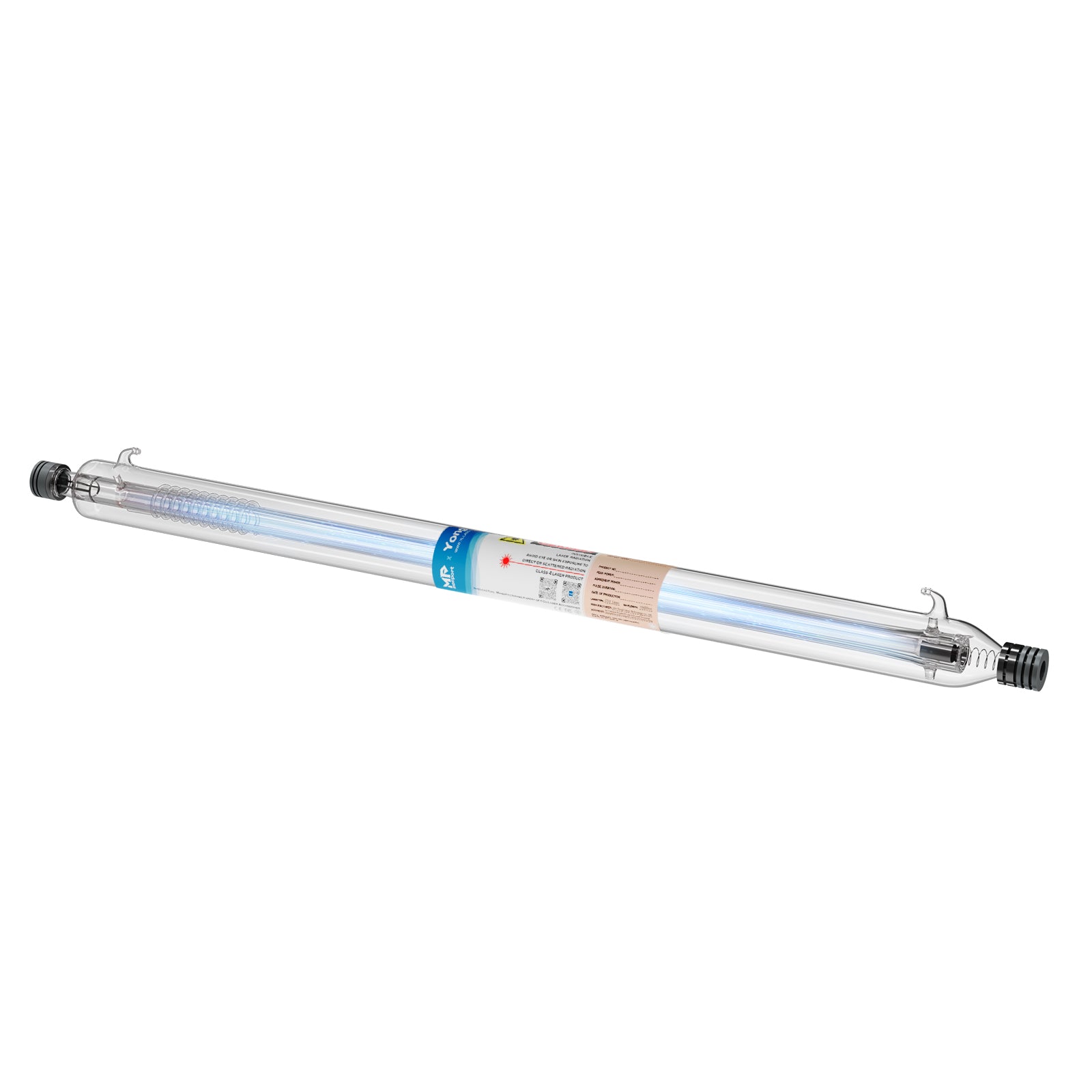

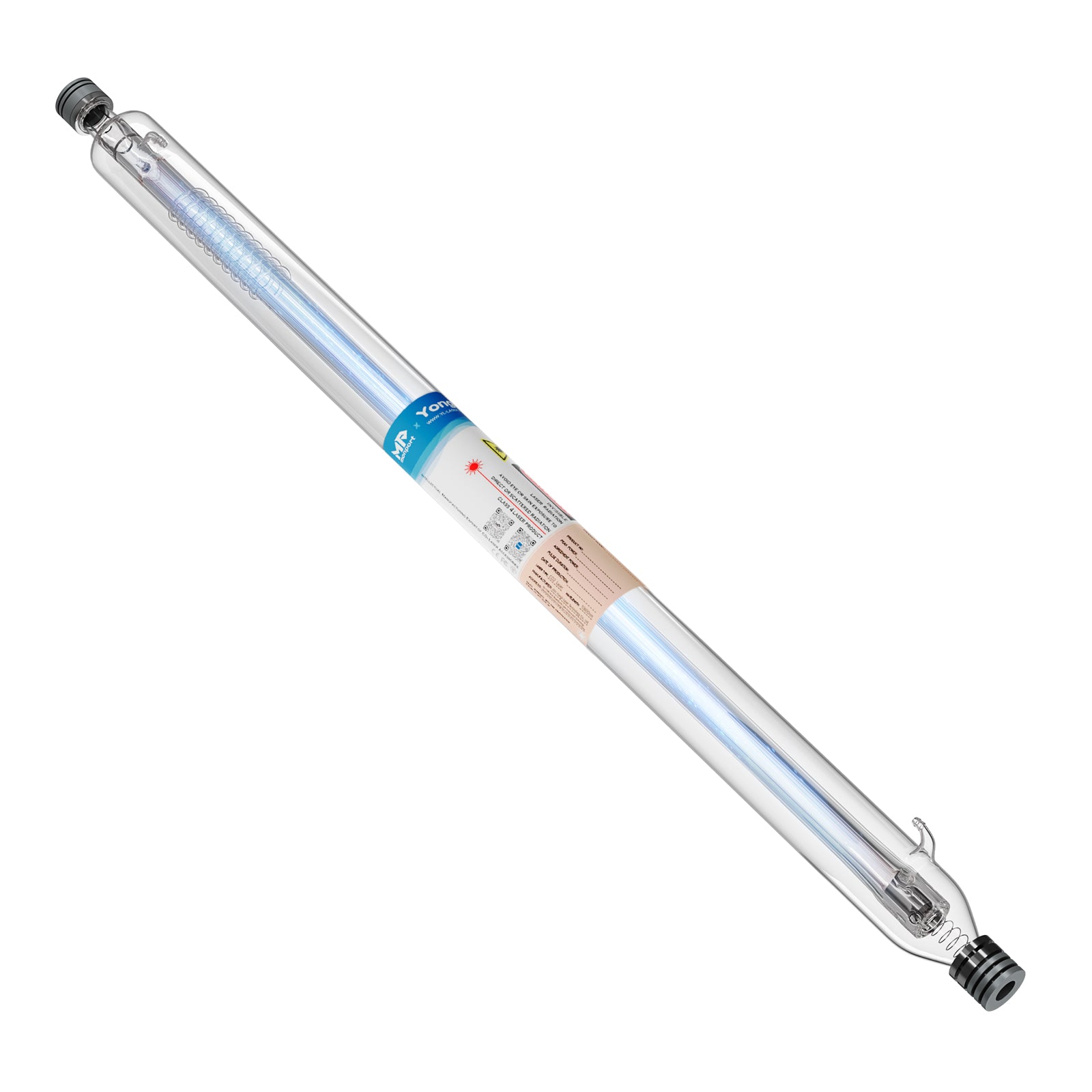

Monport 80W CO2 Laser Tube for Laser Engraver
Monport 80W CO2 Laser Tube for Laser Engraver
Out of stock
Couldn't load pickup availability
80W Tube Specification
80W Tube Specification
Product Length: 49.21” (1250mm)
Product Diameter: 60mm
Product Weight: 38.6 lbs ( 17.5 kg )
Allowable Humidity: <85%
Power Stability: ±5%
Wavelength: 10,640 nm
Service Life
The 80W borosilicate glass Co2 laser tube, with an expected service life of 8,000 operation hours depending on the power setting
Attention: Running the machine at a high power frequently will surely shorten the service life of the laser tube as follows:
Minimum Power 10–40% → laser tube lifespan 7,000–8,000 Hours
Optimal Power 40–70% → laser tube lifespan 5,000–6,500 Hours
Not Recommended but Accessible Power 70–100% → laser tube lifespan 3,000–4,000 Hours
Features & Benefits
Features & Benefits
Easy to Install

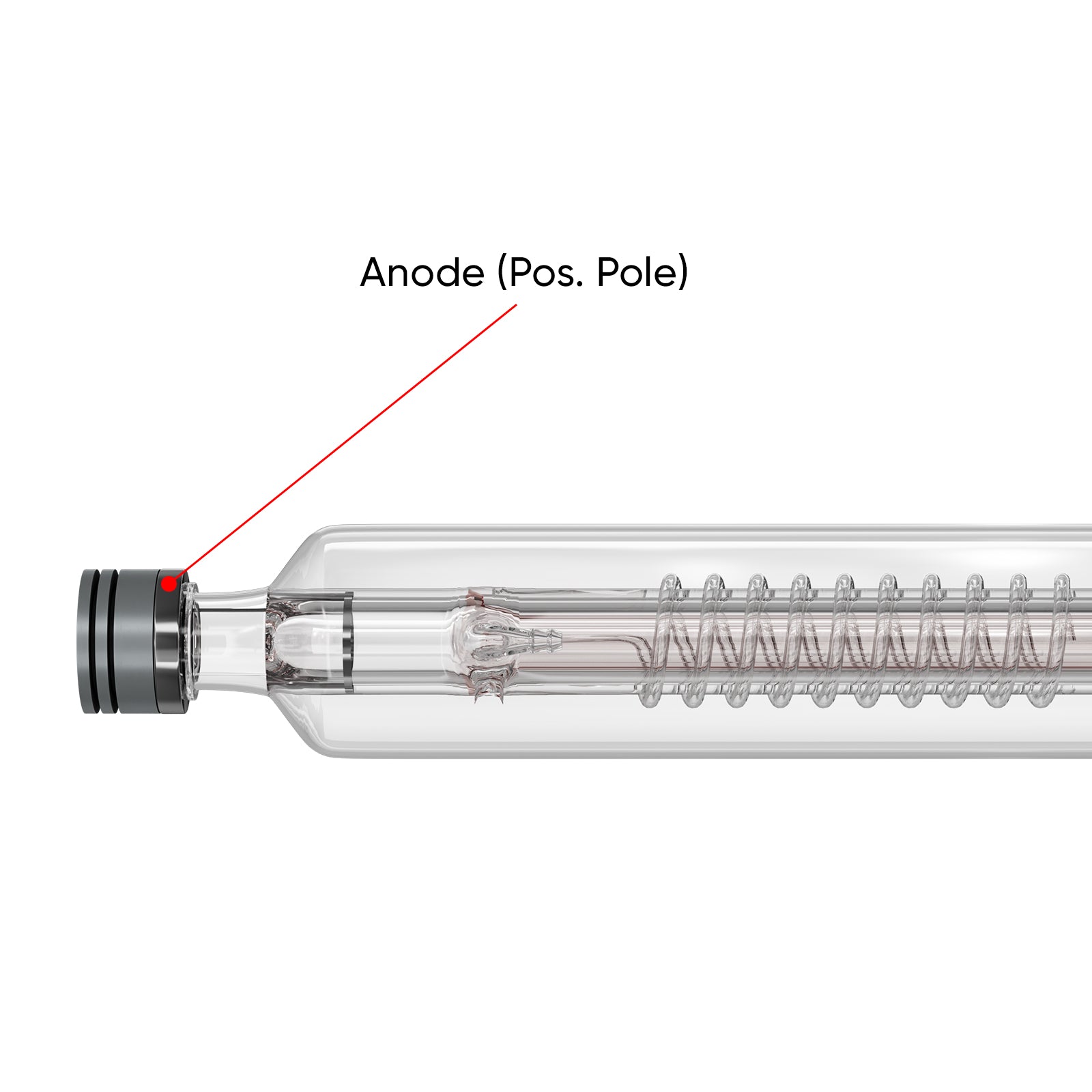

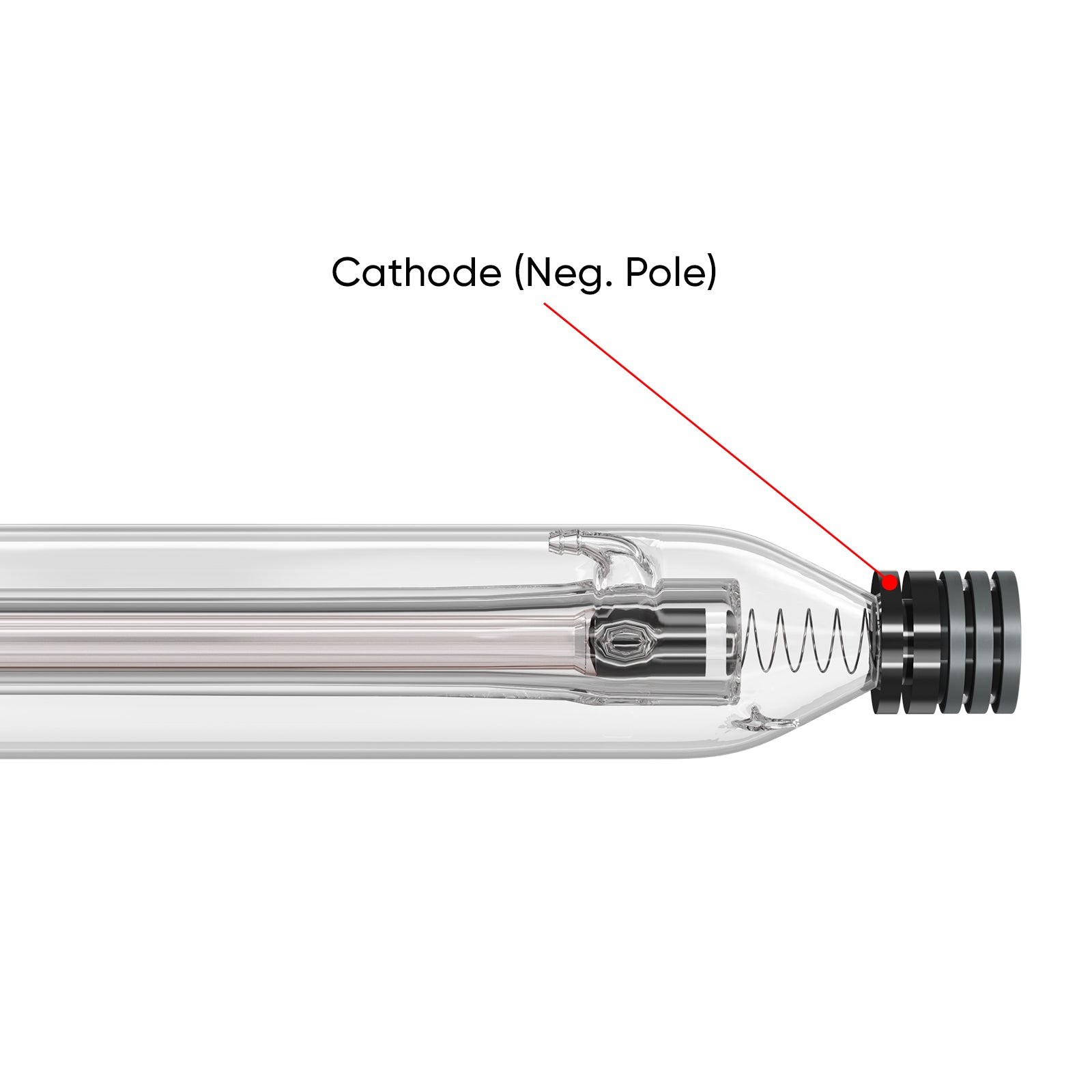

Pre-connected cathode wire and anode wire allow you to connect this laser tube and laser engraver machines with a few link steps. The water outlet and inlet make cooling water flow efficiently.
High Quality
This laser tube is made of borosilicate glass, copper, and plastic. The metal head is hard to crack, ensures stable structure, laser beam quality and output power, and helps achieving better heat control while operating.
Long-lasting Performance
The excellent design and materials of this replacement laser tube create a durable hermetic seal and offer superior heat dissipation to give you a maximum service life of 8,000 hours of operation at low-intensity settings. Use high-pressure protective sleeve, effectively solves some problems that often happen on others tubes, such as power leakage, static electricity, poor contact, etc. Also, the two layers ensure its stronger sealing, higher safety and anti-falling.
Package Contents & Warranty
Package Contents & Warranty
Package Contents
80W Laser Tube *1
Warranty
10-Month Warranty on 80W CO2 laser tubes
Certifications
FDA Certification
CE Certification
Laser Tube Notice
Laser Tube Notice
Fragile Item — Please handle with care.
Add Insurance — Highly recommended to protect it from shipping damage.
Check Wattage Before Buying — Make sure you select the correct wattage or contact Monport support support@monportlaser.com if you're unsure. (Incorrect wattage selection may result in laser tube damage during return
shipping.)
