Dimension & Specifications
Max. Airflow Speed: 310m³/h
Filter Layers: 3
Air Inlet Diameter: 82mm
Extraction Tube: 1.4m length, φ75mm
Filter Effect: 0.3μm ， 99.97%
Max. Noise Level: ＜55db
Highest Negative Pressure: 2200pa
Universal Wheels: yes
Control Method: remote with display
220W Dual-port Laser Fume Extractor Features
Strong Suction Power

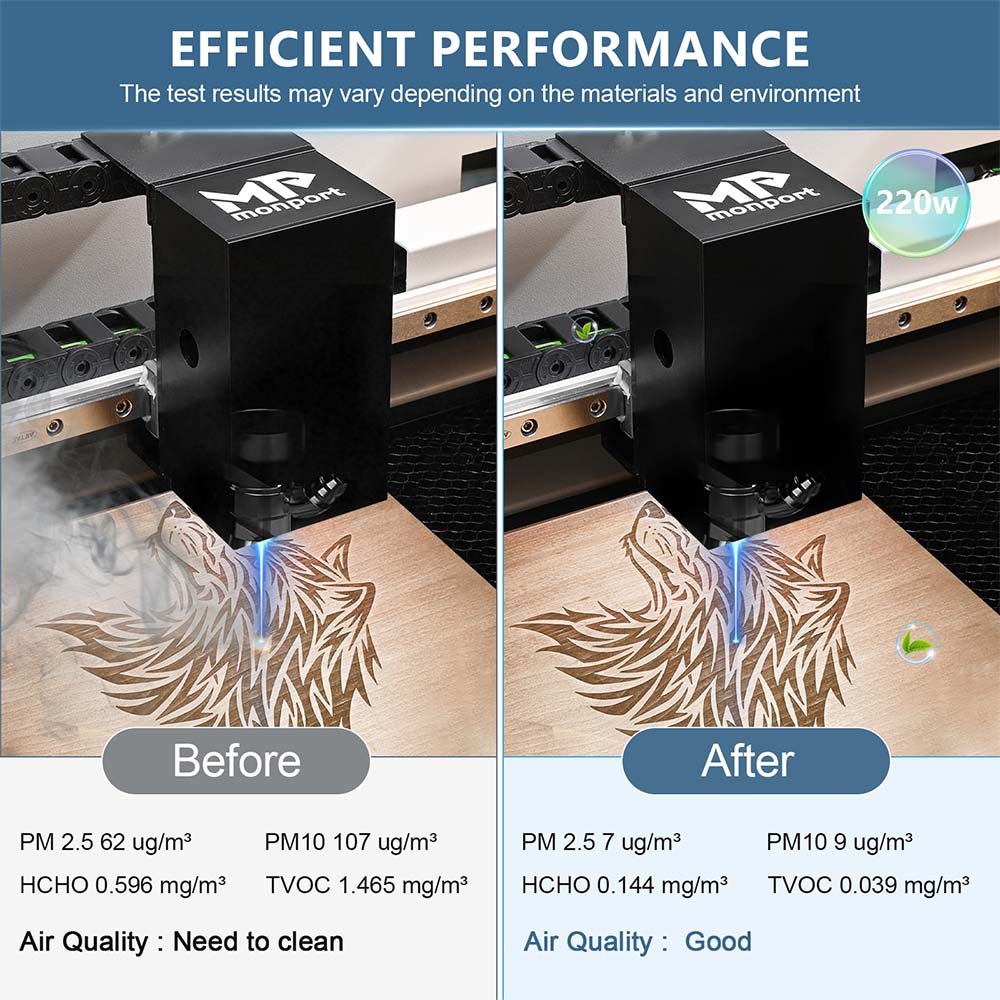

With 220W strong power, the YW220 fume extractor generates 310 cubic meters/hour of airflow. It can better absorb visible particles and fine dust around the hood head to achieve ideal ventilation effects. Moreover, it is equipped with double air inlets, which can work for two machines at the same time.

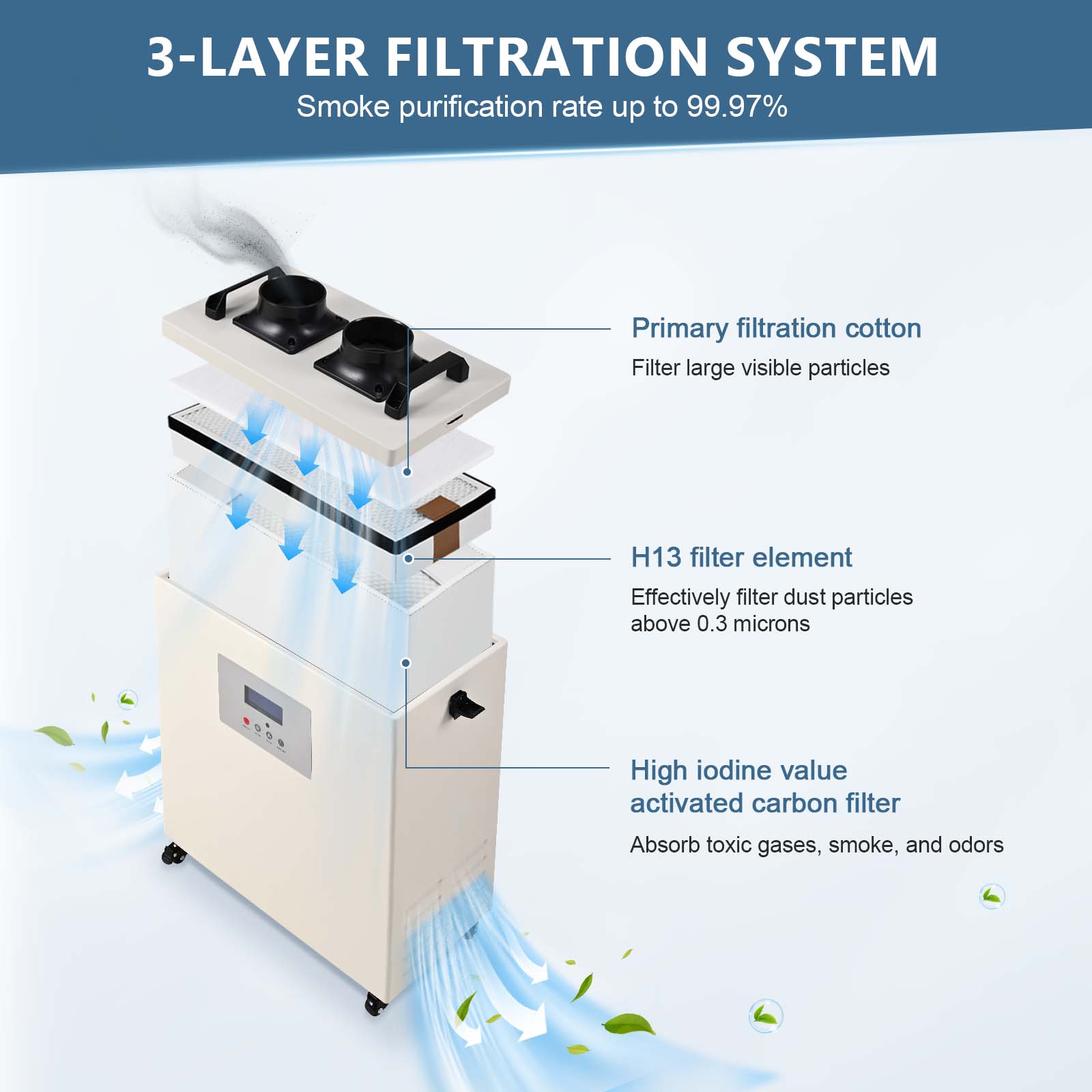

This older fume extractor is designed with primary filtration cotton, an H13 filter element, and activated carbon. The 3-layer filter provides a purification rate of up to 99.97% to keep the air in the best condition, effectively filtering dust particles above 0.3 microns and absorbing toxic gases, smoke, and odour. (Note: Comes with 4 sheets of primary filtration cotton)
High-Iodine Columnar Carbon
This laser fume extractor uses columnar carbon with 1000-1100 high iodine to provide you with a fresh working environment to ensure respiratory health. (Note: Pillar carbon is affected by the iodine value. The higher the iodine value, the greater the porosity; the larger the surface area, the stronger the adsorption capacity. Its service life is 1.4 times that of ordinary coal-based carbon, and it has higher purification and deodorization capabilities than ordinary activated carbon.)

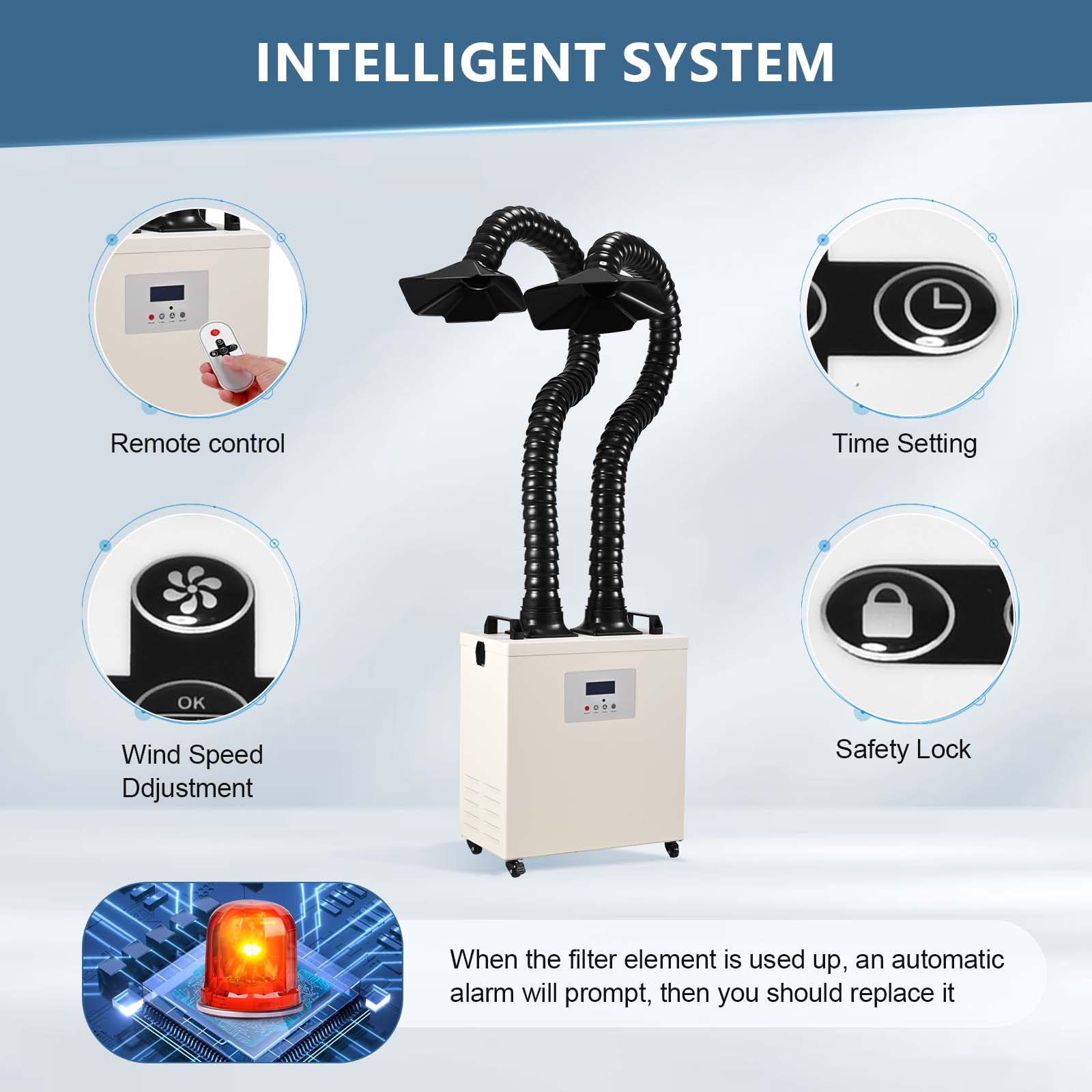

The fume extractor comes with a remote control, which has four functions: power switch, multi-level wind speed adjustment, time setting, and safety lock, which effectively improves work efficiency; Alarm of filter element clogging : The machine will automatically detect the change in pressure difference of the filter layer and send out an audible and visual alarm signal when the filter element is clogged.

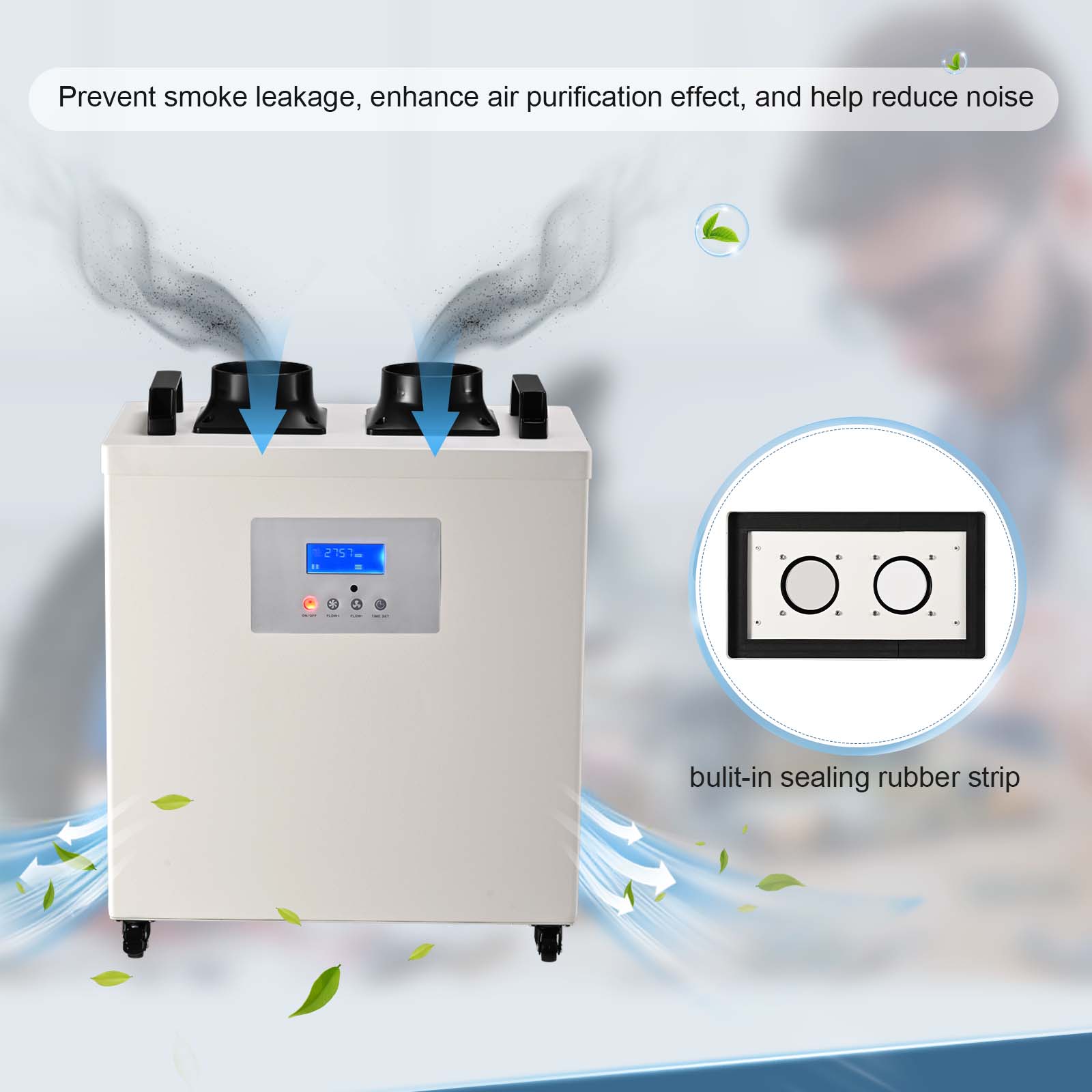

Foam Cotton Sealing
There is foam cotton on the inside of the cover, which not only prevents smoke leakage, but also enhances the air purification effect, and helps reduce noise to ensure a quiet working environment.

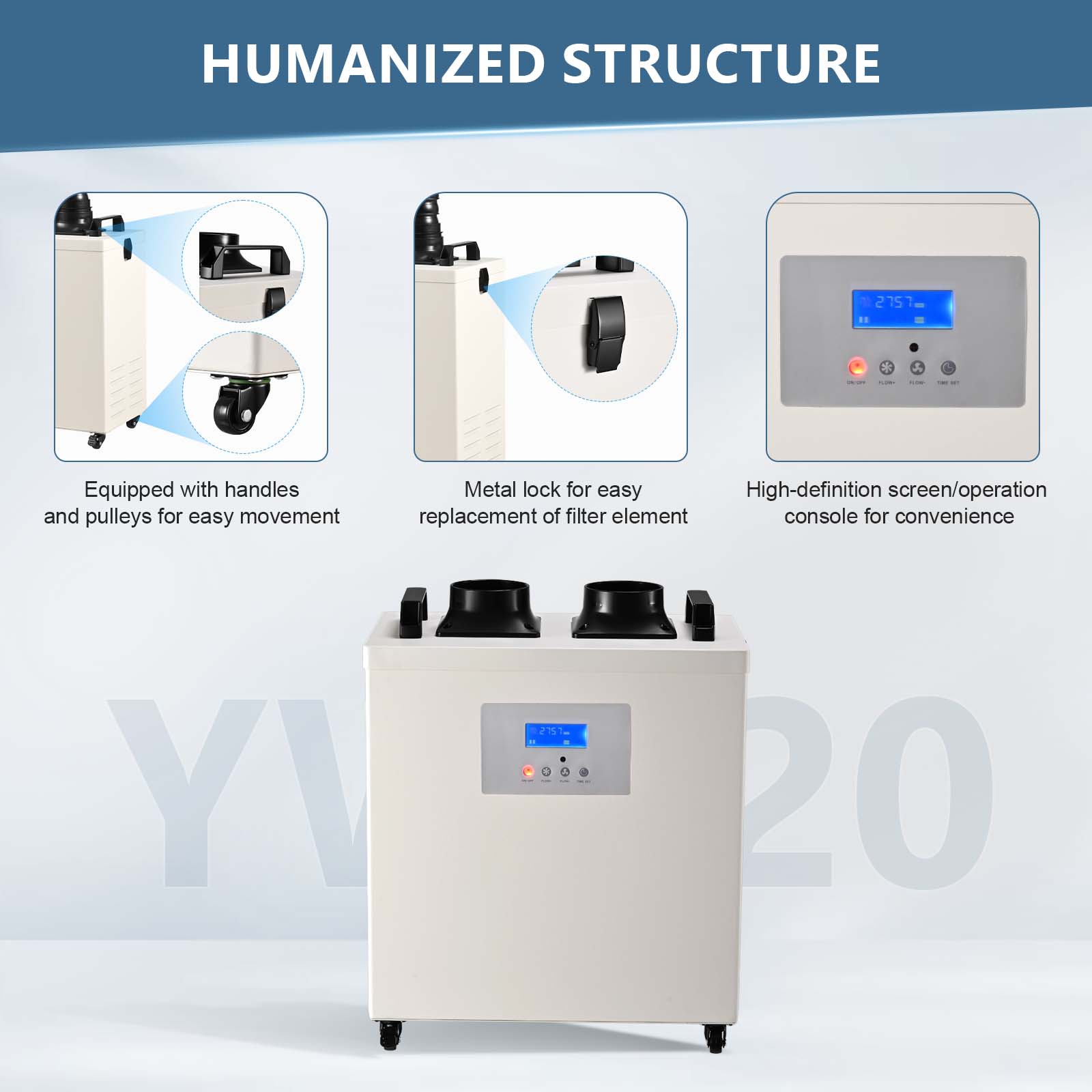

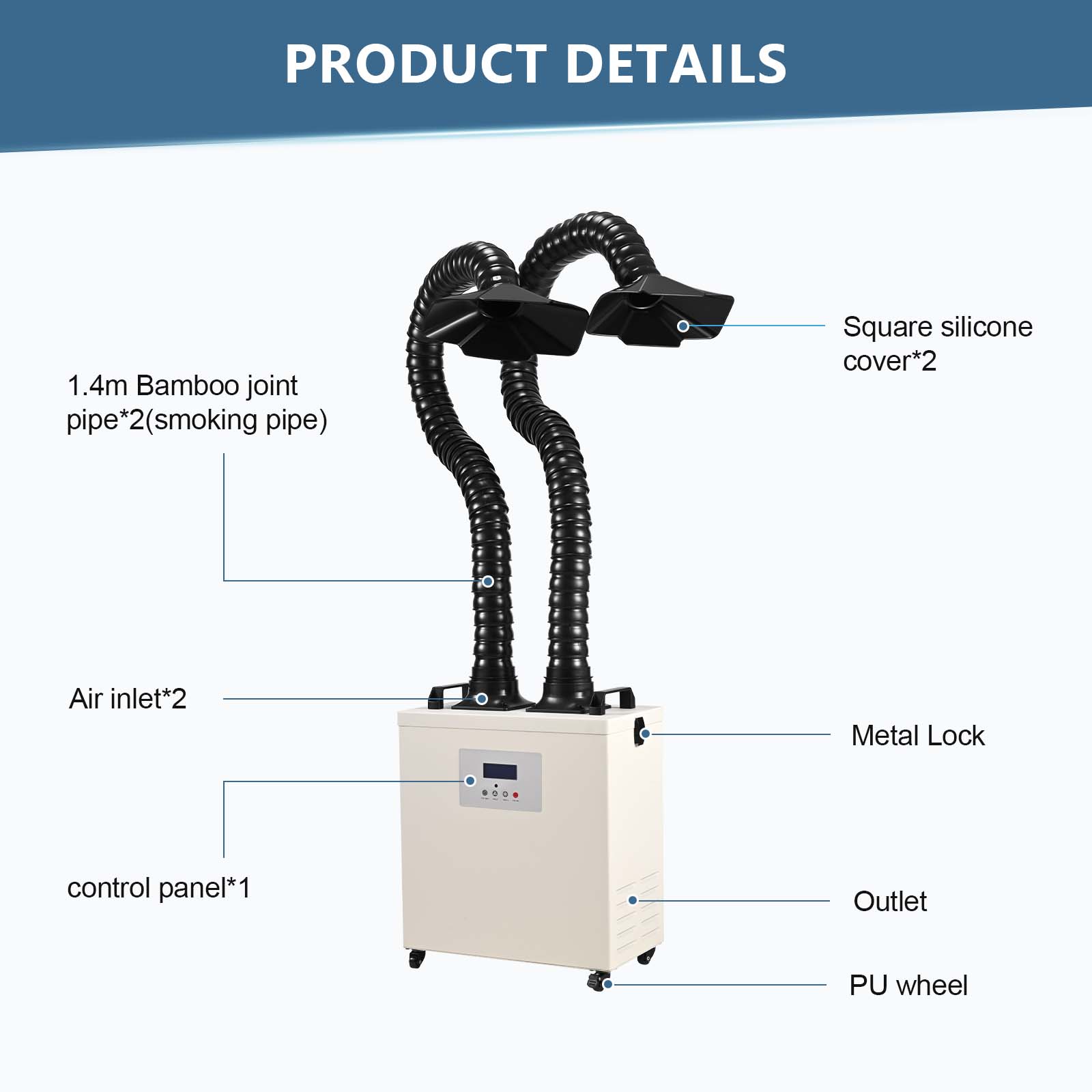

The body is made of durable metal frame. The vents on both sides of the fuselage assist air diffusion. The high-definition screen and operating console make it easy to adjust the parameters as needed. The PU wheel and handle design provide simple and convenient operation.
This fume extractor provides two 100mm adapters and bamboo tubes. The 82mm air inlet is suitablefor 82mm bamboo tubes and 100mm smoke pipes. It is recommended to use our co2 engraving machines and optical fiber marking machines of below 50W. It is also compatible with most diode engraving machines, optical fiber marking machines, and co2 engraving machines on the market.

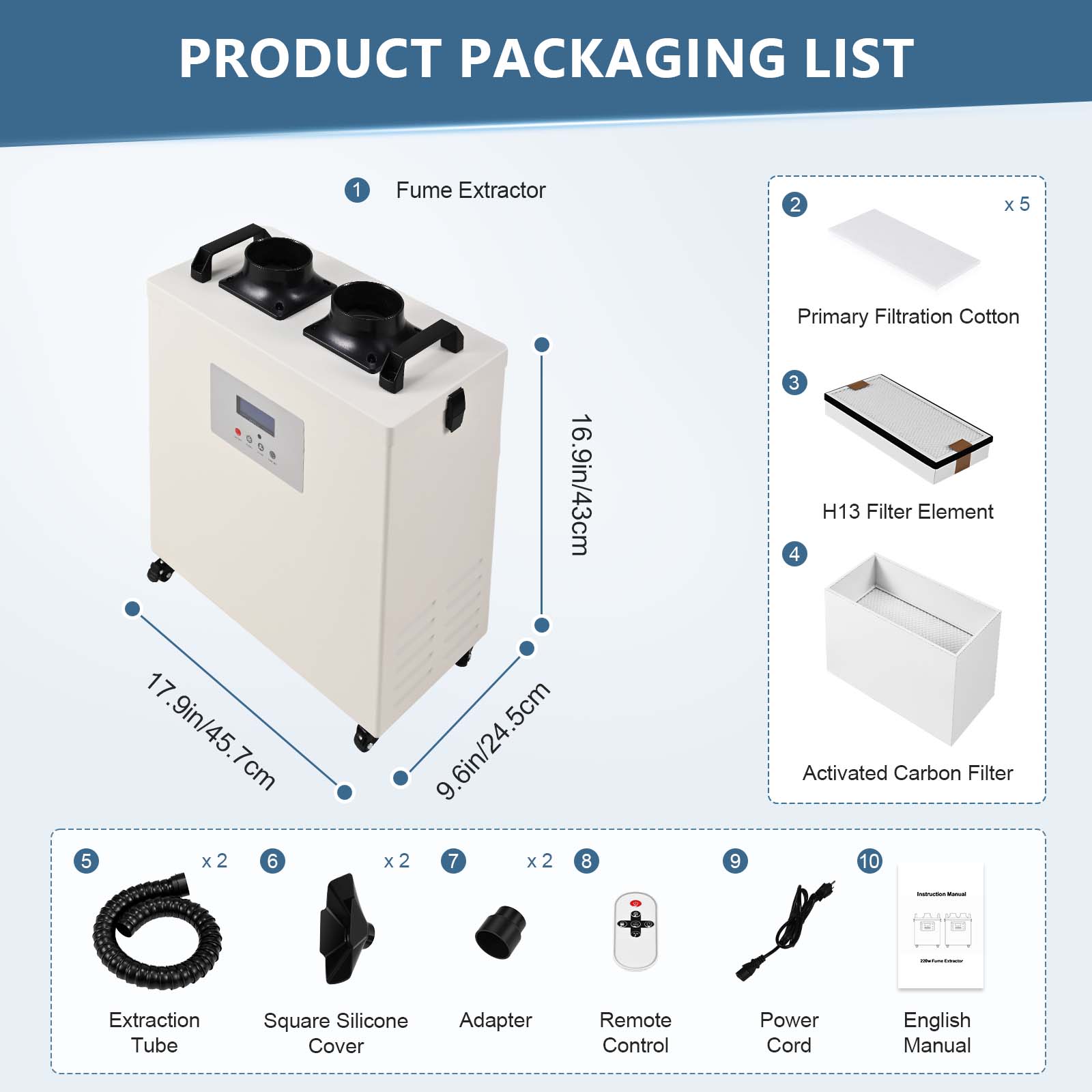

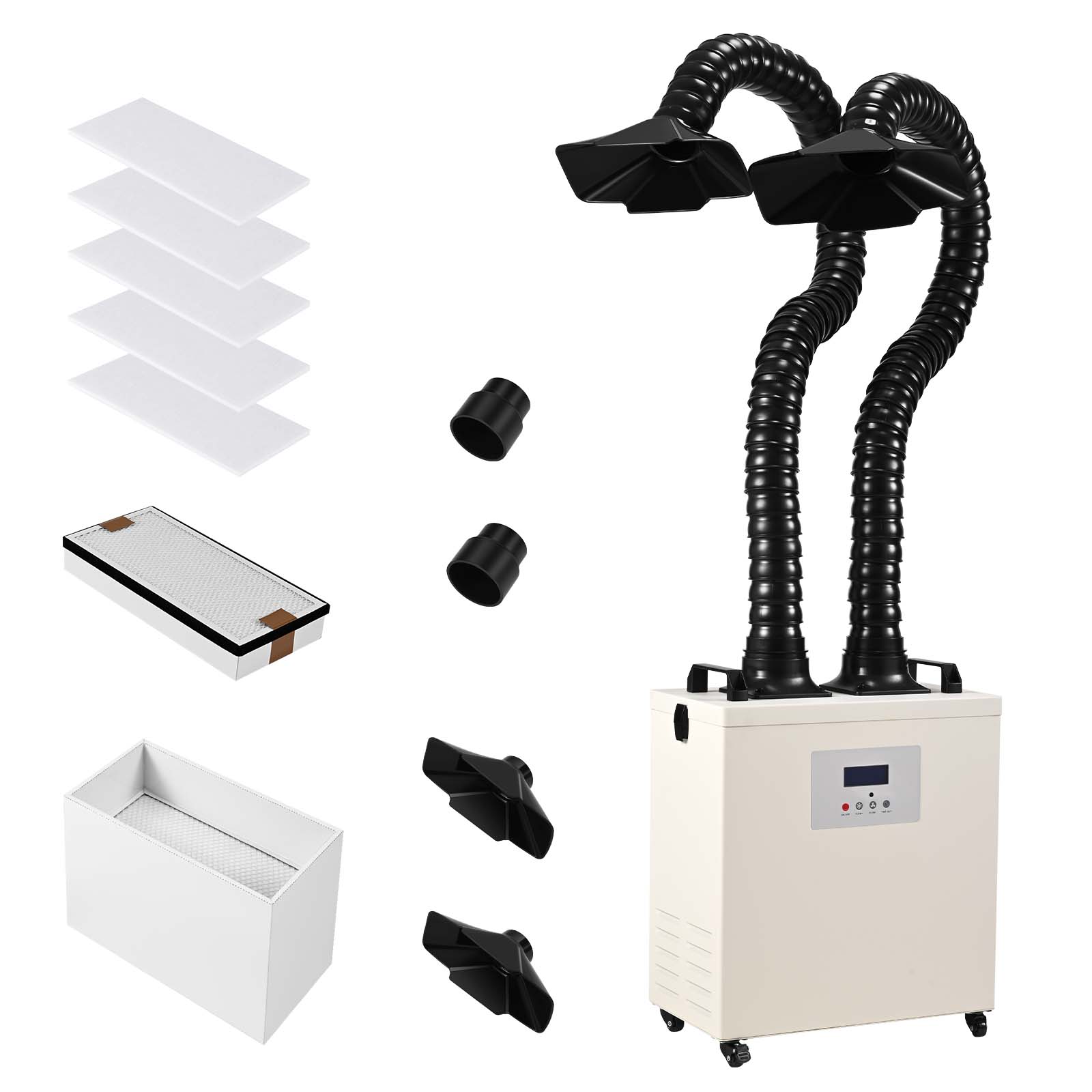

Square Silicone Cover*2
Primary Filtration Cotton*5
H13 Filter Element*1
High Iodine Activated Carbon Filter*1
Warranty & Certifications
1-year warranty on all 220W laser fume extractor
