Laser Power: 60W

Working Area: 6.9"x 6.9"

Wavelength: 1064nm

Machine Dimension: 370 x 300 x 550mm

Package Dimension: 545 x 390 x 350mm

Marking Speed: Up to 10000mm/s

Expected Service Life (MTTF): 100,000 hr.

Brand New Integrated Mini Fiber Laser

The brand new Monport fiber marking machine has a smaller size and lighter weight; Simultaneously maintaining the original high performance and a lifespan of up to 100000 hours.The fiber laser can engrave all metals. (gold, silver, copper, stainless steel, brass, titanium, etc.)

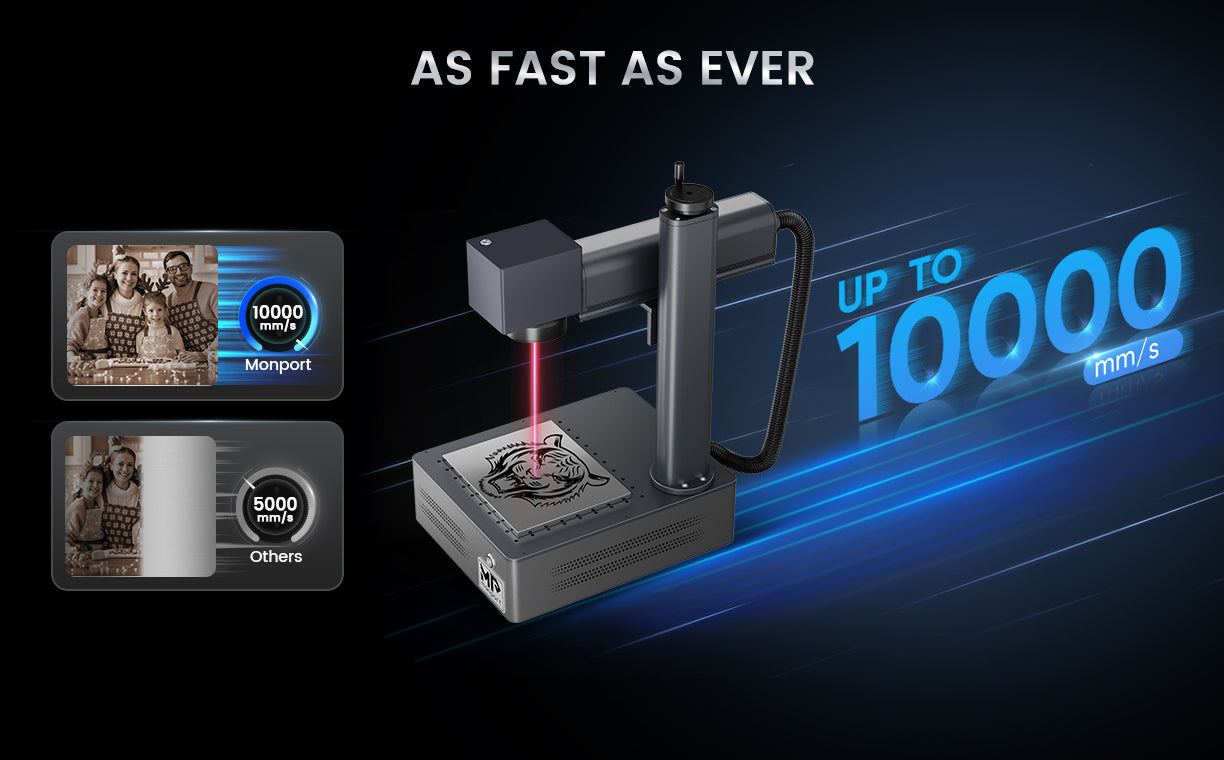

Faster and More Accurate

The newly customized galvanometer system is equipped with more expensive silicon material reflectors, allowing for a maximum speed of 10000mm/s. Monport has also customized an F-theta field mirror, which, together with the entire marking system, can achieve a carving accuracy of 0.01mm.

Gold Marking Area

For a mopa fber laser, a marking area of 175*175mm is optimal.Excessive engraving area may result in poor engraving effect or even distortion.After special tuning by Monport, even when carving at the edges, there will be no weak light.

True color marking

Monport uses JPT MOPA laser to achieve true color marking, including stainless steel color marking, brass color marking, aluminum blackening and other applications (Frequency adjustable range 1-4000kHz, pulse width adjustable range 2-500ns).You can set different parameters to achieve various colors, and of course Monport will also provide a large number of color printing parameters as a reference.

Deep Engraving and Cutting Capabilities

With this 60W fiber laser marking machine, you can perform 2.5D metal engraving, deep metal engraving, and even some metal sheet cutting (usually the higher the power, the stronger the deep engraving and cutting ability, and the higher the efficiency. If you want stronger and faster results, Monport recommends purchasing a 50W or above machine)

Lightburn Compatible

All Monport fiber marking machines can be operated using Lightburn, but if you don't want to use Lightburn, we also provide free and easy-to-use software (Free software and backup parameters are saved on a USB drive and included in the packaging).

Rich Compatibility with Accessories

You can pair it with a rotary (marking circular objects), a smoke purifier (absorbing smoke and dust), a protective cover (noise reduction, safety), and all of which are sold in Monport stores.

1x Fiber Laser Engraver
1x USB Cable(2 meters)
1x Power Cord(1.5 meters)
1x USB Flash Drive
1x User Manual
1x Goggles
1x Wrench Set
1x Ruler (30cm)
1x Foot Switch
2x Positioning Bars
4x Serews M6*12
4x Screws M6*10
4x Screws M5*16
1x Usb to TypeC Adapter
10x Test Aluminum Sheets

• 2-year parts warranty on all GM MOPA fiber laser machines
• 1-year warranty on fiber laser source
• FDA COMPLIANT
• CE CERTIFICATION

Some tips about delivery in the continental US (except preorder)

You will get the tracking number within 2 business days.

The delivery time varies from 3 to 7 business days.

If your address is outside the continental US, Please read the Shipping Policy carefully before buying.

If the arrived outer package is damaged, please refuse to sign for it and take a photo, then contact Monport via support@monportlaser.com.

We are very glad to help you with the exchange process.

Download GM User Manual Here
