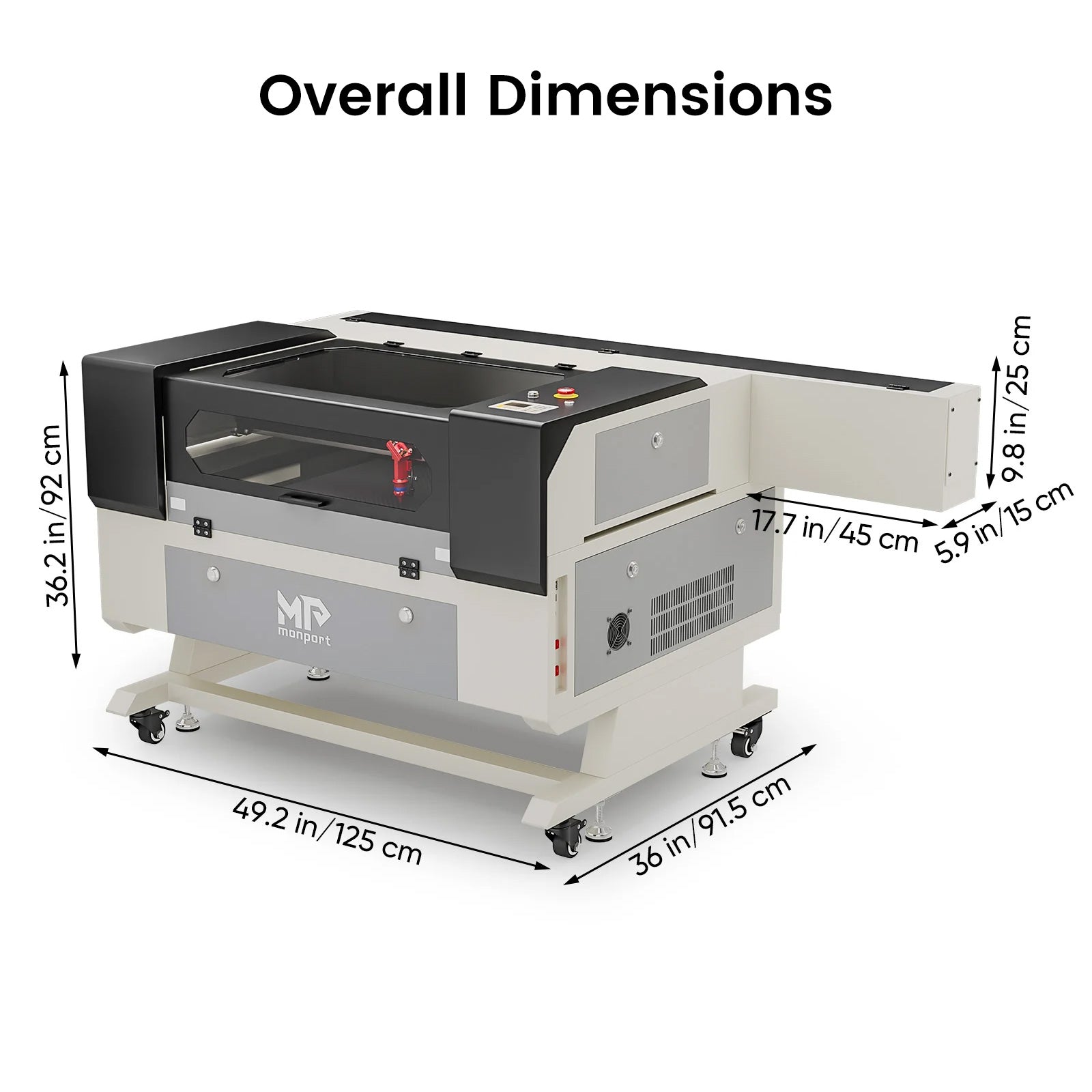

Machine Dimension: 49.2" x 36" x 36.2" ( 125cm x 91.5cm x 92cm ）

Working Dimension: 28" x 20" ( 70 cm x 50 cm )

Front / Back Pass-Through Dimension: 32.3” x 3.9” ( 83.5cm x 9.5 cm )

Side Pass-Through Dimension: 20.5” x 0.8” ( 52cm x 2cm )

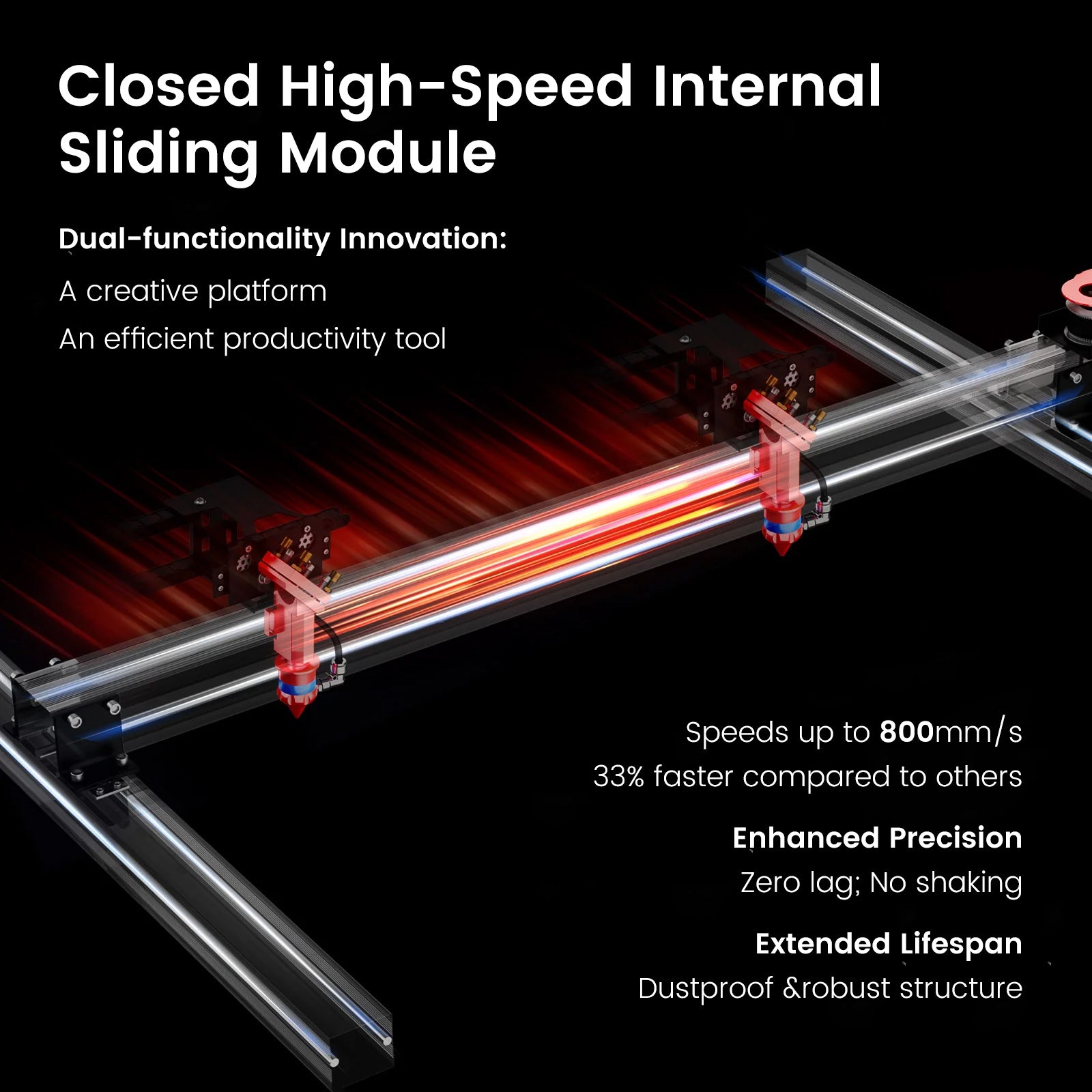

Max. Processing Speed: 800mm/s

Focal Lens Diameter: 18mm

Mirror Diameter: 25mm

Max. Acceleration ( X-Axis ): 315 ips2 ( 8000 mm/s2 )

Max. Acceleration ( Y-Axis ): 78.8 ips2 ( 2000 mm/s2 )

Max. Z-depth: 8.6”

Product Weight: 485lbs

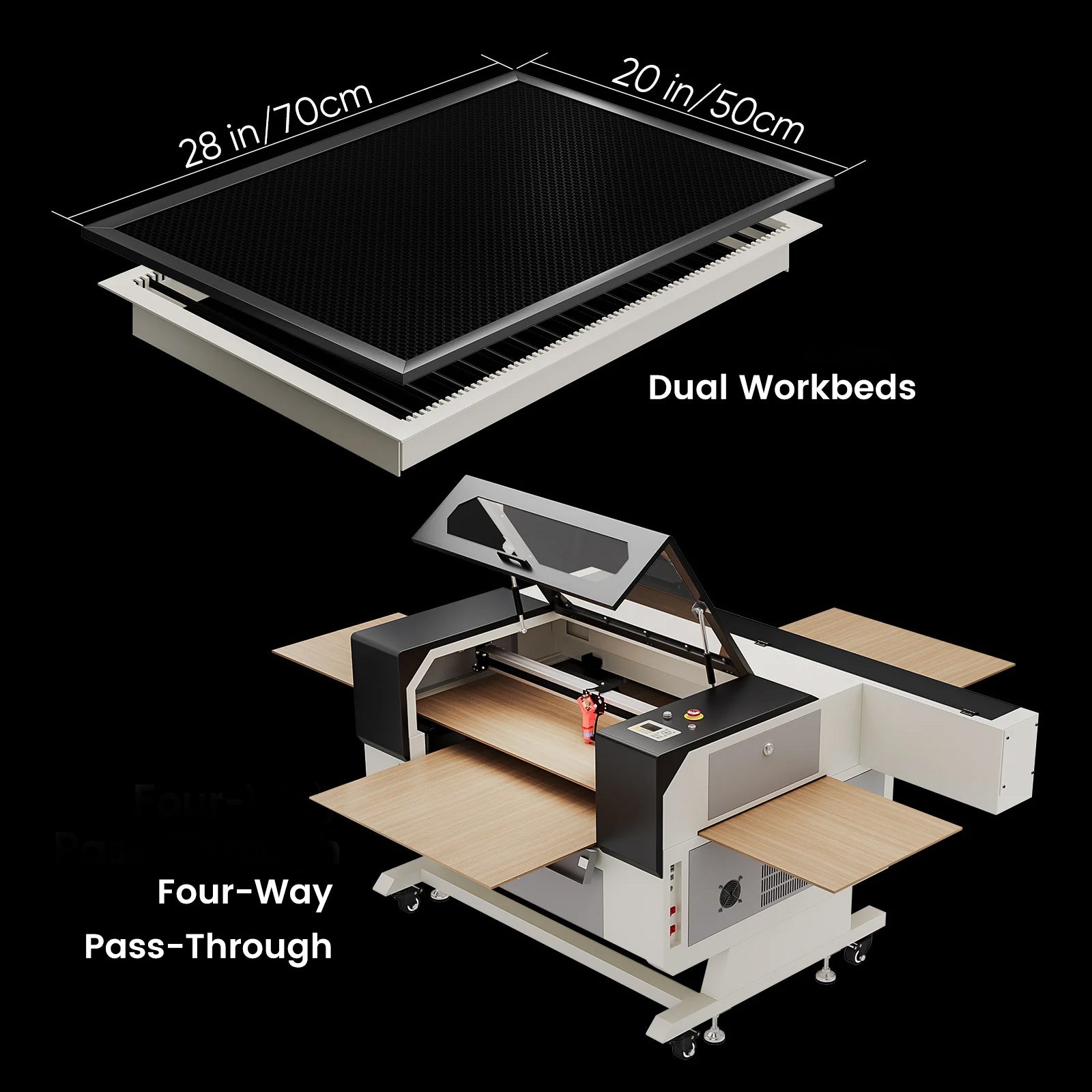

For Larger Engraving Projects

With a spacious 20*28’’ work bed, and four-way pass-through for items extending the workbed, this engraving tool is designed for big projects. The high-quality metal honeycomb board and aluminum panel provide double protection, and it's moveable for thicker materials, ensuring a secure and stable environment for your work pieces.

Great Compatibility

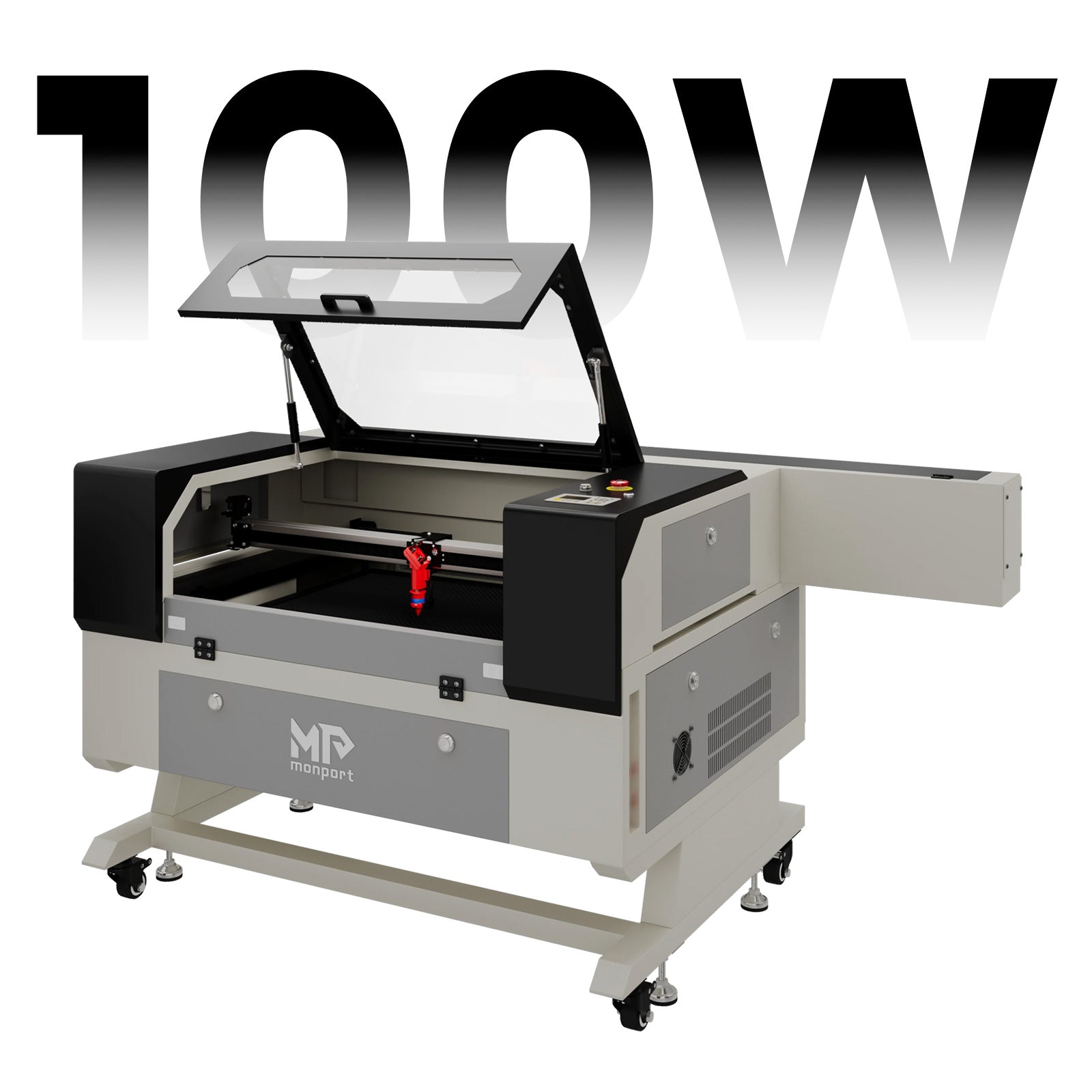

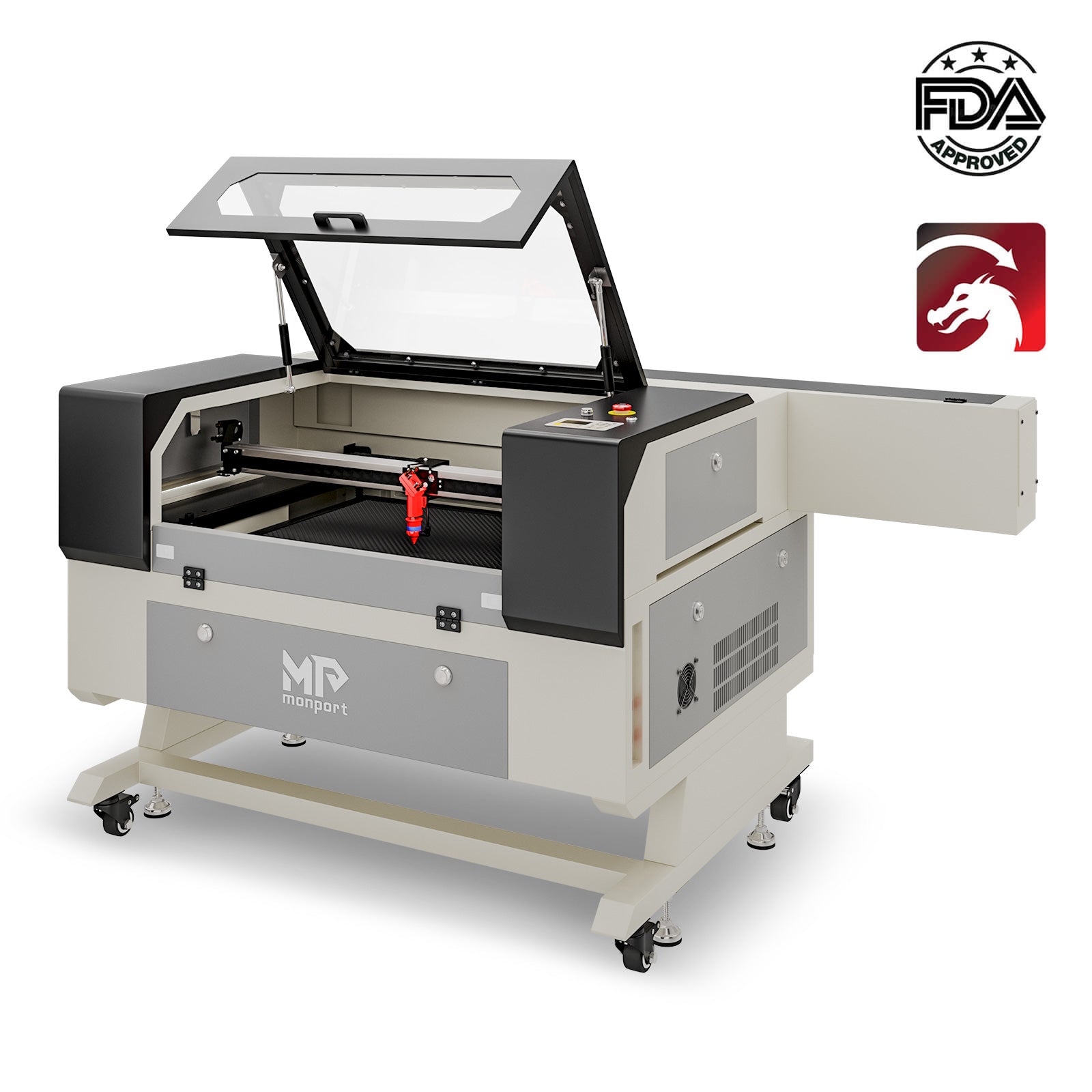

Monport 100W CO2 laser engraver is compatible with Windows and Mac, supporting RDWorks and LightBurn. Whether for DIY or commercial use, users can attain precise control and engravings on various nonmetallic surfaces, such as wood, glass, acrylic, leather, with a depth of 0.59'' and speeds up to 800mm/s.

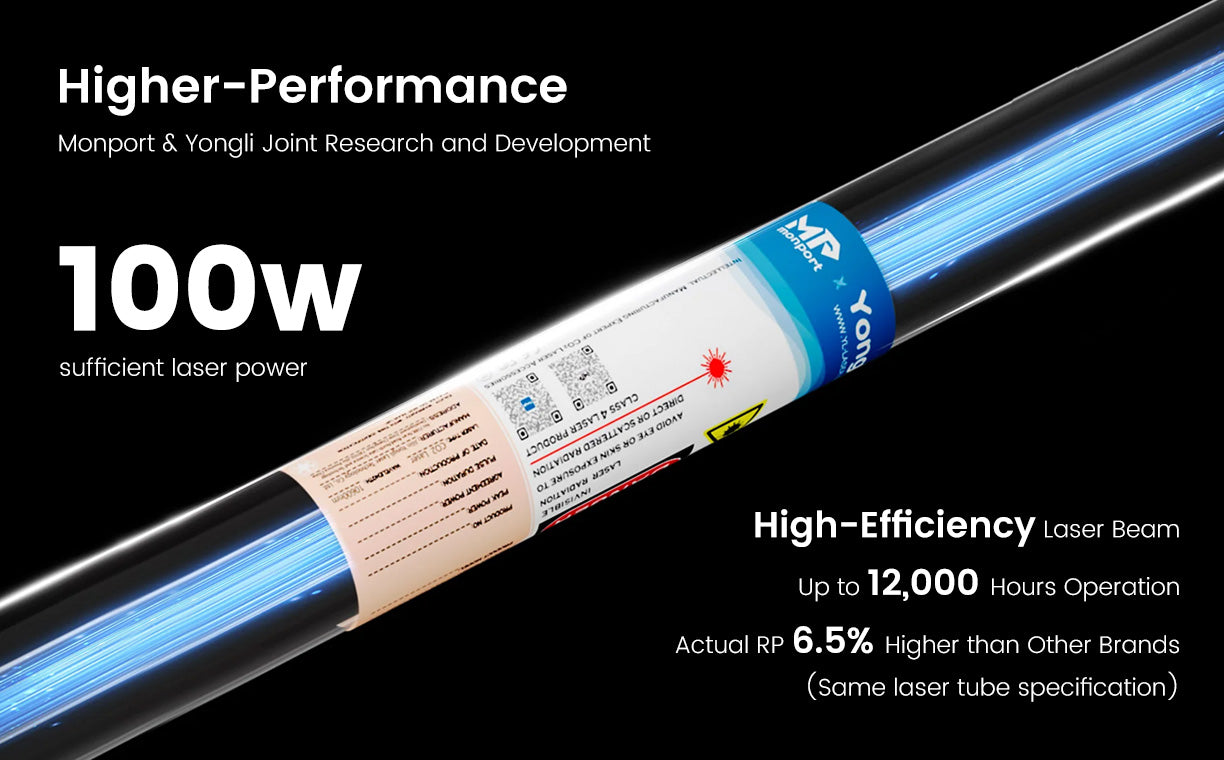

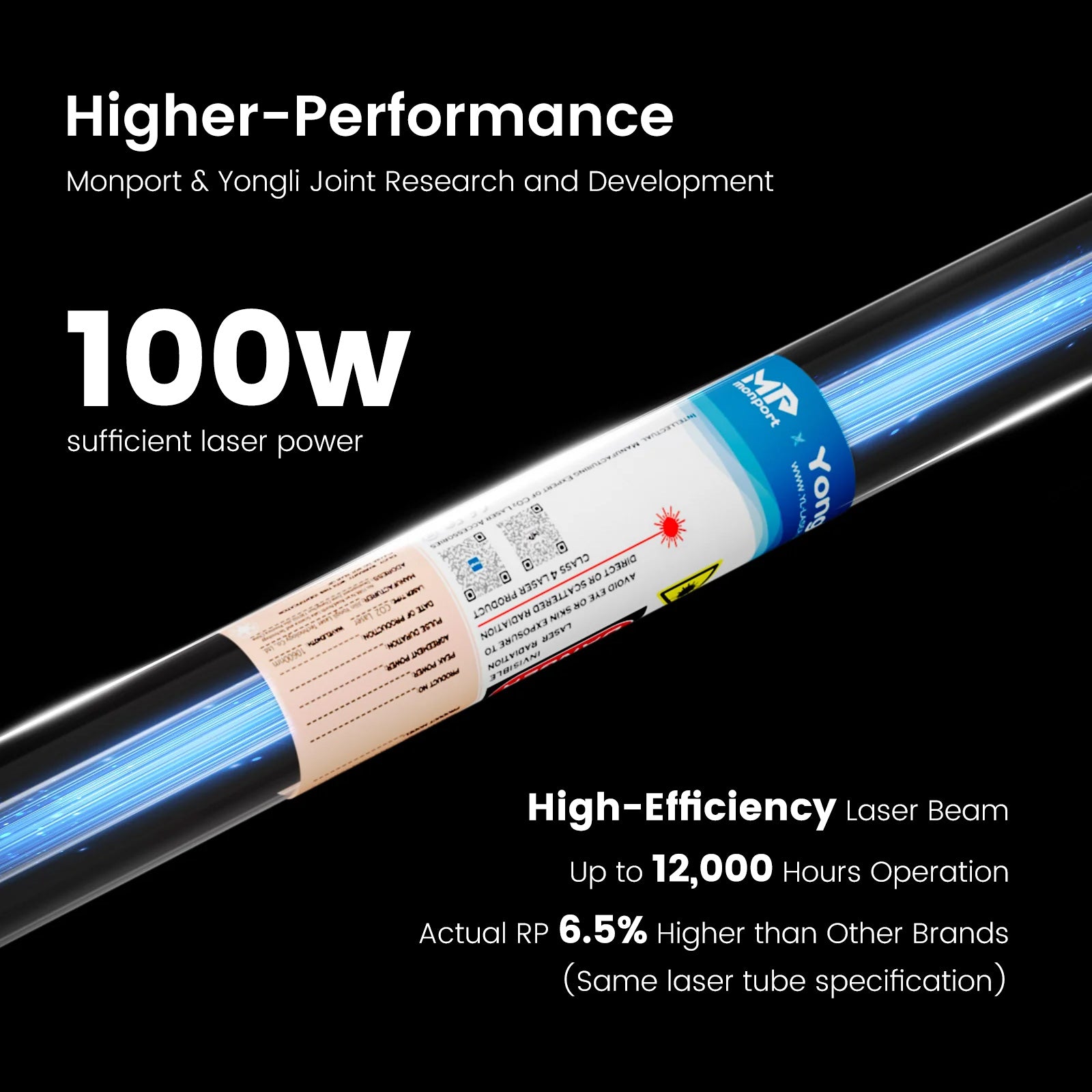

High-Performance Laser Beam

Monport & Yongli's joint research and development have produced a high-efficiency laser beam for this laser cutter, yielding up to 12,000 hours of operation. It delivers an outstanding 6.5% higher actual RP compared to competitors with identical laser tube specifications.

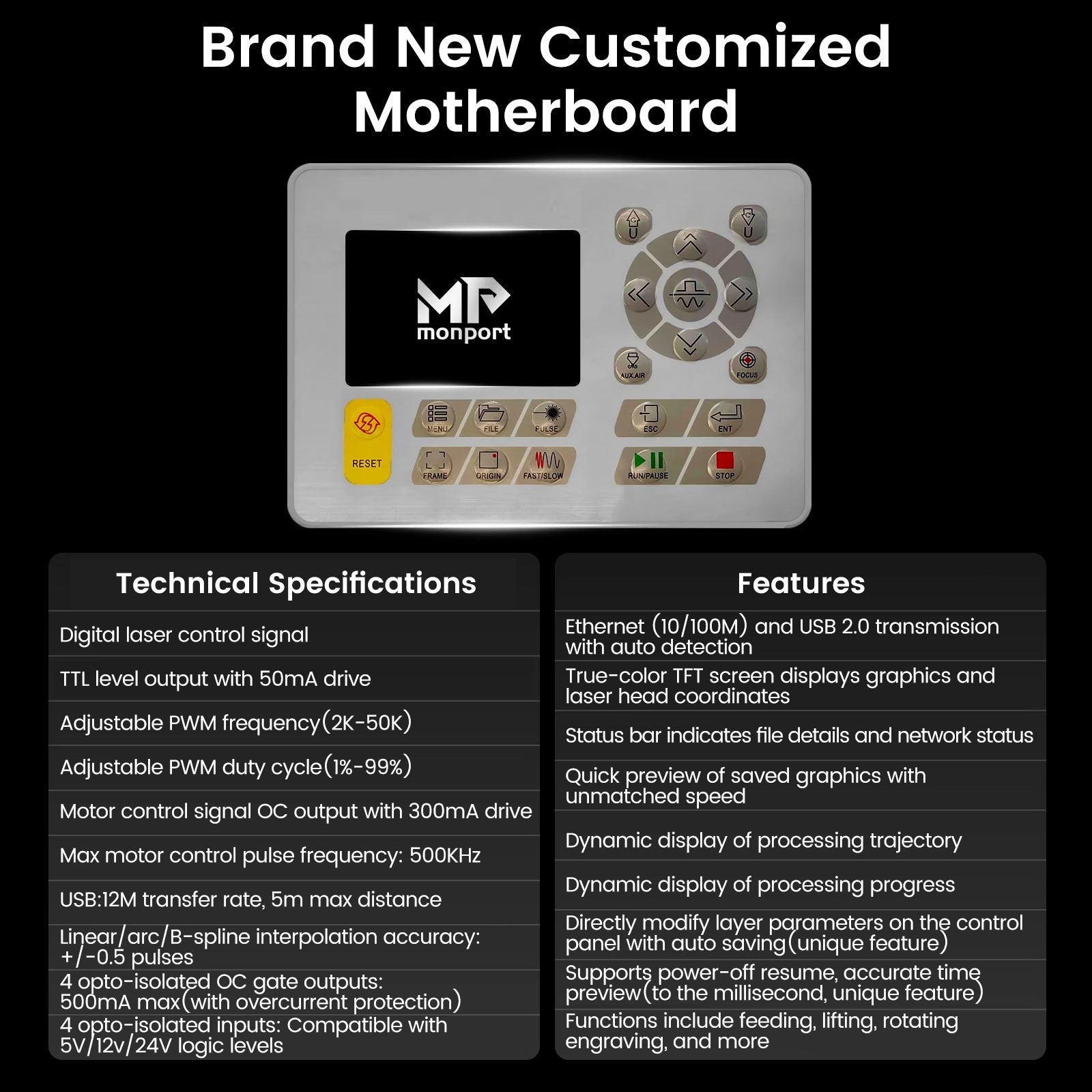

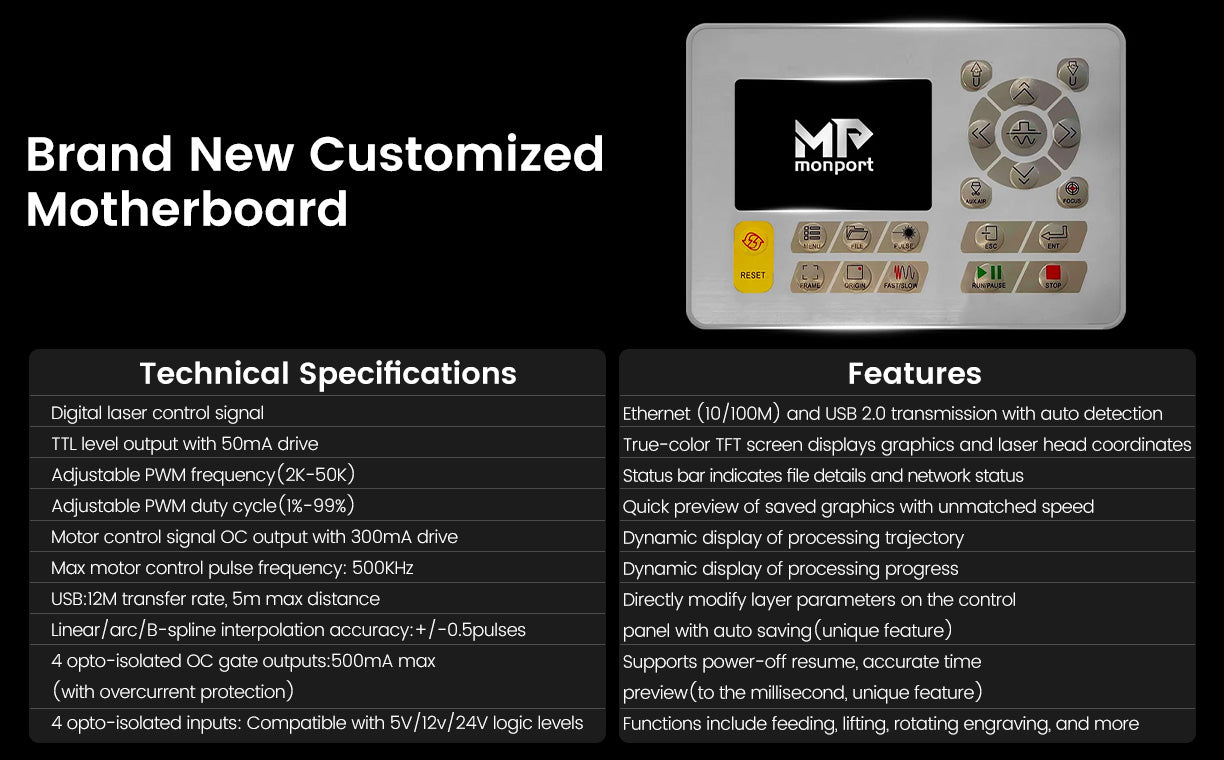

Intelligent Control Panel

Driven by Ruisin KT332N motherboard, our laser engraving machine offers direct control of auto-focusing, Z-axis movement, and air assistance. Dynamic display of processing trajectory & progress enables users to modify layer parameters on control panel with auto saving. More uniquely, the system supports power-off resume, and accurate work time preview to the millisecond.

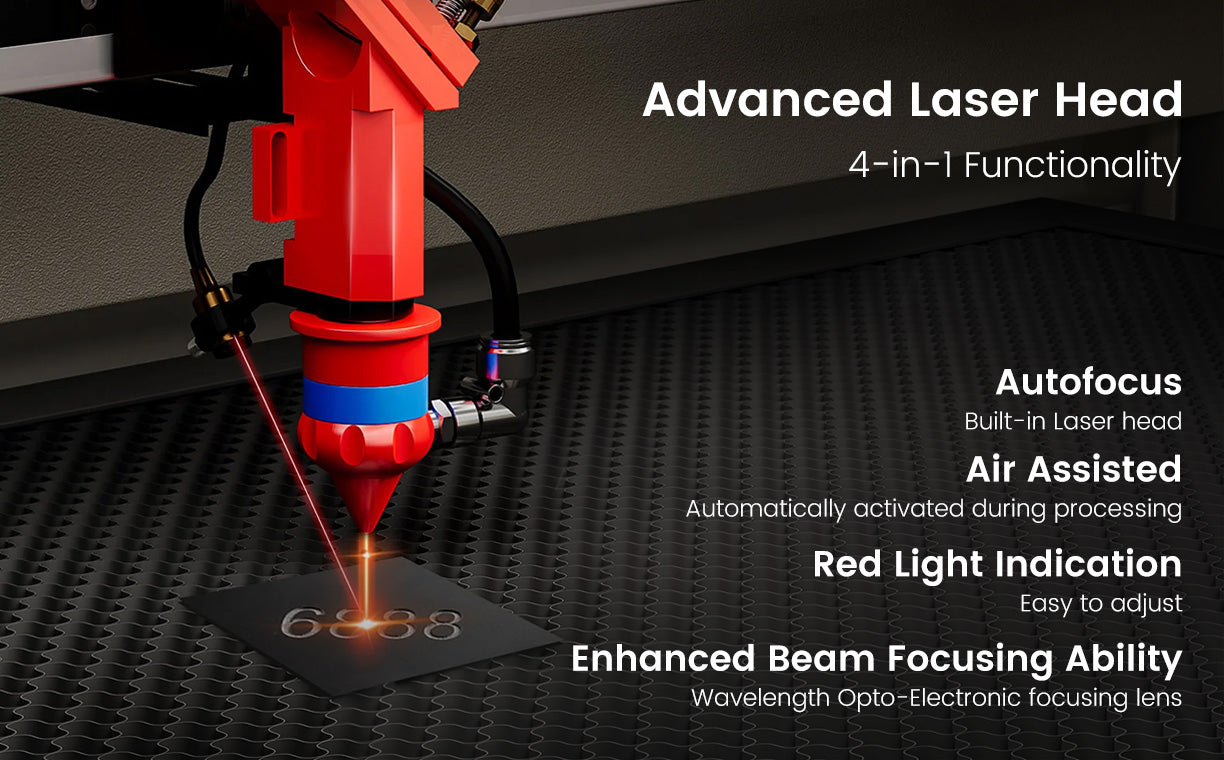

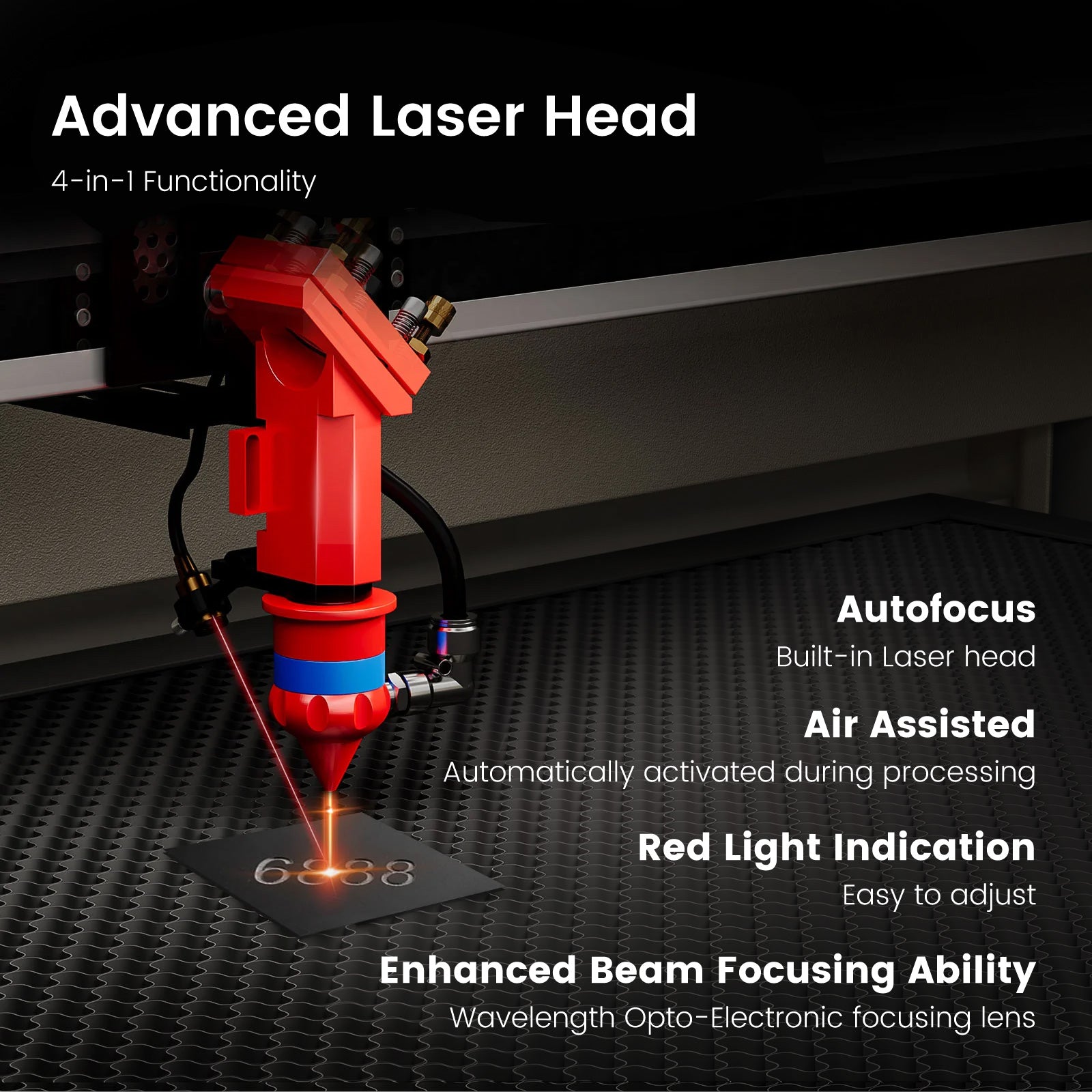

Advanced 4-in-1 Laser Head

Monport combines four functions on one laser head, including laser emission, autofocus, air assist, and red light indication. More importantly, we choose high specification focusing lenses (produced by wavelength optoelectronics).The above will give you an unprecedented carving and cutting experience and streamline your engraving process with convenience and efficiency.

Comprehensive Safety Features
Our engraving machine ensures user safety with features like an emergency stop button for fast power shutdown, independent laser control with a dedicated key, cover protection to halt operation when opened, and auto-stop for low water or high temperature.The fireproof window allows observation, while built-in ventilation ensures instant smoke removal.

Laser Engraver Machine *1

A Pair of Laser Protective Glasses *1

Accessory Bag *1

Ethernet to Ethernet Cable *1

USB Type-A to Type-A Cable *1

Venting Exhaust Duct *1

USB Drive with Software (RDworks) *1

Hex Wrenches *10

Double-sided Tape *1

Power Cord *1

Keys *2

Silicone Sealant *1

Stainless Steel Clamp *1

Instruction Manual *1

2 year warranty on all 100W laser machines and parts

1 year warranty on 100W laser tubes

FDA Approved & CE Certified

Download the Software: RDworks

Download the Manual: 100W CO2 User Manual

Download the Settings: CO2 Parameter Settings

Compatible Accessories: Rotary Axis, Water Chiller

We sponsor DIY laser files: Free DIY laser files
