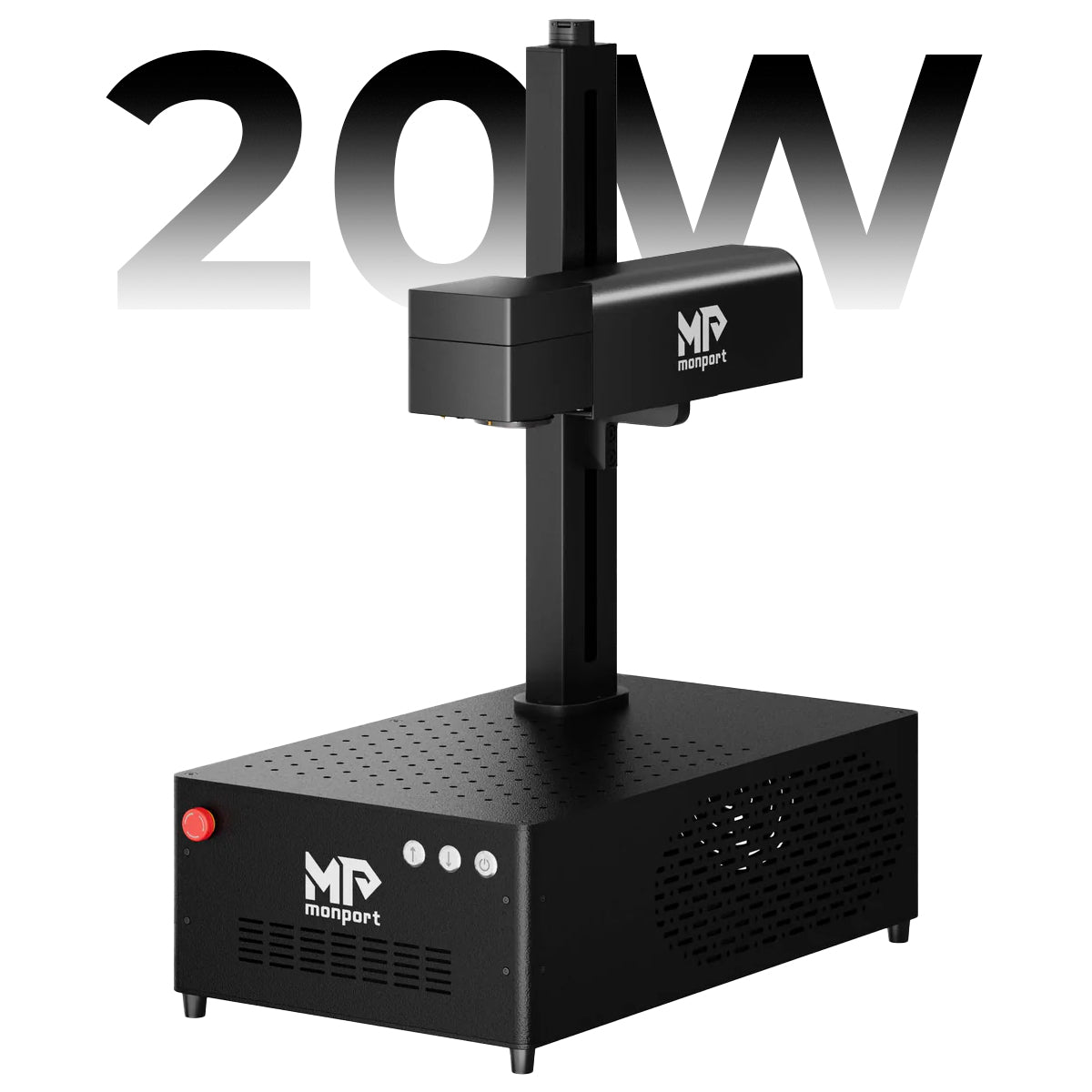

MONPORT GP 20W Integrated Fiber Laser Engraver & Marking Machine with Electric Lifting

$1,399.99

$1,399.99 ~~$2,499.99~~

Shipping calculated at checkout.

Free Shipping
2-Year Warranty

Available in stock

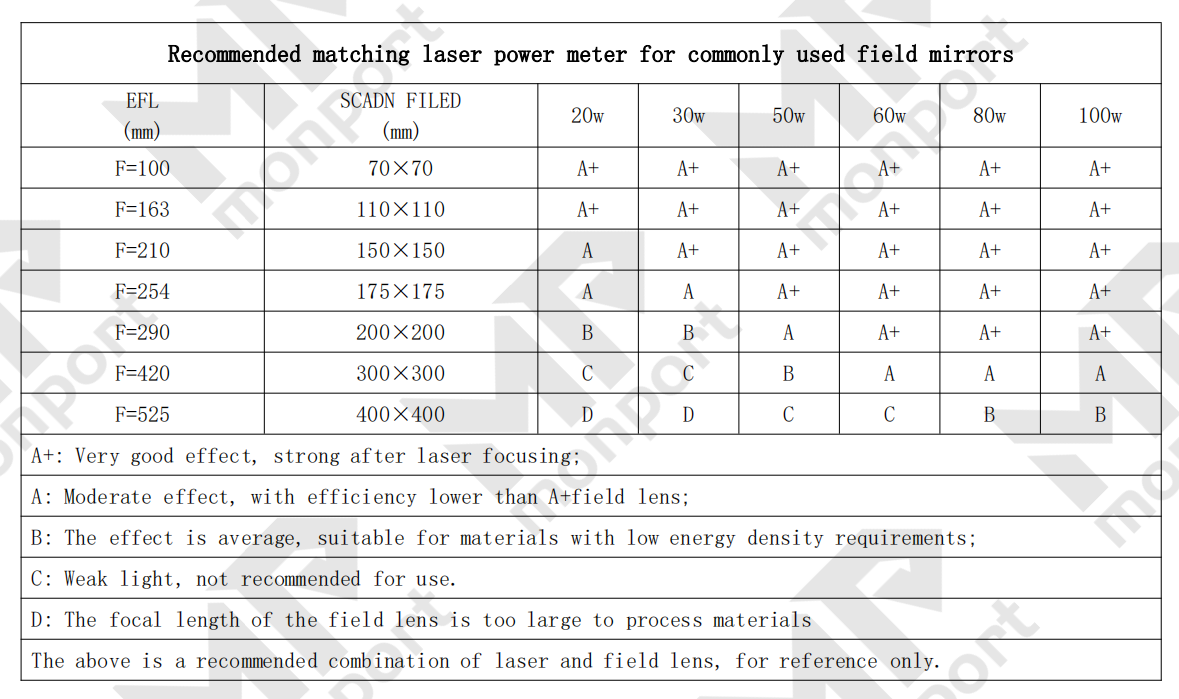

Fiber Lens Choice

The compatible thread lens sizes are M52 and M55.

View More Lens

Option: Machine

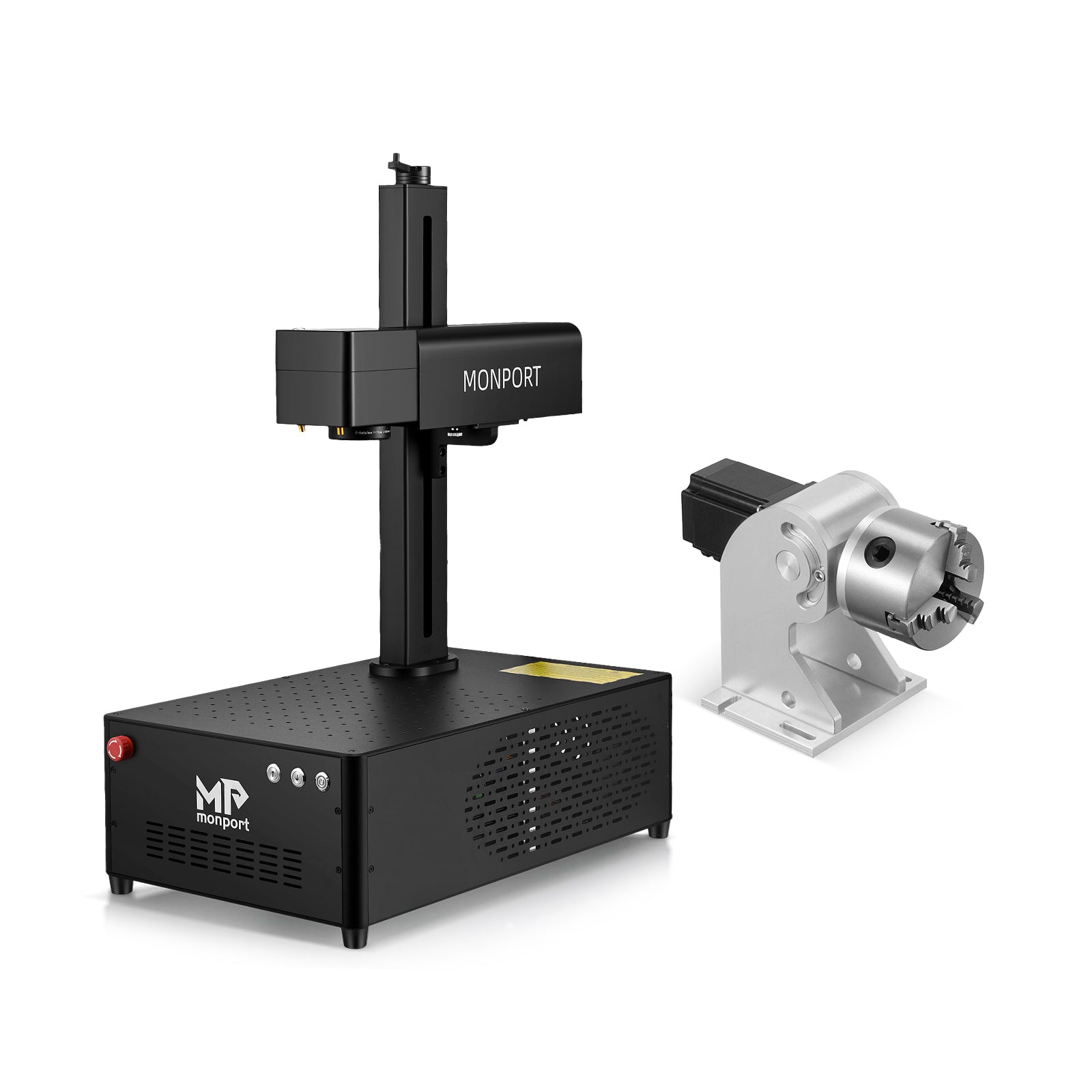

Machine +LightBurn +Rotary Axis

Questions & Answers

Have a Question?

Ask a Question

: What's the difference among the Split series,GP series and GI series?

: Firstly, the GP and GI shells are integrated and customized to upgrade, making them lighter and more integrated than the Split series.The GP series and Split series have the same Raycus laser souce.Besides this, the main difference is GP series is integrated and cheaper. GI series fiber lasers have the JPT mopa laser source and can do color engraving.
: What's the real difference between the GI series integrated MOPA and the Split series ?

: The real difference between GI series and Split series is the engraving effect. GI series is based on MOPA technology with better engraving performance and color engraving. The laser frequency ranging from 1-4000khz allows for a higher level of intensity and accuracy.
: What brand of laser is used in the integrated fiber laser marking machine?

: The laser brand of Split and GP series is Raycus, and the laser brand of GI series is JPT MOPA.
: Which Fiber Laser Engraver should I choose?

: Spilted & GP Series: Standard marking/partial engraving on most metal materials, stone and hard plastic. GI Series: Faster marking/engraving on most metal materials, stone and hard plastic. + High-precision marking + Color marking on titanium and stainless steel (with high recovery and accuracy on metal materials)
: What engraving software does this integrated fiber laser marking machine require? Which computer systems is the software compatible with?

: This machine comes with ezcad2 engraving software, it can be compatible with Windows XP, WIN7, WIN8, Win10, Win11.If your computer system is a mac, you can purchase the GALVO version of Lightburn software to connect to the machine.
:Besides the rotary, what other accessories do you provide?

: At present we only provide the rotary. But we are also planning to release the cover and the air purifier. So if you have that need, please contact us.
: Does the Integrated Fiber Laser Engraver need a special ventilation system?

: The laser has built-in air cooling and unique side panel openings bring a better heat dissipation effect. If you need the extra ventilation system, our air purifier can be used with fiber laser will be released soon, Please pay attanetion to our website.

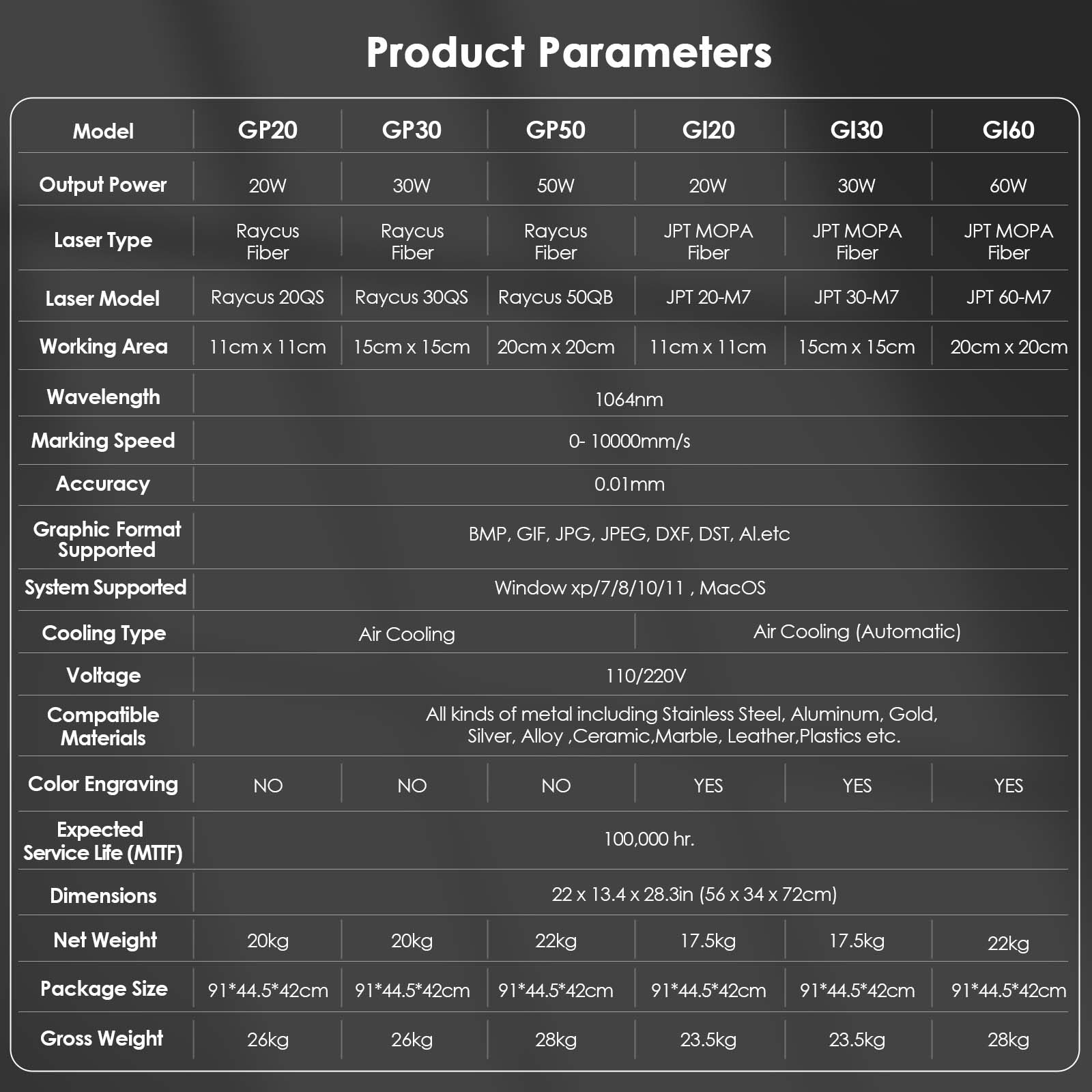

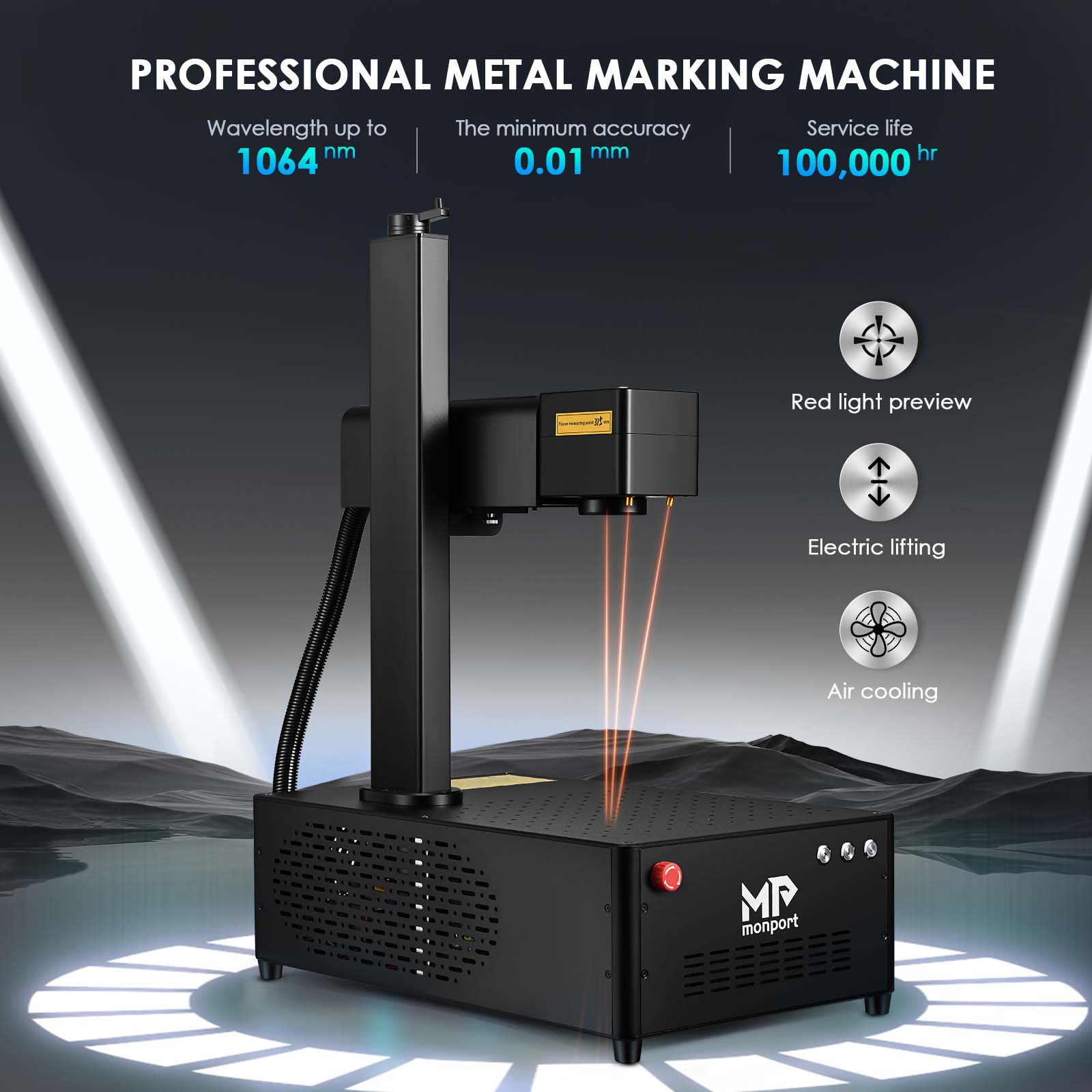

Dimension & Specifications

Laser Model: Raycus 20QS

Output Power: 20W

Laser Type: Raycus Fiber

Working Area: 4.3" x 4.3"

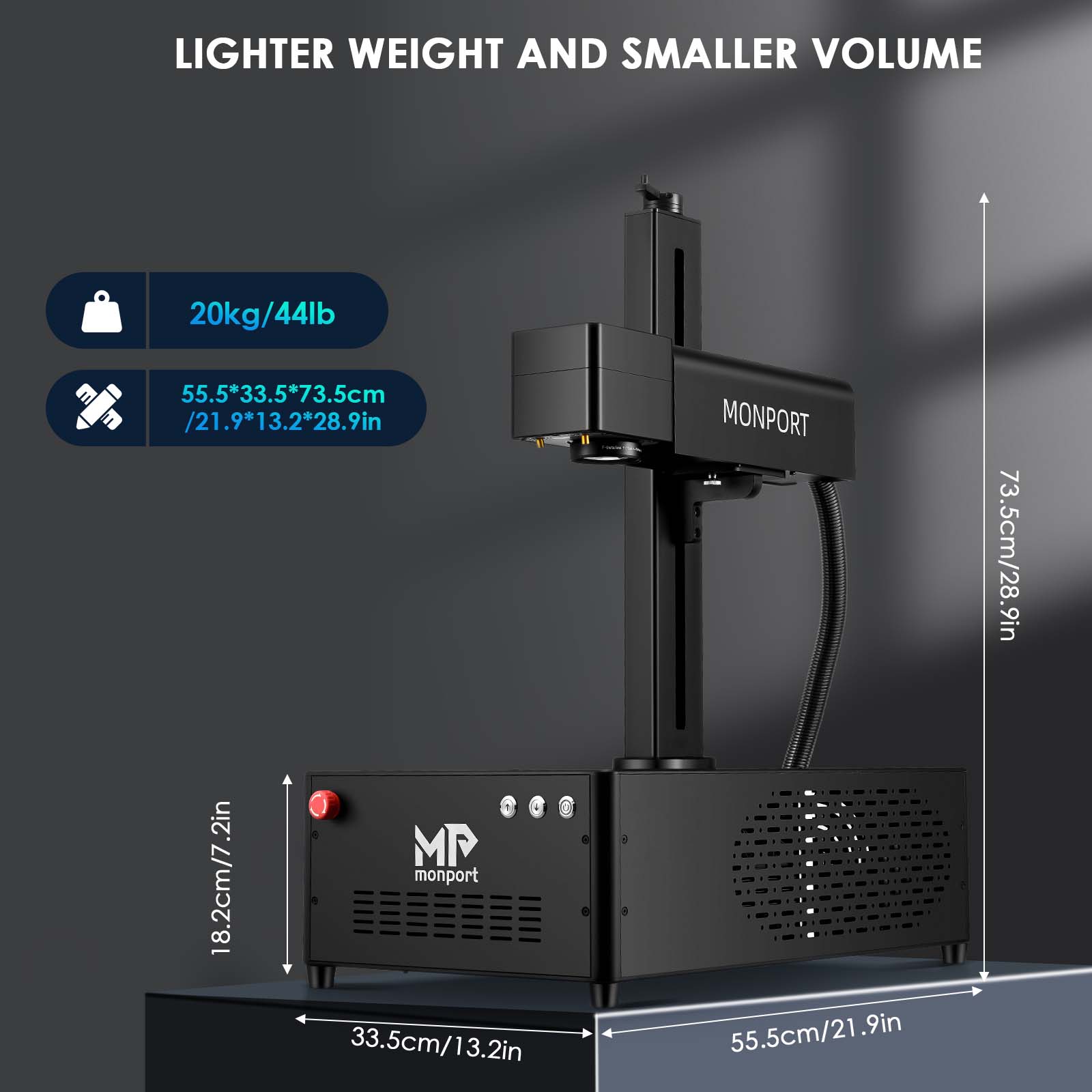

Machine Dimensions: 22" x 13.4" x 28.3"

Package Dimension: 35.8" x 17.5" x 16.5"

Wavelength: 1064nm

Marking Speed: 0- 10000mm/s

Accuracy: 0.01mm

Graphic Format Supported: BMP, GIF, JPG, JPEG, DXF, DST, Al.etc

System Supported: Window7/8/10/11 , MAC

Cooling Type: Air Cooling

Voltage: 110/220V

Compatible Materials：all kinds of metal including Stainless Steel, Aluminum, Gold, Silver, Alloy ,Ceramic,Marble, Leather,Plastics etc.

Expected Service Life (MTTF): 100,000 hr.

Net Weight: 20KG

Package Weight: 26KG

GP20 Fiber Features

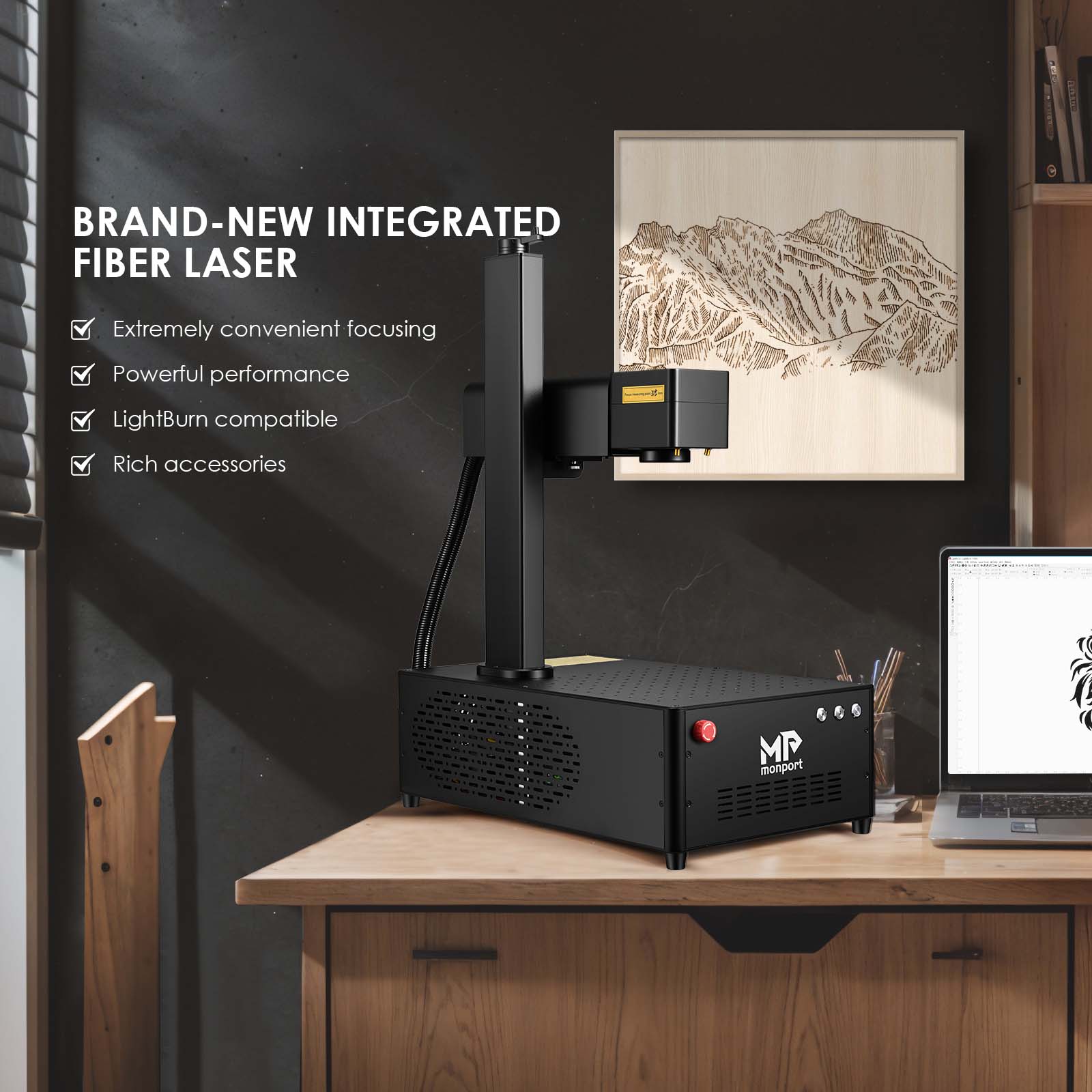

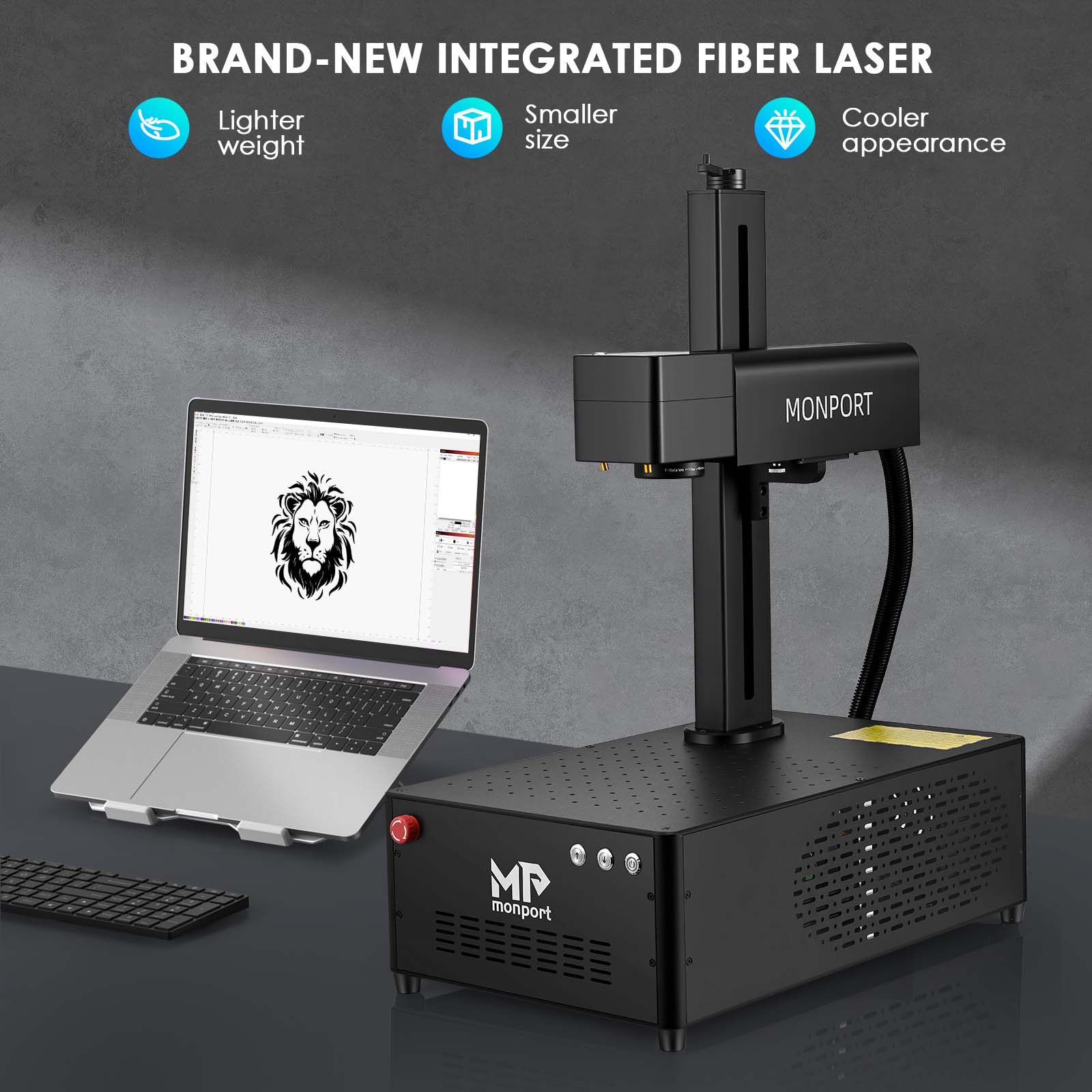

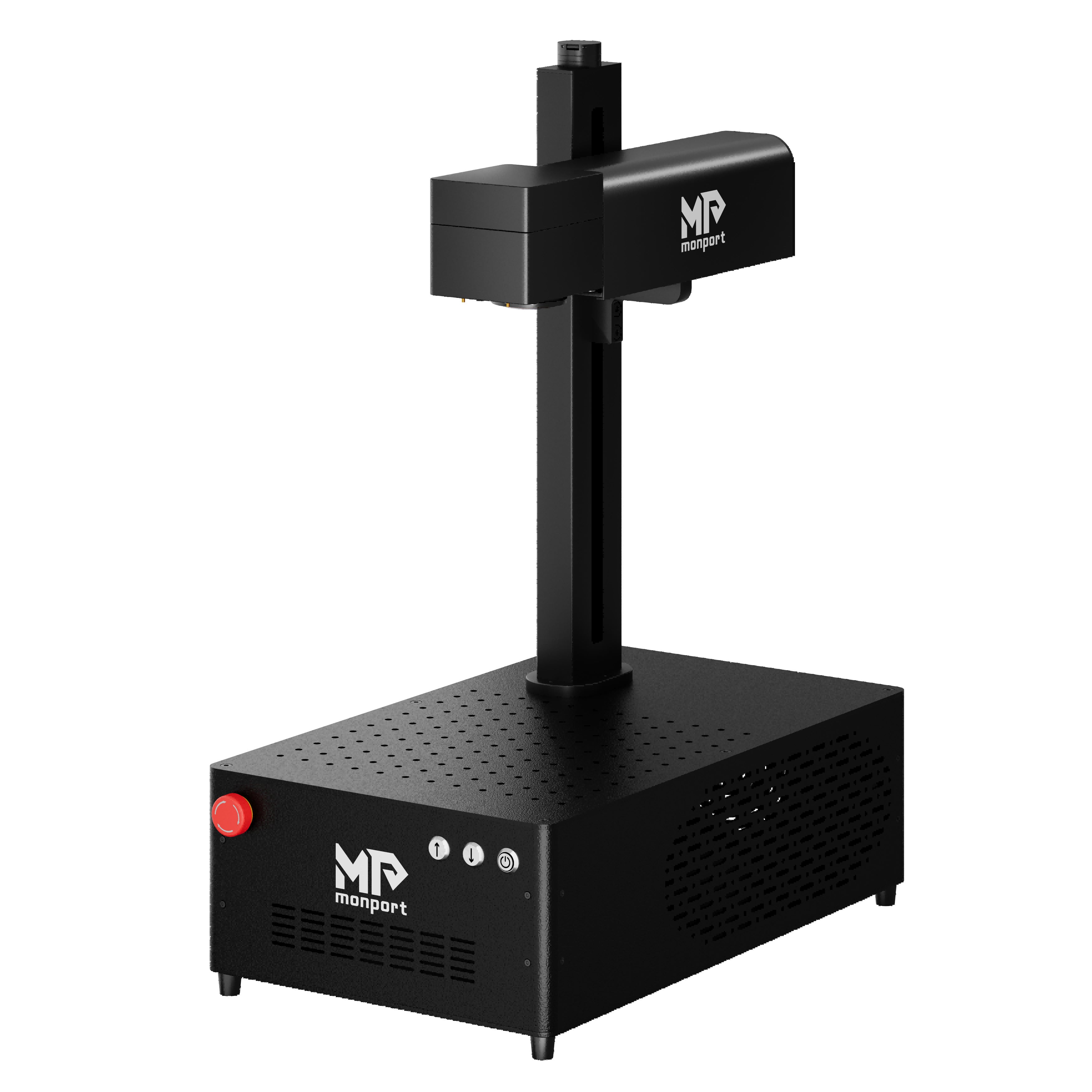

Integrated Innovative Design

Monport's brand-new integrated fiber laser defines a new generation of machines. It achieves a lighter weight, smaller size, cooler appearance, and more user-friendly user experience while maintaining the original performance unchanged.

Excellent Marking Capability

Monport's 20W Raycus fiber laser marking machine propels your design journey with unmatched speed, precision, and flexibility.Marking speed up to 10000mm/s.Not only does it boast an MTTF exceeding 100,000 hours, but it also delivers precise cuts of up to 0.05mm per pass, accurate to ±0.1 microns.

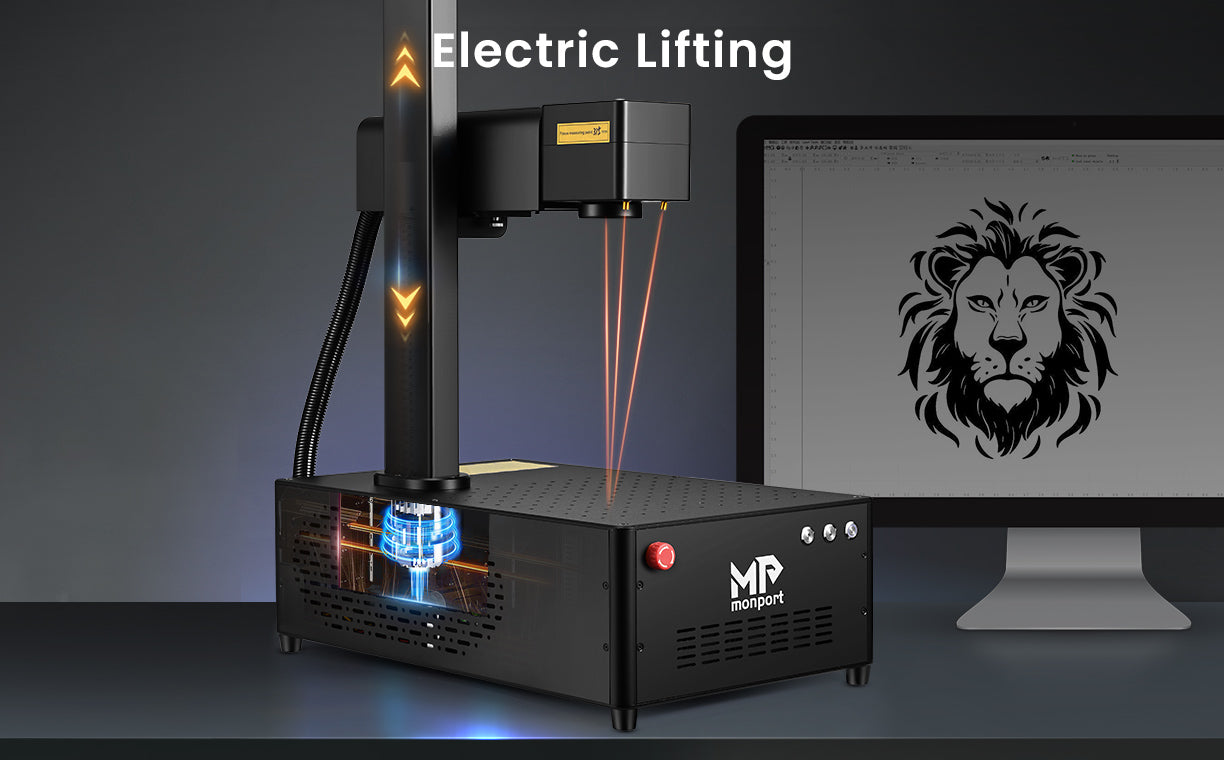

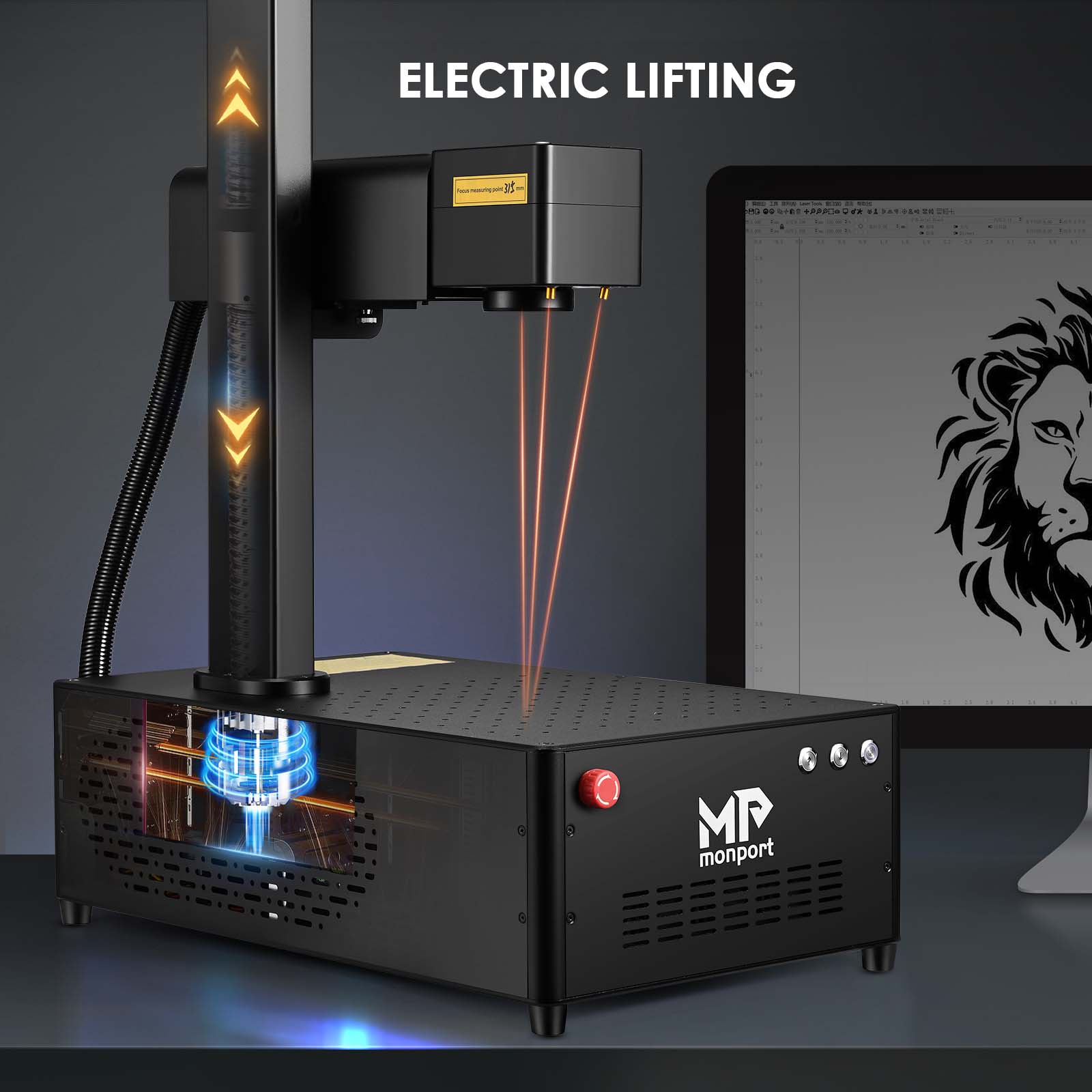

Electric Lifting Focus

Monport integrates a concealed lifting motor to ensure spot-on focusing, enabling users to operate smoothly and significantly enhancing the final marking result. Particularly designed with beginners in mind, this feature makes precision engraving a breeze.

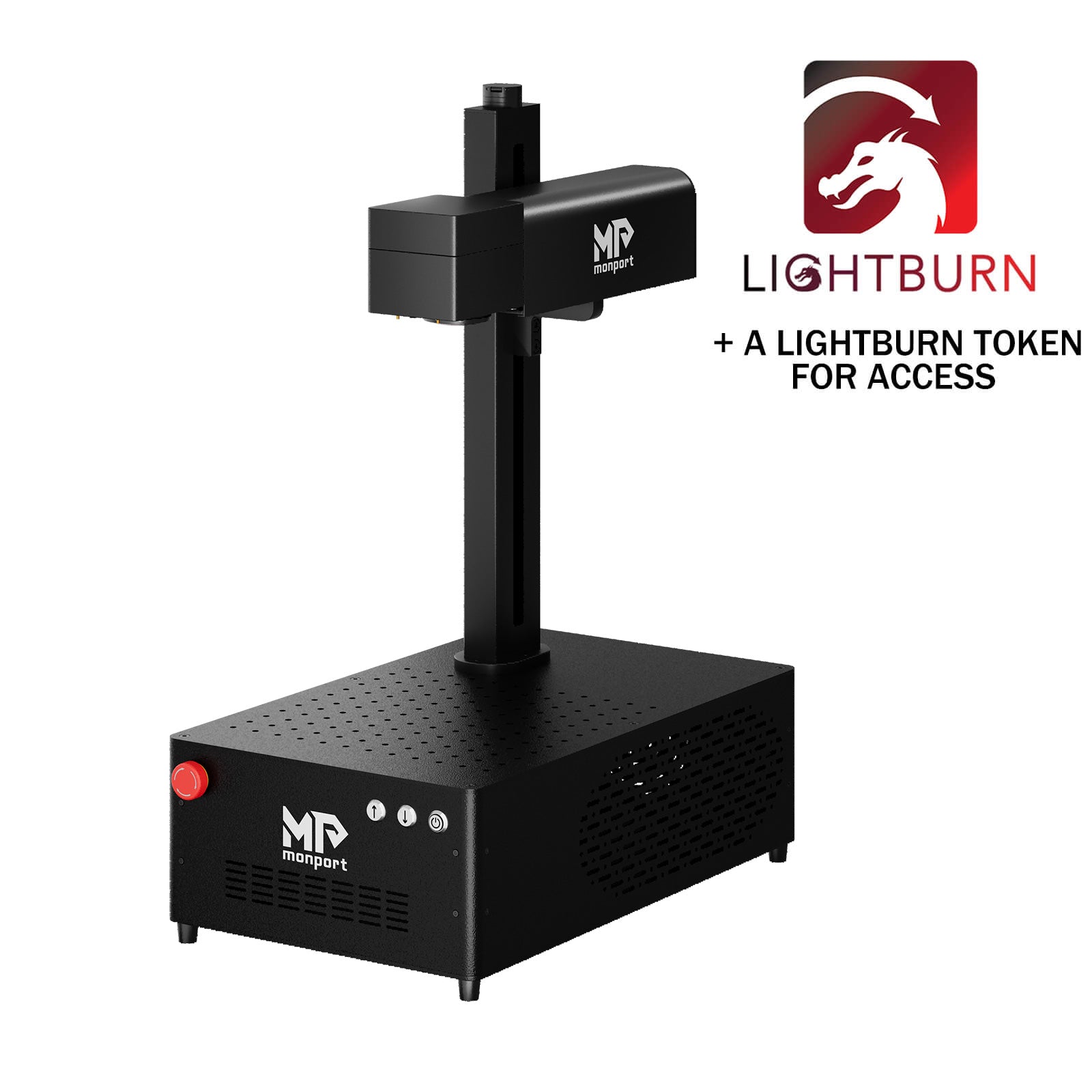

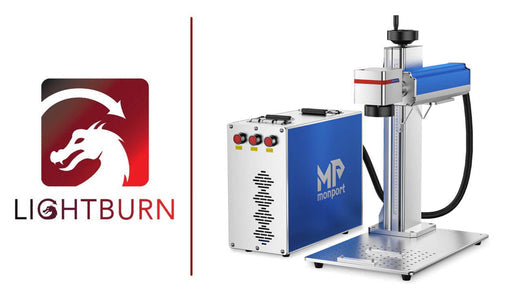

LightBurn Compatible

Monport's fiber laser includes the EZCad 2.0 software for free and is fully compatible with LightBurn software, providing a seamless marking experience, user-friendly controls, and a wide range of customizable features.

Industry-leading Heat dissipation technology： Built-in air cooling and unique side panel openings bring a better heat dissipation effect, and this will maintain the peak performance of the machine.

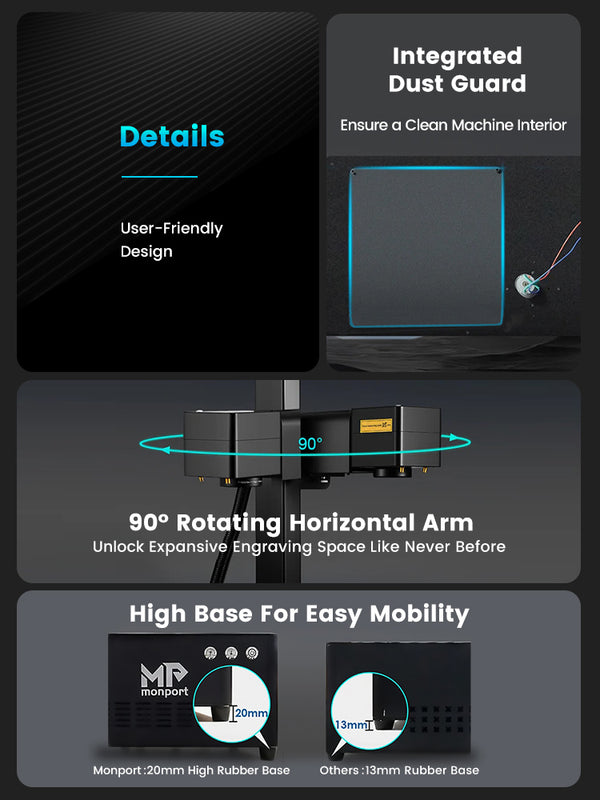

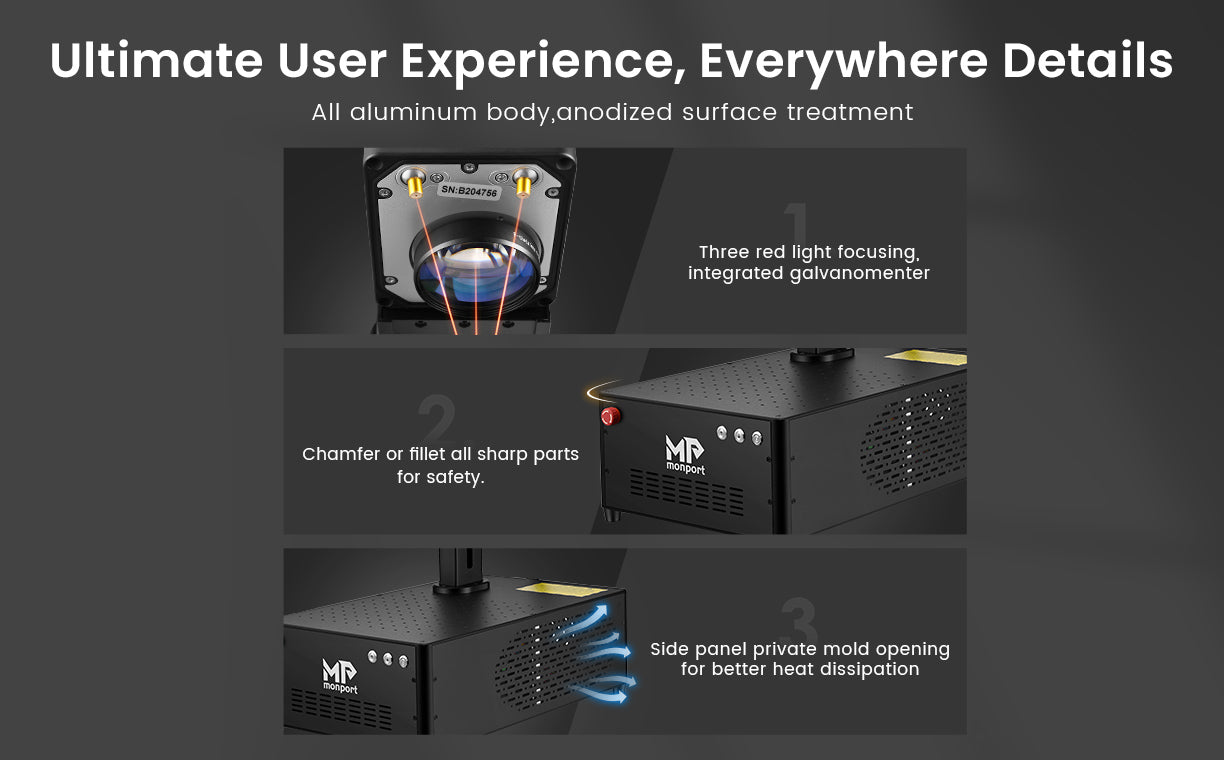

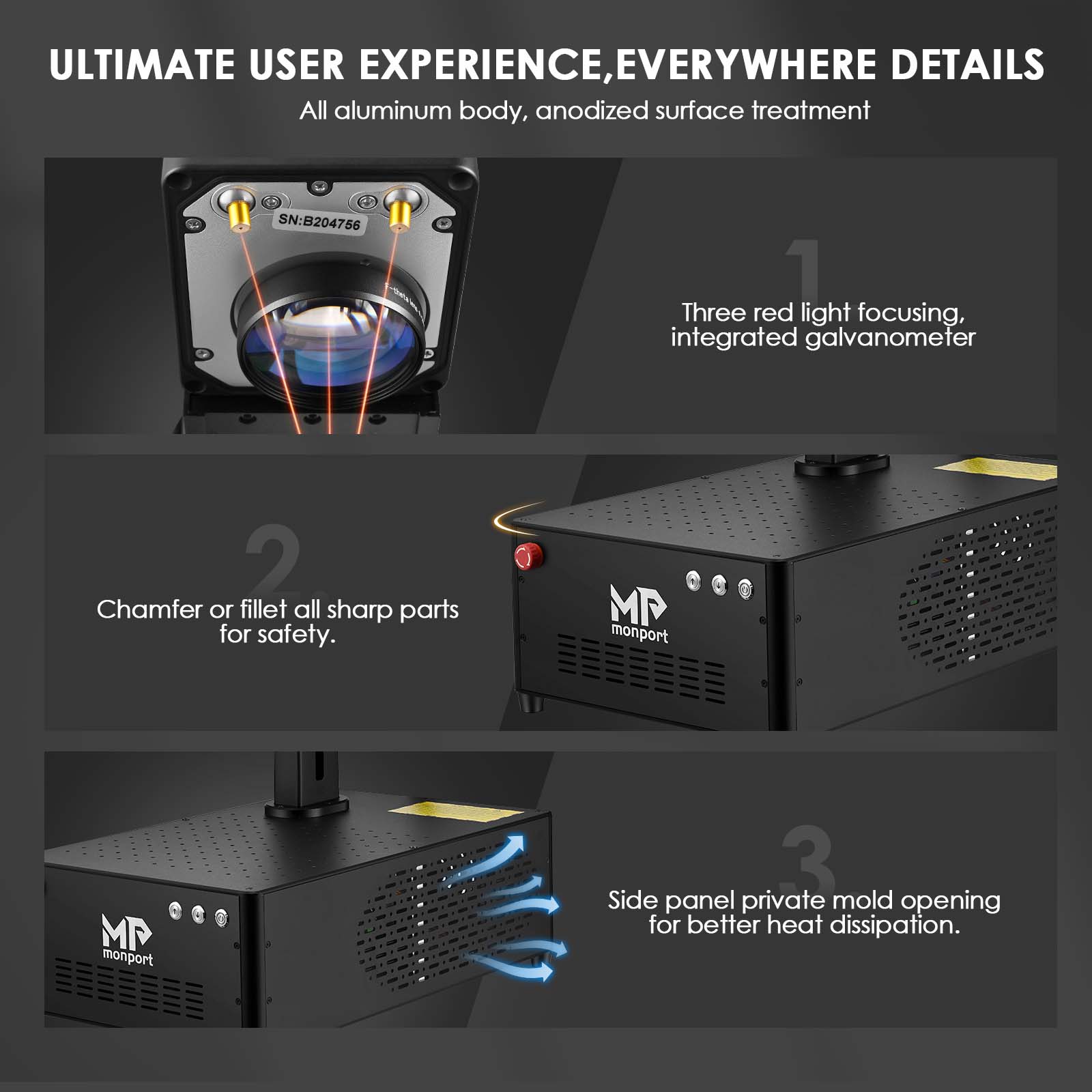

Everywhere Details

①A casing crafted from anodized aluminum oxide material delivers a high-quality texture and robust durability.

② All sharp parts have been chamfered or filleted, ensuring user safety is never compromised.

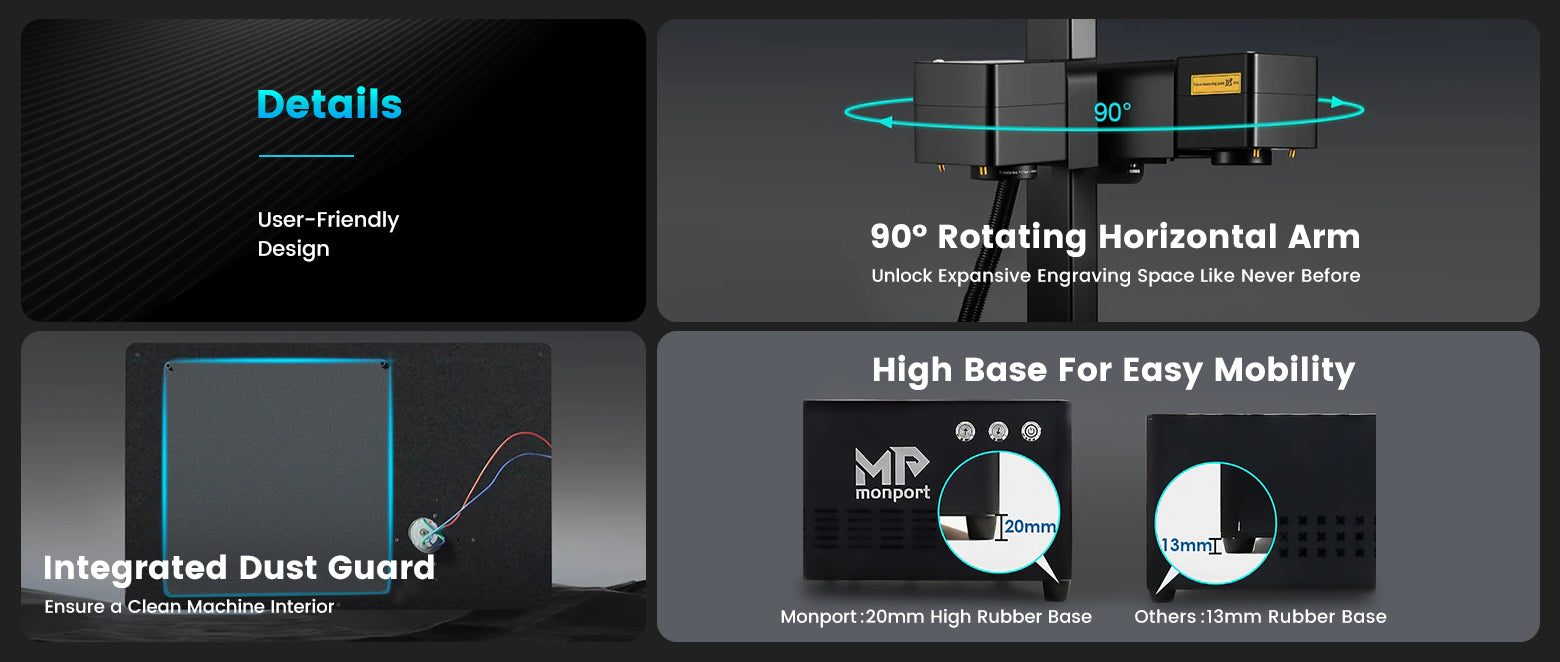

③The addition of dust shields at the back of the work area enhances the machine's lifespan, maintaining its performance over time.

④ An included rich material pack lets you jumpstart your creative process right away.

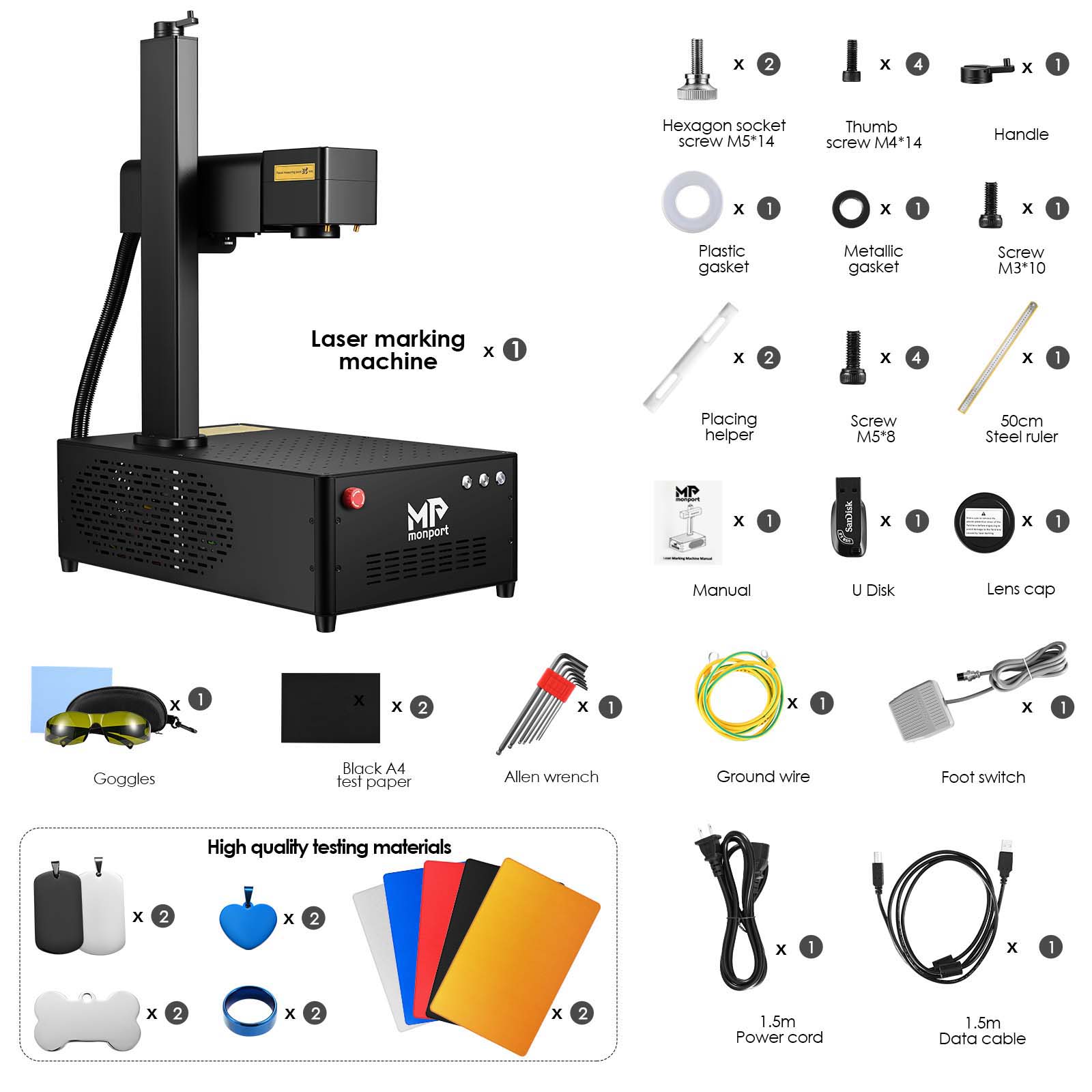

Package Contents

Fiber marking machine*1

Hexagon socket screw 4PCS M5*14

Thumb screw M4*14

Handle*1

Plastic gasket*1

Metallic gasket*1

Screw M3*10

1.5m Power cord*1

1.5m Date cable*1

50cm Steel ruler*1

Manual*1

U Disk*1

Lens cap*1

Black A4 test paper*2

Allen wrench set*1

Goggles*1

Ground wire*1

Foot switch*1

Placing helper*2

Screw 4PCS M5*8

Testing materials*20

Warranty & Certifications

2-year warranty on all GP20 Fiber machines and parts
1-year warranty on fiber laser source
FDA Approved & CE Certified

Manual List

Download the Manual: GP Integrated Fiber User Manual
