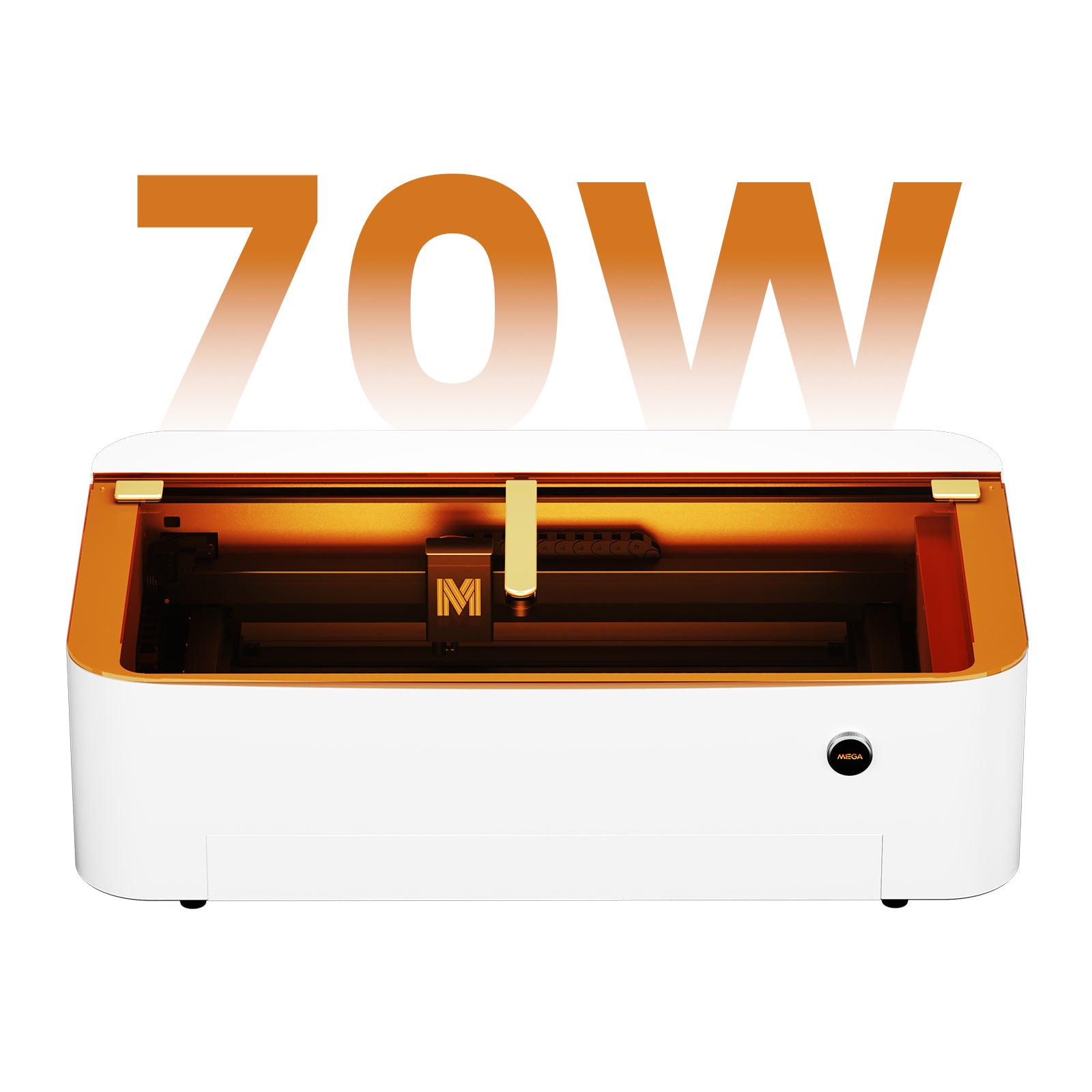

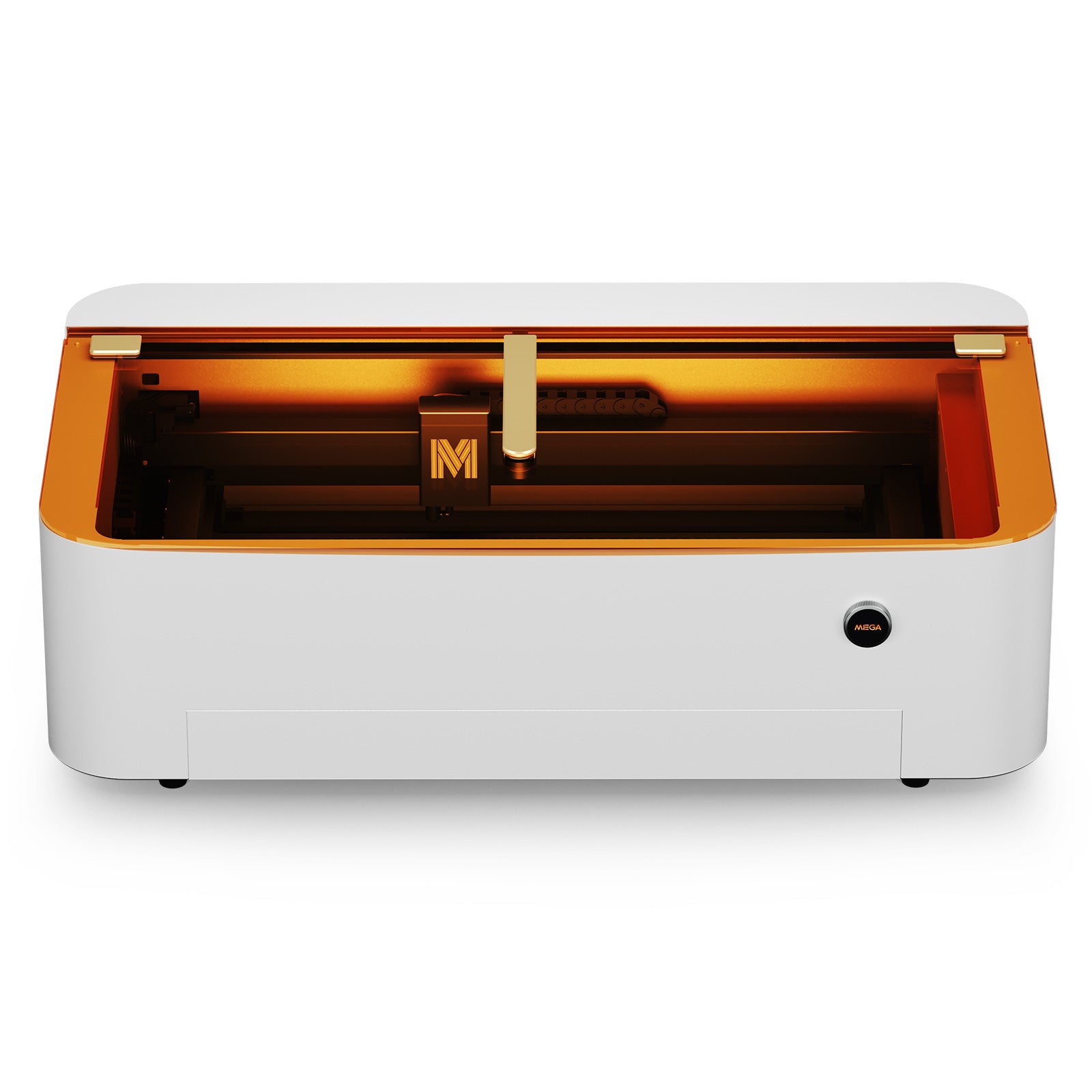

Monport Mega: The World's Premier 70W Intelligent Desktop Engraving Machine
Monport Mega: The World's Premier 70W Intelligent Desktop Engraving Machine
Couldn't load pickup availability
Dimension & Specifications
Dimension & Specifications
Product Size: 44.09"×26.38"×12.99"(1120x670x330mm)
Working Space: 27.56"×13.78"(700x350mm)
Max. Working Speed: 1000mm/s (X - Axis Max Acceleration 12000mm/s²)
Max. Workpiece Height: 0-3.54''(0-90mm)
Z-Axis Movement: 0-1.18“(30mm)
Product Weight: 70kg
Focus Mode: Autofocus
Air Assist: Included

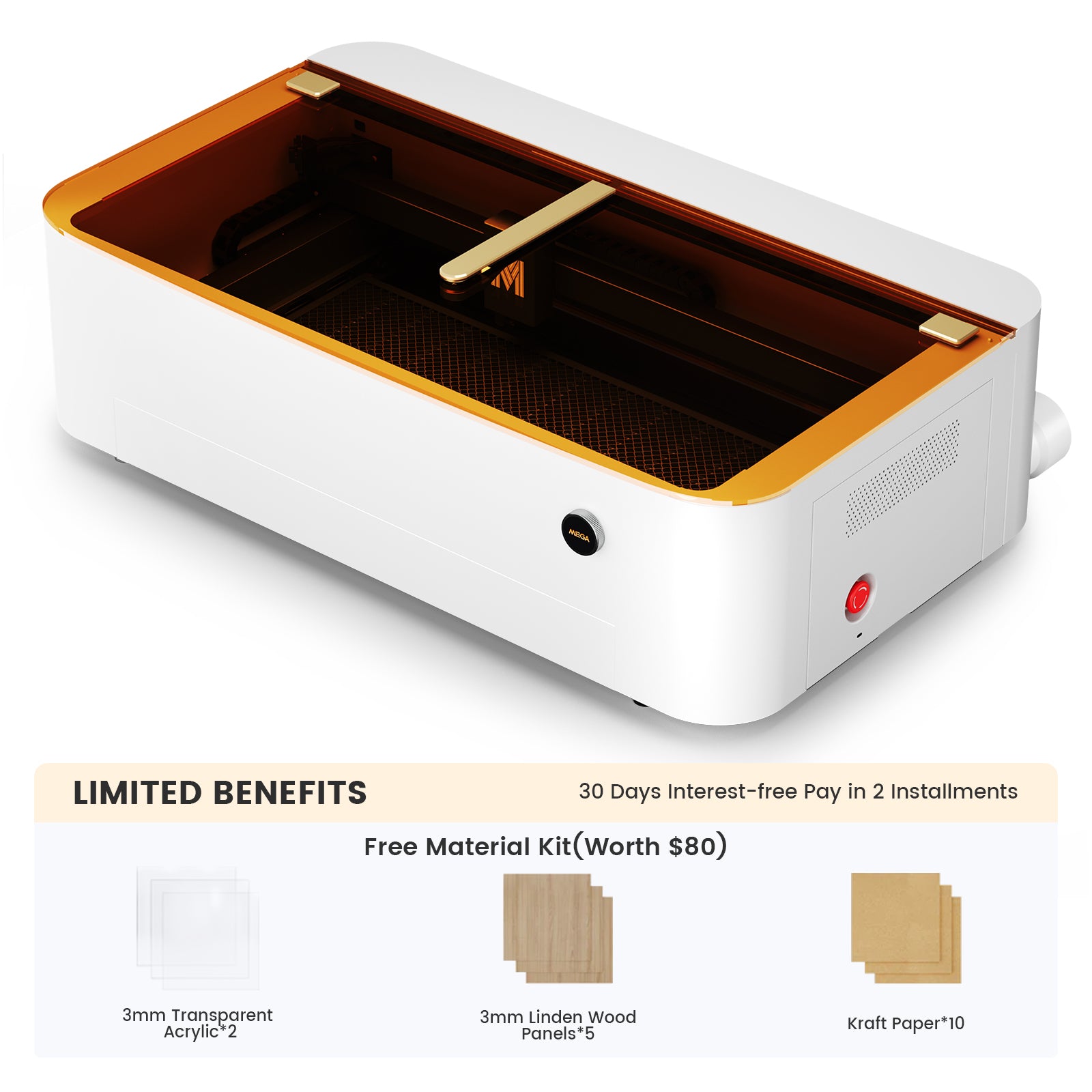

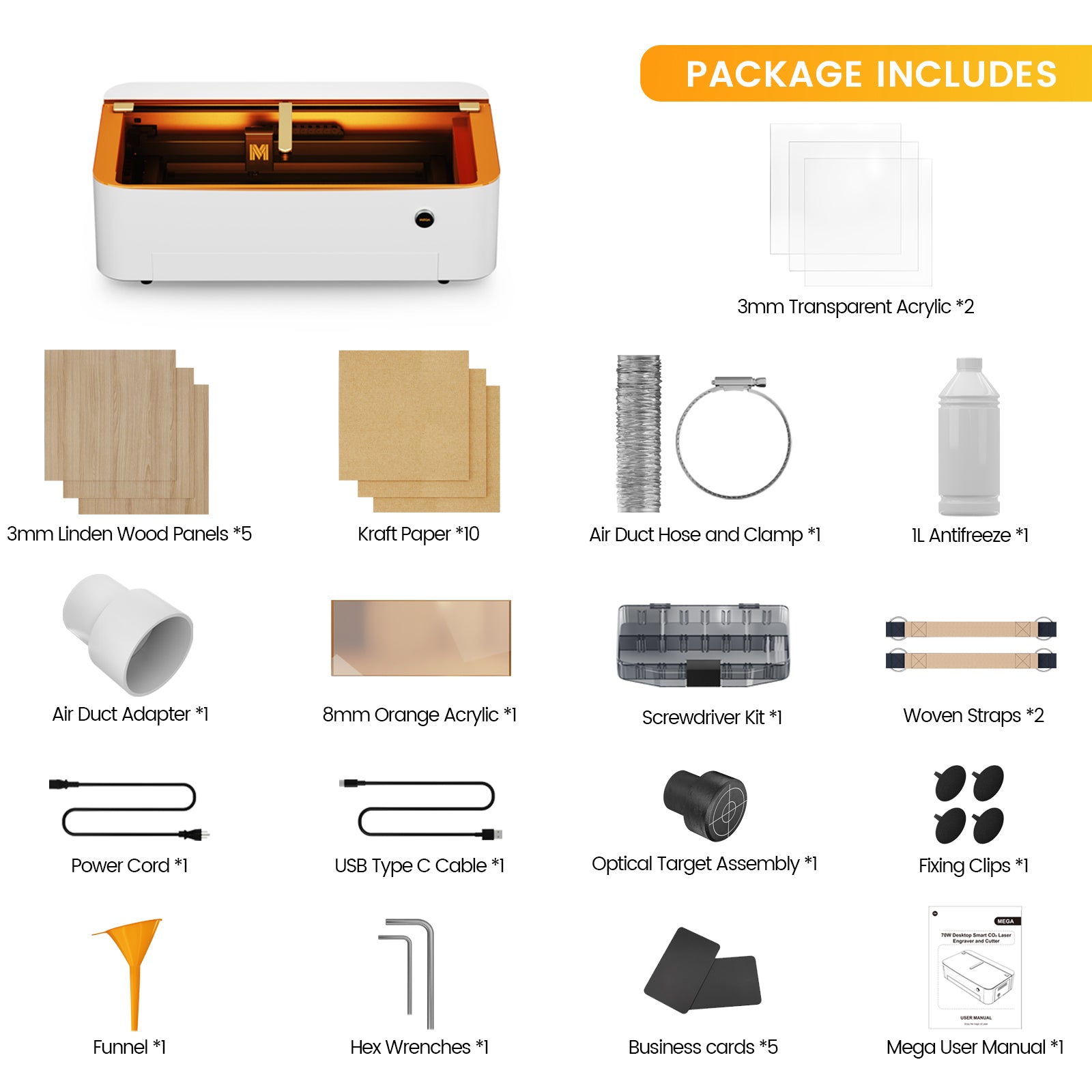

Package Contents
Package Contents
Mega Desktop Machine*1
3mm Transparent Acrylic *2
3mm Linden Wood Panels *5
Kraft Paper *10
Air Duct Hose and Clamp *1
1L Antifreeze *1
Air Duct Adapter *1
Power Cord *1
USB Type C Cable *1
Optical Target Assembly *1
Screwdriver Kit *1
Funnel *1
Fixing Clips Set *1
Hex Wrenches Set *1 Woven Straps *2
Business Cards *5
Mega User Manual *1
Warranty & Certifications
Warranty & Certifications

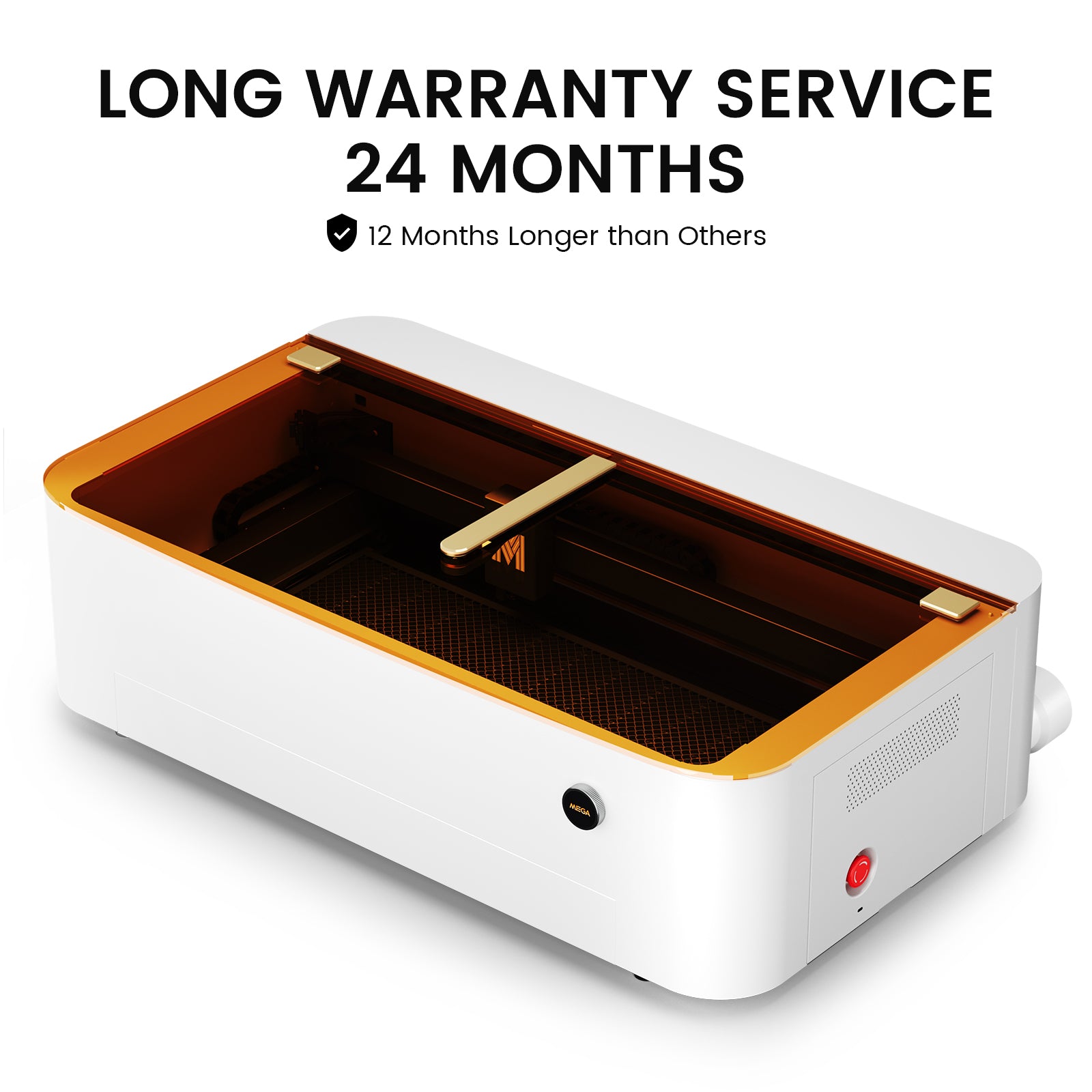

2-year warranty on the machine (excluding laser tubes).
6-month warranty on laser tubes.
Manuals, materials, tools, and grease are not warranted.
60% Prepayment Promotion
60% Prepayment Promotion
Pay 60% upfront, and settle the remaining balance after 30 days.
For return policies, please refer to our Refund Policy.
User Manual
User Manual
Download Mega User Manual Here
Tip: All Rotary Accessories in the website are not compatible with this product！
Crafting Made Easy
Mega

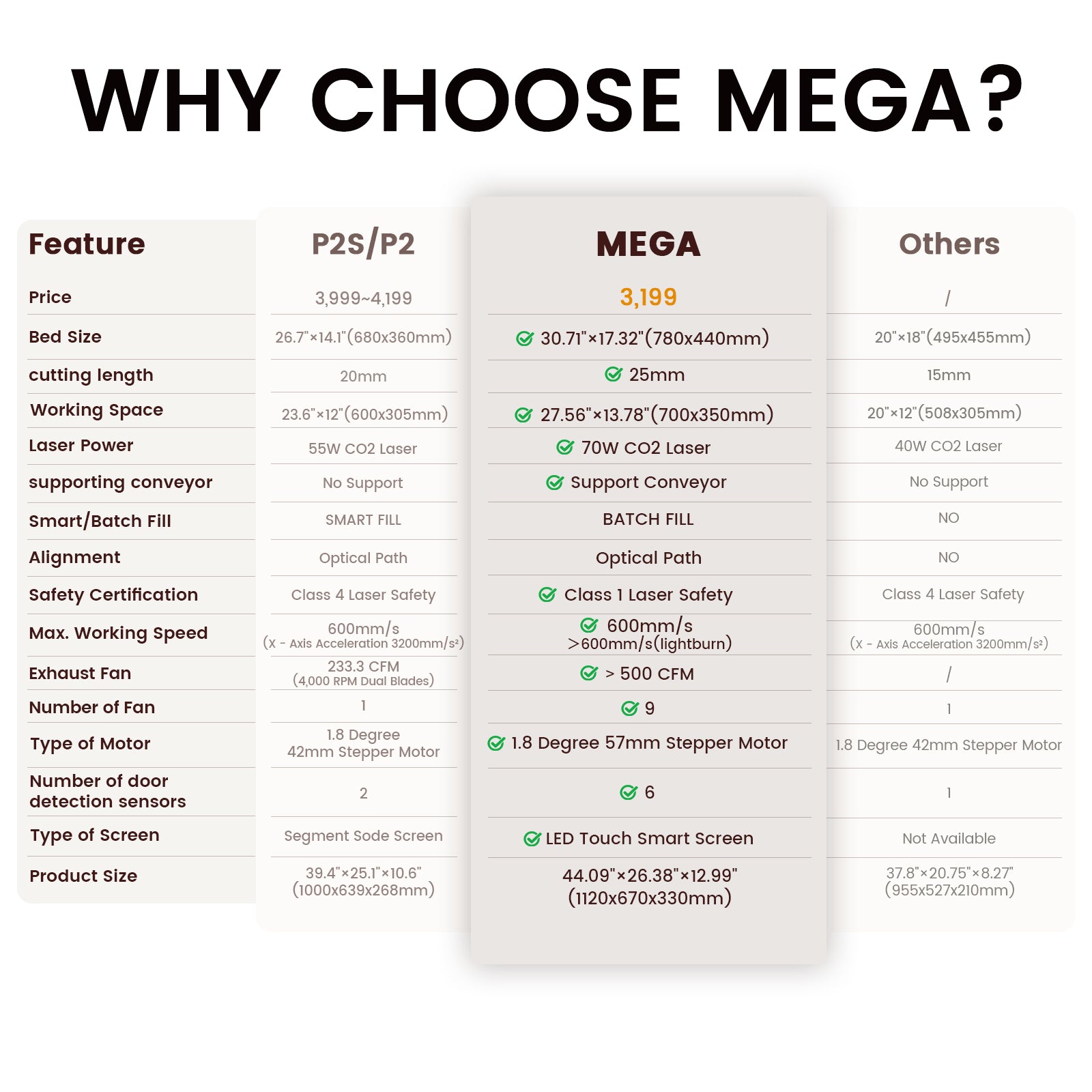

| Feature | MEGA | P2S | P2 | Others |
| Price | 3199 | 4199 | 3699 | / |
| Bed Size | 30.71"×17.32"(780x440mm) | 26.7"×14.1"(680x360mm) | 26.7"×14.1"(680x360mm) | 20"×18"(495x455mm) |
| Working Space | 27.56"×13.78"(700x350mm) | 23.6"×12"(600x305mm) | 23.6"×12"(600x305mm) | 20"×12"(508x305mm) |
| Laser Power | 70W CO₂ Laser | 55W CO₂ Laser | 55W CO₂ Laser | 40W CO₂ Laser |
| Max. Working Speed | ✔️1000mm/s (X - Axis Max Acceleration 12000mm/s²) | 600mm/s (X - Axis Acceleration 3200mm/s²) | 600mm/s (X - Axis Acceleration 3200mm/s²) | 600mm/s (X - Axis Acceleration 3200mm/s²) |
| Exhaust Fan | > 500 CFM | 233.3 CFM(4,000 RPM Dual Blades) | 145 CFM(7,000 Single Blade) | / |
| Number of Fan | 9 | 1 | 1 | 1 |
| Optical Target Assembly | Included (Used for Auxiliary Aligning) | Included | Included | Not Available |
| Type of Motor | 1.8 Degree 57mm Stepper Motor | 1.8 Degree 42mm Stepper Motor | 1.8 Degree 42mm Stepper Motor | 1.8 Degree 42mm Stepper Motor |
| Number of door detection sensors | 6 | 2 | 2 | 1 |
| Type of Extinguishing System | ✔️Built - in | External (Be Purchased Separately) | External (Be Purchased Separately) | Not Available |
| Weight of Extinguishing Gas | Recyclable 40g CO₂ cylinder (TR21 - 4 Needle Valve) | Disposable 16g CO₂ gas cylinder | Disposable 16g CO₂ gas cylinder | Not Available |
| Type of Screen | ✔️LED Touch Smart Screen | Segment Sode Screen | Segment Sode Screen | Not Available |
| Product Size | 44.09"×26.38"×12.99"(1120x670x330mm) | 39.4"×25.1"×10.6"(1000x639x268mm) | 39.4"×25.1"×10.6"(1000x639x268mm) | 37.8"×20.75"×8.27"(955x527x210mm) |
| Product Weight | 70kg | 45kg | 45kg | 40kg |
| Item | Specification |
| Bed Size | 30.71''×17.32''(780x440mm) |

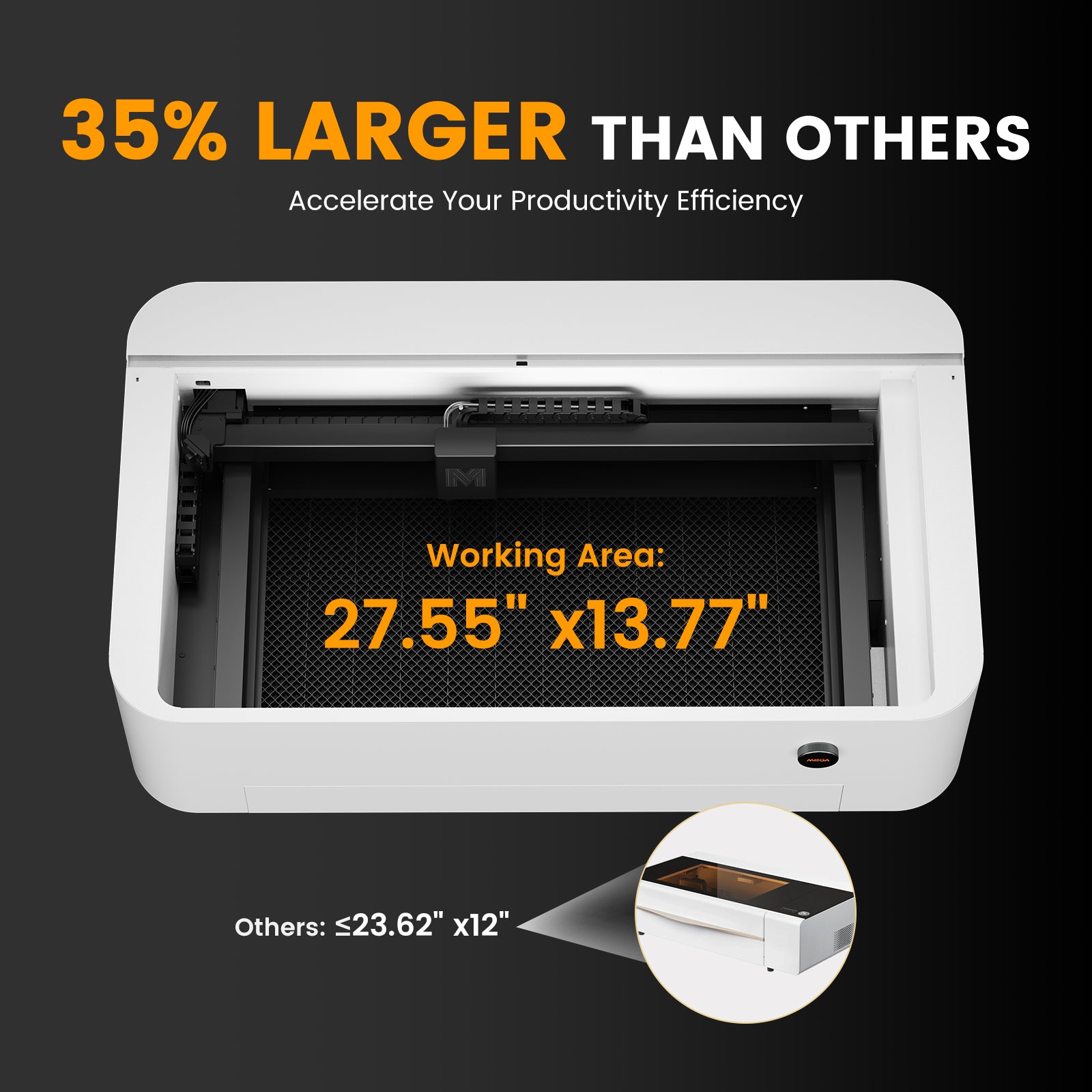

| Working Space | 27.56"x13.78"(700x350mm) |
| Laser Power | 70W CO2 Laser |
| Product Size | 44.09’'×26.38''×12.99''.(1120x670x330mm) |
| Product Weight | 70kg |
| Coltage/Current | 110V/10A or 220V/5A |
| Max. Working Speed | 1000mm/s (X-Axis Max Acceleration 12000mm/s²） |
| Max. Workpiece Height | 0-3.54''(0-90mm) |
| Rotary Engraving Diameter | 0-60mm |
| Z-Axis Movement | 0-1.18“(30mm) |
| Operating Ambient Temperature | 10-30°C 10-86°F)*lf the temperature drops below 10°C (50°F),please add antifreeze |
| Storage Temperature | 10-45°C (50-113°F) |
| Air Assist | Included |
| Air Pump Presssure | 50kPa |

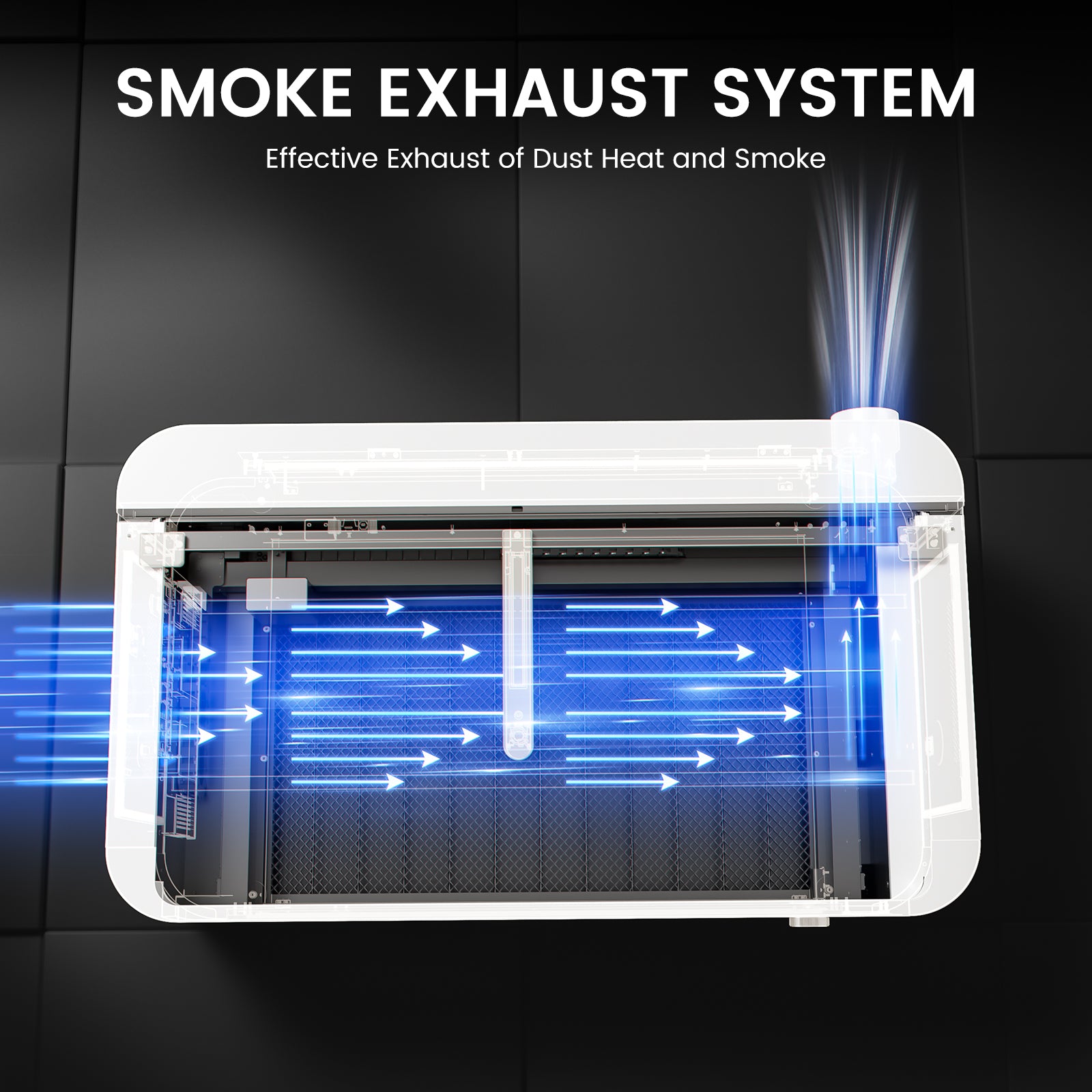

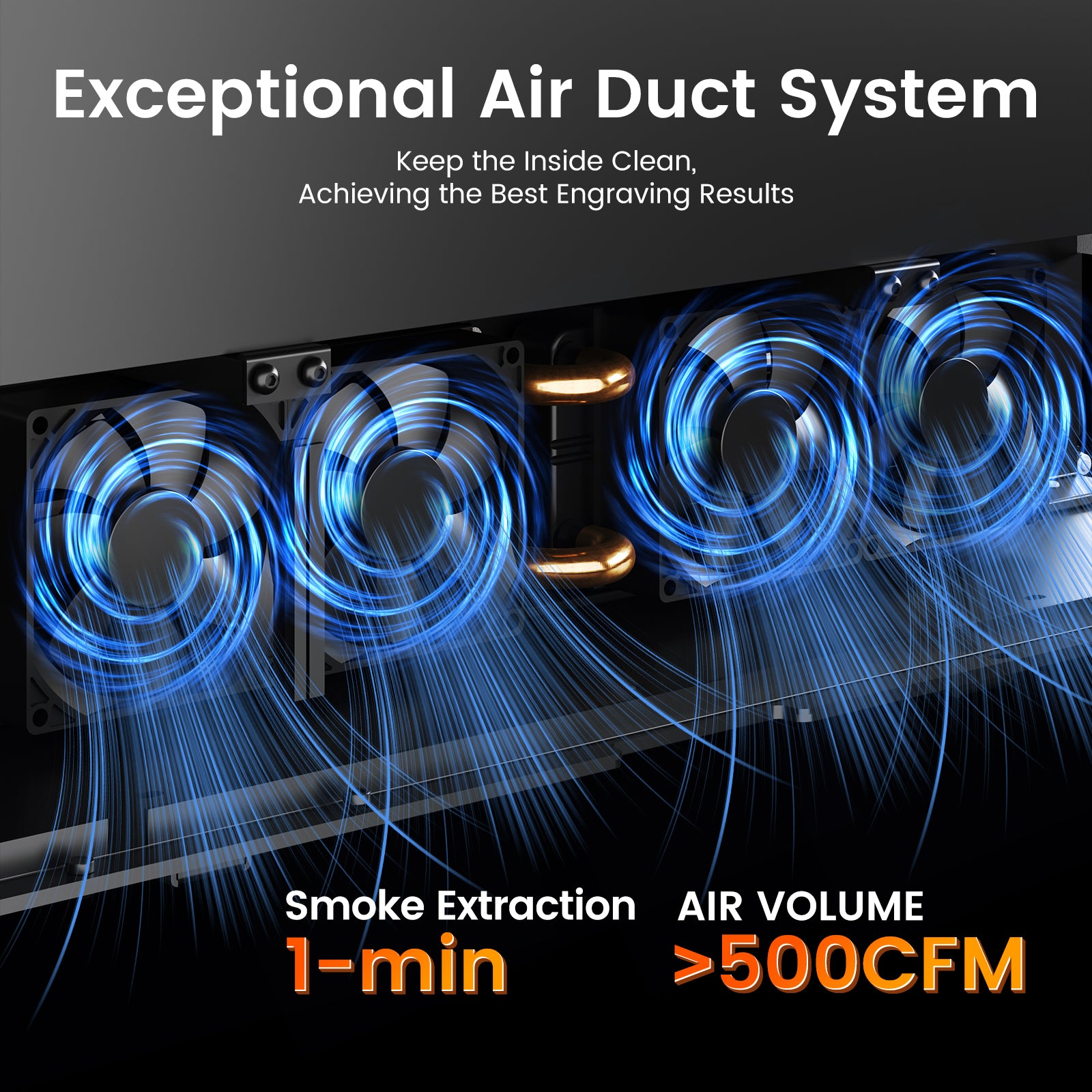

| Exhaust Fan | ＞500 CFM |
| Number of Fan | 9 |

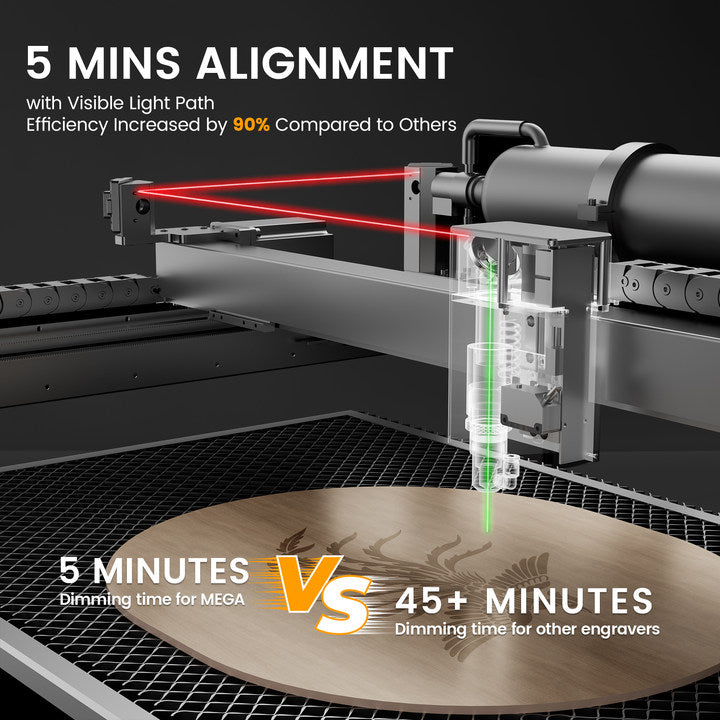

| Visible Optical Path | Included（Red/Green） |
| Optical Target Assembly | Included（Used for Auxiliary Aligning） |
| Type of Guide Rail | Linear Guide |
| Sealability of GuideRail | Enclosed Guide Rails |
| Type of Motor | 1.8 Degree 57mm Stepper Motor |
| Number of door detection sensors | 6 |
| Type of Extinguishing System | Built-in |
| Weight of Extinguishing Gas | Recyclable 40g CO2 cylinder (TR21-4 Needle Valve) |
| Type of Screen | LED Touch Smart Screen |
| Daily Maintenance | Just Need a Simple Wipe |
| Water-Cooling System | Capacity: 1.2L(0.32gal) |
| Ranging System | LiDAR Ranging System |
| Camera Type | Panoramic Camera |
| Number of Pixels (Effective) | 8MP×1 |

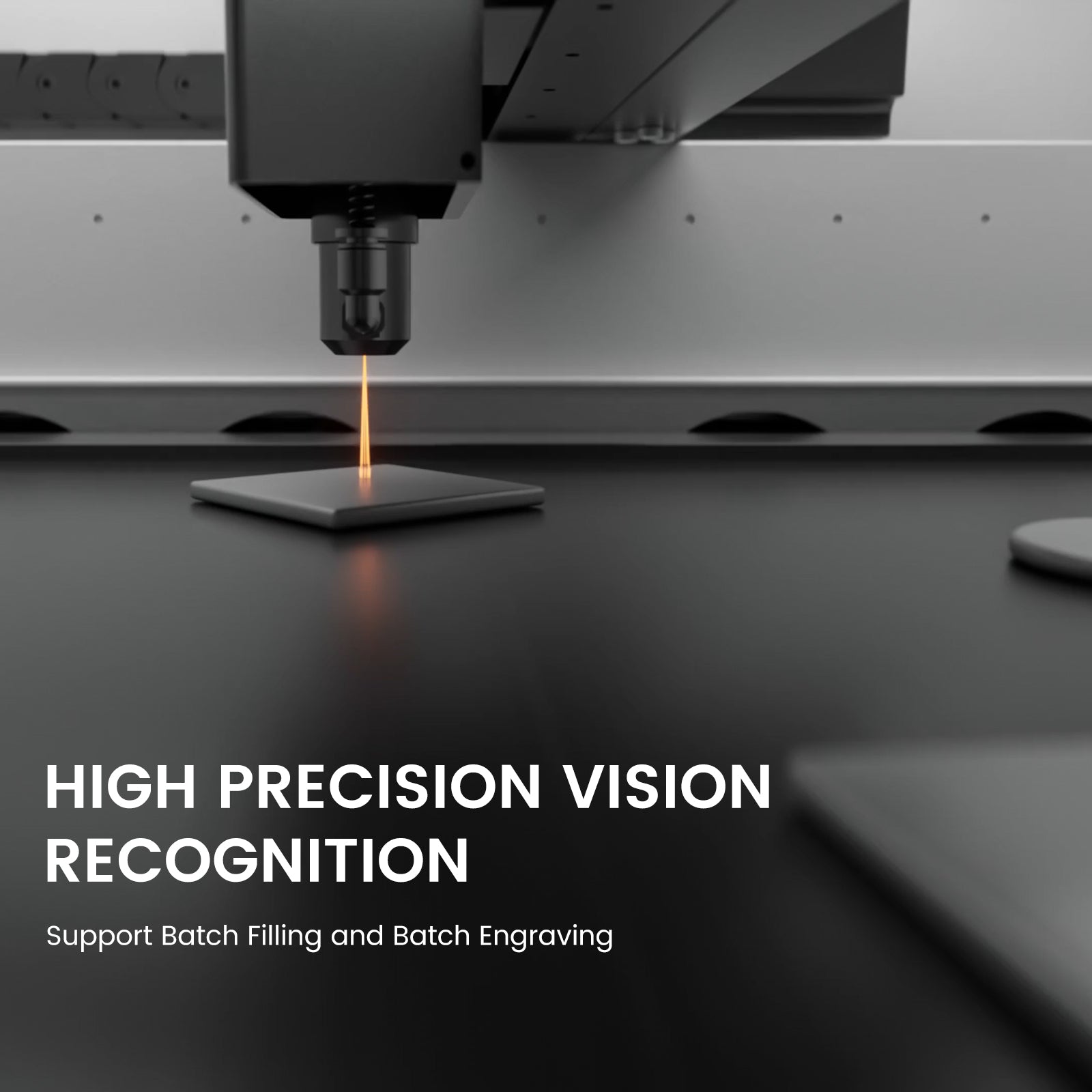

| Vision Precision | 0.3mm |
| lmage Resolution | 1000 DPI |

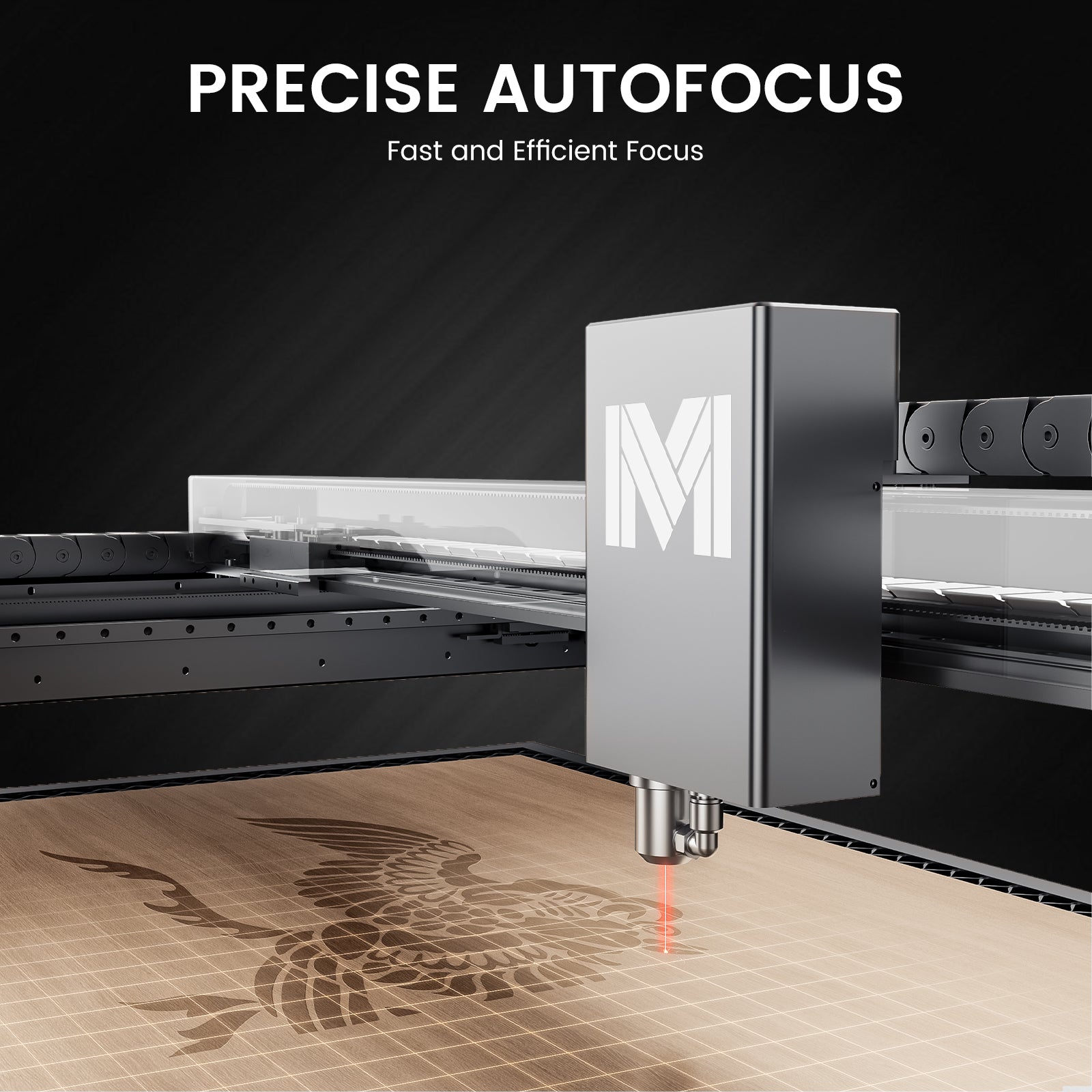

| Focus Mode | Autofocus |

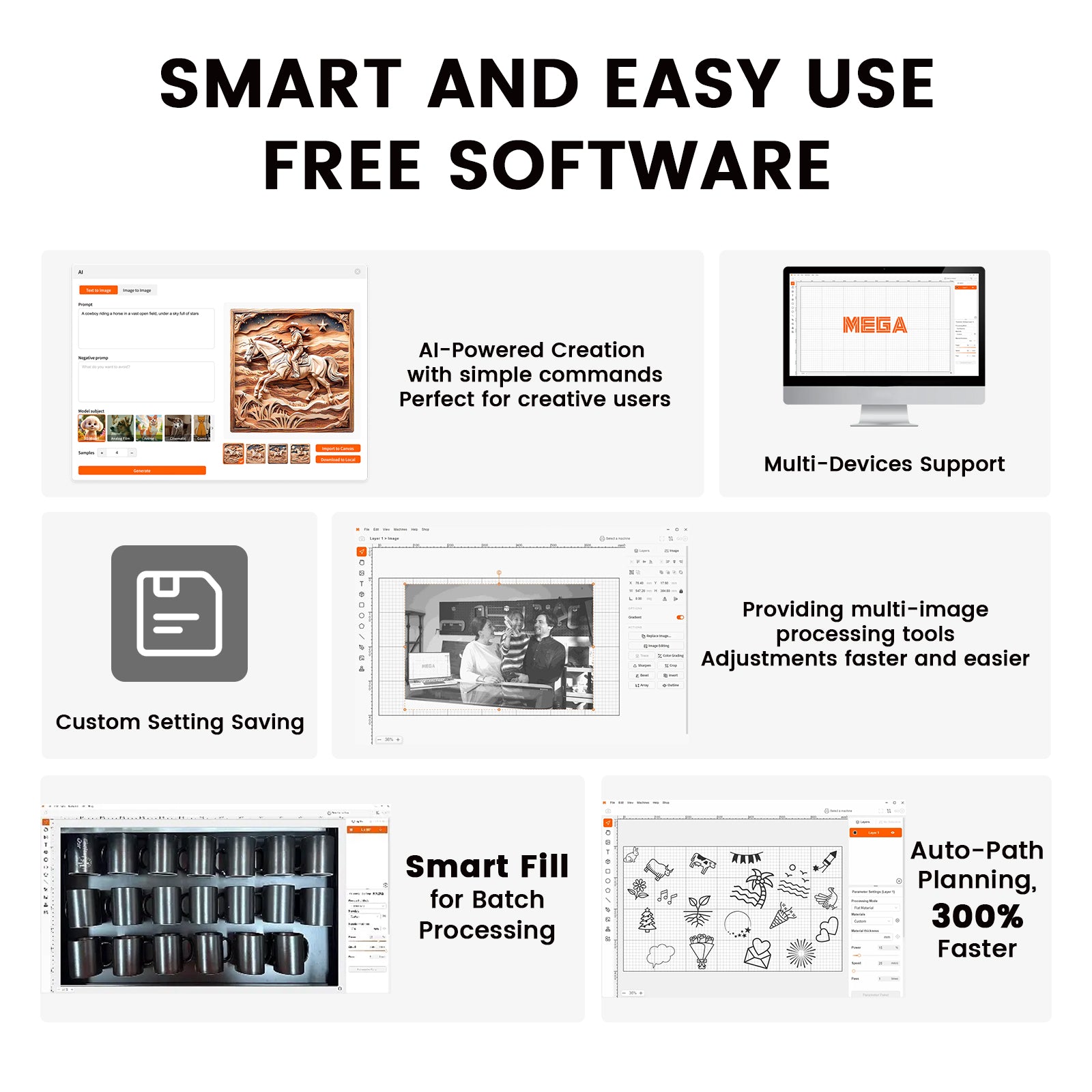

| Software | M-Design Hub / Lightburn |
| Connection | WiFi & USB |
| Support File | SVG/DXF/IPG/IPEG/PNG/BMP,etc |
| Support Systems | Windows / Mac |
Frequently Asked Questions
1. What is the bed size and maximum engraving size?
1. What is the bed size and maximum engraving size?
The bed size is 27.56" × 13.78", which is also the maximum engraving size.
2. What size of material can I put in MEGA?
2. What size of material can I put in MEGA?
MEGA can handle materials up to 30.71" × 17.32".

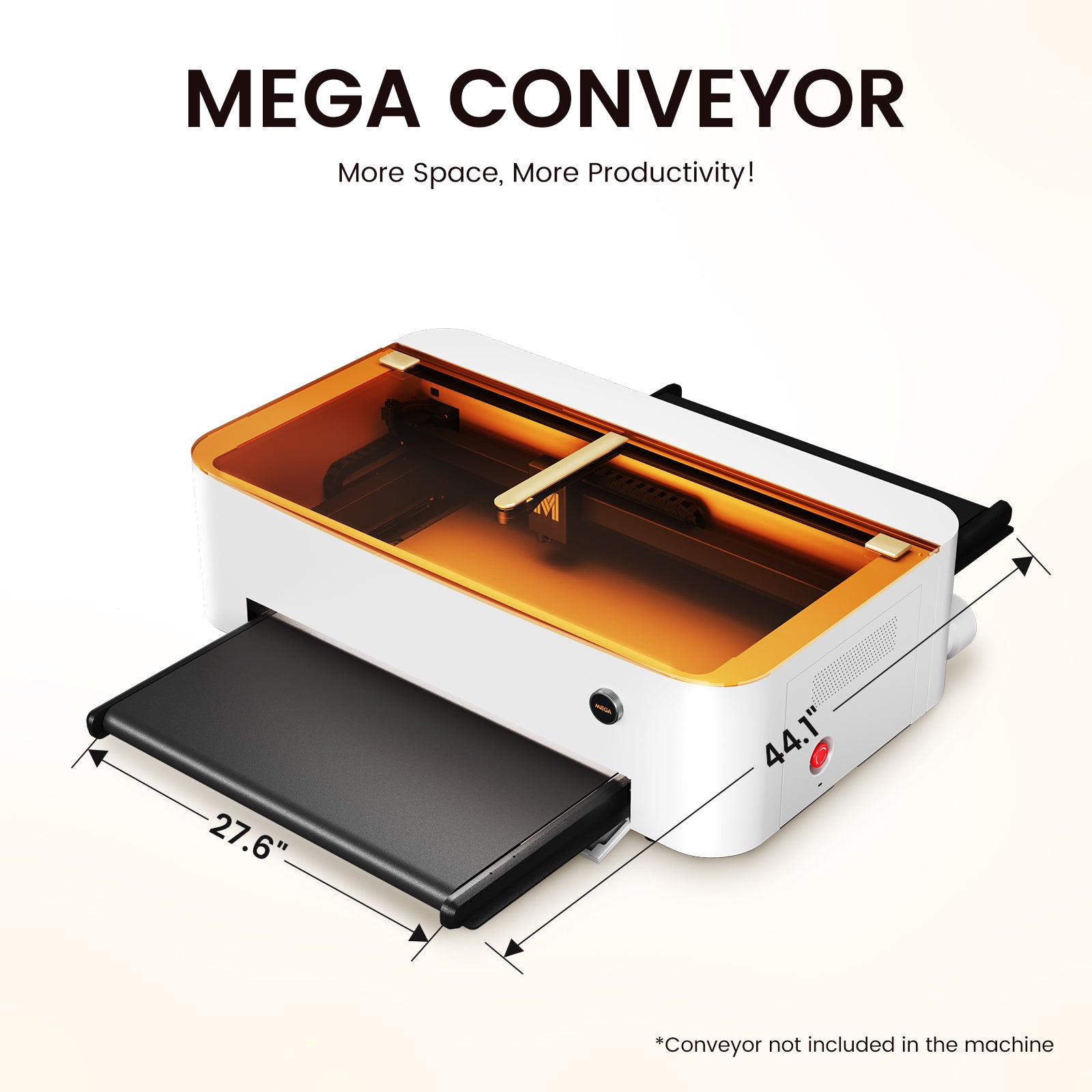

3. Does the mega have a passthrough or a continuous feed like the P2?
3. Does the mega have a passthrough or a continuous feed like the P2?
Yes, The Mega laser has front and rear passthrough.
4. Would you recommend that fume extractor for the 70w Mega?
4. Would you recommend that fume extractor for the 70w Mega?
220w/350W.
5. Does MEGA have air assist and a water cooler?
5. Does MEGA have air assist and a water cooler?
Yes, it has built-in air assist and a water cooler.
6. Does MEGA support Lightburn?
6. Does MEGA support Lightburn?
Yes, MEGA is compatible with Lightburn.
7. Can this work with safari? I just want to be certain the software will work with a MacBook？
7. Can this work with safari? I just want to be certain the software will work with a MacBook？
You need to use professional engraving software when operating this machine. Our machine comes with M-Design Hub software. You can download M-Design Hub on your mobile phone or computer to operate the machine. And, The M-Design Hub software is compatible with MacBook.
8. Does MEGA have a camera?
8. Does MEGA have a camera?
Yes, it features a 8MP camera.
