MONPORT ONYX 55W Desktop CO2 Laser Engraver with Autofocus
MONPORT ONYX 55W Desktop CO2 Laser Engraver with Autofocus
In stock
Couldn't load pickup availability
Dimension & Specifications
Dimension & Specifications
Laser Power：55W
Machine Dimensions： 38.4"*21.7"*10" (975mm*550mm*255mm)
Processing Area： 18.1"*11.4" (460mm*290mm)
Max. Workpiece Height(without honeycomb tray)： 2''（51mm)
Max. Workpiece Height(with honeycomb tray)：0.59''（15mm)
Max. Engraving Speed ：500mm/s
Max. Cutting Depth ：0.63''（16mm） Plywood
Precision ：0.001” (0.025mm)
Camera: 5MP Resolution
Control Software ：RDWorks(provided); LightBurn(supported)
Operating Systems ：Windows/macOS
Connection / Transmission: Wifi, USB, Ethernet
Supported File Types: SVG, DXF, JPG, JPEG, PNG, BMP, TIF, etc
Net weight ：110lb
ONYX 55W Autofocus CO2 Laser Features
ONYX 55W Autofocus CO2 Laser Features

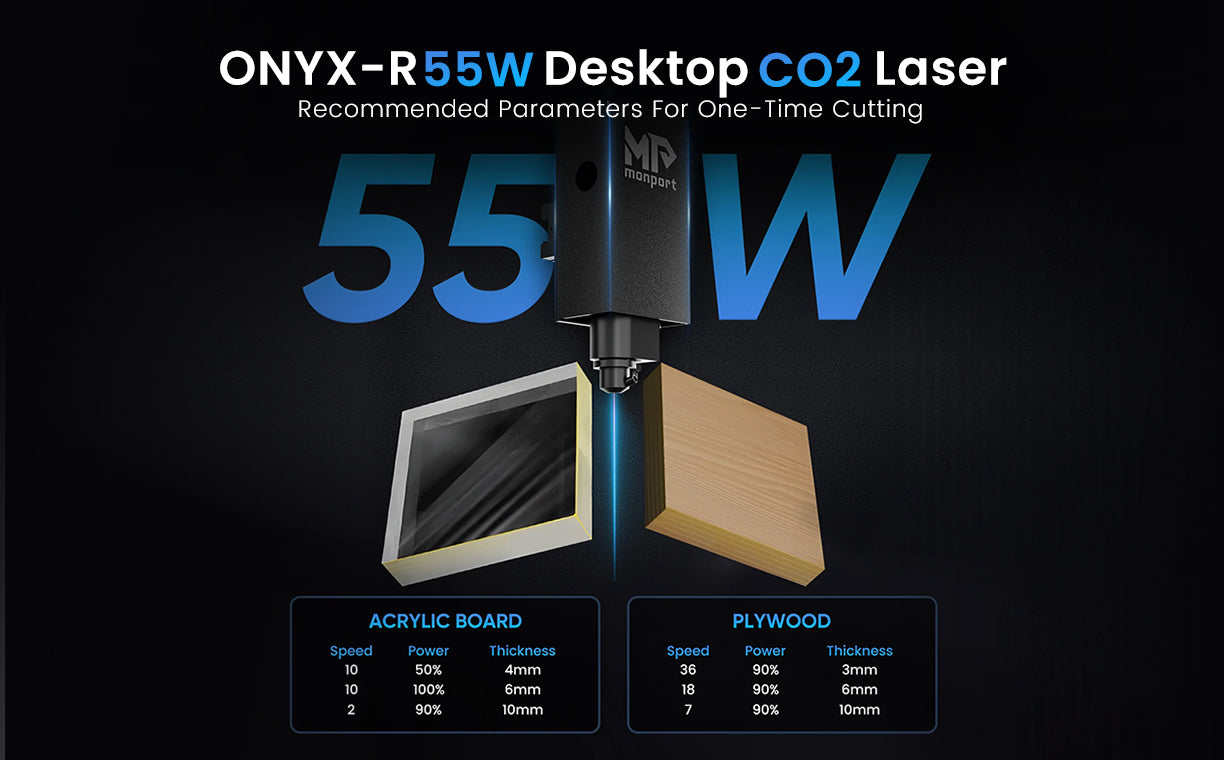

Powerful & Efficient Performance
Monport ONYX-R 55W Desktop CO2 Laser Engraver features a powerful 55W laser tube that is capable of cutting 10mm plywood or 10mm acrylic in a single pass. Operating at speeds up to 500mm/s, it achieves engraving precision down to 0.001''.

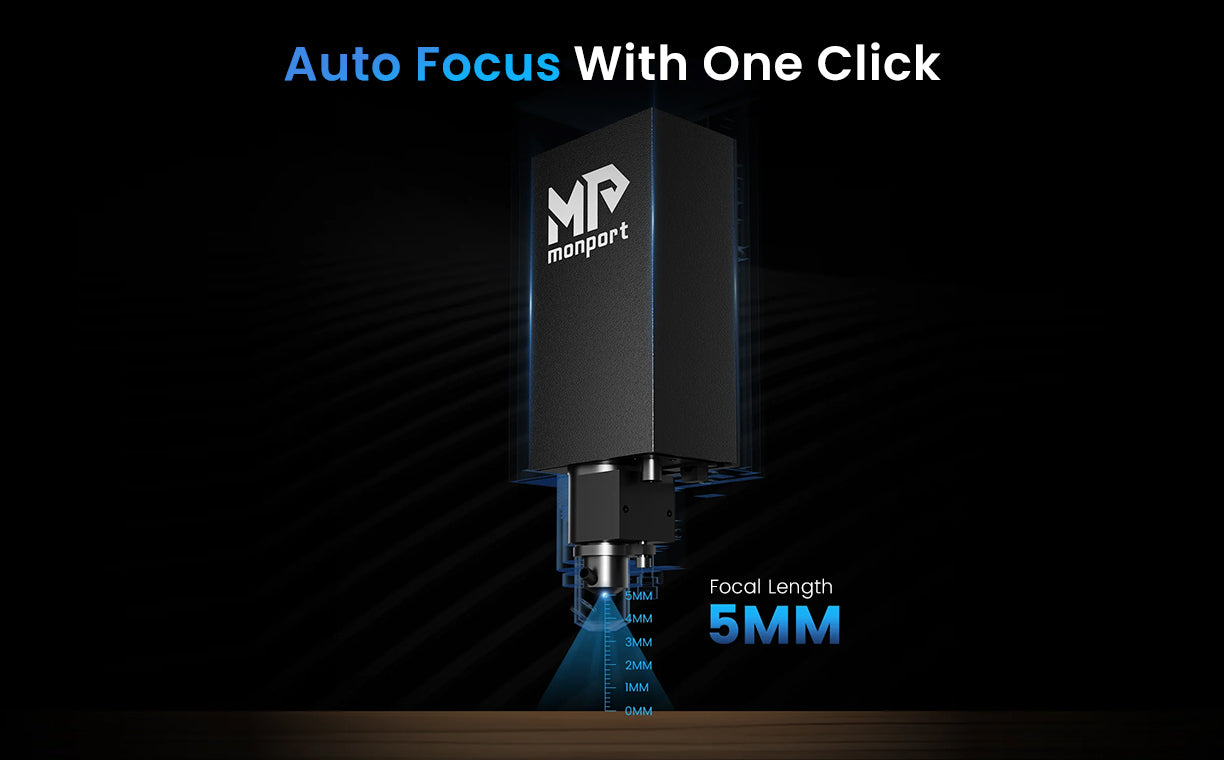

One-Touch Auto-Focus
Our laser engraving machine features a user-friendly auto-focus function. No manual adjustments or measurements needed—just a click. The built-in limit switch senses objects height, ensuring easy initiation of the engraving process and optimal engraving distance.

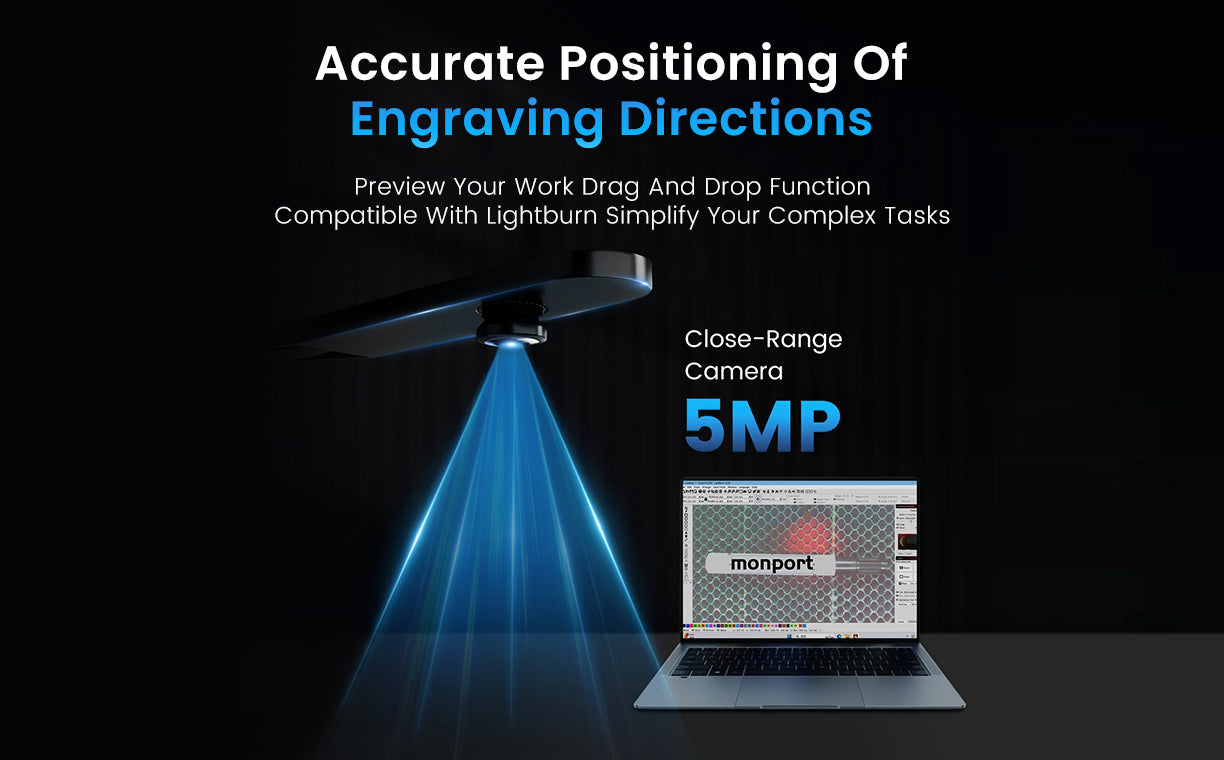

Practical 5MP Camera
The built-in wide-angle camera offers high-resolution work previews, allowing you to drag and drop views to adjust the size and position of your designs. Paired with the powerful Lightburn software, it simplifies complex tasks for an effortless experience.
Versatile Engraving Possibilities
With a spacious 19" x 11.5" working area, the baseboard includes reserved slots for a rotary axis 11*16in. After being elevated, the machine can accommodate a rotary axis to meet diverse creative needs.
Multi-Material Engraving and Cutting
As a practical CO2 laser engraving tool, Monport excels in high absorption efficiency for a wide range of materials. Ideal for cutting acrylic of various colors, wood, leather, MDF, rubber, fabric, glass, ceramics, slate, coated metals, anodized aluminum, and more.

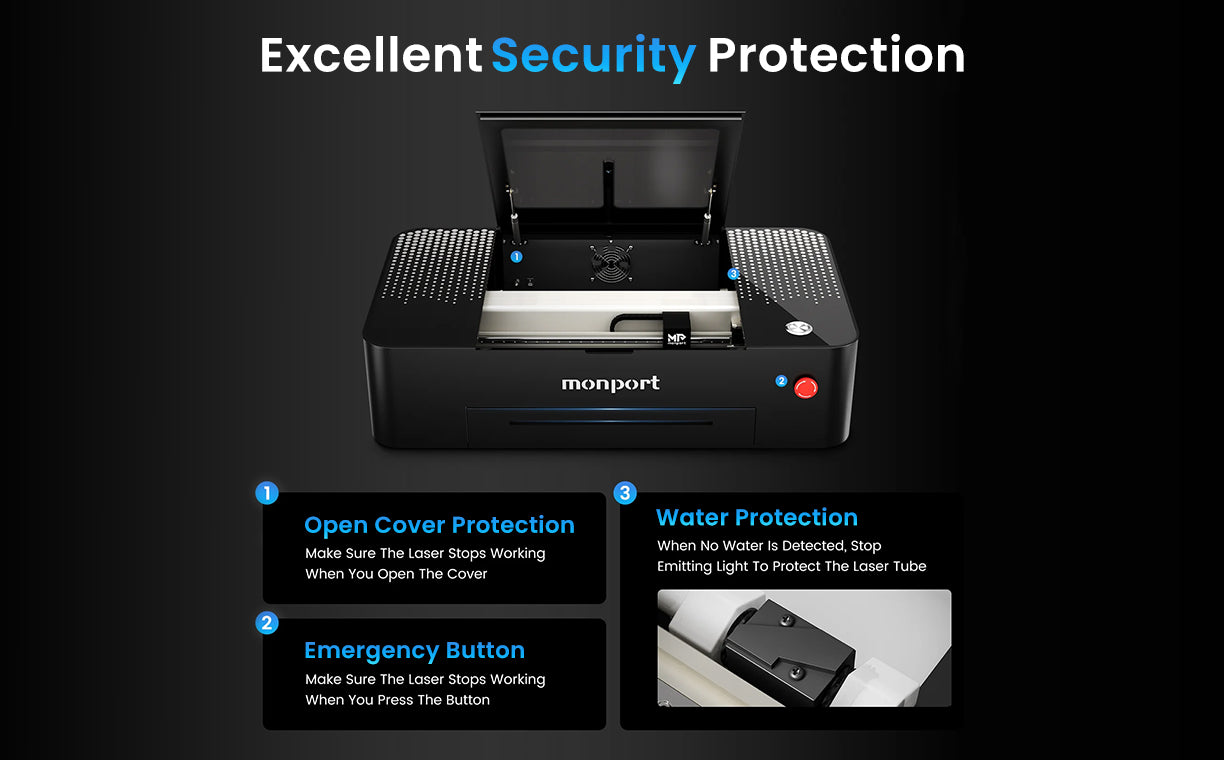

Safer and Cleaner
ONYX boasts an enclosed design, featuring cover opening protection, an emergency stop button, and an indicator light alert system, offering you comprehensive protection. Moreover, you can undoubtedly rely on ONYX's superior smoke evacuation system, which includes a powerful exhaust fan to easily separate materials from bothersome smoke.
Enjoy US-based support & service
Monport is dedicated to providing quality engraving available to all. Order your own CO2 laser today and enjoy fast US-based shipping, and ultrafast customer service and tech support!
Package List
Package List
U Disk x1
Fuse x1
Smoke Tube x2
Drought Fan x1
Power Line x1
Data Cable x1
USB Data Cable x1
Honeycomb Working Bed x1
Plastic Box x1
Clamp x3
Focus Lens x1
Allen Key x1
Cotton Swab x1
Instruction x1
Warranty & Certifications
Warranty & Certifications
1-year warranty on all onyx laser machines
6-month warranty on laser tube
FDA Approved & CE Certified
User Manual
User Manual
Download the Manual: ONYX 55W CO2 Laser User Manual
Download RDworks Instruction: RDworks Instruction
Product Unique Features
Powerful & Efficient Performance
Monport ONYX 55W Desktop CO2 Laser Engraver features a powerful 55W laser tube that is capable of cutting 10mm plywood or 10mm acrylic in a single pass. Operating at speeds up to 500mm/s, it achieves engraving precision down to 0.001''.
One-Touch Auto-Focus
Our laser engraving machine features a user-friendly auto-focus function. No manual adjustments or measurements needed — just a click. The built-in limit switch senses objects height, ensuring easy initiation of the engraving process and optimal engraving distance.
Practical 5MP Camera
The built-in wide-angle camera offers high-resolution work previews, allowing you to drag and drop views to adjust the size and position of your designs. Paired with the powerful Lightburn software, it simplifies complex tasks for an effortless experience.
Multi-Material Engraving and Cutting
As a practical CO2 laser engraving tool, Monport excels in high absorption efficiency for a wide range of materials. Ideal for cutting acrylic of various colors, wood, leather, MDF, rubber, fabric, glass, ceramics, slate, coated metals, anodized aluminum, and more.

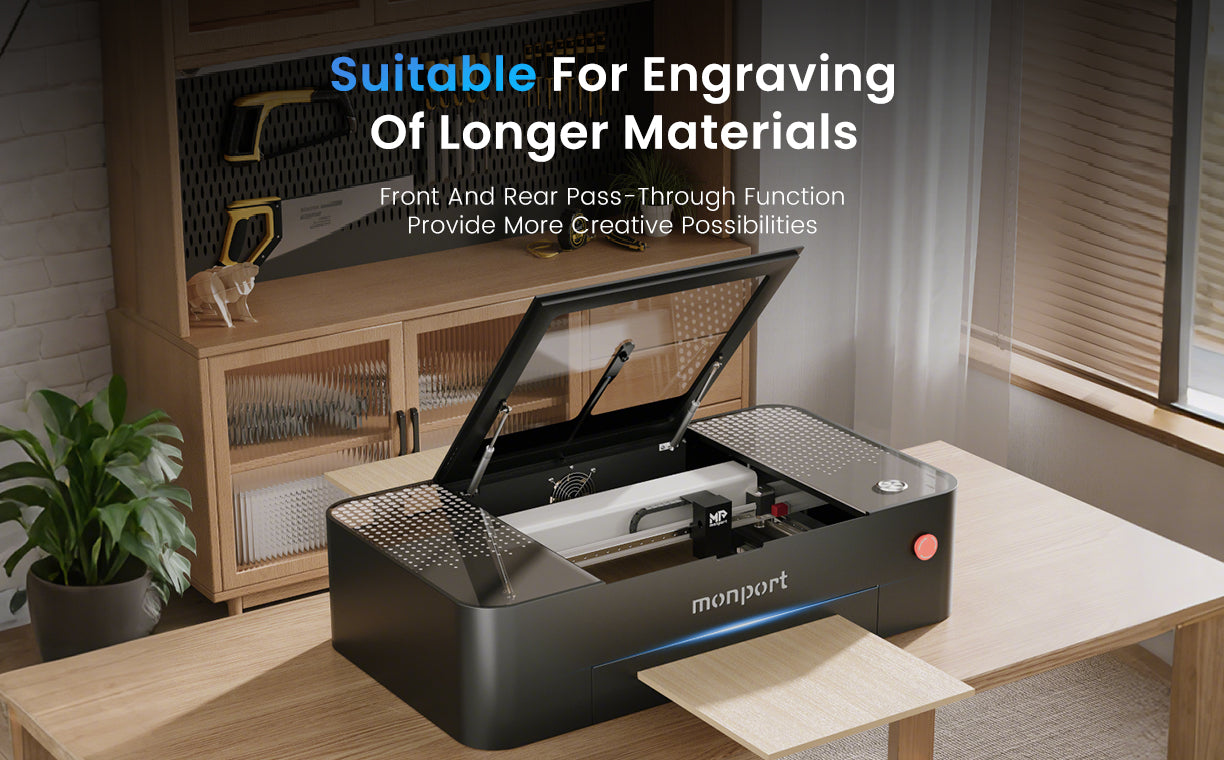

Versatile Engraving
Suitable for Engraving Long Materials and Cylindrical Objects.
With a spacious 18.1" x 11.4" working area, the baseboard includes reserved slots for a rotary axis 11*16in. After being elevated, the machine can accommodate a rotary axis to meet diverse creative needs.
Safer and Cleaner
ONYX boasts an enclosed design, featuring cover opening protection, an emergency stop button, and an indicator light alert system, offering you comprehensive protection. Moreover, you can undoubtedly rely on ONYX's superior smoke evacuation system, which includes a powerful exhaust fan to easily separate materials from bothersome smoke.
| Product Name | ONYX 55W CO2 Desktop Laser |
| Laser Output | 55W |
| Max. Engraving Speed | 500 mm/s |
| Focus Mode | Autofocus |
| Working Area | 18.1"x11.4" |
| Processing Platform | honeycombWorkbed |
| Software | Lightburn, RDWorks |
| Data Transmission | Wifi, USB, Ethernet |
| Special Highlight Function | Integrated Digital Camera & Integrated Air Assist |
| Overall Size and Weight | 135 lbs |
| Price | $2,099.99 |
