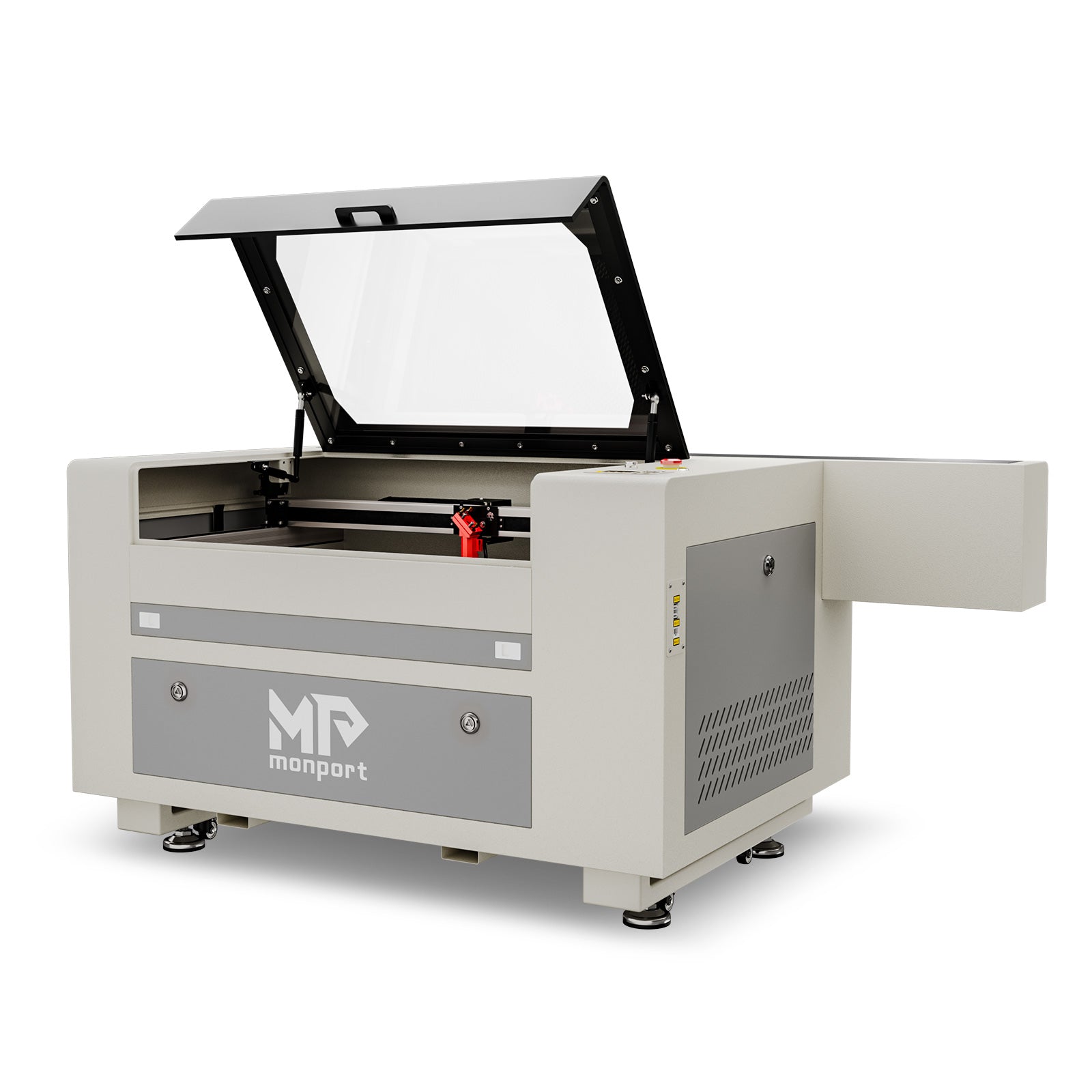

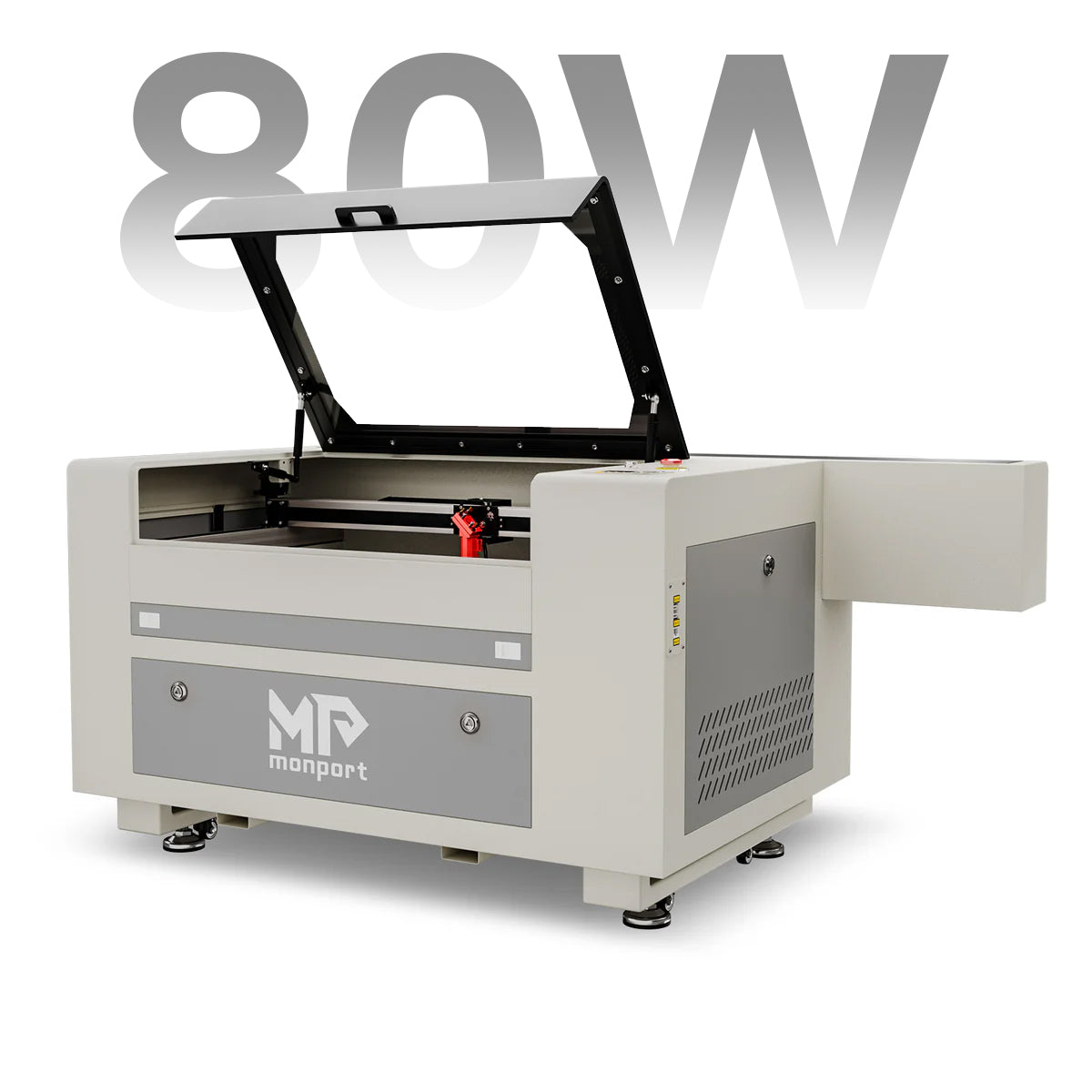

Monport 80W CO2 Laser Engraver & Cutter (24" x 16") with Autofocus
Monport 80W CO2 Laser Engraver & Cutter (24" x 16") with Autofocus
In stock
Couldn't load pickup availability
Dimension & Specifications
Dimension & Specifications

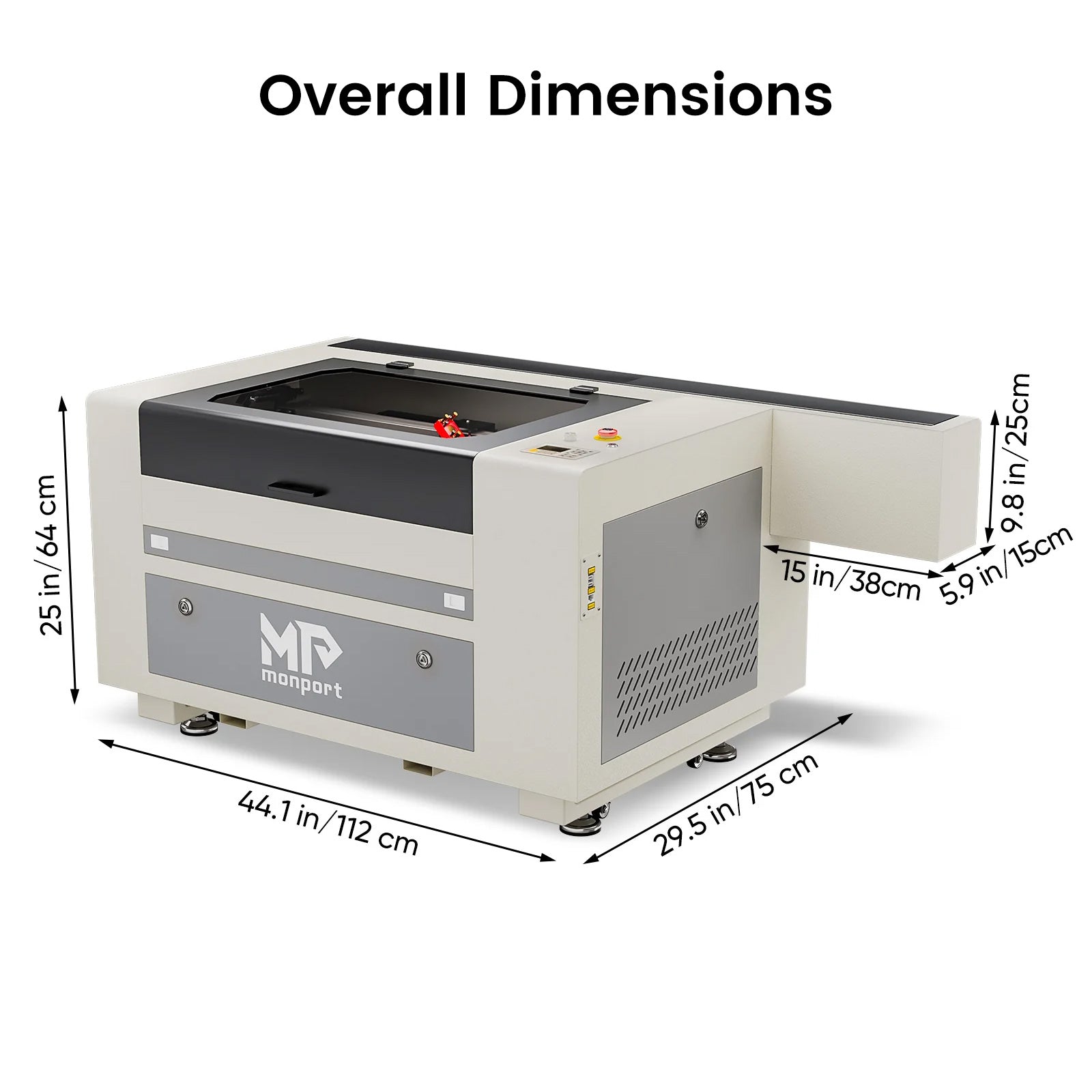

Machine Dimension: 44.1" x 29.5" x 25" ( 112cm x 75cm x 64cm ）
Working Dimension: 24" x 16"
Front / Back Pass-Through Dimension: 32.3” x 3.9” ( 83.5cm x 9.5 cm )
Side Pass-Through Dimension: 20.5” x 0.8” ( 52cm x 2cm )

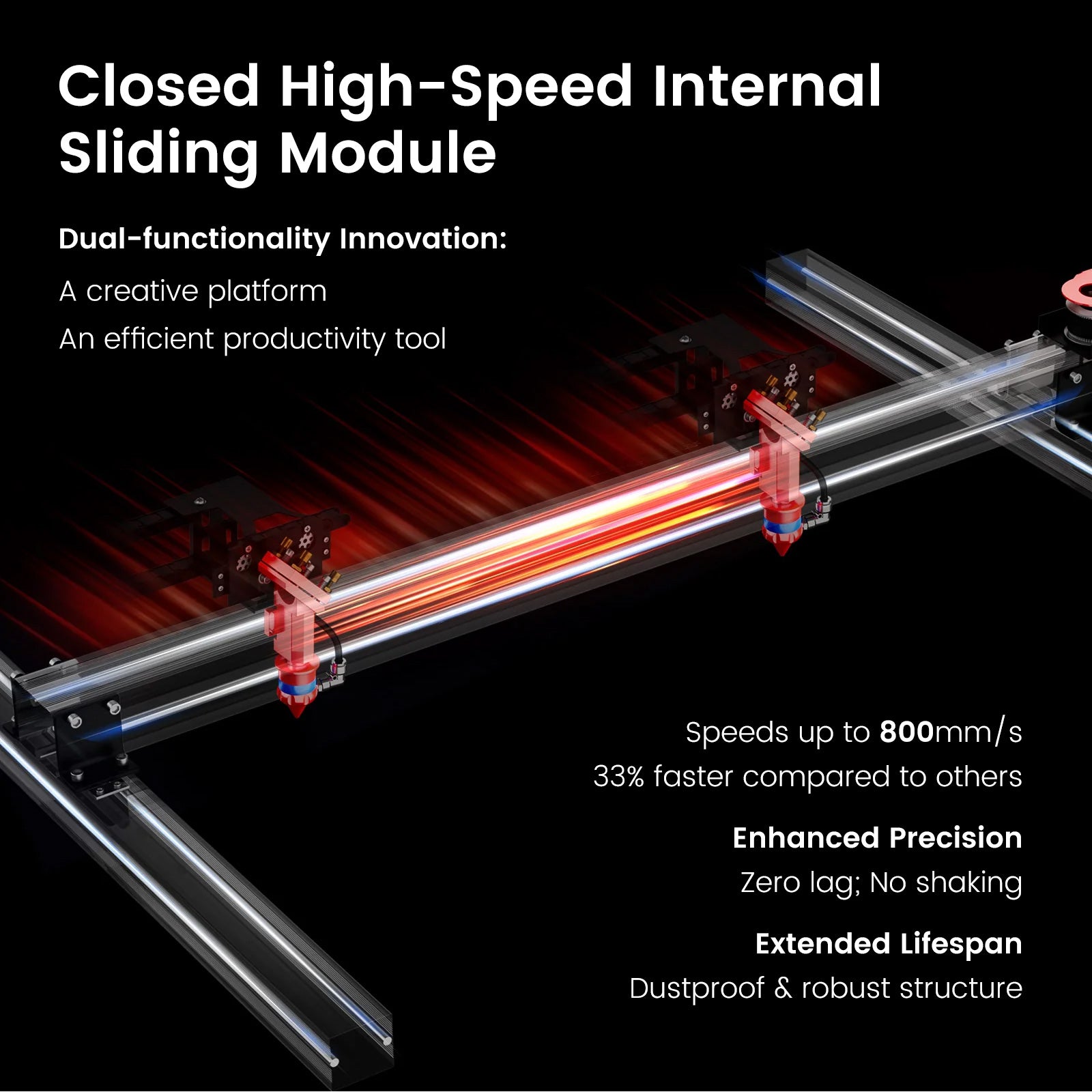

Max. Processing Speed: 800mm/s
Focal Lens Diameter: 18mm
Mirror Diameter: 25mm
Max. Acceleration ( X-Axis ): 315 ips2 ( 8000 mm/s2 )
Max. Acceleration ( Y-Axis ): 78.8 ips2 ( 2000 mm/s2 )
Max. Z-depth: 8.6”
Product Weight: 258 lb
80W CO2 Engraver Features
80W CO2 Engraver Features

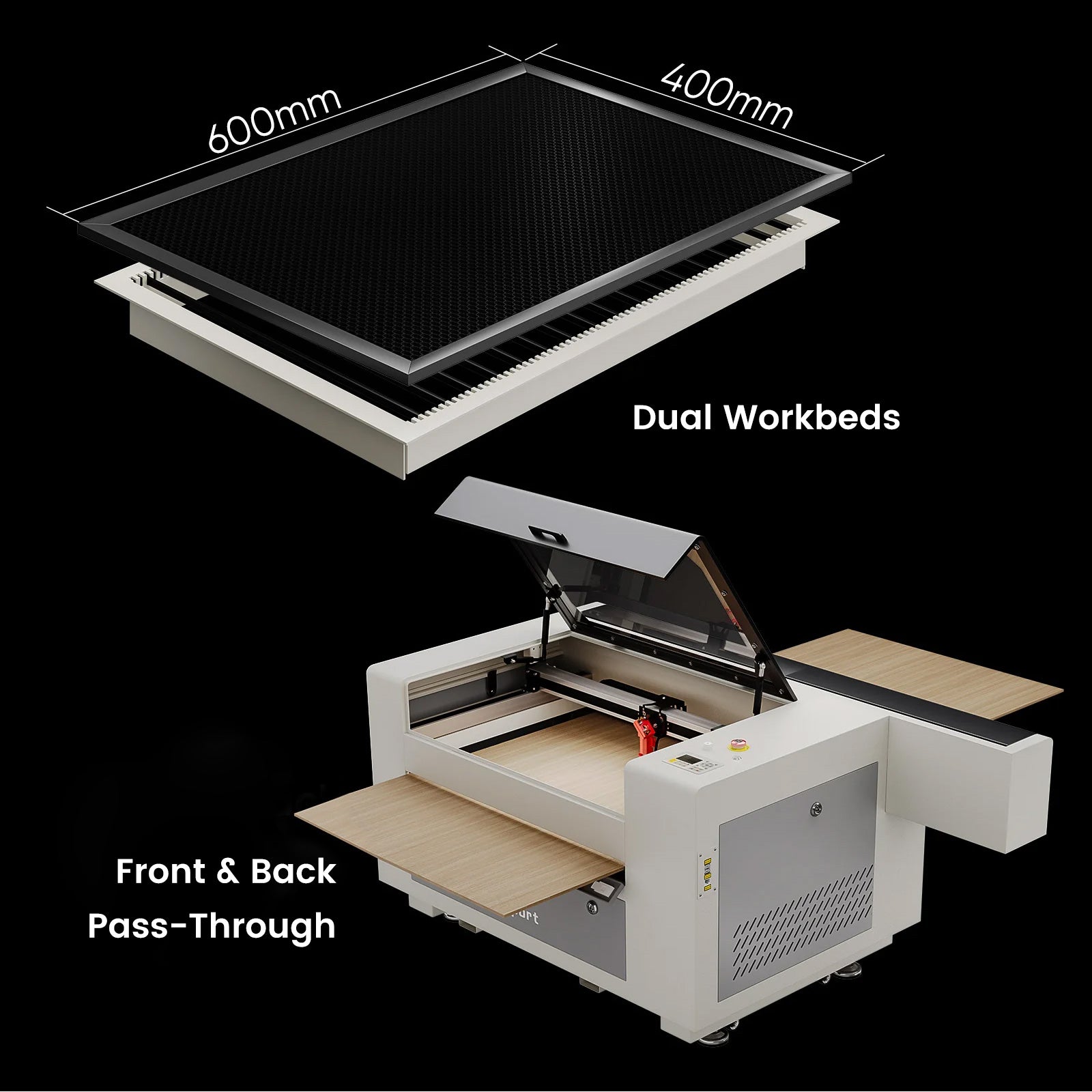

For Larger Engraving Projects
With a spacious 16*24’’ work bed, and four-way pass-through for items extending the workbed, this engraving tool is designed for big projects. The high-quality metal honeycomb board and aluminum panel provide double protection, and it's moveable for thicker materials, ensuring a secure and stable environment for your work pieces.
Great Compatibility
Monport 80W CO2 laser engraver is compatible with Windows and Mac, supporting RDWorks and LightBurn. Whether for DIY or commercial use, users can attain precise control and engravings on various nonmetallic surfaces, such as wood, glass, acrylic, leather, with a depth of 0.59'' and speeds up to 800mm/s.

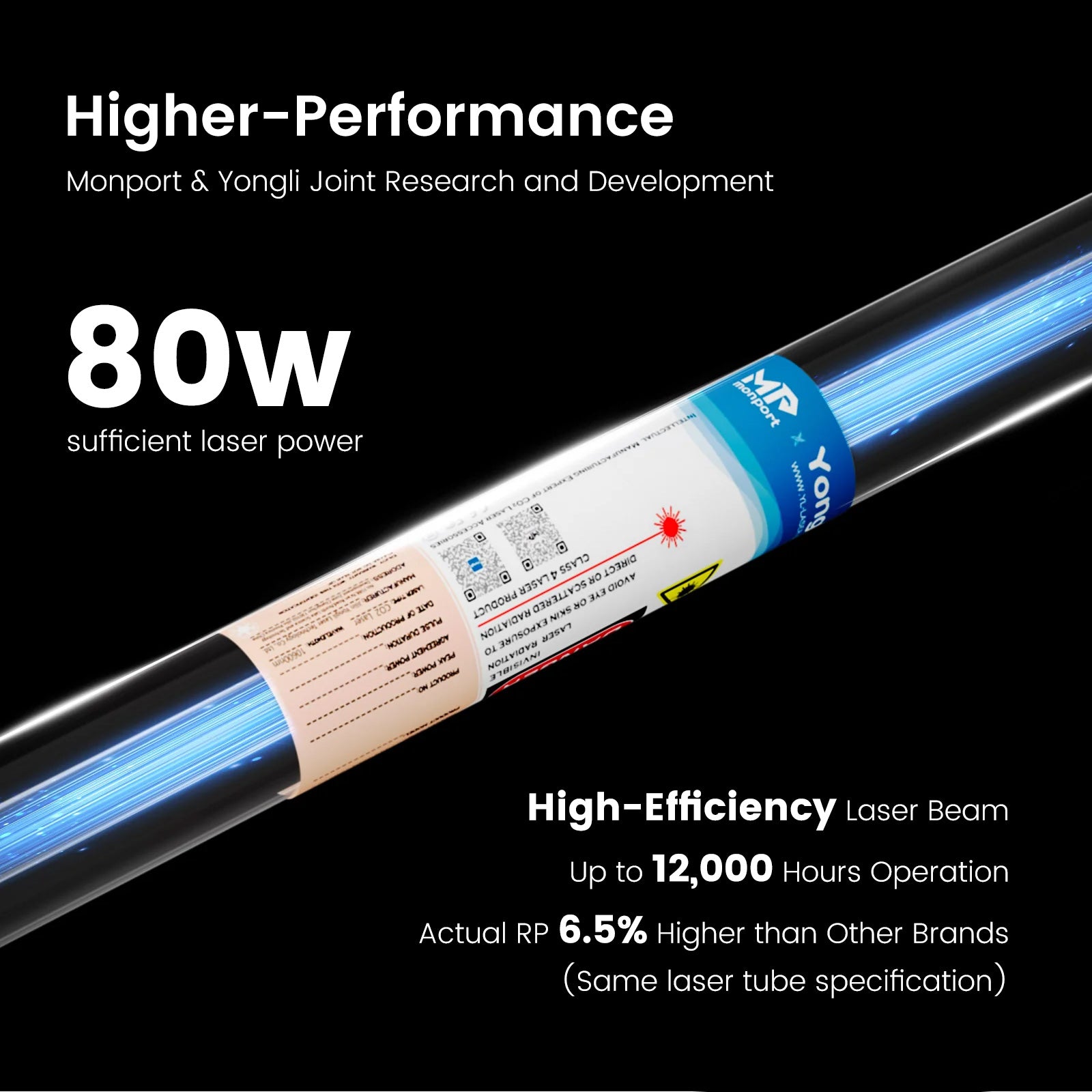

High-Performance Laser Beam
Monport & Yongli's joint research and development have produced a high-efficiency laser beam for this laser cutter, yielding up to 12,000 hours of operation. It delivers an outstanding 6.5% higher actual RP compared to competitors with identical laser tube specifications.

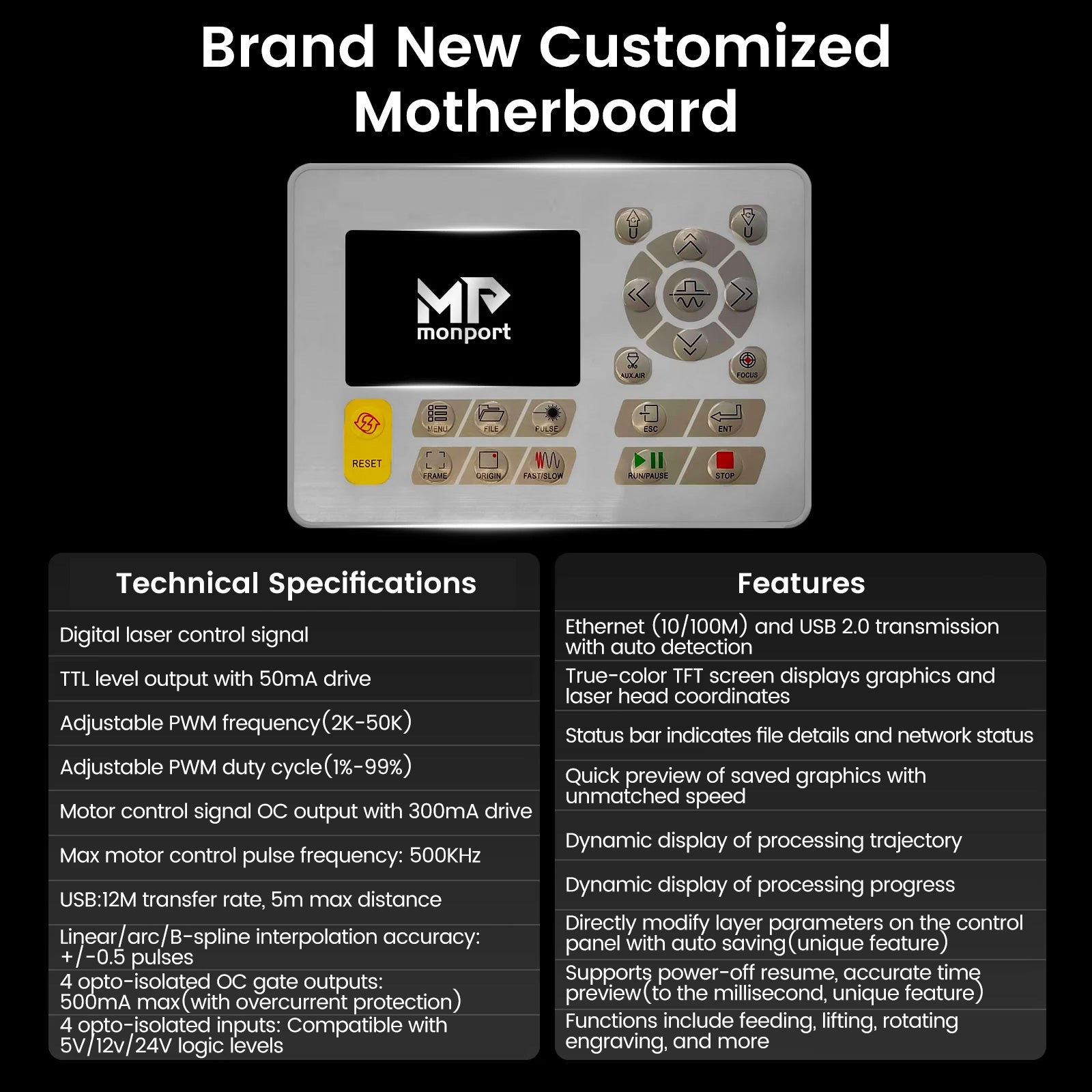

Intelligent Control Panel
Driven by Ruisin KT332N motherboard, our laser engraving machine offers direct control of auto-focusing, Z-axis movement, and air assistance. Dynamic display of processing trajectory & progress enables users to modify layer parameters on control panel with auto saving. More uniquely, the system supports power-off resume, and accurate work time preview to the millisecond.

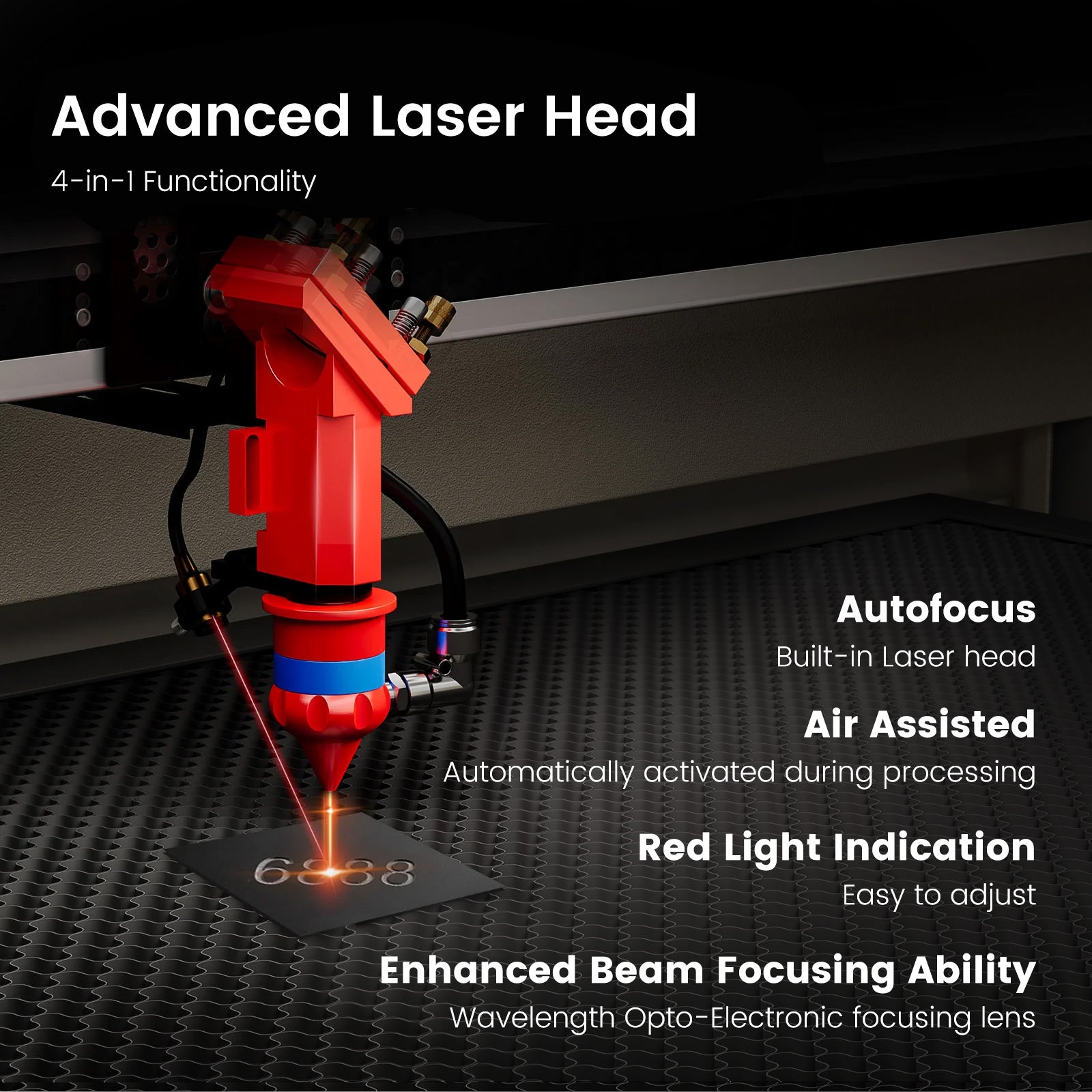

Advanced 4-in-1 Laser Head
Monport combines four functions on one laser head, including laser emission, autofocus, air assist, and red light indication. More importantly, we choose high specification focusing lenses (produced by wavelength optoelectronics).The above will give you an unprecedented carving and cutting experience and streamline your engraving process with convenience and efficiency.
Comprehensive Safety Features
Our engraving machine ensures user safety with features like an emergency stop button for fast power shutdown, independent laser control with a dedicated key, cover protection to halt operation when opened, and auto-stop for low water or high temperature.The fireproof window allows observation, while built-in ventilation ensures instant smoke removal.
Package Contents
Package Contents
Laser Engraver Machine *1
A Pair of Laser Protective Glasses *1
Accessory Bag *1
Ethernet to Ethernet Cable *1
USB Type-A to Type-A Cable *1
Venting Exhaust Duct *1
USB Drive with Software (RDworks) *1
Hex Wrenches *10
Double-sided Tape *1
Power Cord *1
Keys *2
Silicone Sealant *1
Stainless Steel Clamp *1
Instruction Manual *1
Warranty & Certifications
Warranty & Certifications
2 year warranty on all 80W laser machines and parts
1 year warranty on 80W laser tubes

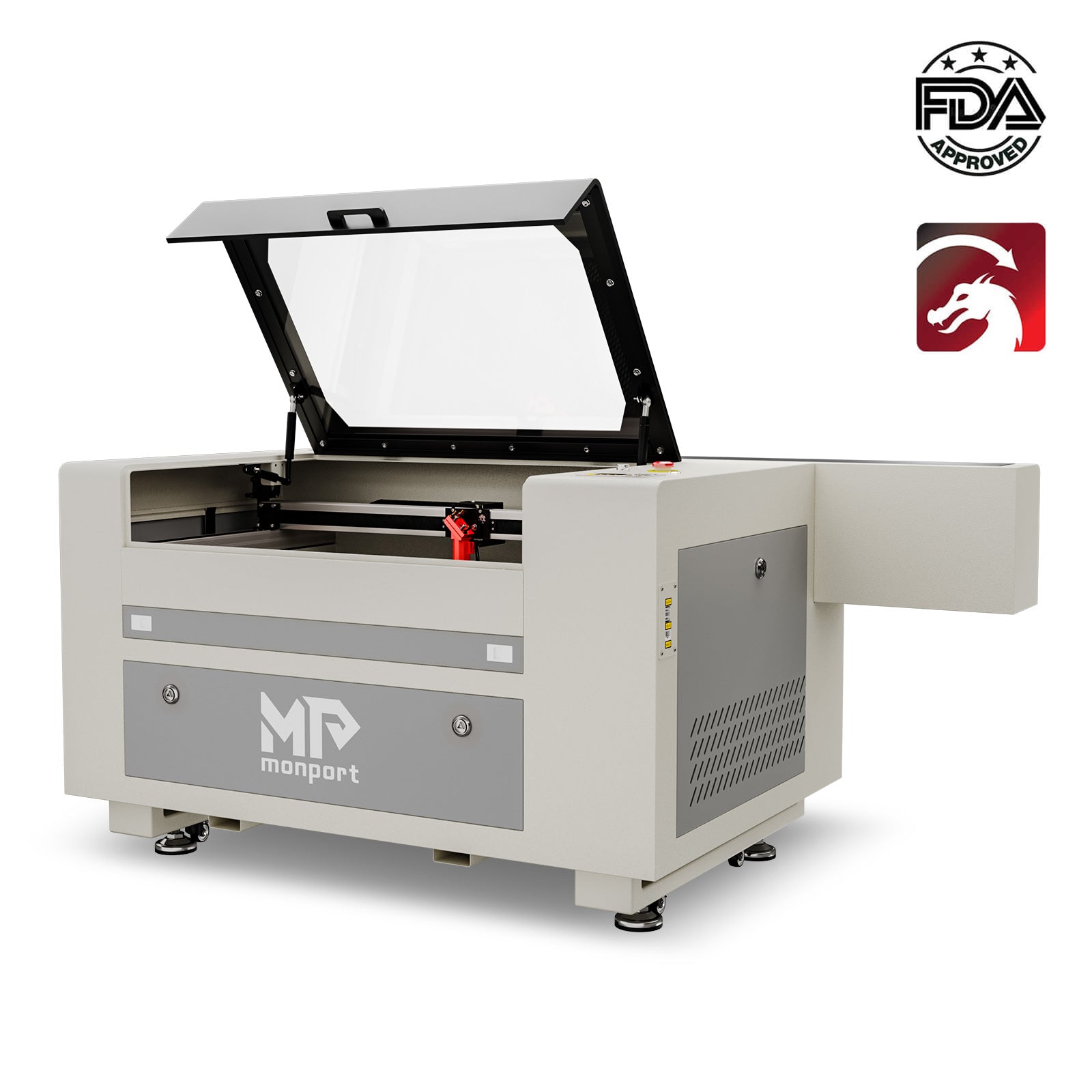

FDA Approved & CE Certified
Manual List
Manual List
Download the Software: RDworks
Download the Manual: 80W CO2 User Manual
Download the Settings: CO2 Parameter Settings
Compatible Accessories: Rotary Axis, Water Chiller
We sponsor DIY laser files: Free DIY laser files
Questions & Answers
Have a Question?
-
What is the exhuast duct size?
Exhaust Vent Diameter is 14.5cm,and the Exhaust pipe length is 1.5m
-
What controller does this machine use? is it a Ruida?
This machine uses the Ruixin model motherboard panel, which can directly control auto focus, Z-axis lifting, and air blowing control.
-
Can Monport laser 80 W laser be upgraded with a 100 W tube?
The 80W CO2 laser can be used with 80W and 60W laser tubes and cannot be upgraded to a 100W laser tube.
-
Can you run the Monport 80W CO2 Laser Engraver & Cutter (24" x 16") with Autofocus on standard house voltage, outlets?
Yes, the machine‘s’ Rated voltage is 110V. You do not need to use a different outlet.
-
Will this cut PTFE 3.2mm thick?
Yes,and it may take 7-8s to cut a circle. The maximum single cutting thickness we tested is 10mm, and this machine can also cut deeper.
