Working Dimension: 24'' x 36'' ( 61 cm x 91.5 cm )
Package Dimension: 61” x 47” x 47” ( 156 cm x 120 cm x 119 cm )
7” Standard Z-depth and 8” Max Z-depth
Package Weight: 568.8 lbs ( 258 kg )
Monport 80W Benefits
Fireproof Viewing Window
This viewing window is made from special fire-resistant polyester with iron frames. The melting point of this polyester ranges from 432° to 488° and the ignition temperature of it is over 1000°, which can dramatically decrease the possibility of fire accidents caused by the heat of laser burning the materials.

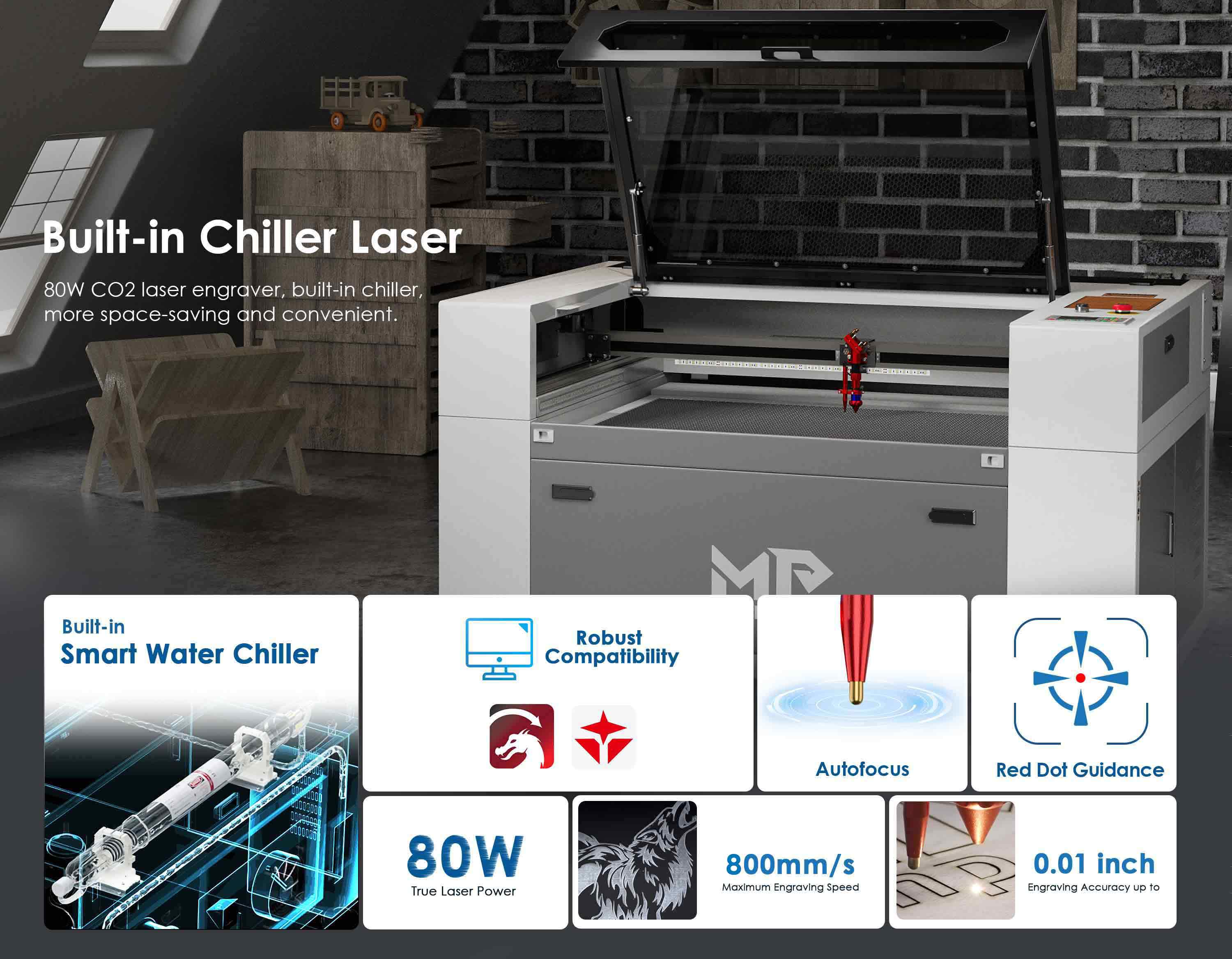

Built-in Smart Water Chiller
The built-in 4L water chiller is easy to operate and cools down the temperature without any other machines. To meet different needs, there are two cooling modes, constant and intelligent temperature modes. This professional water chiller has multiple warning protection mechanisms such as an alarm for ambient temperature, an alarm for overheated/overchilled water temperature, and so on. When the alarm occurs, the display will alternate between the water temperature and the error.
Enclosed Aeronautical Aluminum Rail
Equipped with X and Y stepper motors, this rail features efficient power transmission with high precision. The enclosed rail is designed to avoid smoke and debris and prolong the service time of rail units.
Laser Protective Glasses for Free
Lasers emit radiation in the invisible form of light. This pair of laser protective glasses is certified to protect your eyes against radiation damage by looking at the class 4 laser in any way (directly, indirectly, or even looking at the laser dot on a surface can damage your eyes).
Ruida Digital Controller
Whether your chosen software is LightBurn, RDworks, AutoCAD, or CorelDRAW, this Ruida digital controller can support the given platform. The Ruida Controller with a digital display can control the laser head, start or stop projects, adjust laser power and speed settings and so on.
80W CO2 Engraver Features
High Speed and Resolution
The Engraving Speed is up to 800 mm/s;
The Cutting Speed is up to 400 mm/s;
The Resolution is up to 4500 dpi;
3 LED light strips above the work bed provide illumination for precision;
2.0" Focal distance provides high resolution and etching of tiny fonts
Use the control panel to correct the focus automatically at the touch of a button — no more manual testing and adjustment.
Built-in Air Assist
A built-in air assist system guides a pressurized air stream through the laser head nozzle to displace debris, heat, and combustible gases from the engraving surface and laser beam path, keeping engravings more precise.
3-ways to Connect with PC End
Two USB ports provide options including flash drive connectivity and a USB-to-USB PC connection. In addition, one ethernet port is also available for connection.
Red Dot Guidance
The red dot shows the laser head position, marks the working path and frames the project sizes, assisting you with more convenience and guidance.
Automatic Safety Sensor
The safety shutdown sensor helps stopping the machine even if the window cover is on. Once closed, press the “Enter” button to continue operation.
80W CO2 Engraver Specification
Works on Windows XP, 2000, Vista, WIN 7, 8, 10 & 11, both 64 & 32 bit
MacOS (Version 10.11 and higher) ONLY with LightBurn software
Compatible with Lightburn, RDWorks, Coreldraw, Auto-CAD
Supported image formats: BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others
Laser Wavelength 10640 nm;
Rated at over 80 watt;
Recommended engraving speed: 100 - 500mm/s
Recommended cutting speed: 1 - 30mm/s (actual speed depends on the thickness of material)
Linear System— Enclosed aeronautical aluminum rails
Motion— Equipped with stepper X, Y, Z axis, plus mechanical limit switches
Cooling— Built-in 4L water chiller with two operating modes
Air Assist— Built-in air assist with no external compressor required
Ventilation— On-board exhaust fan, as well as an exhaust hose so you can vent the fumes to the outdoors
Standard 110V, AC power connection
4-pin port connection for rotary axis devices
Recommended Operating Temperature: 60-104 °F (16C-40C)
Attention: the CO2 water temperature must be maintained at60-70°F (16-21°C)
Laser Tube Lifetime
80W CO2 laser tube with an estimated lifetime of up to 8,000 operation hours depending on power setting usage and water cooling performance
PLEASE NOTE: Frequent use of high laser power settings will shorten the laser tube lifetime as follows:
Low Power 10–40% = 7,000–8,000 Hours
Moderate Power 40–70% = 5,000–6,500 Hours
High Power 70–100% = 3,000–4,000 Hours
Can safely engrave or cut any laser-compatible material
Wood, glass, acrylic, fabric, leather, paper, cardboard, rubber
Contact us with questions on specific materials not listed. If necessary, we can test it for you
Laser Engraver Machine *1
A Pair of Laser Protective Glasses *1
Accessory Bag *1
Ethernet to Ethernet Cable *1
USB Type-A to Type-A Cable *1
Venting Exhaust Duct *1
USB Drive with Software *1
Hex Wrenches *10
Double-sided Tape *1
Power Cord *2
Silicone Sealant *1
Stainless Steel Clamp *1
Instruction Manual *1
Warranty & Certifications
2-year warranty on all 80W laser machines and parts
1-year warranty on laser tube
FDA Approved & CE Certified
